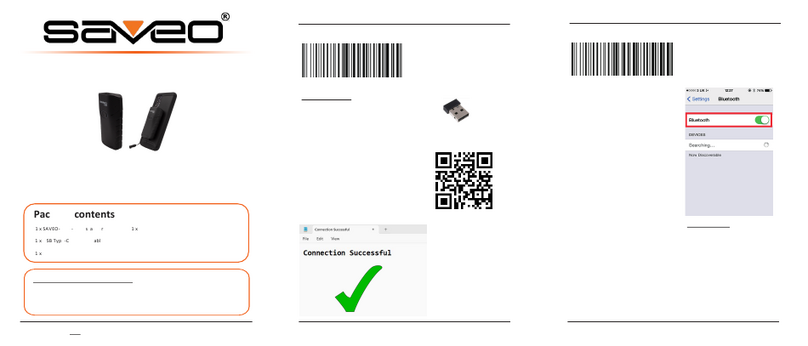

SAVEO SAVEO-SCAN-PKT-RCCD-BT User manual

2 3
1
Getting Started
Switch on and Charge your Scanner
Please switch on and charge your scanner for 3~4 hours
before rst use.
Exit window
Scan/Power
On Button Power Saving
button:
Press the button for
2~3 seconds to
enter power saving
mode
Mini USB port
with protective cover
Charge the pocket scanner with mini USB cable.
LED Indicator
(For iOS Devices
ONLY)
Button to
raise and lower
ON-Screen
Keyboard
Operating Elements
SAVEO-SCAN-PKT-RCCD-BT
Connecting via Bluetooth
Enable Bluetooth on your device
Go to your phone’s homescreen and nd “Settings”, then
“Bluetooth” and turn Bluetooth on.
Search for devices
Your phone will automatically search for devices, Saveo Scan will
appear as an external keyboard with a unique identier number
(R-xxxxxx).
Select R-xxxxxx
to connect
Please note: devices only need to be paired once. When they are within
Bluetooth range they will automatically attempt to connect to each other. If
you wish to pair to another device it is recommended you rst unpair this
device.
You are now connected. Start scanning.
Select scanner from “Available
Devices”and wait for pairing
process to complete.
Devices are now
paired
Once “Connected” is
displayed, your device is
paired to the scanner. Your
scanner is now ready to use.
Enable Pairing Mode on the scanner
From the main menu, go to “Setup” and select “BT Setup”.
1. select Setup 2. select BT setup
S> S12:52
BT setup
Status
Power
ESC ENTER ↓
From the “BT Setup” menu, choose “HID device”, then “Simple
Pairing”. This will initiate pairing mode and the scanner will
become visible to Bluetooth enabled devices within range.
3. select HID device
S/B> S12:52
SPP device
HID device
dongle
ESC ENTER ↓
S/B/H> S12:52
Simple paring
Paring
HID auto-unplug
ESC ENTER ↓
4. select Simple Pairing
Setting …
Completed!!!
You will recieve this cconrmation message. Your scanner is now
ready to pair with your device
Please Note: Saveo Scan Pocket LCD has a hibernate mode. To
enable hibernate mode, press the left and right (grey) buttons
simultaneously for 8 seconds. To wake the scanner from
hibernate mode press the middle (orange) button for 8 seconds.
MAIN> S12:52
Memory-scan
Upload
Setup
↑ENTER ↓

4
Unpairing your device
Before connecting the scanner to another device it is recom-
mended you rst unpair from the current device.
This can be done on the scanner or through the system menu on
your smartphone/tablet.
Go to the Bluetooth menu on your phone and select the option
menu for scanner from list of paired devices.
Choose “Forget this Device”/”Unpair”
5
There are two operating modes on the scanner, Direct Scan
Mode and Memory Scan Mode.
Please note: Switching between modes will wipe the scanner’s
internal memory.
Operating Modes
Direct Scan Mode
In this mode data will be sent to smartphone/tablet directly.
To enter Direct Scan Mode, select Direct Scan from the main
menu.
Memory Scan Mode
In this mode, data will be saved directly to scanner’s memory.
Go to “Upload” from the main menu to receive data stored on
scanner’s internal memory.
To enter Memory Scan Mode select Memory Scan from the main
menu.
Uploading Data
To upload data stored in the scanner’s memory, press “ESC” to
exit Memory Scan Mode and select Upload from the main menu.
Select Direct-scan
MAIN> S12:52
Direct-scan
Memory-scan
Upload
↑ENTER ↓
If you receive the following message you need to pair your
device to the scanner (see“Connecting via Bluetooth” on page 2
of this manual).
D> S12:52
Off line !!!
…Linking!
ESC SCAN MAIN
1. select Memory-scan
MAIN> S12:52
Direct-scan
Memory-scan
Upload
↑ENTER ↓
M> S12:52
SCAN:
Q’ty: 1
ESC SCAN ENTER
1. pressESC
To erase stored data after upload, select the “ERASE” option and
choose “YES” to conrm.
U/E> S12:52
Data in memory
Willbe erased!
Are you sure?
NO YES
Quantity Entry (in Memory Scan Mode only)
Disable Quantity Entry
Disable
Scan the below barcode to disable Quantity Entry in Memory
Scan Mode.
Quantity Entry allows you to input a quantity for the scanned
barcode.
When Quantity Entry is disabled you have the option to delete
the last barcode scanned when in Memory Scan Mode.
M> S12:52
1234567
ESC SCAN DEL
select DEL to delete the
last scanned barcode.
M> S12:52
Thelast code
Will be deleted !
Are you sure ?
NO YES
2. select Upload
MAIN> S12:52
Direct-scan
Memory-scan
Upload
↑ENTER ↓
U> S12:52
ESC SPEED ERASE
1. select ERASE 2. select YES to confirm
2. select YES to confirm
1.

7 8 9
Power saving mode is enabled by default and will put the
scanner to sleep after 5 minutes inactivity. To wake up the
scanner press the trigger.
Power Saving Mode
Enable
Enable Quantity Entry
Scan the below barcode to enable Quantity Entry in Memory
Scan Mode.
Data Output Order
Choose the order for data output when Quantity Entry is
enabled.
Quantity, Barcode Data
Barcode Data, Quantity
Quantity Entry Input Method
Choose whether to enter the quantity using the interface on the
scanner or by scanning numeric barcodes.
Entering quantity on the scanner
Enable
After scanning the barcode above follow the steps below to
input the desired quantity.
M> S 12:52
1234567
Q’ty: 1
ESC SCAN ENTER
M> S 12:52
Q’ty: 5---
ESC ENTER ↓↓
To enter more than single digit
numbers, press ENTER and repeat
as above. For example: To enter a
quantity of 74, rst scroll to 7, press
ENTER, then scroll to 4 and press
ENTER again.
Entering quantity using numeric barcodes
Enable
After scanning the barcode above follow the steps below to
input the desired quantity.
Numeric barcodes can be found on page XX of this manual.
Please Note: Saveo Scan Pocket LCD also features hibernate
mode. To enable hibernate mode, press the left and right (grey)
buttons simultaneously for 8 seconds. To wake the scanner from
hibernate mode press the middle (orange) button for 8 seconds.
To change the number of minutes before the scanner enters
sleep mode, go to“Setup”from the main menu, select “Sleep
Time” and enter the desired setting.
3. press ENTER
2. press the arrow to select
desired number(s)
M> S 12:52
Q’ty: 5---
ESC ENTER ↓
to confirm
1. select ENTER
M> S12:52
1234567
Q’ty: 1
ESC SCAN ENTER
M> S 12:52
Q’ty: 5---
ESC
3. scan SAVE
2. scan barcode(s) to enter
desired number(s)
M> S 12:52
Q’ty: 5---
ESC SCAN
to confirm
1. select ENTER
SCAN
1. select Setup
MAIN> S12:52
Memory-scan
Upload
Setup
↑ENTER ↓
2. select Sleep Time
S> S12:52
Status
Sleep Time
Output Speed
ESC ER ↓ENT
S/P> S 12:52
Sleeptime
05
ES ERC ENT
2. press the arrow to select the
desired number of minutes
↓↓
Output Speed
Output speed is dependent on your device. In order not to lose
data please choose the correct speed. Mid Speed is the default.
1. select Setup
MAIN> S12:52
Memory-scan
Upload
Setup
↑ENTER ↓
2. select Output Speed
S> S12:52
Status
Sleep Time
Output Speed
ESC ER ↓
ENT
S/O> S 12:52
High
Medium
Low
ES ER ↓
C ENT
3. select the desired speed

4 65
When the battery power is too low, the Orange LED will ash
and beep once. Scanner should be charged immediately. If
scanner shuts down it is recommended to charge it fully then
power it back on.
Under power-saving mode, there will not be an LED
indication when charging.
Orange LED ON Full charged
Orange LED (Flashing) Charging / Low battery
Red LED ON Oine / Out of Range
Green LED ON Good read
Orange LED ON Good read (Batch mode)
LED Indicator Information
LED Indicator
Demo
Current Battery Level
Scan to receive the current
battery level
Scan the following barcode to send battery level information
to your device. The format is outlined in the table below.
%^4^% 80% - 100%
%^3^% 55% - 80%
%^2^% 30% - 55%
%^1^% 10% - 30%
%^0^% under 10%
Battery Level Status
Output Speed
Output speed is dependent on your device. In order not to lose
data please choose the correct speed. Mid Speed is the default.
Sound Settings
Scan the barcodes below in order (A1 - A3, B1 - B3) to select
whether or not the decoder issues a beep signal after a good
decode. If selecting Disable, beeper signals are issued during
parameter menu scanning and to indicate errors.
A1
A2
A3
B1
B2
B3
Enable
(default)
Disable
Reset to Defaults
Reset Conguration to Defaults (scan from A1to A6)
HID Prole
A1
A2
A3
A4
A5
A6
A7
A8
1. select Setup
MAIN> S12:52
Memory-scan
Upload
Setup
↑ENTER ↓
2. select Output Speed
S> S12:52
Status
Sleep Time
Output Speed
ESC ER ↓
ENT
S/O> S 12:52
High
Medium
Low
ES ER ↓
C ENT
3. select the desired speed
