Savin SGC 1506 User manual

Make color a partof.
your business plan.
PRINT >SCAN >COPY >FAX >IN COLOR >
SGC 1506
Color Multifunctional System

www.savin.com
Color your world productive.
Studies show that color increases reader
comprehension and retention, not to mention the
fact that it simply makes your documents more
visually impressive. With the Savin SGC 1506,
you can nowadd color when and where you need
it, without having to waste time and resources
with outside vendors.
•Savin’s GelSprinter™color technology, featuring
Viscous Ink, is bringing affordable color to more
users than ever. Now even the most budget-
conscious organizations can produce color prints
on plain paper—even in duplex mode.
All the speed you need.
Fast and efficient, the Savin SGC 1506 makes
optimum use of your valuable time.
• Up to 15 pages per minute in black & white and
6pages per minute in full color is fast for most
everyday projects.
• Rapid recovery speeds from energy-saving sleep
mode and quick first-copy-out times keep
waiting to a minimum.
•PDF Direct Print eliminates traffic bottlenecks on
the network when you receive and print a PDF
file without opening Adobe®Acrobat®.

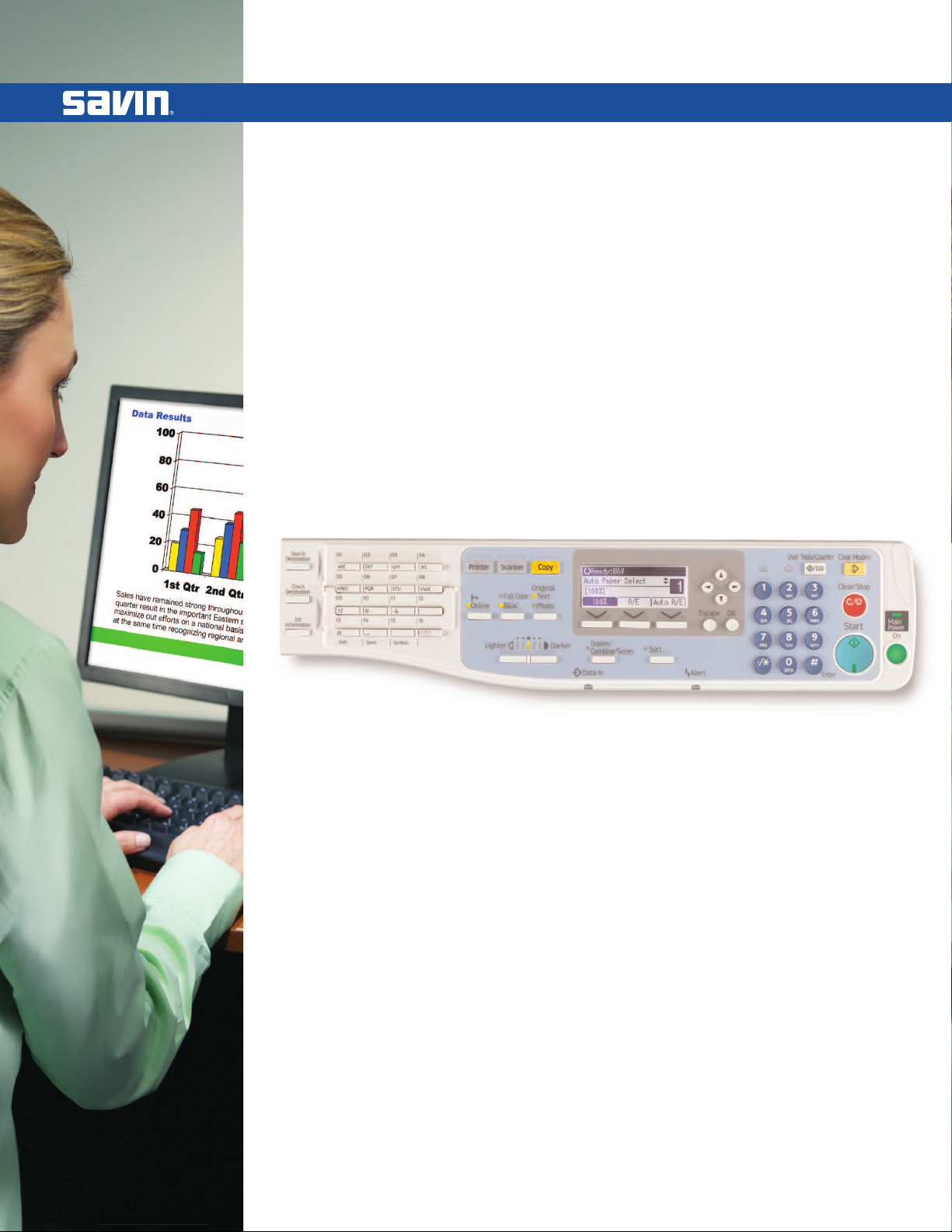

The easy-to-use control panel features an innovative tilt-down design that is comfortable for anyone to use, standing or sitting.
The multifunctional color solution.
You don’t need a big budget to get big functionality out of your next
imaging system. New technologies have made the Savin SGC 1506
Color Multifunctional System as affordable as many print-only devices.
With the ability to copy, print, scan and fax, the Savin SGC 1506 can form
the document-production core of your small office or workgroup. What’s
more, you can dramatically improve the impact of your documents and
the image of your organization.
>

One compact system, a
complete document solution.
Whether you need to copy, print, scan, fax or
send documents over the Internet, the Savin
SGC 1506 lets you do it all from a single,
compact, easy-to-operate system.
• Copy or print up to 15 ppm in black &
white and 6 ppm in full color.
• 1,351-sheet maximum paper capacity
improves productivity.
• Access your own internal e-mail address
books via LDAP.
• Print up to 12" x 18" documents in black
&white or full color.
• Scan-to-Folder lets you send scanned
forms, reports and other documents
directly to a designated folder for quick
access by any authorized network user.
•Add the optional fax capability and
communicate at a quick 3 seconds per
page with a Super G3 33.6 Kbps modem
with JBIG compression.
•Fax without leaving your desk with LAN-
Fax; plus, you can eliminate long-distance
phone charges by faxing over the Internet.
Acost-saving approach
to color.
The Savin SGC 1506 is designed to make
color accessible to the greatest number
of users. To accomplish that objective,
cost-saving features are an integral
component of the design.
• Up to 12" x 18" printing capability means
even greater versatility for your projects,
expanding your in-house capabilities and
reducing your outsourcing costs.
• Send documents at high speeds at no cost
with IP-Fax, which transmits scanned docu-
ments over a LAN or WAN to an IP address.
• Significantly reduce your document
distribution costs with Savin’s powerful
Scan-to-Email capabilities, which allow
you to send documents as TIFF, PDF or
JPEG files directly to any e-mail address
over the Internet.
• Four long-life print cartridges signifi-
cantly lower your total cost per printed
page—in both black & white and color.
Connected and secure.
Fully network connectable, the Savin
SGC 1506 makes network connections easy,
while protecting your data and documents.
• Standard PCL5c/6 and optional Adobe®
PostScript®3™provide easy accessibility to
all users.
• Refined Print Command Stream (RPCS™),
an icon-based print driver, enables users
to set up specific job parameters and then
output those jobs with a single mouse click.
• 10/100BaseT Ethernet or a USB 2.0
Interface allow seamless connections to
your network or PC right out-of-the-box;
you can even connect wirelessly.
• Enhanced security features such as user
codes, authentication, encryption, unauthor-
ized copy control and hold print protect your
business and critical documents.
Separate GelSprinter™ink cartridges maximize ink
usage and keep replacement costs to a minimum.
The bypass trays can accommodate documents
up to 12" x 18", and the single-sheet bypass
tray allows you to print on heavy card stock.
Create colorful reports, presentations, proposals,
envelopes and more with the Savin SGC 1506.

Business quality on
an inkjet budget.
The Savin SGC 1506 is a highly capable
system that delivers the quality you would
expect from much more costly systems.
•Make your reports, presentations, flyers and
brochures come alive with high-resolution
600 x 600 dpi color and black & white.
Easy management.
Make the most of your time with the
advanced management solutions of the
Savin SGC 1506.
• Access or change a system’s settings,
view print job status, and check ink
and paper supplies from your desktop
using Web Image Monitor™
.Or manage
all of your networked resources with
WebSmartDeviceMonitor™
.
•Send meter data automatically via
@Remote, Savin’s Intelligent Remote
Management System.
• Quickly view thousands of pages of stored
documents across numerous folders, and
then easily combine them into a single
document for printing or e-mailing using
standard DeskTopBinder™V2 Lite or optional
DeskTopBinder™V2Pro.
The Savin SGC 1506 makes it easy to copy,
print, scan and fax in full color—all from
asingle, affordable system. So contact your
Savin dealer today and make color a part of
your business plan.
Your Environmental Partner
This ENERGY STAR®compliant system continues
along-standing commitment to developing office
solutions with superior energy- and supply-saving
features, including;
•Fast First Copy and Recovery Times
• Power-saving Sleep Mode
•Duplex and Combine Copy Modes
• Toner Recycling
•LowNoise Levels
•Minimal Ozone Emissions
• RoHS (Restriction of Hazardous Substances)
Compliant
SGC 1506 Color Multifunctional System
PRINT >SCAN >COPY >FAX >IN COLOR >

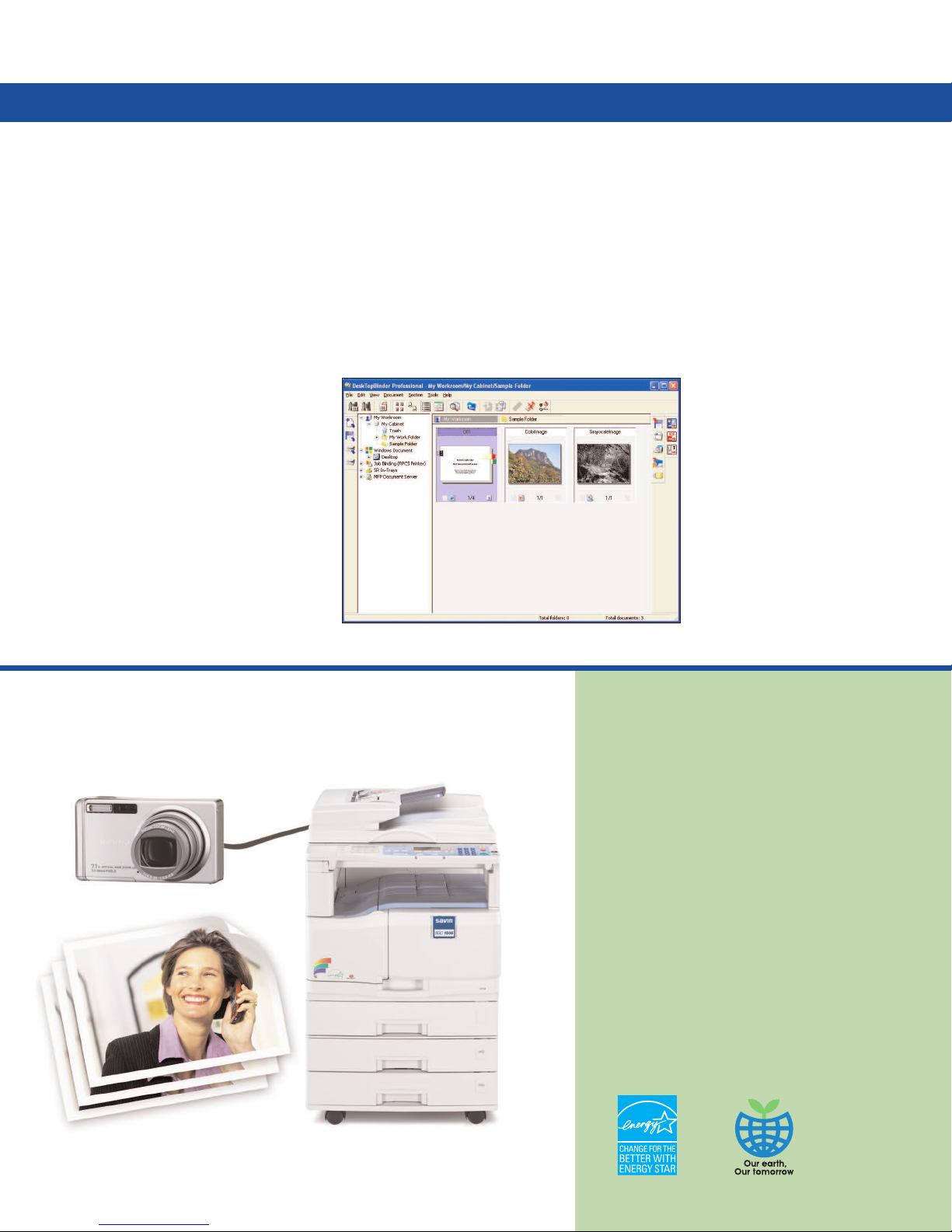

Print photos.
You can print photos directly from a digital camera with the Savin SGC 1506.
Tree View shows files in customized
DeskTopBinder folders, ScanRouter
In-Trays, and local and network folders.
Thumbnail View displays saved files
for easy retrieval.

Tilt Control Panel
Enables accessibility to all users.
Internal Output Tray
Holds up to 250 sheets, accommodating
even the longest job runs.
Platen Glass
11" x 17" platen glass allows
you to keep large-document
copying in house.
Duplex Unit
Optional duplex unit allows copying
and printing on both sides of each
sheet of paper, potentially reducing
paper usage by half.
Automatic Document Feeder/
Automatic Reversing Document Feeder
Optional 30-sheet ADF or 50-sheet ARDF
streamline document scanning.
The Savin SGC 1506 makes it easy to print
on envelopes.
Bypass Trays
Standard 1- and 100-sheet bypass
trays accept a wide range of media
types and sizes up to 12" x 18".
“Viscous” Inks
Individual GelSprinter “Viscous” Ink
cartridges are easy to replace.
Pre-Programmed Features
Speed, quick and group dials
offer shortcuts when scanning
or sending faxes.
500-Sheet Paper Trays
One or two optional 500-sheet
paper trays maximize time
between refills.
250-Sheet Paper Tray
Standard 250-sheet tray
is easy to fill.
Take advantage of Savin’s advanced Color
Scan-to-Email capabilities to distribute your
documents via e-mail at virtually no cost.
Automatic Duplexing (with optional ARDF) lets
you copy and scan two-sided documents—
up to 11" x 17"—which significantly reduces
paper, document storage and postage costs.

Savin Five Dedrick Place, West Caldwell, NJ 07006
SAVIN®is a registered trademark of Ricoh Corporation. Windows®
and Windows®95/98/Me/ NT4.0/2000/XP are registered trademarks
of Microsoft Corporation. Macintosh®, Mac®OS and AppleTalk®are
registered trademarks of Apple Computer,Inc. Adobe®and PostScript®
are registered trademarks of Adobe Systems, Inc. RPCS™is a trademark
of Ricoh Company, Ltd. All other trademarks are the property of their
respective owners.
Print speed may be affected by network, application
or PC performance. Specifications and external appearances are subject
to change without notice. Products are shown with optional features.
Printed in U.S.A. on recycled paper. S2194
ENGINE/COPIER SPECIFICATIONS
Configuration Console
Scanning Element Flatbed with CCD array
image-sensing element
Printing Process On demand piezo inkjet system
Pigment-based ink
System Memory (std./max.) 384 MB/640 MB shared
Hard Disk Drive 40 GB
Document Feeder Optional 30-sheet ADF
Optional 50-sheet ARDF
Copy Resolution 600 x 600 dpi
Grayscale 256 levels
Exposure Adjustment Manual & Automatic
Quantity Indicator Up to 99
Original Type Book/Sheet
Maximum Original Size Up to 11" x 17"
Copy Size 5.5" x 8.5" to 11" x 17"
Copy Type Plain Paper, Postcards, Envelopes
Warm-Up Time 60 Seconds
First Copy Speed B/W: Less than 9.7 Seconds
Color: Less than 24 Seconds
Continuous Copying Speed* B/W: Up to 15 cpm
Color: Up to 6 cpm
Recovery Time Less than 5.5 Seconds
(from Auto Off)
Power Source 120V/60Hz
Dimensions (WxDxH) 21.6" x 28.7" x 19.1"
Weight 109.13 lbs.
Standard Paper Capacity 250 sheets x 1 tray
100-sheet Bypass Tray
1-sheet Bypass Tray
Optional Paper Capacity 500 sheets x 1 tray
500 sheets x 2 trays
Paper Size 5.5" x 8.5" to 11" x 17"
(Paper Trays)
5.5" x 8.5" to 12" x 18"
(100-sheet Bypass Tray)
5.5" x 8.5" to 12" x 18"
(1-sheet Bypass Tray)
Paper Weight 16 to 28 lb. Bond (Paper Trays)
16 to 43 lb. Bond (100-sheet
Bypass Tray)
16 to 55 lb. Bond (1-sheet
Bypass Tray)
16 to 28 lb. Bond (Duplex Tray)
Reduction Ratios 25%, 50%, 65%, 78%, 93%
Enlargement Ratios 121%, 129%, 155%, 400%
Zoom 25% to 400% in 1% increments
Copier Features Auto Start, Auto Tray Switching,
Automatic Magnification
Selection, Automatic Paper
Select, Combine Copy,
Duplex Copy,Electronic Sort,
Image Rotation, Series Copy,
User Codes
*Speed varies by page coverage.
SCANNER SPECIFICATIONS
Scanning Speed Embedded Scanning
42 spm @200 dpi Black & White
13 spm @200 dpi Full Color
Scanning Resolution
100 dpi – 600 dpi (Scan-to-Email/Folder)
100 dpi – 600 dpi (TWAIN Color)
100 dpi – 1200 dpi (TWAIN Black &
White)
Grayscale 256 Levels
Scan Area 11.69" (297 mm) (Main Scan)
17.01" (432 mm) (Sub Scan)
Scan Mode Black & White: Text/Line Art (Default),
Text, Text/Photo, Photo (Default),
Grayscale
Color: Text/Photo (Default), Glossy Photo
(Default)
Image Adjustment Manual (5 Levels)
File Formats Black & White: TIFF (MH, MR, MMR),
Grayscale, Full Color: JPEG
Scan-to-Modes Scan-to-Email (with LDAP support),
Scan-to-Folder (SMB, FTP, NCP)
Standard Interfaces 10/BaseT/100BaseTX
Optional Interfaces IP over IEEE1394, IEEE802.11b
Protocol Network: TCP/IP
Sending e-mail: SMTP, POP3
Scan-to-Folder: SMB, FTP, NCP
Std./Max. Memory 384 MB/640 MB shared
Scanner Features Embedded Scan-to-Email, Folder
PRINTER SPECIFICATIONS
Print Speed* Up to 15 ppm (Black & White)
Up to 6 ppm (Full Color)
CPU RM5231A 400 MHz
Standard Interfaces 10/BaseT/100BaseTX, USB2.0
Optional Interfaces USB Host Interface (PictBridge),
IEEE1284/ECP, IEEE1394, IEEE802.11b
(WPA Support), Bluetooth
Std./Max. Memory 384 MB/640 MB shared
Network Protocol TCP/IP, IPX/SPX, SMB, AppleTalk (auto
switching)
Network Operating Windows 95/98SE/NT4.0/2000/Me/XP/
Systems Server 2003, Netware
Unix: Sun Solaris, HP-UX, SCO
OpenServer, RedHat Linux, IBM AIX,
Mac OS
Utilities SmartDeviceMonitor, Web Image Monitor,
WebSmartDeviceMonitor,
DeskTopBinder V2 Lite/Pro
Page Description PCL5c/6, RPCS
Languages Adobe PostScript™3(optional)
Print Resolution Up to 600 dpi
Fonts for PCL 5c/6 45 Roman Fonts, 13 International Fonts
Fonts for PS3 136 Roman Fonts
Printer Features Duplex, PDF Direct Print, PictBridge
Direct Printing, Sample/Locked/Hold/
Stored/Store & Print, Watermarks
*Speed varies by page coverage.
FACSIMILE SPECIFICATIONS (OPTIONAL)
Circuit PSTN, PBX
Compatibility ITU-T G3
Resolution 200 x 400/200/100 dpi
Compression Method MH, MR, MMR, JBIG
Scanning Speed 1 second (8.5" x 11", Standard/Detail
mode)
2seconds (8.5" x 11", Super Fine
mode)
Modem Speed 33.6 Kbps
Transmission Speed G3: 3 seconds per page (MMR
Compression)
G3: 2 seconds per page (JBIG
Compression)
Memory 4 MB (approximately 320 pages)**
Memory Backup 12 Hours
Auto Dials 150 Numbers, including 32 Quick Dials
Group Dials 10 Groups (100 numbers per Group)
ID Code Programming 4 Digits
User Function Key 3 Keys
Additional Modes Internet Fax (T.37), IP-Fax (T.38),
Supported LAN-Fax
Facsimile Features Dual Access, Duplex Transmission,
Fax Color Reception (Black/Cyan/
Magenta), Fax Forwarding to e-mail,
Fax Reception notice via e-mail,
Fax Transmission notice via e-mail,
Image Rotation
**Based on ITU-Test Chart #1 in standard mode.
HARDWARE ACCESSORIES
DF2000 Automatic Document Feeder
Original Size 5.5" x 8.5" to 11" x 17"
Original Weight 14 to 28 lb. Bond
Original Capacity 30 sheets
Dimensions (WxDxH) 21.6" x 18.5" x 3.55"
Weight 15.4 lbs.
DF2010 Automatic Reversing Document Feeder
Original Size 5.5" x 8.5" to 11" x 17"
Original Weight 10 to 34 lb. Bond (simplex)
17 to 28 lb. Bond (duplex)
Original Capacity 50 sheets
Dimensions (WxDxH) 21.6" x 18.5" x 5.1"
Weight 22.05 lbs.
AD2000 DuplexUnit
Original Size 8.5" x 11" to 11" x 17"
Original Weight 20 to 28 lb. Bond
Dimensions (WxDxH) 21.6" x 24.4" x 4.4"
Weight 24.4 lbs.
PS460 Paper Bank
Paper Capacity 500 Sheets x 1 Tray
Paper Size 5.5" x 8.5" to 11" x 17"
Paper Weight 16 to 28 lb. Bond
Dimensions (WxDxH) 21.6" x 20.5" x 5.3"
Weight 26.1 lbs.
PS450 Paper Bank
Paper Capacity 500 Sheets x 2 Trays
Paper Size 5.5" x 8.5" to 11" x 17"
Paper Weight 16 to 28 lb. Bond
Dimensions (WxDxH) 21.6" x 20.5" x 10.6"
Weight 55.1 lbs.
SECURITY SPECIFICATIONS
DataOverwriteSecurity System (DOSS) Type D: Security
feature that overwrites latent data on the system’s hard
drive after copy, scan, fax and print jobs.
Other Security Features: User Authentication, SNMP v3,
PDF Password Encryption, Driver Encryption Key, Mask Type
for Copying, Encrypt Address Book
www.savin.com
PRINT >SCAN >COPY >FAX >IN COLOR >
SGC 1506 SPECIFICATIONS
ADDITIONAL OPTIONS
Facsimile Option Type C1500, Function Upgrade Option Type
C1500, PostScript3 Unit Type C1500, IEEE1284 Interface
Board Type A, Bluetooth Interface Type 3245, IEEE1394
Interface Type B, IEEE802.11b Interface Type H, USB Host
Interface Unit Type A, Camera Direct Print Card Type A,
VM Card Type D, Marker Type 30, Copy Data Security Type A,
DataOverwrite Security Unit Type D, Counter Interface Unit
Type A, Handset Type 1018, AccessibilityHandle Type B, Platen
Cover Type 1018, FAC31 Small Cabinet, FAC32 Large Cabinet
Savin consumables: for maximum performance and yield,
we recommend using genuine Savin parts and supplies.
