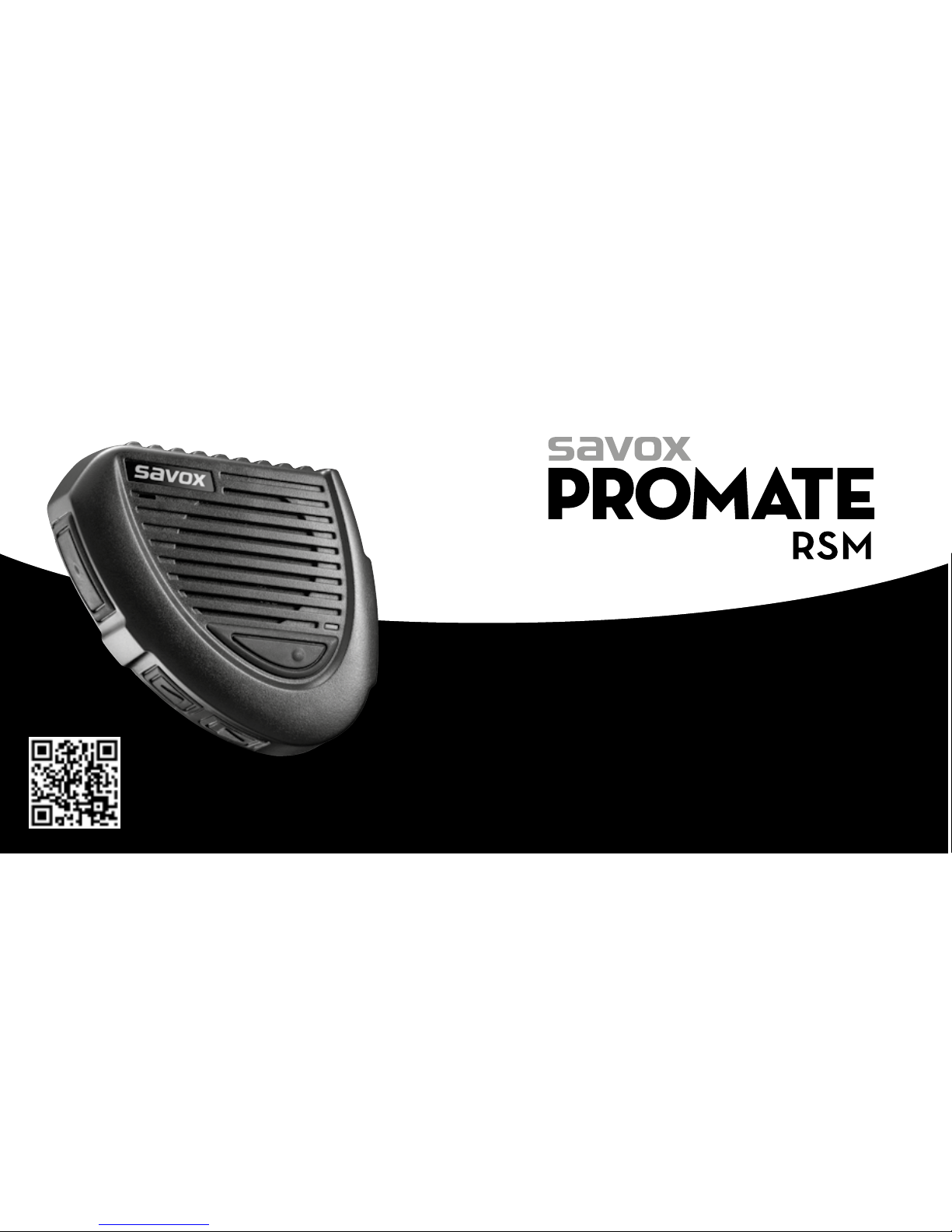

Savox Promate RSM BTR-155 User manual
Copyright © 2014 Savox Communications
D23483
savox.com/products
Quick guide
Guía rápida
Guide pratique
Kurzanleitung
ENGLISH | ESPAÑOL | FRANÇAIS | DEUTSCH
2 3
Quick guide content
1 Sales package content ............................................................. 6
2 Product overview .....................................................................8
3 Product instructions ............................................................... 10
4 Light indicatiors .....................................................................14
5 Care and maintenance ...........................................................16
6 Disclaimer ..............................................................................22
en es Índice de la guía rápida
1 Contenido del paquete ....................................................................32
2 Vista general del producto .............................................................34
3 Instrucciones del producto ............................................................ 36
4 Indicadores luminosos ................................................................... 40
5 Cuidado y mantenimiento ............................................................. 42
6 Exención de responsabilidad ......................................................... 46
4 5
fr de Kurzanleitung: Inhalt
1 Verpackungsinhalt ...........................................................................82
2 Produktübersicht ............................................................................84
3 Bedienungsanleitung .................................................................... 86
4 LED-Anzeigen ............................................................................... 90
5 Pege und Wartung ...................................................................... 92
6 Haftungsausschluss ....................................................................... 98
Table des matières du
guide pratique
1 Contenu de l’emballage ......................................................... 58
2 Aperçu du produit ..................................................................60
3 Instructions concernant le produit .......................................... 62
4 Indicateurs lumineux ..............................................................66
5 Entretien et maintenance ....................................................... 68
6 Limitation et exclusion de garantie et de responsabilité...........74
6 7
The sales package contains following items:
a. Savox Promate RSM
(BTR-155, Professional Bluetooth Remote
Speaker Microphone)
b. Modular wired earpiece
c. Charger
d. USB cable
e. Carrying strap
f. Quick Guide
1
English
Sales package content
English
A B C
D E F
8 9
10
4
5

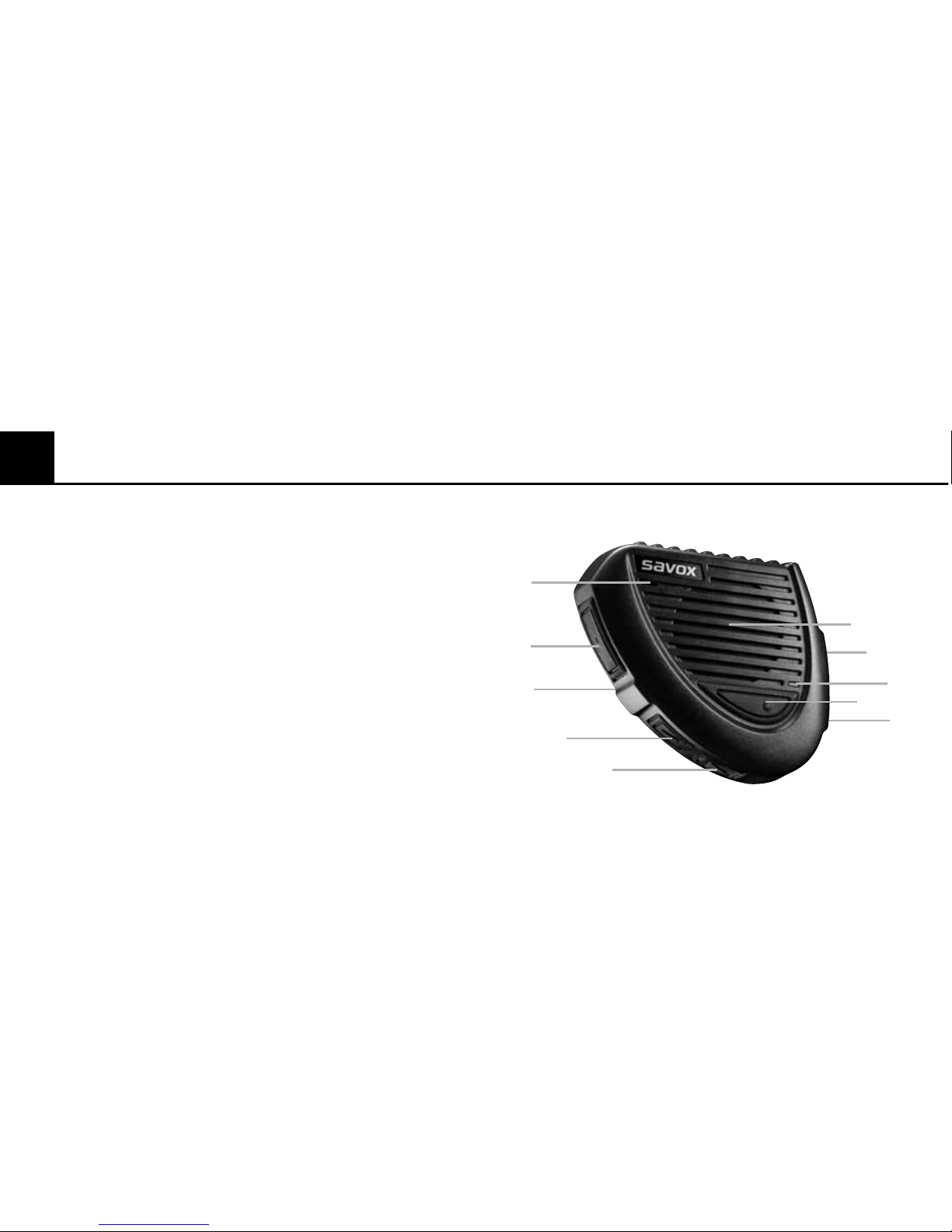

Product overview
2
Savox Promate RSM
1. Volume + button
Increase volume
2. Volume – button
Decrease volume
3. Multifunction button
(MF button)
Power on/off, pairing,
answer/end/reject calls/answer
waiting call and switching
between the active calls/dial
to the last called number
4. USB charger connector
5. Audio connector
6. Microphone
7. PTT button
8. Indicator light
Status indication (blue, red,
green, purple and yellow)
9. Speaker
10. Clothes clip
7
1
3
9
EnglishEnglish
2
6
8
10 11
Product instructions
3
Power on When the device is off, press and hold the MF button
for 2 seconds. Purple light ashes once and the
device turns on.
When powered on for the rst time, the device goes
to pairing mode automatically.
After the rst use, it will automatically reconnect
with the last paired device within 10 meters when
powered on.
Power off When the device is on, press and hold the MF button
for 3 seconds. Purple light ashes once and the
device turns off.
Pairing When the device is off, press and hold the MF button for
5 seconds. Blue and red light ash alternately. To complete
the pairing, follow the instructions in your radio or mobile
phone user guide. Select “Savox BTR-155” and use the
passcode 0000.
PTT calls Press and hold the PTT button to make a PTT call.*
* In order to make PTT calls, a compatible PTT service in radio or mobile phone is required
For Sonim phones:
1. Press the PTT button to initiate the PTT call.
2. Press the End Call button on the phone to end the PTT call.
3. On PTT call, press and hold the PTT button to take the oor and speak. Release the
PTT button to yield the oor.
Note: with backlight turned off, press the PTT button to turn on the backlight.
EnglishEnglish
12 13
Phone calls Making a call
Make calls with your phone as you normally
would. The call will be connected to the device
automatically.
Answering a call
Click the MF button.
Ending a call
Click the MF button.
Rejecting a call
Press and hold the MF button for 2 seconds.
Call to the last dialed number
Double click the MF button.
To use this feature, your phone must support this function.
Product instructions
3
EnglishEnglish
Answer waiting call
Short click the MF button.
To use this feature, your phone and network must support call waiting.
Swapping between the held and active calls
Press and hold the MF button for 2 seconds.
To use this feature, your phone must support this function.
Vol + / Vol – Press the Volume + and Volume – buttons to adjust the
volume.
Mute / De-mute Press and hold the Volume + and Volume – buttons
microphone at the same time for 2 seconds.
Reset pairing When the device is in pairing mode, press Volume +
and Volume – buttons for 3 seconds. The device turns off.
14 15
Light indicatiors
4
Savox Promate RSM uses a Tri-color LED light (blue, red and green). It shows
as purple when blue and red turn on at the same time. It shows as yellow
when green and red turn on at the same time. Different light combinations
represent different statuses.
Powered, Purple light ashes once. Red light ashes.
not connected
Powering off Purple light ashes once. Device turns off.
Connected Blue light ashes.
Pairing mode Blue and red light ash alternately.
Active Green light ashes.
phone call
Battery low Yellow light ashes.
Charging battery Red light on.
Charging Red light turns off.
completed
EnglishEnglish
16 17
Care and maintenance
5
Power Management
This product is powered by a built-in rechargeable battery which cannot
be changed. Do not attempt to replace the battery – you may damage
the battery, which could cause overheating and injury. Rechargeable
battery can be charged and discharged hundreds of times, but it will
eventually wear out. After a period of time that will vary depending on
the conditions of use you may nd that the built-in battery will power
your product for only a couple of hours requiring you to charge it more
frequently. The battery should be replaced only by SAVOX or a SAVOX
Authorized Service Provider.
Charge your device only using the charger provided in the original sales
package. Unplug the charger when not in use. Do not leave the device
connected to the charger for longer than necessary, since overcharging
may shorten the battery lifetime.
If left unused a fully charged battery will discharge itself over time.
Temperature extremes may affect the ability of the battery to charge.
Always try to keep the device between 15 °C and 25 °C (59 °F and 77 °F).
Leaving the device in hot or cold places, such as in a closed car in summer
or winter conditions will reduce the capacity and lifetime of the battery.
A device with a hot or cold battery may not work for a while even when
the battery is fully charged. Battery performance is particularly limited in
temperatures well below freezing. Do not charge in humid environment.
EnglishEnglish
18 19
Care and maintenance
5
• Do not sink the device in water or other liquid
• Do not expose the device to high temperatures for long periods
of time. High temperatures can shorten the life time of electronic
devices, damage the battery and warp or melt certain plastics
• Do not expose the device to low temperatures for long periods of
time. After returning to normal temperatures, moisture can form
inside the device and damage the electronic circuitry
• Do not drop, knock or shake the device. Rough handling can break
internal circuit boards and delicate mechanical parts
• Do not use harsh chemicals, cleaning agents or strong detergents,
when cleaning the device
• Use a soft, clean and dry cloth to clean lenses, LCD faces and
other similar surfaces that scratch easily
• Do not expose the device to sharp objects as this can cause
scratches and damage
• Do not put anything inside the device as this may damage internal
components
• Do not dismantle the device or the charger as neither contain
serviceable parts. Disassembling the device may expose dangerous
voltage levels or other hazards
EnglishEnglish
20 21
Care and maintenance
5
the device settings and other external factors.There is no single volume
setting that is appropriate for you or for every combination of sound,
setting and equipment. Please use your personal judgment and common
sense when adjusting the volume of the device.
Modication: Any changes or modications to this device not expressly
approved in this document could void your warranty and void your
authorization to operate this equipment. Use only approved batteries and
chargers. The use of any unauthorized accessories may be dangerous and
may void the device’s warranty if said accessories cause damage or defect
to the device.
Health and Safety Information
Damage: The device is made of metal and plastics which could break if
it is dropped or if it receives signicant impact. Do not use the device if
the device’s casing is broken or cracked as this could cause injury to you.
Responsible Listening: Damage to hearing occurs when a person
is exposed to loud sounds over time. Hearing loss may increase as
sound is played at louder volumes and for longer durations. Individual
susceptibility to sound-inicted hearing loss and hearing problems may
vary. In addition, the volume of sound produced by this device may
depend on the nature of the sound, the device to which it is connected,
WARNING: Failure to follow these safety instructions could result in
re,electric shock,or other injuries,or damage to your device or other
property. Read all safety information below before using this device.
EnglishEnglish
22 23
DISCLAIMER OF WARRANTIES: TO THE FULLEST EXTENT PERMISSIBLE
PURSUANT TO APPLICABLE LAW, SAVOX COMMUNICATIONS OY AB (LTD)
(“SAVOX”) DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO (A) MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY RIGHTS, (B) THAT THERE
ARE NO VIRUSES OR OTHER HARMFUL COMPONENTS, (C) REGARDING
CORRECTNESS, ACCURACY, OR RELIABILITY, OR (D) AGAINST INTERFERENCE
WITH OTHER DEVICES. THE HARDWARE AND COMPUTER SOFTWARE
PROVIDED TO YOU ARE PROVIDED WITH ALL FAULTS, AND THE ENTIRE
RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, AND ACCURACY IS
WITH YOU ALONE. SAVOX IS, UNDER NO CIRCUMSTANCES, RESPONSIBLE
FOR ANY UNAUTHORIZED USE OR MODIFICATION OF THE DEVICE. Some
territories do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you.
LIMITATION OF LIABILITY: UNDER NO CIRCUMSTANCES SHALL
SAVOX BE LIABLE TO YOU FOR INDIRECT, INCIDENTAL, CONSEQUENTIAL,
SPECIAL OR EXEMPLARY DAMAGES (EVEN IF SAVOX HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES), ARISING FROM THE
PURCHASE OR USE OF THE DEVICE. IN NO EVENT SHALL SAVOX’S TOTAL
OBLIGATIONS OR LIABILITY HEREUNDER EXCEED ONE THOUSAND
DOLLARS ($1,000.00). NO ACTION, SUIT OR PROCEEDINGS SHALL BE
BROUGHT AGAINST SAVOX MORE THAN ONE (1) YEAR AFTER THE
DATE UPON WHICH THE CLAIM AROSE. Some territories do not allow
the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
SAVOX HAS NO LIABILITY TO YOU FOR ANY LOSS OF PROFIT, LOSS OF
REVENUE, LOSS OF BUSINESS, BUSINESS INTERRUPTION, OR LOSS OF
BUSINESS OPPORTUNITY.
Disclaimer
6
EnglishEnglish
24 25
THIRD PARTY SOFTWARE: YOU MAY USE THIRD-PARTY SOFTWARE
OR EQUIPMENT IN CONJUNCTION WITH THE DEVICE. SAVOX MAKES
NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED,
STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES,
OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY
SOFTWARE OR EQUIPMENT, INCLUDING THE ABILITY TO INTEGRATE
ANY SUCH SOFTWARE OR EQUIPMENT WITH THE DEVICE. THE QUALITY,
CAPABILITIES, OPERATIONS PERFORMANCE AND SUITABILITY OF ANY
SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH YOU
AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY
SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.
No Modication of Disclaimer: The agents, employees, distributors,
and dealers of SAVOX are not authorized to make modications to these
terms and conditions, including the disclaimer, or make any additional
Disclaimer
6
NOTHING IN THESE TERMS EXCLUDES OR LIMITS IN ANY WAY SAVOX’S
LIABILITY UNDER ENGLISH LAW FOR (A) DEATH OR PERSONAL INJURY
CAUSED BY SAVOX’S NEGLIGENCE; (B) FRAUD OR FRAUDULENT
MISREPRESENTATION; (C) ANY BREACH OF THE OBLIGATIONS IMPLIED
BY SECTIONS 12-15 OF THE SALE OF GOODS ACT 1979; OR (D)
DEFECTIVE PRODUCTS UNDER THE CONSUMER PROTECTION ACT 1987.
CONSIDERATION: YOU HEREBY ACKNOWLEDGE THAT SAVOX’S
PRICING IS MADE IN RELIANCE UPON THE LIMITATIONS OF LIABILITY
AND THE DISCLAIMERS OF WARRANTIES AND DAMAGES SET FORTH
HEREIN, AND THAT THE CONSIDERATION FORMS AN ESSENTIAL BASIS
OF THE BARGAIN BETWEEN THE PARTIES.SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OF CERTAIN WARRANTIES OR LIABILITIES; TO
THE EXTENT SUCH LAWS APPLY, SOME OF THESE EXCLUSIONS MAY NOT
APPLY TO YOU.
EnglishEnglish
26 27
Disclaimer
6
warranties binding on SAVOX. Accordingly, any additional statements not
set out herein such as dealer advertising or presentations, whether oral
or written, do not constitute representations or warranties by SAVOX and
should not be relied upon.
Governing Law and Your Rights: This Warranty and Disclaimers
section gives you specic legal rights. You may also have other rights
which vary from jurisdiction to jurisdiction.
* * *
SAVOX makes no representations or warranties regarding the contents of
this manual. SAVOX reserves the right to revise this document at any time
or to make changes to the product described within it without notice or
any obligation to notify any person of such revisions or changes.
EnglishEnglish
DECLARATION OF CONFORMITY We, Savox Communications Oy Ab,
declare under our sole responsibility that the product, Savox Promate RSM,
is in conformity with the provisions of the following Council Directive:
1999/5/EC. A copy of the Declaration of Conformity can be found at
http://www.savox.com/declaration_of_conformity.
European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive
The European Union's WEEE directive requires that products sold into EU countries
must have the crossed out trashbin label on the product (or the package in some
cases). As dened by the WEEE directive, this cross-out trashbin label means that
customers and end-users in EU countries should not dispose of electronic and
electrical equipment or accessories in household waste. Customers or end-users
in EU countries should contact their local equipment supplier representative or
service centre for information about the waste collection system in their country.
28 29
Disclaimer
6
EnglishEnglish
FCC ID: TUFBTR-155
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Federal Communications Commission (FCC) Statement
You are cautioned that changes or modications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
30 31
Disclaimer
6
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
The Bluetooth® word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by Savox Communications Oy Ab
is under license. Other trademarks and trade names are those of their
respective owners.
INDUSTRY CANADA IC ID: 6574A-BTR155
Radiation Exposure Statement:
This device complies with FCC radiation exposure limits set forth
for an uncontrolled environment. End users must follow the specic
operating instructions for satisfying RF exposure compliance. To
maintain compliance with FCC RF exposure compliance requirements,
please follow the operating instructions as documented in this manual.
This device must not be co-located or operating in conjunction with
any other antenna or transmitter.
EnglishEnglish
32 33
El paquete de ventas contiene
los siguientes artículos:
a. Savox Promate RSM
(BTR-155, Professional Bluetooth Remote
Speaker Microphone)
b. Auricular modular con cable
c. Cargador
d. Cable USB
e. Cinta de transporte
f. Guía rápida
1
Español
Contenido del paquete
Español
A B C
D E F
34 35
Vista general del producto
2
Savox Promate RSM
1. Botón Volume +
Aumentar volumen
2. Botón Volume –
Reducir volumen
3. Botón multifunción
(botón MF)
Encendido / apagado,
sincronización, responder/
nalizar / rechazar llamadas /
contestar llamadas en espera
y cambiar entre las llamadas
activas / marcar el último
número llamado
4. Conector del
cargador USB
5. Conector de audio
6. Micrófono
7. Botón PTT
8. Luz de indicación
Indicación de estado
(azul, rojo, verde, morado
y amarillo)
9. Altavoz
10. Pinza para la ropa
EspañolEspañol
10
4
5
7
1
3
9
2
6
8
36 37
Instrucciones del producto
3
Encendido Cuando el dispositivo esté apagado, mantenga
pulsado el botón MF 2 segundos. La luz parpadea
una vez en morado y el dispositivo se enciende.
Cuando lo encienda por vez primera, el dispositivo
intentará sincronizarse automáticamente.
Cuando se enciende después de usarlo por primera
vez, se reconectará automáticamente con el último
dispositivo sincronizado a menos de 10 metros.
Apagado Cuando el dispositivo esté encendido, mantenga
pulsado el botón MF 3 segundos. La luz parpadea
una vez en morado y el dispositivo se apaga.
Modo de Cuando el dispositivo esté apagado, mantenga pulsado el
sincronización botón MF durante 5 segundos. La luz parpadeará en azul y
rojo de manera alternativa. Para nalizar la sincronización,
siga las instrucciones del manual de usuario de su radio
o teléfono móvil. Seleccione “Savox BTR-155” y utilice la
contraseña 0000.
Llamadas PTT Mantenga pulsado el botón PTT para realizar una llamada PTT.*
* Para realizar llamadas PTT, es necesario disponer de un servicio compatible con PTT
en la radio o teléfono móvil.
Para teléfonos Sonim:
EspañolEspañol
1. Pulse brevemente el botón PTT para iniciar
la llamada PTT.
2. Pulse el botón de Fin de Llamada en el
teléfono para terminar la llamada PTT.
Nota: con la luz de fondo apagada, pulse el botón PTT para encender la luz de fondo de
nuevo.
3. En la llamada PTT, mantenga
pulsado el botón PTT para tomar la
palabra y hablar. Suelte el botón PTT
cuando pare de hablar.
38 39
Llamadas de Realizar una llamada
teléfono Realice las llamadas con su teléfono de la manera
normal. La llamada se conectará con el dispositivo
automáticamente.
Responder a una llamada
Haga clic en el botón MF.
Finalizar una llamada
Haga clic en el botón MF.
Rechazar una llamada
Mantenga pulsado el botón MF durante 2 segundos.
Para marcar el último número llamado
Haga doble clic en el botón MF.
Para utilizar esta función, el teléfono debe ser compatible con
la función.
Responder llamadas en espera
Haga un breve clic en el botón MF.
Para utilizar esta función, el teléfono y la red deben ser compatibles con
la llamada en espera.
Cambiar entre la llamada en espera y la llamada activa
Mantenga pulsado el botón MF durante 2 segundos.
Para utilizar esta función, el teléfono debe ser compatible con
la función.
Vol + / Vol – Pulse los botones Volume + y Volume – para ajustar el volumen.
Silenciar / Mantenga pulsados los botones Volume + y
desilenciar Volume – a la vez durante 2 segundos.
Micrófono
Borrar la Cuando el dispositivo esté en modo de sincronización,
sincronización mantenga pulsados los botones Volume + y Volume –
durante 3 segundos. El dispositivo se apagará.
Instrucciones del producto
3
EspañolEspañol
This manual suits for next models
1
Table of contents
Languages:
Other Savox Microphone manuals
