Savoy House 56-5075-5CN-11 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
CUL LISTED MODEL: AC-552
MODELS: 56-5075-5CN-11
56-5075-5WA-13
56-5075-5GWO-130
CEILING FAN
OWNER'S MANUAL

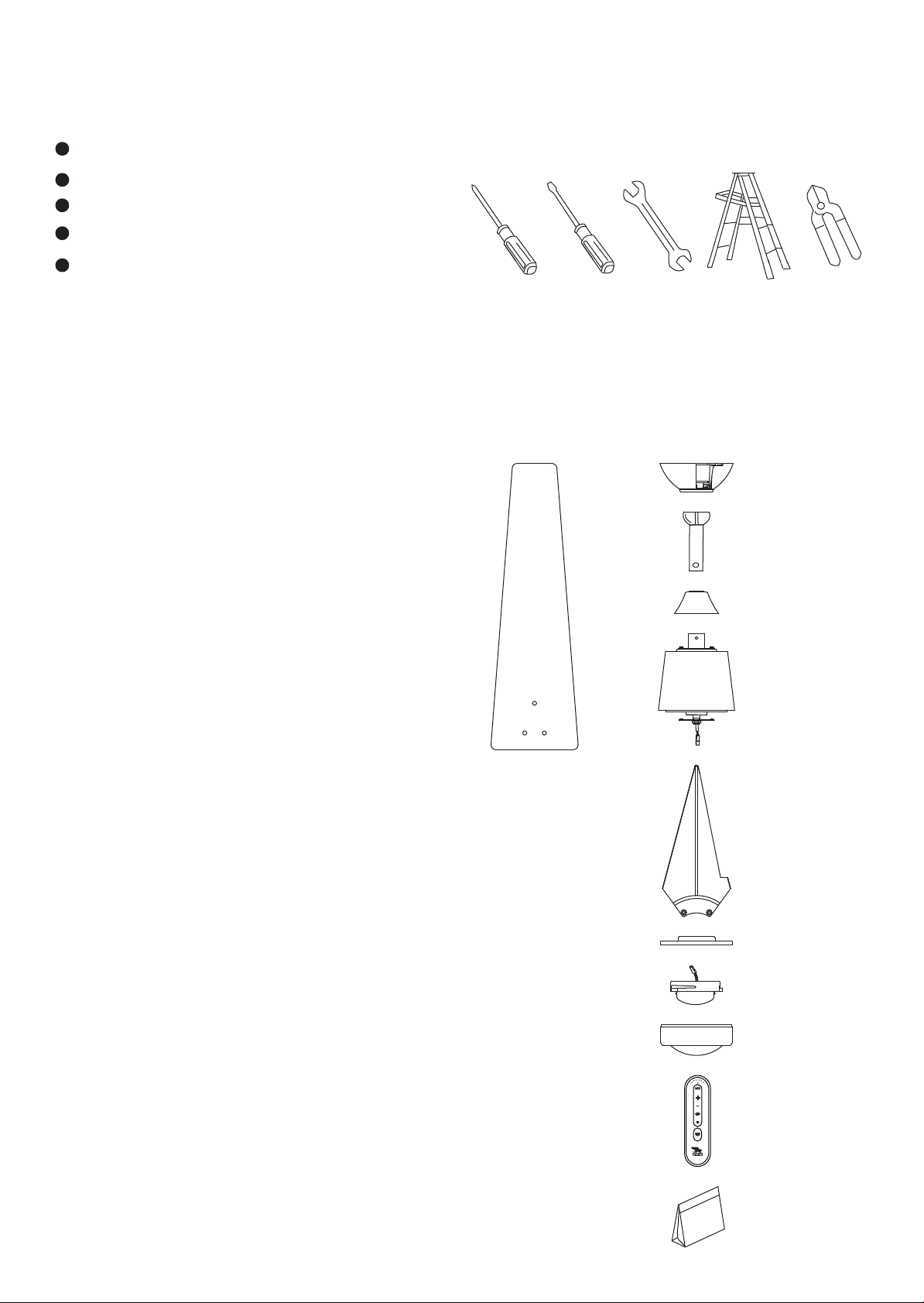

2. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Blade set (5)
b. Hanger bracket assembly
c. Downrod
d. Coupling cover
e. Fan motor assembly
f. Set of blades bracket (5)
g. Mounting plate
h. 18W LED light kit
i. Glass shade
j. Transmitter+holder+2 mounting
screws+3 volt battery (CR2032)
k. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), flat washers (2),
wire nuts (3), wood screws (2)
2) Blade attachment hardware:
screws (16), fiber washers (16)
3) Blade arm hardware:
screws with lock washers (11)
4) Safety cable hardware:
wood screw, lock washer, metal washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
e
f
g
h
i
k
j

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the
circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. Suitable for use with solid-state speed
control.
4. WARNING: To reduce the risk of fire, elec-
tric shock, or personal injury, mount to
outlet box marked "acceptable for fan sup-
port of 15.8 kg (35 lbs.) or less" and use
mounting screws provided with the outlet
box. Most outlet boxes commonly used for
the support of light fixtures are not accept-
able for fan support and may need to be
replaced. Due to the complexity of the
installation of this fan, a qualified licensed
electrician is strongly recommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the
fan is running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be UL Listed and marked suitable
for use with the model fan you are
installing. Switches must be UL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS
If there isn't an existing UL listed mounting box,
then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGLED CEILING
MAXIMUM 20° ANGLE

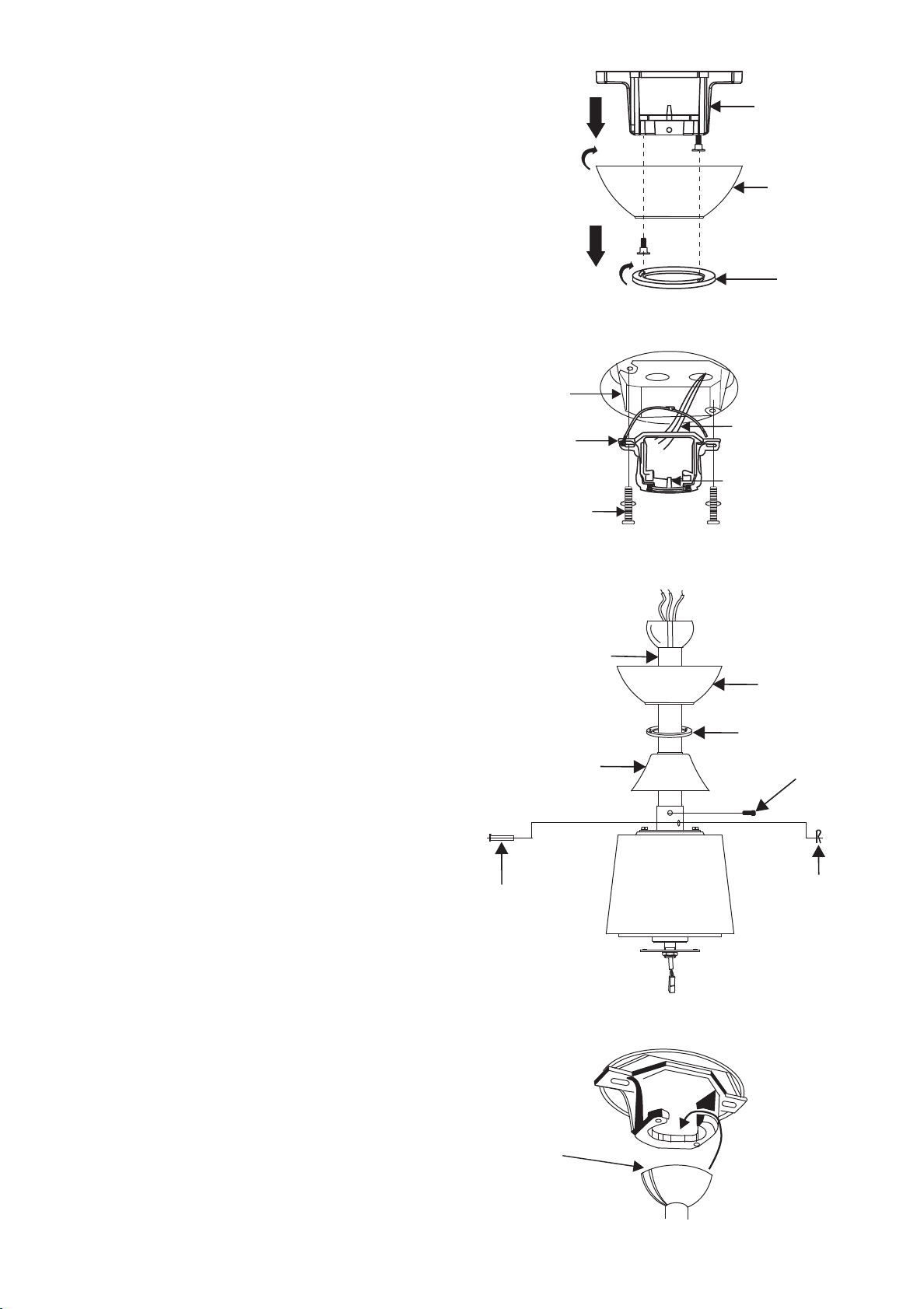

REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by removing the 1 of 2 screws from
the bottom of the hanger bracket and
loosening the other one a half turn from the
screw head. Next, turn the canopy counter
clockwise to removing the hanger bracket
from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through the
ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing. (Fig.7) Carefully insert
the hanger pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.
Step 8. Tighten two set screws on top of the
fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
4
Figure 6
Figure 7
Figure 8
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Coupling cover
Figure 5
Hanger
bracket
Ceiling
canopy
Canopy
cover
120V Wires
UL Listed
electrical box
Mounting
bracket
Hook
Mounting screws
(supplied with
electrical box)

5
Hanger bracket Safety cable
Figure 9
6. INSTALLATION OF
SAFETY SUPPORT
An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw and
washer, as illustrated in Figure 9.
Outlet Box
Black ("AC IN L")
White ("AC IN N")
White (Neutral)
Black (Hot)
Green or bare
copper (ground)
Ground (green)
(Connect to ground
wire on hanger
bracket if no house
ground wire exists.)
Figure 10
7. MAKE THE ELECTRICAL
CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
the main fuse box before wiring.
Step 1. Motor to House Supply Wires
Electrical Connections: Connect the WHITE
wire (Neutral) from the outlet box to the
WHITE wire marked "AC in N" from the
motor. (Fig. 10)
Step 2. Connect the BLACK wire (Hot) from
the outlet box to the BLACK wire marked
"AC in L" from the motor. (Fig. 10)
Step 3. (Figure 10) If your outlet box has a
ground wire (green or bare copper)
connect it to the fan ground wires;
otherwise connect the hanging bracket
ground wire to the mounting bracket.
Secure the wire connection with a plastic
nut provided. After connecting the wires,
spread them apart so that the green and
white wires are on one side of the outlet
box and black and blue wires are on the
other side. Carefully tuck the wire
connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting
unit for proper signal transmission
between the transmitting unit and the
fan's receiving unit.

6
Figure 11

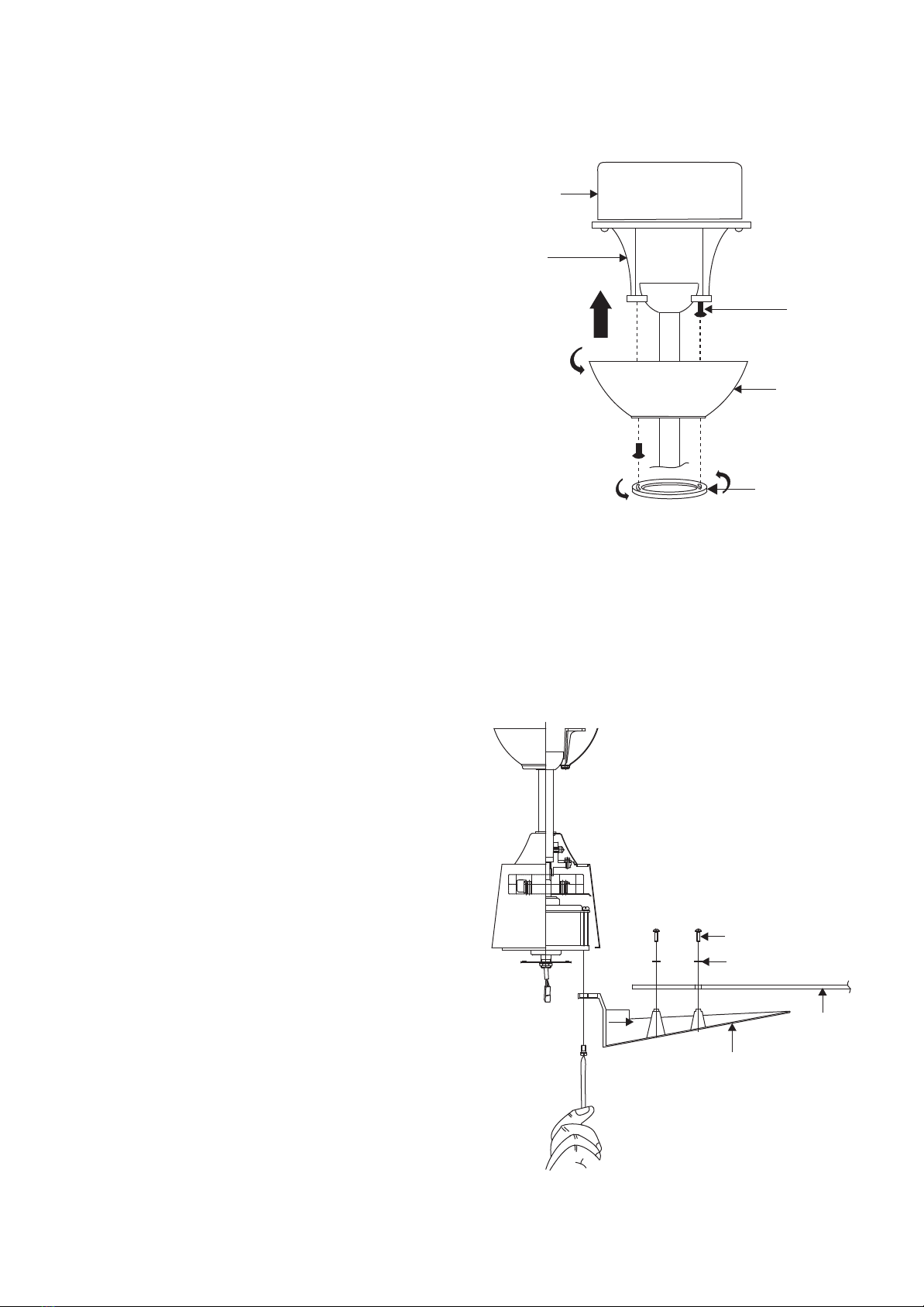

8. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn
canopy until it locks in place at the narrow
section of the key holes. (Fig. 11)
Step 3. Align the circular hole on canopy with
the remaining hole on the hanger bracket,
secure by tightening the two set screws. (Fig.
11)
Note: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
Warning: Make sure tab at bottom of hanger
bracket is properly seated in groove of
hanger ball before attaching canopy to
bracket. Failure to properly seat tab in groove
could cause damage to electrical wiring.
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
9. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing mounts
and discard before installation.
Step 1. Attach the blade to the blade bracket
using the screws and fiber washers as shown
in Figure 12. Start screw into bracket. Repeat
for the two remaining screws.
Step 2. Tighten each screw. Make sure the
blade is straight.
Step 3. Fasten blade assembly to motor
using the screws supplied. (Fig. 12)
Figure 12
Screws Blade
Blade bracket
Screws
Fiber
washers

7
Figure 13
10. INSTALLATING THE
MOUNTING PLATE
Step 1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Fig. 13)
Mounting ring
Mounting
plate
Screws
Figure 14
LED Light kit
Screws
Mounting plate
Connection
plugs
Glass shade
11. INSTALLING THE LED
LIGHT KIT & LIGHT
SHADE
NOTE: Before starting installation, disconect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
Step 1. Remove the 1 of 3 screws from the
posts of the mounting plate and keep it for
future use. Loosen the other 2 screws. (Do not
remove) (Fig. 14)
Step 2. While holding the LED light kit under
your fan, make the polarized plug
connections:
- Red to white
- Black to black
Step 3. Place the key holes in the LED light kit
over the two screws previously loosened from
the mounting plate. Turn the LED light kit until
the LED light kit locks in place at the narrow
section of the key holes. (Fig. 14)
Step 4. Securely tighten the two light kit
mounting screws previously loosened and
the one previously removed. (Fig. 14)
Step 5. Raise glass shade up against the LED
light kit, and secure it to fan by turning glass
shade clockwise until snug. DO NOT
OVERTIGHTEN. (Fig. 14)

8
Figure 15
Figure 16
Insert the 3 volt battery (included) and make
sure the battery is properly seated with the
Positive + sign facing up. (Fig. 15)
Your DC motor is equipped with an auto
learning type of remote control. There are no
frequency switches on the receiver unit, the
receiver will automatically learn the frequency
from the remote control during the pairing
process.
The remote control unit has frequency
settings that can be changed. The frequency
settings on the remote control should only be
changed if your fan experiences interference
or if a second or more fans with the same type
of control system are installed in the same
structure. (Fig. 15)
ON/DIM Switch: The ON position is to be used
for a light kit with CFL bulbs, the DIM position
is to be used for all other dimmable style
bulbs. (Fig. 15)
12. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation. (Fig. 16)
A. button:
Increase fan speed ( 6 speed max.)
B. button:
Decrease fan speed (1 speed minimal)
C. 6 SPEED LED indicators:
Pressing and holding the + button will
increase the fan speed automatically
through the speed settings and the incre-
ments will be denoted on the LED indica-
tors.
= minimum speed
= low speed
= medium low speed
= medium speed
= medium high speed
= high speed
D. button:
Maximum (6 speed).
E. fan off/set buton:
This button turns the fan off.
F. The " " button is used to set the fan
forward or reverse, press the button
forward (for warm weather) or reverse
(for cool weather).
G. button:
This button controls the light. Press and
release the button to turn the light ON or
OFF. Press and hold the button to set the
desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as the last time it was turned
off.
ON
DIM
ON
DIM
ON ECE
1234
ON ECE
1234
Frequency Switch
Code switch

9
Figure 17
Pairing Process:
The auto-learning process will only initiate
within the first 60 seconds of supplying power
to the fan.
Beginning with the fans power off, restore
power to the fan. Press and hold the “Fan
Off/Set” button for 6 seconds and release. If
the optional light kit is installed, the light will
blink twice. Once the receiver has detected the
frequency, the fan will automatically begin a
self-calibration process. The fan will begin to
operate and rotate in the counter-clockwise
direction on the highest RPM for 3 minutes.
When the counter-clockwise rotation has
finished, the fan will reverse and rotate in the
clockwise position on the highest RPM for 3
minutes. The fan will stop rotating once the
self-calibration process is complete. The total
self-calibration process will last approximately
6 minutes. During the self-calibration process
the remote control will not function and no
buttons should be pressed.
Pairing Process for Multiple Fans:
Select the desired frequency setting from the
back of the remote control. (Fig 17) You change
the frequency setting by arranging the small
switches numbered 1 through 4 in the up or
down position making 16 different frequencies
or combinations possible. Anytime you change
the frequency for a fan you must complete the
pairing process as described above.
Beginning with the power off to all fans, restore
power to the first fan. Select the desired
frequency setting. Complete the pairing
process as described above. Test the fan for
proper operation.
Restore power to the second fan. Select the
desired frequency setting. Complete the
pairing process as described above. Test the
fan for proper operation.
Repeat this process until all fans have been
paired.
This receiver provides the following protective
function:
1. Lock Rotor Position: The DC motor has a
built-in safety against a stalled or locked rotor
condition (stalled blade rotation). If there is an
obstruction or fault with the motor, the current
monitoring function will automatically turn
power off to the motor after 30 seconds.
Remove the obstruction and turn the AC power
off. Restore power and re-start fan motor.
2. Over 80W protection: When the receiver
detects motor power consumption which is
greater than 80W, the receiver power will be
stopped and operation will immediately
discontinue. Wait for 5 seconds and then turn
the receiver power back on.
ON
DIM
ON
DIM
ON ECE
1234
ON ECE
1234
Frequency Switch
Code switch

10
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the
motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
13. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".
Figure 18
Figure 19
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on
this fan, press the reverse button while the
fan is running.

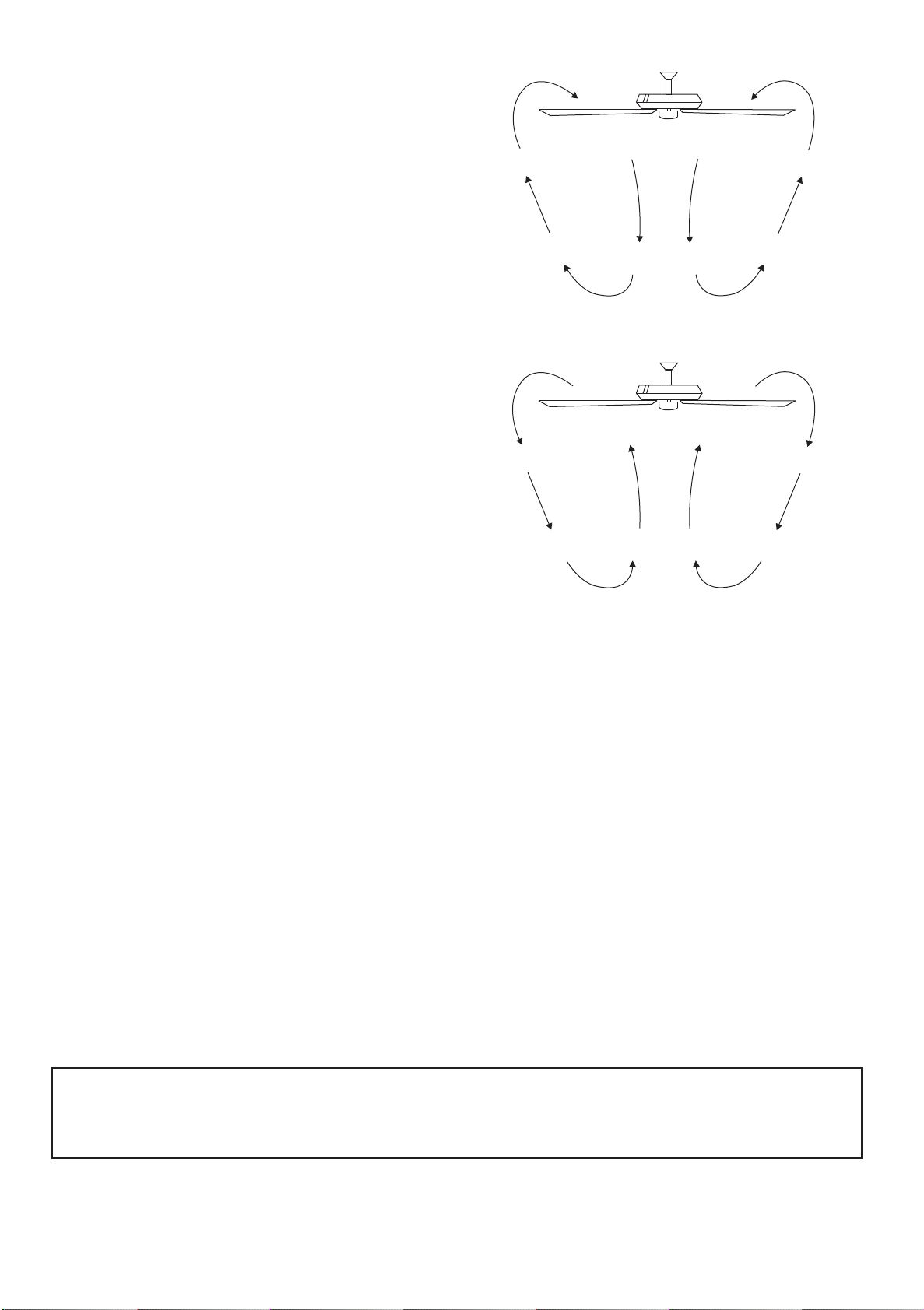

Warm weather - (Forward) A downward air-
flow creates a cooling effect as shown in Fig.
18. This allows you to set your air conditioner
on a warmer setting without affecting your
comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 19. This allows you to set your heating
unit on a cooler setting without affecting
your comfort.

11
14. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is
off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new
fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: To reduce the risk of personal injury, do not bend the blade arm
while installing, balancing the blades, or cleaning the fan. Do not insert
foreign objects between rotating fan blades.
