Sawmaster M1030 User manual

Read safety and operating instructions carefully before operating the
saw for the first time. Retain manual for future reference.
ATTENTION!
Owner’s Manual
Keep for your records
M1030/M1036
Wet tile saw

Contents
1
1
3
4
6
12
Table of Contents
Safety Precautions
Features
Saw Stand Assembly
7
Blade Installation
9
Operating the Saw
Electrical Specification
5
Specifications
4
5
5
Unpacking
Set Up
Folding Built-in Legs
6
Deploying Built-in Legs
6
Health Warning
13
14
15
16
19
30
32
Do’s & Don’ts for Blades
Saw Maintenance
Water Pump Maintenance
Troubleshooting
Notes
Warranty
Contact US
31
How To Order
Wet Cut Blades
13
Dry Cut Blades
13
General Rules
14
31
Customer Service
Preparation for Use
7
7
Operating the Water Spray System
8
Water Pump Usage Options
8
Overflow Plug Usage
8
Choosing the Right Blade
9
Cutting at Constant Depth
9
Plunge Cutt
10
Cutting Depth
10
Adjustable Angle Guide
10
Using the Cutting Table
10
Using the Guide for Rip and Diagonal Cuts
11
Performing Miter Cuts
12
Power Safety System
20
Replacement Parts List

3
M1036 • Owner’s Manual
Safety Precautions
A. Saw blade should be inspected daily for excessive wear,
core cracks and arbor damage. Replace any blade that
shows signs of damage.
B. To mount the blade, clean the arbor and outer flanges,
and tighten the nut securely.
C. DO NOT place any portion of your body in line with the
blade while it is rotating.
D. Wet cutting blades MUST be used with water.
E. To reduce the risk of electrical shock, we recommend
the use of GFCI and to refer servicing to a qualified pro-
fessional.
F. When operating the saw, be sure to wear proper safety
gear, such as safety glasses, dust mask, and hearing
protection. A hard hat is also recommended.
G. Never use the machine improperly or work in an unsafe
manner.
H. Maintain alertness while operating the machine. Failure
to maintain attention, by the operator, may lead to seri-
ous injury.
I. Keep work area clean.
J. Before you start working, familiarize yourself with the
work site and its surroundings. Take notice of circum-
stances which may impede work or traffic, observe soil
conditions (good bearing or not) and take measures to
ensure safety (e.g. the shielding of roadworks from pub-
lic traffic).
K. Take measures to ensure that the machine is in a safe
and trouble-free condition prior to usage. Use the ma-
chine only when all protective devices (i.e. guards, noise
absorbers, emergency-off devices) are in place and in
working order.
L. A visual check of the machine must be made at least
once a shift to ensure that visible damages or faults
are recognized. Any changes (including changes in
the performance or behavior of the machine) must be
reported to the supervisor. If necessary, stop the ma-
chine at once and secure it.
M. In the case of a malfunction, stop the machine imme-
diately and secure it. Fix the problem as soon as pos-
sible.
N. To stop and start the machine follow the operating in-
structions and observe any indicator lights.
O. Keep out of reach of children. Before operating ma-
chine, be sure the activated machine will be of no dan-
ger to anyone.
P. Be sure to connect the plug to a properly grounded re-
ceptacle to reduce the risk of electric shock.
Q. Wear proper apparel. Do not wear loose clothing or ac-
cessories. Keep hair and body parts away from open-
ings and moving parts.
R. If cord/plug is damaged do not operate.
S. Make sure power switch is in “off” position before plug-
ging in power cord to prevent any accidental activation.
T. When machine is plugged in do not leave it unattended.
Unplug prior to servicing, when changing accessories,
and when not in use.
U. Never carry machine by cord. Do not pull cord to un-
plug. Keep cord away from heat, sharp edges and oil.
V. Do not operate the machine when you are tired or while
under the influence of drugs, alcohol or any medica-
tion.
W. Never operate this unit when flammable materials or va-
pors are present. Electrical devices produce sparks or
arcs which can cause a fire or explosion.
X. When using an extension cord, make sure it is in good
condition and heavy enough to carry the current drawn
by the machine. Refer to the extension cord table in the
“Electrical Specifications” section for the correct gauge
depending on the desired cord length and the machine’s
horse power and voltage.
WARNING

4
Features
Specifications
Motor Max. Blade
Capacity Cutting Length Cutting Depth Weight Dimensions
2 HP
115 V/ 60 Hz,
3200 RPM
10-in blade for
5⁄8-in arbors
36-in,
Diagonally cut
24-in tile
2.4-in 132 lbs
Length: 45-in
Width: 34.5-in
Height: 23-in
* Dimensions do not include extension tables and drip trays.
M1036
Carbon Brush Motor
Dependable 2HP motor that can generate
a tremendous amount of torque while
minimizing power lose to the blade shaft
through the built-in gear box.
Power Safey System
LED indicators notifying user of issues
with the internal electrical system or of
overload. (M1036 only)
Waste Collection Bag
Larger debris will collect in the waste
collection bag for easy removal when
cleaning the saw.
Angle Guide
Large adjustable guide allows for easy
positioning of tile for cutting at any angle.
Overflow Plug
Use of fluid overflow
plug features
traditional plug to
stop water from
draining as well as
becoming a
overflow tube so
excess water can
escape the lower
water tank enabling
placement of water
bucket to accumu-
late cleaner water to
be pumped back
into the glade
guard.
2 HP
115 V/ 60 Hz,
3200 RPM
10-in blade for
5⁄8-in arbors
30-in,
Diagonally cut
20-in tile
2.4-in 128 lbs
Length: 45-in
Width: 34.5-in
Height: 23-in
M1030

5
M1036 • Owner’s Manual
Health Warning
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contain chemicals
known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks, cement and other
masonry products, and
• Arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure
to these chemicals: Work in a well ventilated area, and
work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic
particles.
Unpacking
Open the container and carefully lift the saw out of the packaging
and place it on a flat, level working area. Be sure that you
have the following items before you discard the container:
See included SUPPLEMENTARY UNPACKING AND ASSEMBLY
INSTRUCTIONAL BOOKLET for more details.
Set Up
figure 1
Saw
Side extension table w/hardware
Saw blade
Wrenches (universal and hex wrench)
Side drip tray
Rear drip tray
180 Degree adjustable angle guide
Front lift handle w/hardware
Debris bag
Over flow plug (M1036 only)
Owner’s manual
Bottom water tray (M1036 only)
Wheels (2)
Elastic strap (M1036 only)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
See included SUPPLEMENTARY UNPACKING AND ASSEMBLY
INSTRUCTIONAL BOOKLET for more details.
7
1
82
13
5
4
10
6
3
12

6
Saw Stand Use
FOLDING BUILT-IN LEGS
DEPLOYING BUILT-IN LEGS
Wing screws (4) to
retract or deploy the
folding legs
It is recommended that adjusting the folding leg be
done by at least two people.
Remove the detachable wheel assembly from the
legs and stow it on the frame. (see figure 2)
Starting from the rear, the end where the motor is on,
lift the saw up.
Working on one leg at a time, have another person
remove the safety pin and loosen the wing screw. If
the wing screw is stuck, shake the leg to un-stick the
wing screw. With the leg loose, slide the leg from
“setup 2” to “setup 1” position as shown in figure 2.
Retighten the wing screw.
Perform step 4a on the other leg on the same end.
Place the rear of the saw on the ground. The wheel’s
should be touching the ground.
Perform steps 4a-5a again but on the front of the saw.
No safety pin is involved for the front.
Folded state
Deployed state
Safety pin (2)
Setup 1. Screw positions
for folded legs.
Setup 2. Screw positions
for deployed legs.
figure 2
Detachable wheel assembly installed
on frame
Table lock
1b.
2b.
3b.
4b.
5b.
6b.
7b.
It is recommended that adjusting the folding leg be
done by at least two people.
Starting from the front, the end opposite from where
the motor is on, lift the saw up using the front lift
handle.
Working on one leg at a time, have another person
loosen the wing screw. If the wing screw is stuck,
shake the leg to un-stick the wing screw. With the leg
loose, slide the leg from “setup 1” to “setup 2” position
as shown in figure 2. Retighten the wing screw.
Perform step 3b on the other leg on the same end.
Place the front of the saw on the ground. The frame
should be touching the ground.
Perform steps 3b-4b again but on the rear of the saw.
Remove the wheel assembly from the frame and
install it on the leg, in the state it was in step 3a.
Front lift handle
1a.
2a.
3a.
4a.
5a.
6a.
7a.
WARNING: The following steps should be done
on a stable dry flat surface.
WARNING: Lock the table before proceeding to
prevent damage or bodily harm from sudden
movement of the table.
NOTE: Refer to SUPPLEMENTARY UNPACKING AND ASSEMBLY INSTRUCTION for more details.
Detachable wheel
assembly installed
on frame

figure 3
M1036 • Owner’s Manual
Preparation for Use

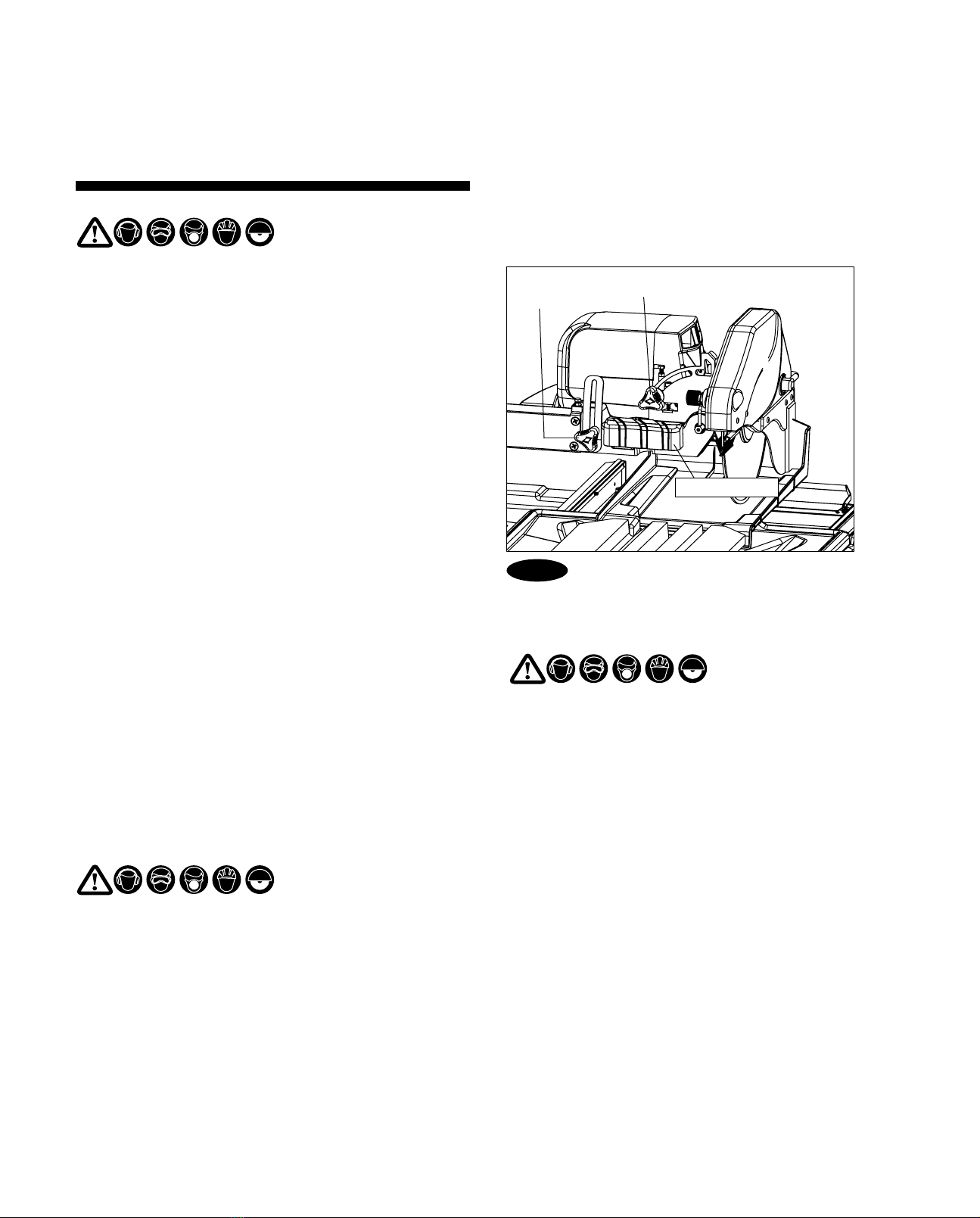

Turn the silver knob on the inner blade guard
counterclockwise until it pops out to unlock the
blade guard. (see figure 3)
Slide the outer blade guard horizontally across the
inner blade guard towards the plunge handle. The
tab at the rear of the blade guard must clear the
enclosing slot.
Rotate the blade guard away so that it lays open.
Do not separate the outer guard from the inner
guard!

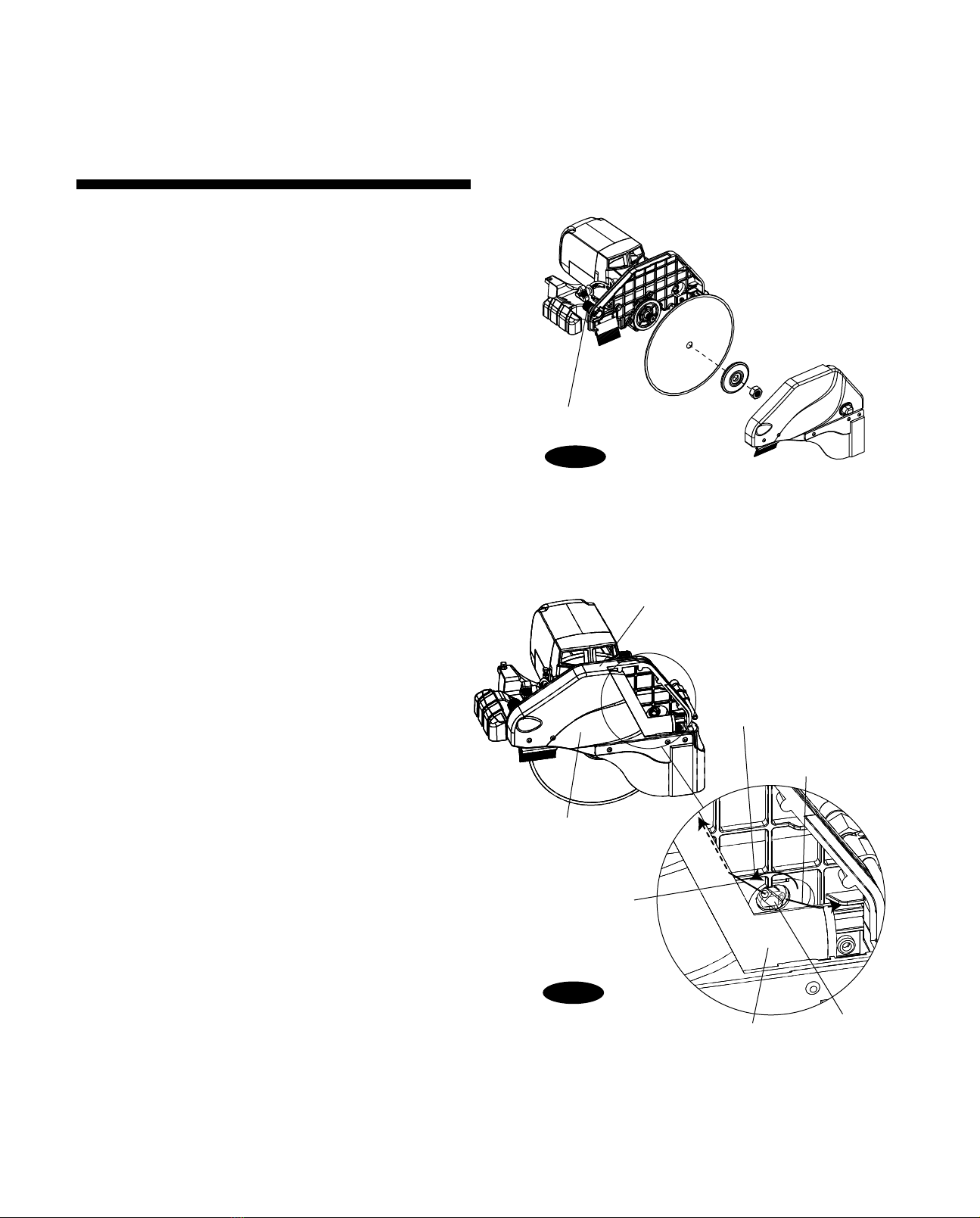

Remove the blade shaft nut and outer flange. If a
blade has been mounted, hold the blade with one
hand or use the provided hex wrench to insert into
the slot on the blade shaft and use the other hand
to loosen the nut with the universal wrench.
Remove existing blade.
Mount new blade, but make certain the arrow on
the blade coincides with the rotation direction of the
shaft.
1.
2.
3.
4.
5.
Silver knob
OPERATING THE WATER SPRAY SYSTEM
BLADE INSTALLATION
Open outer blade guard.
Locate the adjustable water nozzle on the outer
and inner blade guard. (see figure 4)
Using figure 4 on right as reference set the water
nozzle to desired effect (minimal mist/max water).
Note that the blade has to be removed in order to
adjust nozzle on the inner blade guard.
1.
2.
3.
4.
7
figure 4
Turn adjustable
nozzle using
plier
Max Water
Water sprayed in this
direction has maximum
water saturation on blade
but causes more water loss
Minimal Mist
Water sprayed in this
direction has minimal
misting while cutting for
cleaner work environment
Blade Adjustable water nozzle
Outer blade guard
Inner blade guard

8
WARNING:
Disconnecting the water pump should be done by a
certified electrician.
Pull the bottom water tray partially out from under the saw.
Insert the over flow plug into the hole in the tray. (see figure
6) Make sure tube is no further than 1-inch from top of tube.
See included SUPPLEMENTARY UNPACKING AND ASSEMBLY
INSTRUCTIONAL BOOKLET for more details.
1.
2.
The blade shaft speed of this saw is exclusively designed
for cutting with diamond saw blades. The saw may only
be used for cutting natural and artificial stone materials,
do not cut wood or metal!
Choose the correct type of saw blade for the material to
be cut and the required cutting depth.
figure 7
figure 6

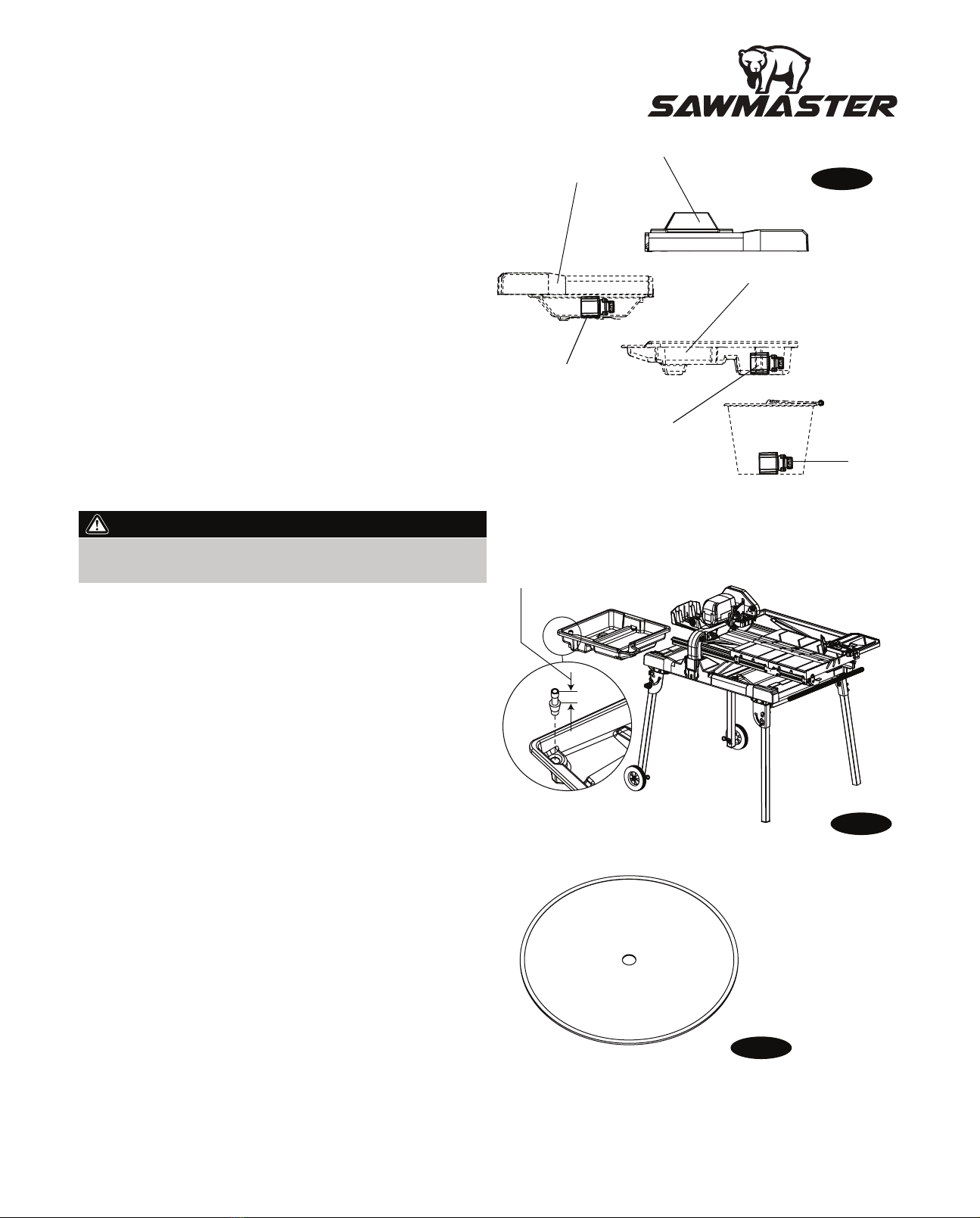

WATER PUMP USAGE OPTIONS
Water pump can be placed in the top water tray
(A). (see figure 5) Only the top water tray would
need water, but care must be taken to not over fill
the tray or water will spill out from the over flow
hole on the tray.
Water pump can be placed in the bottom water
tray (B). (see figure 5) Fill the bottom water tray
with water until water almost reaches the opening
on the over flow plug. Next fill the top water as
instructed above in “option 1”.
Water pump can be placed in a bucket (C) placed
directly below the over flow plug in the bottom
water tray. (see figure 5) Fill the bucket halfway
with water. Next fill the bottom water as instructed
above in “option 2”.
Option 1.
Option 2.
Option 3.
figure 5
A
B
C
Top water tray (front section)
Top water tray (rear section, closest to motor)
Bottom water tray (below the frame)
Only use 10-in
blades
Note to dress/sharpen the blade when cutting speed is
reduced as it may lead to poor cutting accuracy. Always let
the blade cut, do not force.
1-in from top of tube
OVERFLOW PLUG USAGE
CHOOSING THE RIGHT BLADE

9
M1036 • Owner’s Manual
Operating The Saw
1
2.
3.
4.
5.
6.
7.
8.
9.
After you have made yourself familiar with the compo-
nents of your saw, the machine has been properly set
up, the bucket or water tray is filled with water, and the
electrical connection is established in accordance with
the relevant safety regulations, you may now begin
with the cutting operation.
Before you start operation open the water shut-off
valve on the water pump.
Place the tile on the table and position the tile such
that the flat face of the tile sits flush against the ruller
on the table.
Line up the tile such that the desired cut lines up with
the blade.
Deploy the rear scoop and attach the rear drip tray,
side extension table and side drip tray as necessary.
Level the saw so water runs slightly towards the post.
During the cut operation, the user must use both hands
to hold the tile in place while also apply even force to
push the table forward. Do not force feed the blade for
best cut results.
Dress the blade occasionaly so the diamonds on the
blade do not glaze over.
Always turn off the saw before you leave the machine
unattended. Unplug the power cable at the end of job.
CUTTING AT CONSTANT DEPTH
PLUNGE CUTS
The motor should be turned off when adjusting the cutting
depth.
1.
2.
Before starting the cut, adjust the cutting depth.
Loosen the “angle adjustment knob” to adjust the blade
cutting depth. (see figure 8) Be sure to grasp the
plunge handle as the head will rise suddenly.
Adjust the depth such that the rim of the blade goes
past the top of the table by about 1/8”. Then retighten
the “angle adjustment knob”.
figure 8
Angle adjustment knob
Depth adjustment knob
The handling of long or partials cuts can be made using
the plunge cutting method. In this case, the cutting head
will not be set to cut at a fixed cutting depth/clearance
while performing a cut. The cutting head is freely movable
for seesaw cutting operations.
1.
2.
3.
4.
Before starting the cut, the cutting head must be fully
raised. Loose the “angle adjustment knob” to adjust
the blade cutting depth. (see figure 8) Be sure to
grasp the plunge handle as the head will rise suddenly.
With the head raised, position the tile such that the
blade will make the intended cut. If making long cuts, it
is best to use the angle guide to help stabilize the tile.
Turn on the saw.
With one hand grab the plunge handle and make the
plunge cut. During the cut use the free hand to stabilize
the table. If doing a long cut push the table forward.
Do not force feed the blade for best cut results.
Depth adjustment knob
Plunge handle
NOTE: Refer to SUPPLEMENTARY UNPACKING AND
ASSEMBLY INSTRUCTION for more setup details.
3.
4.
Turn on the saw.
During the cut operation, the user must use both
hands to hold the tile in place while also apply even
force to push the table forward. Do not force feed the
blade for best cut results.

10
CUTTING DEPTH
WARNING:
The recommended cutting depth is 1/4-in below the cutting
table surface. To adjust the depth raise/lower the blade by
loosening the depth adjustment knob and use the plunge
handle to adjust the blade depth as necessary. (see
figure 8)
The blade may grab the material being cut, causing
damage and possibly injury.
Blade Diameter Cutting Depth
10-in 2.4-in
ADJUSTABLE ANGLE GUIDE
WARNING:
Always lock the Adjustable Angle Guide to the table
prior to transporting the saw.
WARNING:
Always lock the cutting table prior to transporting the
saw.

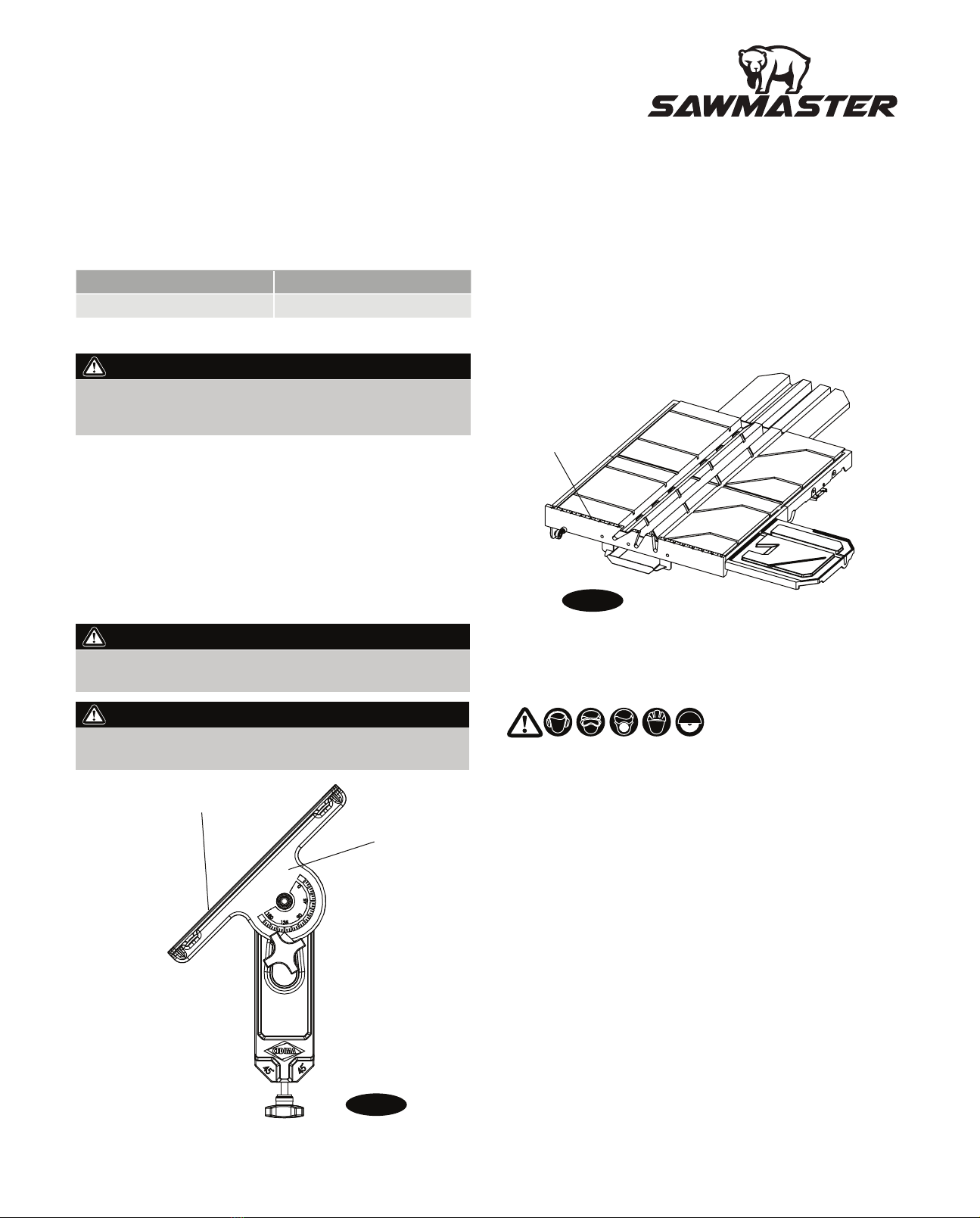

The Adjustable Angle Guide is a two-piece assembly consist-
ing of a base and an attachment that rotates. This guide will
support cutting angles between 0° and 180°. The attach-
ment has a casted angle indicator that show markings every
5° with numerical markings every 45°. (see figure 9)
figure 9
USING THE CUTTING TABLE
The ruler guide has inches marked along the top to allow
convenient measurements and to promote precision cuts.
(see figure 10) With the side extension table installed, the
table spans 28-in x 23.15-in. If equipped with the rear
extension the table will span 28-in x 32.2-in, which allows it
to provide greater support for handling larger materials.
Cutting table is covered by a rubber mat that provides a firm
durable work surface. A guide should be used together with
the cutting table to ensure precision while making cuts.
figure 10
USING THE GUIDE FOR RIP AND DIAGONAL
CUTS
The motor should be turned off when adjusting the material
being cut.
1
2.
3.
4.
5.
For rip cuts. Set the tile such that the desired cut
lines up with the blade.
Next adjust the adjustable angle guide such that the
rotating attachment is set at either the 0° or 180°
position. 0° if the guide is to be placed to the left of the
material, or 180° if the guide is to be placed to the right
of the tile. (see figure 11)
Position the guide so its attachment’s flat side rests flush
against the material to be cut. (see figure 8)
Tighten the threaded knob. Now you are ready to cut.
For diagonal/angled cuts. Adjust the adjustable angle
guide such that the rotating attachment is set at an angle
that matches the desired cut line to be made on the tile.
(continue on page 11)
Attachment flat side
Attachment
Ruler guide

11
M1036 • Owner’s Manual
6.
7.
Position the tile to be cut in the position that when
the blade engages it, it will result in the desired cut.
Since this time the cut is angled, place the guide’s
attachment’s flat side such that it sits flush against
the material. Tighten the threaded knob to engage
the table ruler guide. Reposition the guide and the
material as necessary such that the flush contact is
mantained while the blade will still make the
intended cut, while making sure the tile is fully
inserted in the ruler slot. (see figure 12)
Tighten the threaded knob. Now you are ready to
cut.
Attachment set
for rip cut
Blade cut line
figure 11
Blade cut line
Ruler slot
Attachment set
for angled cut
figure 12
PERFORMING MITER CUTS
figure 13
Depth adjustment screw
Depth adjustment knob
1.
2.
3.
4.
5.
The cutting head must be parallel with the table before
it can be rolled to the miter position. To accomplish this
loosen the depth adjustment knob and push the cutting
head until the depth adjustment screw bottoms out.
(see figure 13
Tighten the depth adjustment knob.
Pull the cutting table all the way to the front of the saw
past the table lock. (see figure 2) The table must
clear the blade before adjusting the cutting head angle.
Loosen the angle adjustment knob. Roll/rotate the
cutting head to the 45 ° position. Righten the angle
adjustment knob.
Now you are ready to make your cut. It is advised to
use the adjustable angle guide to support the tile from
the right side during these kinds of cuts.
Plunge handle
The motor should be turned off when changing the cutting
head’s pitch or cutting depth.
-
Angle adjustment knob
Note to dress/sharpen the blade when cutting speed is
reduced as it may lead to poor cutting accuracy. This is
especially important for miter cuts. Always let the blade
cut, do not force.

12
Electrical Specifications
M1030/M1036
Power 2 HP
Volts 115 V
Amps
Blade Shaft RPM 2800 RPM
Cycle 60 Hz
Phase 1
15 A
Wire Gauge Length of Cord
No. 12 25’
No. 10 50’
No. 8 75’
EXTENSION CORD CHART
RECOMMENDED
1.
2.
It is recommended that a 15 amp circuit be used while
operating this saw. This will prevent any loss of power
or interruption.
Always plug saw as close as possible to the power
source while operating. This will allow you to receive
optimum electricity.
POWER SAFETY SYSTEM
(M1036 only)
WARNING: The saw should be unplugged before
servicing.
•
•
When power leak/ground fault is detected between
the power switch and the other electrical system, the
error light on the power will flash and power will be
cut. (see figure 14)
When power is abruptly cut from the saw (ie
unintenional power cable pull out, power failure, etc...)
sudden power recovery will not abruptly turn on the
saw. The user must manually turn off the power
switch and turn it back on.
The saw is equipped with an internal electrical safety
system. It is meant to notify the user of an electrical
issue with the machine and to cut power in response to
the following issues:
figure 14
Power and error indicator
Note to test the power safety system, press the test
button found on the face opposite where the Power and
Error LED indicator is located. Reset from the test by
toggling the power switch from off to on.
Post
Pump
Motor
125V Circuit
breaker
White
White
Black
Black
Green
Green
M1030
Green
White
Black
Pump
Motor
125V Circuit
breaker
IC Board
OFF COM ON
Brown
Red
Black
Green
Green
Green
Black Red
AC-W
Black-B
White-W
White
Black
Test button
Black
Black
M1036

13
M1036 • Owner’s Manual
Dry Cut Blades
DO'S DON'TS
•
•
•
•
•
In addition to the following,
always follow wet recommen-
dations.
Use appropriate blade for
material being cut.
Inspect segment blades for
segment cracking or loss.
Do not use damaged baldes.
User proper safety equipment
when operating the saw.
•
•
•
•
•
•
In addition to the following,
always follow wet recommen-
dations.
Do not make long cuts with dry
blades--allow them to air cool.
Do not use the edge or side of
blade to cut or grind.
Do not attempt to cut a radius
or curve.
Do not cut too deep or too fast
into the material.
Do not cut any material not
recommended by blade
manufacturer.
Do’s & Don’ts For Blades
Wet Cut Blades
DO'S DON'TS
•
•
•
•
•
•
•
•
•
Inspect blades daily for cracks
or uneven wear.
Always use appropriate blade
for material being cut.
Inspect arbor shaft for uneven
wear before mounting blade.
Always use blades with the
correct arbor shaft size.
Ensure that blade is mounted
in the correct direction.
Secure the blade to the arbor
with a wrench.
Use proper safety equipment
when operating the saw.
Periodically check the blade
for cracks or bond fatigue.
Always have continuous flow
of water on both sides of
blade.
•
•
•
•
•
Do not operate the saw without
safety guards in position.
Do no operate the saw with
blades other than 10”.
Do not cut dry with blades
marked “Use Wet”.
Do not exceed manufacturer’s
recommeded maximum RPM.
Do not force blade into mate-
rial. Let blade cut at its own
speed.

14
Saw Maintenance
WARNING:
GENERAL RULES
Steps to Follow When Cleaning the Saw
•
•Always clean the machine before maintenance/repair.
Before cleaning/maintaining/repairing the machine, the
machine must be turned off and unplugged.
For your safety, before performing any maintenance
on the saw turn off the power switch and unplug the
power cord.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Please do not use aggressive cleaners (i.e. containing
solvents). Do not use high-pressure water jets, aggres-
sive detergents or solutions and liquids with a tempera-
ture exceeding 86 F! Use fluff-free cloth only.
Use a cloth which may be lightly moistened only for
removing dust and dirt. Hard packed dirt can be
removed with a soft brush.
For the sake of safety, water/cleaning liquid/vapor may
penetrate into the electric motor, connectors/plugs,
switches, etc. therefore cover/seal all aperatures, holes
in the housing, connectors, plugs, with adhesive tape.
Use a soft, low-pressure water jet and a brush to rinse
dirt and incrustations away. Be particularly careful
when near hazardous parts of the machine (i.e. switch,
motor, etc...). Clean the vulnerable parts with a moist
fluff-free cloth.
Use a soft, low-pressure water jet to rinse out last two
holes on the 90 and 45 degree cutting channel on
cutting table.
Pull out the removable underside cutting table tray to
clear it of debris.
Do not “rinse” the bearings of the drive elements to
prevent them from running dry. The ball bearings of the
machine are permanently lubricated.
After cleaning, remove all areas that were covered/seal
by tape! All screws/nuts which you may have loosened
must be tightened again!
After wet cleaning, plug the machine to a power outlet
which is equipped with a ground fault current interrupt.
If the device cuts power, the machine must be
inspected by an authorized dealer prior to use!
After use of the saw
After wet cleaning the
saw and before use
Maintenance Steps to Follow when Cleaning
the Saw after Use
•
•
•
•
•
Remove dirty water from
water tray/container.
Remove dirt and mud
from the bottom of the
container.
Rinse the water pump
with fresh water to
prevent clogging from
residual dirt.
Pour water down last two
holes on the 90 and 45
degree cutting channel on
cutting table to clear it of
debris.
Pull out the removable
underside cutting table
tray to clear it of debris.
•Connect the machine to a
ground fault current
interrupt (i.e. GFCI)
power outlet. If the
device cuts off the
electrical power supply,
do not try to operate the
machine but have it
checked by an authorized
dealer.
See included SUPPLEMENTARY UNPACKING AND ASSEMBLY
INSTRUCTIONAL BOOKLET for more details.

15
WARNING:
For your safety, before performing any maintenance
on the saw turn off the power switch and unplug the
power cord.
Before & After A Prolonged Time
Clean saw as described
in the Saw Maitenance
section and lubricate all
movable parts. DO NOT
GREASE the GUIDE
RAILS.
Check that the legs are
safely fixed.
Check that all screw and
nut points are tightened
correctly.
Check that the roller table
is rolling on the rails and
that it moves securely
back and forth.
With the saw blade
removed, switch on the
motor for an instant and
switch it off again. If the
motor does not run, have
the machine inspected by
a qualified electrician.
•
•
•
•
Before not using the
machine for a prolonged
period of time
After not using the
machine for a prolonged
period of time
Temperature Changes
To prevent the water in
the pump and cooling
system from freezing,
remove the water after
using the machine or
when there will be a long
break. Make sure that
the cooling system is
entirely drained so that
there is no water left
inside the pump, the
bearing house and the
water hose!
•
Ambient Temperature
Below 37 F (Winter)
When the machine has not been used for a long period
of time, hard packed dirt may build up inside the pump
and block the pump fan from rotating. If the machine is
activated with the fan blocked, the electric motor inside
the pump will overheat within a few minutes! Please
follow the steps listed below to clean the pump before
operating the saw.
Water Pump Maintenance
1.
2.
3.
4.
5.
6.
7.
Remove the water pump from the water tray/container.
Clean the water pump exterior.
Clean the interior where the fan is by removing the fan
cover. If gasket is installed, be careful not to damage it.
The fan can be removed by using pliers to pull it off.
Careful not to damage the fan or the motor shaft. With
it removed, the entire volute can be cleaned easily.
Spin the pump shaft by hand. It should rotate almost
effortlessly. Then press the cleaned fan back onto the
blade. Note to align the shaft geometry with that of the
blade bore before pressing it back on. Do not press the
fan too far down the shaft or it may not rotate. Spin the
fan blade by hand to confirm it can spin effortlessly.
Reassemble the fan cover.
Turn the saw on briefly to check whether the pump
works properly.
WARNING:
Disconnecting the water pump should be done by a
certified electrician.
M1036 • Owner’s Manual

16
Troubleshooting
Problem Possible Cause Solution
Machine does not run when switched
on
Power cord not properly fixed/
plugged in
Check that the machine is properly
connected to the power supply
Power cord defective Have the power cord checked, re-
place if necessary
Main power switch defective Have the main power switch checked
and replace if necessary by a quali-
fied electrician
Loose electrical connection inside
the electric system
Have the whole electric system of
the machine checked by a qualified
electrician
Motor defective Have the motor checked and re-
placed if necessary by a qualified
technician
Motor stops (power cut out) Too much pressure exerted while
cutting
Exert less pressure when cutting
Incorrect specification for saw blade Use a saw blade which corresponds
to the material being cut
Saw has a defective electric system Have the electric system of the saw
checked by a qualified technician
Poor machine performance, little
power
Power cord/extension cable too long
or cable still wound up inside cable
drum
Use a power cord/extension cable of
the rated length, use a cable drum
with cable fully extended
Power network is insufficient Observe the electrical ratings of the
machine and connect it only to a
power network which complies with
these ratings
Drive motor no longer runs at rated
speed (RPM)
If error light is flashing on post have
the whole electric system of
machine checked by a qualified
electrician
Ground fault detected within the saw
If error light is flashing on post have
the whole electric system of
machine checked by a qualified
electrician
Ground fault detected within the saw
Have the power network checked by
a qualified electrician

17
M1036 • Owner’s Manual
Problem Possible Cause Solution
Insufficient flow of cooling water or
no cooling water at all
The pump draws air
Filter clogged Clean the filter of the pump
Pump wheel of the immersion pump
blocked by dirt
Disassemble the immersion pump
and clean
Irregular run of the saw blade Poor tension in the blade material Return the saw blade to the manu-
facturer
Saw blade wobbles when running Saw blade is damaged or bent Have the saw blade aligned /
flattened
Clean the receiving flanges
Solder the diamond segments of the
old blade onto another saw blade or
use a new blade
Flange of the saw blade is damaged Replace the saw blade flanges
Shaft of the motor is bent Replace the electric motor
Diamond segment becomes loose Overheating of the saw blade; cool-
ing water not sufficient
Have the diamond segment soldered
on the blade again; ensure optimum
flow of cooling water
Excessive wear Wrong type of saw blade Use harder saw blades
Shaft of motor causes wobbling Have bearings of the motor or the
motor replaced
Overheating Ensure optimum flow of cooling
water
Cracks in or near the diamond seg-
ment
Saw blade too hard Use a softer blade
Blade shaft bearing Replace the bearing of the blade
shaft
Fill the container the pump sits in
with water until submerged

18
Problem Possible Cause Solution
Saw blade is blunt Saw blade type is unsuitable for the
material being cut
Use appropriate type of saw blade
Saw blade type is unsuitable for the
machine performance
Saw blade too hard
Diamond segments are blunt Sharpen the diamond saw blade
Appearance of cut is not optimal Poor tension in the blade material Return the saw blade to the manu-
facturer
Too much load placed on the saw
blade
Use a suitable saw blade
Diamond segments are blunt Sharpen the saw blade
The center hole in the saw blade has
become wider due to wear
The saw blade has slipped on the
motor shaft when running
The arbor of the saw blade must be
fitted with an appropriate adaptor
ring
Check the flanges and have it
replaced if necessary
Saw blade shows blooming colors Saw blade overheating due to a lack
of cooling water
Ensure an optimum flow of cooling
water
Lateral friction when cutting The material feed is too high; pro-
ceed more slowly
Grinding marks on the saw blade Material is not being fed parallel to
the saw blade
Ensure that the direction of feed is
absolutely parallel to the saw blade
Adjust the roller table or have it
adjusted
Poor tension in the blade material Have the saw blade tensioned
Too much load on the saw blade The material feed is too high, pro-
ceed more slowly

19
Note
M1036 • Owner’s Manual
