Sawmaster R1048 User manual

Read safety and operating instructions carefully before operating the
saw for the first time. Retain manual for future reference.
ATTENTION!
Owner’s Manual
Keep for your records
Wet tile saw
R1048
2018.04.26

Contents
1
1
3
4
4
5
6
6
7
8
9
9
10
10
11
13
14
14
15
16
18
21
22
24
27
28
30
Table of Contents
Safety Precautions
General Safety Rules
Health Warnings
Unpack, Assembly
Set-up
Features
Specifications
Saw Stand Assembly
Blade Installation
Motor Capacitor Installation
Side Table & Splash Guard Installation
Water Pump Installation
Overflow Plug Installation
Adjustable Angle Guide
The Cutting Table
Cutting Depth
Choose the Right Blade
Do’s & Don’ts for Blades
Saw Maintenance
Water Pump Maintenance
Alignment Instructions
Troubleshooting
Notes
Warranty
Contact US
Electrical Specifications
29
How To Order
Customer Service
12
Wet Cut Blades
16
Dry Cut Blades
17
Cleaning
18
Before & After A Prolonged Time
20
29
5
Operating the Saw (Cont.)
Cutting at Constant Depth
Plunge Cuts
12
12
Steps to Make Miter Cuts
13
11
Operating the Saw

R1048 • Owner’s Manual
Safety Precautions
A. Saw blade should be inspected daily for excessive wear,
core cracks and arbor damage. Replace any blade that
shows signs of damage.
B. To mount the blade, clean the arbor and outer flanges,
and tighten the nut securely.
C. DO NOT place any portion of your body in line with the
blade while it is rotating.
D. Wet cutting blades MUST be used with water.
E. To reduce the risk of electrical shock, we recommend
the use of GFCI and to refer servicing to a qualified pro-
fessional.
F. When operating the saw, be sure to wear proper safety
gear, such as safety glasses, dust mask, and hearing
protection. A hard hat is also recommended.
G. Never use the machine improperly or work in an unsafe
manner.
H. Maintain alertness while operating the machine. Failure
to maintain attention, by the operator, may lead to seri-
ous injury.
I. Keep work area clean.
J. Before you start working, familiarize yourself with the
work site and its surroundings. Take notice of circum-
stances which may impede work or traffic, observe soil
conditions (good bearing or not) and take measures to
ensure safety (e.g. the shielding of roadworks from pub-
lic traffic).
K. Take measures to ensure that the machine is in a safe
and trouble-free condition prior to usage. Use the ma-
chine only when all protective devices (i.e. guards, noise
absorbers, emergency-off devices) are in place and in
working order.
L. A visual check of the machine must be made at least
once a shift to ensure that visible damages or faults
are recognized. Any changes (including changes in
the performance or behavior of the machine) must be
reported to the supervisor. If necessary, stop the ma-
chine at once and secure it.
M. In the case of a malfunction, stop the machine imme-
diately and secure it. Fix the problem as soon as pos-
sible.
N. To stop and start the machine follow the operating in-
structions and observe any indicator lights.
O. Keep out of reach of children. Before operating ma-
chine, be sure the activated machine will be of no dan-
ger to anyone.
P. Be sure to connect the plug to a properly grounded re-
ceptacle to reduce the risk of electric shock.
Q. Wear proper apparel. Do not wear loose clothing or ac-
cessories. Keep hair and body parts away from open-
ings and moving parts.
R. If cord/plug is damaged do not operate.
S. Make sure power switch is in “off” position before plug-
ging in power cord to prevent any accidental activation.
T. When machine is plugged in do not leave it unattended.
Unplug prior to servicing, when changing accessories,
and when not in use.
U. Never carry machine by cord. Do not pull cord to un-
plug. Keep cord away from heat, sharp edges and oil.
V. Do not operate the machine when you are tired or while
under the influence of drugs, alcohol or any medica-
tion.
W. Never operate this unit when flammable materials or va-
pors are present. Electrical devices produce sparks or
arcs which can cause a fire or explosion.
X. When using an extension cord, make sure it is in good
condition and heavy enough to carry the current drawn
by the machine. Refer to the extension cord table in the
“Electrical Specifications” section for the correct gauge
depending on the desired cord length and the machine’s
horse power and voltage.
WARNING
3

General Safety Rules
4
Never use the machine improperly or work in an
unsafe manner.
Always wear safety goggles, dust mask, and ear
protection while operating saw (to comply with
ANSI-Z87.1)
Always remain alert when the saw is in use. Failure
to pay attention on the operator’s part may lead to
serious injury.
Before you start working, familiarize yourself with the
work site and its surroundings. Take notice of
circumstances which may impede working or traffic,
observe soil conditions (good footing or not), and
take measures to ensure safety (i.e. the shielding of
roadworks from public traffic).
Take measures to ensure that the machine is in safe
and trouble-free condition prior to usage. Use the
machine only when all protective devices (i.e.
guards, noise absorbers, emergency-off devices) are
operating in the intended locations.
•
•
•
•
•
Health Warning
A visual check of the machine must be made at least
once a shift to ensure that visible damages or faults
are recognized. Any changes (including perfor-
mance or behavior of the machine) must be reported
to the supervisor. If necessary, stop the machine at
once and secure it.
In the case of a malfunction stop the machine
immediately and secure it. Fix the problem as soon
as possible
For starting and stopping the machine follow the
operating instruction steps and observe any indicator
lights, if applicable.
Before switching the machine on, make sure that the
to be activated machine will be of no danger to
anyone.
Be sure to connect the plug to a properly grounded
receptacle to reduce the risk of electric shock.
•
•
•
•
•
Lead from lead-based paints,
Crystalline silica from bricks, cement and other
masonry products, and
Arsenic and chromium from chemically-treated
lumber.
•
•
•
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities
contain chemicals known to cause cancer, birth
defects or other repreductive harm. Some examples
of these chemicals are:
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: Work in a well venti-
lated area, and work with approved safety equip-
ment, such as those dust masks that are specially
designed to filter out microscopic particles.

5
Unpacking
• Saw
• Pin (2)
• Universal Wrench
• Water Pump
• Wheel Assemblies (2)
• Owner’s Manual
• Drain Plug
• Rear Splash Guard
• Wing Screw
• Extension Table
• Knobs (2)
• Lifting handles (2)
• Masonry guide
• Bucket

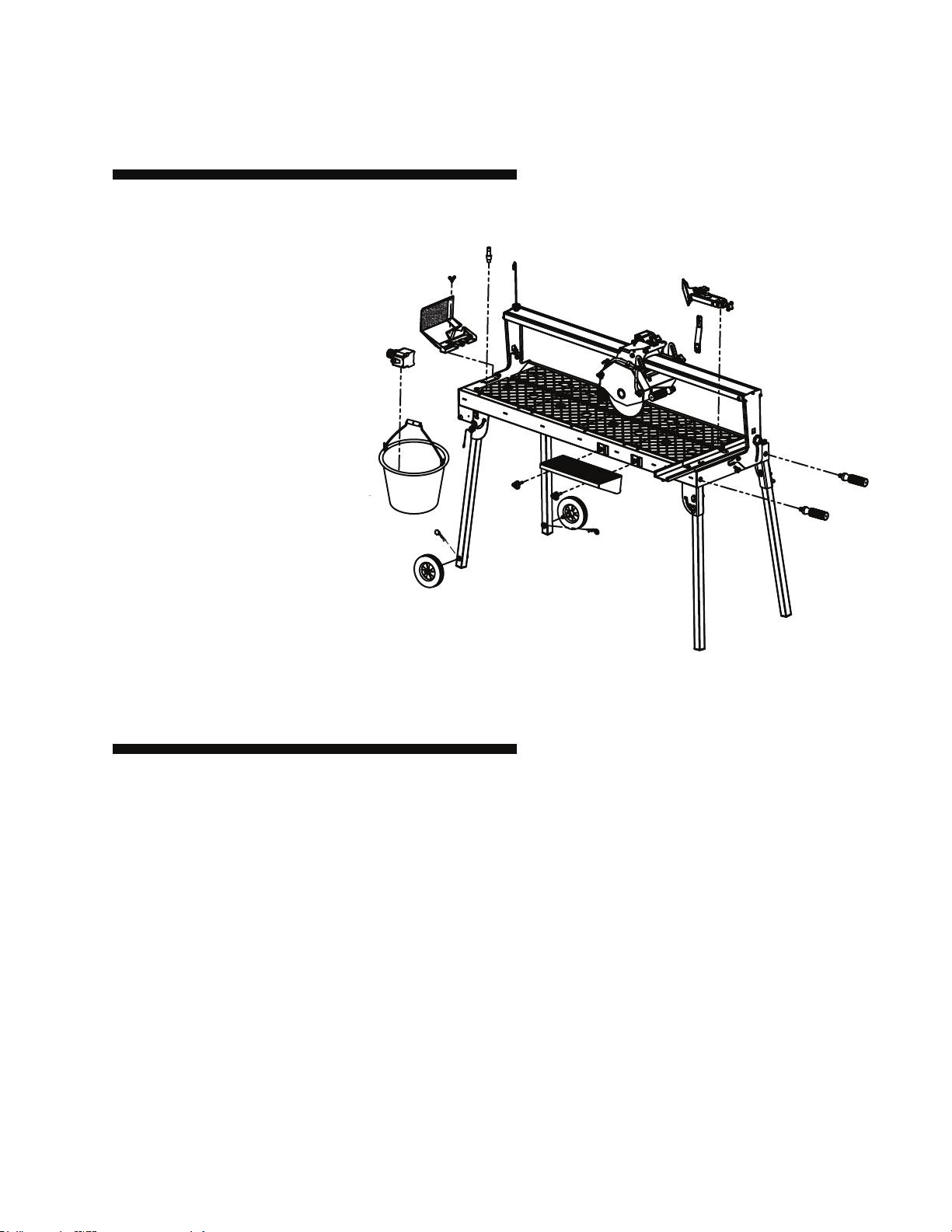

Assembly & Set-up
Open the carton box cover by lifting the
top portion. Locate the accessory box and
check its content for the following items
before discarding any packaging:
Proceed to the following section to
complete assembly of the saw.
Remove the carton box cover by lifting the upper cover.
Locate the accessory box and open it. Obtain the two
lifting handles and install one on each end of the saw.
Install it in the side furthest from the post.
Loosen the lock knob on top of the cutting head.
Deploy the stand legs by following the “folded leg
assembly” section.
Install the side extension table, side splash guard and
back splash guard.
Install the spring holder on top of the sliding rail to hold
the power cable and the water hose.
Fill the tray with water before operating the saw.
1.
2.
3.
4.
5.
6.
7.
R1048 • Owner’s Manual

6

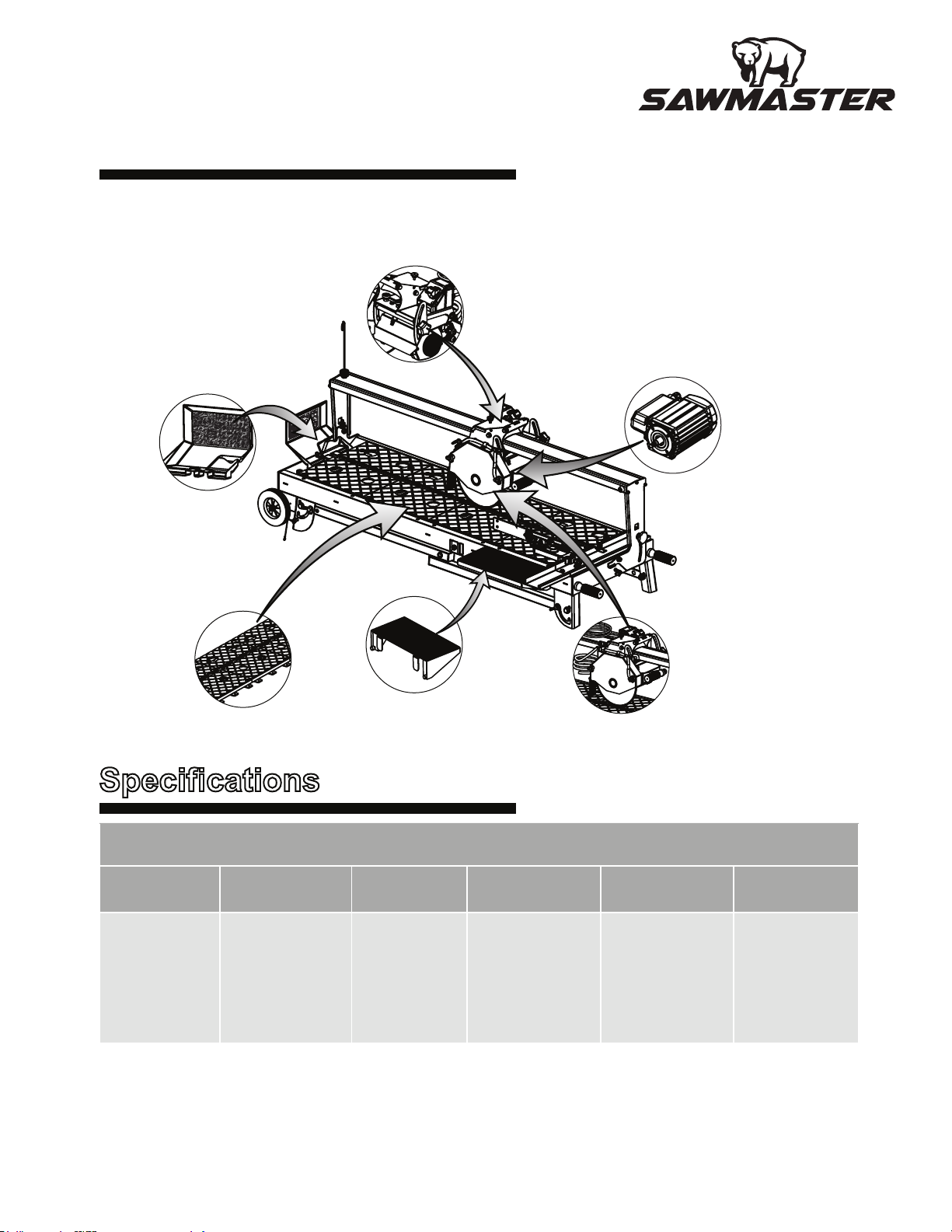

Features
R1048
Motor Cutting Length Cutting Depth Weight Dimensions
2.4-in 182 lbs
These saws are professional saws for cutting floor tiles,
paving stones, stairs, large-sized natural stones, and
similar materials.
1-1/2 HP
115 V/60 Hz
3200 RPM
10-in blade for
5/8-in arbors
48-in,
Diagonal cut
34-in tile
Length: 56.4-in
Width: 22-in
Height: 23-in
Max Blade
Capacity
Specifications
* Dimensions do not include extension tables and drip trays.
Position Lock
Cutting Head
Rubber Matted
Cutting Table
Blade Capacity of 10”
enhances Cutting Capacity
Splash Guard reduce
swater waste
Powerful 1-1/2HP Induction Motor
cuts larger cuts larger
Side Extension Table

Saw Stand Assembly
7
FOLDING STAND
EASY TRANSPORT
1.
2.
3.
4.
5.
6.
7.
It is recommended that adjusting the folding leg be
done by at least two people.
Remove the detachable wheel assembly and stow it
on the frame.
Shift the cutting head away from the end of the frame
where the leg is being adjusted. Tighten the cutting
head carriage knob to hold the head in place.
Loosen the knob that is locking the leg in place.
Lift the saw slightly to give the leg room to rotate into
stow/deployed postion.
Slide the leg in place and tighten the knob.
Repeat steps 2-4 as required to the remaining legs.
1.
2.
3.
4.
5.
6.
7.
8.
It is recommended that adjusting the folding leg be
done by at least two people.
Remove the detachable wheel assembly and stow it
on the frame.
Shift the cutting head away from the end of the frame
where the leg is being adjusted. Tighten the cutting
head carriage knob to hold the head in place.
Loosen the knob that is locking the leg in place.
Lift the saw slightly to give the leg room to rotate into
stow/deployed postion.
Slide the leg in place and tighten the knob.
Insert the detachable wheel assembly in either the
frame/leg position depending on need.
Make sure the head is on the side closest to the
wheels before transporting the saw.
R1048 • Owner’s Manual

8
Blade Installation
WARNING:
Loosen the knobs securing the
blade guard and remove the
guard.
Loosen the cutting shaft nut
(left-hand thread); while
loosening the nut, block the
cutting shaft from turning.
Remove the blade clamping
flange. Check that the contact
area between the blade holder
assembly and the diamond
saw blade is clean.
Install the saw blade on the
supporting flange. Ensure the
blade rotation arrow matches
the clockwise rotation of the
saw blade shaft.
Install the blade clamping
flange.
Re-tighten the cutting shaft
nut. Block the cutting shaft
from turning while tightening
the nut.
Disconnect the power plug before installing the
blade onto the blade shaft.
WARNING:
Setting the blade too low may damage the cutting table and if set too high, the blade
may grab the material being cut, causing damage and possibly injury.
1.
2.
3.
4.
5.
6.
Lightly turn the installed saw
blade by hand and check the
blade for true running.
Mount the blade guard.
7.
8.
knurled nuts

9
Motor Capacitor Installation
WARNING:
Side Table & Splash Guard Installation
1.
2.
3.
4.
5.
Locate the aluminum housing on the side of
the motor body.
Using a phillip/cross screw driver to remove
the two screws to open the capacitor housing
cover.
Pull the capacitor out and remove the two
wire caps to disconnect the wires.
Replace the old capacitor with the new
capacitor and reattach the wires using the
same wire caps.
Close the capacitor cover and make sure the
rubber gasket is properly in place so no
water can seep into the housing.
Disconnect the power plug before servicing the motor
Install the side table and splash guard as shown in the
illustration to the side. Fasten the knobs/screws
respectively to the saw frame.
R1048 • Owner’s Manual

10

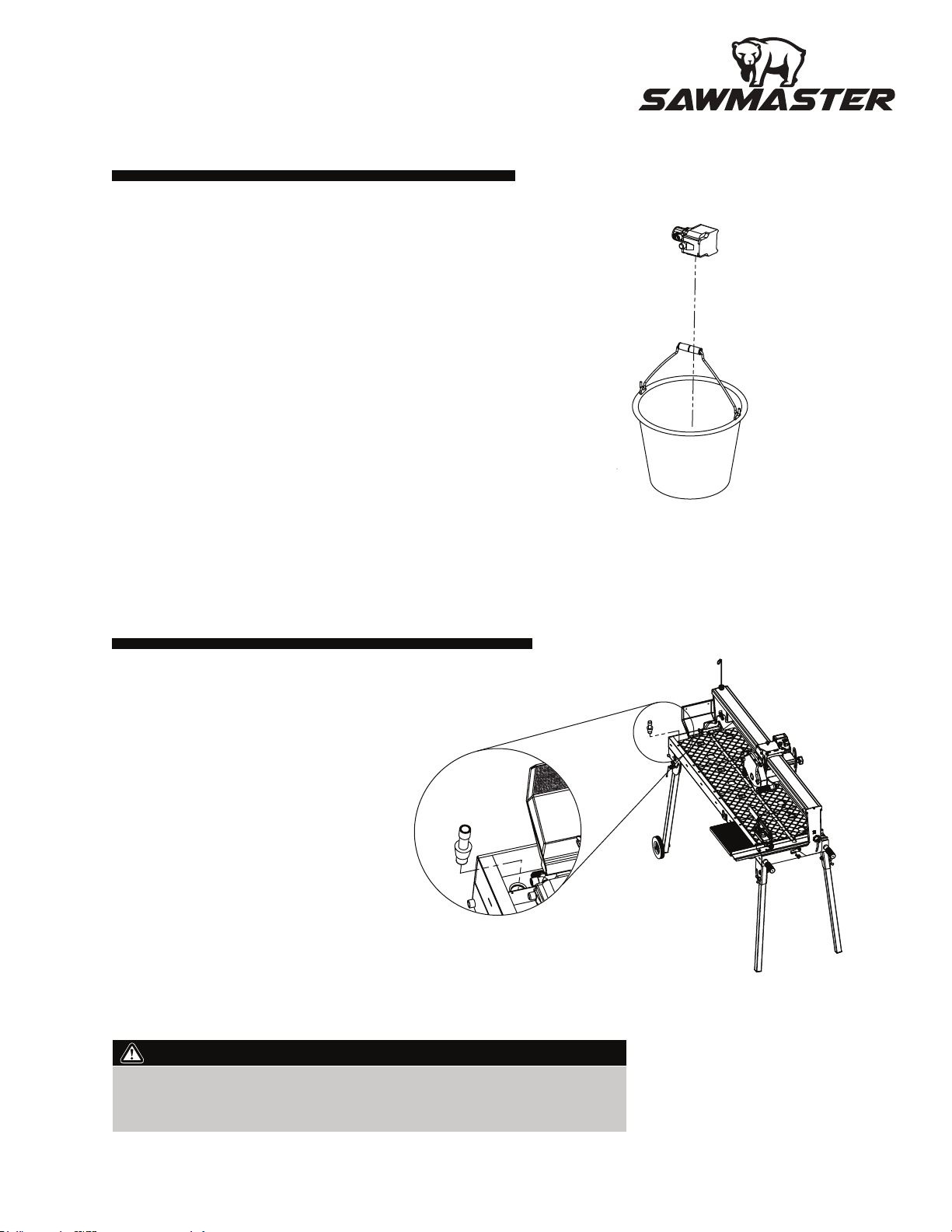

Water Pump Installation
WARNING:
1.
2.
3.
4.
Remove the water pump from the box and
check that it is not damaged.
Place the water pump into the bucket and
place the bucket underneath the water drain
hole on the water tray.
Position the water outlet of the pump so that
it lays horizontally. Connect the water hose
from the blade guard to the water pump.
Plug the power cord into the 3-prong recep-
tacle coming from the power switch housing.
1.
2.
3.
Remove the water level tube
from the plastic bag.
Insert the thin end of the tube
into the rear hole next to the
water pump, as shown in the
illustration.
Fill the water tray with water.
A tube at the rear end of the
saw filters the debris from the
water produced during the
cutting operation. Debris
settles in the water tray while
the water is allowed to pass
through the tube and into the
water bucket, where fresh and
filtered water reside.
Disconnect the water pump before attempting to handle it. Never
operate the pump without water in the tray.
Overflow Plug Installation

11
The Adjustable Angle Guide
WARNING:
Operating The Saw
The Adjustable Angle Guide is a two-
piece assembly consisting of a base and
an attachment that rotates. This guide
will support cutting angles between 0°,
22.5°, 30°, 45° and many more. The
attachment has a casted angle indicator
that show what angle the Angle Guide is
currently set to support.
Always lock the Adjustable Angle Guide prior to transporting the
saw.
1.
2.
After you have made yourself
familiar with the components of
your saw, the machine has
been properly set up, the
bucket or water tray is filled
with water, and the electrical
connection is established in
accordance with the relevant
safety regulations, you may
now begin with the cutting
operation.
Before you start operation
open the water shut-off valve.
3.
4.
During the operation, the user
must stand in front side of the
saw pulling on one of the two
handles of the cutting head
when cutting. The workpiece
must rest on the work table
and should be pressed tightly
against the cutting fence on the
table.
Always turn off the saw before
you leave the machine unat-
tended.
Set angle
indicator
!
R1048 • Owner’s Manual

12
Operating The Saw :continued
CUTTING AT CONSTANT DEPTH
PLUNGE CUTS
5.
Prevent accidental restarting of the saw by
unplugging the power cable.
When cutting at constant depth the cutting
head must be pulled against the work piece.
The motor should be turned off when
adjusting the cutting depth.
1.
2.
3.
Before starting the cut, hold the current
depth by firmly grasping the plunge handle
extending from the blade guard. Set the
cutting head at the desired cutting depth by
first loosening the depth control knob on the
side of the cutting head where the switch
box is located.
Adjust the head to the blade
depth/clearance desired. Tighten the depth
control knob.
Put the workpiece securely on the cutting
table. Have it positioned to achieve the
desired cut.
4.
5.
Turn on the saw and slowly and uniformly
pull the head along the guide rail and across
the workpiece.
Slowly return the cutting head to the original
starting position and turn off the motor.
The handling of long or partial cuts can be
made using the plunge cutting method. In
this case, the cutting head will not be set to
a fixed cutting depth/clearance while
performing a cut. The cutting head is freely
movable during seesaw cutting operations.
1.
2.
3.
Before starting the cut, the cutting head
must be fully raised. Be sure to grasp the
plunge handle extending from the blade
guard. Loosen the depth control knob on
the side of the cutting head where the
switch box is located.
Set the workpiece securely on the cutting
table. Have it positioned to achieve the
desired cut.
With the head fully raised, move to the
desired start of cut along the path of the
blade. Plunge the head and pull until the
desired cut is complete.
4.
Slowly return the cutting head to the original
starting position and turn off the motor.
!
!

13
The Cutting Table
FEATURES
STEPS TO MAKE MITER CUTS:
!
•
•
The easily removable cutting table is
covered with an anti-skid rubber coating,
which allows the material being cut to sit on
the table while the cutting head is pulled
through it.
Simply line up the material being cut with
the appropriate pre-marked lines on the
cutting table.
1.
2.
3.
The bench saw is equipped with a hinged
guide rail that allows the user to make
accurate miter cuts.
To pivot the guide rail, lightly loosen the
knobs at both ends of the saw.
Set the rail to the desired angle by using
both hands to firmly hold the rail and
rotating it. While still holding the rail at the
desired angle, tighten each knob.
WARNING:
Turn off the saw before pivoting the guide rail. Do not attempt to
pivot the rail mid-cut. The saw blade must be clear of the material
being cut and the saw must be turned off first!
R1048 • Owner’s Manual

14
Cutting Depth
WARNING:
Choosing The Right Blade
1.
2.
3.
The blade shaft speed of this saw is exclusi-
bely designed for cutting with diamond saw
blades. The saw may only be used for
cutting natural and artificial stone materials,
do not cut wood or metal!
The saw uses diamond saw blades with
diameters up to 10”. Saw blades with larger
diameters must NOT be installed on the
saw.
Choose the correct type of saw blade for the
material to be cut and the required cutting
depth.
The recommended cutting depth is 1/4” below the cutting
table surface. The cutting clearance has been fixed from
original design.
Setting the blade too low may damage the cutting table and if set too
high, the blade may grab the material being cut, causing damage
and possibly injury.
Blade Diameter Cutting Depth
8” 1.4”
10” 2.4”

15
RECOMMENDED
R1048
Power 1-1/2 H.P
Volts 115 V
Amps
Motor RPM 3450 RPM
Cycle 60 Hz
Phase 1
Wire Gauge Length of Cord
No. 12 25’
No. 10 50’
No. 8 75’
Electrical Specifications
15 Amps
Motor
Power Switch Box
Black
White
Overcurrent
Breaker
Power Outlet for
Water Pump
Switch
Black
White
Green
White
Black
Ground to
Switch Box
•
•
It is recommended that a 15 amp circuit be used
while operating this saw. This will prevent any loss of
power or interruption.
Always plug saw as close as possible to the power
source while operating. This will allow you to receive
optimum electricity.
WARNING:
To avoid permanent motor damage you must use
the correct extension cord. Never use more than
one extension at a time. Follow the chart for
proper size.
EXTENSION CORD CHART
R1048 • Owner’s Manual

16
Do’s & Don’ts For Blades
Wet Cut Blades
DO'S DON'TS
•
•
•
•
•
•
•
•
•
Inspect blades daily for cracks
or uneven wear.
Always use appropriate blade
for material being cut.
Inspect arbor shaft for uneven
wear before mounting blade.
Always use blades with the
correct arbor shaft size.
Ensure that blade is mounted
in the correct direction.
Secure the blade to the arbor
with a wrench.
Use proper safety equipment
when operating the saw.
Periodically check the blade
for cracks or bond fatigue.
Always have continuous flow
of water on both sides of
blade.
•
•
•
•
•
Do not operate the saw without
safety guards in position.
Do no operate the saw with
blades larger than 10”.
Do not cut dry with blades
marked “Use Wet”.
Do not exceed manufacturer’s
recommeded maximum RPM.
Do not force blade into mate-
rial. Let blade cut at its own
speed.

17
Dry Cut Blades
DO'S DON'TS
•
•
•
•
•
In addition to the following,
always follow wet recommen-
dations.
Use appropriate blade for
material being cut.
Inspect segment blades for
segment cracking or loss.
Do not use damaged baldes.
User proper safety equipment
when operating the saw.
•
•
•
•
•
•
In addition to the following,
always follow wet recommen-
dations.
Do not make long cuts with dry
blades--allow them to air cool.
Do not use the edge or side of
blade to cut or grind.
Do not attempt to cut a radius
or curve.
Do not cut too deep or too fast
into the material.
Do not cut any material not
recommended by blade
manufacturer.
R1048 • Owner’s Manual

18
Saw Maintenance
WARNING:
GENERAL RULES
Steps to Follow When Cleaning the Saw
-
-
Always clean the machine before maintenance/repair.
Before cleaning/maintaining/repairing the machine, the
machine must be turned off and unplugged.
For your safety, before performing any maintenance on the saw turn
off the power switch and unplug the power cord.
1.
2.
3.
4.
5.
6.
7.
Please do not use aggressive cleaners (i.e. containing solvents).
Do not use high-pressure water jets, aggressive detergents or
solutions and liquids with a temperature exceeding 86 F! Use
fluff-free cloth only.
Use a cloth which may be lightly moistened only for removing dust
and dirt. Hard packed dirt can be removed with a soft brush.
For the sake of safety, water/cleaning liquid/vapor may penetrate
into the electric motor, connectors/plugs, switches, etc. therefore
cover/seal all aperatures, holes in the housing, connectors, plugs,
with adhesive tape.
Use a soft, low-pressure water jet and a brush to rinse dirt and
incrustations away. Be particularly careful when near hazardous
parts of the machine (i.e. switch, motor, etc...). Clean the vulner-
able parts with a moist fluff-free cloth.
Do not “rinse” the bearings of the drive elements to prevent them
from running dry. The ball bearings of the machine are permanently
lubricated.
After cleaning, remove all areas that were covered/seal by tape! All
screws/nuts which you may have loosened must be tightened
again!
After wet cleaning, plug the machine to a power outlet which is
equipped with a ground fault current interrupt. If the device cuts
power, the machine must be inspected by an authorized dealer
prior to use!

19
Maintenance Steps to Follow when Cleaning the Saw after Use
After use of the saw
After wet cleaning the saw
and before use
-
-
-
Remove dirty water from water
tray/container.
Remove dirt and mud from the bottom
of the container.
Rinse the water pump with fresh water
to prevent clogging from residual dirt.
-
Connect the machine to a ground fault
current interrupt (i.e. GFCI) power
outlet. If the device cuts off the
electrical power supply, do not try to
operate the machine but have it
checked by an authorized dealer.
R1048 • Owner’s Manual
