Sawo STR45-1 Assembly instructions

1.
2.
3.
4.
5.
Children under the age of 16 should not use the Steambath.
Check with a physician before use of the Steambath if you are pregnant, have a coronary condition, are in
poor health, are being treated for any other medical condition, or are using medication or drugs.
Exit Steam Room immediately if you feel faint, dizzy, sleepy, or otherwise uncomfortable.
Do not use the Steambath if you have recently consumed alcohol.
Condensation and moisture may cause the the Steambath floor and other surfaces to become slippery and
dangerous. Installation of non-skid floor materials or the use of proper footwear is recommended at all times.
IMPORTANT! Read the manual provided for use and safety information.
SAWO
SAWO, Inc. SAWO Building Mactan Export Processing Zone 2 Cebu, Philippines 6015 www.sawo.com
!
WARNING
MANUAL
RESIDENTIAL
STEAMBATH
GENERATOR
SYSTEMS
Congratulations on your purchase of SAWO Steam Generator.
Please read the manual carefully before using the steam generator.
STR60-1
STR60-3
STR45-1
STR45-3
STR90-1
STR90-3
STR75-1
STR75-3
STR120-3
STR150-3
STR
230V1
N~
kW
KATSOOHJEISTA
TÄRKEÄTLISÄOHJEET
BEACHTEN SIE DIE
ZUS
ÄTZLICHEN
WICHTIGEN
ANWEISUNGENI
NDER
BEDIENUNGSANLEITUNG
READTHEMA
NUALFOR
ADDITIONALIMPORTANT
INSTRUCTIONS
LÄGG MÄRKET
ILL DE
VIKTIGA
TILLÄGGSANVISNINGARNA

2
TABLE OF CONTENTS
STR75-3
STR90-1
STR90-3
STR120-3
STR150-3
MODELS:
STR45-1
STR45-3
STR60-1
STR60-3
STR75-1
Residential Steambath Generator Systems
Installation, Operation & Maintenance Manual
This highlights information
that is especially relevant
to a problem-free
installation.
IMPORTANT NOTE:
signals a situation where
minor injury or product
damage may occur if you
do not follow instructions.
!
CAUTION
IMPORTANT NOTE: As you follow these instructions, you will notice warning and caution symbols. This
blocked information is important for the safe and efficient installation and operation of this generator.
These are types of potential hazards that may occur during this installation and operation:
states a hazard may
cause serious injury
or death if precautions
are not followed.
!
WARNING
3
4
5
6
7
8
9
10
12
13
14
15
16
18
Before Installing..............................................................................
Locating the Steam Generator....................................................
Installation.......................................................................................
Generator Diagram.......................................................................
Electrical............................................................................................
Field Power Wiring..........................................................................
Wiring Diagrams............................................................................
Optional Tandem Cable................................................................
for connecting 2-5 steam generators in tandem
Optional Automatic Drain System.............................................
Select Your SAWO Model...............................................................
STR45-1, STR45-3, STR60-1, STR60-3, STR75-1, STR75-3
STR90-1 and STR90-3 (with Automatic drain)
...................................
STR120-3 and STR150-3 (with Automatic drain)
..............................
Installing the Remote Temperature Probe................................
SAWO Control..................................................................................
STR
230V1N~
kW
KATSOOHJEISTA
TÄRKEÄTLISÄOHJEET
BEACHTENSIEDIE
ZUS
ÄTZLICHEN
WICHTIGEN
ANWEISUNGENINDER
BEDIENUNGSANLEITUNG
READTHEMANUALFOR
ADDITIONALIMPORTANT
INSTRUCTIONS
LÄGG MÄRKETILL DE
VIKTIGA
TILLÄGGSANVISNINGARNA
3
IMPORTANT: The following general information should be used in conjunction with
consultations with your architect, designer and contractor in determining all factors necessary
in providing a suitable and safe steam room.
Read these instructions before installation or service. Although this steambath generator
has been fully qualified for shipment by SAWO,the following must be reviewed for proper,
safe and enjoyable steam bathing.
Verify that the model and accessories are correct, including incoming line voltage.
Insure steambath generator has been correctly sized for the steambath room. Pay particular
attention to room volume and construction. If any questions, please refer to SAWO sizing
guide enclosed (see page 13).
Marble or glass walls or ceilings, or exterior walls "ENLARGE" the room's size, requiring a
generator larger than one based only on the room's (L x H x W) volume.
The physical size of the unit,clearance for plumbing servicing, and its distance from the steam
room must all be considered before final installation.
IMPORTANT: SAWO units are intended to be operated with SAWO Controls only, and are to
be installed strictly in accordance with the specific instructions contained in this manual and
as supplied in the manuals provided with the controls.
Electrical shock hazard. SAWO steam generators are connected to 220-240V
(One Phase models only: STR45-1,STR60-1,STR75-1 and STR90-1), or 380-430V (Three Phase
models only: STR45-3, STR60-3, STR75-3, STR90-3, STR120-3 and STR150-3) line voltage and
contain live electrical components. All installation and service to be performed by qualified
and licensed electricians and plumbers only. Installation or service by unqualified persons may
void the warranty.
Steam room must be completely enclosed, with full walls, door,floor and ceiling.
It is recommended that a gasketed door is used for heat sealing and steam containment.
If tile-type or other smooth surfaced flooring is used provide suitable anti-skid strips or
equivalent, to prevent user slipping and injury.
Walls and ceilings must be constructed of water-resistant, non-corrosive surface, such as tile,
marble, molded acrylic, or other non-porous material. The ceiling should be sloped to prevent
dripping of condensate.If acrylic, fiberglass or other non-heat resistant materials are used as
part of the steamroom enclosure.
Provide a floor drain.
No heating, venting or air conditioning devices should be installed inside the steam room.
Windows that are part of the steamroom should be double paned.
Try to limit steamroom ceiling height to 2.5m. Exceeding 2.5m may require a higher-rated
steam generator.
SAWO strongly recommends that a warning be posted in a conspicuous location near the
steambath.
Steam Room Guidelines
Before Installing
•
•
•
•
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
!
WARNING
!
WARNING
1.
2.
3.
4.
5.
Children under the age of 16 should not use the Steambath.
Check with a physician before use of the Steambath if you are pregnant, have a coronary condition, are in
poor health, are being treated for any other medical condition, or are using medication or drugs.
Exit Steam Room immediately if you feel faint, dizzy, sleepy, or otherwise uncomfortable.
Do not use the Steambath if you have recently consumed alcohol.
Condensation and moisture may cause the the Steambath floor and other surfaces to become slippery and
dangerous. Installation of non-skid floor materials or the use of proper footwear is recommended at all times.
IMPORTANT! Read the manual provided for use and safety information.
SAWO
SAWO, Inc. SAWO Building Mactan Export Processing Zone 2 Cebu, Philippines 6015 www.sawo.com
!
WARNING
The STR series of steam generators are for residential use only.
Commercial or other non residential applications void the
warranty and may adversely affect product performance.

NOTE:
For illustrative purposes only.
Consult with qualified designer, architect or
contractor for steam room construction details.
Provide unions as required to facilitate
installation and disconnect of piping
Steam generator
Field installed
power supply
Field installed
steam supply
pipe
Valve is
shown open
Control cable
Steam Head (shown with optional acrylic shield)
SAWO in-shower control
Temperature sensor
F
ield
installed
water
supply
pipe
4
Locating the Steam Generator
!
WARNING
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Select a location as near as practical to the steam room.Typical locations include:
closet, vanity cabinet, heated attic or basement.
Locate steambath generator within 7.5 meters of steam room.
NOTE: The standard length of the cable for connecting the control to the steam generator is
7.5 meters.The steam generator and control must be located accordingly.
Do not install steambath generator inside steam room.
Do not install steambath generator outdoors or wherever environmental conditions may
affect the safety and/or performance of the generator.
Do not install steambath generator or plumbing lines in unheated attic or any locations
where water could freeze.
Do not install steambath generator near flammable or corrosive materials or chemicals such
as gasoline, paint thinners, or the like. Installation in areas having high concentrations of
chlorine (such as pool equipment room) must be avoided.
Install steambath generator on a solid and level surface. Keyhole slots are provided on for wall
mounting. Insure the steam generator is properly secured and level when mounting with
keyhole slots.
Install steambath generator in an upright position only.
Install anti-water hammer device as necessary.
Provide a minimum of 30 cm at both ends and top of the steam generator or as required for
servicing.
Provide unions as required to facilitate installation and disconnection of piping.
IMPORTANT: Steam line,safety valve, drain valve,plumbing and steamheads become hot
during operation and remain hot after shutdown for a period of time. Provide appropriate
protection, including insulating plumbing lines. Avoid plumbing runs and steamhead
locations that can come in contact with bathers.
SAWO controls can be located inside the steam room or on the outside of the steam room.
NOTE: SAWO Generators are CE compliant.
The SAWO steam generators are for residential use only. Commercial or other
non-residential applications void the warranty and may adversely affect product
performance. Use only SAWO controls.
5
Plumbing
All plumbing shall be performed by a qualified licensed plumber and in accordance with
applicable National and local codes.
• Use unions on all pipe connections.
• Use only brass piping or copper tubing as permitted by codes.
• Do not use black, galvanized or PVC pipe.
Water Supply (10mm)
Connect hot or cold water line. Hot water line is preferable, however hot water should not
exceed 70ºC.
Provide a shut off valve in the water supply line upstream of the steambath generator.
Do not overheat inlet solenoid valve with solder connections. Overheating will damage parts.
Flush inlet water line thoroughly before making connection to unit.
Strainer recommended upstream of feed water connection.
For best performance water pressure should be 1 to 1.4 bar. Reduce pressure as required
if necessary.
Provide anti-water hammer device as required.
Steam Outlet (15mm)
Do not install any valve in steam line. Flow of steam must be unobstructed.
Use 15mm brass pipe or copper tubing from unit to steam head as permitted by codes.
Insulate steam line using pipe insulation rated 120ºC or higher.
Pitch steam line 2cm per meter towards steam head or steam generator to avoid valleys and
trapping of condensate.
NOTE: Running the steam line down and then up will create a steam trap blocking the
flowofsteam.
Steam Head (15mm)
INSTALLER Because the steam head and direct steam emissions are very hot,
locate the steam head where incidental contact by bather with the steam head or direct
steam emission cannot occur.
Locate steam head 15-30cm above floor, except for
• Tub/shower enclosures,install 15cm above tub top edge.
• For enclosures with acrylic or other non-heat resistant
flooring install Acrylic Shield.
Install steamhead with steam head facing downward.
Hand tightening is sufficient when teflon or equal pipe
thread sealing compound is used.
IMPORTANT: To preserve steam head finish, do not
use wrench or other tools to tighten.Use no abrasive
cleansers or chemicals. Use only water with mild soap
and a non-abrasive sponge.
IMPORTANT: Consult with supplier of acrylic,
fiberglass and other non-heat resistant enclosures
for recommended steamhead location.
Use an Acrylic Shield.
Drain (15mm)
NOTE: A drain valve is provided to facilitate servicing. Provide a drain line connection from
steambath generator drain valve according to National and local requirements.Check local
plumbing code for receptor, trap and vent requirements.Unit drains by gravity.
Safety Valve (20mm)
Where permitted by local codes, provide an outlet plumbing connection for safety valve.
Installation
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
1.
2.
3.
Steam Supply Pipe Steam Head
13mm
(w/o Acrylic Shield)
19mm
(with Acrylic Shield)
Fill gap with
silicone or equal
sealant as required
for moisture seal.
Finished interior face
of steam room wall
Use Teflon or
equal sealant
on pipe threads.
6mm minimum
clearance required
when Acrylic Shield
(PN 103412) is used.
See installation
instructions provided
with the Acrylic Shield.
!
WARNING
!
CAUTION
To insure proper and automatic safety valve operation:DO NOT connect
a shut off valve or a plug at safety valve outlet. DO NOT connect a shut off
valve in steam supply pipe.

NOTE: For illustrative purposes only.
__________________________________________
NOTES:
1.M=
Optional Automatic drain
2. All units in millimeters (mm)
STR120-3 and STR150-3
STR45-1, STR45-3, STR60-1,
STR60-3, STR75-1, STR75-3,
STR90-1 and STR90-3
A 140 184
__________________________________________
B 210 254
__________________________________________
C 302 310
__________________________________________
D 375 466
__________________________________________
E 45 152
__________________________________________
F48 64
__________________________________________
G 89 102
__________________________________________
H 127 152
__________________________________________
I 171 200
__________________________________________
J45 35
__________________________________________
K 368 502
__________________________________________
L64 60
__________________________________________
M 152 162
/----
E
-----\
/-----
F
----\
/-----
L
----\/---
30cm
---\
/--------------------------
M
-----------------------\
/------------------------------------------------------------
K
-----------------------------------------------------------\
/
---------------------------------
\
/-----------
G
---------\
/
------------------
H
---------------- \
/
-------------------------------------
I
------------------------------------
\
A
/
-----------
\
J
/
-----------------------------------------------------
\
B
/
------------------------------------------------------------------------------
\
C
/
--------------------------------------------------------------------------------------------------
\
D
Water Inlet
Steam
Outlet
Safety
Valve
Manual Drain
Valve
Optional
Automatic Drain
Minimum clearance for element service
IMPORTANT NOTE: Provide clearance around steam generator as
required for service and maintenance. DO NOT rough in plumbing and
electrical services based on dimensional information. Drawing not to scale.
Side view showing
element access panel
Generator Diagram
6
TO AVOID EQUIPMENT DAMAGE DO NOT CONNECT
POWER SUPPLY DIRECTLY TO ELEMENTS !!!
7
1. When operated on 220V/1PH, kW output will be 84% of rated kW at 240V/1PH.
2. All three phase heating elements used on 380-430V/3PH products are rated at 415V/3PH.
3. When operated on 380V/3PH, kW output will be 84% of rated kW at 415V/3PH.
4. When operated on 430V/3PH, kW output will be 107% of rated kW at 415V/3PH.
5. Only copper field wiring suitable for 90 degree Centigrade-rated insulation is to be used.
6. For product operating on voltages in excess of 250V, use only 600V rated insulation.
Provide a power supply disconnect within sight of the steam generator or one that is capable of being
locked in the open position as permitted by code.
1.
2.
3.
4.
5.
All electrical wiring to be installed by a qualified licensed electrician in accordance with local
electrical code.
Power Wiring - See page 8 "Field Power Wiring" diagrams.
Check power voltage. Use 220-240V to connect a single phase SAWO residential steambath
generator. Use 380-430V to connect a 3 phase SAWO residential steambath generator.
Use minimum 90ºC / 600V rated insulated copper conductors only, sized in accordance with
National Electrical Code and local electrical code for the Amps in Ampere Chart.
Connect suitably sized equipment grounding wire to ground terminal provided.
Install a separate circuit breaker between supply and unit. Provide a power supply disconnect
within sight of the steam generator or one that is capable of being locked in the open position.
For single phase units, use two-wire supply source and equipment grounding wire.
Electrical
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
____________________________________________________________________
Model No. kW Maximum Room
Volume (m³)
Voltage (V) Wire Size
mm²
PhaseCurrent (A)
_____________________________________________________________________
STR45-1 4.5 2
6.0mm²1
4mm²3
4mm²3
2.5mm²3
8.0mm²1
2.5mm²3
6.0mm²1
2.5mm²3
2.5mm²3
4mm²1
20A @ 380V
21A @ 415V
22A @ 430V
16A @ 380V
17A @ 415V
18A @ 430V
12A @ 380V
13A @ 415V
13A @ 430V
10A @ 380V
11A @ 415V
11A @ 430V
8A @ 380V
9A @ 415V
9A @ 430V
35A @ 220V
38A @ 240V
29A @ 220V
32A @ 240V
23A @ 220V
25A @ 240V
6A @ 380V
7A @ 415V
7A @ 430V
18A @ 220V
19A @ 240V
415
415
415
415
240
415
240
415
240
240
STR45-3 4.5 2
STR60-1 6.0 5
STR60-3 6.0 5
STR75-1 7.5 7
STR75-3 7.5 7
STR90-1 9.0 11
STR90-3 9.0 11
STR120-3 12.0 16
STR150-3 15.0 19
_____________________________________________________________________
AMPERE CHART

9
Wiring Diagrams
FACTORY
WIRING
FIELD
WIRING
LEGEND
All
Diagrams
INPUT
SINGLE PHASE
STR45-1, STR60-1,
STR75-1, STR90-1
THREE PHASE
STR45-3, STR60-3,
STR75-3, STR90-3
STR120-3, STR150-3
CONTROL
BOARD
S AWO 230 V OLT S S IN G L E P HA S E W IR ING DIA GR AM
WATER
FEED
SOLENOID
VALVE
S
LIGHT
BLUE
CONTACTOR
WHITE
GRAY
HEATING
ELEMENT
WHITE
C
TRANSFORMER
GROUND
DARK
BLUE
WHITE
BLACK
LN
BLACK
G
GREEN
POWER
TO
PROBE
TEMP SENSOR
SAWO
CONTROL
AUTOMATIC
DRAIN
DARK
BLUE
CONTROL BOARD
WHITE
SAWO 415 VOLTS THREE PHASE WIRING DIAGRAM
GROUND
CONTACTOR
C
S
GRAY
HEATING
ELEMENT
WA T E R
FEED
SOLENOID
VA LV E
WHITE
WHITE
LIGHT
BLUE
BLACK
BLACK
N
POWER INPUT
L1 L3L2
PURPLE
GREEN
TRANSFORMER
G
TO
PROBE
SAWO
CONTROL
AUTOMATIC
DRAIN
8
Field Power Wiring
Contactor
Knock-out
N
L
Ground
Ground Lug
Models STR45-1, STR-60-1, STR75-1 and STR90-1
Models STR45-3, STR60-3, STR75-3, STR90-3, STR120-3 and STR-150-3
_________________________________________________
_________________________________________________
TO AVOID EQUIPMENT DAMAGE DO NOT CONNECT
POWER SUPPLY DIRECTLY TO ELEMENTS !!!
NOTE: For illustrative purposes only. Consult with
qualified licensed electrician for electrical installation.
(fitting omitted
for clarity)
_________________________________________________
_________________________________________________
TO AVOID EQUIPMENT DAMAGE DO NOT CONNECT
POWER SUPPLY DIRECTLY TO ELEMENTS !!!
NOTE: For illustrative purposes only. Consult with
qualified licensed electrician for electrical installation.
L, N, Ground
by field wiring
L1, L2, L3, N, Ground
by field wiring
Ground Lug
Knock-out
(fitting omitted
for clarity)

Optional Tandem Cable -for connecting 2-5 steam generators in tandem
1. Turn on control. Follow specific instruction sheet provided with controls.
2. Steam will begin to appear in 5 minutes at the steam head. Steam will shut off when desired
temperature is reached and will automatically resume when room temperature drops below
set point.
3. Steam will shut off automaticaly when control counts down to zero. to shut steam off manually,
turn control OFF. To clear steam from enclosure area, turn shower on before opening door.
4. If unit does not start and control does not turn ON (control display does not light up) then turn
breaker off for twenty seconds and try again.
Refer to specific instruction sheets for installation, operation and maintenance of optional
equipment and accessories.
SAWO steambath generators require little maintenance. Other than periodic draining,
maintenance procedures are minimal. Every 2 months, or more often in "hard" water areas, the
manual drain valve should be opened fully flushing out accumulated materials, salts and other
particles which are naturally by-products of boiling water.
NOTE: Flush a minimum of two hours after the control has been turned off to insure that the
water has cooled.
Draining immediately after a steam cycle may expose PVC and other piping
to high temperature water. Check local requirements. The unit will refill automatically when
the control is activated again. In areas of very hard water, a SAWO automatic drain
system is recommended for generator longevity.
Optional Equipment
Initial Start-Up and Checkout
Maintenance
OPTIONAL TANDEM CABLE
FOR 2-5 GENERATORS
Length is 9 meters
3, 4 OR 5 SAWO UNITS
S
WATER FEED
SOLENOID
VALVE
LIGHT
BLUE
O
NTACTO
R
CONTROL BOARD
GRAY
WHITE
TRANSFORMER
POWER INPUT
LN
GREEN
FUSES
R
OUN
D
WHITE
BLACK
BLACK WHITE
DARK
BLUE
TO
PROBE
SAWO
Control
Automatic Drain
PLUG THIS END
TO MASTER UNIT
FACTORY
WIRING
FIELD
WIRING
PURPLE
TO THIRD UNIT
TO FOURTH UNIT
TO FIFTH UNIT
S
HEATING
ELEMENT
C
O
WATER FEED
SOLENOID
VALVE
CONTROL BOARD
WHITE
GRAY
TRANSFORMER
POWER INPUT
LN
PURPLE
GREEN
FUSES
GROUND
LIGHT
BLUE
WHITE
BLACK
BLACK
WHITE
DARK
BLUE
TO
PROBE
Automatic Drain
SECOND UNIT
MASTER UNIT
HEATING
ELEMENT
CONTACTOR
GROUND
HEATING
ELEMENT
CONTACTOR
10
!
WARNING
11
Automatic drain Cord
Automatic drain Valve
Automatic drain Cord Connector
End
"A"
End
"B"
PlumbtoDrain
Line in accordance
with Code
Arrow indicates
correct direction
of flow
Drain Valve Nipple
Plumb to
Drain Line
Automatic
drain
Valve
Plumbing to be performed by a qualified licensed
plumber and shall be in accordance with applicable
national and Local Codes. Unit drains by gravity.
A drain line that is lower than Automatic drain
assembly must be available. The Automatic drain
valve outlet is threaded 15mm. Check plumbing
code for receptor, trap and vent requirements.
Use copper or brass nipple 15mm x 90mm
or longer (not supplied) to connect the Automatic
drain valve (end "B") to the Drain Valve (valve end
"A" & "B" are indicated on bottom of Automatic
drain Valve).
DO NOT REMOVE THE DRAIN VALVE.
Removal may cause equipment and property
damage. If there is not enough room for the valve,
an elbow and a short nipple (not provided) can
be added.
Installation Instructions
1. Disconnect all power supplied to the unit.
2.
3.
4. Open Drain Valve (handle must be aligned with
brass nipple as shown).
5. Connect the Automatic drain cord connector to the
two pin connector as shown.
Do not drain into a steam enclosure or
any location where accidental contact with drain
water may occur. In the event of a power failure, the
Automatic drain valve will open and discharge hot water.
Operation
The optional Automatic drain
feature automatically drains
the SAWO system following
each use. the stainless steel
tank is flushed and remains
empty until the steam
generator is used again.
A time delay (about 2
hours) allows the water to
cool down before it drains
resulting in a safe gentle
operation.
Drain Valve
(shown in the correct open position)
DO NOT REMOVE THIS DRAIN VALVE
Steam Generator
Nipple
(copper or
brass nipple
15mm x 90mm
or longer
(not supplied))
Box Contents:
* Automatic drain Valve with Cord
* Installation instructions
DO NOT TURN OR REMOVE THE DRAIN VALVE
Steam Generator
Automatic drain shown fully assembled
NOTE: For illustrative purposes only.
!
WARNING
!
CAUTION
(2) Pin Connector
for Automatic
drain
STR
230V1N~
kW
KATSOOHJEISTA
TÄRKEÄTLISÄOHJEET
BEACHTENSIEDIE
ZUS
ÄTZLICHEN
WICHTIGEN
ANWEISUNGENINDER
BEDIENUNGSANLEITUNG
READTHEMANUALFOR
ADDITIONALIMPORTANT
INSTRUCTIONS
LÄGG MÄRKETILL DE
VIKTIGA
TILLÄGGSANVISNINGARNA
STR
230V1N~
kW
KATSOOHJEISTA
TÄRKEÄTLI
SÄOHJEET
BEACHTENSIEDIE
ZUS
ÄTZLICHEN
WICHTIGEN
ANWEISUNGENINDE
R
BEDIENUNGSANLEITUNG
READTHEMANUALFOR
ADDITIONALIMPORTANT
INSTRUCTIONS
LÄGG MÄRKETILLDE
VIKTIGA
TILLÄGGSANVISNINGARNA

Using Aroma Oils
Sweat Fittings
When using sweat fittings use only tin base solder with a melting point below 315ºC.
Do not overheat. Ends of water supply tubing must be thoroughly cleansed for a minimum
distance of 25mm from ends. Do not remove valve cover.
To Check Operation
1. Turn on SAWO and allow tank to fill with water.
2. Turn off SAWO control. Water should stay in tank.
3. Turn off power at the panel box. Water should discharge from tank.
4. Turn on power at panel box.
5. Repeat.
PROVIDE DRAIN PLUMBING ACCORDING TO LOCAL REQUIREMENTS.
PLUMB AS REQUIRED FOR GRAVITY DRAIN SYSTEM.
Aroma oil
10ml bottle with
integrated
dropper
Recess for
essential oil
Steam head
(install per instructions
on page 5)
Steam emission slot
Optional Automatic Drain System
12
!
CAUTION
!
CAUTION
!
CAUTION
Enjoy aroma oils by placing a drop or
two into your steamhead as shown in
the attached illutration. Only use SAWO
aroma oils in a SAWO steamhead, or any
other equivalent oil deemed suitable for
use in the SAWO steamhead.
Use aroma oils with caution.
aroma oils are for external use only. Keep
out of reach of children. aroma oils are highly
concentrated and are potent substances and
should not be applied directly to the skin as they
can be irritants. Use aroma oils with caution.
Place the drops into the SAWO steamhead recess prior to turning on the
steambath. Do not place drops in a hot steamhead as SERIOUS INJURY CAN RESULT IF YOU
DO NOT FOLLOW THIS WARNING.
Start with one drop to gauge strength and suitability. Limit to a maximum of a few
drops during a steambathing session. Some people may find that the aroma makes dizzy and
the user should exit the steam bath IMMEDIATELY. If skin irritation occurs stop using the oils
immediately. Remove any excess oil by washing in mild soap and water. If ingested, rinse
mouth with water. Administer water or milk to dilute. contact a physician immediately.
13
Select Your SAWO Model
1. Measure the Length, Width, and Height (in meters)
of steam shower or tub/shower being used.
Multiply the Length x Width x Height to get
thebasicroomvolumeinm (a) LxWxH =
2. Add 15% of (a) for each of the following design features
that describe the steambath enclosure:
b. Each exterior wall, or uninsulated attic, or crawlspace
above or below ceiling or floor
.
c. Tile on mud wall
d. An extra glass panel in addition to the door
e. A cast iron tub or marble bench
f. Each foot exceeding 2.5 meters height
3. If the interior wall construction material within the steam
enclosure is natural marble, stone, shale, glass block or
concrete, copy the figure from box (a) to box (g).
Add Boxes (b) through (g) to box (a) = Total Cubic Meter
required. a + b +c+d+f+g=
L
W
H
a
b
c
d
e
f
g
h
Compare the total m³ required (h) to the specification chart below and select the appropriate model.
_______________________________________________________________________________________________________
IMPORTANT: The formula for selecting the steambath generator is a recommendation only.
Because of variables in construction, these sizing instructions and specifications should be
considered as guidelines only. SAWO will review the model selected provided we receive complete
information, including working drawings, specifications, and pertinent electrical and construction
details. Otherwise the manufacturer disclaims responsibility for the sizing of a model selected.
3
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
Model No. Kw Maximum Room
Volume (m³)
_____________________________________________________________________
STR45-1 4.5 2
STR45-3 4.5 2
STR60-1 6.0 5
STR60-3 6.0 5
STR75-1 7.5 7
STR75-3 7.5 7
STR90-1 9.0 11
STR90-3 9.0 11
STR120-3 12.0 16
STR150-3 15.0 19
SELECTION CHART

14
STR45-1, STR45-3, STR60-1, STR60-3, STR75-1, STR75-3,
STR90-1 and STR90-3 (with Automatic drain) shown with cover removed
NOTE: For illustrative purposes only.
Some components may be omitted or altered for clarity.
Do not use for wiring, repair or other purposes not related
to component identification.
Models STR45-1, STR45-3, STR60-1, STR60-3, STR75-1, STR75-3, STR90-1 and STR90-3 are compatible
with SAWO Controls and include a matching steam head. The weight is 21 kg per unit.
Single Phase wiring shown
Power Block
Power Supply
Knock-Out
Liquid Level
Probe
Access Cover
Heating Element
Stainless Steel Tank
Drain Line
Automatic drain
Valve (optional)
Safety Valve
Steam Outlet
Water Feed Hose
Plug and Play
Connection
Water Feed
Water Feed Solenoid
Transformer
Liquid Level Circuit Board
STR120-3 and STR150-3 (with Automatic drain) shown with cover removed
Access Cover
Knock-out
Liquid Level
Probe
Power Block
Power Supply
Drain Line
Transformer
Liquid Level
Control Board
Water Feed Solenoid
Water Feed Hose
Water Feed
Steam Outlet
Safety Valve
Automatic Drain Valve
(optional)
Stainless Steel Tank
Heating Element
Contactor
Plug and Play
Connection
Ground Lug
cover removed
NOTE: For illustrative purposes only.
Some components may be omitted or altered for clarity.
Do not use for wiring, repair or other purposes not related
to component identification.
STR120-3 and STR150-3 are supplied standard with a SAWO Control and a matching steam head.
The weight is 32 kg per unit.
15

16
Diagram 1
Installing the Remote Temperature Probe
for SAWO Controls
Diagram 2
DRAWING NOT
TO SCALE
SAWO Steam Generator
(shown with cover removed and NOT installed)
Temperature
Sensing Probe
Knock-out
Temperature
Probe Cable
(9 meters)
Temperature Probe
Connection
Printed
Circuit
Board
Component
shown for
illustrative
purpose
The Remote Temperature Probe is for use with SAWO Control only. Do not
use any other controls. Do not use any other temperature probe with the SAWO control.
Noncompatible products may result in an inoperative control and a hazardous condition.
Install the SAWO Control according to the installation and operation
instructions supplied with the control. Failure to do so may result in an inoperative
control and a hazardous condition.
1. Determine the location of the Remote Temperature Probe.
The Remote Temperature Probe must be installed:
a. On a vertical surface
b. 1.2-1.5 meters above the floor
c. Away from the steam head
d. Not exposed to direct steam emission.
The probe has an integral 9 meter
cable. Insure that the probe and/or
steam generator are located accordingly.
Contact a SAWO technical service
representative if a longer cable is
required.
2. Drill an 8mm hole in the wall as
shown in Diagram 1. Do not
oversize or undersize the hole.
Clean area thoroughly.
3. Remove the knock-out from the
steam generator jacket as shown in
Diagram 2.
4. Insert the remote temperature
probe cable through the knock-
out and connect to the
connector on the steam
generator printed
circuit board marked "TEMP
PROBE" as shown
in Diagram 2.
NOTE:
For illustrative purposes only.
Consult. with qualified designer,
architect or contractor for steam
room construction details.
!
CAUTION
!
CAUTION
STR
230V1N~
kW
KATSOOHJEISTA
TÄRKEÄTLISÄOHJEET
BEACHTENS
IEDIE
ZUS
ÄTZLICHEN
WICHTIGEN
ANWEISUNGENINDER
BEDIENUNGSANLEITUNG
READTHEMANUALFOR
ADDITIONALIMPORTANT
INSTRUCTIONS
LÄGG MÄRKETILLDE
VIKTIGA
TILLÄGGSANVISNINGARNA
17
5. Route the end of the temperature probe cable with the
temperature probe through the wall into the steam room
as shown in Diagram 3.
IMPORTANT NOTE: Do not strain, staple, pinch or otherwise
damage the probe cable.
6. With a minimal length of the cable exposed apply silicone
(provided) to the hole in the wall as required to create a
moisture seal as shown in Diagram 3.
7.
Insure a minimum of 6mm of the temperature
bulb is exposed to the air. Failure to do so may result in an
inoperative control and a hazardous condition.
The exposed area of the temperature bulb
mustbe free of silicone or any materials that prevent direct
exposure to the steam room air. Failure to do so may
interfere with the ability to sense temperature and may
result in excessive steam room temperatures.
INSTALLED REMOTE
TEMPERATURE PROBE
6mm
Minimum
13mm
Maximum
Silicone Sealant
Cable
Wall
SECTIONAL VIEW
Steam Room Interior
Diagram 3
Diagram 4
Installing the Remote Temperature Probe (cont.)
!
WARNING
!
WARNING
Push the temperature cable and bulb into hole as required
to leave minimum 6mm, maximum 13mm of the bulb
exposed as shown below.

18
1.
Use only mild soap and water on a soft cloth to clean the control.
Care Tips for Control
2.
Do not use abrasive cleansers
N
Step 1
Step 2
Do not oversize or undersize the hole.
Step 3
Step 4
67 mm
25 mm
25 mm
A
B
C
D
Wall
Wall
Do not route the control or temperature sensor wiring inside conduit
together with power lines or close to hot water or steam piping. Doing so may result in
an inoperative or hazardous installation. Do not alter or modify the control. Doing so may
result in an inoperative or hazardous installation.
Determine the desired installation location of the control.
The SAWO control is designed to be installed inside or
outside the steam room as a matter of personal preference.
The control cable length is 7.5 m. Insure that the control
and/or steam generator are located accordingly.
Turn on power to the steam generator and test the control
to verify correct connections. Test per the instructions.
Proceed with installation and verification of proper control
function.
Route the control cable to the steam generator.
Connect the connector to the steam generator.
!
CAUTION
Installation Instructions
SAWO Controls
Installation, Operation & Maintenance Manual
IMPORTANT: Turn power to the steam generator OFF
before installing the control. Failure to turn the power
off will result in an inoperable control.
IMPORTANT: Do not strain, staple pinch or otherwise
damage the control cable. Route cable as required to
permit replacement.
NOTE: The connector is keyed.
IMPORTANT NOTE: Turn power to the steam generator OFF before installing the control.
Failure to turn the power off will result in an inoperable control.
19
Wall
Wing nuts
Holder plate
Wall
Keypad
Adhesive tape
Step 7
Insure the
mounting surface
is and dry as required
for good adhesion.
Apply silicone into
the hole in the wall
as required to create
a moisture seal.
Hold the
control and press
the control against
the wall until the
adhesive sticks and
holds firmly as shown.
Step 6
Run a bead of
silicone (provided)
as shown to the
C shaped groove as
shown.
Step 5
Remove & discard
peel-off paper to
expose adhesive
liner as shown.
IMPORTANT:
Do not apply
excessive amounts
of silicone.
Do not apply silicone
to any other parts of
the control including
the adhesive gasket.

•
•
•
•
20
ON/OFF Key is used to turn the steam generator on/off.
Press On/Off key to turn steam generator on. Press a second time to turn steam
generator off.
A built-in timer automatically shuts the steam generator off a predetermined period
of time after it has been started, unless the user does so manually.
The "Display" indicates the Set Point temperature.
Pause key is used to turn the steam generator off momentarily.
Press Pause key to activate stand-by mode.
Press a second time to resume normal function.
The "Set Point" indicator will flash on the function panel when Pause feature is activated.
Up & Down arrow keys are used to set ambient temperature.
Pressing and holding keys will increase or decrease the current temperature setting.
The new and desired temperature setting ("Set Point" value) will remain for 5 seconds
on the LED display as a confirmation of the new value you have selected.
The "Set Point" indicator shows the desired temperature, NOT the actual temperature.
Temperature can be adjusted in 0.5 degree increments from 40 to 49ºC.
When ambient temperature is 0.5ºC lower than the Set Point, the heater automatically
comes on until the temperature reaches Set Point plus 0.5ºC.
On/Off Key
Pause Key
Scroll Up & Scroll Down Keys
Display Keys
21
Connection of SAWO Control and Temperature
Sensor to PCB.
STR
230V1N~
kW
KATSOOHJEISTA
TÄRKEÄTLISÄOHJEET
BEACHTENSIE DIE
ZUS
ÄTZLICHEN
WICHTIGEN
ANWEISUNGENI
ND
ER
BEDIENUNGSANLEITUNG
READTH
EMA
NUALFOR
ADDITIONALIMPORTANT
INSTRUCTIONS
LÄGG MÄRKETILLDE
VIKTIGA
TILLÄGGSANVISNINGARNA
SAWO Control
Temperature
Sensor
Temperature Sensor
SAWO Control

This manual suits for next models
9
Table of contents
Other Sawo Iron manuals

Sawo
Sawo STP-30-1 User manual

Sawo
Sawo STS45-1 User manual

Sawo

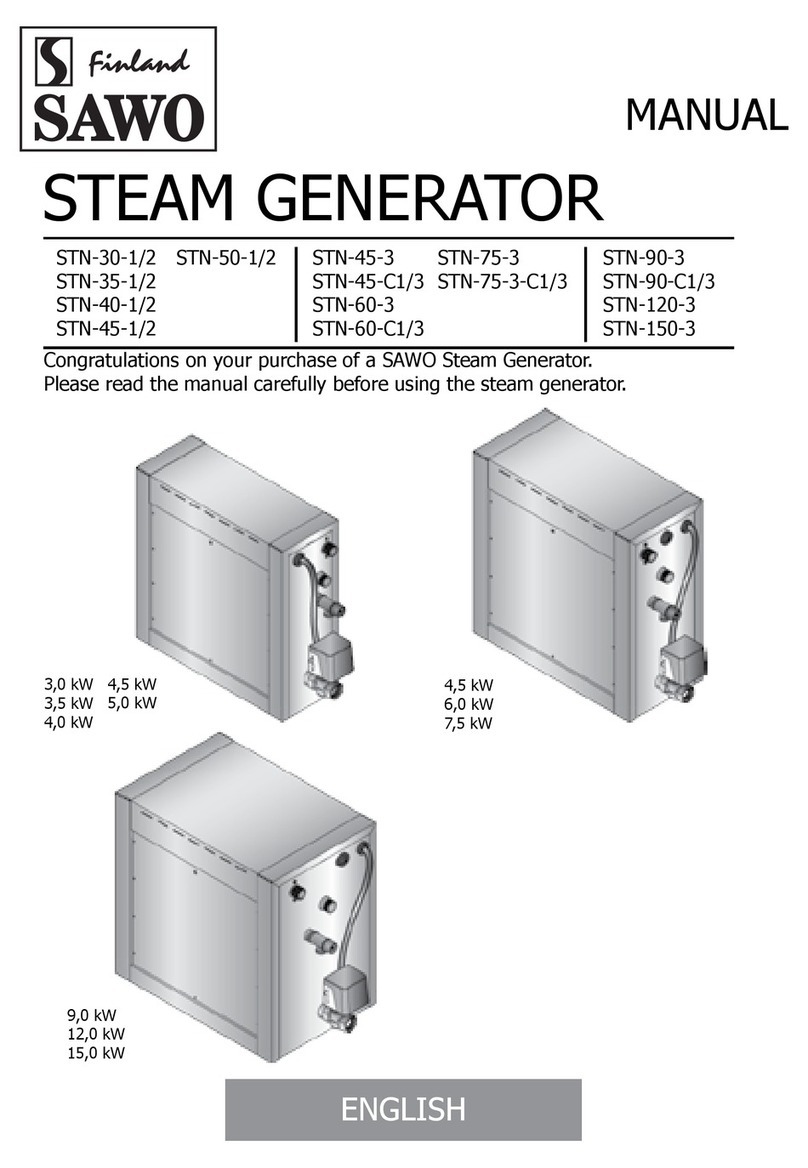

Sawo STN-30-1/2 User manual

Sawo
Sawo STN Series User manual

Sawo
Sawo Super Savonia Combi User manual

Sawo
Sawo NORDEX COMBI NRC-80NS User manual

Sawo
Sawo STP-30-1/2 User manual

Sawo
Sawo MINI COMBI Series User manual

Sawo
Sawo STP-30-1/2 User manual
