Congratulations on your purchase of a SAWO heater/steam generator.
Please read the manual carefully before using the product.
The Safety Temperature Sensor has to be mounted above the heater.
Check the manual of the external control unit for further instructions.
SAVC-120N
SAVC-120NF
SAVC-120NA
SAVC-120NAF
SAVC-150N
SAVC-150NF
SAVC-150NA
SAVC-150NAF
SAVC-180N
SAVC-180NF
SAVC-180NA
SAVC-180NAF
SAVC-105N
SAVC-105NF
SAVC-105NA
SAVC-105NAF
SAVC-90N
SAVC-90NF
SAVC-90NA
SAVC-90NAF
PX4
SAVC_ML_S(EnV11206)

2
1. Introduction of the Combi Heater
Savonia Combi Super Savonia Combi
Savonia/ Super Savonia Combi
A combination of a heater and steamer with Scent Basins and probably the most reliable
steamer due to its patented Water Level Detection System.
Allows users to choose from normal sauna to steam bathing.
Its metal parts and Water Tank are made of stainless steel and the unique design of the
heating elements makes the Water Tank easy to keep clean.
Operated with an external control unit.
Its optional fiber-coated casing makes it safer and cool to touch.
Savonia Combi as available in 9.0kW, 10.5kW and 12.0kW, Manual Refill or with Built-in
Automatic Refill System.
The Super Savonia Combi has two tanks located on both sides of the heater giving more
steam to the bather.
Available in 15.0kW and 18.0kW, Manual Refill or with Built-in Automatic Refill System.
1.1.
•
•
•
•
•
•
•
•
3
• Before installing the Ball Valve, ensure that the Drainage Pipe’s thread is wrapped with a Teflon
tape
• When attaching and detaching the Ball Valve, make sure that the valve’s handle is in the “close”
position.(see figure 1a)
Note: For Built-in Automatic Refill System Ball Valve is already attached to the heater. Only the Water
Inlet connection will be attached by the user. See Figure 1b..
2.1.
2. Assembly and Installation Instructions
Fig. 1a Ball Valve (Manual Refill)
Fig. 1b Ball Valve (Automatic Refill)
Assembly
2.1.1 Ball Valve

• Follow the instructions given in Figure 2 in attaching or detaching the Steamer Cover
2.1.2 Steamer Cover
Fig. 2 Steamer Cover
Detach the Steamer Cover as shown:
Scent Basins
Super Savonia Combi
Frame
Fig. 3 Scent Basins
2.1.3. Scent Basins
• There are designated holes for the Scent Basins on the Steamer Cover. The Scent Basins are to be
fitted on these holes as per Figure 3.
• Scent Basins should be handled with care as they might break if dropped on the floor or on any
hard surface.
45
Fig. 4 Screwing the Combi Heater on the floor
2.2. Installation
• It is recommended that the Combi Heater is placed on the floor nearest to the door.
• For safety and convenience, follow the minimum safety distances as provided in Figure 5
and follow the cubic volumes given in Figure 11 (Technical Data).
• Do not install the heater on a niche in the wall.
• Do not install more than one heater, unless, you follow the special instructions
for twin-heater installations.
• In most countries, there is a law that requires heaters to be screwed on the floor as
provided in Figure 4.
• A Combi Heater, when used, is naturally hot. To avoid accidental contact with the
surface of the Combi Heater, it is necessary to affix a heater guard. Figure 5 shows the
minimum safety distances in installing heater guards.
NOTE: Remove the packaging from the heating elements before installing the heater as it
is only intended to protect them during shipment. Make sure the Silica gel packs are still
attached to the packaging, as the purpose of those packs is to remove the moisture during
shipment.
2.2.1 Mounting the Combi Heater

6
Fig. 5 Minimum Safety Distances
SAVC - 90N
SAVC - 90NF
SAVC - 90NA
SAVC - 90NAF
SAVC - 105N
SAVC - 105NF
SAVC - 105NA
SAVC - 105NAF
SAVC - 120N
SAVC - 120NF
SAVC - 120NA
SAVC - 120NAF
SAVC - 150N
SAVC - 150NF
SAVC - 150NA
SAVC - 150NAF
SAVC - 180N
SAVC - 180NF
SAVC - 180NA
SAVC - 180NAF
2.2.2 Electrical Wiring and Installation
• Only a certified electrician must do the installation of the Combi Heater to ensure safety and reliability.
• Installation should be done according to applicable local regulations to ensure safety and reliability of
electrical connections.Wrong electrical connection can cause electric shock or fire.
• The connection cable insulation must be of rubber type, HO7RN-F, or its equivalent.
NOTE:Using a PVC-insulated wire as connection cable for the Combi Heater
is not allowed because this material easily becomes brittle when subjected to heat.
• For further assistance, refer to the electrical diagram in Figure 6.

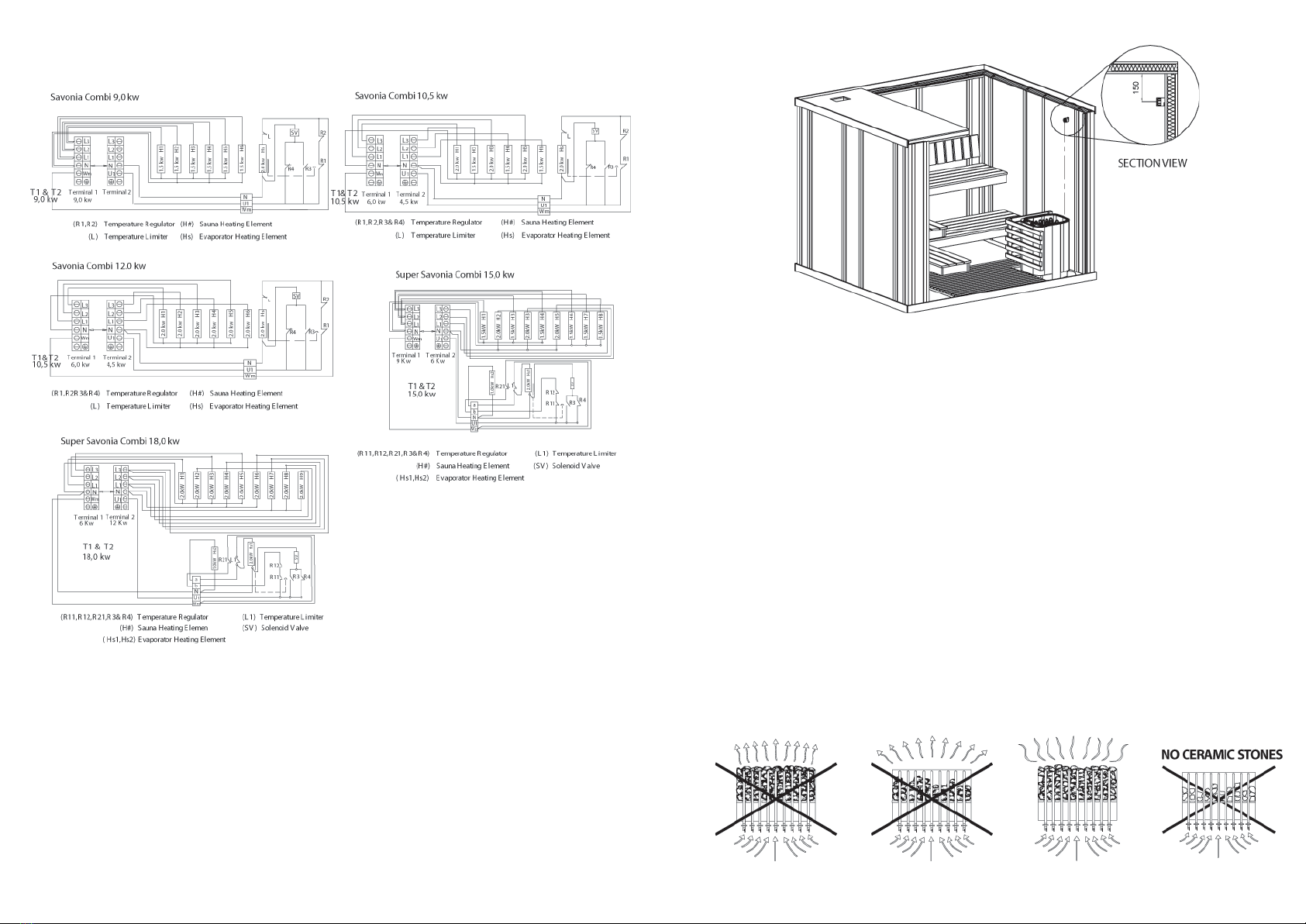

Fig. 6 Electrical Diagram
Manual Refill

8
• Refer to the external Control Unit Manual for its installation and connection to the Combi
Heater as well as the installation of the Temperature Sensors.
NOTE: An additional Contactor Unit is needed for 10.5kW, 12.0kW, 15.0kW and 18.0kW Combi
Heaters.
• The Safety Temperature Sensor must be installed directly above the heater, 15cm below the
ceiling.Refer to Figure 7.
2.2.3 Installation of External Control Unit and Sensor
2.2.4 Sensor Location
Auto Refill
9
• When doing a final inspection for the electrical installation of the Combi Heater, a “leakage”may
be detected when measuring the insulation resistance.This is because the insulating material of
the heating resistors has absorbed moisture from the air (during transport and storage).The
moisture will eventually be removed after several uses of the heater.
2.2.5 Effect of Moisture During Transport and Storage
PERSPECTIVE
Fig. 7 Safety Sensor Location
3. Operating Instructions
How to Load the Stones?
Stones are loaded into the Combi Heater so that enough energy will be stored to efficiently
vaporize the water thrown on them and maintain the correct humidity inside the Sauna Room.
These stones must be replaced at least once a year or every 500 hours, whichever, occurs first.
In removing the stones, stone crumbles (small pieces of stones that has broken off from the larger
ones due to frequent usage) must be removed as well.
Refer to the Technical Data in Figure 11 for the required amount of stones.
NOTE:Never use the Combi Heater without the stones as it can cause fire. Use only stones
recommended by SAWO.The use of any other kind of stones may damage the heating elements
and will void your warranty. Also, never use ceramic stones or any other artificial stones.
3.1.
•
•
•
•
Before loading the stones into the Combi Heater, rinse them first to remove stains or dust that may
emit unpleasant smell when using the unit for the first time.
Care must be taken in loading the stones and make sure that they will not block the air circulation
through the heater. Refer to Figure 8.
•
•
Fig. 8 How to Load the Stones

10
Do not force larger stones in place if they do not fit in between the heating elements.
They should be removed.
Small pieces of stone (35mm in diameter) must not be put inside the heater as they can block the
air circulation, which can cause overheating resulting to damage of the heating elements.
NOTE:A damaged heating element due to overheating caused by using the wrong kind of stones
or incorrect loading of stones will not be covered by the factory warranty.
•
•
Using the Combi Heater
Before turning on the Combi Heater, make sure that nothing else but stones are placed inside or
near the unit. For more safety instructions, please refer to Part 4 – Precautions section of this
manual. Bad odor may be detected when using the Combi Heater for the first time.To remove the
smell, just ventilate the Sauna Room.
It is important that you choose the correct power rating of the Combi Heater that will correspond
to your Sauna Room size. Part 6 (Technical Data) of this manual will help you to make the right
choice. A properly selected Combi Heater allows to reach the bathing temperature within an hour.
If the heater power is too big for the Sauna Room, the room will heat up faster than the stones and
will cause the water thrown on the stones to go through the stone compartment too quickly. On
the other hand, if the heater power is too little for the Sauna Room, the water thrown on the
stones will not increase the temperature; instead, it will only cool the stones thus decreasing the
temperature inside the Sauna Room.
Your Sauna Room must have suitable insulation and wall materials. Refer to Part 8 (The Sauna
Room) of this manual for guidance.The bathing temperature should preferably be within the
range of 65 to 80 degrees Celsius, while the Steamer is switched off.
3.2.
•
•
•
•
Producing the Steam
Throwing water on the stones increases the moisture level inside the Sauna Room and the heater
increases the temperature.
The amount of water thrown on the stones determines the moisture content of the air.
Three ladles of water at a time are enough to enjoy the Sauna.Throwing too much water on the
stones may cause scalding water to splash on the bathers, as the water may not evaporate
immediately.
Make sure there is no one sitting near or next to the heater before throwing water on the stones.
3.3.
•
•
•
•
Use only clean household tap water to throw on the stones.
Do not use hard, ferrous or chlorinated water.
Hard water causes white deposits on the stones and on the heater surface, and it also decreases
the heat accumulating property of the stones.
On the other hand, if the water you are using is ferrous, a rusty layer will cover the heating
elements and other parts of the heater and will lead to corrosion.
The use of seawater, chlorinated water and humus water can damage your Combi Heater and its
parts as well.
The Savonia Combi Heater has a 5-liter Water Tank.When filled with 5-liter water, steam can be
produced for approximately 2 hours if set to max.
Super Savonia Combi Heater has two tanks that are linked by a connecting hose at the bottom,
with 5-liters and 3.5-liters water capacity respectively.When filled with water at maximum level,
steam can be produced for approximately 2 hours.
To ensure ideal humidity,the Sauna temperature should be between 40 and 50 degrees Celsius,
and the Steamer should be left on for 30 minutes to pre-heat the Sauna room and produce
sufficient amount of steam before bathing.
•
•
•
•
•
•
•
•
3.4. Using the Steamer with Manual Refill
3.3.1. Kind of Water to Use
11
•
•
•
Fill the Tank by pouring water through the holes designated for the Scent Basins.
The amount of water poured can be monitored using the Water Level Indicator.
The water should not exceed the 5-liter marking on the Level Indicator; otherwise it might spill on
the floor.
If “FILL”is displayed on the external control unit, refill the Water Tank. Be careful in removing the
Scent Basins during bathing, as they will be hot to touch. Do not attempt to remove the Steamer
Cover, as it will be extremely hot to touch.
Always make sure that there is a sufficient amount of water in the Water Tank before using the
Steamer.
The Combi Heater is equipped with a Low Water Level Detection System, which prompts the user
to refill water before the Water Tank runs dry.
The Low Water Level Detection System will display“FILL”on the external control unit when only
about 1-liter water is left in the tank. A warning sound (buzzer-like) will also be emitted to catch
the user’s attention.The tank should then be refilled with water.
If, despite the “FILL”message and warning buzzer, water is not refilled, the Steamer will eventually
run dry, which negatively affect the life time of the heating plate.
•
•
•
•
•
•
•
•
The Combi Heater is equipped with an automatic water refilling system that makes it possible to
produce the steam without refilling water manually.
The Steamer Tank will automatically be refilled with water upon turning ON the control unit
and will be refilled with water automatically once the water level is already near the low-water
detection mark.
As a security feature, if the Water Tank is not refilled automatically for any possible reason, the Low
Water Detection System will automatically turn off the Steamer. And the word“FILL” will be
displayed on the external Control Unit and a warning sound (buzzer-like) will be emitted. (Refer to
Part5 Troubleshooting)
3.5. Using the Steamer with Built-in Automatic Refill System
3.4.1. Filling the Water Compartment
3.4.2. Low Water Level
NOTE:Make sure that there is enough supply of water and the water supply pressure must be in
the range of 1 to 2 bar to have a smooth automatic refill system function and check the water
connection that it is properly connected to the water inlet of the steamer before turning ON the
steamer ( Refer to Figure 1 ).
The Water Tank should be emptied and cleaned after every use to ensure that always fresh and
clean steam is produced.
Wait for the unit to cool down before draining the water.
To drain the water, turn the Ball Valve handle at the bottom of the Steamer Tank counterclockwise
until water flows out of the tank. Provide a container to collect the water.
For the Super Savonia Combi,both tanks shall be drained.
Every 500 hours of use or 6 months whichever comes first, disconnect the connection hose of the
two tanks and rinse with water to remove particles inside the hose that will cause water clog up.
Do not forget to connect back the hose of the two tanks after cleaning. See Figure 9.
Once the tank is completely drained, remove the Steamer Cover and clean the tank inside with a
household brush to remove impurities that have accumulated in the tank, and then rinse with
water.
•
•
•
•
•
•
•
3.6. Draining and Cleaning the Water Tank

12
Do not use a steel brush as it might damage the tank wall or the bottom heating plate.
Do not clean the water tank inside with a cloth to avoid hand injuries that may be caused by the
tank’s edges.
To clean the tank’s separation plate, lift it up and clean it with water and a household brush. See
Figure 10.
•
•
•
Finally, flush the tank with water and close the Ball Valve by turning its handle clockwise.
Before using the Steamer again, do not forget to refill the Water Tank (not applicable for Built-in
Automatic Refill System).
Do not let the Water Tank run dry as an alternative method of draining the water;This will shorten
the life span of the Steamer hot plate.
It will not be helped that impurities from the water (e.g.lime) will accumulate on the walls of the
Water Tank.To decalcify, SAWO recommends decalcifying agents intended for kitchenwares such
as for coffeemakers and water kettles.These agents should be applied as instructed by their
manufacturer.
Clean the outside of the Water Tank with a damp cloth.While doing this,make sure that the
Combi Heater is turned off.
•
•
•
•
•
Fig. 10 Separation Plate
Fig. 9 Connecting Hose
Connection Hose
3.7. Using Scents
4. Precautions
The sea or a humid climate can cause corrosion on the metal surfaces of the Combi Heater.
Only a qualified electrician is allowed to do wirings and repairs of the Combi Heater.
Neither use the Combi Heater as a grill nor boil any food or liquids in its water tank.
Do not cover the heater as it can cause fire.
Do not put wood of any kind on the heater.
Do not use the heater as clothes drier as it can cause fire.
Never sit on the heater to avoid serious burns.
Never use the heater without the stones as it can cause fire.
Do not use chlorinated water (that from a swimming pool or whirlpool [Jacuzzi]) or seawater. It
can damage the heater.
•
•
•
•
•
•
•
•
•
It is possible to use liquid scents with the Combi Heater.You can pour them on the Scent Basins.
Avoid pouring scents while the Steamer is on as it can cause serious burns.
Brush the Scent Basins and rinse with water after using scents.
•
•
•
13
Do not throw too much water on the stones.One to three ladles of water at a time is enough to
enjoy the sauna.
Do not fill the Water Tank to the brim to avoid overflowing when the water boils.
Always close the drainage valve after draining the water, or while installing or removing the valve.
Always check if there is water in the Water Tank before turning the Steamer on.
Never turn it on if the Water Tank is empty.
Always provide a container for the drained water.
•
•
•
•
•
•
6. Technical Data
5. Troubleshooting
Is the Combi Heater connected to the power supply?
Is the Steamer turned on?
Is there sufficient water in the tank?
Are the instructions given in the manual of the external control unit regarding temperature
setting of the heater followed?
Is the word“FILL” (for refilling the water tank) displayed on the external control unit? Once water is
refilled, it might take a few minutes for the steamer to be turned back on and for the built-in
automatic refill system check the water supply valve maybe it closed.
Has the heater been switched to presetting time and not to operating time?
Check the source of electricity. Check if the heater has been switched on.
Check the heater’s fuses in the household’s main fuse box.
If the heater has overheated, check if the overheat fuse has been activated.
Consult a qualified technician/electrician if troubleshooting was not successful.
The table in Figure 11 gives guidance on various technical matters related to the
Combi Heater installation.
•
•
•
•
•
•
•
•
•
•
Fig. 11 Technical Data
66
33 6
33 6
63 9
kW
kW
SAUNA ROOM SUPPLY SIZE OF HEATER
DEPTH HEIGHTWIDTH
VOLTAGE
HEATING ELEMENT
MIN MAX
TYPE
NUMBER (m3)Term.1 Term.2 T1 & T2
(mm)
HEATER
MODEL STONES CONTROL
9,0 kW
10,5 kW
12,0 kW
15,0kW
SAVC-90N
SAVC-90NF
SAVC-90NA
SAVC-105N
SAVC-105NF
SAVC-105NA
SAVC-120N
SAVC-120NF
SAVC-120NA
SAVC-150N
SAVC-150NF
SAVC-150NA
SAVC-180N
SAVC-180NF
SAVC-180NA
6 x 1,5 kW
3 x 2,0 kW
3 x 1,5 kW
1 x 2,0 kW
6 x 2,0 kW
1 x 2,0 kW
6 x 1,5 kW
3 x 2,0 kW
1 x 2,0 kW
1 x 1,0 kW
3 x 2,0 kW
6 x 2,0 kW
1 x 2,0 kW
1 x 1,0 kW
SAV150
SAV200
SAV150
COM200
SAV200
COM200
SAV150
SAV200
COM200
COM100
SAV200
SAV200
COM200
COM100
8
9
10
13
17
14
15
18
23
29
442
442
442
587
587
650
650
650
650
650
410
410
410
410
410
400V 3N~
400V 3N~
400V 3N~
400V 3N~
400V 3N~
separate
separate
separate
separate
40-50 kg
40-50 kg
40-50 kg
60-75 kg
5 x 2,5
3 x 2,5
5 x 2,5
5 x 2,5
5 x 1,5
5 x 2,5
5 x 2,5
5 x 2,5
5 x 4,0
3 x 2,5
5 x 4,0
3 x 2,5
SIZE OF WIRE (mm²)
(heater)
(steamer)
(heater)
(steamer)
(heater)
(heater) (heater)
(steamer)
(heater) (heater)
(heater) (heater) (heater)
(steamer)
(heater) (heater)
COM2001 x 2,0 kW
3 x 2,5
3 x 2,5
(steamer) (steamer)
3 x 2,5
(steamer)
3 x 2,5
(steamer)
3 x 2,5
18,0kW
5 x 2,5 5 x 4,0
60-75 kg separate
5 x 2,5
3
36
If the Steamer does not work, check the following:
If the Sauna Heater does not work, check the following:

14
7. Spare Parts
SAVONIA COMBI, SUPER SAVONIA COMBI AND WITH THE AUTOMATIC REFILL SYSTEM
Fig. 12a Exploded view of all spare
SAVONIA COMBI
1. Back Frame
2. Front Frame
3. Heating Element Holder with O-Rings
4. Scent Basins
5. Cable Holder
6. Frame Savonia Combi
7. Steamer Cover
8. Level Indicator ( not Basic )
9. Heating Element
10. Name Plate (large)
11. Leveling Bolt
12.Terminal Block (large)
13.Wiring set
14. Steamer Set Savonia Combi
a)Tank with heating plate
b)Temperature Limiter
c)Temperature Regulator
d)Drainage Valve
e)Solenoid Valve ( Auto Refill )
15. Level Indicator Hose ( not Basic )
15
SUPER SAVONIA COMBI
1. Back Frame
2. Front Frame
3. Heating Element Holder with O-Rings
4. Scent Basins
5. Cable Holder
6. Frame Super Savonia Combi
7. Steamer Cover
a.Steamer Cover STD
b.Steamer Cover BSC
8. Level Indicator ( not Basic )
9. Element
10. Name Plate (large)
11. Leveling Bolt
12.Terminal Block (large)
13.Wiring Set
14. Steamer Set Super Savonia Combi 1
a)Tank with heating element (2kW)
b)Temperature Limiter
c)Temperature Regulator
d)Drainage Valve
e)Wiring Set
f)Solenoid Valve ( Auto Refill )
15. Steamer Set Super Savonia Combi 2
a)Tank with heating element (1kW)
b)Temperature Regulator
c)Drainage Valve
d)Wiring Set
16. Level Indicator Hose ( not Basic )
17. Interconnection Hose
Fig. 12b Exploded view of all spare parts

16
How to Use the Sauna?
Taking a Sauna bath is a simple affair without many rules.It’s a matter of getting inside the Sauna
and enjoying the sensation.There are just a few established procedures that are wise to follow:
Leave your clothes in the dressing room. Make sure you have a clean set of clothes to change into
after taking a sauna.
Always take a shower before entering the Sauna.
Always use a towel to sit on or lie on inside the Sauna.
While in a sauna heater operation mode, the humidity of the Sauna Room can be increased by
throwing water on the stones. One to three ladles of water at a time are enough for you to enjoy the
Sauna.
The recommended temperature of a Sauna is 65 to 80 degrees Celsius.
In steamer mode, the recommended temperature of a Sauna is 40 to 50 degrees Celsius.
When the heat begins to get uncomfortable, leave the Sauna and cool off by taking another shower,
or taking a quick dip in the pool or simply sitting outside the Sauna.
You can repeat the hot and cold cycle as often as you want.Two rounds are enough for average
people.
End your sauna with a thorough wash.
Thoroughly cool off before putting on clean clothes.
Top your sauna with a refreshing drink or by simply taking a rest.
8.1.
•
•
•
•
•
•
•
•
•
•
•
Temperature of the Sauna Room?
The temperature and humidity inside the Sauna Room can be monitored with a sauna thermometer
and hygrometer, respectively.
The effect of temperature and moisture on an individual varies, thus it is difficult to recommend the
ideal bathing temperature.Therefore, a bather can enjoy the sauna according to his preferred
temperature.
Ventilation inside the Sauna is important to keep the air fresh and easy to breathe in.
8.2.
•
•
•
Drying the Sauna Room After Use
Always dry the Sauna after every use.
Open the ventilation louver on the ceiling and turn on the heater for a quick drying of the Sauna.
Make sure to turn off the heater once the Sauna Room is dried.
8.3.
•
•
•
Ventilation of the Sauna Room
Sufficient ventilation is extremely important to maintain fresh air inside the Sauna Room.
In an hour, the air inside the Sauna Room should change completely five times.
If possible, fresh air should flow directly from outside.
The stale Sauna Room air should escape through a ventilation louver in the ceiling located as far as
possible from where the heater is placed.
Figure 13 shows a typical Sauna Room ventilation example.
8.4.
•
•
•
•
•
8. The Sauna Room
Fig. 13 Sauna Room Ventilation
17
Hygiene Inside the Sauna Room
There are basic hygiene practices that should be observed when taking a Sauna:
Always use a towel to sit or lie on inside the Sauna to prevent the sweat from dripping directly on
the bench.
Used towels should be washed after bathing.
Once the Sauna Room is dried, sweep or vacuum the floor and wipe off dirt with a damp cloth.
The Sauna Room should be subjected to a general cleaning every six months.This would include
scrubbing the walls, benches and floor with a brush and a suitable cleaning agent.
Wipe off dust and dirt from the Combi Heater with a damp cloth.
8.5.
•
•
•
•
•
Parts and Insulation of the Sauna Room
To minimize power consumption of the heater, massive wall surfaces such as bricks or glass blocks
should be properly insulated.
A well-insulated Sauna Room should have 12 to 15mm thick walls and ceiling panels.
To protect the Sauna Room from ingress of moisture, aluminum paper should be fitted within the
panels with its glossy surface facing the inside of the Sauna Room.
There should be a 10mm gap between the moisture protection and panel boards to serve as
ventilation gap.
An insulating wool (50 to 100mm) should be used within the panels.
NOTE:
Heat protection material such as a mineral board, which is directly attached to the wall or ceiling of
the Sauna Room can raise the temperature of the wall and ceiling materials to a dangerous level.
Consult local building safety authorities to determine which part of the fireproof wall may be
insulated.
To avoid damaging the flooring (where the heater is placed) with stone crumbles (small hot pieces
of stones), use dark joint grouts and stone-based floor materials.Do not use a light grout or a plastic
floor covering.
Due to wall surface processing with protective panel agents, wall blackening can occur and might
occur faster than expected because of the sunlight and heat from the heater.
The maximum allowable temperature for wall and ceiling surfaces in the Sauna is 140 degrees
Centigrade.
8.6.
•
•
•
•
•
•
•
•
•
Combi Heater Output
The output of the Combi Heater is determined by the volume and elements of the Sauna Room such as
glass windows and concrete or tile surfaces.
Each square meter of these elements increases the volume of the heated Sauna Room by 1.2 cubic meter.
It is important to have sufficient insulation within the wall and ceiling panels to prevent wastage of heater
power.
Log Sauna Room volume shall be multiplied by 1.5 since walls made of logs heat up slowly.
8.7.
•
•
•
•

18
Contents
1. Introduction of the Combi Heater
1.1 Savonia/ Super Savonia Combi
2. Assembly and Installation Instructions
2.1 Assembly
2.1.1 Ball Valve
2.1.2 Steamer Cover
2.1.3 Scent Basins
2.2 Installation
2.2.1 Mounting the Combi Heater
2.2.2 Electrical Wiring and Installation
2.2.3 Installation of External Control Unit and Sensor
2.2.4 Sensor Location
2.2.5 The Effect of Moisture During Transport and Storage
3. Operating Instructions
3.1 How to Load the Stones
3.2 Using the Combi Heater
3.3 Producing the Steam
3.3.1 Kind of Water to Use
3.4 Using the Steamer with Manual Refill
3.4.1 Filling the Water Compartment
3.4.2 Low Water Level
3.5 Using the Steamer with Built-in Automatic Refill System
3.6 Draining and Cleaning the Water Tank
3.7 Using Scents
4. Precautions
5. Troubleshooting
6. Technical Data
7 Spare Parts
8. The Sauna Room
8.1 How to Use the Sauna
8.2 Temperature of the Sauna Room
8.3 Drying the Sauna Room After Use
8.4 Ventilation of the Sauna Room
8.5 Hygiene Inside the Sauna Room
8.6 Parts and Insulation of the Sauna Room
8.7 Combi Heater Output
9. Health Benefits of the Sauna
2
2
3
3
3
4
4
5
5
7
8
8
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
14
16
16
16
16
16
17
17
17
18
Revitalizes body and mind.
Supports in weight loss programs.
Relieves stress and tension.
Improves blood circulation.
Reduces joint pains.
Deep cleanses the skin
Flushes out impurities and toxins from the body.
Allows easy removal of dead skin.
Alleviates nasal, sinus and chest congestion.
Revives tired and strained muscles after physical exercises.
Kills germs and bacteria.
Guarantees faster recovery from illness.
Results to a deeper, more relaxing sleep.
Makes skin soft and supple, giving it a healthy glow.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
9. Health Benefit of the Sauna
