SawStop TSA-SA70 User manual

OWNER’S MANUAL
LARGE SLIDING TABLE
MODEL TSA-SA70

The saw shown on the front cover is the Industrial Cabinet Saw, Model ICS.
Your saw may look different.
Copyright SawStop, LLC
All Rights Reserved
Updates of this manual may be
available at www.sawstop.com
1st printing, September 2017 - 1.1
SawStop, the SawStop blade logo, and the conguration of this product are either
registered trademarks or trademarks of SawStop, LLC. Software copyright by
SawStop, LLC. All rights reserved.

TO OUR CUSTOMERS
Thank you for purchasing the SawStop Large Sliding Table. We are condent you will be
pleased with its quality and performance.
This manual tells you more about your large sliding table and how to operate and maintain
it. Please read the manual carefully. The manual also includes our warranty and important
safety information.
If you ever have any questions or comments, feel free to contact us at the address below.
SawStop, LLC
11555 SW Myslony Street | Tualatin, Oregon 97062 USA
Phone: [phone]
Fax: [phone]
Email: [email protected]
www.sawstop.com

HOW TO GET HELP
Missing Parts? Have Questions?
Our technical support team is standing by
M-F, 7am-5pm PST
to help with whatever you need.
503.582.9934
Give us a call at
[e-mail]
Email us at

TABLE OF CONTENTS
Product Specs.................................................................................
Parts Inventory.................................................................................
Parts & Hardware Lists.............................................................................................
Tools Needed...........................................................................................................
Getting to Know Your Large Sliding Table........................................
Components............................................................................................................
Mounting Options.....................................................................................................
Front Mounting WITHOUT Left Wing............................................................
Center Mounting WITHOUT Left Wing..........................................................
Rear Mounting WITHOUT Left Wing.............................................................
Front Mounting WITH Left Wing...................................................................
Center Mounting WITH Left Wing.................................................................
Rear Mounting WITH Left Wing....................................................................
Modifying Your Table Saw................................................................
Installing your Large Sliding Table...................................................
Shortening the Rails WITH the Extension Wing.......................................................
Shortening the Rails WITHOUT the Extension Wing...............................................
Assembling the Support Legs.................................................................................
Attaching the Mounting Bracket..............................................................................
Attaching the Positioning Plate................................................................................
Attaching the Inner Guide Tube...............................................................................
Installing the Sliding Table Support Assembly.........................................................
Installing the Lateral Brackets..................................................................................
Installing the Support Legs......................................................................................
Installing the Outer Guide Tube...............................................................................
Installing the Sliding Table & Sliding Table Stops....................................................
Adjusting the Sliding Table.......................................................................................
Adjusting the Ball Bearings............................................................................
Adjusting the Table Lock Handle...................................................................
Adjusting the Spacing....................................................................................
1
2
2
6
7
7
8
8
9
9
10
10
11
12
13
13
15
17
19
23
25
29
32
34
37
38
39
39
41
42

Installing the Guide Bearing Assembly....................................................................
Setting the Bearing Tension.....................................................................................
Installing the Angle Guide Rail.................................................................................
Installing the Crosscut Fence Assembly..................................................................
Crosscut Fence Assembly Congurations...............................................................
Euro Conguration.........................................................................................
Storage..........................................................................................................
Installing the Logo Plate...........................................................................................
Adjustments....................................................................................
Leveling....................................................................................................................
Installing the Remaining Support Leg......................................................................
Aligning to the Blade................................................................................................
Setting the Miter Angle Ruler (Front)........................................................................
Setting the Miter Angle Ruler (Rear)........................................................................
Setting the Crosscut Fence Ruler............................................................................
Operations.......................................................................................
Reference........................................................................................
Warranty...................................................................................................................
Safety.......................................................................................................................
Warnings..................................................................................................................
Support System Exploded View..............................................................................
Support System Parts List.......................................................................................
Table Assembly Exploded View...............................................................................
Table Assembly Parts List........................................................................................
Crosscut Fence Exploded View...............................................................................
Crosscut Fence Parts List........................................................................................
44
47
51
54
60
60
64
65
66
66
69
71
75
78
80
83
85
85
86
86
88
89
92
93
94
95
TABLE OF CONTENTS

1
TSA-SA70 OWNER’S MANUAL
PRODUCT SPECIFICATIONS
Product Specications
Net Weight 173 lbs
Sliding Table Dimensions 30” x 30.7”
Maximum Table Travel 71.25”
Maximum Crosscutting Length 118” (On Professional Cabinet Saw without extension wing)
Maximum Rip Capacity (Front Mounting) 49”
Maximum Rip Capacity (Rear Mounting) 70”
Weight Capacity Fully Extended 350 lbs
The SawStop Large Sliding Table is engineered for the demands of the Industrial
woodshop and ensures precise, repeatable operation. This Sliding Table makes cutting
sheet goods and larger stock easy, with maximum control and sure measurement. A rigid
steel frame and 14 sealed, steel bearings ensure a reliable, smooth glide, and adjustability
affords both traditional and Euro congurations for a max crosscut of 70”.

2TSA-SA70 OWNER’S MANUAL
E
PARTS INVENTORY
Parts and Hardware Lists
PAGES:
2-6
A
B
C
D

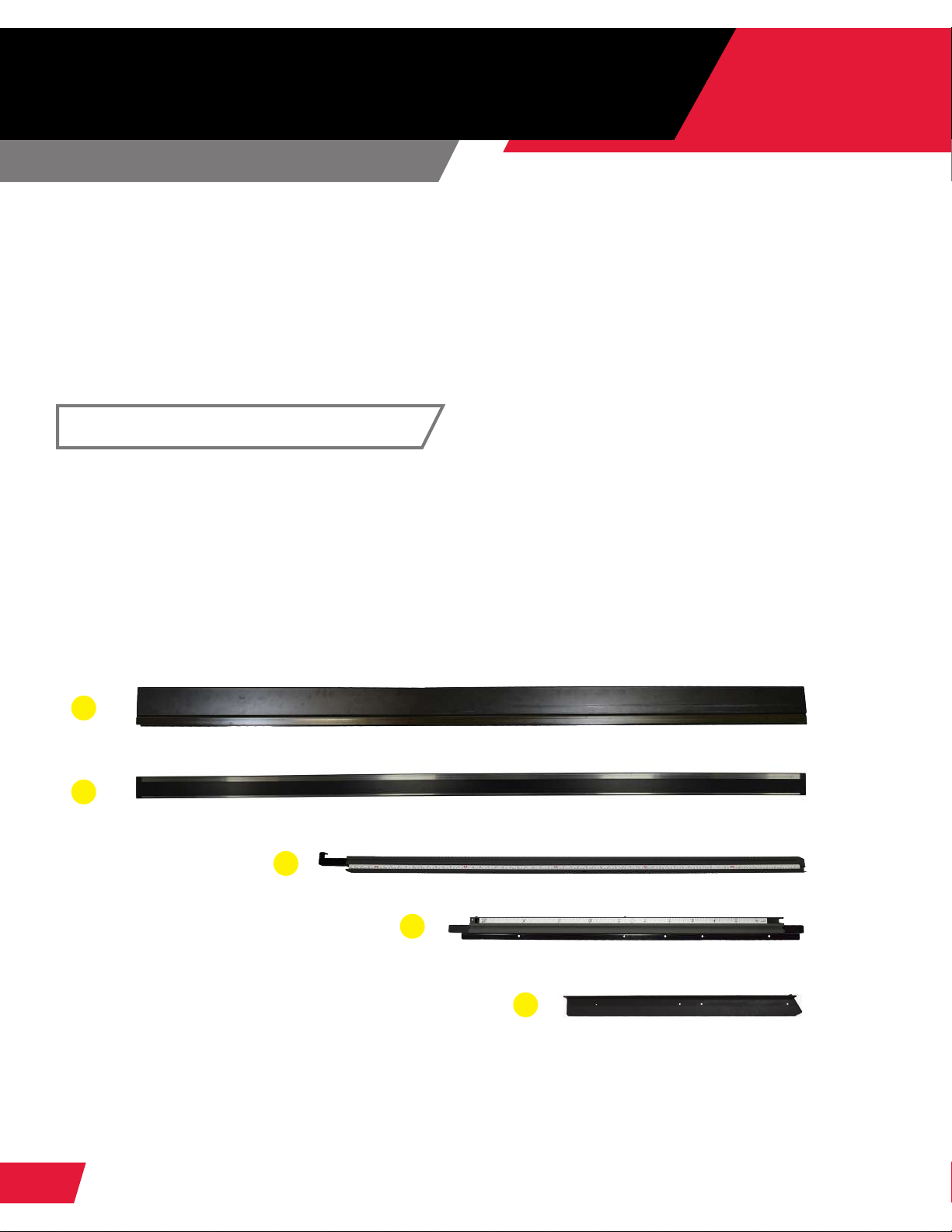

Inner Guide Tube (Qty. 1)
Outer Guide Tube (Qty. 1)
Crosscut Fence (Qty. 1)
Angle Guide Rail (Qty. 1)
Mounting Bracket (Qty. 1)
A.
B.
C.
D.
E.
Parts Box (Labeled 2 of 2)
The Large Sliding Table is shipped partially assembled. Please unpack the parts carefully
and conrm you have received each item on both Parts Box lists and all Hardware bags.
If you cannot nd an item on the lists, check the mounting locations or examine the
packaging materials very carefully. Certain components may have been pre-installed for
shipping purposes.

3
TSA-SA70 OWNER’S MANUAL
Support Leg (Qty. 4)
Leg Bracket (Qty. 2)
Stepped Leg Bracket (Qty. 2)
Positioning Plate (Qty. 1)
Front Bracket (Qty. 1)
Support Tube (Qty. 1)
Lateral Bracket (Qty. 3)
Sliding Table (Qty. 1)
Guide Bearing Assembly (Qty. 2)
Fence Pivot Assembly (Qty. 1)
Flip Stop (Qty. 1)
Fence Lock Assembly (Qty. 1)
Fence Extension (Qty. 1)
Logo Plate (Qty. 1)
F.
G.
H.
I.
J.
K.
L.
M.
N.
O.
P.
Q.
R.
S.
Parts Box (Labeled 1 of 2)
P
NO
Q
R
S
L
H
K M IF
G
J

4TSA-SA70 OWNER’S MANUAL

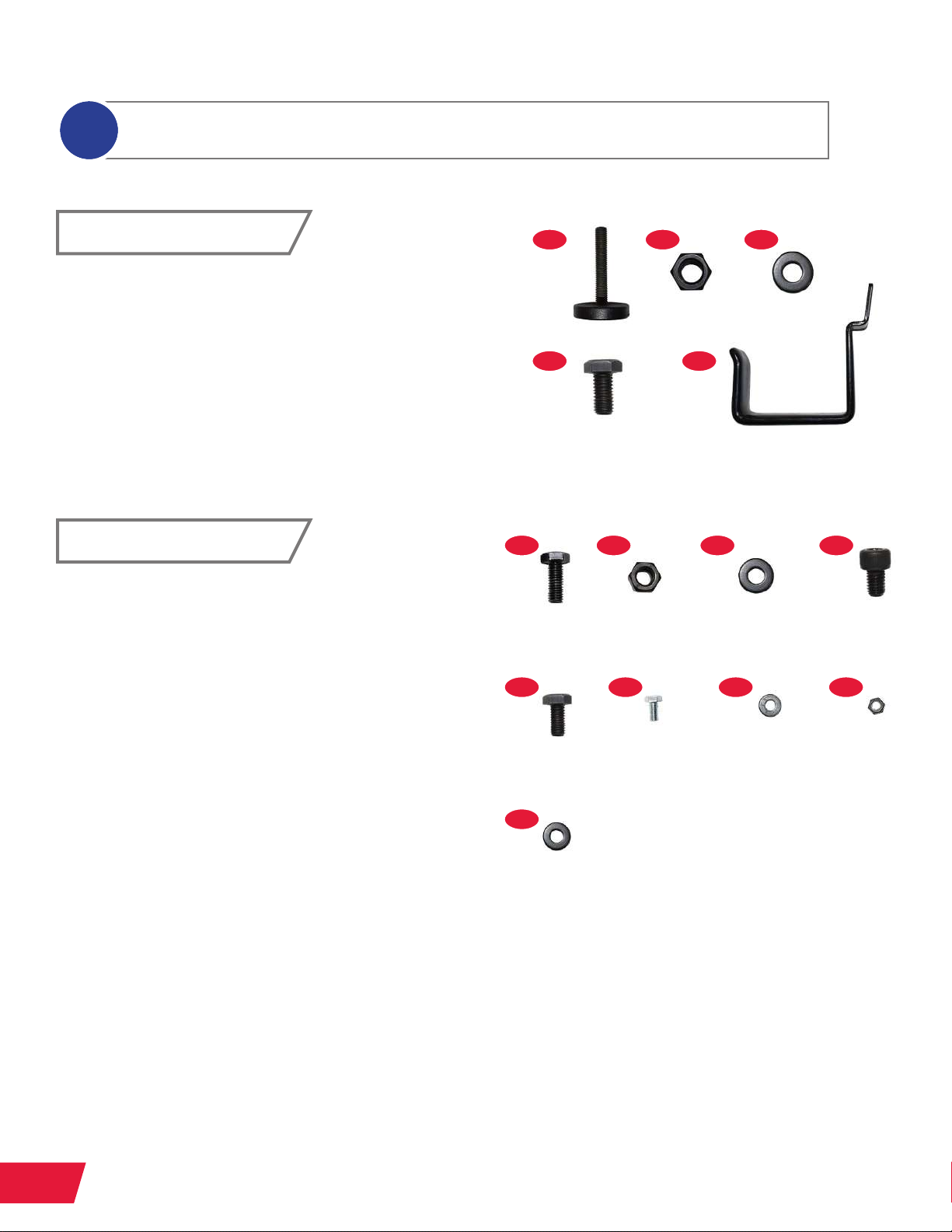

Leveling Foot (Qty. 4)
M8 x 1.25 x 5.5mm Hex Nut (Qty. 4)
M8 x 19 x 2 Washer (Qty. 14)
M8 x 1.25 x 16 Hex Head Bolt (Qty. 10)
Fence Storage Bracket (Qty. 2)
M8 x 1.25 x 30 Hex Head Bolt (Qty. 4)
M8 x 1.25 Lock Nut (Qty. 4)
M8 x 19 x 2 Washer (Qty. 18)
M8 x 1.25 x 12 Socket Head
Cap Screw (Qty. 4)
M8 x 1.25 x 16 Hex Head Bolt (Qty. 14)
M5 x 0.8 x 20 Hex Head Bolt (Qty. 3)
M5 x 16 x 1 Washer (Qty. 3)
M5 Lock Nut (Qty. 3)
M8 x 16 x 2 Washer (Qty. 8)
1.14
1.13
1.10
1.11
1.16
1.37
1.39
1.10
1.36
1.11
1.41
1.40
1.43
1.7
Hardware Bag 1
Hardware Bag 2
Retain any unused hardware throughout the installation process, as hardware may be used from
more than one bag in later steps.
i
1.14
1.11
1.37
1.11 1.41 1.40 1.43
1.7
1.39 1.10 1.36
1.16
1.13 1.10

5
TSA-SA70 OWNER’S MANUAL
M4 x 0.7 x 12 Button Head
Phillips Screw (Qty. 2)
M4 x 10 x 1 Washer (Qty. 2)
Spacer (Qty. 2)
M6 x 1.0 x 20 Lock Handle (Qty. 2)
M6 x 1.0 x 25 Thumb Screw (Qty. 2)
1.4
1.3
1.2
2.11
3.5
Hardware Bag 4
M8 x 1.25 x 16 Hex Head Bolt (Qty. 2)
M8 x 19 x 2 Washer (Qty. 6)
M8 x 1.25 x 50 Hex Head Bolt (Qty. 2)
M8 x 1.25 Lock Nut (Qty. 2)
M8 x 16 Shoulder Bolt (Qty. 14)
M8 x 16 x 2 Washer (Qty. 14)
M8 x 1.25 Hex Cap Nut (Qty. 14)
M5 x 1.25 x 18 Pan Head Phillips
Self-tapping Screw (Qty. 2)
M5 x 16 x 1 Washer (Qty. 2)
1.11
1.10
1.44
1.39
1.6
1.7
1.8
1.48
1.40
Hardware Bag 3 1.11
1.6
1.48
1.4
2.11 3.5
1.3 1.2
1.7
1.40
1.8
1.10 1.44 1.39

6TSA-SA70 OWNER’S MANUAL
Tools Needed
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Wrenches or combination wrenches
3/4” ratchet
Metal cutting band saw or hacksaw with metal
cutting blade
Rip fence or straight edge at least 30” long
Level
Square
Tape measure or calipers
Phillips head screwdriver
Needle nose pliers
Drill
10mm wrench
10mm socket
5mm hex wrench
8mm wrench
1.50
1.47
2.10
2.11
2.30
2.31
Hardware Bag 5
1.50 1.47 2.10
2.11 2.30 2.31

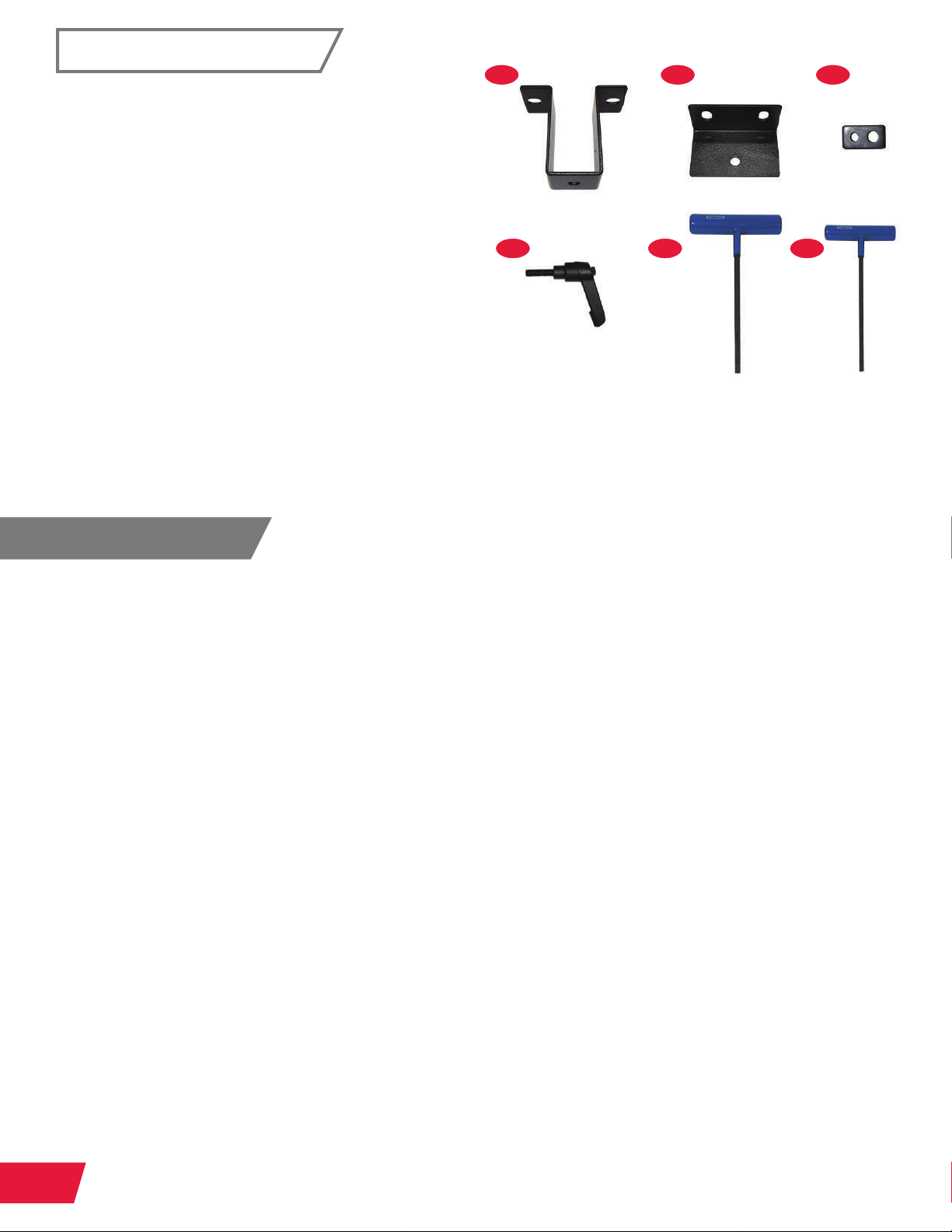

Frame Support Bracket (Qty. 1)
Cabinet Mounting Bracket (Qty. 1)
M6 x 1.0 x 3.5 T-nut (Qty. 1)
M6 x 1.0 x 20 Lock Handle (Qty. 1)
6mm Hex T-wrench (Qty. 1)
5mm Hex T-wrench (Qty. 1)

7
TSA-SA70 OWNER’S MANUAL
GET TO KNOW YOUR LARGE
SLIDING TABLE

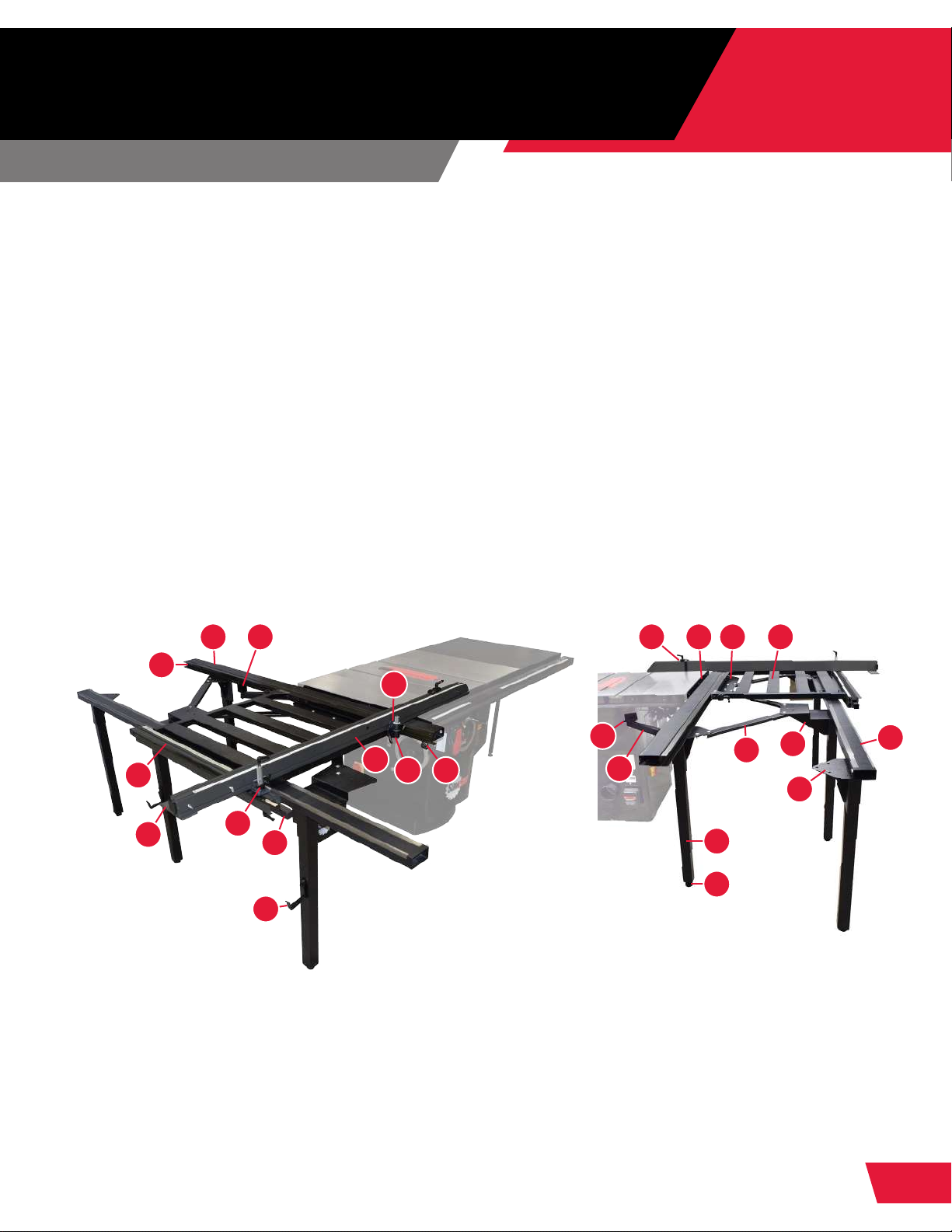

Components
PAGES:
7-11
Support Leg
Leveling Foot
Fence Storage Bracket
Leg Bracket
Stepped Leg Bracket
Mounting Bracket
Positioning Plate
Inner Guide Tube
Bearing Guide Channel
Front Bracket
Frame Support Bracket
Support Tube
Cabinet Mounting Bracket
Lateral Bracket
Outer Guide Tube
Sliding Table
Angle Guide Rail
Table Position Handle
Fence Pivot Plate
Crosscut Fence
Fence Pivot Assembly
Fence Lock Assembly
Fence Extension
Flip Stop
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
1
2
14 5
4
15
13
12
24 6 7 16118
9
17 1019
20
18
3
23 22
21

8TSA-SA70 OWNER’S MANUAL
Mounting Options
Fence Positions:
Capacities:

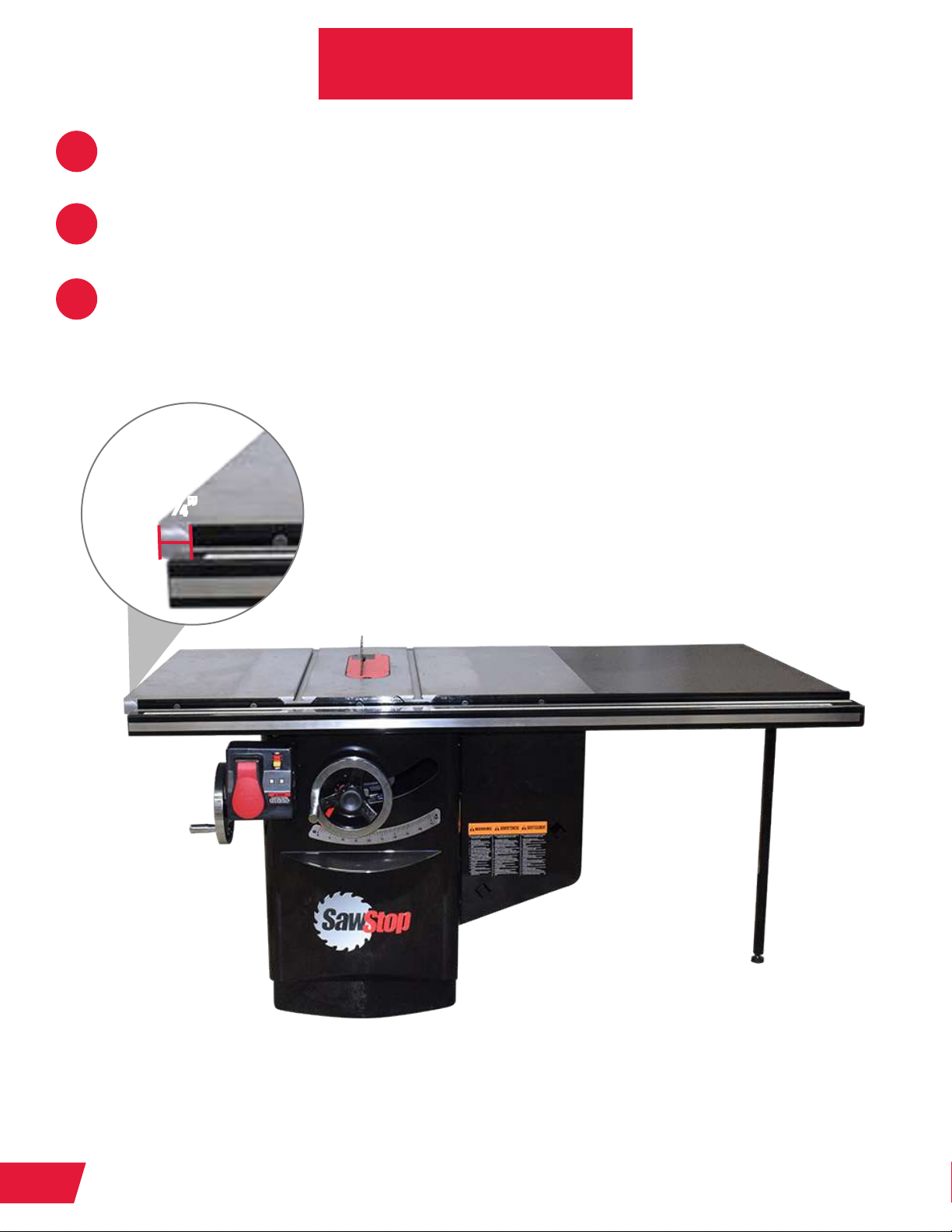

The SawStop Large Sliding Table can be mounted to your SawStop table saw in any of
six different table orientations and three fence positions.
90° Euro:
Provides the Large
Sliding Table’s
maximum ripping
length by installing
crosscut fence at the
rear of the sliding table.
90° Traditional:
Positions the fence at
the front of the sliding
table.
45° Traditional:
Use traditional
mounting for
miter cuts.
TABLE ORIENTATION FENCE POSITION PCS ICS
Rear Mount 90° Euro 70.25” 70”
Center Mount 90° Euro 59.25” 59”
Front Mount WITH Left Wing 45° Traditional 55.25” 55.25”
Front Mount 90° Traditional 48.50” 49.50”
Front Mount 90° Euro 48.25” 48”
Center Mount WITH Left Wing 45° Traditional 47.50” 47.50”
Front Mount W/O Left Wing 45° Traditional 46.25” 47.75”
Rear Mount WITH Left Wing 45° Traditional 40” 40”
Center Mount W/O Left Wing 45° Traditional 38.50” 40”
Center Mount 90° Traditional 37.50” 37.75”
Rear Mount W/O Left Wing 45° Traditional 30.50” 32.25”
Rear Mount 90° Traditional 26.50” 26.75”

9
TSA-SA70 OWNER’S MANUAL
Front Mounting WITHOUT Left Wing Option 1 of 6
Start on Page 15
Provides the maximum
ripping length with the
crosscut fence in the
traditional conguration.
Since the left wing is not
installed, the crosscut table
is close to the saw blade.
90° Euro
Mounts
Forward of
Saw Cabinet
90° Traditional
45° Traditional
Center Mounting WITHOUT Left Wing Option 2 of 6
Start on Page 15
This conguration minimizes
the total footprint of the
table saw and crosscut table
and is the closest position
of the crosscut table to the
saw. The ripping length with
the crosscut fence in the
traditional conguration is
reduced from 49” to 37.5”.
90° Euro
Mounts
Center of
Saw Cabinet
90° Traditional
45° Traditional

10 TSA-SA70 OWNER’S MANUAL
Front Mounting WITH Left Wing Option 4 of 6
Start on Page 13
Rear Mounting WITHOUT Left Wing Option 3 of 6
Start on Page 15
This conguration provides
the maximum ripping length
with the crosscut fence in
the traditional conguration
while also maintaining the
additional support to the left
of the blade provided by the
left extension wing.
90° Euro
90° Traditional
45° Traditional
Mounts
Forward of
Saw Cabinet
This conguration provides
the maximum ripping length
with the crosscut fence in the
Euro conguration. Since the
left wing is not installed, the
crosscut table is close to
the blade.
90° Euro
Mounts
Rear of
Saw Cabinet
90° Traditional
45° Traditional

11
TSA-SA70 OWNER’S MANUAL
Center Mounting WITH Left Wing Option 5 of 6
Start on Page 13
Rear Mounting WITH Left Wing Option 6 of 6
Start on Page 13
This conguration reduces
the front-to-back footprint
of the saw and crosscut
table while maintaining the
additional support to the left
of the blade provided by the
extension wing.
90° Euro
90° Traditional
45° Traditional
Mounts
Center of
Saw Cabinet
This conguration provides
the maximum ripping length
with the crosscut fence
in the Euro conguration
while also maintaining the
additional support to the left
of the blade provided by the
left extension wing.
90° Euro
90° Traditional
45° Traditional
Mounts
Rear of
Saw Cabinet

12 TSA-SA70 OWNER’S MANUAL
DISCONNECT YOUR TABLE SAW FROM ELECTRICAL POWER BEFORE
BEGINNING ANY MODIFICATIONS.
MODIFYING YOUR TABLE SAW
Before mounting the Large Sliding Table, you may need to modify your table saw.
Some of the steps below involve removing/installing your rails, switchbox, and extension
wing. For those steps, please refer to your table saw manual and fence manual. (You can
download copies of your manuals at www.sawstop.com.)
For Unassembled Saws: If your saw has not yet been assembled, you will rst need to
pre-install the rails to mark them for cutting.
• If you plan to mount the Large Sliding Table with the left extension wing, begin
by installing and aligning the left extension wing as described in the installation
documentation for your table saw.
• If you plan to mount the Large Sliding Table without the left extension wing, then do
not install the wing for this step.
• Next, install your rail assembly to the saw as described in your fence manual. It is not
necessary to install every screw or to fully align and tighten your rails at this time.
• Now proceed to page 13 if you plan to install the Large Sliding Table with the left
extension wing.
• Alternatively, proceed to page 15 if you plan to install the Large Sliding Table without
the left extension wing.

13
TSA-SA70 OWNER’S MANUAL
INSTALLING YOUR LARGE
SLIDING TABLE
Shortening the Rails WITH the Extension Wing
PAGES:
13-66
1
2
Mark the front rail and main tube 1 1/4” to the right of the left edge of the left
extension wing. If shortening the rear rail, mark the rear rail 1/4” to the right of the
left edge of the extension wing.
Use a 13mm wrench to remove the bolts from the underside of the main tube.
Set it aside.
3
4
Use a 13mm wrench and 5mm hex wrench to remove the front rail (and rear rail if
shortening rear rail).
Use a metal cutting band saw or a hack saw with a metal cutting blade to cut off
the front rail and main tube (and rear rail if shortening rear rail) at the marks made in
step 1.
USING OTHER TYPES OF SAWS (SUCH AS A CIRCULAR SAW) CAN
GENERATE ENOUGH HEAT TO BLISTER THE POWDER COATING. IT IS
STRONGLY SUGGESTED THAT YOU USE A METAL CUTTING BAND SAW
OR A HACK SAW WITH A METAL CUTTING BLADE ONLY.
WITH EXTENSION WING
Modifying your table saw to install the Large Sliding Table WITH the Left
Extension Wing:
You will need to shorten your front rail to mount the sliding table attachment with the left
extension wing, so proceed to step 1 below.
If the left end of the rear rail does not extend past the left edge of the extension wing,
then no modication is necessary for the rear rail. Complete the assembly of your saw
and rear rail as specied in your fence manual.
If, however, the left end of the rear rail does extend past the left edge of the extension
wing, then you will need to shorten your rear rail, so continue to step 1 below.

14 TSA-SA70 OWNER’S MANUAL
6Remove the plastic end cap from the cut off portion of the main tube and install it
on the new left end of the main tube.
7If necessary, complete the assembly of your saw then re-install the front and rear
rails and the main tube (refer to your saw and fence manuals).
When nished, continue to page 17.
1 1⁄4”
WITH EXTENSION WING
5Remove any burrs or sharp edges with a le.
