INSTALLATION GUIDE
Professional Cabinet Saw
Mobile Base
Model MB-PCS-000
Model MB-PCS-000
Raise
Lower
Never place fingers,
toes or other body par
under the mobile bas
!
WARNING
1. Never place fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile base
on a level surface.
3. Lower the saw before use. Never use
the saw when it is raised off the floor.
4. Lower the saw slowly, do not let it
drop back to the floor.
!
WARNING

Safety
1. Never place ngers, toes or other body parts under the saw when it is raised onto the mobile base. The base
may suddenly lower and cause a severe injury.
2. Do not attempt to use or move the saw on an inclined surface because the weight of the saw makes it di󰀩cult
to stop. Attempting to use or move the saw on an inclined surface could result in a severe injury.
3. Make sure the saw is fully lowered to the ground and stable before operating the saw. Otherwise, the saw could
move unexpectedly and cause a severe injury.
4. Be sure to unplug or disconnect the saw from power before moving or repositioning it. The main power cord or
the power outlet could be damaged if the saw is not disconnected from power before moving it.
Note:If you are using the SawStop out-feed table you must remove it before moving your saw with the
mobile base. Attempting to lift the saw with the out-feed table attached may damage the out-feed table.
SawStop warrants to the original retail purchaser of the mobile base accompanying this guide that the mobile
base will be free from defects in material and workmanship for ONE YEAR from the date of purchase. This warranty
does not apply to defects arising from misuse, abuse, negligence, accidents, normal wear-and-tear, unauthorized
repair or alteration, or lack of maintenance.
Please contact SawStop to take advantage of this warranty. If SawStop determines the mobile base is
defective in material or workmanship, and not due to misuse, abuse, negligence, accidents, normal wear-and-
tear, unauthorized repair or alteration, or lack of maintenance, then SawStop will, at its expense and upon proof
of purchase, send replacement parts to the original retail purchaser necessary to cure the defect. Alternatively,
SawStop will repair the mobile base, provided it is returned to SawStop, shipping prepaid, within the warranty
period. This warranty is void if the mobile base is modied without the prior permission of SawStop, or if the mobile
base is located or has been used outside of the country where the authorized SawStop distributor from whom the
mobile base was purchased resides.
SawStop disclaims any and all other express or implied warranties, including merchantability and tness for a
particular purpose. SawStop shall not be liable for death, injuries to persons or property, or incidental, consequential,
contingent or special damages arising from the use of the mobile base.
This warranty gives you specic legal rights. You may have other rights which, in the United States, vary from
state to state.
Warranty

1SawStop®Professional Cabinet Saw Mobile Base
While unpacking your mobile base verify that all the components shown on this page are included.
Unpacking Your Mobile Base
To install your mobile base on a new Professional Cabinet Saw
that has not yet been assembled...GO TO PAGE 2.
To install your mobile base on a Professional Cabinet Saw that
already has a fence system installed ...GO TO PAGE 10.
Important:
This manual contains two di󰀨erent sets of instructions.
-OR-
pedal assembly
3” caster
(two)
3” wheel
(two)
caster support plate
caster extension tube
caster support
wheel support
hardware pack owner’s manual
SawStop
linkage bar
SawStop
®
OWNER’S MANUAL
Professional Saw Mobile Base
ModelMB-PCS-000
1. Neverplace fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile
base on a level surface.
3. Lowerthe saw before use. Never use
the saw when it is raised off the floor.
4. Lowerthe saw slowly, do not let it
drop back to the floor.
!
WARNING
5 mm short-arm
hex key
Professional Cabinet Saw Mobile Base Hardware Pack
Extension Spring, (1) 8
Lock Washers,
M8 x 13.6 (4) 2
Washers,
M8 x 18 (2) 4
Washers,
M6 x 16 (2) 14 Flange Lock Nuts, M6 (2) 15
Hex Bolts,
M6 x 40 (2) 13
Lock Washers,
M10.5 x 17 (4) 11 CasterNuts,
3/8” thread (2) 16
Button Head Socket
Bolts, M8 x 35 (2) 1
Lock Nuts,
M6 (2) 7Shoulder Socket Screw, M8 x 17.7 (1) 9ButtonHead Socket
Bolts, M10 x 40 (2) 10
Washers,
M10.5 x 20 (4) 12
Button Head Socket
Bolts, M8 x 20 (2) 3
Button Head Shoulder
Socket Bolts, M8 x 20 (2) 5
Fixed Wheel Axles 6

2 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 1

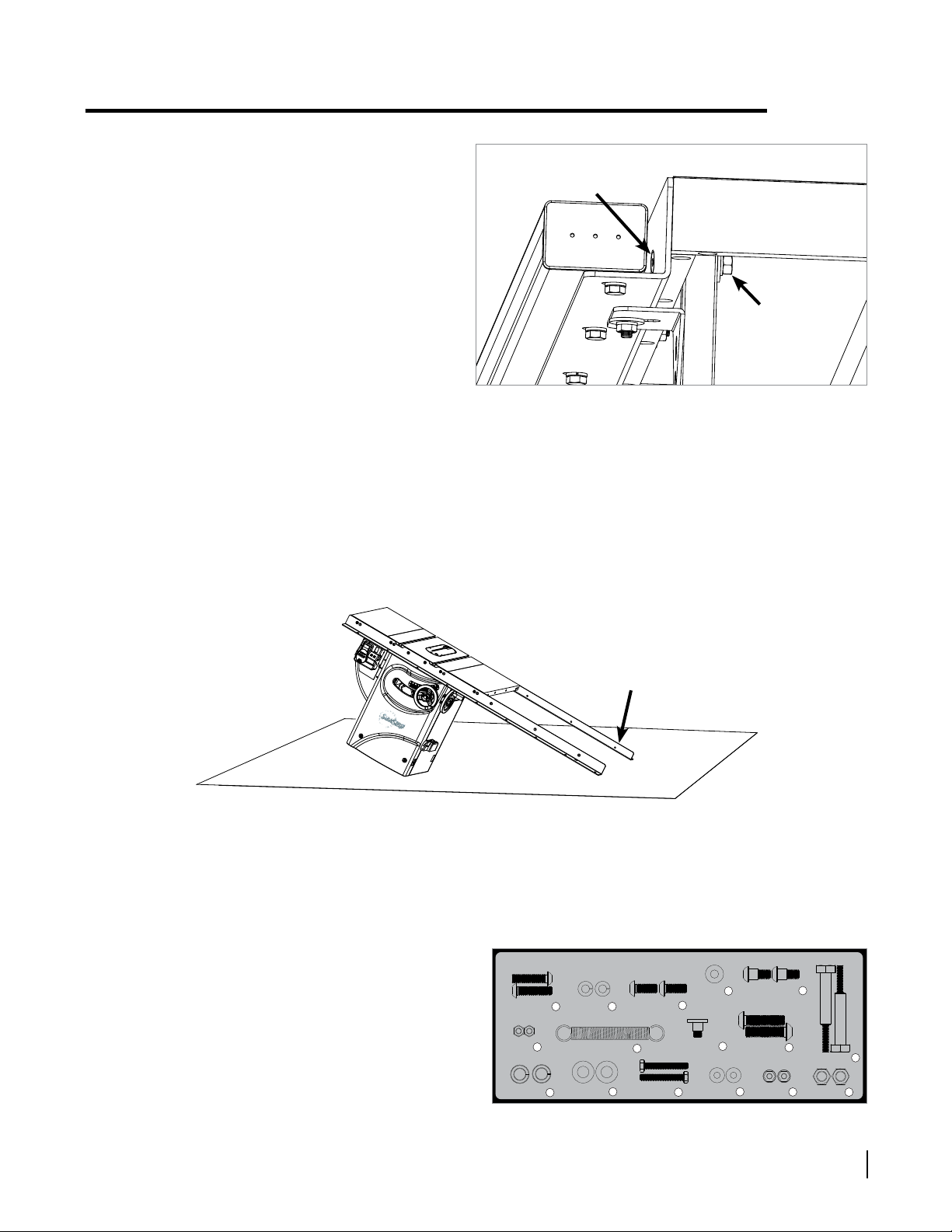

2. Locate all of the mobile base components shown on page 1. All of the hardware needed to install the mobile
base is located on the hardware pack (see Fig. 2). In order to easily identify the hardware used in each of
the following steps, the di󰀨erent pieces of hardware are numbered on the hardware pack and in the gures.
If you are missing the hardware pack or any of the other mobile base components, call the SawStop Service
Department at 503-582-9934 for replacements.
You will need the following tools to complete the
mobile base installation:
• 5 mm hex key
• 6 mm hex key
• 10 mm socket
• 10 mm wrench
• 14 mm wrench
• 17 mm wrench

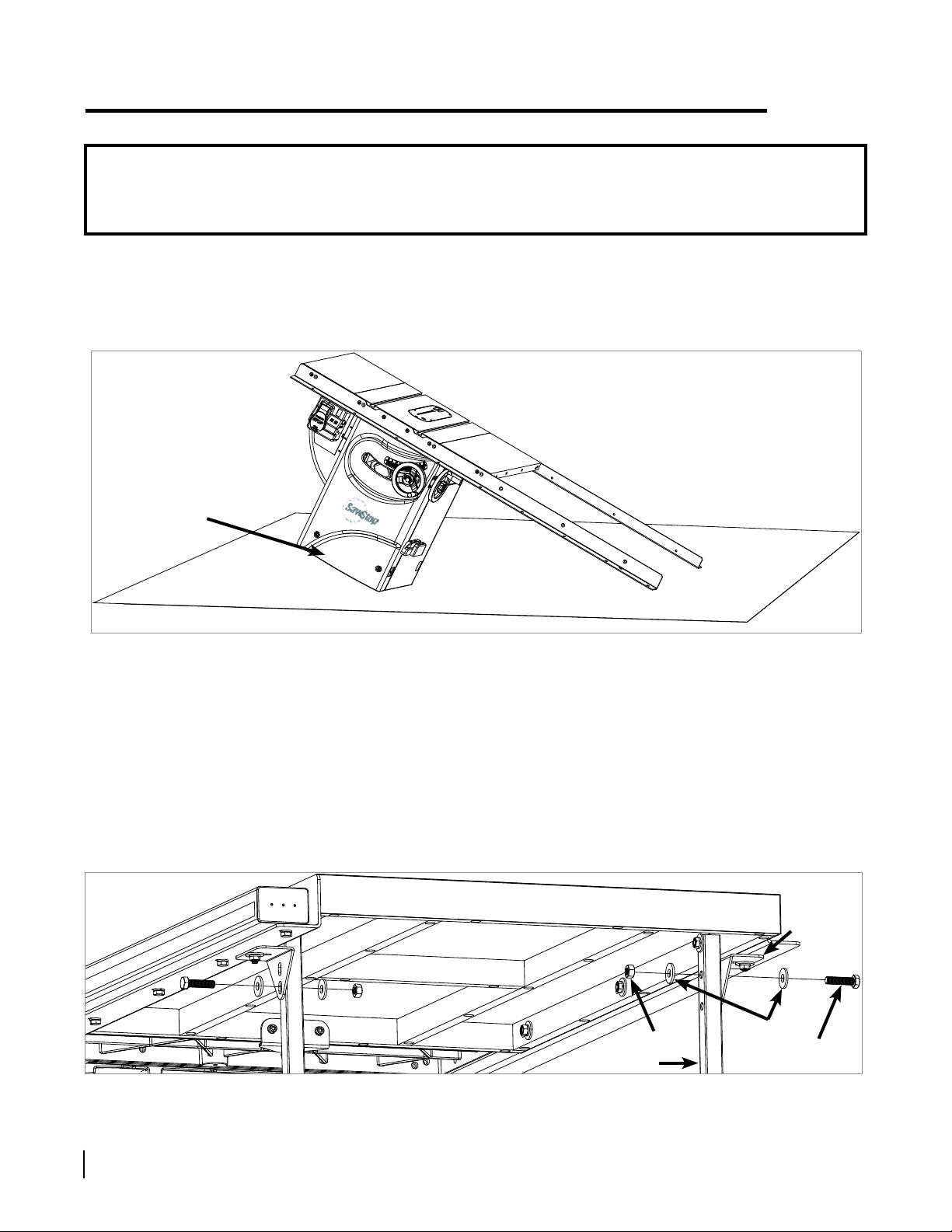

1. You need access to the bottom of your saw to install the mobile base. The easiest and safest way to provide
that access is to leave the saw facing up on the packaging and slide it so that the bottom of the cabinet
overhangs the edge of the packaging as shown in Fig. 1. The saw should overhang the packaging enough to
clear the rectangular and circular holes around the bottom of the cabinet.
Fig. 1
START HERE to install your mobile base on a new
Professional Cabinet Saw that has not yet been assembled.
Fig. 2
Professional Cabinet Saw Mobile Base Hardware Pack
Extension Spring, (1) 8
Lock Washers,
M8 x 13.6 (4) 2
Washers,
M8 x 18 (2) 4
Washers,
M6 x 16 (2) 14 Flange Lock Nuts, M6 (2) 15
Hex Bolts,
M6 x 40 (2) 13
Lock Washers,
M10.5 x 17 (4) 11 Caster Nuts,
3/8” thread (2) 16
Button Head Socket
Bolts, M8 x 35 (2) 1
Lock Nuts,
M6 (2) 7Shoulder Socket Screw, M8 x 17.7 (1) 9Button Head Socket
Bolts, M10 x 40 (2) 10
Washers,
M10.5 x 20 (4) 12
Button Head Socket
Bolts, M8 x 20 (2) 3
Button Head Shoulder
Socket Bolts, M8 x 20 (2) 5
Fixed Wheel Axles 6
saw overhangs
the edge of the
packaging

3SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 1
3. Locate the caster support, the
linkage bar, two M8 x 35 button
head socket bolts, and two M8
x 13.6 lock washers. Note that
one end of the caster support
has a mounting shoulder and
the other end does not (see
Fig. 3a). Mount the linkage
bar to the inside of the caster
support arm nearest the end
without the mounting shoulder
as shown in Fig. 3b. Use the
button head sockets bolts, lock
washers, and a 5 mm hex key
to mount the linkage bar to the
caster support arm. Make sure
the linkage bar is positioned as
shown in Fig. 3b with the caster
support in the notch on the
linkage bar.
Fig. 3a with mounting shoulderwithout mounting shoulder
4. With the saw resting on the packaging, facing up
and overhanging the edge, place the ends of the
two caster support arms through the two holes in
the inside right face of the saw, as shown in Fig.
4. Make sure that the caster support is oriented
so that the linkage bar is next to the front of the
cabinet.
linkage bar
caster
support
caster
support
arm
end without
a mounting
shoulder
notch
2
1
Fig. 3b
Fig. 4
linkage bar
front
mounting
shoulder
down

4 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 1

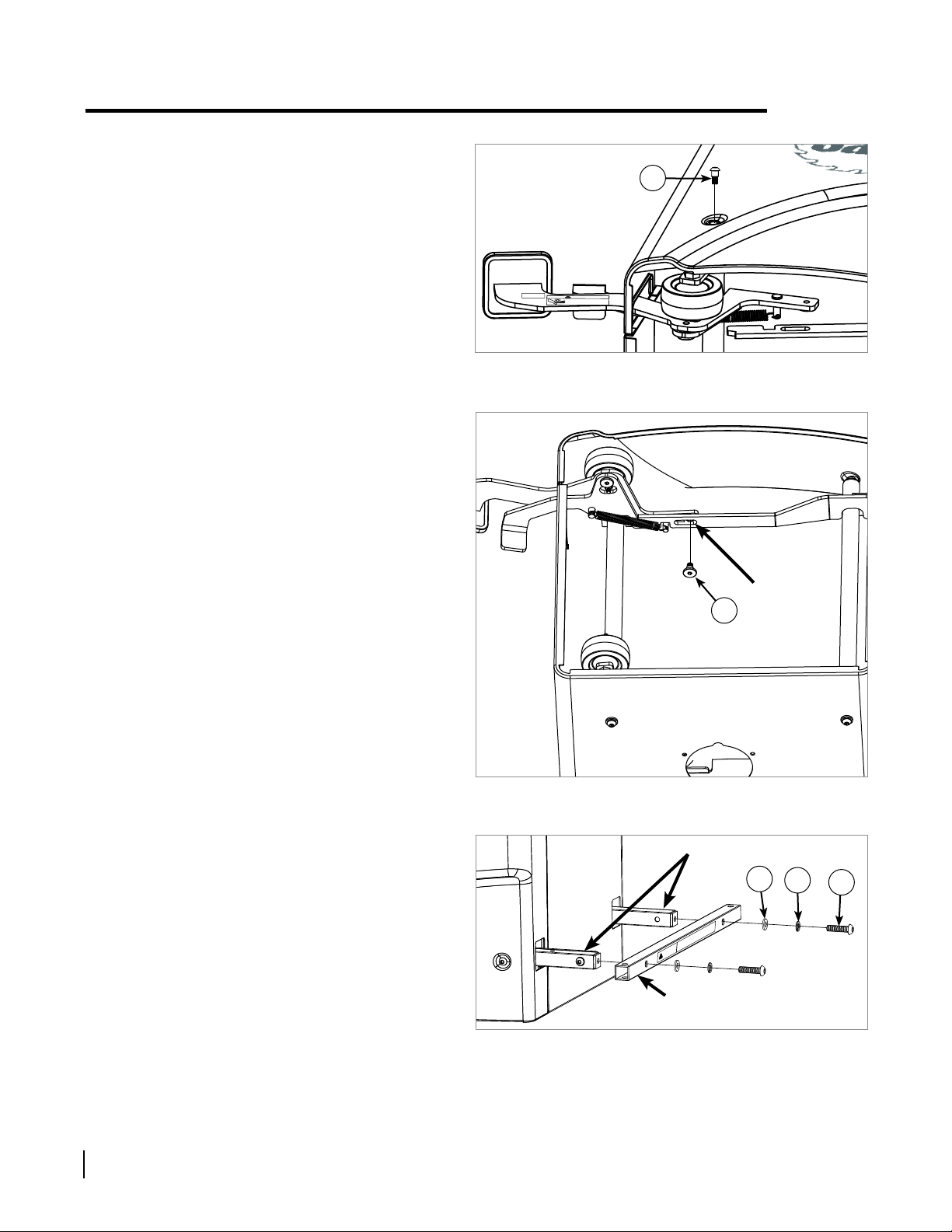

6. Align the front end of the caster support with the mounting hole in the lower right corner of the front of the
cabinet and secure that end of the caster support to the cabinet with an M8 x 20 button head shoulder socket
bolt (see Fig. 6). Note that this bolt is di󰀨erent than the bolt used to secure the rear of the caster support to the
cabinet. Fully tighten the bolt using a 5 mm hex key.
5. The end of the caster support next to the back of the saw is the end with the mounting shoulder. Insert the
mounting shoulder through the mounting hole in the rear of the cabinet and secure that end of the caster
support to the cabinet with one M8 x 20 button head socket bolt, one M8 x 13.6 lock washer, and one M8 x 18
washer (see Fig. 5). Fully tighten the bolt using a 5 mm hex key.
Fig. 5
mounting
shoulder
3
4
2
Fig. 6
5

Raise
Neverplacefingers,
toesorother body parts
underthemobile base.
!
WARNING
5SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 1
Fig. 7

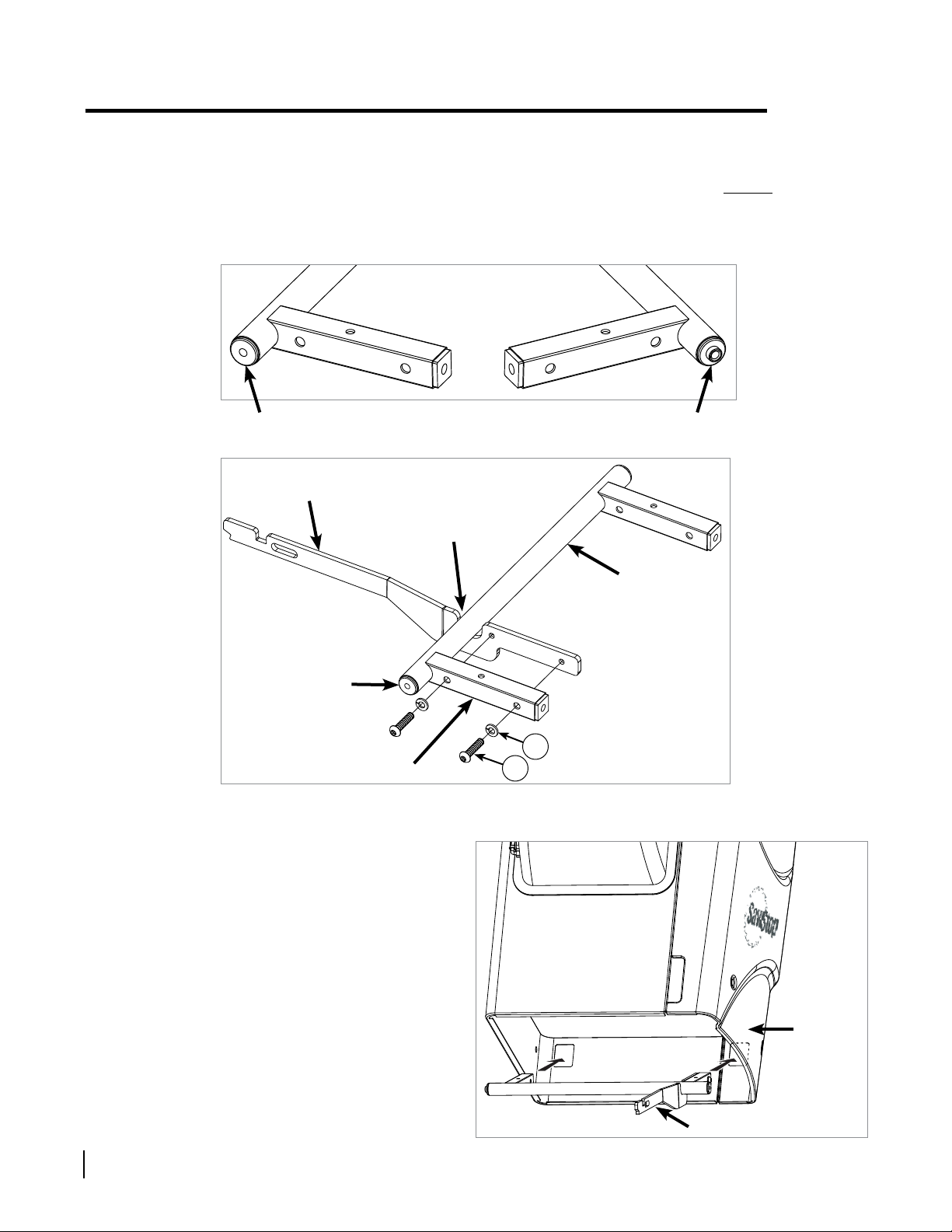

7. Locate the wheel support and the two 3 inch wheels. Note that one end of the wheel support has a mounting
shoulder and the other end does not. Mount one of the 3 inch wheels between the two support arms nearest
the end of the wheel support that has the mounting shoulder using a xed wheel axle and an M6 lock nut
from the hardware pack (see Fig. 7). The xed wheel axle passes through the outer support arm and threads
through the inner support arm. Fully tighten the nut using a 17 mm wrench and a 10 mm wrench.
8. Mount the second 3 inch wheel
to the other end of the wheel
support using the other xed
wheel axle, but do not thread a
nut onto the axle (see Fig. 8).
The xed wheel axle passes
through the outer support arm
and threads through the inner
support arm. Set the wheel
support aside for a moment.
9. Locate the pedal assembly
and insert it into the hole in
the left side of the cabinet
as shown in Fig. 9. Insert
the pedal assembly as far as
possible and make sure that
the foot pad is facing the top of
the cabinet.
foot pad pedal assembly
Fig. 8
Fig. 9
3 inch wheel
support arms 6
end with a mounting
shoulder
wheel support
wheel support
3 inch wheel
support arms
7
6

Raise
Neverplace fingers,
toesor other body parts
underthe mobile base.
!
WARNING
6 SawStop®Professional Cabinet Saw Mobile Base

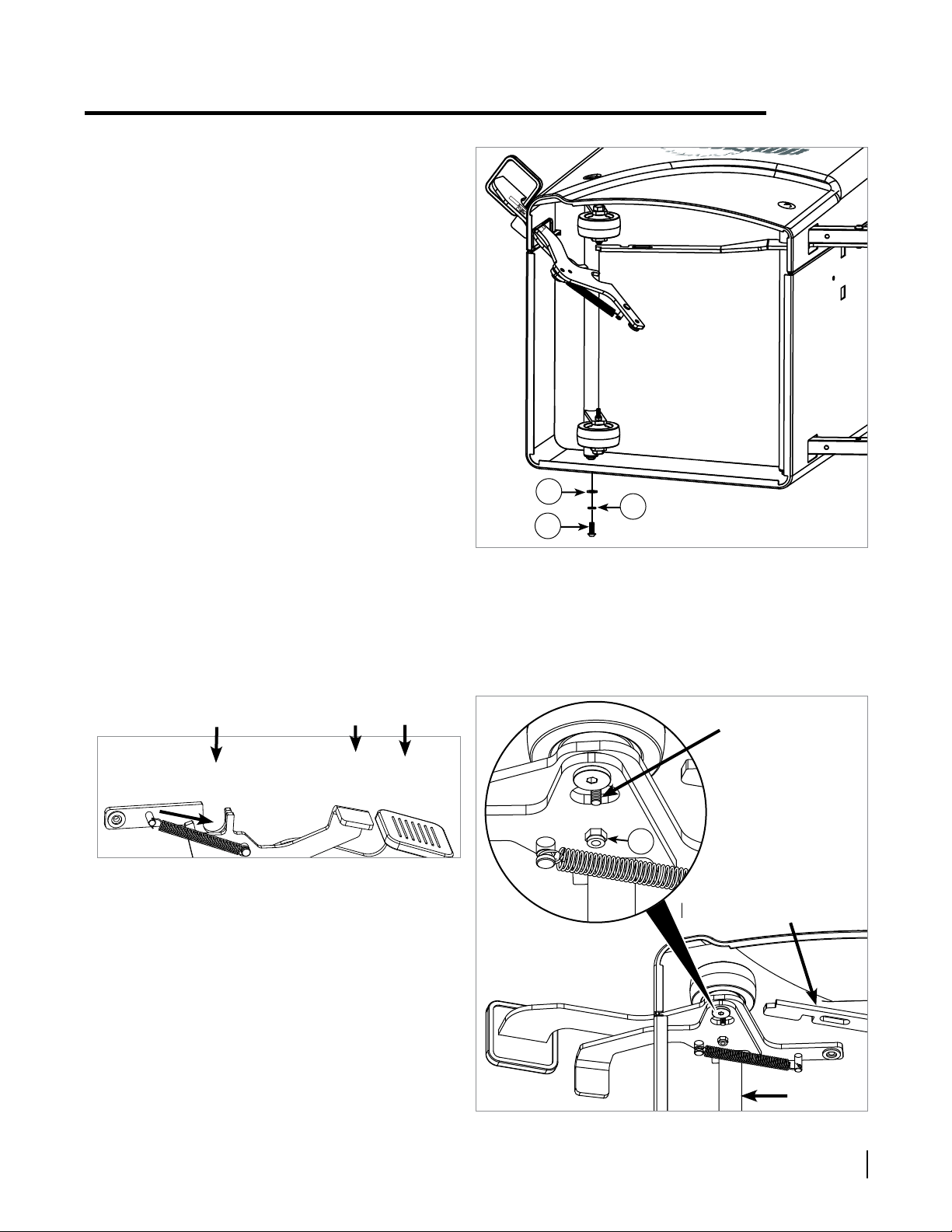

10. Remove the extension spring from the hardware
pack and attach one end of the spring to the small
pin in the pedal assembly by sliding one end of the
spring through the hole in the small pin. Stretch
the other end of the spring over the large pin in the
pedal assembly (see Fig. 10). There is a circular
groove on the large pin to hold the spring in place.
Fig. 10
Installing Your Mobile Base - Method 1
Fig. 11
smaller pin
larger pin
mounting shoulder down
8

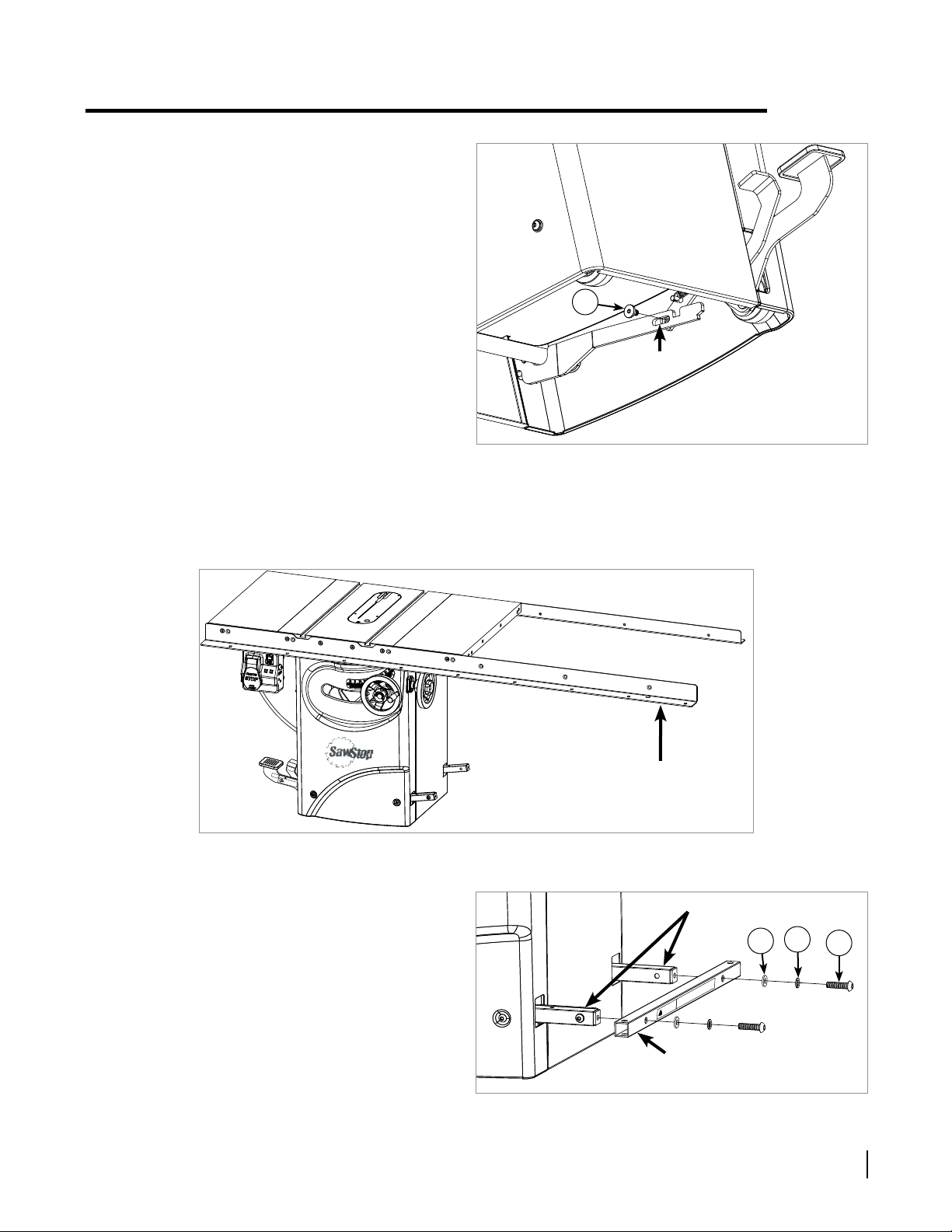

11. Take the wheel support and place it inside the
cabinet and behind the pedal assembly, as shown
in Fig. 11. Make sure that the end of the wheel
assembly with the mounting shoulder is at the rear
of the cabinet. It might be a little awkward to position
the wheel support behind the pedal assembly, but
the pedal assembly is loose and can move to allow
you to position the wheel support. When the wheel
support is correctly positioned the pedal assembly
will be between the two wheels (see Fig. 11). The
pedal assembly must be inserted through the hole
in the cabinet before the wheel support is placed
inside the cabinet, otherwise the wheel support will
block the pedal assembly.

Raise
Neverplace fingers,
toesor other body parts
underthe mobile base.
!
WARNING
7SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 1
Fig. 13a
align the notches for
the wheel support
release
lever
foot
pad
mounting
hole
13. You must now position the pedal assembly so
that it ts against the wheel support. The pedal
assembly includes notches shaped to t over the
wheel support bar, and a mounting hole shaped
to t over the threaded end of the xed wheel
axle (see Fig. 13b). Squeeze the foot pad and
the release lever together until the notches for the
wheel support align as shown in Fig. 13a. With the
slots aligned, position the pedal assembly so that
the wheel support bar ts in the notches and so that
the threaded end of the xed wheel axle extends
through the mounting hole in the pedal assembly.
When positioning the pedal assembly make sure
the linkage bar extending from the caster support
is rotated outwards so that it is farther away from
the saw than the pedal assembly as shown in Fig.
13b. Use an M6 lock nut from the hardware pack to
secure the pedal assembly to the xed wheel axle
as shown in Fig. 13b. Fully tighten the nut using a
17 mm wrench and a 10 mm socket.
Fig. 13b
threaded end
of the xed
wheel axle
wheel support
bar
7
this end of the linkage
bar must be farther
away from the saw than
the pedal assembly
12. Insert the mounting shoulder on the rear end of
the wheel assembly through the mounting hole
on the rear of the cabinet and secure that end to
the cabinet with one M8 x 20 button head socket
bolt, one M8 x 13.6 lock washer, and one M8 x 18
washer (see Fig. 12). Fully tighten the bolt using a
5 mm hex key.
Fig. 12
2
4
3

Raise
Never place fingers,
toes or other body parts
under the mobile base.
!
WARNING
1. Neverplace fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile base
on a level surface.
3. Lowerthe saw before use. Never use
the saw when it is raised off the floor.
4. Lowerthe saw slowly, do not let it
drop back to the floor.
!
WARNING
8 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 1
14. Align the front end of the wheel support with
the mounting hole in the lower left corner of the
front of the cabinet. Secure that end of the wheel
support to the cabinet with an M8 x 20 button head
shoulder socket bolt (see Fig. 14). Note that this
bolt is di󰀨erent than the bolt used to secure the
rear of the wheel support to the cabinet. Fully
tighten the bolt using a 5 mm hex key.
Fig. 14
15. You must now connect the pedal assembly to the
linkage bar. There is a slot in the linkage bar near
the pedal assembly and there is a plastic washer
and threaded hole on the pedal assembly near the
linkage bar. Pivot the linkage bar and the pedal
assembly until the slot in the linkage bar aligns
with the plastic washer and the threaded hole in
the pedal assembly. Insert an M8 x 17.7 shoulder
socket screw through the slot in the linkage bar
and thread it into the hole in the pedal assembly
(see Fig. 15). Fully tighten the screw with a 5 mm
hex key.
16. Stand up your saw as described in step 4 on the
back of the unpacking sheet that came with your
saw and also in your Professional Cabinet Saw
Owner’s Manual. With the saw in the upright
position, mount the caster extension bar to the
two caster support arms that extend from the right
side of the cabinet. Make sure that the warning
label is facing outward. Use two M10 x 40 button
head socket bolts, two M10.5 x 17 lock washers,
and two M10.5 x 20 washers to mount the caster
extension bar to the caster support arms (see Fig.
16). Fully tighten the bolts with a 6 mm hex key.
Fig. 15
linkage
bar slot
9
5
Fig. 16
caster support arms
caster extension bar
12 10
11

1. Never place fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile base
on a level surface.
3. Lower the saw before use. Never use
the saw when it is raised off the floor.
4. Lower the saw slowly, do not let it
drop back to the floor.
!
WARNING
1. Never place fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile base
on a level surface.
3. Lower the saw before use. Never use
the saw when it is raised off the floor.
4. Lower the saw slowly, do not let it
drop back to the floor.
!
WARNING
9SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 1
18. Mount the two 3 inch casters to the outer corners of
the support plate by inserting the threaded shaft on
each caster up through the corresponding holes in
the caster extension bar and support plate. Secure
the casters in place with two M10.5 x 20 washers,
two M10.5 x 17 lock washers, and two caster nuts,
as shown in Fig. 18. Fully tighten the caster nuts
with a 14 mm wrench.
Fig. 18
17. Position the caster support plate on the top of the
caster support arms so that the mounting holes
align as shown in Fig. 17. Make sure that the
SawStop logo faces up. Secure the support plate
to the caster support arms with two M6 x 40 hex
bolts, two M6 x 16 washers, and two M6 ange
lock nuts. Fully tighten the two bolts using a 10 mm
wrench and a 10 mm socket.
Fig. 17
CONGRATULATIONS, your mobile base is now installed. Turn to page 19
for instructions on how to use your mobile base.
caster
support
plate
13
14
15
3 inch casters
16
11
12

10 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile BaseInstalling Your Mobile Base - Method 2
1. You need access to the bottom of your saw to install the mobile base. The easiest and safest way to provide
that access is to tip the saw so that it rests on the end of the front rail, as shown in Fig. 19. The saw’s center
of gravity makes it stable when in this position. Both the front and rear rails must be securely mounted on the
saw before tipping the saw.
If you already have an out-feed table mounted to your saw you will need to remove it before tipping the saw.
Also, if you have an extension table with support legs attached to your saw, you will need to remove the support
legs or rotate them out of the way. Steps 2 and 3 below describe how to rotate the support legs on a SawStop®
T-GlideTM Professional Series II extension table out of the way. If you have not installed an extension table or
your extension table does not have support legs, skip to step 4.
2. Rotate the legs on a SawStop® T-GlideTM Professional Series II extension table out of the way by removing the
lower M10 x 40 hex head bolt that mounts each leg its support bracket (see Fig. 20). Use two 17 mm wrenches
or adjustable wrenches to remove the bolts. Also remove the corresponding M10 washers and M10 lock nuts.
Fig. 20
access
M10 x 40
hex head bolt
M10 washers
M10 lock nut
support leg
leg support
bracket
START HERE to install your mobile base on a
Professional Cabinet Saw that has a fence system installed.
Fig. 19

11SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 2
3. Loosen the M8 x 65 countersunk socket head bolt
that mounts the front leg to the front rail, but do not
remove the bolt or nut. Use the 5 mm short-arm
hex key supplied with the mobile base to keep the
bolt from turning while you loosen the nut with a 13
mm wrench (see Fig. 21). The 5 mm short-arm hex
key is sized so that it can engage the head of the
bolt without having to remove the front rail tube.
Repeat the procedure to loosen the M8 hex nut on
the back of the M8 x 65 countersunk socket head
bolt that mounts the rear leg to the rear rail. Rotate
the end of each support leg toward the saw so that
both support legs are out of the way and the saw
can be tipped onto its side.
Fig. 23
5. Locate all of the mobile base components shown on page 1. All of the hardware needed to install the mobile
base is located on the hardware pack (see Fig. 23). In order to easily identify the hardware used in each of
the following steps, the di󰀨erent pieces of hardware are numbered on the hardware pack and in the gures.
If you are missing the hardware pack or any of the other mobile base components, call the SawStop Service
Department at 503-582-9934 for replacements.
You will need the following tools to complete the
mobile base installation:
• 5 mm hex key
• 6 mm hex key
• 10 mm socket
• 10 mm wrench
• 14 mm wrench
• 17 mm wrench
Professional Cabinet Saw Mobile Base Hardware Pack
Extension Spring, (1) 8
Lock Washers,
M8 x 13.6 (4) 2
Washers,
M8 x 18 (2) 4
Washers,
M6 x 16 (2) 14 Flange Lock Nuts, M6 (2) 15
Hex Bolts,
M6 x 40 (2) 13
Lock Washers,
M10.5 x 17 (4) 11 Caster Nuts,
3/8” thread (2) 16
Button Head Socket
Bolts, M8 x 35 (2) 1
Lock Nuts,
M6 (2) 7Shoulder Socket Screw, M8 x 17.7 (1) 9Button Head Socket
Bolts, M10 x 40 (2) 10
Washers,
M10.5 x 20 (4) 12
Button Head Socket
Bolts, M8 x 20 (2) 3
Button Head Shoulder
Socket Bolts, M8 x 20 (2) 5
Fixed Wheel Axles 6
Fig. 21
loosen the M8
hex nut enough
so that the sup-
port leg can rotate
use the 5 mm short-arm
hex key to keep the bolt
head from rotating
4. With the front and rear rails are securley mounted, any out-feed table removed, and the extension table legs
removed or rotated out of the way, the saw can be tipped to the side. To make the saw easier to tip, adjust the
tilt handwheel until the blade is set at 45° to the table. Make sure the saw is on a level surface and then, with
the help of an assistant, grip the sides of the rails near the ends and push down to gently lower the rails to
the ground (see Fig. 22). Do not grip an extension table or the end of the rails to lower the saw to the tipped
position because you might pinch your ngers between the extension table or rails and the ground. The rear
rail is shorter than the front rail and typically will not touch the ground. To prevent scratching the rails, you can
set the edge of the front rail on a piece of cardboard or cloth.
Fig. 22
push down on the rails and gently
lower the saw to the tipped position

12 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 2
Fig. 24b
6. Locate the caster support, the linkage bar, two M8 x 35 button head socket bolts, and two M8 x 13.6 lock
washers. Note that one end of the caster support has a mounting shoulder and the other end does not (see
Fig. 24a). Mount the linkage bar to the inside of the caster support arm nearest the end without the mounting
shoulder as shown in Fig. 24b. Use the button head sockets bolts, lock washers, and a 5 mm hex key to mount
the linkage bar to the caster support arm. Make sure the linkage bar is positioned as shown in Fig. 24b with the
caster support in the notch on the linkage bar.
Fig. 25
7. With the saw tipped, place the ends of the two
caster support arms through the two holes in
the inside right face of the saw, as shown in Fig.
25. Make sure that the caster support is oriented
so that the linkage bar is next to the front of the
cabinet.
Fig. 24a
linkage bar
with a mounting shoulder
without a mounting shoulder
caster
support
caster support arm
end without
a mounting
shoulder
linkage bar
front
notch
2
1

13SawStop®Professional Cabinet Saw Mobile Base
9. Align the front end of the caster support with the
mounting hole in the lower right corner of the front
of the cabinet and secure that end of the caster
support to the cabinet with an M8 x 20 button head
shoulder socket bolt (see Fig. 27). Note that this
bolt is di󰀨erent than the bolt used to secure the
rear of the caster support to the cabinet. Fully
tighten the bolt using a 5 mm hex key.
Fig. 27
Installing Your Mobile Base - Method 2
Fig. 26
8. The end of the caster support next to the back of
the saw is the end with the mounting shoulder.
Insert the mounting shoulder through the mounting
hole in the rear of the cabinet and secure that end
of the caster support to the cabinet with one M8
x 20 button head socket bolt, one M8 x 13.6 lock
washer, and one M8 x 18 washer (see Fig. 26).
Fully tighten the bolt using a 5 mm hex key.
10. Locate the wheel support and the two 3 inch wheels. Note that one end of the wheel support has a mounting
shoulder and the other end does not. Mount one of the 3 inch wheels between the two support arms nearest
the end of the wheel support that has the mounting shoulder using a xed wheel axle and an M6 lock nut from
the hardware pack (see Fig. 28). The xed wheel axle passes through the outer support arm and threads
through the inner support arm. Fully tighten the nut using a 17 mm wrench and a 10 mm wrench.
3
24
5
Fig. 28
end with a
mounting shoulder
wheel
support
3 inch wheel
support arms
7
6

14 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 2
12. Locate the pedal assembly and insert it into the
hole in the left side of the cabinet as shown in Fig.
30. Insert the pedal assembly as far as possible
and make sure that the foot pad is facing up.
13. Remove the extension spring from the hardware
pack and attach one end of the spring to the small
pin in the pedal assembly by sliding one end of the
spring through the hole in the small pin. Stretch
the other end of the spring over the large pin in the
pedal assembly (see Fig. 31). There is a circular
groove on the large pin to hold the spring in place.
11. Mount the second 3 inch wheel to the other end of the wheel support using the other xed wheel axle, but do
not thread a nut onto the axle (see Fig. 29). The xed wheel axle passes through the outer support arm and
threads through the inner support arm. Set the wheel support aside for a moment.
3 inch wheel
wheel support support
arms 6
Fig. 30
pedal assembly
foot pad
Fig. 29
Fig. 31
small pin
large pin
8

15SawStop®Professional Cabinet Saw Mobile Base
14. Take the wheel support and place it inside the cabinet and above the pedal assembly, as shown in Fig. 32a.
Make sure that the end of the wheel assembly with the mounting shoulder is at the rear of the cabinet. It might
be a little awkward to position the wheel support above the pedal assembly, but the pedal assembly is loose
and can move to allow you to position the wheel support above the pedal assembly. When the wheel support
is correctly positioned the pedal assembly will be between the two wheels (see Fig. 32b). The pedal assembly
must be inserted through the hole in the cabinet before the wheel support is placed inside the cabinet, otherwise
the wheel support will block the pedal assembly.
Fig. 32a
Installing Your Mobile Base - Method 2
Fig. 33
15. Insert the mounting shoulder on the rear end of the wheel assembly through the mounting hole on the rear of
the cabinet and secure that end to the cabinet with one M8 x 20 button head socket bolt, one M8 x 13.6 lock
washer, and one M8 x 18 washer (see Fig. 33). Fully tighten the bolt using a 5 mm hex key.
the wheel support
is above the pedal
assembly
place the wheel support
inside the cabinet above
the pedal assembly
Fig. 32b
324

Raise
Lower
Never place fingers,
toes or other body parts
under the mobile base.
!
WARNING
16 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 2
16. You must now position the pedal assembly so that it ts against the wheel support. The pedal assembly
includes notches shaped to t over the wheel support bar, and a mounting hole shaped to t over the threaded
end of the xed wheel axle (see Fig. 34b). Squeeze the foot pad and the release lever together until the
notches for the wheel support align as shown in Fig. 34a. With the slots aligned, position the pedal assembly so
that the wheel support bar ts in the notches and
so that the threaded end of the xed wheel axle
extends through the mounting hole in the pedal
assembly. When positioning the pedal assembly
make sure the linkage bar extending from the
caster support is below the pedal assembly. Use
an M6 lock nut from the hardware pack to secure
the pedal assembly to the xed wheel axle as
shown in Fig. 34b. Fully tighten the nut using a
17 mm wrench and a 10 mm socket.
Fig. 34a Fig. 34b
align the notches for
the wheel support
the linkage bar
must be below the
pedal assembly
wheel
support
bar
release
lever
foot
pad
mounting
hole
17. Align the front end of the wheel support with the mounting hole in the lower left corner of the front of the cabinet.
Secure that end of the wheel support to the cabinet with an M8 x 20 button head shoulder socket bolt (see
Fig. 35). Note that this bolt is di󰀨erent than the bolt used to secure the rear of the wheel support to the cabinet.
Fully tighten the bolt using a 5 mm hex key.
Fig. 35
7
threaded end
of the xed
wheel axle
5

1. Neverplace fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile base
on a level surface.
3. Lowerthe saw before use. Never use
the saw when it is raised off the floor.
4. Lowerthe saw slowly, do not let it
drop back to the floor.
!
WARNING
17SawStop®Professional Cabinet Saw Mobile Base
18. You must now connect the pedal assembly to the
linkage bar. There is a slot in the linkage bar near
the pedal assembly and there is a plastic washer
and threaded hole on the pedal assembly near the
linkage bar. Pivot the linkage bar and the pedal
assembly until the slot in the linkage bar aligns
with the plastic washer and the threaded hole in
the pedal assembly. Insert an M8 x 17.7 shoulder
socket screw through the slot in the linkage bar
and thread it into the hole in the pedal assembly
(see Fig. 36). Fully tighten the screw with a 5 mm
hex key.
19. You have now installed all the interior components of the mobile base, so lift the end of the rails and gently
bring the saw back to the upright position, as shown in Fig. 37. Be careful not to let the cabinet fall back to the
oor rapidly.
Installing Your Mobile Base - Method 2
20. With the saw in the upright position, mount the
caster extension bar to the two caster support
arms that extend from the right side of the
cabinet. Make sure that the warning label is
facing outward. Use two M10 x 40 button head
socket bolts, two M10.5 x 17 lock washers, and two
M10.5 x 20 washers to mount the caster extension
bar to the caster support arms (see Fig. 38). Fully
tighten the bolts with a 6 mm hex key.
Raise
Lower
Neverplace fingers,
toesor other body part
underthe mobile base.
!
WARNING
linkage bar slot
Fig. 37
Fig. 36
Fig. 38
9
12 10
11
caster support arms
caster extension bar
lift the end of the rails and
gently bring the saw back
to the upright position

1. Never place fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile base
on a level surface.
3. Lower the saw before use. Never use
the saw when it is raised off the floor.
4. Lower the saw slowly, do not let it
drop back to the floor.
!
WARNING
1. Never place fingers, toes or other body
parts under the mobile base.
2. Always use the saw and the mobile base
on a level surface.
3. Lower the saw before use. Never use
the saw when it is raised off the floor.
4. Lower the saw slowly, do not let it
drop back to the floor.
!
WARNING
18 SawStop®Professional Cabinet Saw Mobile Base
Installing Your Mobile Base - Method 2
22. Mount the two 3 inch casters to the outer corners of
the support plate by inserting the threaded shaft on
each caster up through the corresponding holes in
the caster extension bar and support plate. Secure
the casters in place with two M10.5 x 20 washers,
two M10.5 x 17 lock washers, and two caster nuts,
as shown in Fig. 40. Fully tighten the caster nuts
with a 14 mm wrench.
21. Position the caster support plate on the top of the caster support arms so that the mounting holes align as
shown in Fig. 39. Make sure that the SawStop logo faces up. Secure the support plate to the caster support
arms with two M6 x 40 hex bolts, two M6 x 16 washers, and two M6 ange lock nuts. Fully tighten the two bolts
using a 10 mm wrench and a 10 mm socket.
CONGRATULATIONS, your mobile base is now installed. You should now
re-install any extension or out-feed tables and a fence system.
13
14
15
Fig. 39
caster
support
plate
Fig. 40
3 inch casters
16
11
12
