Saxby Lighting AVIT WALL User manual

www.saxbylighting.com
Instruction manual
91238
AVIT WALL
Saxby Lighting. BH17 7BY
V1 09/12/2019
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
Live Voltages may be present in this unit even when turned off or when completely disconnected. For your safety,
always switch off the power supply before changing lightbulbs, or cleaning.
Care and Safety
Technical data
240 V~, 50 Hz
Supply
Voltage:
Bulb
Type: 10W LED module (SMD), 4000K
Conformity with all relevant EC Directive requirements.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP65.
IP 65
Fitting / replacing bulbs
This is a Class 1 product and must be earthed.
The LED module in this product is non-replaceable
fold line

Warning
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current Building Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before installing or maintaining this fitting.Ensure other persons cannot
restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified electrician.
If replacing an existing fitting, make a careful note of the connections.
This light should be connected to a circuit with a 30mA RCD fitted.
This product contains non-replaceable parts and cannot be serviced. If damages occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Layout
Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between the junction box and the
each light fitting.
Avoid locating any cables in positions that would cause a hazard. Position cables and outdoor rated junction boxes
(not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade, rubber sheathed cable.
The mains supply cable must have a minimum cross section area of 1.0mm2.
Cables must be protected using suitable conduit or plastic trunking.
Commissioning
Installation
This is a Class 1 product and must be earthed.
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting,
carefully note the position of each set of wires.
Note that the switch is turned off before installation.

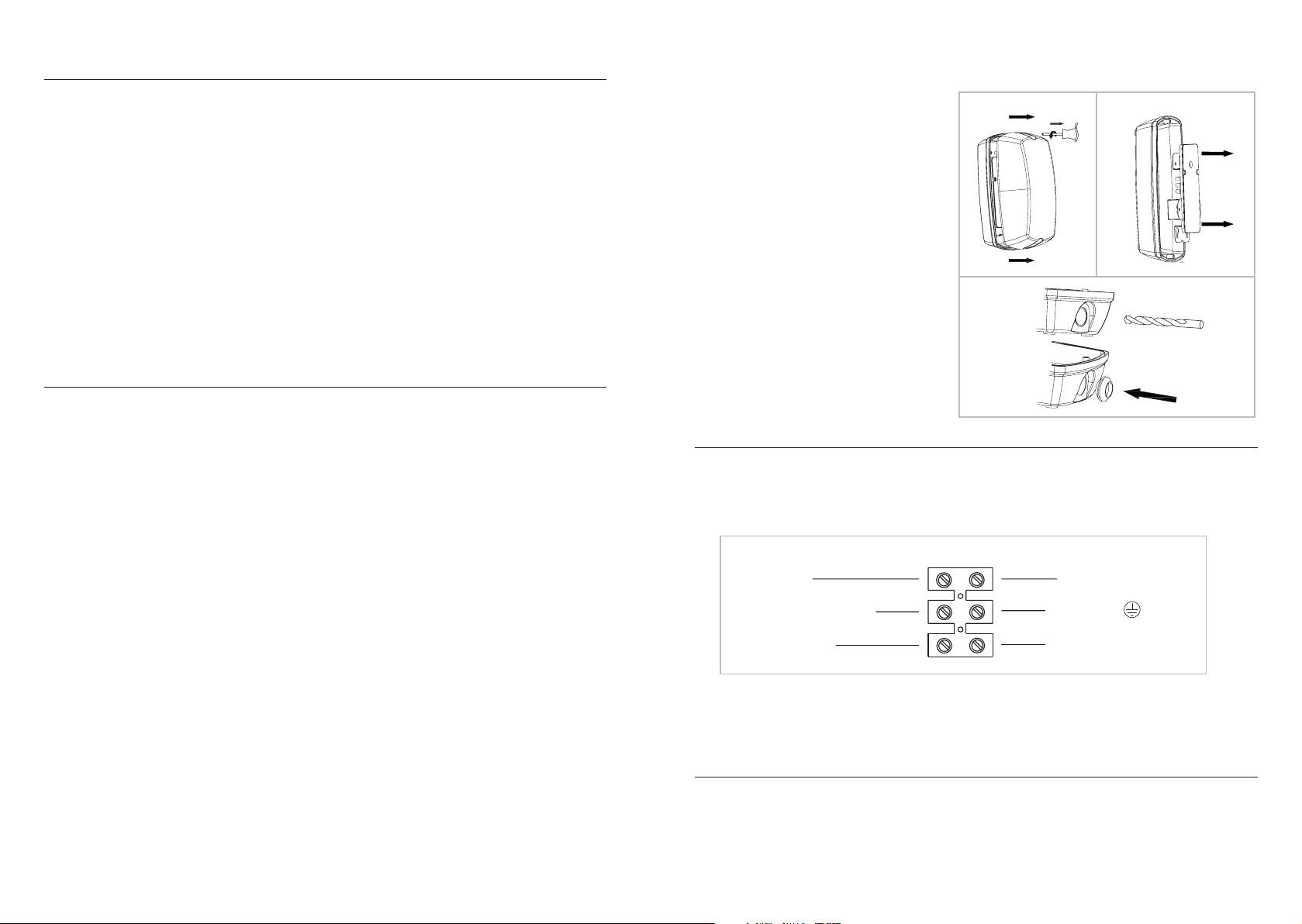

• Undo the screws at the top and bottom of the shade
to detach if from the wall back (Fig. 1)
• Loosen the screws at the bottom of the LED board.
Slide the board down and detach from the wall back
to access the terminal block (Fig. 2)
• Decide which cable entry hole to use -the hole at
the rear of the wall back - or the conduit entry hole
at the base. Drill out where necessary and fit the
cable grommet before pulling the supply wiring
through. (Fig. 3)
• Using the wall back as template mark and drill the
fixing holes. Attach the wall back to the wall. Ensure
the wall is capable of taking the weight of the product.
Take care not to damage any concealed wiring or pipes.
• Wire as detailed below
Having correctly identified the wiring from your existing light fitting, connect to the connection block inside the product
in the following way:
Wiring
SUPPLY LIGHT FITTING
EARTH (GREEN/YELLOW)
SWITCHED LIVE
NEUTRAL BLUE (N)
GREEN / YELLOW
BROWN (L)
Check that...
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
• Refit the LED board in place.
• Refit the shade.
• Replace fuse or circuit breaker and switch on. Your light is now ready for use.
Fig. 2
Fig. 1
Fig. 3
