Saxun 4 COLUMNS P-190 User manual

ASSEMBLY INSTRUCTIONS BIOCLIMATIC PERGOLA
4 COLUMNS P-190

INDEX
01 INSTALLATION 02
We do not provide the screws for fixing-anchoring to the wall and/or foundations. The fitter must choose the adequate
rod / screw / plug / nut / washer system for fixing and flushing to the foundations ad/or wall, based on the nature of
these surfaces. In any case, the screws must be in stainless steel.
1.1 INSTALLING THE FIXATION FOR THE COLUMN BASE 02
1.2 ASSEMBLING THE LEFT BEAM WITH THE B AND C COLUMNS (Inverted “U” profile) 04
1.3 FIXING THE INVERTED “U” PROFILE TO THE FLOOR 05
1.4 ASSEMBLING THE SIDES 06
1.5 SIDE JOINTS WITH THE INVERTED “U” PROFILE 07
1.6 JOINING THE RIGHT BEAM 08
1.7 INSTALLING THE INNER REINFORCEMENT 09
1.8 JOINING THE SURFACE MANIFOLDS 10
1.9 INSTALLING THE SLATS 11
1.10 INSTALLING THE TRANSMISSION PLATE 13
1.11 INSTALLING THE “U” PROFILE 14
1.12 MOTOR INSTALLATION 15
02 ELECTRICAL CONNECTIONS 16
The connection of the electrical installation must be done adhering to the current regulations for low voltage
2.1 ELECTRICAL DIAGRAM OF COMPONENTS 16
2.2 LED SWITCHBOARD 17
2.3 SWITCHBOARD WITHOUT LED 17
03 INSTALLING THE COLUMN CAP 17
04 SWITCHBOARD PROGRAMMING (factory set up) 18
4.1 ADVANCED MOTOR PROGRAMMING (factory set up) 18
4.2 LED LINE PROGRAMMING (factory set up) 20
4.3 TOTAL MEMORY DELETION 20
4.4 CENTRAL PROGRAMMING OF 1 MOTOR WITHOUT LED OR SENSORS 21
05 MAINTENANCE 21
Before assembling, please read the maximum tightening torque for each type of screw, as indicated in this section.
—ANNEX A - DISPOSAL OF PACKAGING AND PRODUCT AT END OF USEFUL LIFE 22
—PERGOLA ASSEMBLING CHECKLIST 23

BIOCLIMATIC PERGOLA
EXACT DIAGONALS
Measure the foundation in order to make sure that the levelling is correct.
Install the base fixings using M-12 screws (not included), with a quality of at least AISI 304 (stainless steel), leaving all
bases properly levelled.
Once the column bases are installed in place, measure the diagonal lines to ensure both distances are equal.
01 INSTALLATION
1.1 INSTALLING THE FIXATION FOR THE COLUMN BASE

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
3

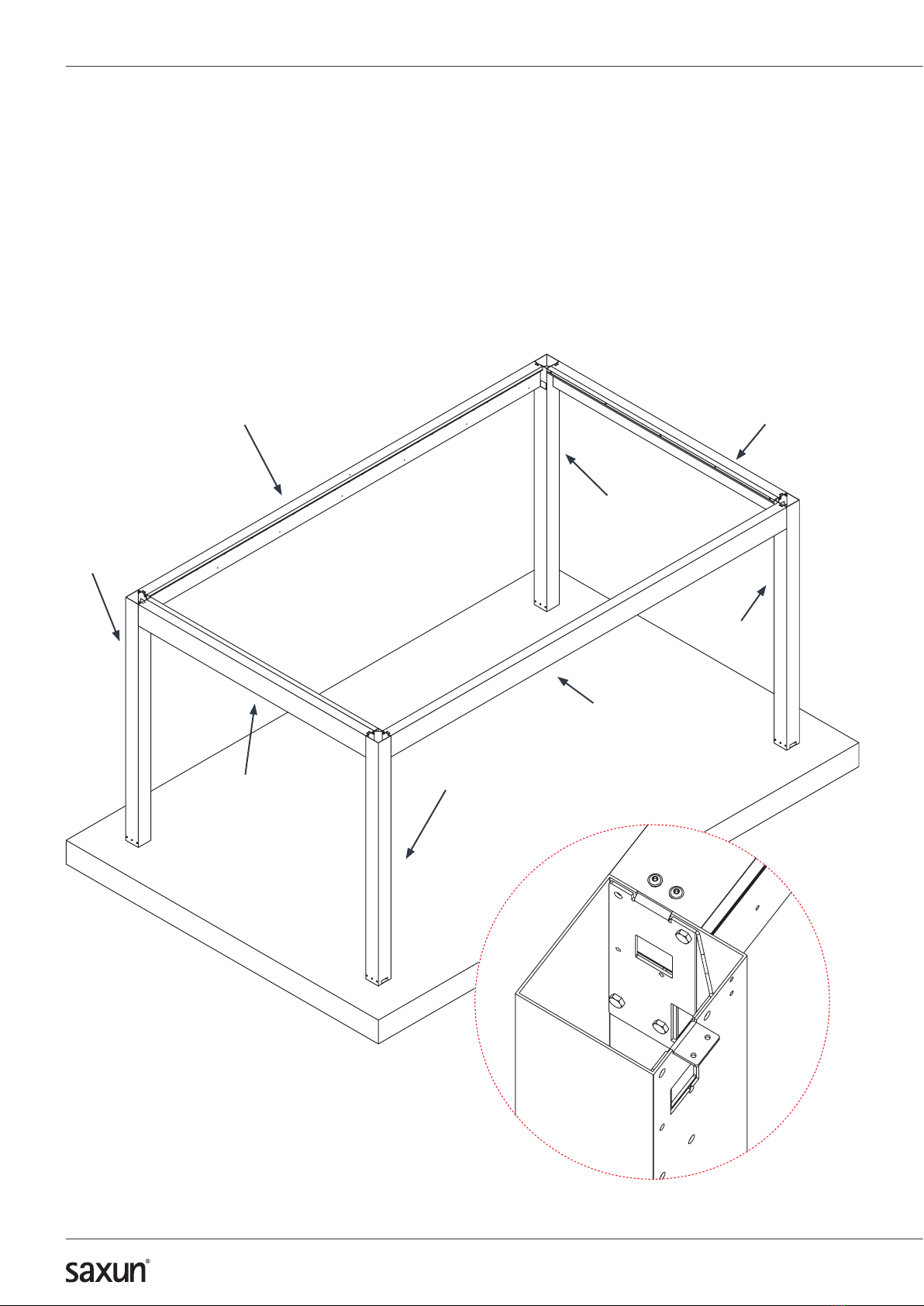

OPENING BEAM
OPENING SURFACE MANIFOLD
CLOSING BEAM
CLOSING SURFACE MANIFOLD
RIGHT BEAM
LEFT BEAM
COLUMN A
COLUMN B
COLUMN D
COLUMN C
144,20
150,00
31,50 31,5087,00
31,50 31,5087,00
COLUMN P-150x150x2,5 mm
Code 023101
COLUMN BASE FIXING P-150x150
Code 023110

BIOCLIMATIC PERGOLA
COLUMN C
COLUMN B ULS (ISO 7380) A2 M6x16
Code 051103
ATENTION!
Please see section 1.7
DIN 933 A2 M8x40
Code 051166
LEFT BEAM
1
2
3
4
1.2 ASSEMBLING THE LEFT BEAM WITH THE B AND C COLUMNS (INVERTED “U” PROFILE)
Join the B and C columns to the ends of the LEFT beam.
Follow the screwing sequence indicated in the image.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
5
COLUMN B
LEFT BEAM
COLUMN C
ULS (ISO 7380) A2 M6x16
Code 051103
1.3 FIXING THE INVERTED “U” PROFILE TO THE FLOOR
With the inverted “U” profile already mounted, fix it to the columns bases of the foundation using the (ISO 7380) A2 M6x16
mm.

BIOCLIMATIC PERGOLA
COLUMN A
CLOSING BEAM
OPENING BEAM
COLUMN D
1
2
3
4
1.4 ASSEMBLING THE SIDES
Join the OPENING bean to column A.
Joint the CLOSING beam to column D
Follow the screwing sequence indicated in the image.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
7
LEFT BEAM
OPENING BEAM
CLOSING BEAM
1
2
3
4
COLUMN B
COLUMN A
COLUMN D
COLUMN C
1.5 SIDE JOINTS WITH THE INVERTED “U” PROFILE
When both sides have been assembled, it will be necessary to attach them to the corresponding base fixings and the ends
of the OPENING and CLOSING beams to the B and C columns (using the framing brackets wings to fasten the assembly).
Follow the screwing sequences indicated in the image.

BIOCLIMATIC PERGOLA
LEFT BEAM
RIGHT BEAM
OPENING BEAM
CLOSING BEAM
COLUM B
COLUMN A
COLUMN D
COLUMN C
1
2
3
4
1.6 JOINING THE RIGHT BEAM
The last step to complete the structure assembly is to join the RIGHT beam to de A and D columns (using the framing
brackets wings to fasten the assembly).
Follow the screwing sequences indicated in the image.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
9
5
ATTENTION: Tighten the screws with the torque indicated in the maintenance section.
1.7 INSTALLATION OF THE INNER REINFORCEMENT
After the structure has been mounted, the framing bracket inner reinforcements will be installed on the four columns.
Tighten and do the final adjustment of all the screws in the framing brackets of the structure.

BIOCLIMATIC PERGOLA
SEALANT
OPENING SURFACE MANIFOLD CLOSING SURFACE MANIFOLD
ATTENTION: Do not bypass this step, it is very important to seal the manifold joint properly (sealant provided).
1.8 JOINING THE SURFACE MANIFOLDS
Apply the provided sealant between the contact sides of the OPENING and CLOSING beams and their corresponding sur-
face manifolds.
The opening and closing surface manifolds will be joined, screwing them to the beams.
Before continuing the installation, create a groove for the water run-o at each end of both manifolds (use a hammer and
a flat screwdriver).

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
11
16 cm
1.9 INSTALLING THE SLATS
When the structure has been assembled, and before installing the slats, place the 16,3 mm plastic rimmed caps in the
machined beam holes where no LEDs are going to be installed.
Start the slat installation from the opening side.
When reaching a hole for LED slats, connect the connector and insert it inside the beam (as shown in the images below).
Then install the 16,3 mm rimmed plastic cap.
Prepare the fixed axles for the left side of the slats and the mobile axles for the right side.

BIOCLIMATIC PERGOLA
To install the slats, they must be tilted with the end caps facing down, inserting the fixed axle first (left) and then the mo-
bile one (right).
Using a Nº 4 Allen key, pull back the axle until it stops in the grooved hole.
When it stops, fasten the screw of the cap.
Turn the axle 180º and insert the safety screw.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
13
BOTTOM
Respect the transmission plate position
NUT M6 A2 DIN 985
Cod. 051048
RIMMED CAP 6,3
Cod. 051033 ULS (ISO 7380) A2 M6x16
Cod. 051103
ATTENTION: When installing the plate in the slats, do not tighten too much the screw nuts, so they are set without
tightening. Thus the plate can perform manually the opening and closing movements with no friction whatsoever.
1.10 INSTALLING THE TRANSMISSION PLATE
With the slats already in the structure, install the two transmission plates in the slat end caps. One of the slats will include
an integrated support with a motor fixing stud. It is necessary to know the side of the pergola where the motor will be
installed, so the plate can be mounted on that side.
Install the two plates simultaneously if possible. Start by fixing the first, the last and the centre slats to the transmission
plate. This facilitates the rest of the installation.
Join the plates to the end caps with their corresponding USL (ISO 7380) A2 M6x16 screws, 6,3 mm rimmed plastic caps
and M6 DIN 985 nut.

BIOCLIMATIC PERGOLA
SEALANT
Check that all the “U” profile holes match the M6 machined ones on the beam. If all of them match, apply the sealant be-
tween the “U” profile and the beam after screwing the profiles with the USL (ISO 7380) A2x16 screws.
Use the sealant provided to seal the “U” profiles to the beams and the joints that could suer water leaks.
1.11 INSTALLATION PROFILÉ “U”
Start by installing the “U” profile with the pre-mounted motor on the LEFT beam. To do this, it will be necessary to insert
the profile end through the pre-drilled draining hole in the B column. Install the “U” profile on the other side following the
same procedure.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
15
A
B
Steps to install the motor:
1Unscrew the ULS (ISO 7380) A2 M6x16 screws from the “U” profile motor support (A).
2Insert the tip of the motor piston rod into the transmission plate stud (B).
3Mount the nut on the transmission plate stud so the motor does not come out (B).
3Mount the nut on the transmission plate stud so the motor does not come out (B).
1.12 MOTOR INSTALLATION
The motor is already pre-installed in the “U” profile. The motor piston rod needs to be halfway through its stroke so it can
be inserted into the plate stud and the support with the engine can be taken to the profile position.

BIOCLIMATIC PERGOLA
SWITCHBOARD
POWER SUPPLY
02 ELECTRICAL CONNECTIONS
The connection of the electrical installation must be in compliance with the rules and regulations of each country (Low
voltage electrotechnical regulation).
The perimeter cabling for the electrical and sound installations will be passed through the beam and column spaces.
The cable of the motor will go through the “U” profile towards the end where the electric connection will be performed,
making a loop at the motor outlet and passing it under the support, so it cannon be pinched by the transmission plate
when the assembly moves.
Complete the electric connections of the pergola according to the instructions and considering that both the motor and
the LEDs run with a 24 V voltage. For this reason, it is necessary to use the power source and switchboard provided for
the pergola operation.
For greater safety, it is necessary to ground the pergola, and install a watertight box outside it in order to house all
the connections and protect the automatic systems.
2.1 ELECTRIC DIAGRAM OF COMPONENTS

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
17
2.2 SWITCHBOARD WITH LED
2.3 SWITCHBOARD WITHOUT LED AND WITHOUT SENSORS
03 INSTALLING THE COLUMN CAP
After the electric connections are completed, installing the
column caps is the last stage left. To do this, the caps will be
screwed to the inner reinforcements using the ULS (ISO 7380) A2
M6x16 mm screws.
When all the column caps have been installed, it will be neces-
sary to seal their joints with the sealant provided, as mentioned
before, one of the caps has 3 glands to take the cables out to the
switchboard.
1POWER SUPPLY 24 Vdc +
2POWER SUPPLY 24 Vdc -
3S1 MOTOR +
4S1 MOTOR -
5S2 LED -
6S2 LED +
7RAIN SENSOR
8RAIN SENSOR
1+ POSITIVE 24V
2- NEGATIVE 24V
3MOTOR +
4MOTOR -
+ +
- -
3 1
4 2
PROG. POWER SUPPLY 24V
Power
DINUY
IN
ON
S1
S2
ON
OFF
OUT LED
RAIN SENSOR
24 Vdc
POWER
SUPPLY
24 Vdc 230V
MOTOR
L
N
31 2 7 8
1 2 3 4
5
4
6
+
+
+
+
+ +
+
-
-
-
- -
-
-
PROG.
VERY IMPORTANT: The pergola switchboard comes completely programmed from the factory and with complete
stroke ends, so you should NOT MANIPULATE the components or change the switchboard set up, as this could
cause operation faults in the pergola and its automation systems.
SEALANT

BIOCLIMATIC PERGOLA
04 SWITCHBOARD PROGRAMMING (factory set up)
4.1 ADVANCE MOTOR PROGRAMMING (factory set up)
1Press and hold PROG on the electronic unit for over 2
seconds until the S1 LED flashes, then release.
(S1 output set up)
PROG.
S1
S2 >2s
2Select the desired output, S1 or S2
(Desired channel).
PROG.
S1
S2
3Select the profile desired for the motor.
4Press Λ+V simultaneously.
(Set up channel)
my
<
<
5Check the rotating direction Λ=open / V=close.
If the rotation is not correct, reerse the direction by
pressing my for over 5 seconds.
(Required output setting up).
Check the direction of rotation again.
my
<
<
>5s
6Open the pergola (press and release Λ).
my
<
<
7Confirm the opening position by pressing V+my simulta-
neously
(The pergola will open automatically)
my
<
<
CONFIGURED
CONFIGURED
CONFIGURED
CONFIGURED
OPEN
CLOSE
AUTO
