Saxun 4 COLUMNS P-190 User manual

ASSEMBLY INSTRUCTIONS BIOCLIMATIC PERGOLA
4 COLUMNS P-190

INDEX
01 INSTALLATION 02
We do not provide the screws for fixing-anchoring to the wall and/or foundations. The fitter must choose the adequate
rod / screw / plug / nut / washer system for fixing and flushing to the foundations ad/or wall, based on the nature of
these surfaces. In any case, the screws must be in stainless steel.
1.1 INSTALLING THE FIXATION FOR THE COLUMN BASE 02
1.2 ASSEMBLING THE LEFT BEAM WITH THE B AND C COLUMNS (Inverted “U” profile) 04
1.3 FIXING THE INVERTED “U” PROFILE TO THE FLOOR 05
1.4 ASSEMBLING THE SIDES 06
1.5 SIDE JOINTS WITH THE INVERTED “U” PROFILE 07
1.6 JOINING THE RIGHT BEAM 08
1.7 INSTALLING THE INNER REINFORCEMENT 09
1.8 JOINING THE SURFACE MANIFOLDS 10
1.9 INSTALLING THE SLATS 11
1.10 INSTALLING THE TRANSMISSION PLATE 13
1.11 INSTALLING THE “U” PROFILE 14
1.12 MOTOR INSTALLATION 15
02 ELECTRICAL CONNECTIONS 16
The connection of the electrical installation must be done adhering to the current regulations for low voltage
2.1 ELECTRICAL DIAGRAM OF COMPONENTS 16
03 INSTALLING THE COLUMN CAP 19
04 SWITCHBOARD PROGRAMMING (factory set up) 20
4.1 ADVANCED MOTOR PROGRAMMING (factory set up) 20
05 MAINTENANCE 21
Before assembling, please read the maximum tightening torque for each type of screw, as indicated in this section.
—ANNEX A - DISMANTLING AND DISPOSING OF PRODUCT PACKAGING AND COMPONENTS
AT THE END OF THEIR USEFUL LIFE 22
—ANNEX B - CERTIFICATE OF GUARANTEE 26
—PERGOLA ASSEMBLING CHECKLIST 28

BIOCLIMATIC PERGOLA
01 INSTALLATION
1.1 INSTALLING THE FIXATION FOR THE COLUMN BASE

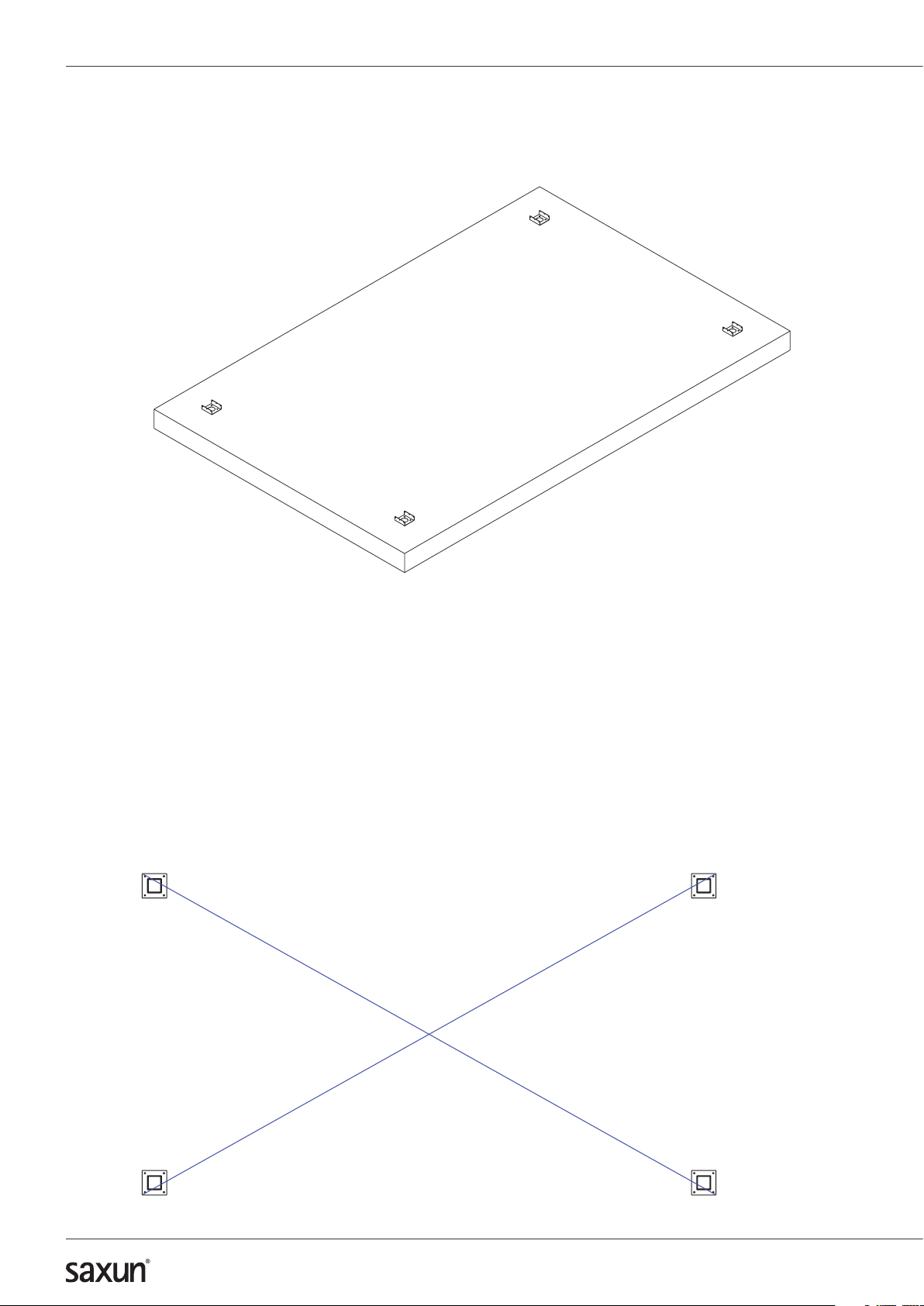

Measure the foundation in order to make sure that the levelling is correct.
Install the base fixings using M-12 screws (not included), with a quality of at least AISI 304 (stainless steel), leaving all
bases properly levelled.
Once the column bases are installed in place, measure the diagonal lines to ensure both distances are equal.
- Recommended installation is against a wall with reinforced concrete floor of at least 150 mm thickness (or surface of
equivalent strength) by means of 12 mm stainless steel fittings (not included).
- Leave a 100 mm space above the beam so the slats can turn.
EXACT DIAGONALS

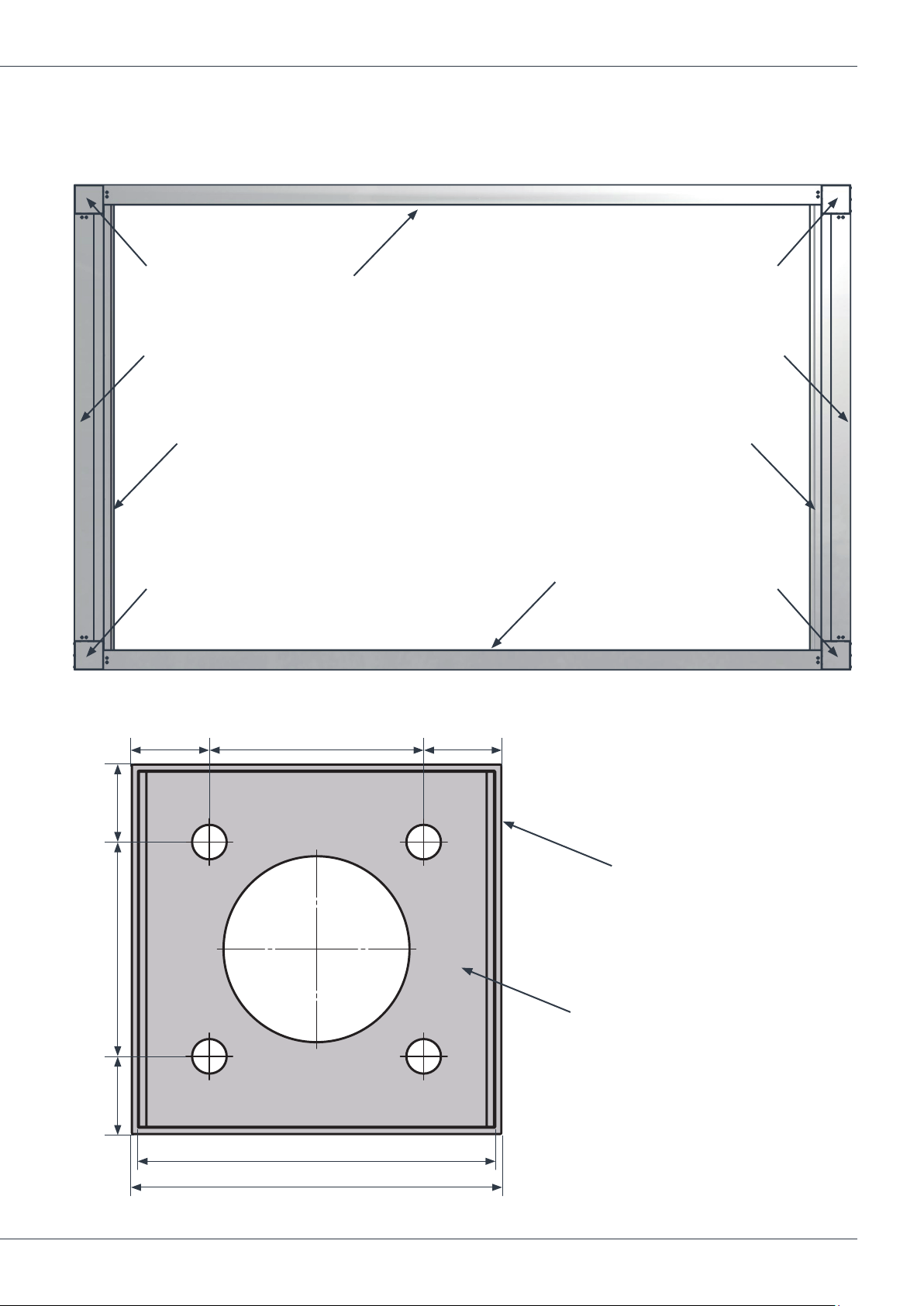

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
3
OPENING BEAM
OPENING SURFACE MANIFOLD
CLOSING BEAM
CLOSING SURFACE MANIFOLD
RIGHT BEAM
LEFT BEAM
COLUMN A
COLUMN B
COLUMN D
COLUMN C
144,20
150,00
31,50 31,5087,00
31,50 31,5087,00
COLUMN P-150x150x2,5 mm
Code 023101
COLUMN BASE FIXING P-150x150
Code 023110

BIOCLIMATIC PERGOLA
COLUMN C
COLUMN B ULS (ISO 7380) A2 M6x16
Code 051103
ATENTION!
Please see section 1.7
DIN 933 A2 M8x40
Code 051166
LEFT BEAM
1
2
3
4

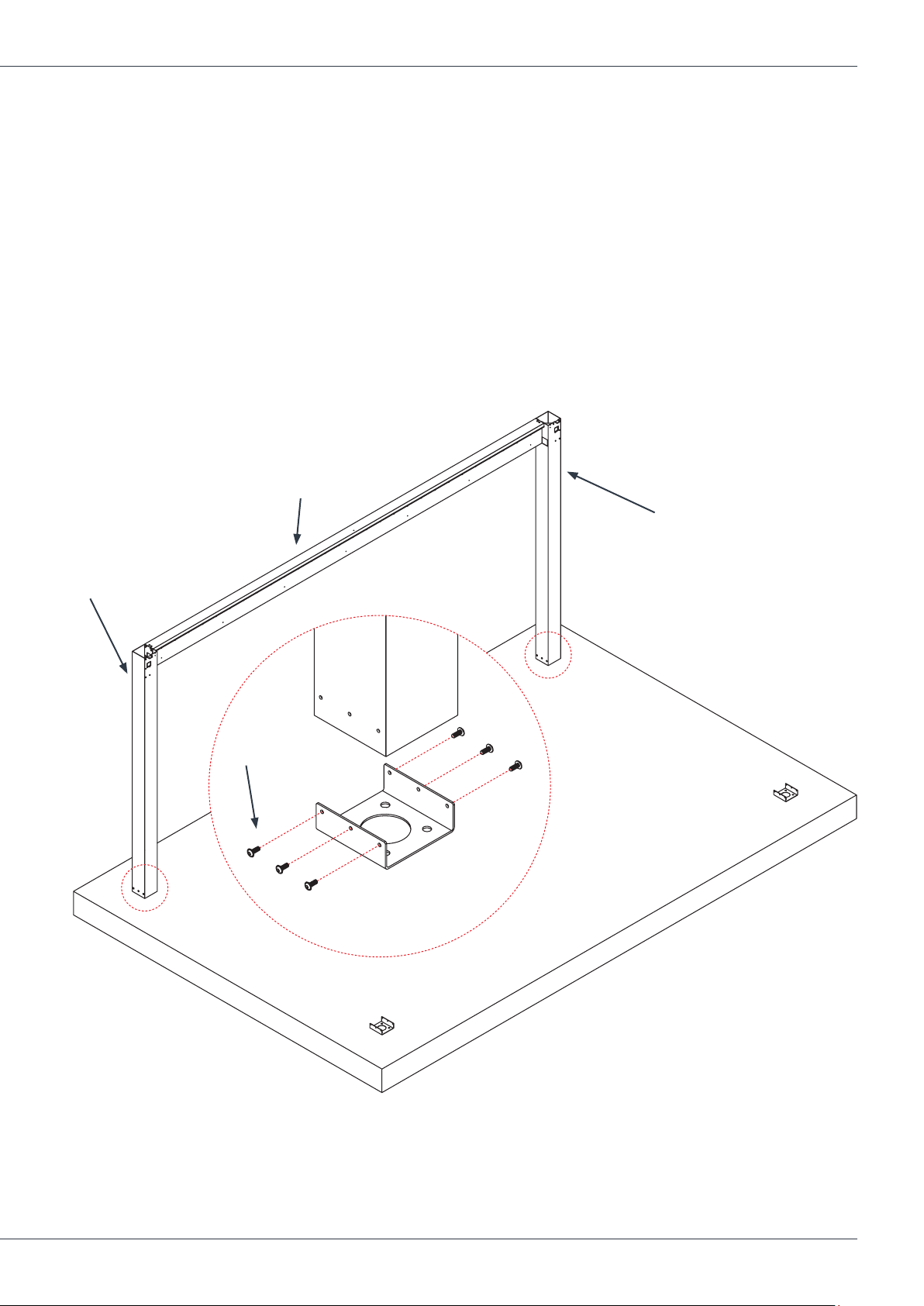

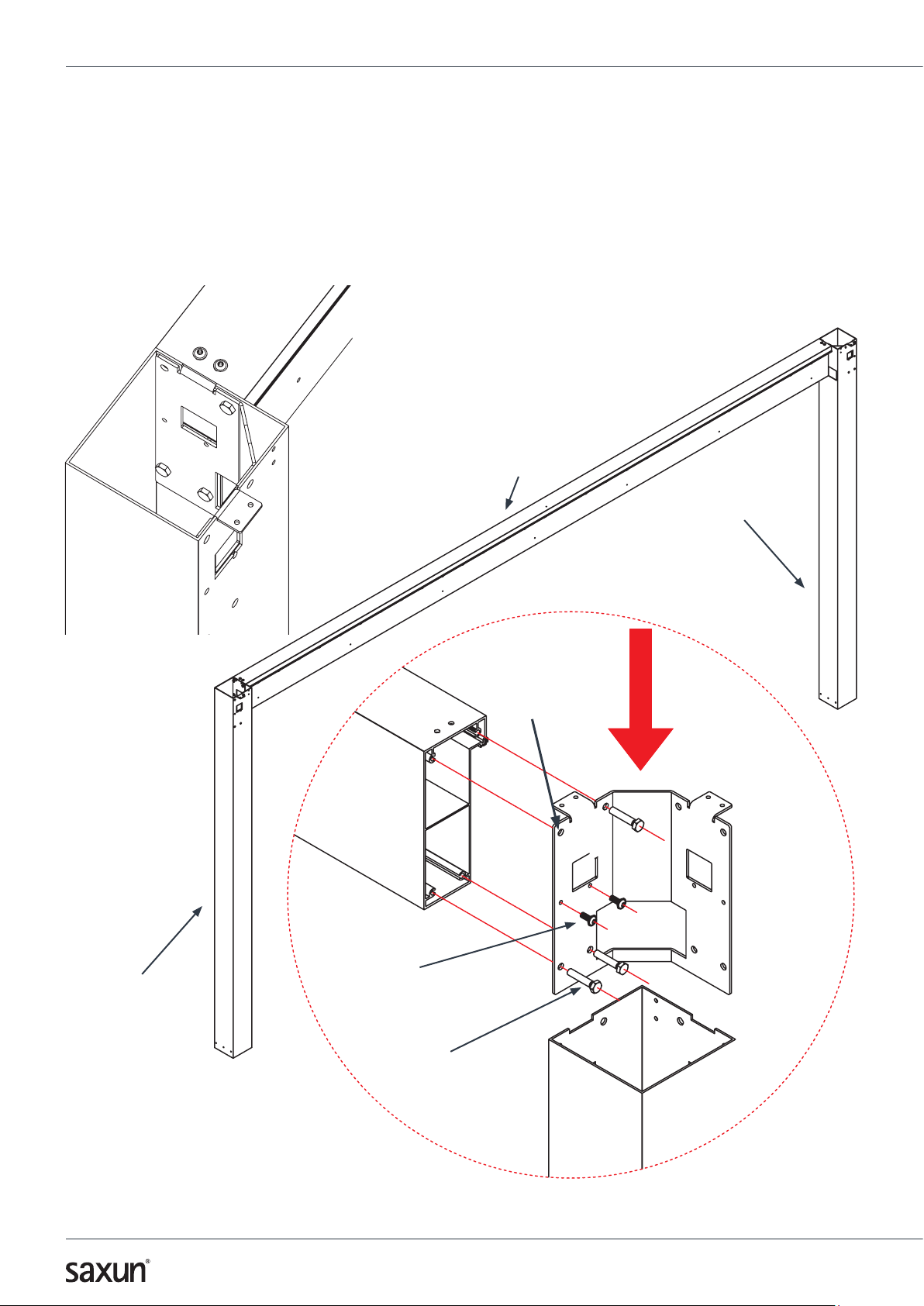

1.2 ASSEMBLING THE LEFT BEAM WITH THE B AND C COLUMNS (INVERTED “U” PROFILE)
Join the B and C columns to the ends of the LEFT beam.
Follow the screwing sequence indicated in the image.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
5
COLUMN B
LEFT BEAM
COLUMN C
ULS (ISO 7380) A2 M6x16
Code 051103
1.3 FIXING THE INVERTED “U” PROFILE TO THE FLOOR
With the inverted “U” profile already mounted, fix it to the columns bases of the foundation using the (ISO 7380) A2 M6x16
mm.

BIOCLIMATIC PERGOLA
COLUMN A
CLOSING BEAM
OPENING BEAM
COLUMN D
1
2
3
4
1.4 ASSEMBLING THE SIDES
Join the OPENING bean to column A.
Joint the CLOSING beam to column D
Follow the screwing sequence indicated in the image.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
7
LEFT BEAM
OPENING BEAM
CLOSING BEAM
1
2
3
4
COLUMN B
COLUMN A
COLUMN D
COLUMN C
1.5 SIDE JOINTS WITH THE INVERTED “U” PROFILE
When both sides have been assembled, it will be necessary to attach them to the corresponding base fixings and the ends
of the OPENING and CLOSING beams to the B and C columns (using the framing brackets wings to fasten the assembly).
Follow the screwing sequences indicated in the image.

BIOCLIMATIC PERGOLA
LEFT BEAM
RIGHT BEAM
OPENING BEAM
CLOSING BEAM
COLUM B
COLUMN A
COLUMN D
COLUMN C
1
2
3
4

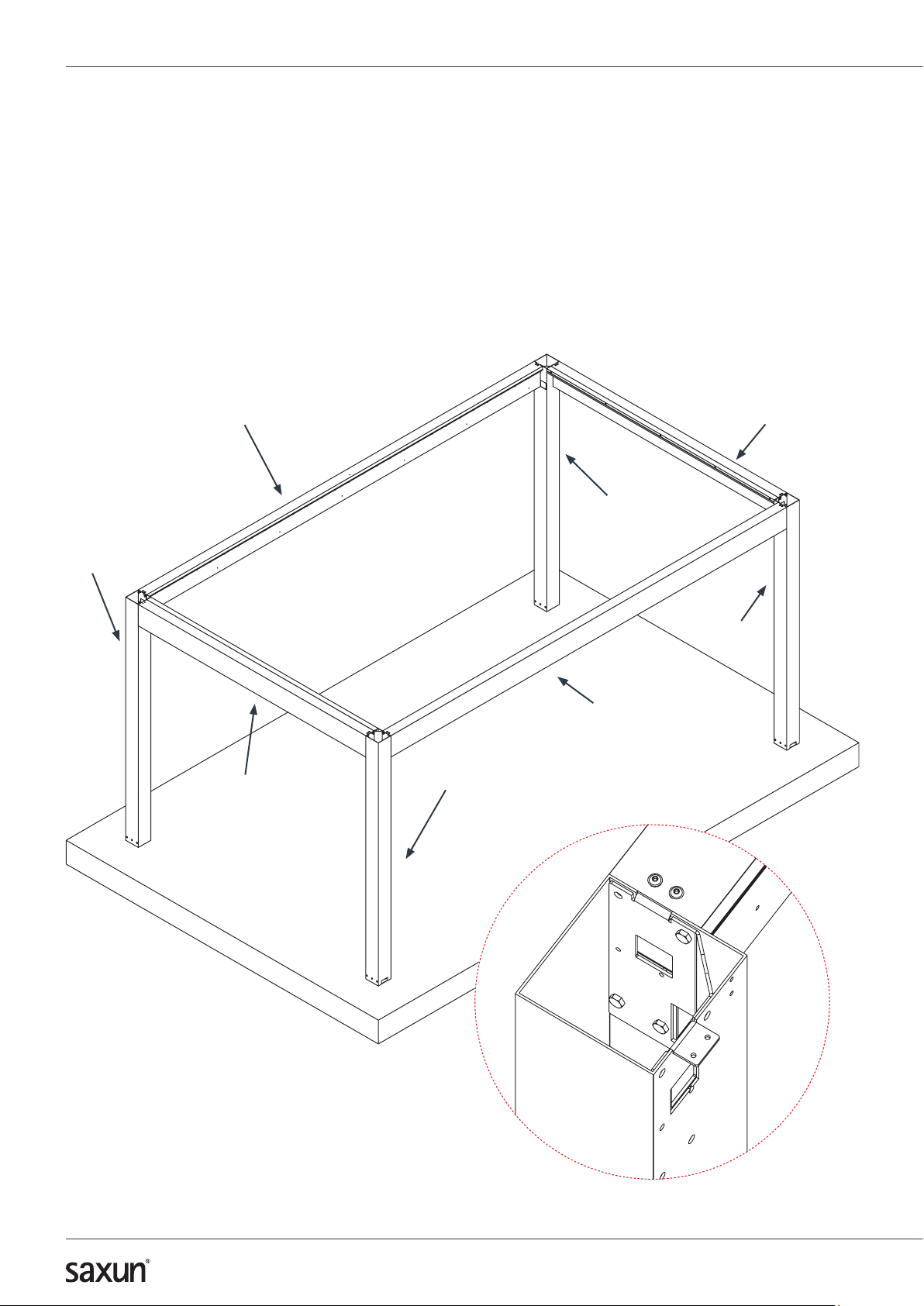

1.6 JOINING THE RIGHT BEAM
The last step to complete the structure assembly is to join the RIGHT beam to de A and D columns (using the framing
brackets wings to fasten the assembly).
Follow the screwing sequences indicated in the image.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
9
5
ATTENTION: Tighten the screws with the torque indicated in the maintenance section.

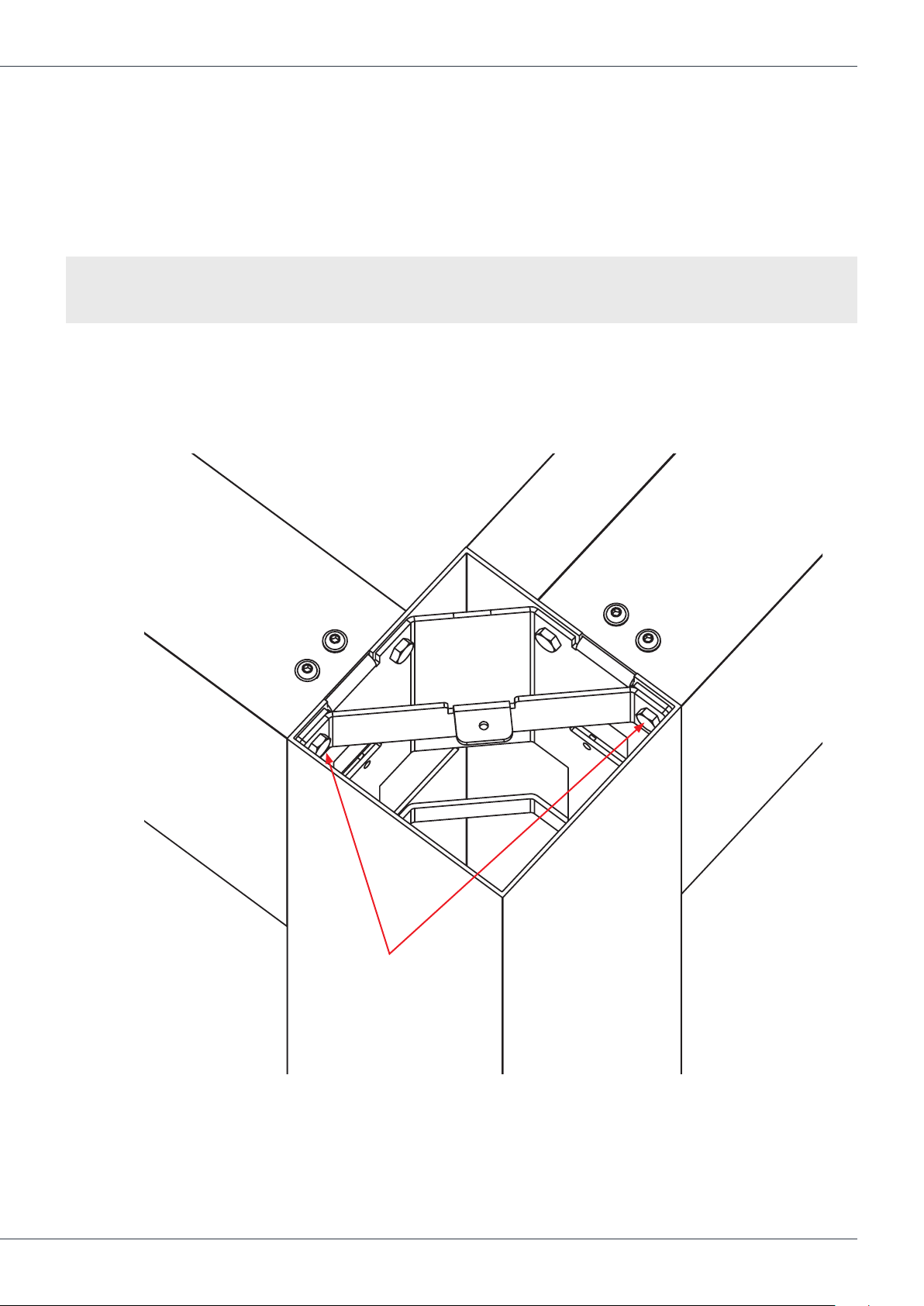

1.7 INSTALLATION OF THE INNER REINFORCEMENT
After the structure has been mounted, the framing bracket inner reinforcements will be installed on the four columns.
Tighten and do the final adjustment of all the screws in the framing brackets of the structure.

BIOCLIMATIC PERGOLA
SEALANT
Before continuing the installation, create a
groove for the water run-o at each end of both
manifolds (use a hammer and a flat screwdriv-
er).
1.8 JOINING THE SURFACE MANIFOLDS
Apply the provided sealant between the contact sides of
the OPENING and CLOSING beams and their correspond-
ing surface manifolds.
The opening and closing surface manifolds will be joined,
screwing them to the beams.
ATTENTION: Do not bypass this step, it
is very important to seal the manifold
joint properly (sealant provided).
OPENING CLOSING
130,00 125,00

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
11
16 cm

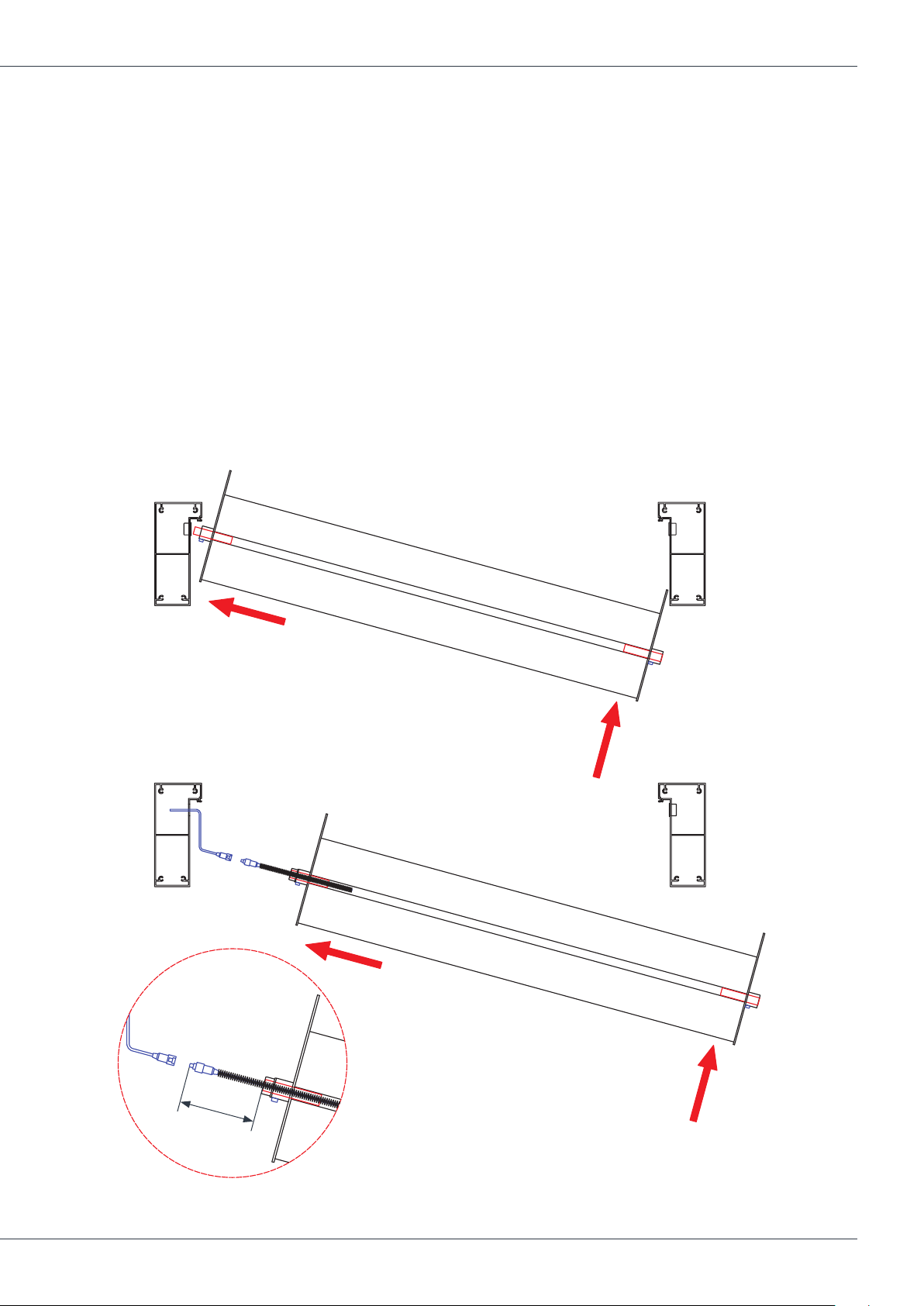

1.9 INSTALLING THE SLATS
When the structure has been assembled, and before installing the slats, place the 16,3 mm plastic rimmed caps in the
machined beam holes where no LEDs are going to be installed.
Start the slat installation from the opening side.
When reaching a hole for LED slats, connect the connector and insert it inside the beam (as shown in the images below).
Then install the 16,3 mm rimmed plastic cap.
Prepare the fixed axles for the left side of the slats and the mobile axles for the right side.

BIOCLIMATIC PERGOLA
To install the slats, they must be tilted with the end caps facing down, inserting the fixed axle first (left) and then the mo-
bile one (right).
Using a Nº 4 Allen key, pull back the axle until it stops in the grooved hole.
When it stops, fasten the screw of the cap.
Turn the axle 180º and insert the safety screw.

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
13
BOTTOM
Respect the transmission plate position
NUT M6 A2 DIN 985
Cod. 051048
RIMMED CAP 6,3
Cod. 051033 ULS (ISO 7380) A2 M6x16
Cod. 051103
ATTENTION: When installing the plate in the slats, do not tighten too much the screw nuts, so they are set without
tightening. Thus the plate can perform manually the opening and closing movements with no friction whatsoever.
1.10 INSTALLING THE TRANSMISSION PLATE
With the slats already in the structure, install the two transmission plates in the slat end caps. One of the slats will include
an integrated support with a motor fixing stud. It is necessary to know the side of the pergola where the motor will be
installed, so the plate can be mounted on that side.
Install the two plates simultaneously if possible. Start by fixing the first, the last and the centre slats to the transmission
plate. This facilitates the rest of the installation.
Join the plates to the end caps with their corresponding USL (ISO 7380) A2 M6x16 screws, 6,3 mm rimmed plastic caps
and M6 DIN 985 nut.

BIOCLIMATIC PERGOLA
SEALANT
Check that all the “U” profile holes match the M6 machined ones on the beam. If all of them match, apply the sealant be-
tween the “U” profile and the beam after screwing the profiles with the USL (ISO 7380) A2x16 screws.
Use the sealant provided to seal the “U” profiles to the beams and the joints that could suer water leaks.
1.11 INSTALLATION PROFILÉ “U”
Start by installing the “U” profile with the pre-mounted motor on the LEFT beam. To do this, it will be necessary to insert
the profile end through the pre-drilled draining hole in the B column. Install the “U” profile on the other side following the
same procedure.
SCREW
HOLE
SCREW
HOLE
“U” PROFILE
SEALANT

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
15
A
B
Steps to install the motor:
1Unscrew the ULS (ISO 7380) A2 M6x16 screws from the “U” profile motor support (A).
2Insert the tip of the motor piston rod into the transmission plate stud (B).
3Mount the nut on the transmission plate stud so the motor does not come out (B).
3Mount the nut on the transmission plate stud so the motor does not come out (B).
1.12 MOTOR INSTALLATION
The motor is already pre-installed in the “U” profile. The motor piston rod needs to be halfway through its stroke so it can
be inserted into the plate stud and the support with the engine can be taken to the profile position.

BIOCLIMATIC PERGOLA
02 ELECTRICAL CONNECTIONS
¡ATTENTION! The reception of the operators can be reduced or cancelled by the emission of frequencies that are issued
in the same range as our automatisms.
v
The connection of the electrical installation must be in compliance with the rules and regulations of each country (Low
voltage electrotechnical regulation).
The perimeter cabling for the electrical and sound installations will be passed throuth the beam and column spaces.
The cable of the motor will go through the “U” profile towards the end where the electric connection will be performed,
making a loop at the motor outlet and passing it under the support, so it cannot be pinched by the transmission plate when
the assembly moves.
Complete the electric connections of the pergola according to the instructions and considering that both the motor and
the LEDs run with a 24V voltage. For this reason, it is necessary to use the power soure and switchboard provided for the
pergola operation.
For greater safety, it is necessary to ground the pergola, and install a watertight box outside it in order to house all
the connections and protect the automatic systems.
1+ POSITIVE 24V
2- NEGATIVE 24V
3MOTOR +
4MOTOR -
2.1 ELECTRICAL DIAGRAM COMPONENTS
Central for pergola RTS, only MOTOR.
3 1
4 2
PROG.
IN
POWER SUPPLY
24V
230V
MOTOR
L
N
+ +
- -
POWER
SOURCE

ASSEMBLY INSTRUCTIONS 4 COLUMNS P-190
17

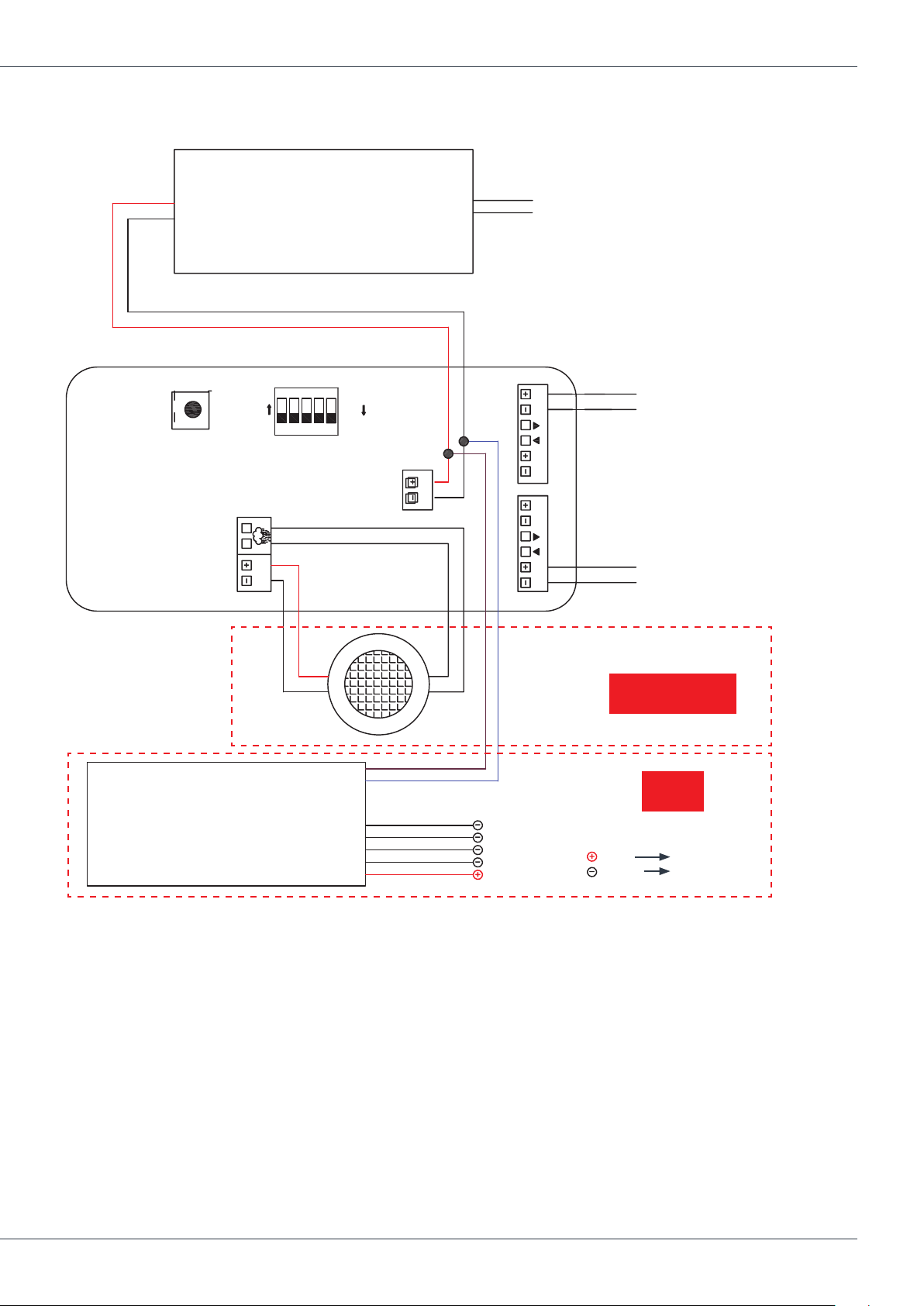

Central for pergola system io, with LEDs and rain sensor
OPTION
RAIN SENSOR
OPTION
LEDS
PROG.
S1
ON
1 2 3 4 5
OFF
POWER SUPPLY
OUTPUT Vdc
OUTPUT Vdc OUTPUT Vdc
S1
S1
S2
S2
S2
24 Vdc
24 Vdc
RAIN
SENSOR
1
2
3
4
5
24 Vdc 230V
L
N
+
+
+
-
-
-
LED TUBE
WHITE STRIPE
TRANSPARENT
RED
BLACK
POWER
SOURCE
WHITE LED
RECEIVER io
EXTENSION
MOTORISATION
S1
EXTENSION
MOTORISATION
S2
¡WARNING! INSTALL
THE POLARISED COMPO-
NENTS CORRECTLY
OUT LED
IN

BIOCLIMATIC PERGOLA
Central for pergola system io, with LEDs, rain and wind sensor
OPTION
RAIN SENSOR
+
WIND SENSOR
OPTION
LEDS
LED TUBE
WHITE STRIPE
TRANSPARENT
RED
BLACK
PROG. S1
ON
12345
OFF
POWER SUPPLY
OUTPUT Vdc
OUTPUT Vdc OUTPUT Vdc
S1
S1
S2
S2
S2
24 Vdc 230V
230V
L
L
N
N
+
-
POWER
SOURCE
EXTENSION
MOTORISATION
S1
EXTENSION
MOTORISATION
S2
¡WARNING! INSTALL
THE POLARISED COMPO-
NENTS CORRECTLY
BLACK 1
BLACK 2
24 Vdc
RAIN
SENSOR
1
2
3
4
5
+
-
WHITE LED
RECEIVER io
OUT LED
IN
