SB Filters AS-1005 User manual

WARNING!
(MUST READ PRIOR TO INSTALLATION)
II. Scoop Obstruction:
Regularly inspect the entire Scoop Inlet for any obstruction or debris that may impede the flow of air.
III. Ride Height
Make sure there is plenty space between your tire and the scoop before driving. The scoop system may not work with
aftermarket wheels and tires.
IV. Do NOT Seal Off Stock Inlet Location:
In addition to pulling air from the base of the air box, the S&B Cold Air Intake Kit pulls air from the same location as the
stock induction system. UNDER NO CIRCUMSTANCE SHOULD YOU SEAL OFF THIS AIR INLET. Doing so could
result in severe injury or death or damage to the vehicle or property. Sealing off the stock air inlet could cause a
significant vacuum should the Scoop become partially or completely obstructed which among other things could pull oil
into intake tube leading to an explosion and/or a run-away truck condition as the oil would serve as fuel to the engine.
15461 Slover Ave., Fontana, CA 92337 - Phone: [phone] - Fax: [phone] - www.sbfilters.com 1
V. Warranty for Scoop & Filter Wrap
S&B provides a limited warranty to guarantee the product is free of material and workmanship defects. Any product will be replaced upon
identification of such defect. Normal wear and tear is not covered under this warranty. Final authorization is at the sole discretion of S&B
Filters, Inc.
VI. How long will the Scoop & Filter Wraps Repel Water?
The Scoop & Filter Wraps are specially treated to repel water. The water repellency longevity is dependent upon driving conditions and the
number of times the filter is cleaned. Generally speaking, we recommend changing the Filter Wrap every 6-12 months. However, a
quick test can determine if it is time to change your Filter Wrap. Simply take an ordinary clean spray bottle filled with water and gently
spray the Filter Wrap. If the water beads off the Filter Wrap, your water repellency is still working. If you see water enter through the Filter
Wrap, it is time to purchase a new Filter Wrap.
I. Water Ingestion Disclaimer:
This product is intended for general highway use only! Under normal driving conditions water ingestion is usually not an
issue; however, if the product becomes submerged from rain or puddles due to harsh rains or flooding, the engine may
ingest water which could cause severe engine damage. Do NOT use this product when crossing any body of water
including but not limited to large puddles, streams, rivers or lakes.
If your engine ingests water, this could cause severe engine damage by hydro-lock or other conditions. Care should be
taken to avoid these driving conditions. ENGINE DAMAGE CAUSED BY THE INGESTION OF WATER INTO THE
ENGINE IS THE DRIVER’S RESPONSIBILITY AND IS NOT COVERED BY S&B FILTERS!

INSTALLATION INSTRUCTIONS
VEHICLE APPLICATION
Year: 2003-08
Make: Dodge
Model: Ram 1500
Engine: 5.7L Hemi
OE DODGE BUMPERS ONLY
NOTES
Kit may NOT fit with the
following:
•Aftermarket Bumper
•Body Lift or Lowering Kit
•Front Hitch
•Front Tow Hooks
•Oversized Wheels and Tires
15461 Slover Ave., Fontana, CA 92337 - Phone: [phone] - Fax: [phone] - www.sbfilters.com
4. Secure the Mounting Bracket (F) to the Scoop (A) using the supplied 1/4-20x1.0” Screws (B),
1/4” Split Lock Washers (E) and 1/4” Flat Washers (C) on the front side and 1/4” Flat Washers (C)
with 1/4-20 Lock Nuts (G) on the inside. Leave them hand tight for now.
2. If you already have the S&B intake
installed with the Air Inlet Plug; remove the
two screws by reaching up under the truck
behind the wheel liner using a 7/16” wrench to
loosen. (If not, skip this step)
5. From under the truck; remove the bumper
mounting nut using a 18mm socket.
P/N: AS-1005
2
Important: Read warning page prior to proceeding.
BEFORE YOU START
•Please read the entire product guide before proceeding.
•Ensure all components listed on page 5 are present.
•If you are missing any of the components, call our customer support
at [phone].
•Do not work on your vehicle while engine is hot.
•Make sure the engine is turned off and the vehicle is in Park or the
Parking Brake is set.
Thread Locker Use
We have provided a small tube of thread locker
in your kit. This will keep your hardware from
vibrating loose during rough driving. If the hardware
ever needs to be removed, do so slowly to avoid
having the inserts strip out from the plastic. DO NOT
USE ON LID HARDWARE, MAY CAUSE CRACKS.
7. Carefully slide the scoop assembly up
into the engine compartment at an angle
(shown below). Note the bracketʼs position so
you donʼt scratch the front bumper or bend
the bracket.
8. Slide the Scoop Assembly up into the
bottom of the air box inlet channel.
TOOLS REQUIRED
•3/8”, 1/2” Drive Ratchets
•7/16”, 8mm, 18mm Sockets
•10mm, 7/16” Wrenches
3. Install the two 1/4-20 Clip Nuts (D) to the
top of the Scoop (A). Push down until they
“snap“ into the holes.
1. With the ignition switched off and the
parking brake set, disconnect the negative
battery cable on the driver’s side.
9. Using a 8mm socket, remove the two
front screws outside the wheel liner.

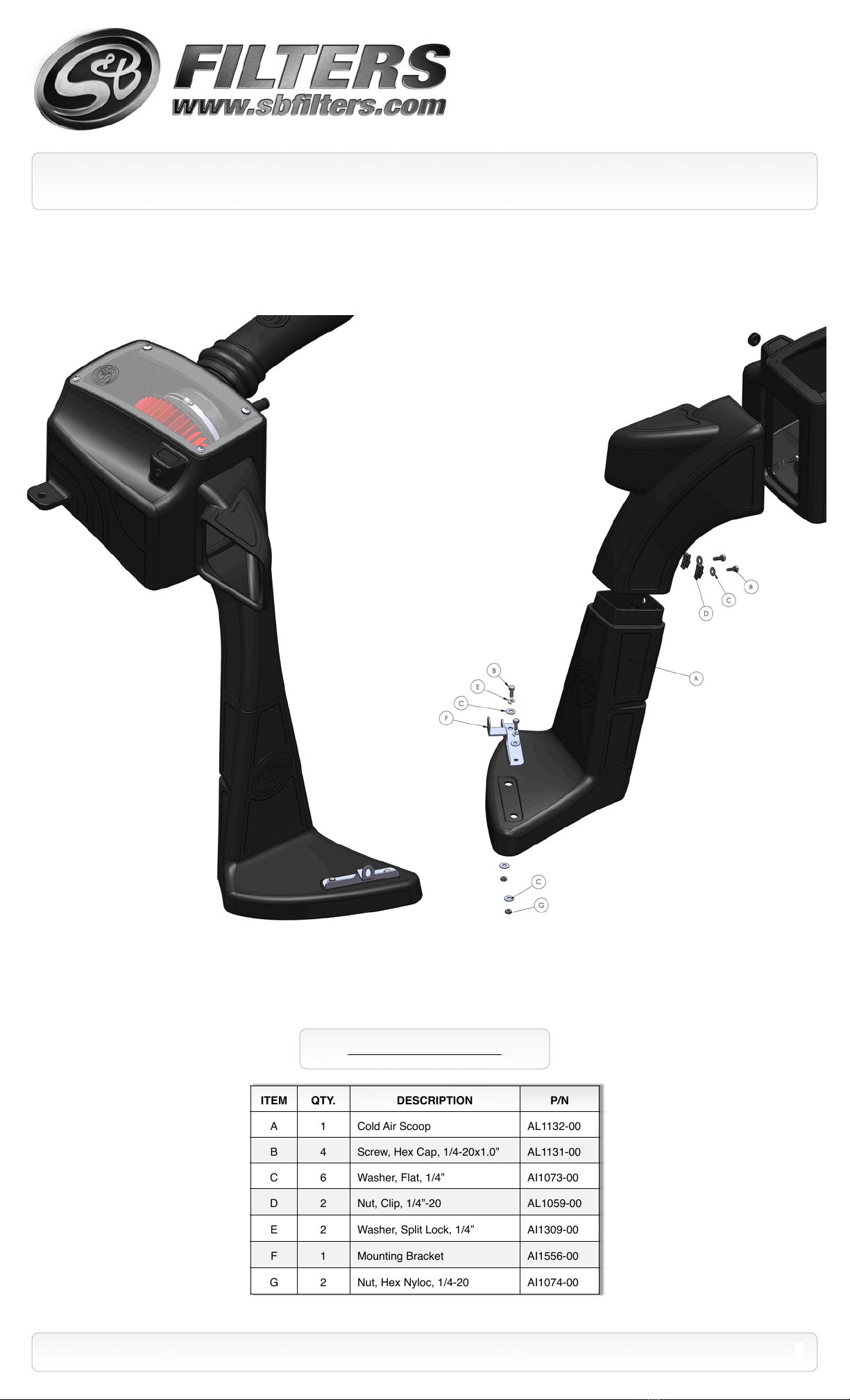

SEE EXPLODED VIEW ON PAGE 4

15461 Slover Ave., Fontana, CA 92337 - Phone: [phone] - Fax: [phone] - www.sbfilters.com
INSTALLATION INSTRUCTIONS (continued)
P/N: AS-1005
SEE EXPLODED VIEW ON PAGE 4
3

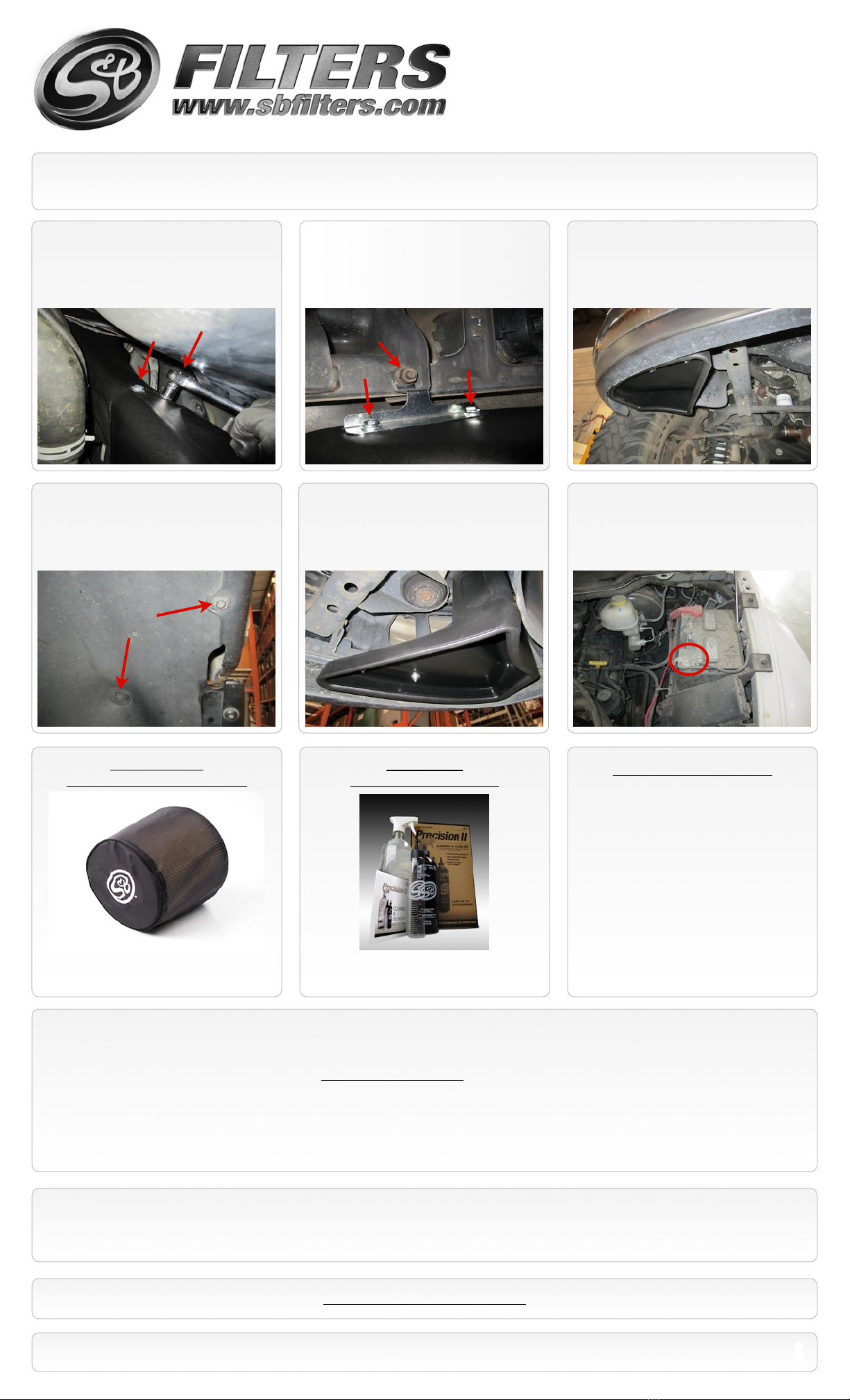

13. Reinstall the two screws into the wheel
liner.
14. Check to make sure all connections are
secure.
11. Attach the Mounting Bracket (F) onto
the bumper mounting stud. When you are
satisfied with the position, tighten the OE nut
using a 18mm socket and all bracket
hardware using 7/16” ratchet and socket.
Air Filter Wrap
Use with Oiled or Dry Filters
Order online today at www.sbfilters.com or
through your local S&B distributor.
Part #: WF-1034
Ride Height
Once the Scoop has been installed, make sure there is plenty space between your tire and the scoop before driving.
The scoop system may not work with aftermarket wheels and tires.
Water Ingestion Disclaimer:
This product is intended for general highway use only! Under normal driving conditions water ingestion is usually not an
issue; however, if the product becomes submerged from rain splashes or mud puddles due to harsh rains or flooding the
engine may ingest water which could cause severe engine damage. Do NOT use this product when crossing any body of
water including but not limited to large puddles, streams, rivers or lakes.
If your engine ingests water, this could cause severe engine damage by hydro-lock or other conditions. Care should be
taken to avoid these driving conditions. ENGINE DAMAGE CAUSED BY THE INGESTION OF WATER INTO THE
ENGINE IS THE DRIVER’S RESPONSIBILITY AND IS NOT COVERED BY S&B FILTERS!
10. Attach the scoop channel to the air
inlet tube using two 1/4-20x1.0” Hex Screws
(B) and 1/4” Flat Washers (C). Tighten both
using a 7/16” socket.
Testing and Maintenance
•Engage parking brake and start your engine.
Listen for abnormal noises. If an air leak is
detected, re-inspect hoses and connections as
they may need to be repositioned and tightened.
•S&B FILTERS recommends that you keep
your OE intake system in the event it is
required in the future.
•In order to maintain your warranty, all connections
and components must be checked periodically for
alignment and for proper tension on all
connections. Failure to do so may void your
warranty.
•Use only S&B FILTERS cleaning and oil products
to service your filter. Using any other brand oil
and or cleaners on your S&B air filter will void
your warranty.
15. Reconnect the negative battery terminal.
Inspect the installation, be sure the kit is
properly positioned and all fasteners are
secure.
12. Check to make sure the Scoop
assembly does not interfere with the wheel or
wheel well liner. Turn the wheel in both
directions while trying to simulate full
suspension travel.
Precision II
Filter Cleaning & Oiling
Order online today at www.sbfilters.com or
through your local S&B distributor.
Part #: 88-0008

15461 Slover Ave., Fontana, CA 92337 - Phone: [phone] - Fax: [phone] - www.sbfilters.com
INSTALLATION INSTRUCTIONS (continued)
P/N: AS-1005
4
ITEM
QTY.
DESCRIPTION
P/N
A
1
Cold Air Scoop
AL1132-00
B
4
Screw, Hex Cap, 1/4-20x1.0”
AL1131-00
C
6
Washer, Flat, 1/4”
AI1073-00
D
2
Nut, Clip, 1/4”-20
AL1059-00
E
2
Washer, Split Lock, 1/4”
AI1309-00
F
1
Mounting Bracket
AI1556-00
G
2
Nut, Hex Nyloc, 1/4-20
AI1074-00
AM0188-00 Rev.A 11/20/12
Intake Kit Sold Separately
