Scan Coin SC 303 User manual

SC 303/SC 313 Coin Counters
User’s Guide
013264-101_rev-05
© SCAN COIN AB 2011

1
SC 303/313 – 050062-101_rev- 05
User’s Guide
SCAN COIN SC 303/313
General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Declaration of Conformity . . . . . . . . . . . . . . . . . . . 2
FCC Standar . . . . . . . . . . . . . . . . . . 2
Environmental Compliance. . . . . . . . . . . . . . . . . . . 2
Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Machine Part Terminology . . . . . . . . . . . . . . . . . . . 4
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Positional References . . . . . . . . . . . . . . . . . . . . . . . . 5
Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . 5
Continuous counting . . . . . . . . . . . . . . . . . . 5
Batch counting . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Machine Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Continuous Counting. . . . . . . . . . . . . . . . . . . . . . . 7
Batch Counting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting a Temporary Batch Stop . . . . . . . . . . . . . . . 8
Changing a Fixed Batch Stop . . . . . . . . . . . . . . . . . 8
Clearing a Blocked Coin Exit . . . . . . . . . . . . . . . . . 8
By-passing Automatic Stop . . . . . . . . . . . . . . . . . . . 9
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Blank display/Machine Does not Start . . . . . . . . . . 9
Too Few Coins in the Bag in the First Batch. . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning the Coin Track . . . . . . . . . . . . . . 10
Changing Outfeed Belt . . . . . . . . . . . . . . . . . . . . . 10
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2
SC 303/313 – 050062-101_rev- 05
General Information
SCAN COIN AB reserves the right to revise and improve its products as it
sees fit. This publication describes this product at the time of publication
and may not reflect the product at all times in the future.
This publication, or parts thereof, may not be reproduced in any form, by
any method, for any purpose other than the purchaser’s personal use,
without the express permission of SCAN COIN AB, Sweden.
Declaration of Conformity
We, SCAN COIN AB, Malmö, Sweden, declare under our sole
responsibility, that the product in this manual, is in conformity with the
following standards and/or other normative documents:
• EN 60 950-1:2006 + A11(2009) + A1(2010)
• EN 61000-6-1 (2007)
• EN 61000-6-3 (2007)
following the provisions of:
• Low Voltage Directive 2006/95/EC;
• EMC Directive 2004/108/EC.
FCC Standard
FCC Part 15 (2008): Radio frequency device, subpart B: Unintentional
radiators. Class B equipment.
Environmental Compliance
WEEE Directive (valid in the EU only)
Waste Electrical and Electronic Equipment Directive
2002/96/EC.
Equipment marked with this symbol must be treated
separately and in accordance with the local legislation that
requires proper treatment of, recovery and recycling of used
electric and electronic equipment.
Contact your SCAN COIN representative for further details.
Responsibility
The supplier of the equipment accepts no responsibility for injury or
damage to personnel or equipment, if the equipment is altered in any way
or used in a manner for which it was not intended at the time of delivery.
If the conditions for use of the equipment are changed, the supplier must
be contacted or the declaration of conformity is invalidated.

3
SC 303/313 – 050062-101_rev- 05
Safety Precautions
This guide contains hazard information which must be read by all users.
The hazard information is presented as follows:
WARNING!
Risk of personal injury!
Warnings indicate a potential hazard to the health and safety
of users. They clearly state the nature of the hazard and how
to avoid it. The warning symbols appear at their points of
application in this guide.
Caution!
Cautions indicate a hazard to the machine, but nota danger to personnel.
They clearly state how to avoid the hazard. They appear at their points of
application in this guide.
WARNING!
Risk of electric shock!
Lethal voltages exist in the machine when connected to mains
power. Make sure you disconnect the power cord before
cleaning or servicing the machine.
WARNING!
Risk of electric shock!
The machine is of metal construction and must therefore
always be earthed to the supply. Ensure that both the plug on
the supply lead and the supply source are earthed. This is a
requirement for this type of equipment and if not adhered to
will contravene the national and international standards of
Health and Safety in the work place.
WARNING!
Risk of jamming!
This machine contains moving parts and sharp edges. Always
be careful. Do not touch the components inside the machine
while it is running.
WARNING!
Risk of tipping!
During bagging, do not exceed the load stated on the label (see
“Warning Labels” on page 6).
>>>
>>>
WARNING!
Risk of impaired hearing!
Use ear protectors while the machine is running.
WARNING!
Risk of jamming!
Switch off and disconnect the machine before opening the
right hand cover. A function switch stops the motor if the
cover is removed but the motor can start if the switch is
activated making it possible to get fingers caught.
WARNING!
Risk of entanglement!
Keep long sleeves, ties, necklaces and long hair that can get
caught by belts or pulleys away from the machine when the
right hand cover is removed. If the function switch is activated
by mistake the motor may start.

4
SC 303/313 – 050062-101_rev- 05

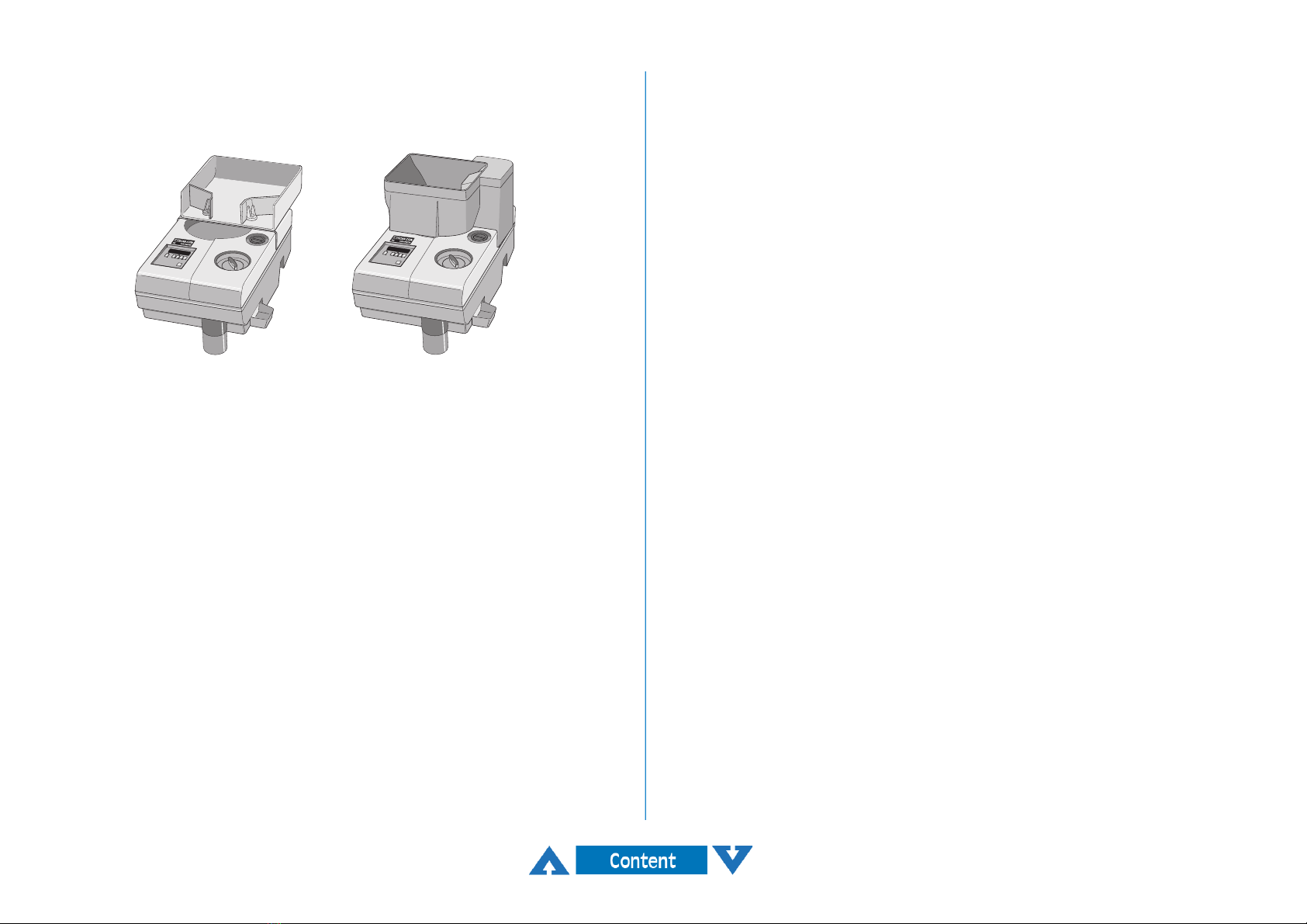

Introduction
SC 303
SC 313
The SC 303/313 is a compact desktop,
universal coin counting machine. The
machine is light and easy to operate.
The coins are loaded into a coin tray and
after counting appear at a coin outlet. There
is a separate outlet for rejected coins.
Smaller coins than the one selected will be
rejected.
The control panel is located on top of the
machine. A six digit digital display unit
displays the number of coins counted as well
as the batch quantities.
Two separately mounted knobs are used to
set the coin diameter and coin thickness.
Software Version
This User’s Guide relates to software version
4.03.
Accessories
For information about the accessories
available, please contact to your
SCAN COIN representative.
Machine Part Terminology
QMACC
ON/OFF
BCE
MOTOR
SCAN COIN
303
COIN COUNTER
1Cointray
2 Control panel
3 Thickness selector
4Diameterselector
5Rightcover
6Rejecttray
7 Coin outlet
1
3
4
5
6
7
SC 303
1
2
3
4
5
6
7
SC 313
2

5
SC 303/313 – 050062-101_rev- 05
Control Panel
Note!
The key must be kept pressed for a few seconds before the function gets
activated.
Q M ACC B CE
ON/OFF
MOTOR
Positional References
Unless stated otherwise, positions and directions such as left, right, upper,
lower, rear, clockwise and counter-clockwise are given with respect to the
machine when viewed from the front.
Modes of Operation
The SC 303/313 has two modes of operation, continuous counting and
batch counting.
Continuous counting
The machine will count the coins and the display will continuously be
updated with the number of coins counted.
Normally, if no coins pass the coin detector for five seconds the rotating
disc stops and automatically reverses slightly before restarting. If no coins
pass during the next 15 seconds the disc will stop automatically. This may
occur because:
• there are either no more coins to count or
• the flow of coins has been blocked.
This function can be by-passed if desired (see “By-passing Automatic Stop”
on page 9).
Batch counting
The machine will count the coins up to a fixed batch stop quantity and
then stop. There are seven fixed batch stop quantities at 20, 25, 40, 50, 100,
500 and 1 000. In addition to these there is a temporary batch stop
quantity, see “Setting a Temporary Batch Stop” on page 8 which can be set
anywhere between 5 and 10 999. This is used if the quantity of coins to be
counted does not exist as a fixed batch stop quantity setting.
Key Function
MOTOR ON/OFF Starts and stops the machine.
QFor selecting batch stop or continuous counting.
MResets the display and transfers counted coins to the
memory.
ACC Shows the number of counted coins stored in the
memory.
BShows the contents of bag or tube (number of coins
before reset).
CE Clears the display.

6
SC 303/313 – 050062-101_rev- 05
Installation
WARNING!
Risk of electric shock!
Follow the “Safety Precautions” on page 3.
Caution!
The machine must be protected by a fuse or a circuit breaker in the
electrical circuit.
Please also note the following when installing the machine:
• Operating temperature 15–35 °C
• Operating humidity 30–80% R.H.
Do not place the machine close to any radiators. Make sure there is some
free space around the machine that allows the air to circulate.
Make sure that the machine is positioned so that the socket outlet is easily
accessible.
If the plug on the supply lead to the machine has a fuse, make sure it has
the correct rating in amps.
Although this machine has been tested and complies with the national and
international standards/regulations, it is recommended that no kind of
equipment which generate a high level of electromagnetic interference
(EMI) or vibration is placed close to the machine.
Warning Labels
Machine Label
The label below is an example of the information available on the
machine.
RoHS
Assembled 2011 in Taiwan
MALMÖ-SWEDEN
1
2
3
4
5
611
7
8
9
10
1Machinetype
2MachineNo.
3SerialNo.
4RoHScompliant
5CE-symbol
6 WEEE-symbol*
7 Supply voltage
8Frequency
9 Current consumption
10 Fuse
11 Year and place of
manufacture
*) See “Environmental Compliance” on page 2.

7
SC 303/313 – 050062-101_rev- 05
Operation
WARNING!
Risk of jamming!
Follow the “Safety Precautions” on page 3.
Getting Started
SC 303
RoHS
M/c No
.
012461-004
Serial No.
Assembled 2011 in Taiwan
220-240 VAC
50 Hz
0.2 A
Fuse F2AL
MALMÖ-SWEDEN
a) At the rear of the machine, ensure that the mains supply lead is
connected.
b) Set the main switch to the ON position.
Continuous Counting
WARNING!
Risk of tipping!
Follow the “Safety Precautions” on page 3.
a)Select the proper settings for coin diameter and thickness
for the coins to be counted by using the two knobs on the
top of the machine.
b) Pour the coins to be counted into the coin tray.
c) Press Qseveral times until the LED above is not lit and 0is displayed.
This indicates that the continuous counting mode has been selected.
>>>
>>>
d) Press MOTOR ON/OFF.
The machine starts to count and the display continuously shows the
number of counted coins.
– To stop the machine while counting, press MOTOR ON/OFF.
– To add the number of coins counted to memory, press M. The
display will reset to zero and the LED above ACC will be lit,
indicating that there is something stored in the memory.
– To view the contents of the memory, press and hold ACC.
– To clear the contents of the memory, press CE while holding
down ACC.
– To reset the display, press CE.
e) During the counting operation check for rejected coins and put any
valid coins back into the coin tray.
Note!
The maximum number of coins that can be displayed is 999 999. When
this value has been reached the machine will stop and the display will flash
to indicate overf low.
Batch Counting
By pressing Qseveral times the machine will display the seven fixed batch
stops sequentially.
a) Select the required batch stop and hold down Q.
The selected batch stop number is displayed on the left and the batch
quantity on the right. The LED above Qwill also be lit indicating that
the machine is in batch counting mode.
Note!
Press Bto check that the partial batch register reads zero before starting. If
not, press Band CE at the same time to reset.
b) Press MOTOR ON/OFF.
The machine will start counting and will stop when the batch stop is
reached. The LED above Qflashes when a full batch is reached.
>>>

8
SC 303/313 – 050062-101_rev- 05
>>>
c) If there are more coins to count, press MOTOR ON/OFF to continue.
d) During the counting operation, check for rejected coins and put any
valid coins back into the coin tray.
e) If the last batch count is incomplete, indicated by the LED above Q
not flashing, press Bto display the number of coins in the bag (partial
batch register).
f) To reset the partial bag register, press Band CE at the same time to
reset the partial batch register.
g) To exit the batch counting mode, repeatedly press Quntil the LED
above Qis not lit.
Setting a Temporary Batch Stop
a) Press and hold Qwhile selecting the required batch number by means
of the four control panel keys (M, ACC, Band CE).
The figure 9will appear at the far left of the display, indicating that
you are working with a temporary batch quantity.
b) Release Q.
The machine is now ready to count the temporary batch.
c) Proceed to count the batch as described in “Batch Counting” on
page 7, steps b to g.
Note!
This temporary batch is not stored in the memory of the machine and will
be lost when the machine is turned off or when another batch stop is
selected.
Changing a Fixed Batch Stop
a) Press Qand switch on (ON) the machine.
b) When the display changes from showing a row of the digit 8, release
Q.
The machine is now in the programming mode. The figure at the far
left of the display is the fixed batch stop reference number (1–7) and
the other figures the batch quantity (5–10 999).
c) Press Qseveral times until the display shows the desired batch stop
reference number.
d) Press the keys below to change the fixed batch stop quantity setting.
Every time the M, ACC, Bor CE key is pressed the displayed digit(s)
immediately above the pressed key is changed.
e) To change another fixed batch stop quantity, return to step c.
f) When all the required fixed batch stop quantities have been changed,
press and hold MOTOR ON/OFF until the digit on the far left
disappears.
All of the fixed batch stop quantities are now in the memory and will
remain there also when the machine is switched off (OFF).
Clearing a Blocked Coin Exit
WARNING!
Risk of jamming!
Follow the “Safety Precautions” on page 3.
If a too large coin blocks the coin exit:
a) Set the coin diameter and thickness knobs to their maximum settings.
b) Open the right cover and manually turn the disc to get the coin
rejected when it passes over the reject chute.
c) Reset the coin diameter and thickness knobs to their desired settings
and put any valid coins into the coin tray.
d) Press MOTOR ON/OFF to resume counting.

9
SC 303/313 – 050062-101_rev- 05
By-passing Automatic Stop
Normally, if no coins pass the coin detector for five seconds the rotating
disc stops and automatically reverses slightly before restarting. If no coins
pass during the next 15 seconds the disc will stop automatically.
•HolddownCE while switching on the machine.
The display will read St0P 0, indicating that the automatic stop
function has been switched off.
• Repeat this to re-engage the automatic stop function.
The display will now read St0P 1, indicating that the automatic stop
function has been switched back on.
Troubleshooting
WARNING!
Risk of electric shock!
Follow the “Safety Precautions” on page 3.
WARNING!
Risk of jamming!
Follow the “Safety Precautions” on page 3.
Blank display/Machine Does not Start
• If the display is blank when the machine has been switched on, check
the mains lead.
• If it is properly connected and the machine is still not working,
contact your SCAN COIN representative.
Too Few Coins in the Bag in the First Batch
The last batch from the previous count was not full.
• Press Band CE to reset the batch-register and recount the batch, see
“Batch Counting” on page 7, step b.
Note!
If the right hand cover is removed from the machine, a function switch
stops the motor.

10
SC 303/313 – 050062-101_rev- 05
Maintenance
WARNING!
Risk of electric shock!
Follow the “Safety Precautions” on page 3.
WARNING!
Risk of jamming!
Follow the “Safety Precautions” on page 3.
Cleaning
Clean the machine daily to prevent from accumulation of dirt, since this
may cause too many coins to be rejected.
Caution!
Only use cleaning materials and implements which do not scratch.
Cleaning the Coin Track
Clean the coin track at regular intervals to ensure high counting
performance.
1
2
3
1Outfeedbelt
2Coinaccessblock
3Lever
a) Remove the right hand cover.
b) Raise the outfeed belt (1) to gain access to the coin track.
c) Pull the lever (3) to remove the coin access block (2).
d) Clean the coin track with a stiff brush.
e) Replace the coin access block and the outfeed belt.
f) Replace the right hand cover.
Changing Outfeed Belt
Change the outfeed belt when the machine has counted approximately
one million coins.
1
Lift Press
1 Outfeed belt
a) Set the coin diameter knob to minimum.
b) Remove the right hand cover.
c) Raise the outfeed belt (1).
d) Lift the feed mechanism.
e) Remove the old outfeed belt and exchange it for a new one.
f) Replace the feed mechanism and the outfeed belt.
g) Replace the right hand cover.

11
SC 303/313 – 050062-101_rev- 05
Technical Data
Part numbers:
SC 303. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .012461-00x
SC 313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 012462-00x
Supply voltage. . . . . . . . . . . . . . . . . . . . . . 100–130/220–240 V AC
Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60/50 Hz
Current consumption . . . . . . . . . . . . . . . . . . . . 400 mA /200 mA
Counting:
Max. speed. . . . . . . . . . . . . . . . . . .approx. 2 700 coins/minute
Coin diameter range . . . . . . . . . . . .14.0–34.0 mm (0.55–1.34")
Coin thickness range . . . . . . . . . . . . . .1.0–3.4 mm (0.04–0.13")
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 digits
Batch range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10 999
Hopper volume:
SC 303. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 2.0 litre
SC 313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 3.0 litre
Dimensions SC 303:
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 mm (8.66")
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370 mm (14.57")
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 mm (6.50")
Dimensions SC 313:
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 mm (10.24")
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370 mm (14.57")
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315 mm (12.40")
Weight:
SC 303. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4 kg (18.52 lbs)
SC 313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.6 kg (25.57 lbs)
Noise level (during operation):
SC 303. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86 dB (A)
SC 313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 dB (A)
