Scancon EXAG series User manual

Doc. No: 00240170 rev. 3 Scancon Encoders A/S Huginsvej 8 3400 Hilleroed Denmark p. 1/4
24 January 2018 Tlf [phone] Fax [phone] www.scancon.dk
Type EXAG
Installation Manual
This Installation Manual is valid only for encoder types EXAG.
For your safety please read this guide carefully.
Failure to follow the instructions in this guide will render ALL certifications INVALID.
1. Installation
Installation of the encoder must be completed by a skilled technician or engineer. Failure to comply with the instructions below
will render all certifications INVALID. The encoder may not be modified by the customer.
1. Insure that power is off.
2. Connect to earth prior to proceeding -
Observe precautions for handling ESD (ElectroStatic Discharge) sensitive devices.
Protective Earthing Method:
INTERNAL: The internal grounding terminal shall be used for the equipment grounding connection.
Earth connection can be provided by a RED ring terminal(s) (red cable shoe) screwed to the PCB inside the encoder
removable connection cap. Terminal(s) AWG size is 22-16 AWG.
EXTERNAL: The external terminal is for a supplementary bonding connection where local codes or authorities
permit or require.
Earth connection can be provided by YELLOW ring terminal (cable shoe) which is screwed to the chassis. Terminal
AWG size is 12-10.
See Product Specification for details on www.scancon.dk
3. Connect encoder Circuit Ground (GND).
See Product Specification for details on www.scancon.dk
4. When installing the Hollow Shaft encoder, check that the encoder fixing clamp is loose. Then slide
the encoder hollow bore over the motor shaft (or other device).
5. Align encoder spring coupling or torque arm mounting hole(s) with motor face plate hole(s). Insert
screws into mounting holes and tighten.
6. Tighten fixing clamp M3 screw (maximum 1.5 Nm (1.12 lbft) torque).
7. Remove the protective plastic insert(s) from the cable gland outlet(s). This must be done prior to final installation.
8. Use only EX d certified cable glands (or blind plug, if no cable is attached) which meet EN/IEC 60079-1
requirements for attaching cable to the encoder. Cable entry threads are min. M16x1,5; M20 x 1,5; M25 x 1,5;
½”NPT, ¾”NPT.
9. Use only shielded cable. Be aware of National Wiring Standards for ATEX environments. For ambient temperatures
below -10oC and above +60oC use field wiring suitable for minimum and maximum ambient temperatures.
10. Connect remaining Output wires to PLC. Then apply power (insure the Supply Voltage is correct!).
11. If used, safety screws in the Removable End Cap shall have a minimum yield stress of 450 MPa.
12. Precautions must be taken to avoid dust from forming layers on the encoder.

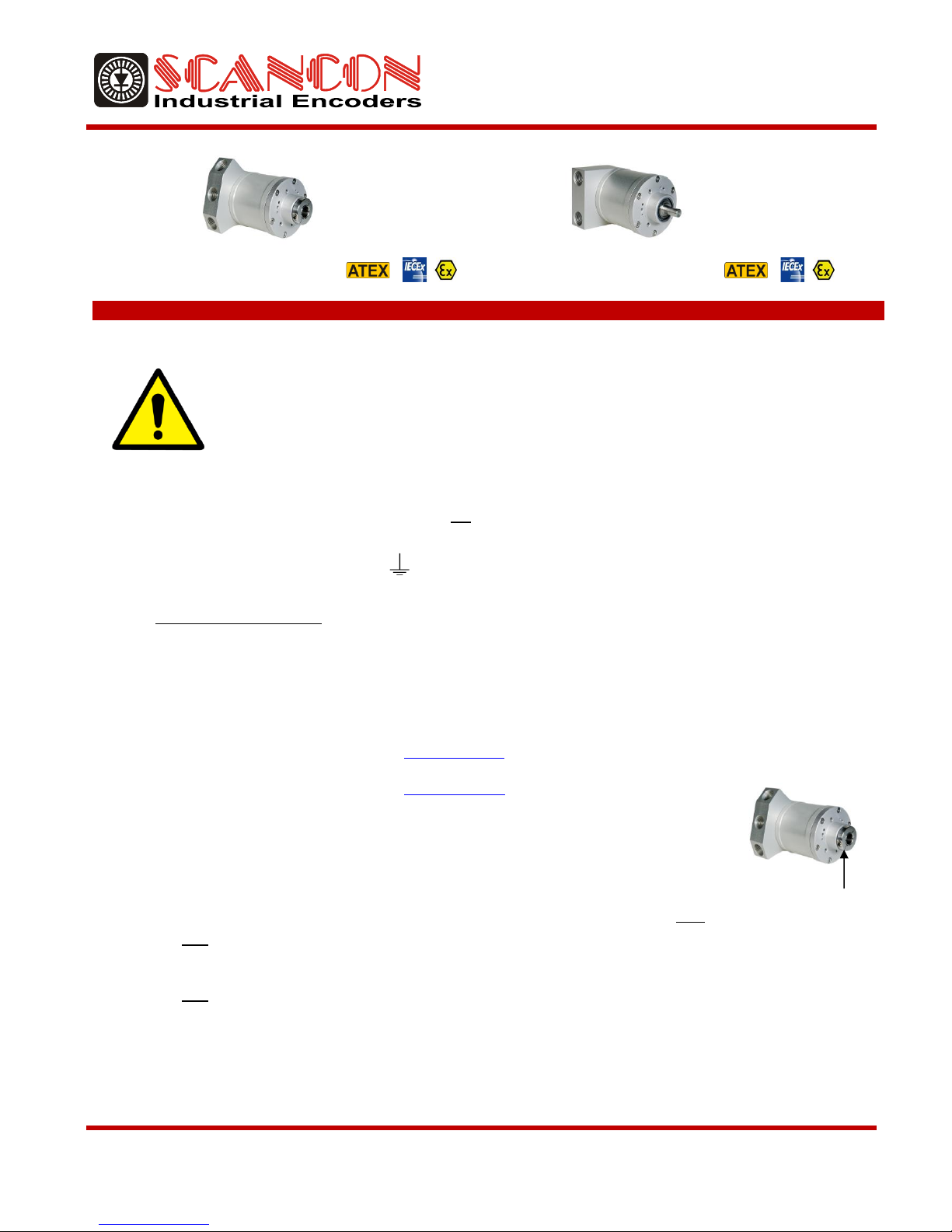

Installation guide
EXAG –Shaft
EXAG-Hollow Shaft
fixing clamp

Doc. No: 00240170 rev. 3 Scancon Encoders A/S Huginsvej 8 3400 Hilleroed Denmark p. 2/4
24 January 2018 Tlf [phone] Fax [phone] www.scancon.dk
Type EXAG
Installation Manual
13. It is strongly recommended that the original packaging be used for any additional shipping or transport.
Caution/Warning:
1. DO NOT connect encoder when power is on.
2. DO NOT connect output wires to supply voltage.
3. WARNING: Do not open when an explosive atmosphere is present!
AVERTISSEMENT: Ne pas ouvrir en présence d'une atmosphère explosive!
4. Caution- Hot surface.
Attention - surface chaude.
5. DO NOT strike encoder with hammer or any other heavy object.
6. DO NOT tighten the Ex-proof cable gland while the encoder is attached to the shaft. Excessive torque may
result in damage to the encoder ball bearings.
7. WARNING: Open circuit before removing cover. Keepcover tight while circuits are alive!
8. WARNING: Potential electrostatic charging hazard - see instruction!
AVERTISSEMENT: Risque de formation d'un potential électrostatique - voir instructions!
To minimize the risk from electrostatic discharge - clean only with a damp cloth.
9. WARNING: A seal shall be installed within 50mm of the enclosure.
AVERTISSEMENT: Un scellement doit être installé à moins de 50 mm du boîtier.
10. WARNING : Temperatures at the branching point can reach 85°C. Selection of cable must be appropriate for
the ambient tempearture range in which the product is used !
AVERTISSEMENT: La Température au point de branchement peut monter jusqu'à 85 ° C. La sélection du câble et
presse-étoupe, doit être approprié, à la plage de température ambiante dans laquelle le produit est utilisé !
11. If encoder is mounted to electrical machinery with high current or high voltage on the shaft, precautions must
be taken for galvanic separation.
12. Maintenance is not necessary. Any required maintenance or repair is to be done only by the manufacturer.
13. Note: this equipment is suitable for use in Class I, Division 2, groups ABCD or Class II, Division 2, groups FG
or non-hazardous locations only!
14. Use only fasteners with a minimum yield stress of 450 Mpa.
Utilisez uniquement des fixations avec une limite d'élasticité minimale de 450 MPa.
15. Only suitably certified cable glands, fittings, and/or blind plugs may be used.
Seulement convenablement certifié presse-étoupes, raccords et / ou bouchons peuvent être utilisés.
2. Electrical ratings:
See Product Specification for details on www.scancon.dk
3. Marking:
ATEX/IECEx
Ex db IIC T5 Gb
Ex tb IIIC T100°C Db
Tamb= -40°C to +70°C
II 2G Ex db IIC T5 Gb
II 2D Ex tb IIIC T100°C Db
Tamb= -40°C to +70°C
¹) It is place for the specific number for the QAN issuer.
xxxx¹


Doc. No: 00240170 rev. 3 Scancon Encoders A/S Huginsvej 8 3400 Hilleroed Denmark p. 3/4
24 January 2018 Tlf [phone] Fax [phone] www.scancon.dk
Type EXAG
Installation Manual
North American
Class I Div. 2 Groups ABCD T5
Class II Div. 2 Groups FG
Class I Zone 1, AEx db IIC T5 Gb
Ex db IIC T5 Gb
Zone 21, AEx tb IIIC T100°C Db
Ex tb IIIC T100°C Db
Tamb= -40°C to +70°C
Additionally, the encoders meet IP65/66/67/68 (1hour/1 meter) in accordance with EN 60529.
EXAG:
ITS09ATEX16867X
IECEx ITS 10.0016X
QPS Certificate of Compliance (North America) is under file no. LR1192
See certifications at www.scancon.dk
4. The encoder complies with the following standards:
IEC 60079-0: 2011/
EN 60079-0: 2012 +A11:2013
Explosive atmospheres - Part 0: Equipment –General requirements
IEC 60079-1: 2014/
EN 60079-1: 2014
Explosive atmospheres - Part 1: Equipment protection by flameproof
enclosures "d"
IEC 60079-31: 2013/
EN 60079-31: 2014
Electrical apparatus for use in the presence of combustible dust - Part 0:
General Requirement
CSA 61010-1-12 3rd. ed
Safety requirements for electrical equipment for measurement, control,
and laboratory use —Part 1: General requirements.
UL 61010-1-12 3rd. ed
Safety requirements for electrical equipment for measurement, control,
and laboratory use —Part 1: General requirements.
CSA C22.2 No.213-2017
Non-incentive Electrical Equipment for Use in Class I, Division 2
Hazardous Locations.
CSA 60079-0:15
Explosive Atmospheres –Part 0: Equipment General Requirements
CSA 60079-1:16
Explosive atmospheres –Part 1: Equipment protection by flameproof
enclosures "d".
CSA 60079-31:16
Explosive atmospheres - Part 31: Equipment dust ignition protection by
enclosure "t".
ANSI/ISA-12.12.01-2017
Nonincendive Electrical Equipment for Use in Class I and II, Division 2
File no. LR1192

Doc. No: 00240170 rev. 3 Scancon Encoders A/S Huginsvej 8 3400 Hilleroed Denmark p. 4/4
24 January 2018 Tlf [phone] Fax [phone] www.scancon.dk
Type EXAG
Installation Manual
UL 60079-0-2013
UL 60079-0-2013 Explosive Atmospheres –Part 0: Equipment General
Requirements.
UL 60079-1-2015
Explosive atmospheres –Part 1: Equipment protection by flameproof
enclosures "d"
UL 60079-31-2015
Part 31: Equipment dust ignition protection by enclosure "t"
NOTE: Adding other data (on other CB request) or changing layout to this Installation Manual does not conflict with the
actual data in this document and ATEX/IECEx certification. Adding the new data to this document cause change of
revision number and the change not need to be notified by Certification Body.
