Scaneo TS42B User manual

Model: TS42B
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your ear thermometer
Contents
Introduction 1
Important Information Before Use 2
Product Identification 3
Description of LCD Display 4
Battery Installation 5
Setting °C/°F and Date/Time 6
Tips for Measuring Human Temperature 10
Measuring Body Temperature on the Forehead 11
Measuring Body Temperature in the Ear 12
Clinical Accuracy Validation Method 13
Measuring Object/Liquid Temperature 14
Memory Function 15
Care and Maintenance 16
Applied Standards 16
Error Codes 17
Operating the Bluetooth function 18
Technical Specifications 19
EMC Tables 20
Explanation of Symbols 23
FCC Statement 24

Introduction
for Use:
The device is an infrared thermometer intended for the
intermittent measurement of human body temperature in
people of all ages.
This thermometer takes temperatures in seconds by
measuring the heat generated by the earcanal or other
objects. This product conforms to the provisions of the EC
directive MDD(93/42/EEC).Its advantages include:
1. Bluetooth Low Energy v4.0
2. 7 in 1 functions
Ear/Forehead/Object/Date-Time-Stamp/ 30 User
Memory/Fever Alarm/Backlight/
3. Red LED Light for Fever Alarm
≧38°C: LED light Red
4. 30 User Memory
5. Illuminated Backlight Display
6. °C/°F Switch-able Function
7. Probe Cover Free
8. Waterproof Probe Design
9. One-second Reading
10.Auto power off for power saving
11.Low-battery Indicator
12.Warning indication
Indications for battery condition and measuring range.
13.Large LCD Display
1
Important Information Before Use
When using this product, please be sure to follow all the
notes listed below. Any action against these notices may
cause injury or affect the accuracy.
1. Do not disassemble, repair, or remodel the thermometer.
2. Be sure to clean the thermometer lens each time after
usage.
3. Avoid direct finger contact with the lens.
4. No modification of this equipment is allowed.
5. It is recommended that user may take 3 temperatures. If
they are different, use the highest reading.
6. Do not expose the thermometer to extreme temperature,
very high humidity, or direct sunlight.
7. Avoid extreme shock or dropping the device.
8. Before the measurement, patients and thermometer
should stay in steady state room condition for at least 30
minutes.
9. Avoid measuring temperature in 30 minutes after
exercise, bathing, or returning from outdoor.
10.To protect the environment, dispose of empty batteries at
appropriate collection sites according to national or local
regulations.
11.It is ill-advised to disassemble the thermometer.
12.Please use the thermometer solely for its intended
purpose.
13.Carefully hold the device when in use to avoid dropping
the device.
14.Allow one minute between successive measurements as
slight variations may occur if measurements are taken
over a short period of time. Use average temperatures
instead.
15.There are no absolute body temperature standards.
Keep reliable records of your personal temperature to
serve as a reference for judging a fever.
16.Under any circumstances, the temperature taking result
is ONLY for reference. Before taking any medical action,
please consult your physician.
2

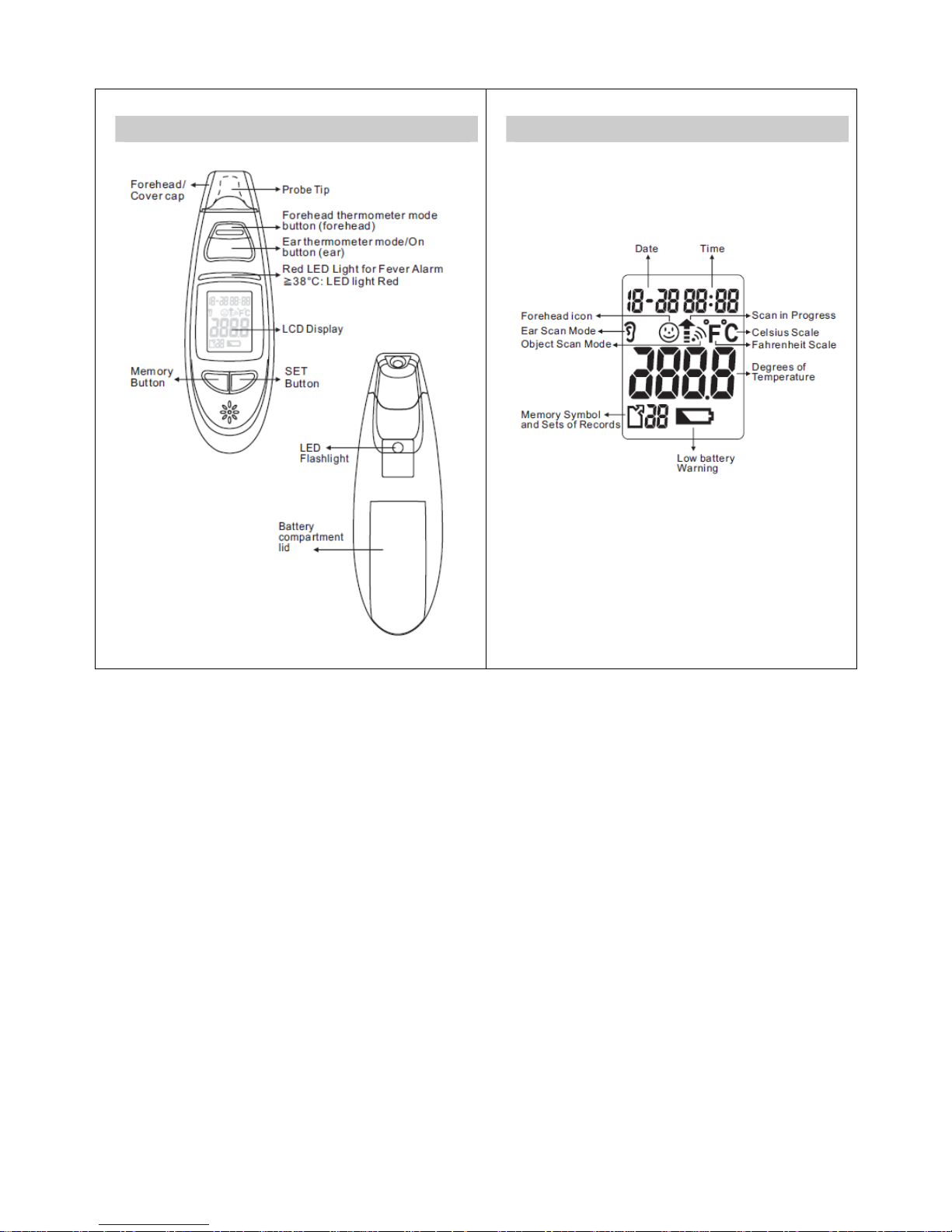

Product Identification
3
Description of LCD Display
4

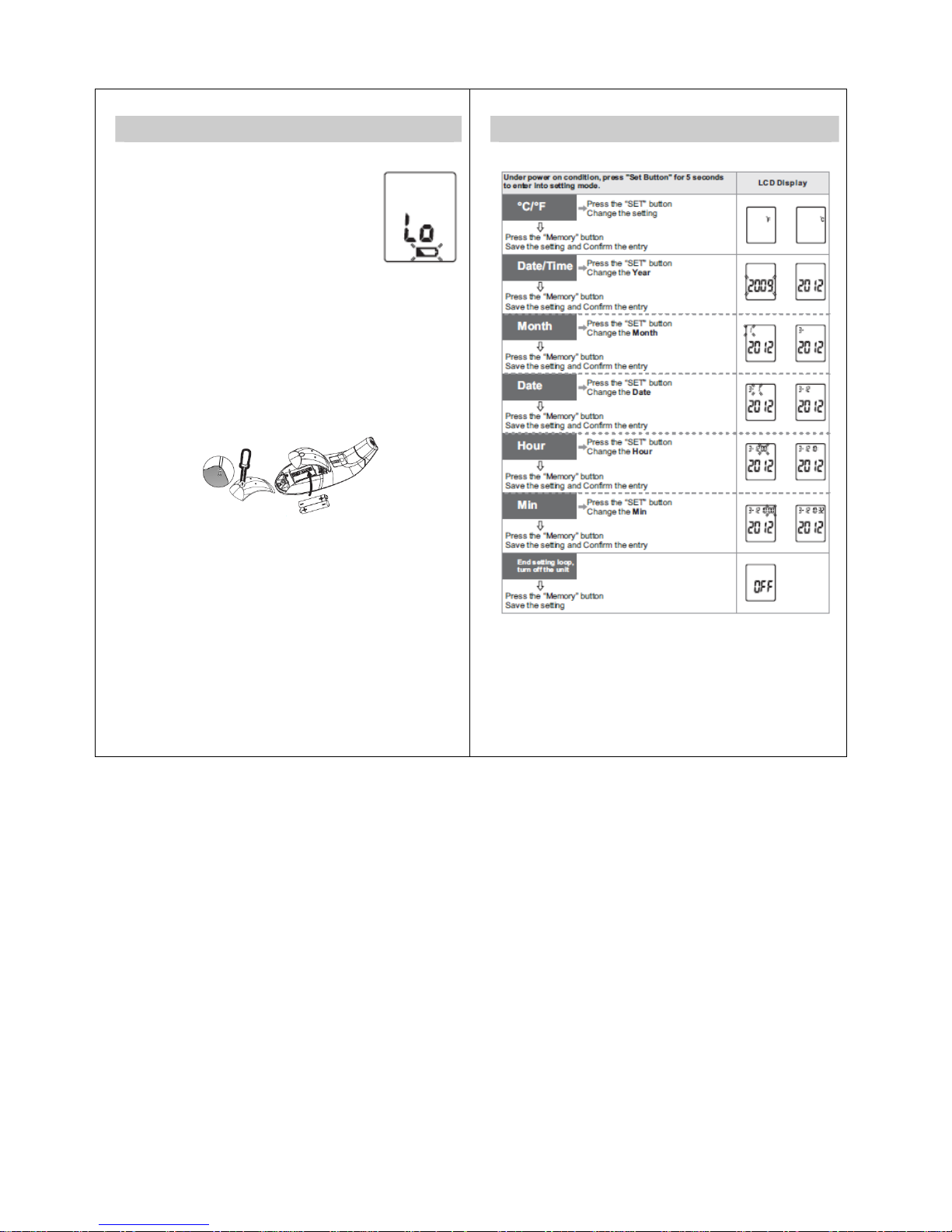

Battery Installation
Low battery warning:
When the battery power becomes low, the
low battery symbol will appear on the
display. The thermometer can still be used
during this time, but the batteries should be
replaced as soon as possible. If the
batteries run out completely, “Lo” will be
displayed along with the low battery symbol.
In this case, the batteries will need to be replaced before
using the thermometer again.
Replacing the Battery:
1. Use a Phillips head screwdriver to loosen battery cover
screw. Remove the battery cover.
2. Insert or replace 2 x 1.5 V AAA alkaline batteries into the
battery compartment, ensuring to match the indicated
polarity symbols. Always use new batteries.
3. Place the battery cover on the thermometer and tighten
the screw to secure it in place.
NOTE: Battery-operated
1. Please properly dispose of the batteries away from small
children and heat.
2. It is recommended to remove the batteries if the unit will
not be used for an extended period of time.
3. For long durations of non-operation, please remove all
batteries from the device.
4. Batteries must be disposed of in accordance with local
environmental and institutional policies.
5. Dispose of used batteries in accordance with the
applicable legal regulations. Never dispose of batteries
in the normal household waste.
5
Setting °C/°F and Date/Time
6

Setting °C/°F and Date/Time
When the thermometer is used for the first time and each
time the batteries are changed, the date and time are
displayed in the format 1-1 00:00 during the basic set-up
(after the self test). Set each of the following settings in turn :
unit in which the temperature will be displayed, date and
time. To set the device, proceed in stages:
Unit – year – month – day – hours – minutes (there is no
voice output when setting date and time).
Press the SET button for 5 second to switch the
thermometer on. The device performs a brief self test: all
elements of the display are shown for approx. 1 second.
Following a successful self test, the device emits two short
beeps. In Standby mode, the date and time are shown and
“--” is displayed.
7

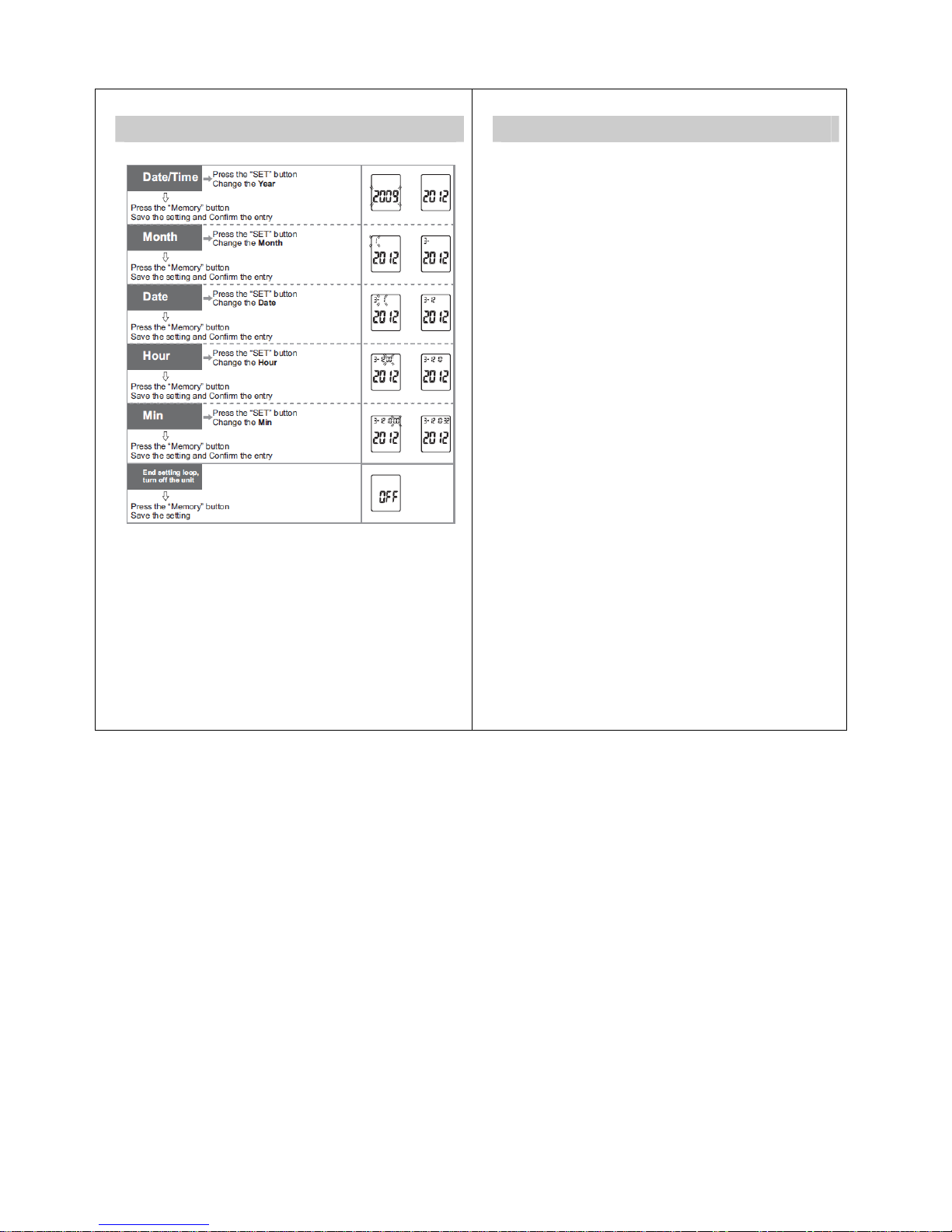

Setting °C/°F and Date/Time
1. Changing from Fahrenheit to Celsius
(1) Press the "SET" button to set the °C/°F function on or off.
(2) Press the “Memory” button to confirm entry.
2. Date/Time Function
(1) Press the "SET" button to change.
(2) Press the "Memory" button to confirm entry.
(3) The blinking Date, followed by Year, Hour and Minutes
will display. Repeat steps (2) and (3) to adjust the
date/time setting.
(4) Your unit is now ready to take a reading, or press the
“MEM” button to turn the unit off.
(5) After this process, the thermometer shows the word
“OFF” in the display and switches off automatically.
8

Setting °C/°F and Date/Time
9
Tips for Measuring Human Temperature
Bear in mind that the thermometer needs to have been in
the room in which the measurement is taken for at least 30
minutes before use.
• Some people produce different readings in their left and
right ear. In order to record temperature changes,
always measure a person’s temperature in the same
ear.
• The ear thermometer may be used by children only
under adult supervision. Measurement is usually
possible over the age of 6 months. In infants under 6
months, the ear canal is still very narrow so the
temperature of the eardrum often cannot be recorded
and the result displayed is often too low.
• The measurement must not be taken in an ear affected
by inflammatory diseases (e.g. discharging pus or
secretion), after possible ear injuries (e.g. eardrum
damage) or in the healing period after operative
procedures. In all of these cases, please consult your
doctor.
• Use of the thermometer on different persons can be
inappropriate in the event of certain acute infectious
diseases because of the possible spread of germs
despite cleaning and disinfection. If you have any
doubts, please consult your doctor.
• This thermometer may only be used without a
disposable protective cover.
• If you have been lying on one ear for some time, the
temperature is slightly raised. Wait a little while or
measure in the other ear.
• As ear wax can affect the measurement, you should
clean the ear before measuring if necessary.
10

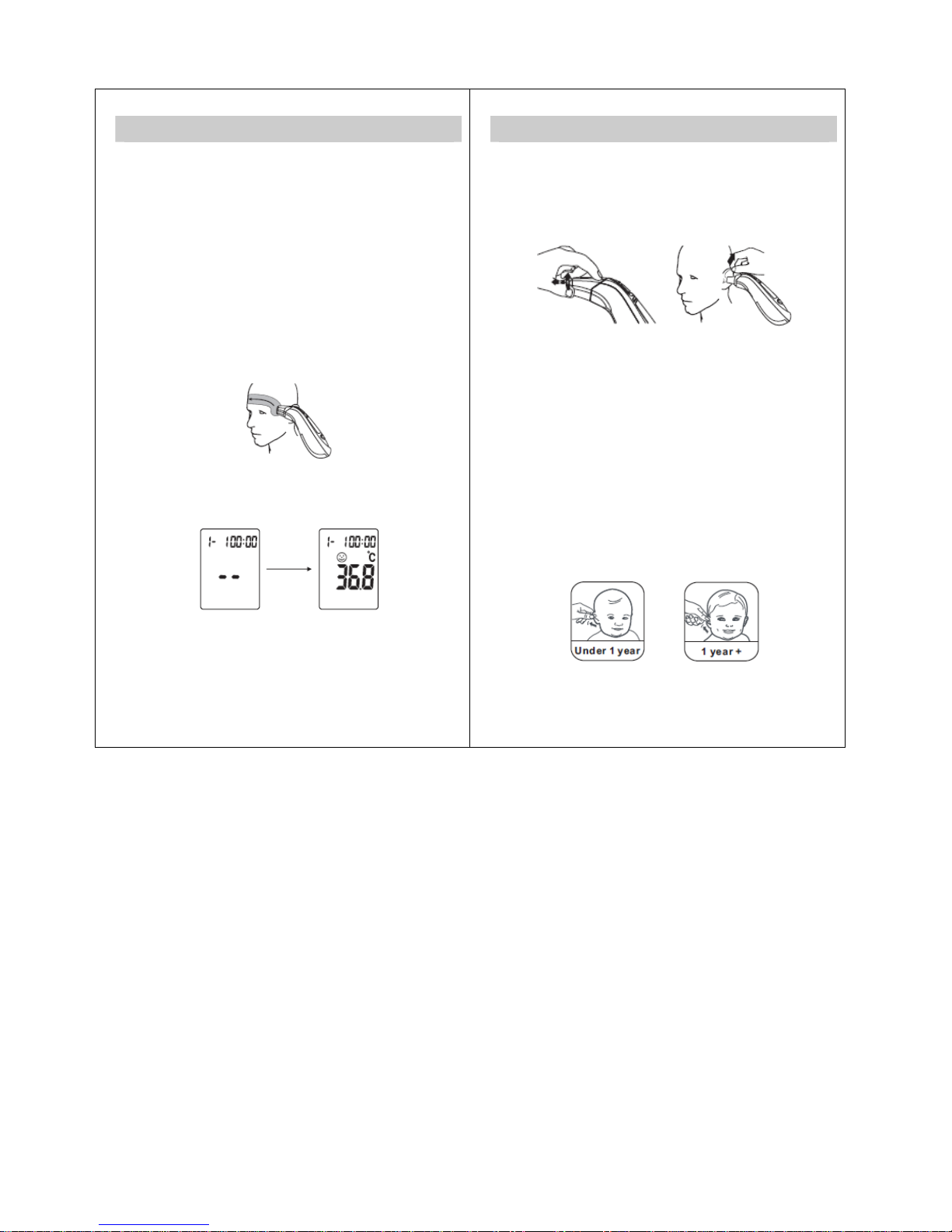

Measuring Body Temperature on the Forehead
NOTE:
The forehead/temples must be free from sweat and
cosmetics and that taking medication and skin irritations can
distort the result when measuring temperature on the
forehead.
1. Press the Forehead mode button or On botton for 1
second to switch the thermometer on. Following a
successful self test, the device emits two short beeps.
2. Place the measuring head with the Forehead/Cover cap
fitted on the temples, hold on the Forehead mode Button
and move the thermometer smoothly over the forehead
to the other temple.
3. Release the Forehead Scan Button. The end of the
measuring time is signaled with a short beep and the
measured value appears on the display.
11
Measuring Body Temperature in the Ear
1. Press the Power button for 1 second to switch the
thermometer on. Following a successful self test, the
device emits two short beeps.
2. Remove the cap by gently pushing it up (1) and then
pulling it off forwards (2).
3. Make sure that the sensor tip and also the ear canal are
clean. As the ear canal is slightly curved, you have to pull
the ear slightly up and backwards before inserting the
sensor tip. This is important so that the sensor tip can be
pointed directly at the eardrum.
Position thermometer probe
properly in ear canal:
• Under 1 year:
Have child lay flat with the head sideways, so that the ear is
facing upwards. Gently pull the ear straight back.
• 1 year +:
Stand behind and slightly to the side of the child/adult.
Gently pull the ear up and back to straighten the ear canal.
4. Insert the sensor tip carefully and press the Power button
for 1 second.
12

Measuring Body Temperature in the Ear
5. Release the button. The end of the measuring time is
signaled with a short beep and the measured value
appears on the display.
NOTE: Fever Alarm: Only in Human Mode
≧38°C: LED light Red
If the temperature measurement is 38°C or above,
meanwhile the backlight and alert light (RED) will light for 3
sec and then the voice pronouncing.
Clinical accuracy validation method
TS42B is an adjusted mode clinical thermometer
the validated information for clinical accuracy in each
adjusted mode are:
GroupA1: cb=-0.01°C, LA=0.18, σr=±0.08°C
GroupA2: cb= 0.06°C, LA=0.22, σr=±0.08°C
GroupB : cb=-0.01°C, LA=0.20, σr=±0.07°C
GroupC : cb=-0.01°C, LA=0.18, σr=±0.07°C
cb: CLINICAL BIAS
LA: LlMITS OF AGREEMENT
σr:CLINICALREPEATABILITY

13
Measuring Object/Liquid Temperature
1. Press the Power button for 1 second to switch the
thermometer on. Following a successful self test, the
device emits two short beeps.
2. Then press the “Memory” and “SET” buttons
simultaneously for 3 seconds to switch to the “Object
Scan Mode ”.
The symbol appears in the display.
3. Point the sensor tip towards the object or liquid
(maintaining a distance of 3 cm), then take one press on
Forehead mode button or Ear mode button to take a
measurement (never immerse in liquids).
4. After the measurement process is complete, there
comes a short beep and the measured value appears on
the display.
5. Please note that the displayed temperature is the
measured and not the adapted surface temperature. It is
not the same as the temperature.
6. To switch back to the thermometer mode, press the
“Memory” and “SET” buttons simultaneously for 3
seconds until the “ ” symbol disappears and there is
a short beep.


14

Memory Function
You can recall up to 30 measurements plus an average of
all currently stored measurements in memory to share with
your physician or trained healthcare professional.
1. Press the “Memory” button. The first reading displayed
is the latest measurement stored in memory.
2. Continue to press the “Memory” button to view the next
previously stored measurement.
3. Automatically on the 31th measurement: when the 30
memories have been used up, any new measurement
will be recorded and the oldest memory deleted without
you having to do anything.
15
Care and Maintenance
• Probe and Tip:
Clean the probe and tip with an alcohol swab before and
after each measurement.
• Thermometer:
Use a soft, dry cloth to clean thermometer body. Never
use abrasive cleaning agents, thinners or benzene for
cleaning. Do not scratch the surface of the probe lens or
the display. Do not expose the thermometer to extreme
temperatures, humidity, direct sunlight, or shock.
Applied Standards
This product conforms to the provisions of the EC
directive MDD(93/ 42/ EEC). The following standards
apply to design and/or manufacture of the products:
‧ ISO 80601-2-56
Medical electrical equipment -- Part 2-56: Particular
requirements for basic safety and essential
performance of clinical thermometers for body
temperature measurement
‧ IEC/EN 60601-1
Medical electrical equipment- Part 1: General
requirement for safety
‧ IEC/EN 60601-1-2
Medical electrical equipment- Part 2: Collateral
standard: Electromagnetic compatibility - Requirements
and tests
16

Error Codes
When a malfunction or incorrect temperature measurement
occurs, an error message will appear as described below
(comes with backlight).
LCD Display Cause Solution
The temperature measured
is higher than
1. Human thermometer
mode:
42°C (107.6°F)
2. Object temperature
mode:
100°C (212.0°F)
The temperature
measured is lower than
1. Human thermometer
mode:
35°C (95°F)
2. Object temperature
mode:
10°C (50°F)
Operate the
thermometer only
between the
specified
temperature
ranges. If
necessary, clean
the sensor tip. In
the event of a
repeated error
message, contact
your retailer or
Customer
Services.
The operating temperature
is not in the range
15°C~35°C (59°F~95°F)
Operate the
thermometer only
between the
specified
temperature
ranges.
17
Operating the Bluetooth function
What You Need
TS42B Bluetooth IR Ear Thermometer
An Android device with Android version 4.3 or above and
hardware support for Bluetooth 4.0.
An iOS device with iOS version 5 or above and hardware
support for Bluetooth 4.0. All devices Apple released since
the iPhone 4S (including the 4S) do, the older ones don’t.
Note:
Please refer to the instruction manual of your smart phone
for how to activate the Bluetooth function.
Set Up Process
1. Download an app which supports Bluetooth 4.0 from
the iTune App Store or Google Play.
2. Enable Bluetooth on your mobile device.
3. Open the app and activate the scan function.
4. Turn on the TS42B.
5. The app should automatically detect your TS42B. Tap
the TS42B that is showed in the device list.
6. Your TS42B is now successfully connected to your
mobile device. Every temperature reading will be
transfer to your mobile device automatically.
18
