Amprobe TMD-53W User manual

Users Manual




TMD-53 / TMD-53W
Thermocouple
thermometer K/J
/ Wireless

TMD-53
Thermocouple
thermometer K/J
TMD-53W
Thermocouple
thermometer K/J
with wireless
Users Manual
June 2010, Rev.1
©2010 Amprobe Test Tools.
All rights reserved. Printed in Taiwan
English


Your Amprobe product will be free from defects in material and
workmanship for 1 year from the date of purchase. This warranty
does not cover fuses, disposable batteries or damage from accident,
neglect, misuse, alteration, contamination, or abnormal conditions
of operation or handling. Resellers are not authorized to extend
any other warranty on Amprobe’s behalf. To obtain service during
the warranty period, return the product with proof of purchase
to an authorized Amprobe Test Tools Service Center or to an
Amprobe dealer or distributor. See Repair Section for details. THIS
WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES -
WHETHER EXPRESS, IMPLIED OR STAUTORY - INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR
MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER
SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY
CAUSE OR THEORY. Since some states or countries do not allow the
exclusion or limitation of an implied warranty or of incidental or
consequential damages, this limitation of liability may not apply
to you.

All test tools returned for warranty or non-warranty repair or
for calibration should be accompanied by the following: your
name, company’s name, address, telephone number, and proof of
purchase. Additionally, please include a brief description of the
problem or the service requested and include the test leads with
the meter. Non-warranty repair or replacement charges should be
remitted in the form of a check, a money order, credit card with
expiration date, or a purchase order made payable to Amprobe®
Test Tools.

Please read the warranty statement and check your battery before
requesting repair. During the warranty period any defective test
tool can be returned to your Amprobe® Test Tools distributor for
an exchange for the same or like product. Please check the “Where
to Buy” section on www.amprobe.com for a list of distributors near
you. Additionally, in the United States and Canada In-Warranty
repair and replacement units can also be sent to a Amprobe® Test
Tools Service Center (see address below).


Non-warranty repairs in the United States and Canada should be
sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test
Tools or inquire at your point of purchase for current repair and
replacement rates.
In USA In Canada
Amprobe Test Tools Amprobe Test Tools
Everett, WA 98203 Mississauga, ON L4Z 1X9
Tel: 877-AMPROBE (267-7623) Tel: [phone]

European non-warranty units can be replaced by your Amprobe®
Test Tools distributor for a nominalv charge. Please check the
“Where to Buy” section on www.amprobe.com for a list of
distributors near you.
European Correspondence Address*
Amprobe® Test Tools Europe
In den Engematten 14
79286 Glottertal, Germany
Tel.: [phone] - 0
*(Correspondence only – no repair or replacement available from
this address. European customers please contact your distributor.)

TMD-53/TMD-53W
TMD-53
Thermocouple Thermometer K/J
15
14
10
4
1
6
3
2
5
7
8
9
TMD-53W
11
12

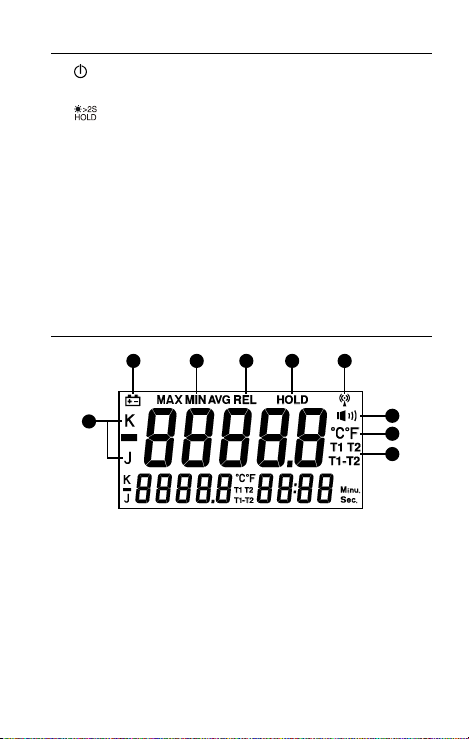

Third
Display
Second
Display
Main
Display
13
















 

 



















8
7
6
1
2 43 95


1

.............................................................................. 2
 ............................................ 4
 .................................................................... 4
Features ............................................................................ 4
................................................. 5
““ Power Button........................................................... 5
“” Selecting the Temperature Scale ....................... 5
“” Mode...................................................................... 5
“” Main Display Input Selection .................. 5
“” Main display Input Thermocouple Type Select .... 6
“” With Time Record Mode ............................ 6
“” Relative Mode ....................................................... 6
“” Selecting the Time scale ............................ 7
“” Mode...................................................................... 7
“” Second Display Input Selection ............... 8
“” Second display Input thermocouple type select .. 8
“” Mode ...................................................... 8
Wireless Mode (TMD-53W only) ..................................... 8
...................................................................... 9
................................................................... 11

2

Caution! Refer to the explanation in this Manual
Complies with European Directives
Tested Comply With FCC Standards
Do not dispose of this clamp meter as unsorted
municipal waste.

WARNING and PRECAUTIONS
• To avoid electrical shock, do not use this instrument
when working voltages at the measurement surface
over 24V AC or DC.
• To avoid damage or burns, do not make
temperature measurement in microwave ovens.
• Repeated sharp exing can break the thermocouple
leads. To prolong lead life, avoid sharp bends in the
leads, especially near the connector.

This device TMD-53W complies with Part 15 of the
FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.

This equipment TMD-53W has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection. This
equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there

3
is no guarantee that interference will not occur in a
particular installation if this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Shielded interface cables must be used in order to comply
with emission limits.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.

Wireless receiver must keep a distance at least 40cm from
the meter and meter to meter distance must be at least
30cm.

4

Your shipping carton should include:
1 Meter
4 AAA batteries
1 Software CD ROM (THWD-10W)
1 USB Wireless Antenna (THWD-10W)
2 K type thermocouple
1 Manual
1 Plain white box
If any of the items are damaged or missing, return
the complete package to the place of purchase for an
exchange.

TThis instrument is a 5 digit, compact-sized portable
digital thermometer designed to use external K-type and
J-type thermocouples as temperature sensor. Temperature
indication follows Reference Temperature/Voltage Tables
(N.I.S.T. Monograph 175 Revised to ITS-90) for K-type
and J-type thermocouples. Two K-type thermocouple are
supplied with the thermometer.

• Wireless two ways transmission. (TMD-53W only)
• K/J-type thermocouple selection dual input.
• °C/°F user-selective.
• MAX/MIN with elapsed time, AVG, REL, HOLD
function.
• TIME setting, REL setting.
• Warning beeper with Hi/Lo setting.
• Resolution 0.1°C to 0.2°F.

5

 
The “ ” key turns the thermometer on or off. In the SET
mode cannot be powered off. Exit SET mode to power
off.
APO function mode
Press “ ” power key for more than 4 seconds to disable
the auto-power function.
The display will show “”.

Readings are displayed in either degrees Celsius(°C) or
degrees Fahrenheit(°F). When the thermometer is turned
on, it is set to the temperature scale that was in use
when the thermometer was last turned off. To change
the temperature scale, press the “°°” key.
 
Press this key to enter the Data Hold mode, the “”
annunciator is displayed. When HOLD mode is selected,
the thermometer holds the present readings and stops
all further measurements. Press the “ ” key again to
cancel HOLD mode and resume measurements. In the
MAX/MIN recording mode, press “ ” key to stop the
recording. Press “ ” key again to resume recording.
(Previously recorded readings are not erased).
Backlight function mode
Press the “ ” key for more than two seconds to turn
on the backlight. Press the key again for more than two
seconds to turn off the backlight. The backlight will
switch-off automatically after 30 seconds.

The input selection indicates which input is selected
for main display; T1 thermocouple, T2 thermocouple or

6
the difference between the two thermocouples (T1-T2),
when the thermometer is turned on, it is set to T1.


The “” key selects the T1 thermocouple type, when
the main display is showing T1. When the thermometer
is turned on, it is set to the type selected when the
thermometer was last turned off.


Press “” key to enter the MAX MIN Recording
mode, (displays the Maximum reading with time,
Minimum reading with time and Average reading stored
in record mode). In the this mode the automatic power-
off feature is disabled and “ ” key, “°°” key, “”
key, “” key, “” key and main display
“” key, “” key are disabled. The beeper
emits a tone when a new minimum or maximum value
is recorded.
Press “” key to cycle through the MAX, MIN
and AVG readings. If an overload is recorded, the
averaging function is stopped. In this mode, press the
“” key to stop the recording of readings, all values
are held, press again to restart recording.
To prevent accidental loss of MAX, MIN and AVG data,
this mode can only be cancelled by pressing and holding
the “” key for 2 seconds. All recorded readings
are erased.

Press the “” key to enter the relative mode, zero the
display, and store the displayed Reading as a reference
value. REL is shown on the display. Press “” key
again to exit the relative mode. The relative reference

7
value can also be entered by the user. (See “”
later in this manual). When the desired relative value
has been entered, press “” key to enter the relative
mode and than press “” key use the entered relative
value as a reference value. Press “” key again to exit
the relative mode. In the relative mode, the value (can
not >±3000.0 counts) shown on the LCD is always the
difference between the stored reference and the present
reading.

Press this key to display the elapsed time on the third
display in either hours and minutes or minutes and
seconds. When the thermometer is turned on, it is set to
seconds. To change the time scale, press “”
key. Maximum elapsed time reading is 100 hours. If 100
hours is exceeded, the elapsed time resets to zero.


1. Press the “” key to enter relative values SET
mode (Press “” key to skip setting relative
value). “” is displayed on the main display.
The relative value is entered via overlay numbers,
press overlay “” key to store the relative
value, and advance to elapsed time set mode.
2. Elapsed time set mode, (Press “” key to
skip Elapsed time set mode) “” is
displayed in second and third display. Time (hours,
minutes,seconds) value is entered via overlay
numbers, press overlay “” key to store time
value. Elapsed time starts from set time value.
3. Hi Limit value set mode, “ ” is displayed (Press
“” key to skip Hi Limit value set mode),
“” is displayed in main display, Hi Limit
value is entered via overlay numbers, then press

8
“” key to store the Hi Limit value.
“” is displayed in main display, Lo Limit
value is entered via overlay numbers, then press
overlay “” key to store the Lo Limit value and
exit SET mode.
4. When the thermometer is turned on it uses the
relative value and Hi/Lo Limits values that were
entered when thermometer was last in use.

The input selection indicates which input is selected for
second display; T1 thermocouple, T2 thermocouple or
the difference between the two thermocouples (T1-T2).
When the thermometer is turned on, it is set to T2 input.
To select a different type of thermocouple use the “”
key.


The “” key for T2 input selects K-type or J-type
thermocouple as input, when the second display has T2
shown. When the thermometer is turned on, it is set to
the type selected when the thermometer was last turned
off.

Press “” key to enter the Hi/Lo Limits
comparative mode, “ ” is displayed. When the input
temperature value exceeds the Hi or Lo Limits value, the
beeper emits a continuous or pulsed tone. Press “
” key again to exit the Hi/Lo Limits mode.

Press the “ ” key for more than two seconds to start
wireless function. Press the “ ” key again for another
two seconds to stop wireless function. The wireless mode
will shut down if there is no wireless signal for two
minutes.

9
To SET CH/ID to 00,00, press the “” key and
“” power key for more than 6 seconds with the meter
powered down. The meter will set channel and ID to
00,00 status. The second display will show 00, which
means that the channel and ID has been set to 00.
To check the channel and ID of the meter
When the meter is off, press “°°” key and “ ” for 5
seconds, LCD’s main display will show channel number,
the second display will show ID number.




Celsius or Fahrenheit user-selectable


J-Type -200°C to 1050°C,
(-328°F to 1922°F)
K-Type -200°C to 1370°C,
(-328°F to 2498°F)
 0.1°C or 0.2°F
 Accuracy is specified for operating
temperatures over the range of 18°C
to 28°C (64°F to 82°F), for 1 year, not
including thermocouple error.
±(0.05%rdg+0.3°C) on -50°C to 1370°C
±(0.05%rdg+0.7°C) on -50°C to -200°C
±(0.05%rdg+0.6°F) on -58°F to 2498°F
±(0.05%rdg+1.4°F) on -58°F to -328°F


0.1 times the applicable accuracy
specication per °C from 0°C to 18°C
and 28°C to 50°C
(32°F to 64°F and 82°F to 122°F).

10
 24V dc or 24V ac rms maximum input
Voltage on any combination of input
pins.
 Accepts standard miniature
thermocouple connectors (flat blades
spaced 7.9mm, center to center).


1 Volt.




0°C to 50°C (32°F to 122°F) <80% R.H.


-20°C to 60°C (-4°F to 140°F) <70% R.H.

 5 digit liquid crystal display (LCD).
 “” or “” is display..
 1 time per second.
 30 minutes, press power key to
resume operation.
 4 X 1.5V AAA
 190 hours typical with carbon zinc
battery.
 160mm(H) x 83mm(W) x 38mm(D); 6.3
in (H) x 3.3 in (W) x 1.5 in (D).
 Approx. 270g (0.6lb) including
batteries.

11
 4 feet type “” thermocouple
bead wire (Teflon tape insulated).
Maximum insulation temperature
260°C (500°F).
Wire accuracy ±2.2°C or ±0.75% of
reading (whichever is greater) from
0°C to 800°C (32°F to 1472°F).

Frequency range 910~920MHz (TMD-53W)
Low current consumption less than 1mA.
The transmitting distance can reach 25M without
magnetic interference.
-  Conforms to EN61326-1.
This product complies with requirements of the
following European Community Directives: 89/ 336/
EEC (Electromagnetic Compatibility) and 73/ 23/ EEC
(Low Voltage) as amended by 93/ 68/ EEC (CE Marking).
However, electrical noise or intense electromagnetic
fields in the vicinity of the equipment may disturb the
measurement circuit. Measuring instruments will also
respond to unwanted signals that may be present within
the measurement circuit. Users should exercise care and
take appropriate precautions to avoid misleading results
when making measurements in the presence of electronic
interference.

WARNING
To avoid possible electrical shock, disconnect the
thermocouple connectors from the thermometer
before removing the cover.

12

A. Screw
B. Battery Cover
C. Battery
1. Power is supplied by 4pcs 1.5V (SIZE AAA) UM-4
R03.
2. The “ ” appears on the LCD display when
replacement is needed. To replace battery remove
screw from back of meter and lift off the battery
cover.
3. Remove the batteries from the battery
compartment and replace them with new ones.
4. When not use for long time, remove the battery.
5. Do not store the unit in place with temperature
and humidity beyond the recommended storage
temperature.

Periodically wipe the case with a damp cloth and
detergent, do not use abrasives or solvents.
