SCANIA HIGER USER MANUAL (SJ18LLJ)
Keys- the fob has been removed as people kept shutting door and assuming it
was locked but all the fob did was shut the door not lock it. So, the thinner key
is used to open all doors and most lockers.
Getting in- using the key to unlock the door then pushing the small black
button (lower one) to release the door, pushing the other button will then
close the door but will still need locking with the key.
Doors- If doors will not open check the locker immediately behind the door if
not shut properly it assumes its open therefore will not open, the corner most
likely needs to be pushed in (not by foot!!!)
Power- Power switch is located to the left of the steering wheel lightning
symbol (see chart)
Heat/Air con - Three dials are driver (cab) control, along with number 17/18
(see chart) the rest of the controls are for the passengers.
Driver Adjustments- To adjust fan direction use dial 14 for fan speed use
dial 15 for temperature adjustments use dial 16. For aircon use button 17 and
to recycle the air use 18. See chart for simple passenger controls.
Microphones- Two fitted one is in the dash the other is attached to the wall to
the right of driver seat/window, both are simply slide switch and they are on.
Boiler- Boiler is located in the cupboard by the stairs push in the black button
and the door slides down. Coffee pot to the left (does not heat up well so
never used) to the right is the main machine mechanism. Make sure it’s turned
on at the dash (see chart two buttons for it), once door rolled down you will
see many buttons and four dials and a tap.
Firstly make sure its switched on here too,(see chart for on off button) then
needs filling ensuring the button with the P(Pump see chart) is on then you
will see a dial with a grey dot on, turning this will fill the boiler, long glass tube
is there so you can see how full it is. Then there is a dial with red dot and black
lines on (far left see chart) turning this will turn on the heat for the boiler,
swing the tap out and then turn the dial with red dot (see chart) to get hot
water to flow (may take 20mins to heat) or turning the dial with the blue dot

will give you cold water. Reset button can be located on the underneath of the
boiler behind the tap.
Coffee Pot- Button with the half full and colored in red is to heat the boiler to
the left and the button adjacent to it is to fill the same boiler, although it does
not work very well so hardy ever use it. The on off button for the boiler far left
is located on the boiler, it also pulls out for ease of use.
Boiler Winter Prep- to prevent damage in the winter all boilers need emptying.
So go to the front offside locker unclip the hose above the water tank, then
unscrew 3 bolts to the right of water tank (behind black metal) to gain access
to the water pump and the remaining pipes unclip the two pipes then head
back inside to pour all the remaining water out of all pipes and tank by simply
turning the blue dot dial until no water runs through. Don’t forget to clip them
all back and draw water for the return journey.
Toilet- keys needed to access the toilet drop keys are silver and chunky and
kept in the driver cab area normally in the small pocket to the right of the
driver seat/under window, the drop button is located under the ink in the
toilet. A total of four buttons under the sink the only one you need is the top
right (red)
Push it in once valve will open wait until empty push again to close
(if not closed flush will not work).
Topping up the waters for flush and sink are found in the 2nd locker from the
front offside once opened you will see two white hosepipes one is flush one is
water for sink, simply attach a hose connector turn valve (blue)to align with
flow of hose and top up.
Batteries- Are in the front offside small locker under drivers window.
Fuses- Are located in the front offside locker in a cupboard.
Oil/water/coolant- located in the AdBlue locker.
Spare Bulbs- Inside in the overhead locker offside at front.
Spare Belts-
Triangle-

1. DVD Player
2. Tacho
3. CD player
4. Radio
5. Middle Door
6. Front Door
7. CCTV/Reverse

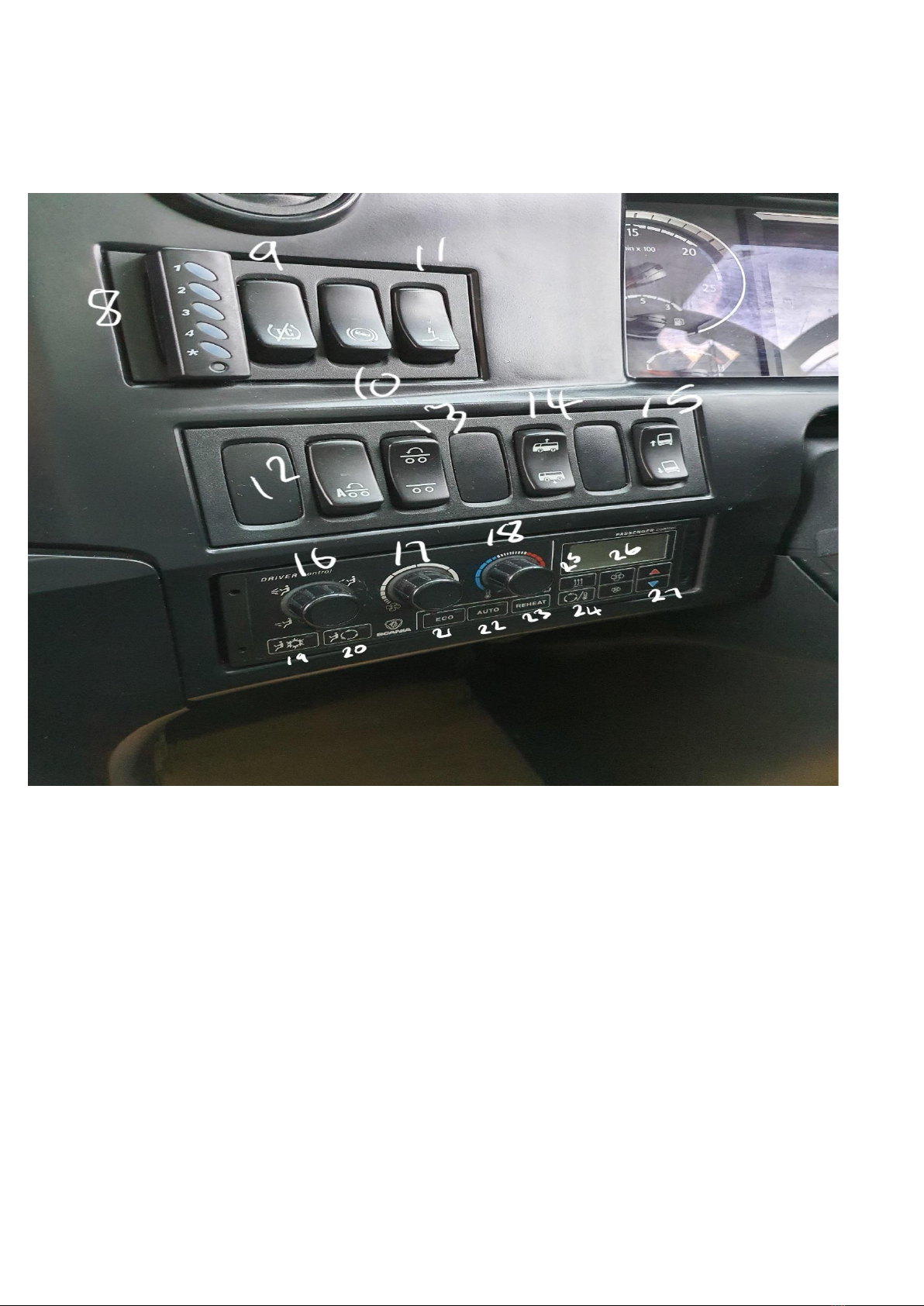

8.Tracker 19. Driver Aircon
9.Traction Control 20. Driver air recycle
10.Hill Hold 21.Pax Eco mode
11.Power 22.Pax auto mode
12.Load Transfer 23.Pax reheat
13.Tag Axle Lift 24. Pax air recycle
14.Ferry Lift 25.Webasto
15.Kneel 26.Pax fan speed
16.Driver temp direction 27.Pax temp control.

17.Driver fan speed
18.Driver temp control

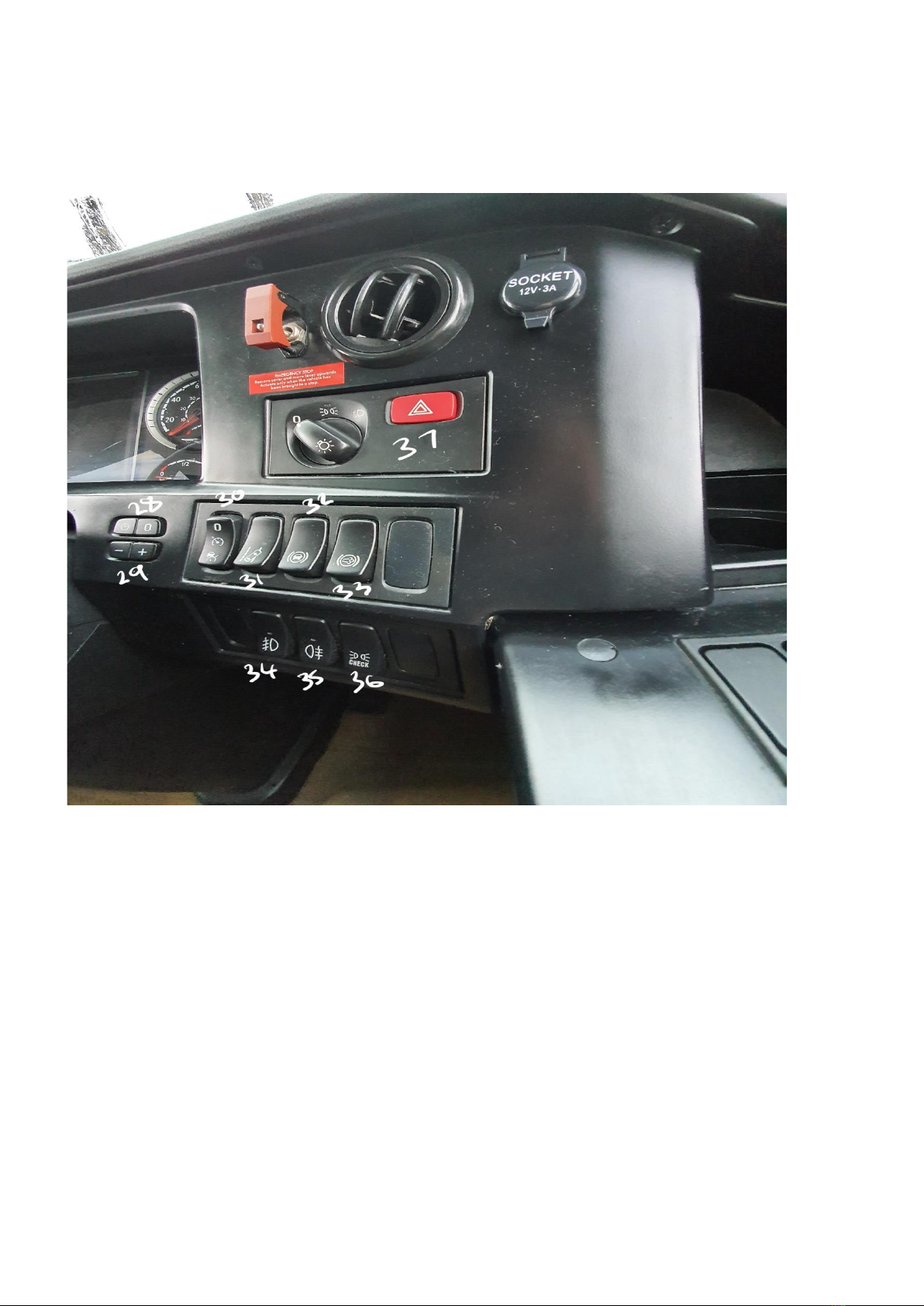

28.Dash settings(clock) 33.Manual regeneration of particulate filter
29.Dash light settings 34.Front fogs
30.Cruise control 35. Rear fogs
31.Lane assist 36.Check lights
32.Brake assist 37.Lights

38.Book lights (up for on down for all on) 49.Driver demister(push up)
39.Driver light 50.Secondary heating
40. Air horn 51.Locker Locks
41.Nearside blind 52.Locker Locks
42.Offside blind 53.Top mirror adjustments
43.Main interior lights 54.Lower mirror adjustments
44.Hot dog heater
45.Boiler
46.Driver window

47.Stop switch off
48.Toilet

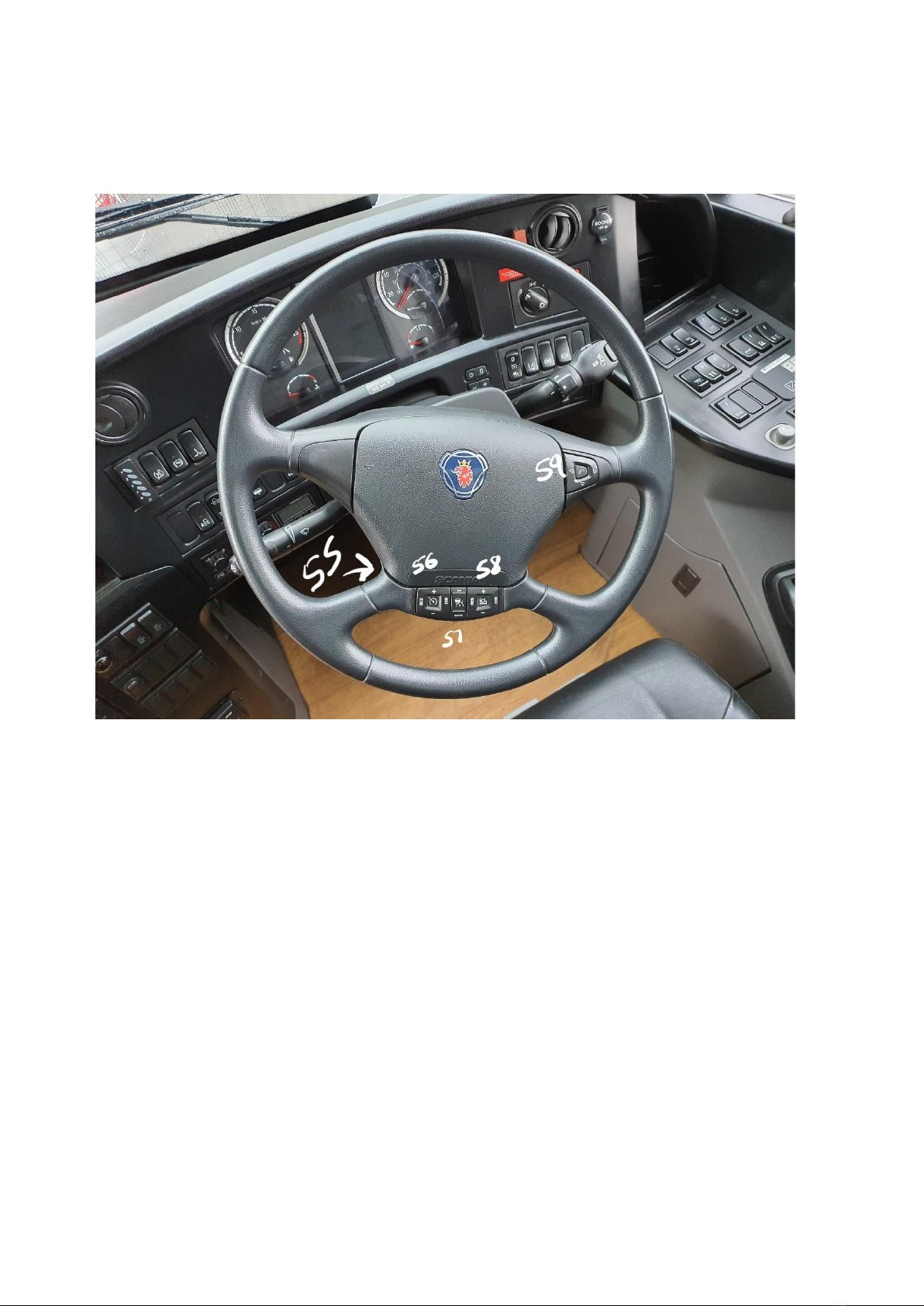

55. Steering wheel adjustment 58.Hill break adjustment
56.Cruise control 59.Dash control switch
57.Distance Adjustment
