SCENAR-COSMODIC EX715Ag User manual

Neuroadaptive Electrostimulator
SCENAR-COSMODIC
EX715Ag
User’s Guide
Issue 1.4
August 2012

2
Before operating the device, please read this User’s Guide
thoroughly, and retain it for further reference.
Neuroadaptive electrostimulators SCENAR-COSMODIC are
approved for practical application by the Federal Agency for
Public Health and Social Development of the Russian
Federation.
Registration Certificate No. ФС 02012006/4959-06.
Certificate of Conformance No. РОСС RU.ME01.B04374,
№ РОСС RU.ME77.B06455.

3
Table of Contents
Introduction ............................................................................................................ 5
About this Guide.................................................................................................... 6
Read this First........................................................................................................ 7
Copyright Notice.......................................................................................... 7
Safety Requirements and Precautions............................................................... 7
Using Applications, Attachments and Accessories................................. 8
Operating the Device.................................................................................. 8
Using the Batteries ...................................................................................12
Checking the Contents .......................................................................................13
Quick Start ...........................................................................................................13
Components Guide.............................................................................................14
Electrodes..................................................................................................14
Indication....................................................................................................15
Control........................................................................................................15
Casing ........................................................................................................16
Accessories..........................................................................................................16
Leather case..............................................................................................16
Gold Electrodes.........................................................................................16
Remote Electrode Probes........................................................................17
Arrangement and Operation ..............................................................................18
Indicators C, D and R...............................................................................19
Getting Started ....................................................................................................20
Power Supply ............................................................................................20
Installing the Batteries..............................................................................21
Battery Discharge Level...........................................................................23
Connecting Remote Electrode Probe.....................................................23
Switching the Device On and Off............................................................24
Switching On .............................................................................................24
Switching Off .............................................................................................24

4
Conducting the Procedure.......................................................................25
Active Area Search...................................................................................25
Timer ..........................................................................................................26
Action energy level ...................................................................................27
Dosage.......................................................................................................29
Body Reaction...........................................................................................29
Activity of the Treated Area .....................................................................30
Choosing the Action Mode.......................................................................30
Menu.....................................................................................................................33
Timer ..........................................................................................................33
Modes.........................................................................................................34
Sound and vibrosignal..............................................................................35
Display Brightness....................................................................................35
Options.......................................................................................................36
Language...................................................................................................37
Information.................................................................................................37
How to Place the Electrode................................................................................38
Action Time, Intervals and Therapy Period......................................................38
Action Time................................................................................................38
Action Range.............................................................................................38
Session Intervals.......................................................................................39
Number of Procedures in a Course........................................................41
Positions of the Patient During Action ..............................................................42
Primary Conditions for Action ............................................................................44
Specifications.......................................................................................................46
Appendices ..........................................................................................................48
Transportation ...........................................................................................48
Care and Maintenance.............................................................................48
Calibration..................................................................................................48
Cleaning the Device .................................................................................49
Disposal of the device ..............................................................................51
Troubleshooting ........................................................................................53

5
Introduction
Neuroadaptive electrostimulators SCENAR-COSMODIC
(hereinafter referred to as “devices”) are basic facilities of
state-of-the-art technology for highly effective and
medication-free rehabilitation of health and improvement of
the quality of life. They provide quick recovery of the body
after illness due to directed activation of its inherent reserves.
The devices are used to prevent diseases, increase the body’s
available inherent reserves and evoke its latent potentials.
They provide better resistance of the organism to various
disorders and harmful environment, prevent early aging, and
produce a rejuvenation effect.
The action is effected with short-pulse low-frequency signals
when the electrodes contact skin. Parameters of the acting
signal and time of the procedure are set automatically
through the biological feedbacks of the body.
SCENAR-COSMODIC series models are intended for use at
home, at medical and rehabilitative institutions, at
emergency stations, for first aid on board of ships, airplanes,
trains and other transport, in beauty salons for cosmetic
purposes (rejuvenation, smoothing out scars, etc.), tissue
regeneration, and restoration of health.

6
About this Guide
This User’s Guide describes main features, basic elements of
the device and theirs purposes, operation of SCENAR-
COSMODIC EX715Ag model, as well as typical observations
and explanations, which should help the user understand the
displays on the screen and effectively operate the device,
conduct preliminary analysis, determine the time needed for
action, most effective position of the patient, set the
appropriate energy level, etc.
Depending on each individual case, the displays on the
screen can be different and, thus, can be explained
differently. Each case may also require various methods and
techniques of action. Any questions, which are not covered in
this User’s Guide, and more details concerning particular
cases, theory and practical application of the “LET Medical”
devices, and new methods and techniques of SCENAR and
COSMODIC therapy are discussed at regular seminars
conducted by leading professionals of “LET Medical”. For
more details about where, when and how you can obtain
training at such seminars, see the official web-site of
“LET Medical “ www.scenar.ru/en/
The purpose of the present User’s Guide is to introduce the
user to the main features of the device and help effectively
operate it. This User’s Guide does not guarantee any results
for users, who have not obtained training at seminars
provided by “LET Medical”.

7
Read this First
Copyright Notice
Research Laboratory of Medical Electronics “LET Medical”
L.L.C. (Taganrog, Russia) is the inventor, patent owner,
developer and manufacturer of SCENAR and COSMODIC
series models.
“LET Medical” ®, “ЛЭТ Медикал” ®, “COSMODIC” ®,
“КОСМОДИК” ®, “SCENAR” ®and “СКЭНАР” ®are
trademarks and service marks registered and owned by
“LET Medical”.
International patents No.1053715 and No.1181951 in Europe.
“LET Medical” products are under continual improvement and
we reserve the right to make changes without prior notice.
The materials used in this User’s Guide are the sole property
of “LET Medical”. All rights reserved. No part of this
publication may be transmitted or copied in any form
whatsoever without the express written permission of
“LET Medical”.
Safety Requirements and
Precautions
Before operating the device, please ensure that you read and
understand the safety requirements and precautions
described below. Always ensure that the device is operated
correctly.

8
Remember that improper use or operation of the device
and non-observance of this User's Guide instructions can
deprive you of the right to warranty service and cause
costly or irreparable damage to the device.
SCENAR-COSMODIC series devices should be used, operated
and stored at nominal temperatures of +10ºС (50ºF) to +35ºС
(95ºF) and relative humidity to 80% at +25ºС (77ºF).
SCENAR-COSMODIC series devices refer to Group 2 of GOST R
50444 for exposure to mechanical damages; to Class V of
GOST R 50444 for failure effects; to Class V of GOST R 50444
and RD 50-707 for reliability. The devices meet the electric
safety requirements of GOST R 50267.0 for medical electrical
equipment with internal power supply, type BF. The devices
comply with GOST R 50267.0 and GOST R 51318.11 for
electromagnetic compatibility.
Using Applications, Attachments and
Accessories
SCENAR-COSMODIC series devices are designed to perform
optimally when used with genuine “LET Medical” brand
applications, attachments and accessories.
For more details about purchasing the original “LET Medical”
applications, attachments and accessories for SCENAR-
COSMODIC series devices contact your distributor or visit the
official web-site of “LET Medical” www.scenar.ru/en/
Operating the Device
Store the device out of the reach of children. Misuse or
accidental damage to the batteries could result in serious
injury and cause malfunction of the device.

9
Do not attempt to disassemble or alter the whole device or
any part of it, or the batteries. Disassembly or alteration may
result in irreparable damage to the device or cause short
circuit and fire. All internal inspections, alterations and repairs
should be only conducted by qualified service personnel
authorized by “LET Medical”.
Do not use mains supply source as power supply for the
device!
Do not touch the electrodes with your hands or other
sensitive parts of the body when using maximum energy
level.
Never touch internal portions of the device that become
exposed as a result of damage. This may destroy some
functions or the whole device.
Stop operating the device and remove the batteries
immediately if it emits smoke or noxious fumes. Failure to do
so may result in fire. Confirm that smoke or fume emissions
have ceased.
Be careful not to drop or bang the device or subject it to
mechanical impacts, shocks, or load. Do not place heavy
items on it. Stop operating the device and remove the
batteries immediately if it is dropped or its casing is damaged.

10

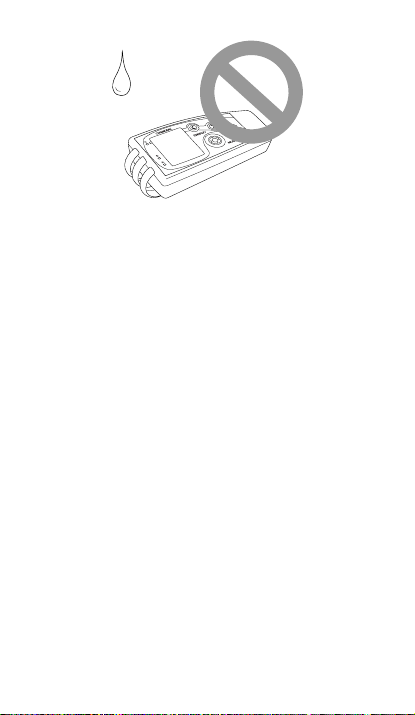

Do not touch the device with wet or moist hands or other
parts of the body. Do not allow the device to come in contact
with, or become immersed in, water or other liquids. Do not
allow the liquids to enter the interior. If water or other foreign
substances enter the interior, immediately stop operating the
device and remove the batteries. Continued use of the device
may result in fire and cause damage to the device.
Do not operate the device in close proximity to sources of
strong electromagnetic, UHF, vibration and other fields. This
may cause mistuning, malfunctions or destroy the device.
It is not recommended to use the device in close proximity to
sensitive electronics, cellular phones and other equipment.
The device may produce noise or cause mistuning and
malfunction of such equipment.

11
Do not use, leave or store the device in places subject to
strong sunlight or high temperature. Exposure to intense
sunlight and heat may lead to deformation of the casing or
cause the batteries to overheat resulting in fire.
Do not store the device in humid or dusty areas.
Do not use substances containing benzene, thinners, acetone
and other flammable and solvent substances to clean the
casing and electrodes.
Do not deform the electrodes and elements of the plastic
casing.
Avoid condensation (water droplets) formed on the surface of
the device. This may cause malfunction or damage to the
device. Moving the device rapidly between cold and hot
temperatures may cause condensation to form on its external
and internal surfaces. You can avoid this by placing the
device in warm cloth and letting it adjust to temperature
changes slowly (over 2 or 3 hours) before removing it from
the cloth.
Stop using the device and remove the batteries immediately
if you detect condensation. Continued use may damage the

12
device. You can only resume using the device after the
moisture evaporates completely.
Using the Batteries
We recommend using AAA type rechargeable batteries or
AAA type alkaline batteries, as power source for the device.
Do not use saline batteries as a power source for the device!
Do not place the batteries near a heat source or expose them
to direct flame or heat. Avoid placing them in places subject
to direct sunlight or high temperatures.
Do not immerse the batteries in water.
Do not attempt to disassemble, alter or apply heat to the
batteries. There is serious risk of injury due to overheating.
Immediately flush with water any area of the body – including
the eyes and mouth, or clothing – that comes in contact with
the inner contents of a battery. If the eyes or mouth contact
these substances, immediately flush with plenty of water and
seek medical assistance.
Avoid dropping or subjecting the batteries to severe impacts
that could damage the casings.
Do not short-circuit the battery terminals with metallic
objects, such as key holders. Cover the terminals with tape or
other insulators, or use a case to transport or store the
batteries.
Before you discard a battery, cover the
terminals with tape or other insulators to
prevent direct contact with other objects.
Contact with the metallic components of
other materials or liquids in waste containers may lead to fire.

13
Discard the batteries in specialized waste facilities if available
in your area
To charge the rechargeable batteries, use only the battery
charger specified by the manufacturer.
Checking the Contents
Model EX715Ag:
Device
User’s Guide
Quick Start
Install the batteries into the battery section of the device.
Be sure you observe the polarity!
Switch the device on. To switch the device on
press and release the “ON/OFF” button.
The device will switch on automatically, if you place the
electrodes on the skin.
Make preliminary analysis.
Select the action mode.

14
Set the action energy level manually if
necessary.
Switch the device off when you finish the
procedure with “ON/OFF’ button.
The device will switch off automatically if it is not in use for
approximately 2 minutes.
Components Guide
Electrodes
Model EX715Ag employs a new technology of manufacturing
of removable electrodes. The electrodes are made of silver of
the 925th standard, which preserves the natural structure of
silver. This provides additional healing effect and better
penetration of the acting signal during treatment.

15
Indication
Graphic gray-shade OLED display shows action modes, action
energy, activity of the area being acted upon, dosage, time of
action upon the certain area and full time of action, menu,
and battery charge level. Additional LED and sound
indication allows you to evaluate if the area you have chosen
for action is the appropriate one, activation of dynamic
adaptation block and proper contact of the electrodes with
skin.
Control
You can operate the device with four buttons. They allow you
to regulate the action energy level, set the necessary action
mode and work with on-screen menu. All other settings are
performed automatically.

16
Casing
The device is encased in “SMART” series casing. Waterproof
keyboard and sealants make disinfection and cleaning of the
device easy. The casing is made of shockproof (3 mm thick)
ABS plastic.
Accessories

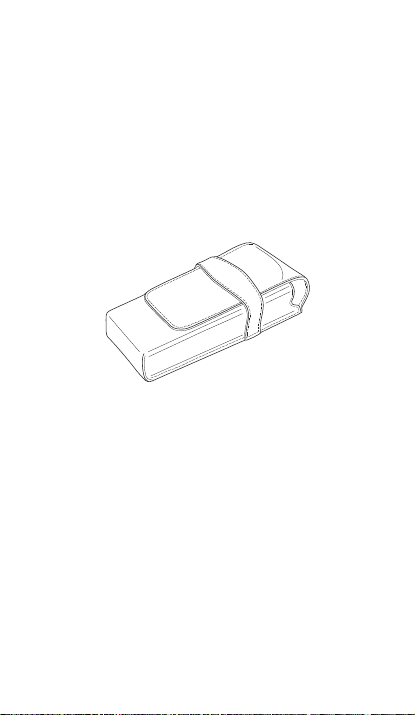

Leather case
The case is made of high-quality genuine leather. It protects
the device from damage, dust and dirt during transportation
and storage.
Gold Electrodes
For model EX715Ag you can additionally order electrodes
made of gold of the 958th or 999.9th standard, hardened and
structured according to special technology. Gold provides the
best conductivity of electrodes which, in its turn, guarantees
deepest and most effective action. Gold is a biologically inert
metal for the human body.
Gold electrodes can be easily installed instead of silver ones.

17

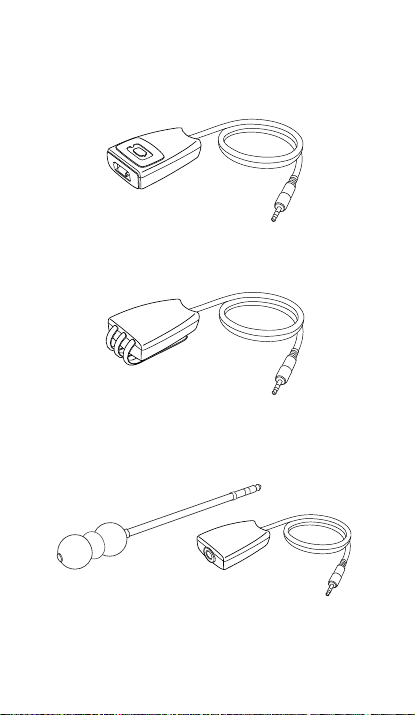

Remote Electrode Probes
You can attach remote electrodes probes to the device.
Remote probe with electrodes made of stainless steel is
intended for action upon small areas.
Remote probe with silver electrodes is mainly used for
treatment of children, especially new-born babies, and for
cosmetic purposes.

18
Remote probe with silver electrodes for vaginal action is used
for treatment of diseases of genital organs and neighbouring
organs and systems.
Remote probe with silver electrodes for rectal action is used
for treatment of diseases of rectum, urogenital system,
pathological conditions of small pelvis, etc.
Arrangement and Operation

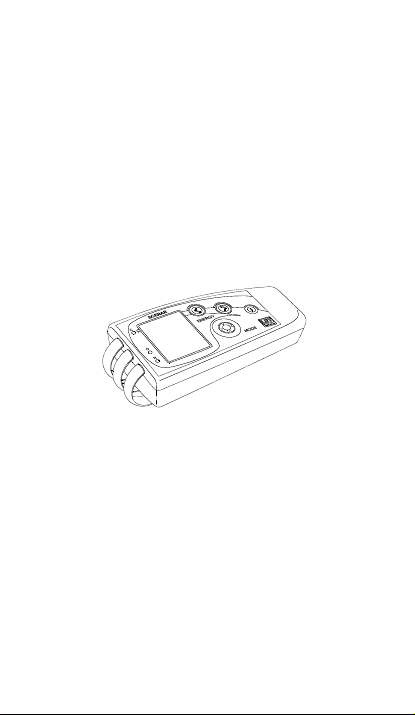

The device consists of a casing and removable electrodes.
Model EX715Ag has a special construction of removable silver
electrodes. It allows taking the electrodes out of the casing
(which makes disinfection and cleaning easier) and replacing
the silver electrodes with gold ones. The rounded part is
convenient for acting upon hard-to-reach or small areas (e.g.
on the face). The flat part on the under side is the main one
for treatment.

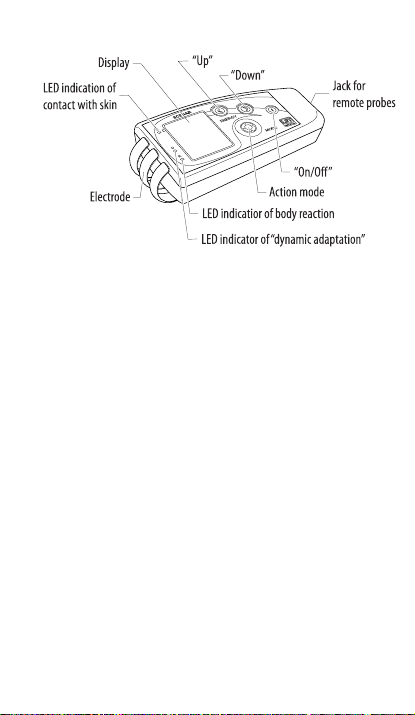

Visual indicators and operating controls are placed on the
upper cover of the plastic casing:

19
A connector allowing attachment of remote electrode probe
is placed at the end of the casing.
Indicators C, D and R
Indicators placed under the keyboard provide additional
monitoring during action. Flashing LEDs make action control
easier if the display of the device is out of sight.
Cis a LED indication of the contact of electrodes with skin. It
lights up when the electrodes touch the skin and is
continuously on until the electrodes are taken off the skin.
The “C” indicator may not light up in some medical cases or
conditions of skin and when acting upon hairy areas of the
body. In this case, moisten the skin or hair with a cotton wool
slightly wet with water.
Dis a LED indication of “dynamic adaptation” mode.
Indicator “D” lights up and is continuously on at activation of
the “dynamic adaptation” mode.

20
The dynamic adaptation block is activated in mode S1. It
allows you to automatically regulate actions and pauses
between actions, without removing the electrodes from skin.
It is necessary for prolonged actions, when eliminating pain,
or when the patient is lying on the electrodes, and in many
other cases.
At activation of the “dynamic adaptation” mode, indicator “D”
lights up and is continuously on while the “C” indicator is
alternately going “on” and “off”. The “C” indicator going “on”
means action and going “off” means pause between actions.
This function is completely automated.
Ris a LED indication of body reaction. Frequency of flashing is
proportional to the body reaction.
During treatment indicator “R” provides additional indication
allowing you to control the action.
Getting Started
Power Supply
The device can only operate on two rechargeable batteries
(size AAA) or two alkaline batteries (size AAA).
Using Ni-Cd rechargeable batteries or saline batteries is not
recommended.
It is recommended to use Ni-MH rechargeable batteries (size
AAA) or alkaline galvanic cells (size АAА).
Do not attempt to use any external power sources, line
supplies or other power sources except those types of
batteries which are recommended in this User’s Guide!
