Schacht Wolf Stroller User manual

Wolf Stroller
Assembly InstructIons
15 100 100 10 67 49 36 0 42 5 92 4
38 37 94 24 0 76 81 31 90 7 0 36
3 66 100 9 49 24 0 70 0 42 59 49
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 f. 303.447.9273
© 2011 Schacht Spindle Company, Inc. 03.11
open - ready to weavefolded - ready to travel

– 2 – – 3 –
Wolf Stroller
Assembly InstructIons
Please read all instructions before
starting.
PARTS LIST
4 – caster blocks with casters
2 – stroller support bars
4 – ¼" x 3" trusshead Phillips
machine screw
4 – ¼" x 2 ¼" carriage bolts
2 – ¼" x 1 ½" hex bolts
2 – ¼" x 1 ¾" hex bolts
8 – ¼" washers
8 – ¼" lock nuts
2 – ¼" wing nuts
1. Install the wolf stroller on a hard sur-
face. Open the loom to weaving position
(see front cover illustration). When you
are working on the front caster blocks
set the treadle bar on a block of wood or
a couple of books to raise the front of the
loom about two inches. Set the wood block
under the rear leg brace when you are
working on the back caster blocks.
2. Install the stroller caster blocks to the
front legs and the treadle bar. Locate the
trusshead bolt (B) that attaches the front
TOOLS
Phillips screwdriver
at screwdriver
rubber mallet or hammer
piece of scrap wood
a couple of books
Figure 1
treadle bar
rear brace
barrel nut barrel nut
HH
B
B
leg to the treadle bar on the outside of the
leg 1” from the bottom (gure 1). Remove
the bolt from the leg. The barrel nut that
held the bolt slips out of the underside of
the treadle bar. Discard the bolt and keep
the barrel nut. Set a caster block on the
outside of the leg, with the caster wheel
toward the front and the oor. Line up the
hole (C) at the bottom of the block to the
hole (B) in the leg and insert a new 3”
machine screw though the caster block
and the leg into the treadle bar (gures 1
front leg on
right side of loom
rear leg on
right side of loom
For Baby Wolf looms with
serial numbers lower than
4-1608, 4-4-1609, and 8-546,
you will need to drill holes in
the front and rear legs using
the template on the last page.

– 2 – – 3 –
and 2). Using a at screwdriver to hold the
barrel nut in place, tighten the bolt into
the barrel nut. Repeat for the other front
caster block.
3. Install the caster blocks to the back legs
and the rear leg brace. Remove the truss-
head bolt (B) from the back leg and the
rear leg brace. This time you will install
the caster block with the new 3” machine
screw through the center hole (D) in
gure 3. Tighten the bolt rmly into the
barrel nut. Repeat for the other rear leg.
4. Attach the top of each of the four
casters to the loom legs. Put a 2 ¼"
carriage bolt through the hole (H) in
the leg from the inside, then through
the top hole (A) in the caster block.
Tap the carriage bolt into the loom leg
using a rubber mallet or hammer and
a piece of scrap wood. Place a washer
and a lock nut on the carriage bolt and
tighten the lock nut enough to draw
the head of the carriage bolt into the
wood of the leg (gures 2 and 3). Note:
When installing the caster block on the right
front leg, depress the brake release pedal,
or undo the brake release cord from the
pedal, to allow easier access to the hole (H).
Repeat for the other three caster blocks. If
you detached the brake release cord from
the pedal, reattach it.
5. Attach the bolt to hold the front of the
metal support bar when the loom is folded.
From the inside of the loom insert a 1 ¾"
hex bolt through the hole (G) in the front
caster block. Secure the hex bolt with a
washer and a lock nut. Place a ¼” wing nut
on the bolt (gure 2). Repeat Step 5 for
the other front caster block.
6. Attach the metal support bar to the
rear caster block. From the inside of the
loom insert a 1 ½" hex bolt through the
hole (G) in the rear caster block. Place a
washer on the bolt and then place the cir-
cular hole at the end of the metal support

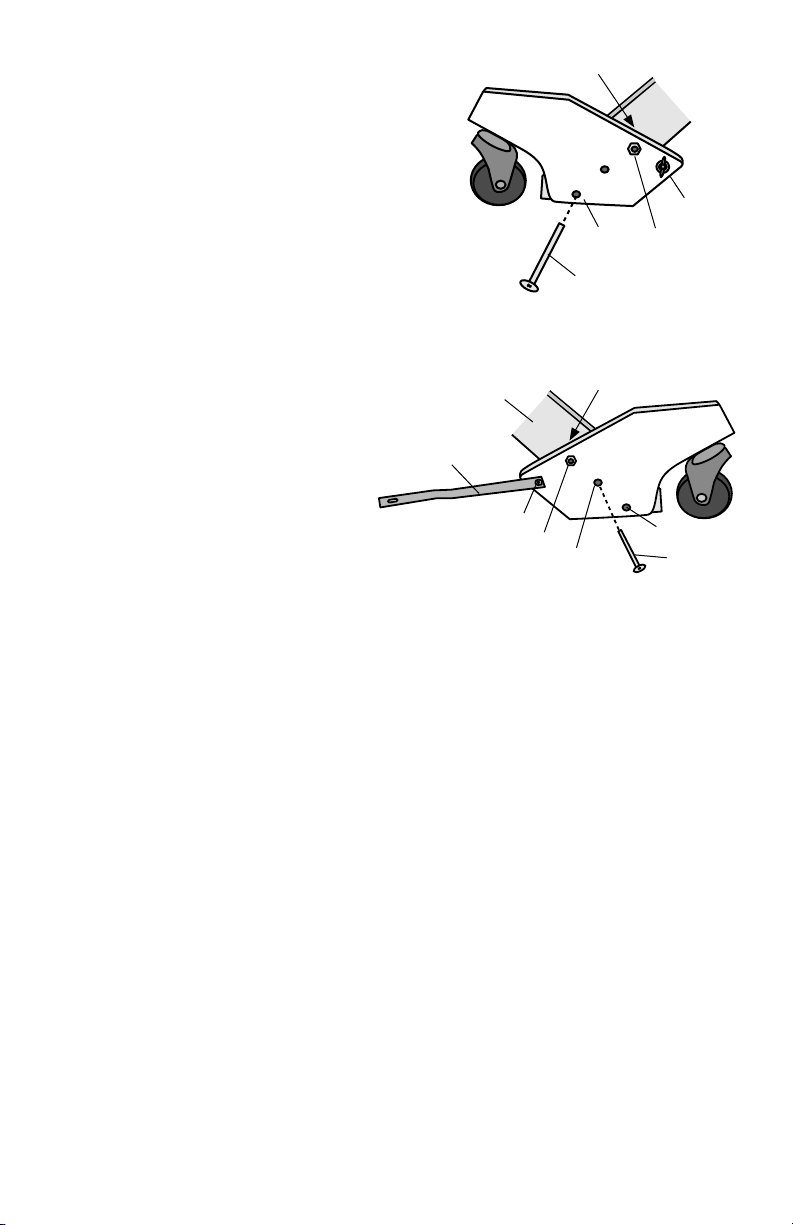

Figure 2
H (on the leg)
A
C
G
3" machine screw
Figure 3
H (on the leg)
AC
3" machine
screw
D
G
stroller support bar
loom leg
bar (S) over the bolt so that the jog in the
bar points inward. Secure with a lock nut.
Tighten the lock nut, allowing the support
bar to pivot (gure 3). Repeat for the other
rear caster block.
7. Using the stroller. Fold the loom.
Tighten the fold-up knobs and secure the
slide lock bars to prevent the loom from
opening. You will notice that the loom is
now sitting on its stroller wheels. Remove
the wing nut from the bolt at (G) on the
front caster blocks. Place the slots at the
front end of each metal support bar over
these bolts, replace the wing nuts and
tighten.
Your Wolf loom is now ready to travel. •

– 4 – – PB –
DRILLING GUIDE TEMPLATE
Use a 1/4” drill bit.
For Baby Wolf looms with serial numbers
lower than 4-1608, 4-4-1609, and 8-546, you
will need to drill holes in the front and rear
legs using this template.
