0 Instruction Manual Electrobloc EBL 225
Instruction manual
Electrobloc EBL 225
Type no. 911.570
Table of contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3 Description and appropriate use . . . . . . . . . . . . . . . . . . . . . . . . . .4
4 Suitable accessories (not supplied) . . . . . . . . . . . . . . . . . . . . . . . .5
5 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
7 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
8 Shutting down the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
9 Changing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
10 Technical faults, possible causes and remedies . . . . . . . . . . . . . .9
11 Customer service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
12 Block diagram - for specialist workshop only. . . . . . . . . . . . . . . .12
13 Fault report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

2Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
1 Introduction
This instruction manual contains important information for safe operation of
the Electrobloc. It is essential to read and to follow the given safety informa-
tion.
The instruction manual should always be kept in the motorhome/caravan. All
safety information must be passed on to other users.
The reproduction, translation and duplication of this manual, even in parts, is
not allowed without written authorization.
2 Safety information
The design of the Electrobloc is state-of-the-art and according to approved
safety technology. Nevertheless, if the safety information in this instruction
manual is not closely followed, persons might get injured or the Electrobloc
might be damaged.
Do not use the Electrobloc if it is not in technically good order and condition.
The instruction manual must be followed.
Any technical faults affecting the safety of persons or of the Electrobloc must
be dealt with immediately by qualified personnel.
W Failure to comply with this sign may lead to the endangerment of per-
sons.
W Failure to comply with this sign may damage the device or the connected
consumers.
W This sign indicates recommendations or special features.
W The electrical system of the motorhome or the caravan has to meet
current DIN, VDE and ISO regulations. Manipulations of the electrical
system will endanger the safety of persons and the vehicle, and are
therefore prohibited.
W Never make any modifications to the Electrobloc.
W The electrical connection may only be established by qualified person-
nel and must be carried out according to the Schaudt installation
instructions.
W Connection work is to be carried out in tensionless condition only.
W Risk of fatal injury due to electric shock or fire in the case of a defective
mains cable or incorrect connection!
W Risk of fatal injury!
Never perform maintenance on the Electrobloc when it is live.

SDT-0058-00EN Situation: 14.06.2005 3
Instruction Manual Electrobloc EBL 225
W Blown fuses must only be replaced when the cause of the fault is
known and eliminated.
W Never bridge or repair fuses.
W Danger of burning! Blown fuses must only be changed on a zero-cur-
rent Electrobloc.
W Only use original fuses rated as specified in the instruction manual.
W Danger of burning! During operation, the back of the Electrobloc gets
hot. Do not touch.
W Danger of explosion by the formation of detonating gas due to an
incorrectly set battery selector switch, defective batteries, defective
Electrobloc or an excessively high battery working temperature
(above 30 °C)!
W The AES refrigerator fuse may only be used if a AES refrigerator is con-
nected. Otherwise, the living area battery may get totally discharged. Bat-
tery damage is possible.
W An incorrectly set battery selector switch damages the living area battery.
W Disconnect the Electrobloc from the mains before adjusting the battery
selector switch.
W If the living area battery is separated from the Electrobloc using the 12 V
main switch at the control and switch panel, the frost protection valve of
the heater system opens. Water may be lost. For more information, see
the instruction manual of the heater system.
W Before and after shutdown, the living area battery must be fully recharged
to avoid battery damage. For this purpose the vehicle must be connected
to mains supply for a minimum of 12 hours with an 80 Ah battery and
24 hours with a 160 Ah battery.
W Do not operate the Schaudt solar charge regulator without a battery. This
might damage the solar charge regulator or any connected consumers. If
the battery is going to be changed or removed, take off the positive lead
"+ Solar Module" on the solar charge regulator.
W To avoid voltage peaks during warm-up, do not connect the generator until
it is running in a stable manner. Otherwise, the Electrobloc, the 12 V con-
sumers or other connected equipment might get damaged. It is essential
that the generator complies with the mains supply specifications.
W The mains supply on board car ferries might not always be perfect. There-
fore, never connect the Electrobloc to the mains on car ferries. Otherwise,
the Electrobloc, the 12 V consumers or other connected equipment might
get damaged.

4Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
3 Description and appropriate use
The Electrobloc EBL 225 is designed as a main power distributor for
motorhomes. It is a permanent installation. The Electrobloc is for charging
batteries and supplying 12 V appliances with power.
The Electrobloc consists of:
P
The LAS 1218 charger module
P
The 12 V distribution
P
Fuses for the 12 V circuits
P
Other control and monitoring functions
The charger module is a primary controlled switch-mode power supply. This
modern switching technology achieves high charging performance at a com-
pact size and low weight.
A control and switch panel has to be connected for operation. This control and
switch panel controls the electrical functions in the living area of in the
motorhome, including accessories.
There are connections for an auxiliary charging unit and a solar charge regu-
lator.

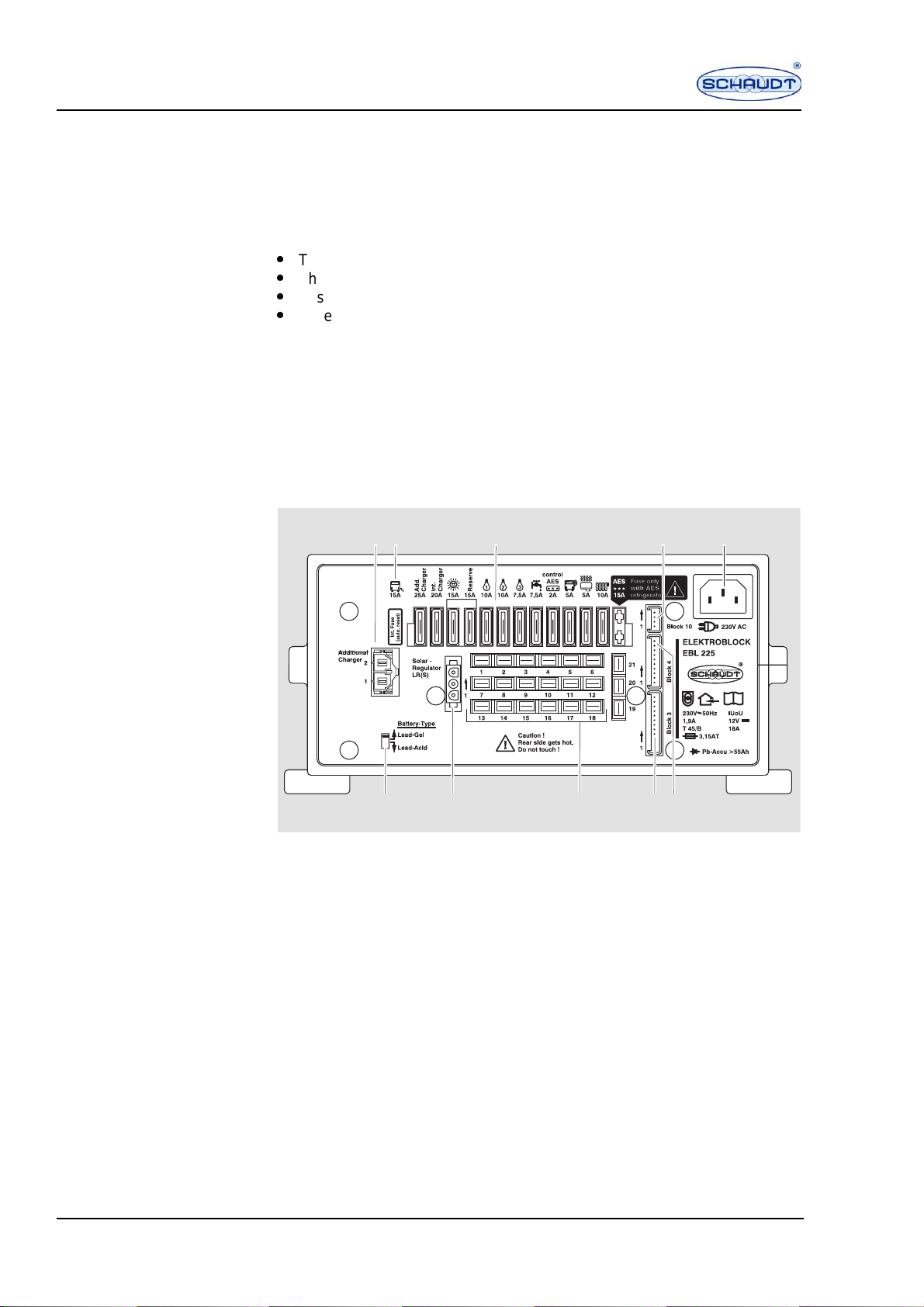

Fig. 1 Electrobloc EBL 225 front view
1 Connections for auxiliary charging unit
2 PolySwitch step alarm fuse
3 Flat vehicle fuses
4 Connections for solar charge regulator (signal)
5 230 V mains connection
6 Connections for control and switch panel
7 Connections for control and switch panel
8 12 V connections
9 Connections for solar charge regulator (output)
10 Battery selector switch
SDT00274
i
1 2 3 5
8910 7 6
4

SDT-0058-00EN Situation: 14.06.2005 5
Instruction Manual Electrobloc EBL 225
4 Suitable accessories (not supplied)
5 Electrical data
6 Operation
6.1 Operating controls
Flat vehicle fuses
The flat vehicle fuses protect the various circuits. This does not apply to the
step.
PolySwitch fuse The "step" output is equipped with a self-resetting PolySwitch fuse.
If there is a fault, e.g. overcurrent, the PolySwitch fuse interrupts the circuit.
After rectifying the fault, the PolySwitch fuse automatically resets after
approx. 1 minute.
The circuit is equipped with a 15 A fuse.
Control and switch panel DT 220, LT 500
Auxiliary charging unit Schaudt battery charging unit type LAS... with up to 18 A charge current
Additional 2-pin charging cable, lengths supplied on request
Solar charge regulator Schaudt solar charge regulator type LR... for solar modules with a total cur-
rent of 14 A incl. 0.5 m cable and plug
Mains connection 230 V AC ±10 %, 47 to 63 Hz sinusoidal, protection class I
Suitable batteries 6-cell lead acid or lead gel batteries of at least 55 Ah
Current-carrying capacity 12 V outputs No more than 90 % of the rated current
of the corresponding fuse may be
drawn, see the block diagram.
W Blown fuses must only be replaced when the cause of the fault is
known and eliminated.
W Never bridge or repair fuses.
W Danger of burning! Blown fuses must only be changed on a zero-cur-
rent Electrobloc.
W Only use original fuses rated as specified in the instruction manual.

6Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
Before putting the unit into
service for the first time
Make sure the living area battery is connected.
Make sure the battery selector switch is set for the correct type of battery.
Make sure the AES fuse is only used if the AES refrigerator is connected.
Starting up the system The system is switched on using the 12 V main switch at the control and
switch panel. Follow the instruction manual of the control and switch panel.
After switching off the system with the battery monitor or after changing
batteries: Switch on the 12 V main switch on the control and switch panel
briefly to start up the consumers.
Battery selector switch
Theswitchingoptionprovidedbythebatteryselectorswitchensuresoptimum
charging of the two different types of battery, lead acid and lead gel. The
switch must be set to the correct battery type: lead acid or lead gel.
Use a thin object (e.g. a ballpoint pen cartridge) to move the battery selector
switch.
Set lead gel battery: Set the battery selector switch to "Lead-Gel".
Set the lead acid battery: Set the battery selector switch to "Lead-Acid".
12 V main switch (on the
control and switch panel) The 12 V main switch on the control and switch panel switches all consumers and the panel on and off.
Exceptions:
P
Heater
P
Step
P
Frost protection valve
P
AES/compressor refrigerator
P
Waste water tank heater
P
Awning light
For more information, see the instruction manual of the control and switch
panel.
W Only press the step switch briefly. The PolySwitch fuse may otherwise trig-
ger and interrupt the circuit.
W Danger of explosion by the formation of detonating gas due to an incor-
rectlyset batteryselector switch, defective batteries, defective Electrob-
loc or an excessively high battery working temperature (more than
30 °C).
W An incorrectly set battery selector switch damages the living area battery.
W Disconnect the Electrobloc from the mains before adjusting the battery
selector switch.

SDT-0058-00EN Situation: 14.06.2005 7
Instruction Manual Electrobloc EBL 225
6.2 Additional functions
Automatic switch function
for AES/compressor
refrigerator
7KLVUHOD\VXSSOLHVWKH$(6FRPSUHVVRUUHIULJHUDWRUZLWKSRZHUIURPWKH
VWDUWHUEDWWHU\ZKHQWKHYHKLFOHHQJLQHLVUXQQLQJDQGWKH'FRQQHFWLRQLV
OLYHAn AES/compressor refrigerator is powered by the living area battery
when the vehicle engine is switched off.
Mains charging of starter
battery This feature provides an automatic float charge for the starter battery at up to 8 A if the 230 V mains is connected to the Electrobloc.
Awning light relay This relay controls the power supply of the awning light. The power supply to
the awning light is automatically interrupted as soon as the engine is running
and the D+ connection is live. The awning light can also be used if the 12 V
power supply is switched off.
Tank heater relay This relay controls the waste water tank heater. The waste water tank heater
is activated at the control and switch panel.
6.3 Battery monitor
Automatic disconnector The battery monitor of the control and switch panel compares the voltage of
the living area battery to a reference voltage. As soon as the battery voltage
falls below 10.5 V, all 12 V consumers are switched off via main switch relays
1 and 2. Only the frost protection valve is still powered. The automatic discon-
nector is not triggered by short-term low voltage (less than 2 seconds),
caused by high current when switching on consumers.
If an overload or an insufficiently charged living area battery causes the volt-
age to fall so low that the automatic disconnector is triggered, any consumers
which are not essential should be switched off.
You may be able to switch on the 12 V power supply for a short time. To do
this, switch on the 12 V main switch on the control and switch panel.
However, if the battery voltage remains below 11.0 V, you cannot switch the
12 V power supply back on.
Fully charge up the living area battery as soon as possible.
7 Maintenance
The Electrobloc requires no maintenance.
Cleaning Clean the Electrobloc with a soft, slightly damp cloth and mild detergent.
Never use spirit, thinners or similar substances.
Do not allow fluid to penetrate the inside of the Electrobloc.

8Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
8 Shutting down the system
The system has a battery separation unit that completely switches off the liv-
ing area battery. The separation of the batteries is activated with the control
and switch panel.
Switch off the system if you are not going to use the motorhome for a lengthy
period (for example during the winter).
Shutting down the system
for up to 6 months Fully charge up the living area battery before shutting down the system. The living area battery is then protected against total discharge. This applies only
if the battery is intact. Follow the instructions of the battery manufacturer. The
shut down system requires approx. 4 Ah a month.
Shutting down the system
for more than 6 months Fully charge up the living area battery and remove the connecting terminals on the battery poles. The battery alarm is then no longer active.
Activating battery
separation Carry out the following work steps in the correct order:
1. Switch off the 12 V main switch on the control and switch panel.
2. Press the "Battery" switch on the control and switch panel for more than
10 seconds. Follow the instruction manual of the control and switch panel.
After shutting down Press the 12 V main switch on the control and switch panel for more than
5 seconds to deactivate battery separation. For more information, see the
instruction manual for the control and switch panel.
9 Changing the battery
Prior to changing batteries, switch off the 12 V main switch on the control and
switch panel.
Only use batteries of the same type and capacity and those installed by the
manufacturer.
You can change from lead acid to lead gel batteries.
W Before and after shutdown, the living area battery must be fully recharged
to avoid battery damage. For this purpose the vehicle must be connected
to mains supply for a minimum of 12 hours with an 80 Ah battery and
24 hours with a 160 Ah battery.
W If battery separation is activated, the frost protection valve on the heater
system opens. Water may be lost. For more information, see the instruc-
tion manual of the heater system.
W Batteries may only be changed by qualified personnel.
W Follow the instructions of the battery manufacturer.
W Charging unsuitable types of battery may irreparably damage them.
W Only use the Electrobloc for connecting the 12 V power supply to 6-cell
lead gel or lead acid batteries.
W Do not operate the Schaudt solar charge regulator without a battery. This
might damage the solar charge regulator or any connected consumers. If
the battery is going to be changed or removed, take off the positive lead
"+ Solar Module" on the solar charge regulator.

SDT-0058-00EN Situation: 14.06.2005 9
Instruction Manual Electrobloc EBL 225
You cannot change from lead gel to lead acid batteries. Ask your dealer for
advice.
The switching option provided by the battery selector switch ensures optimum
charging of the two different types of battery, lead acid and lead gel. The
switch must be set to the correct battery type: lead acid or lead gel.
Use a thin object (e.g. a ballpoint pen cartridge) to move the battery selector
switch.
Set lead gel battery: Set the battery selector switch to "Lead-Gel".
Set the lead acid battery: Set the battery selector switch to "Lead-Acid".
Starting up the system After changing batteries: Switch on the 12 V main switch on the control
and switch panel briefly to start up the consumers.
10 Technical faults, possible causes and remedies
If you are unable to solve a fault using the following tables, please contact our
customer service address.
If this is not possible, e.g. if you are abroad, you can have the Electrobloc
repaired at a specialist workshop.
Inexpert repairs invalidate the guarantee for the Electrobloc and Schaudt
GmbH takes no liability for any resulting damage.
W Danger of explosion from formation of detonating gas due to an incor-
rectly set battery selector switch, defective batteries, defective Electro-
bloc or an excessively high battery working temperature (more than
30 °C).
W An incorrectly set battery selector switch damages the living area battery.
W Disconnect the Electrobloc from the mains before adjusting the battery
selector switch.
Fault Possible cause Remedy
Living area battery is not
charged during 230 V
operation (battery voltage
constantly below 13.3 V)
No mains voltage Switch on the automatic
fuse in the vehicle
Have the mains voltage
checked
Defective Electrobloc Call customer service
Living area battery is over-
charged during 230 V
operation (battery voltage
constantly above 14.5 V)
Defective Electrobloc Call customer service
Starter battery is not
charged during 230 V
operation (battery voltage
constantly below 13.0 V)
No mains voltage Switch on the automatic
fuse in the vehicle
Have the mains voltage
checked
Defective Electrobloc Call customer service

10 Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
Living area battery is not
charged during mobile
operation (battery voltage
below 13.0 V)
Defective alternator Have the alternator
checked
No voltage at D+ input Have the fuse and wiring
checked
Defective Electrobloc Call customer service
The living area battery is
overchargedduringmobile
operation (battery voltage
constantly above 14.3 V)
Defective alternator Have the alternator
checked
The refrigerator does not
work during mobile opera-
tion
No power supply to the
refrigerator Have the fuse and wiring checked
Defective Electrobloc Call customer service
Defective refrigerator Have the refrigerator
checked
Solar charger does not
work (power supply and
engine are off)
Solar charge regulator not
plugged in Plug in the solar charge regulator
Defective fuse or wiring Have the fuse and wiring
checked
Defective solar charge reg-
ulator Have the solar charge reg- ulator checked
12 V power supply in the
living area does not work 12 V main switch for theliv- ing area battery is
switched off
Switch on the 12 V main
switch for the living area
battery
Defective fuse or wiring Have the fuse and wiring
checked
Defective Electrobloc Call customer service
System shut down Start up the system
Fault Possible cause Remedy
W If the device becomes too hot due to excessive ambient temperature or
lackof ventilation,thechargingcurrentisautomaticallyreduced.However,
always prevent the device from overheating.
W If the automatic shutdown mechanism of the battery monitor is triggered,
fully charge up the living area battery.

SDT-0058-00EN Situation: 14.06.2005 11
Instruction Manual Electrobloc EBL 225
11 Customer service
Customer service address Schaudt GmbH, Elektrotechnik & Apparatebau
Daimlerstraße 5
88677 Markdorf
Germany
Phone: [phone]
Email: [e-mail]
Sending in the device Returning a defective device:
Always use well-padded packaging.
Fill in and enclose the fault report, see section 13.
Send it to the addressee delivered free.
Disposal instruction When theproductservicelifeisover,disposeofthedeviceinaccordance with
the applicable regulations.
Opening hours Mon to Thu
Fri 8 to 12 a.m., 1 to 4 p.m. 8 to 12 a.m.

12 Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
12 Block diagram - for specialist workshop only
Fig. 2 Block diagram of Electrobloc EBL 225
16-3
14-1
14-2
13-2
13-1
13-3
13-6
15-6
15-4
15-1
15-2
15-5
13-4
14-3
14-5
13-5
14-6
16-1
16-2
15-3
14-4
10
9
8
5
8
9
10
5
2
4
1
3
7
6
R
3
B
2
B
C
C
9
2A
B
4
5A
17
60A E
A
11
22
25A
9
12
3
4
8
1
2
5
10
6
7
11
12
9
1
2
3
4
3
2
1
15A
1
2
3
1
2
3
4
7
6
4
1
7,5A
60A
60A
A1
A2
A3
E20-3F
771.535
S 1218-2
A9
A7
A5
A17
A6
A16
A1
A2
A7
A30
771.534
A9
LAS 1218-3
14,3V-18A
A13A6
+
21
2
7
8
1
6
16
13
14
5
11
3
18
12
19
20
15
10
R
20A
3
4
8
1
2
5
10
6
7
11
60A
2A
2A
A
A
E
15A
5A
10A
10A
15A
10A
15A
7,5A
A
A24A8
60A
15A
SDT00275
6ZLWFKEHWZHHQ
OHDGJHOOHDG
DFLGEDWWHU\
0ROH[0LQLILW65[
0DLQV9a+]
VRF HW %ORF 
&KDUJLQJUHOD\%
,QW
&KDUJHU $X[LOLDU\FKDUJLQJXQLW
1HJDWLYHDX[LOLDU\FKDUJLQJXQLW
%DWWHU\FXW
RIIUHOD\
7KHQHJDWLYHSROHRIWKHOLYLQJ
DUHDEDWWHU\PXVWEHFRQQHFWHG
H[WHUQDOO\WRWKHQHJDWLYHSROHRI
WKHVWDUWHUEDWWHU\
6%
6KXQW /$%
1HJDWLYH
/$%
'%RRVWHU 'EDVH
'LQSXW
/$%VHQVRU
01/VRF HWFDS[ 1HJDWLYHVHQVRU/$%
%ORF  )URVWSURWHFWLRQYDOYH
KHDWHUV\VWHP
6FKDXGW
VRODU
FKDUJH
UHJXODWRU
W\SH/5
ZLWK
FRQQHFWLRQ
FDEOH
/$% 1HJDWLYHVHQVRU/$%
6% 6%
1HJDWLYH 6KXQWEDWWHU\
6KXQWFRQVXPHU
6LJQDO/$% /$%VHQVRU
06UHOD\
6LJQDO6% 0DLQVLQGLFDWRU
06UHOD\2Q
0RGXOH
06 06UHOD\2II
06UHOD\2Q
6RODUPRGXOH 06UHOD\2II
06UHOD\
/XPEHUJ06)42[ /LJKWLQJ
%ORF  1HJDWLYHOLJKWLQJ
/XPEHUJ06)42[ /XPEHUJ06)42[
DWEORF FRQWUROSDQHO DWEORF FRQWUROSDQHO
6LJQDOVRODU6%
6LJQDOVRODU/$%
:DVWHZDWHUWDQ KHDWHU 3OXJFRQQHFWRU/)3$
' [
:DVWHZDWHU
WDQ KHDWHU
)URVWSURWHFWLRQYDOYH
3XPS :DVWHZDWHUWDQ KHDWHU
QF 5HIULJHUDWRUFRQWURO
QF 5HIULJHUDWRU 'EDVH
QF 6ZLWFKLQJVWDJH 1HJDWLYH6%IRUUHIULJHUDWRU
QF 1HJDWLYHUHIULJHUDWRU
5HIULJHUDWRU
,PSRUWDQW
7KHIXVHLVRQO\XVHGIRUWKH$(6
UHIULJHUDWRU 6%IRUUHIULJHUDWRU
$ZQLQJOLJKW
 /$% OLYLQJDUHDEDWWHU\
6% VWDUWHUEDWWHU\ $ZQLQJOLJKW
+HDWHU
&RQQHFWHGQHJDWLYHSROHRISXPS
6ZLWFKLQJVWDJH 3XPS
/LJKW
/LJKW
6SDUH
/LJKW
6WHS
&LUFXLWERDUG.3/(%/
7\SHQR 3RO\6ZLWFK

SDT-0058-00EN Situation: 14.06.2005 13
Instruction Manual Electrobloc EBL 225
13 Fault report
In the event of damage, please return the defective device together with the
completed fault report.
There is the following defect:
(please tick)
Other remarks:
Device type:
Type no.: EBL 225 911.570
Battery not
being charged
during power
operation
Battery not
being charged
during mobile
operation
The following
electrical con-
sumers do not
work:
Malfunction of
control and
switch panel Tank Voltage Current
Constant fault
Temporary
fault/loose con-
tact

14 Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
