Schenker GM5MG0O User manual

User Manual
GM5MG0O
GM5TG0O
GM5TGFO
GM5TGEO
GM5TG5O

Notice
The information in this user’s manual is protected by copyright
laws, all parts of this manual, including the products and software
described in it, can not be reproduced, transmitted, transcribed,
stored in a retrieval system, nor translated into any language.
THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE
FOR ERRORS OR OMISSIONS CONTAINED IN THIS MANUAL
AND SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
DAMAGES,WHICH MAY RESULT FROM THE PERFORMANCE
OR USE OF THIS MANUAL.
The illustrations in this user’s manual are for reference only.
Actual product specifications may vary with territories.
The information in this user’s manual is subject to change without
notice.

TABLE OF CONTENTS
Notice
...................................................................................................... 2
Preface
.................................................................................................... 5
1.1 Regulations
Information..................................................................... 6
1.2 Safety Instructions
........................................................................... 10
1.3 Conventions for this Manual
............................................................. 11
1.4 Release History
............................................................................... 12
Getting to know the basics
.................................................................... 13
2.1 Product
Specification....................................................................... 14
2.2 Preparing your Computer
............................................................... 18
2.3 Product Overview
........................................................................... 19
Getting started
....................................................................................... 28
3.1 AC Adapter
...................................................................................... 29
3.2 Knowing the Keyboard
.................................................................... 30
3.2.1 For keyboard
users....................................................................... 31
3.3 Using the touchpad /
clickpad.......................................................... 34
BIOS setup
............................................................................................ 35

4.1 About BIOS Setup
........................................................................... 35
4.1.1 When to Use BIOS Setup
.......................................................... 35
4.1.2 How to Run BIOS Setup
............................................................ 35
4.2 BIOS Setup
Menu............................................................................ 37
4.2.1 Main
Menu.................................................................................... 38
4.2.2 Advanced Menu
........................................................................... 40
4.2.3 Security
Menu............................................................................... 42
4.2.4 Boot Menu
.................................................................................... 43
4.2.5 Exit
Menu...................................................................................... 45

English
Notebook Manual
5
Chapter 1
Preface

English
6
Notebook Manual
1.1 Regulations
Information
¤ CE compliance
This device is classed as a technical information equipment (ITE) in class B
and is intended for use in living room and office. The CE-mark approves the
conformity by the EU-guidelines:
- EMC Directive 2014/30/EU,
- Low Voltage Directive 2014/35/EU(equals A2 : 2013) ,
- RF Directive 2014/53/EU
SAR/DAS refers to the rate at which the body absorbs RF
energy. The SAR limit set by the ICNIRP Guidelines is 2.0
W/kg(10g). Testing for SAR is conducted using standard
operating positions accepted by the EN standard.
During testing, the radio is set to its highest transmission levels
and placed in positions that simulate use against the body.
This product is compliant with ICNIRP Guidelines with respect
to Electromagnetic Fields (EMF) which specifies a Specific
Absorption Rate (SAR) limit of 2W/kg. DAS*/SAR: 0.38W/kg
(corps/body)

English
Notebook Manual
7
Rechargeable Battery Notice
Do not
1. Throw into fire or a hot oven, or mechanically crush or cutting of a BATTERY
2.Throw or immerse into water
3.Heat to more than 60°C
4.Repaire or disassemble
5.Leave in an extremely low air pressure environment
6.Leave in an extremely high-temperature environment
A power cord is connected to a socket-outlet with earthing connection.
The unit can be operated at an ambient temperature of max. 35°C (95°F). Do not
subject it to temperatures below 5°C (41°F) or above 40°C (104 °F).
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN
INCORRECT TYPE DISPOSE OF USED BATTERIESACCORDING
TO THE INSTRUCTIONS.
PREVENTION OF HEARING LOSS
CAUTION: Listening to music at high volume levels and for extended
durations can damage one’s hearing. In order to reduce the risk
of damage to hearing, one should lower the volume to a safe,
comfortable level, and reduce the amount of time listening at high
levels. Headsets should comply with EN 50332-2 requirements.

English
8
Notebook Manual
FCC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a
Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guar-
antee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving
antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the
receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for
help.
CAUTION: Any changes or modifications not expressly approved
by the grantee of this device could void the user's
authority to operate the equipment.

English
Notebook Manual
9
RF Exposure Information(SAR)
This device meets the government’s requirements for exposure to
radio waves.
This device is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal Commu-
nications Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the
Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for
SAR are conducted using standard operating positions accepted by the FCC
with the EUT transmitting at the specified power level in different channels.
The FCC has granted an Equipment Authorization for this device with all
re-
ported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this device is on file with the FCC and can
be found under the Display Grant section of www.fcc.gov/eot/ea/fccid after
searching on FCC ID: 2AKHFAX201NG .
This device complies with Part 15 of the FCC Rules. Operation is subject
to
the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference received, including
interference
that may cause undesired operation.
CAUTION: Any changes or modifications not expressly approved
by the grantee of this device could void the user's
authority to operate the equipment.

English
10
Notebook Manual

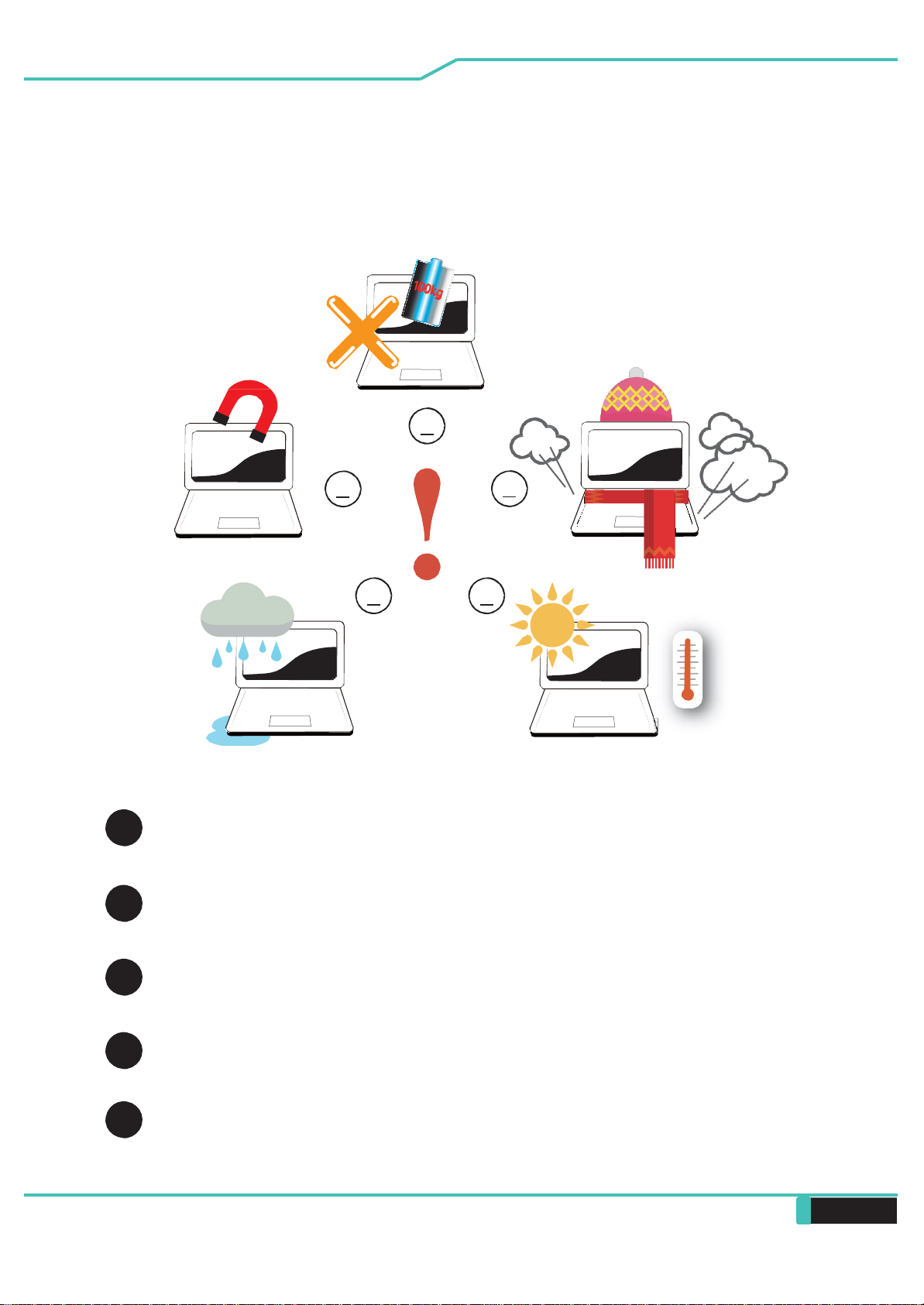

1.2 Safety Instructions
1
5 2
4 3
Do not apply heavy pressure to the computer or subject it to any form of
1 strong impact as this can damage the computer's components or otherwise
cause it to malfunction.
2 Never cover or block the air vents including those located at the base of the
computer. Never cover your computer or AC adapter with any object.
3 To keep your computer in prime operating condition, protect your work area
from direct sunlight.
4 Do NOT expose to or use near liquid, rain, or moisture.
Do NOT use the modem during electrical storms.
5 Do not use or expose this device around magnetic fields as magnetic
interference may affect the performance of the device.

English
Notebook Manual
11
1.3 Conventions for this Manual
CAUTION : This message contains important information that must
be followed for safe operation.
NOTE : This message contains information for special situations.

English
12
Notebook Manual
1.4 Release History
Version Date Revision
1.0 11/2020 Initial release

English
Notebook Manual
13
Chapter 2
Getting to know the basics

English
14
Notebook Manual
2.1 Product Specification
This User’s Manual provides technical information of instructions
and illustrations on how to operate this notebook for the customer.
Please read this manual carefully before using this notebook.
・Physical Characteristic
Dimension
360*243*23 mm
2.1 kg +/- 5%
・CPU
Support Processor
CML-H
・GPU
Support Processor
NVIDIA GN20-E3,192bits
・Memory
RAM
DDR4 2933MHz
・Display
LCD
15.6’’ FHD or QHD 16:9 (Narrow),
FHD ,1920x1080 ; QHD, 2560x1440

English
Notebook Manual
15
・I/O Port
DC-in
USB
RJ45
HDMI 2.1
Audio out & Mic in
Card reader
x 1
USB Type A @Right side x2:
USB 3.1 (Gen1) X2 (Power off mode support USB power,
but w/o bc1.2 protocol )
USB Type A @Left side x1:
USB 2.0 X1 (Power off mode support USB power,
but w/o bc1.2 protocol )
USB Type C x1 @Rear side x1
USB 3.1 Gen2 + DP (Power off mode support USB power,
but w/o bc1.2 protocol )
x 1
x 1
x 2
x 1
USB2.0 interface
-SD/SDHC/SDXC, UHS-50 speed
-Connecter: Full SD size
・Audio
Audio Codec Realtek ALC274CG / AMP: Realtek ALC1306-CGT
*Azalia standard support
*D3 mode support
*Smart AMP support
Speaker/MIC
*Build-in 2 speakers
*Speaker : 2W/each
*Digitial Microphone support

English
16
Notebook Manual
・Input
Keyboard
Memrane single zone RGB backlight support, 340*109.2*3.6mm
Pointing Device
TDA1470 (114.5*70*0.8mm)
TP mylar
Enable/Disable area :10mmx10mm
Palm Rejection:Support
Controller IC change to 1836, support Windows update
・Communication Port
LAN
*Supports 10/100/1000/2500 Mb/sec
*PCI-E interface
*Power Down Mode D1~D3 support
*PCIe ASPM L1.1, L1.2 support
*UI for network package management
Wireless LAN +BT
*M.2 2230 w/ CNVi interface, Intel WiFi6 AX201
IEEE802.11AX mode support
*M.2 2230 w/ CNVi interface, Intel 9 series WiFi 9462
IEEE802.11AC mode support (for China only)

English
Notebook Manual
17
・Webcam
Infrared capability for facial reconition camera
IR webcam with D-MIC*2
HD webcam with D-MIC*1, Location:TOP side
・Power
AC Adapter
Automatics Voltage adjustment between 100 and 240VAC 50/60Hz,
180 Watts (19.5V/9.23A), 3 Pins
Battery
Li- polymer Battery, SW Gas Gauge IC, soft pack,
3 cells (3S1P 4100mAh) 46.74 Wh
4 cells (4S1P 4100mAh) 62.32 Wh
CAUTION: MODEL IS DESIGNED TO USE WITH THE
DC INPUT: 180 Watts (19.5V/9.23A),

English
18
Notebook Manual
2.2 Preparing your Computer
A Connect the AC adapter’s DC output plug to the DC IN jack.
B The display panel can be opened to a wide range of angles for
optimal viewing.
C Press the power button to turn on your notebook computer.

English
Notebook Manual
19
2.3 Product Overview
Please become familiar with each component before you operate
the computer.
Top-Open View
NOTE: The product’s color/ LED color, I/O port, indicator location, and specifi-
cation will depend upon the actually shipping product.
1
4
2
3
5
6
7
8
9
10
11

English
20
Notebook Manual
1 Camera
A device that allows you to record video or take photographs with your
computer.
2 Infrared capability for facial reconition camera (Optional)
can be used to identify and authenticate user to unlock notebook,
conduct payment and other security functions.
3 Microphone
Built-in microphones.
IR CCD MIC*2(Optional)
4 Camera Status LED
The Camera Status LED shows the Camera status.
5 LCD screen
Displays of your notebook computer.
6 Turbo / Game / Office Mode Switch
On screen display
Turbo mode : White light (Bright)
Game mode : White light (Faint light)
Office mode : no light (Default )
CAUTION:When you are not using the computer, keep the LCD-
screen closed to protect it from dust.
