Schertler Yellow Single User manual

Schertler SA
Via Beroldingen 18
6850 Mendrisio
Switzerland
T [phone]
F [phone]
[e-mail]
www.schertler.swiss
Facebook @schertler.sa
Instagram @schertleraudio
Youtube @Schertler SA
#shareyourschertler
QUICK GUIDE V1
YELLOW SINGLE
QUICK GUIDE
THANK YOU
FOR
CHOOSING
SCHERTLER
QUICK START
CONNECTIONS
Connect microphones to the XLR input or instruments
to the ¼”jack socket. Remember to engage the
PHANT button when using condenser microphones
and DYN P48 contact microphones or the +10V
when using STAT pickups or other electrostatic
microphones.
LEVEL SET UP
Start to play (or sing) and turn the GAIN up until the
OL red LED starts to blink, from there turn it back
down a little. Now open the MASTER between 0%
and 50% then nally adjust the CHANNEL VOLUME
as needed.
If at rst use there is no sound, check that the MUTE
EXTERNAL EFFECTS
You can use external effects in parallel via the
SEND and RETURN jack connections
If you want to put the YELLOW at the beginning of
an effects chain, simply use the UNBALANCED
MASTER output.
WARNING: the ground connection must be
provided by the device to which YELLOW is
connected. See the USER GUIDE for more info.
USER GUIDE available at www.s hertler. om
Scan the QR code
to open
the USER GUIDE

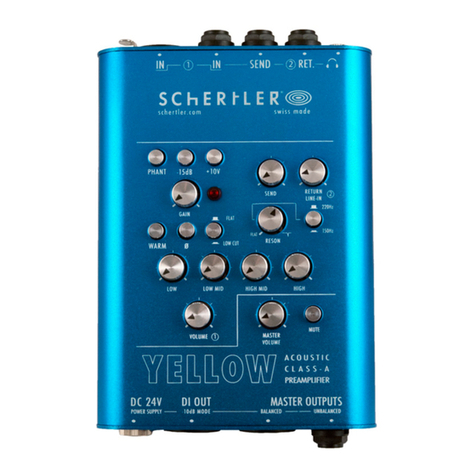

CONNECTIONS
Instruments input
TO external effects
output
FROM external effects
or LINE input
Microphones input
(condenser or dynamic)
or DYN contact microphones

CONNECTIONS
BALANCED
DI output to mixer
BALANCED
master output
UNBALANCED
master output

RELATED PRODUCTS
TEDDY
Stage monitor ARTHUR Mixer
ACOUSTIC
Amps
STAT
pickups PS W 2 V power supply
CA JM JM
¼”jack cable CA XF XM XLR cable
DYN P 8
contact
microphones
