Schluter Systems DH E RT5 / BW User manual

© 2018. All rights reserved. Used under license by Schlüer-Systems KG.
DH E RT2 / BW
(MCD5-1999-SLP3)
DH E RT5 / BW
(MWD5-1999-SLP3)
User Manual
67376D 02/18 (JRK)
www.schlueter-systems.com
Mon 16:15
22:00
21.0°
Manual Other...
HO20.1
4 thermostats
5 thermostats
3 thermostats
Basement
Changes to 20.0° at 08:00
First floor
Changes to 22.0° after 01:56:56
20/09/17
Ground floor
Kitchen
25
.0
°
25
.0
°
Bathroom
24
.5
°
Livingroom
25
.0
°
25
.0
24
.5
°
Office
Changes to 20.0° at 23:00
25
.5
°
25
.5
°
15
.5
°
My Zones
58 %
GS
58 %
GS
*)Only available in
DH E RT5/BW
WiFi Thermostats
>
Contents

PAGE 2
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Contents
Menu Overview . . . . . . . . . . . . . . . .3
Introduction . . . . . . . . . . . . . . . . . .4
Startup Wizard 1/2 . . . . . . . . . . . . . . 5
Startup Wizard 2/2 . . . . . . . . . . . . . . 6
General Operation . . . . . . . . . . . . . .7
Accept/Back/Cancel . . . . . . . . . . . . 8
Icons 1/2 . . . . . . . . . . . . . . . . . . . .9
Icons 2/2 . . . . . . . . . . . . . . . . . . .10
Programmed Heating Schedule . . . . 11
Operating Modes. . . . . . . . . . . . . . 12
Scheduled Operation . . . . . . . . . . . 13
Manual . . . . . . . . . . . . . . . . . . . 14
Comfort 1/2. . . . . . . . . . . . . . . . . 15
Comfort 2/2. . . . . . . . . . . . . . . . . 16
Boost . . . . . . . . . . . . . . . . . . . . 17
Frost Protection . . . . . . . . . . . . . .18
Holiday 1/2 . . . . . . . . . . . . . . . . .19
Holiday 2/2 . . . . . . . . . . . . . . . . .20
Eco Function . . . . . . . . . . . . . . . .21
Thermostat Setup - Main Menu . . . . 22
Heating Schedule 1/3. . . . . . . . . . . 23
Heating Schedule 2/3. . . . . . . . . . . 24
Heating Schedule 3/3. . . . . . . . . . . 25
Energy Use . . . . . . . . . . . . . . . . .26
User Settings . . . . . . . . . . . . . . . . 27
Child Lock . . . . . . . . . . . . . . . . . 28
Display Brightness . . . . . . . . . . . . 29
Screen Saver . . . . . . . . . . . . . . . . 30
Energy Tari 1/2 . . . . . . . . . . . . . .31
Energy Tari 2/2 . . . . . . . . . . . . . .32
Eco Function . . . . . . . . . . . . . . . 33
Date . . . . . . . . . . . . . . . . . . . . .34
Date Format . . . . . . . . . . . . . . . .35
Time . . . . . . . . . . . . . . . . . . . . . 36
Time Format . . . . . . . . . . . . . . . . 37
Daylight Saving Time . . . . . . . . . . .38
Unit. . . . . . . . . . . . . . . . . . . . . . 39
Language . . . . . . . . . . . . . . . . . .40
Information 1/2. . . . . . . . . . . . . . . 41
Information 2/2. . . . . . . . . . . . . . . 42
Support . . . . . . . . . . . . . . . . . . .43
Engineer Settings . . . . . . . . . . . . .44
Adaptive Function . . . . . . . . . . . . . 45
Open Window . . . . . . . . . . . . . . .46
Sensor Application . . . . . . . . . . . . 47
Sensor Type . . . . . . . . . . . . . . . . 48
Floor Sensor Calibration . . . . . . . . .49
Room Sensor Calibration . . . . . . . . 50
Temperature Scale 1/3 . . . . . . . . . .51
Temperature Scale 2/3 . . . . . . . . . .52
Temperature Scale 3/3 . . . . . . . . . .53
Factory Reset . . . . . . . . . . . . . . . 54
EN 50559 . . . . . . . . . . . . . . . . . .55
App Control*. . . . . . . . . . . . . . . . . 56
WiFi Connection* 1/4 . . . . . . . . . . .57
WiFi Connection* 2/4 . . . . . . . . . . .58
WiFi Connection* 3/4 . . . . . . . . . . .59
WiFi Connection* 4/4 . . . . . . . . . . .60
Connect to App*. . . . . . . . . . . . . . 61
Remove from App* . . . . . . . . . . . . 62
Startup Wizard 1/2 . . . . . . . . . . . . . 63
Startup Wizard 2/2 . . . . . . . . . . . . . 64
Factory Settings . . . . . . . . . . . . . . 65
Troubleshooting 1/6 . . . . . . . . . . . .66
Troubleshooting 2/6 . . . . . . . . . . . .67
Troubleshooting 3/6 . . . . . . . . . . . .68
Troubleshooting 4/6 . . . . . . . . . . . .69
Troubleshooting 5/6 . . . . . . . . . . . .70
Troubleshooting 6/6 . . . . . . . . . . . .71
Contact Data . . . . . . . . . . . . . . . . 72
*)Only available in WiFi Thermostats
>
<
Contents

PAGE 3
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Main Menu
App Control*
Menu Overview
“Other...” Menu
Menu Structure
Home Screen
in Scheduled Operation
Other...
Menu
Heating Schedule
User Settings
Energy Tari Menu
Engineer Settings
*)Only available in WiFi Thermostats
Manual
Manual
Comfort
Boost
Holiday
Heating Schedule
Energy Use
User Settings
Engineer Settings
Week Type
Event Schedule
Event per day
Child Lock
Display Brightness
Screen Saver
Energy Tari
Eco Function
Date
Date Format
Time
Time Format
Daylight Saving Time
Unit
Language
Information
Support
Adaptive Function
Open Window
Sensor Application
Sensor Type
Sensor Calibration
Temp. Scale
Factory Reset
Currency
Price per kWh
Load
Frost Protection
>
<
Contents
EN 50559
App Control*
WiFi Connection
Connect to App
Remove from App

PAGE 4
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Introduction
Thank you for buying our touch thermostat. We hope
you will enjoy the ease of use oered by the touchscreen
and intuitively designed interface. You can program the
thermostat any way you want with the options provided
under Heating Schedule and User Settings.
The thermostat will switch on your heating system at
predetermined times each day of the week. You can set
individual temperatures for up to six separate periods,
called events, for each day of the week. Lowering the
temperature when your home is unoccupied will reduce
your energy costs without reducing comfort.
The thermostat comes with a preset heating schedule
suitable for most homes. Unless you change the settings,
the thermostat will operate according to this preset
heating schedule.
The thermostat features an adaptive function that
automatically changes heating start times to ensure
that the required temperature has been reached at the
beginning of any specific event. After a few days, the
adaptive function will have learned how much earlier the
heating must be switched on.
The resistive touchscreen only requires a soft tap with
your fingertip to register the touch.
In this manual, the touch areas on the screen will be
referred to as buttons.
The WiFi version of this touch thermostat oers remote
control of your DITRA-HEAT-E underfloor heating -
through the Schlüter-HEAT-CONTROL app, which can be
downloaded from both Google Play and App Store.
>
<
Contents

PAGE 5
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Startup Wizard 1/2
When the system has been installed and turned on for the first time, or after you
have performed a factory reset, you must set Region, Language, Date, Time and
Floor Type.
The thermostat will automatically guide you through the process.
1. Region – set the time region in which the thermostat is located.
This parameter is used, for example, to ensure correct use of Daylight Saving
Time.
Tap the time region you are in.
Confirm with “√”
2. Language – set the language to be used on the thermostat display.
Tap the language you prefer. Confirm with “√”.
3. Date – set the current date.
Tap the parameter you want to change. Use the “Up Arrow” or “Down Arrow”
button to set the day, month and year.
Confirm each setting with “√”.
4. Time – set the current time.
Tap the parameter you want to change. Use the “Up Arrow” or “Down Arrow”
button to set the hours and minutes.
Confirm each setting with “√”.
Date
0201 2014
Date
0201 2014
Language 1
Language 2
Language 3
Region 1
Region 2
Region 3
>
<
Contents

PAGE 6
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
5. Floor Type – choose between:
Tile: floors made of tile or stone.
Soft Floor: wooden or other engineered floors.
6. Confirm your choice with “√” or discard it with “X”.
The thermostat is now ready for use and will control the underfloor heating accord-
ing to the preset heating schedule. If you want to change the heating schedule,
instructions are given in the section titled Heating Schedule.
Details of the preset heating schedule are given in the section titled Factory Set-
tings.
Startup Wizard 2/2
Time
48:12 AM
Time
48:12 AM
Floor Type
0201 2014
Tile
Soft Floor
>
<
Contents

PAGE 7
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
The thermostat has an ON/OFF switch on the left side of the thermostat.
Otherwise, the thermostat is intuitively operated via the high-resolution colour
touchscreen, which is used to navigate through the menus and to change the
settings.
General Operation
Mon 16:15
22:00
21.0°
Manual Other...
HO20.1
>
<
Contents

PAGE 8
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Whenever you change a parameter setting, you must tap the “Accept” button for the
thermostat to acknowledge the change.
“Accept” is shown on the screen as “√”.
“Back” is shown on the screen as a button marked with an arrow pointing to the left.
In this manual, it is also referred to as the “Left Arrow“ button.
In the various menus and submenus, you will find the “Back” button in the lower left
corner of the touchscreen.
Tap the “Left Arrow” button to return to the previous menu.
“Cancel” is shown on the screen as a button marked “X”.
Although “Cancel” has the same eect as “Back”, it also results in all unsaved
settings being discarded.
As soon as you leave a home screen and enter one of the menus, either a “Back”
button or a “Cancel” button will be shown.
To return to the home screen, tap Back/Cancel once or multiple times depending
on where you are in the menu structure.
Accept/Back/Cancel
Floor Type
0201 2014
Tile
Soft Floor
Manual
23.5°
Floor Type
0201 2014
Tile
Soft Floor
Floor Type
0201 2014
Tile
Soft Floor
Manual
23.5°
>
<
Contents

PAGE 9
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Icons 1/2
Scheduled Operation
Manual Override
Comfort Mode
Boost Mode
Frost Protection
Holiday Mode
Eco Function
Menu
Picture of
icon:
Meaning
of icon:
Heating Schedule
Energy Use
User Settings
Child Lock
Display Brightness
Screen Saver
Energy Tari
Date
$
7
Picture of
icon:
Meaning
of icon:
Date Format
Time
Time Format
Daylight Saving Time
Unit
Language
Information
Support
7
5°
Picture of
icon:
Meaning
of icon:
>
<
Contents

PAGE 10
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Icons 2/2
Engineer Settings
Adaptive Function
Open Window
Sensor Application
Sensor Type
Floor Sensor Calibration
Room Sensor Calibration
Temperature Scale
Picture of
icon:
Meaning
of icon:
Factory Reset
Error Message
Accept
Cancel
Next change in event/
function at the given time
The time is AM
The time is PM
EN 50559
Picture of
icon:
Meaning
of icon:
Server Connection*
No server Connection*
WiFi Connection*
No WiFi Connection*
Picture of
icon:
Meaning
of icon:
*)Only available in WiFi Thermostats
>
<
Contents

PAGE 11
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Programmed Heating Schedule
The thermostat allows you to control temperature automatically according to a
weekly schedule of your choice. The thermostat comes with a pre-programmed
schedule for easy and economic heating control of most homes, see Factory
Settings: Preset Schedule.
The schedule can be changed in the Heating Schedule menu.
>
<
Contents

PAGE 12
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Operating Modes
The thermostat oers seven dierent modes of temperature control, either from the
“Other” menu on the home screen or from the home screen directly:
• Scheduled Operation
• Manual
• Comfort
• Boost
• Frost Protection
• Holiday
• Eco (this function must be enabled in the “User Settings” menu)
Mon 11:15
17:00
23.5°
Manual Other...
Mon 11:15
17:00
23.5°
Manual Other...
Manual
23.5°
Comfort
24.5°11:00 P
M
Boost
11:00
Frost Protect
5°
Holiday
01-09-2014
05-01-2014
Eco
16.0°11:00
>
<
Contents

PAGE 13
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Scheduled Operation
The system will operate in Scheduled Operation unless you choose to override the
scheduled events.
During Scheduled Operation, the temperature is controlled automatically according
to the programmed heating schedule – see “Heating Schedule”.
During Scheduled Operation, “Manual” and “Other” modes are accessible from
the home screen. If the Eco function is enabled, “Eco” and “Other” modes will be
accessible from the home screen. “Manual” will then be found in the “Other” menu.
The function of the buttons and symbols shown on the home screen varies according
to the chosen operating mode.
Scheduled Operation home screen:
1. Day and time info.
2. Tap here to access the menus.
3. Icon indicating the current operating mode (calendar = Scheduled Operation).
4. Current target/setpoint temperature (if shown in red, heating is being provided).
5. Time of next scheduled event change.
6. If shown, the adaptive function is enabled.
7. Tap here to access Manual Override. Alternatively, if Eco Function is enabled,
tapping here activates the function.
8. Tap here to access alternative operating modes (Comfort, Boost, Frost Protection,
Holiday). If “Eco” is enabled, “Manual” will be found here as well.
Mon 11:15
17:00
23.5°
Manual Other...
1 2
3 4
5 6
7 8
>
<
Contents

PAGE 14
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Manual
Manual allows you to override Scheduled Operation and maintain a specified tem-
perature around the clock.
1. From the Scheduled Operation home screen, tap the “Manual” button to access
manual override.
Note: If Eco is enabled, “Manual” will be found in the “Other” menu.
You can use “Manual” to override the programmed event schedule.
The thermostat will continue to operate in Manual until you return it to Scheduled
Operation.
2. Use the “Up Arrow” or “Down Arrow” button to select the required temperature.
Then simply leave the thermostat as it is.
While in Manual Override, an “X” button is shown in the lower left corner of the home
screen. Press this button to return the thermostat to Scheduled Operation.
The function of the buttons and symbols shown on the home screen varies according
to the chosen operating mode.

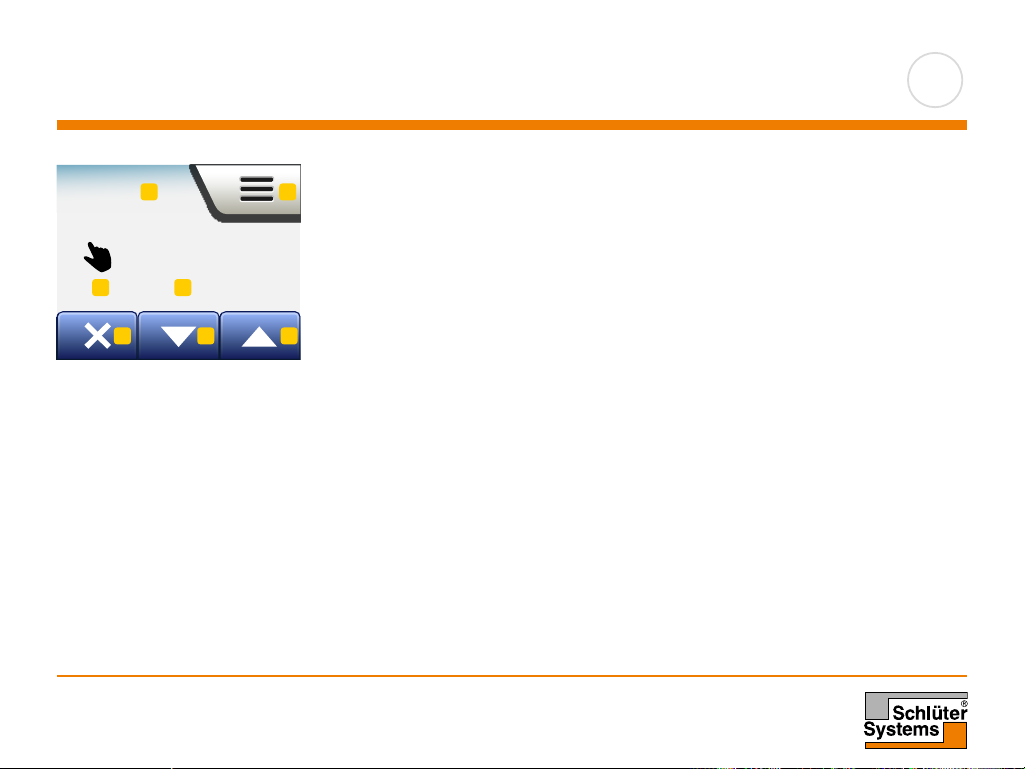

Manual home screen:
1. Indication of Manual Override.
2. Tap here to access the menus.
3. Icon indicating the current operating mode (hand = Manual).
4. Current target/setpoint temperature (if shown in red, heating is being provided).
5. Tap here to return to Scheduled Operation.
6. Tap here to decrease the target/setpoint temperature.
7. Tap here to increase the target/setpoint temperature.
Manual
23.5°
1 2
3 4
5 6 7
>
<
Contents

PAGE 15
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Comfort 1/2
You can use Comfort mode on special occasions when you want to override an
event during Scheduled Operation, e.g. for a party or when you want to stay up late.
You can manually set a comfort temperature, which the thermostat will maintain
for a chosen period of time (from 1 to 23 hours) before returning to Scheduled
Operation.
1. From the Scheduled Operation home screen, tap the “Other” button to access
the alternative operating modes.
2. Choose “Comfort”.
3. Tap “√” to confirm that you wish to override the auto heating schedule.
4. Use the “Up Arrow” or “Down Arrow” button to select the required temperature.
Confirm with “√”.
5. Use the “Up Arrow” or “Down Arrow” button to set the required duration
of Comfort mode. Confirm with “√”. The thermostat automatically enters the
Comfort mode home screen.
While in comfort mode an “X” button is shown on the home screen. Press this
button to return the thermostat to Scheduled Operation.
The function of the buttons and symbols shown on the home screen varies
according to the chosen operating mode.
Mon 11:15
17:00
23.5°
Manual Other... 1
Mon 11:15
17:00
23.5°
Manual Other...
1
Comfort
Boost
Frost Protect
Holiday
Comfort
Boost
Frost Protect
Holiday
2
You are now overriding
the Auto schedule
3
Comfort: Set Temp.
24.5 °C
4
Comfort: Set Time
4 h
5
>
<
Contents

PAGE 16
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Comfort 2/2
Comfort home screen:
1. Indication of Comfort mode.
2. Tap here to access the menus.
3. Icon indicating the current operating mode (feet = Comfort).
4. Current target/setpoint temperature (if shown in red, heating is being provided).
5. The time at which the thermostat will return to Scheduled Operation.
6. Tap here to quit Comfort mode and return to Scheduled Operation.
Comfort
24.5°11:00 P
M
1 2
3 4
5
6
>
<
Contents

PAGE 17
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Boost mode is accessible from the “Other” menu.
In Boost mode, the underfloor heating is constantly activated for one hour. After one
hour, the thermostat returns to Scheduled Operation.
1. From the Scheduled Operation home screen, tap the “Other” button to access
the alternative operating modes.
2. Choose “Boost”.
3. Confirm that you wish the thermostat to activate Boost mode by tapping ”√”.
The thermostat automatically enters the Boost home screen.
While in Boost mode, an “X” button is shown on the home screen. Press this button
to return the thermostat to Scheduled Operation.
The function of the buttons and symbols shown on the home screen varies
according to the chosen operating mode.
Boost home screen:
1. Indication of Boost mode.
2. Tap here to access the menus.
3. Icon indicating the current operating mode (red rocket = Boost).
4. The time at which the thermostat will return to Scheduled Operation.
5. Tap here to quit Boost mode and return to Scheduled Operation.
Boost
Boost
11:00
1 2
3
4
5
Mon 11:15
17:00
23.5°
Manual Other... 1
Mon 11:15
17:00
23.5°
Manual Other...
1
The thermostats boost
mode will now be
activated for 1 hour
3
Comfort
Boost
Frost Protect
Holiday
Comfort
Boost
Frost Protect
Holiday
Comfort
Boost
Frost Protect
Holiday
2
>
<
Contents

PAGE 18
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Frost Protection
Frost Protection mode is used when heating is not needed but the temperature must
be kept above freezing point until changed manually.
1. Tap the “Other” button on the home screen.
2. Tap the “Frost Protection” button.
A confirmation screen will then be displayed briefly before the thermostat
automatically enters the Frost Protection home screen.
While in Frost Protection mode an ice crystal and glove are displayed on the home
screen together with the target/setpoint temperature (5.0°C).
Frost Protection home screen:
1. Indication of Frost Protection mode.
2. Tap here to access the menus.
3. Icon indicating the current operating mode (ice crystal and glove = Frost
Protection).
4. Fixed target/setpoint temperature (if shown in red, heating is being provided).
5. Tap here to return to Scheduled Operation.
Frost Protect
5°
1 2
3 4
5
Mon 11:15
17:00
23.5°
Manual Other... 1
Mon 11:15
17:00
23.5°
Manual Other...
1
Comfort
Boost
Frost Protect
Holiday
Comfort
Boost
Frost Protect
Holiday
2
>
<
Contents

PAGE 19
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Holiday 1/2
Holiday mode allows you to set the heating of your home to a minimum while you are
away on holiday, thus saving energy and money.
You must set the date you leave on holiday and the date you return. The thermostat
will ensure that your floor is kept above freezing point and that your home is warm at
your return. This is accomplished in just a few steps:
1. From the Scheduled Operation home screen, tap the “Other” button to access the
alternative operating modes.
2. Tap the “Holiday” button.
3. Tap the “OFF/ON” button to “ON” and confirm with the “√” button.
4. Tap the “Right Arrow” button on the confirmation screen that appears.
5. Set the date on which you are going on holiday. Tap the “Right Arrow” button.
6. Set the date on which you plan to return. Tap the “Right Arrow” button.
A confirmation screen will then be displayed briefly before the thermostat
automatically enters the Holiday home screen.
During an active holiday period a suitcase is displayed on the screen together with
the programmed leaving and return dates.
You can cancel an active holiday period and return the thermostat to Scheduled
Operation by tapping the “X” button.
Holiday Mode activated
Mon 11:15
17:00
23.5°
Manual Other... 1
Mon 11:15
17:00
23.5°
Manual Other...
1
Comfort
Boost
Frost Protect
Holiday
Comfort
Boost
Frost Protect
Holiday
2
Holiday Mode
ON
3
Holiday Mode will keep
your floor above freezing
level when you plan a
holiday
4
Set Leave Date
0201 2014
5
Set Return Date
0201 2014
6
>
<
Contents

PAGE 20
© 2018. All rights reserved. Used under license by Schlüter-Systems KG.
Holiday 2/2
Holiday home screen:
1. Indication of Holiday mode.
2. Tap here to access the menus.
3. Icon indicating the current operating mode (suitcase = Holiday).
4. The date on which the thermostat entered Holiday mode and the date on which
the thermostat will return to Scheduled Operation.
5. Tap here to quit Holiday mode and return to Scheduled Operation.
6. If leaving and returning dates have been entered but Holiday mode is not yet
active, an alternative Scheduled Operation home screen will be displayed,
featuring a suitcase.
Holiday
01-09-2014
05-01-2014
Mon 11:15
Manual Other...
24.5°11:00
1 2
34
5
6
>
<
Contents
