Schuchmann todd User manual

Instructions for use.
todd. the moveable standing trainer.
todd.

Many thanks.
Dear Customer
At this point we would like to thank you for placing your trust in our company and
for purchasing our product. We ask you to read through the Instructions for
use carefully prior to initial commissioning of the product, and to observe them.
Please note that guidelines and representations in these Instructions for use may deviate
from your product due to diering equipment. We reserve the right to make technical
modifications.
Important information!
Ensure that these Instructions for use remain with the product.
Your schuchmann Team

03 Contents.
1. Preparation. ................................................................................ 05
1.1 Transport ........................................................................................................................05
1.2 Safety measures prior to use ..............................................................................05
1.3 Safe disposal...............................................................................................................05
1.3.1 Packaging...........................................................................................................05
1.3.2 Product................................................................................................................05
1.4 Where to store the Instructions for use..........................................................05
2. Product description. .................................................................... 06
2.1 Material information ................................................................................................06
2.2 Handling and transport........................................................................................06
2.3 Application areas, use according to the intended purpose .............07
2.4 Use not in accordance with the intended purpose / warning gui-
delines............................................................................................................................08
2.5 Equipment for basic model.................................................................................08
2.5.1 Equipment acc. HMV (Medical Aids Register) ..................................08
2.6 List of accessories....................................................................................................09
2.7 Product overview......................................................................................................09
2.8 General settings ........................................................................................................10
2.9 Getting in and out..................................................................................................... 11
3. Settings ...................................................................................... 12
3.1 Angular adjustment of the central column................................................... 13
3.2 Height adjustment on the central column................................................... 13
3.3 Rear wheels / drum brake ....................................................................................14
3.4 Wheel camber............................................................................................................ 15
3.5 Support rollers............................................................................................................. 15
3.6 Foot plate ..................................................................................................................... 16
3.7 Divided foot plate..................................................................................................... 16
3.8 Heel edges ................................................................................................................... 17
3.9 Footstraps ..................................................................................................................... 17
3.10 Knee pelotte pads.................................................................................................. 17
3.11 Combined spine and pelvic pelotte pad..................................................... 18
3.12 Buttocks pelotte pad............................................................................................. 19
3.13 Chest harness / chest pelotte pad with lateral guide........................20
3.14 Backstrap ...................................................................................................................20
3.14 Back pelotte pad .................................................................................................... 21
3.16 Headrest ...................................................................................................................... 21
3.17 Therapy table ........................................................................................................... 22
4. Repairs and cleaning. .................................................................. 23
4.1 Cleaning........................................................................................................................ 23
4.2 Repairs........................................................................................................................... 23
4.3 Spare parts ................................................................................................................. 23
4.4 Duration of use and re-use ................................................................................ 23

5. Technical data. ............................................................................ 24
6. Guarantee. .................................................................................. 25
7. Identication. ............................................................................. 26
7.1 EC declaration of conformity............................................................................... 26
7.2 Serial number / date of manufacture.............................................................27
7.3 Product version ...........................................................................................................27
7.4 Issue of the document ............................................................................................27
7.5 Name and address of the manufacturer, specialist dealer supplying
the product...................................................................................................................27
04 Contents.

05 1. Preparation.
1.1 Transport
On receiving the product, please check it for completeness, lack of faults
and any transport damage.
Inspect the goods in the presence of your forwarder
Should transport damage have occurred, please cause an inventory (de-
termination of the faults) to be made in the presence of the forwarder.
Please send a complaint in writing to the specialist dealer responsible.
1.2 Safety measures prior to use
Correct usage of the standing trainer requires precise and careful training
of the accompanying person. We ask you to read through the Instructions
for use carefully prior to initial commissioning of the standing trainer, and
to observe them. Cushioned parts may become warm when exposed to
direct sunlight. Cover these parts or protect the equipment from direct
sunlight.
1.3 Safe disposal
In order to preserve and protect the environment, to prevent environmental
pollution and to improve the recycling of raw materials, please note the
disposal instructions in Points 1.3.1 and 1.3.2.
1.3.1 Packaging
The product packaging should be stored in case the product needs to
be transported again. Should you have to return the product for repairs
or in case of a guarantee claim, please if possible use the original box so
that the product is optimally packaged. Otherwise, separate the packa-
ging materials for recycling according to their classification. Do not leave
packaging materials unattended, as they are a possible source of danger.
1.3.2 Product
Separate the raw materials used in the product for recycling according to
their classification (see material information under Point 2.1).
1.4 Where to store the Instructions for use
Please store these Instructions for use carefully and ensure that these Ins-
tructions for use remain with the product in case of re-use.

06 2. Product description.
2.1 Material information
The base frame and the individual elements are made of steel or alumi-
nium which are non-corroding and powder-coated. All body supports
(except for the knee pelotte pads) are padded and covered. The covers
are made of 100% polyester or polyamide textile substrate, and are flame
resistant (according to DIN EN 1021-1+2).
2.2 Handling and transport
The standing trainer is not designed to be carried, as it is fitted with castors.
Should you have to carry the equipment due to obstacles, ensure that all
moving parts are tightened. Then two people should position themselves
next to the standing trainer, grip it on the left and right of the frame and
carry it to the required location. To transport the standing trainer, reduce
all adjustments to their most compact size (set lowest height etc.).

07 2. Product description.
2.3 Application areas, use according to the intended purpose
Indications
The standing trainer todd. is designed for indoor use and allows the user
to move around by means of drive wheels with handrims. It serves to train
standing in users who can hardly stand or who cannot stand, in particular
due to:
• Paraplegia
• Advanced multiple sclerosis
• Cerebral paresis
• Muscular dystrophy
Contraindications
In general, the indications for standing should be approved by a doctor or
orthopedist. It should therefore be clarified prior to procurement whether
contraindications exist for the patient. In general, any type of pain repre-
sents a contraindication. No standing trainer care should be conducted
without establishing prior to use whether the patient has an abnormal foot
position which requires medical attention.
Depending on the disease symptoms and therapy, please clarify how long
the user may stand in the standing trainer. The following symptoms may
occur in some cases:
• Circulation problems
• Pain in the leg and back areas
• Spastic seizures
It must also be clarified whether the user can be brought into full standing
position. For many users, only standing in a bent position is possible at first.
Never correct posture using force or strong pressure!

08 2. Product description.
2.4 Use not in accordance with the intended purpose / warning guide-
lines
• Ensure that the standing trainer is only used by one child/teenager.
• The standing trainer may only be used indoors on solid, even ground.
• Never leave the user unattended in the standing trainer.
• Correct usage of the standing trainer requires precise and careful
training of the accompanying person.
• The max. load (see Point 5) may not be exceeded.
• Do not use the standing trainer if it has defective, worn or missing parts.
• For reasons of fire safety, the standing trainer may not be placed close
to an open fire or any other strong source of heat such as electric or
gas heaters.
• Only use accessories and spare parts made by Schuchmann, otherwise
you will endanger the user.
• Only use the standing trainer if all components have been correctly
mounted and adjusted.
• When adjusting the standing trainer there is the risk of trapping or
crushing limbs.
• Users who have diculty reading must have someone read these Inst-
ructions for use aloud so that they understand how to use the standing
exercise trainer.
2.5 Equipment for basic model
• Base frame (standard) with height and depth-adjustable foot support
and four height-adjustable support rollers (75 mm), suspended with
locks at the back
• Base frame (abducting) with individually adjustable footrests, with two
height-adjustable support rollers (75 mm) at the front and one support
roller (30 mm) at the back
• Incl. chest harness, buttocks pelotte pad and three-dimensionally ad-
justable knee pelotte pads with patella recess
• Angular adjustment of the central column mechanical from 0° - 15
• incl. drum brakes, easy to operate via locking lever
• Adjustable wheel camber
2.5.1 Equipment acc. HMV (Medical Aids Register)
Acc. the HMV (Medical Aids Register), the standing trainer todd. requires the
provision of heel edges and footstraps.

09 2. Product description.
2.6 List of accessories
• Chest structure
• Chest pelotte pad with lateral
guide
• Backstrap
• Knee pelotte pads
• Back pelotte pad
• Pelvic guidance pelotte pad
with lateral guide
• Buttocks pelotte pad
• Pelvic positioner
• Combined spine and pelvic
pelotte pads
• Headrest
• Therapy table with edge
• Shelf basket
• Rear wheels
• Rear wheels with closed hand rims
• Spoke guard
• Foot support
• Individually-adjustable footrests
• Heel edges
• Footstraps

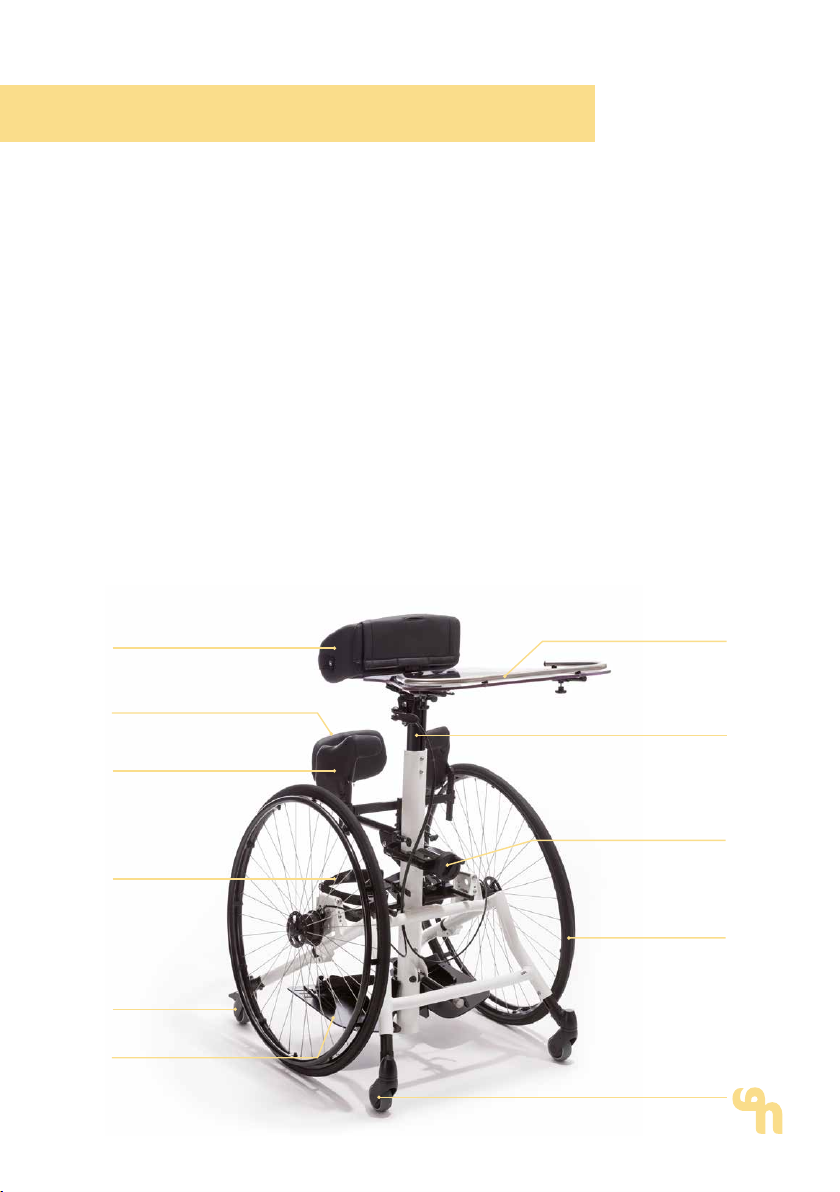

2.7 Product overview
The Fig. below is intended to show you the designation of the most
important components as well as the terms which you will find in these
Instructions for use.
Chest pelotte pad with
lateral guide
Combined spine and pelvic
pelotte pad
Knee pelotte pads
with adjustable
positioner
brackets
Therapy table
made from Plexiglas
Central column
can be inclined from 0° - 15°
Support rollers
Divided
foot plate
Buttocks harness /
buttocks pelotte pad
Rear wheels
with hand rims
Hand crank for adjustment
of the pelvic position
For extra safety:
Suspended
support wheels
with parking
brake

10 2. Product description.
2.8 General settings
todd. is completely assembled and delivered in the smallest possible
setting. Before the user is placed into the standing trainer, the necessary
presettings must be carried out.
User dimensions
Presettings
E
A
B
F
D
G
C
Taking the user's
dimensions Carrying out adjustments to the standing trainer see
ABody size Foot plate to headrest 3.2 + 3.16
BPelvic height
Adjust the foot plate up to the upper edge of
the buttocks pelotte pad support, then adjust
downwards by approx. 5 cm
3.6 + 3.12
CPelvic depth Depth of the buttocks pelotte pad 3.12
DPelvic width Width of the combined spine and
Pelvic pelotte pad 3.11
ESternum height Height of the chest pelotte pad with lateral
guide 3.13
FChest width Width of the chest pelotte pad with lateral
guide 3.13
GKnee height Height of knee pelotte pads 3.10
