Schumacher SpeedCharge XM1-5 User manual

0099001034WB-03
Model / Modelo: XM1-5
OWNER’S MANUAL
MANUAL DEL USUARIO
READ THE ENTIRE MANUAL BEFORE USING THIS
PRODUCT. FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH.
ADVERTENCIA
LEA EL MANUAL COMPLETO ANTES DE UTILIZAR ESTE
PRODUCTO. CUALQUIER FALLA PODRÍA RESULTAR EN
SERIAS LESIONES O PODRÍA SER MORTAL.
Voltage / Tensión: 6, 12
Amperage / Amperaje: 1.5
Automatic Battery Charger
Cargador de batería automático
DO NOT RETURN THIS PRODUCT TO THE STORE!
Call Customer Service for Assistance: 800-621-5485
¡NO LO DEVUELVA ESTE PRODUCTO A LA TIENDA!
Llame a Servicios al Cliente para Asistencia: 800-621-5485

• 1 •
IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION
MANUAL.
SAVE THESE INSTRUCTIONS – This manual will show you how to
use your charger safely and effectively. Please read, understand and
follow these instructions and precautions carefully, as this manual
contains important safety and operating instructions. The safety
messages used throughout this manual contain a signal word, a
message and an icon.
The signal word indicates the level of the hazard in a situation.
Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury to the
operator or bystanders.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury to the
operator or bystanders.
Indicates a potentially hazardous situation which, if not
avoided, could result in moderate or minor injury to the
operator or bystanders.
Indicates a potentially hazardous situation which, if not
avoided, could result in damage to the equipment or
vehicle or property damage.
Pursuant to California Proposition 65, this product contains
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
IMPORTANT SAFETY INSTRUCTIONS –1. SAVE THESE INSTRUCTIONS –
This manual contains important safety and operating instructions
RISK OF ELECTRIC SHOCK OR FIRE.
Keep out of reach of children.1.1
Do not expose the charger to rain1.2
or snow.

• 2 •
Use only recommended attachments. Use of an attachment not1.3 recommended or sold by Schumacher®Electric Corporation may
result in a risk of re, electric shock or injury to persons or damage
to property.
To reduce the risk of damage to the electric plug or cord, pull by1.4 the plug rather than the cord when disconnecting the charger.
An extension cord should not be used unless absolutely necessary.1.5
Use of an improper extension cord could result in a risk of re and
electric shock. If an extension cord must be used, make sure:
That the pins on the plug of the extension cord are the same• number, size and shape as those of the plug on the charger.
That the extension cord is properly wired and in good electrical• condition.
That the wire size is large enough for the AC ampere rating of the•
charger as specied in section 8.
To reduce the risk of electric shock, unplug the charger from the1.6 outlet before attempting any maintenance or cleaning. Simply
turning off the controls will not reduce this risk.
Do not operate the charger with a damaged cord or plug; have the1.7
cord or plug replaced immediately by a qualied service person.
(Call customer service at: 1-800-621-5485.)
Do not operate the charger if it has received a sharp blow, been1.8
dropped or otherwise damaged in any way; take it to a qualied
service person. (Call customer service at: 1-800-621-5485.)
Do not disassemble the charger; take it to a qualied service 1.9 person when service or repair is required. Incorrect reassembly
may result in a risk of re or electric shock. (Call customer service
at: 1-800-621-5485.)
RISK OF EXPLOSIVE GASES.
WORKING IN THE VICINITY OF A LEAD-ACID1.10
BATTERY IS DANGEROUS. BATTERIES GENERATE
EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF
UTMOST IMPORTANCE THAT YOU FOLLOW THE
INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
To reduce the risk of a battery explosion, follow these instructions1.11 and those published by the battery manufacturer and the

• 3 •
manufacturer of any equipment you intend to use in the vicinity
of the battery. Review the cautionary markings on these products
and on the engine.
This charger employs parts, such as switches and circuit breakers,1.12 that tend to produce arcs and sparks. If used in a garage, locate
this charger 18 inches (45.72 cm) or more above oor level.
PERSONAL PRECAUTIONS2.
RISK OF EXPLOSIVE GASES.
NEVER smoke or allow a spark or ame in the 2.1
vicinity of a battery or engine.
Remove personal metal items such as rings, bracelets,2.2
necklaces and watches when working with a lead-acid
battery. A lead-acid battery can produce a short-circuit current high
enough to weld a ring or the like to metal, causing a severe burn.
Be extra cautious to reduce the risk of dropping a metal tool onto2.3 the battery. It might spark or short-circuit the battery or other
electrical part that may cause an explosion.
Use this charger for charging LEAD-ACID batteries only. It is not2.4 intended to supply power to a low voltage electrical system other
than in a starter-motor application. Do not use this battery charger
for charging dry-cell batteries that are commonly used with home
appliances. These batteries may burst and cause injury to persons
and damage to property.
NEVER charge a frozen battery.2.5
NEVER overcharge a battery.2.6
Consider having someone close enough by to come to your aid2.7 when you work near a lead-acid battery.
Have plenty of fresh water and soap nearby in case battery acid2.8 contacts your skin, clothing or eyes.
Wear complete eye and body protection, including safety goggles2.9 and protective clothing. Avoid touching your eyes while working
near the battery.
If battery acid contacts your skin or clothing, immediately wash2.10 the area with soap and water. If acid enters your eye, immediately
ood the eye with cold running water for at least 10 minutes and
get medical attention right away.

• 4 •
If battery acid is accidentally swallowed, drink milk, the whites of2.11 eggs or water. DO NOT induce vomiting. Seek medical attention
immediately.
PREPARING TO CHARGE3.
RISK OF CONTACT WITH BATTERY ACID.
BATTERY ACID IS A HIGHLY CORROSIVE
SULFURIC ACID.
If it is necessary to remove the battery3.1
from the vehicle to charge it, always remove
the grounded terminal rst. Make sure all of
the accessories in the vehicle are off to prevent arcing.
Be sure the area around the battery is well ventilated while the3.2 battery is being charged.
Clean the battery terminals before charging the battery. During3.3 cleaning, keep airborne corrosion from coming into contact
with your eyes, nose and mouth. Use baking soda and water to
neutralize the battery acid and help eliminate airborne corrosion.
Do not touch your eyes, nose or mouth.
Add distilled water to each cell until the battery acid reaches the3.4
level specied by the battery manufacturer. Do not overll. For
a battery without removable cell caps, such as valve regulated
lead acid batteries (VRLA), carefully follow the manufacturer’s
recharging instructions.
Read, understand and follow all instructions for the charger,3.5 battery, vehicle and any equipment used near the battery
and charger. Study all of the battery manufacturer’s specic
precautions while charging and recommended rates of charge.
Determine the voltage of the battery by referring to the vehicle3.6 owner’s manual and make sure that the output voltage selector
switch is set to the correct voltage. If the charger has an adjustable
charge rate, charge the battery in the lowest rate rst.
Make sure that the charger cable clips make tight connections.3.7

• 5 •
CHARGER LOCATION4.
RISK OF EXPLOSION AND
CONTACT WITH BATTERY
ACID.
Locate the charger as far4.1
away from the battery as the
DC cables permit.
Never place the charger directly above the battery being charged;4.2 gases from the battery will corrode and damage the charger.
Do not set the battery on top of the charger.4.3
Never allow battery acid to drip onto the charger when reading the4.4
electrolyte specic gravity or lling the battery.
Do not operate the charger in a closed-in area or restrict the4.5 ventilation in any way.
DC CONNECTION PRECAUTIONS5.
Connect and disconnect the DC output clips only after setting5.1 all of the charger switches to the “off” position (if applicable) and
removing the AC plug from the electrical outlet. Never allow the
clips to touch each other.
Attach the clips to the battery and chassis, as indicated in sections5.2 6 and 7.
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN6. VEHICLE
A SPARK NEAR THE
BATTERY MAY CAUSE A
BATTERY EXPLOSION. TO
REDUCE THE RISK OF A
SPARK NEAR THE BATTERY:
Position the AC and DC cables to reduce the risk of damage by6.1 the hood, door and moving or hot engine parts. NOTE: If it is
necessary to close the hood during the charging process, ensure
that the hood does not touch the metal part of the battery clips or
cut the insulation of the cables.
Stay clear of fan blades, belts, pulleys and other parts that can6.2 cause injury.

• 6 •
Check the polarity of the battery posts. The POSITIVE (POS, P, +)6.3 battery post usually has a larger diameter then the NEGATIVE
(NEG, N, -) post.
Determine which post of the battery is grounded (connected) to6.4 the chassis. If the negative post is grounded to the chassis (as in
most vehicles), see step 6.5. If the positive post is grounded to the
chassis, see step 6.6.
For a negative-grounded vehicle, connect the POSITIVE (RED)6.5 clip from the battery charger to the POSITIVE (POS, P, +)
ungrounded post of the battery. Connect the NEGATIVE (BLACK)
clip to the vehicle chassis or engine block away from the battery.
Do not connect the clip to the carburetor, fuel lines or sheet-metal
body parts. Connect to a heavy gauge metal part of the frame or
engine block.
For a positive-grounded vehicle, connect the NEGATIVE (BLACK)6.6 clip from the battery charger to the NEGATIVE (NEG, N, -)
ungrounded post of the battery. Connect the POSITIVE (RED)
clip to the vehicle chassis or engine block away from the battery.
Do not connect the clip to the carburetor, fuel lines or sheet-metal
body parts. Connect to a heavy gauge metal part of the frame or
engine block.
Connect charger AC supply cord to electrical outlet.6.7
When disconnecting the charger, turn all switches to off,6.8 disconnect the AC cord, remove the clip from the vehicle chassis
and then remove the clip from the battery terminal.
See CALCULATING CHARGE TIME for length of charge6.9 information.
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE7. VEHICLE
A SPARK NEAR THE
BATTERY MAY CAUSE A
BATTERY EXPLOSION. TO
REDUCE THE RISK OF A
SPARK NEAR THE BATTERY:
Check the polarity of the battery posts. The POSITIVE (POS, P, +)7.1 battery post usually has a larger diameter than the NEGATIVE
(NEG, N, -) post.

• 7 •
Attach at least a 24-inch (61 cm) long 6-gauge (AWG) [13 mm7.2 2]
insulated battery cable to the NEGATIVE (NEG, N, -) battery post.
Connect the POSITIVE (RED) charger clip to the POSITIVE (POS,7.3 P, +) post of the battery.
Position yourself and the free end of the cable you previously7.4 attached to the NEGATIVE (NEG, N, -) battery post as far away
from the battery as possible – then connect the NEGATIVE
(BLACK) charger clip to the free end of the cable.
Do not face the battery when making the nal connection.7.5
Connect charger AC supply cord to electrical outlet.7.6
When disconnecting the charger, always do so in the reverse7.7
order of the connecting procedure and break the rst connection
while as far away from the battery as practical.
A marine (boat) battery must be removed and charged on shore.7.8 To charge it onboard requires equipment specially designed for
marine use.
GROUNDING AND AC POWER CORD CONNECTIONS8.
RISK OF ELECTRIC SHOCK OR FIRE.
This battery charger is for use on a8.1
nominal 120-volt circuit. The plug must
be plugged into an outlet that is properly
installed and grounded in accordance
with all local codes and ordinances. The plug pins must t the
receptacle (outlet). Do not use with an ungrounded system.
8.2 Never alter the AC cord or plug provided – if it does
not t the outlet, have a proper grounded outlet installed by a
qualied electrician. An improper connection can result in a risk of
an electric shock or electrocution. NOTE: Pursuant to Canadian
Regulations, use of an adapter plug is not allowed in Canada. Use
of an adapter plug in the United States is not recommended and
should not be used.
Recommended minimum AWG size for extension cord:8.3
100 feet (30.5 meters) long or less - use an 18 gauge (AWG)• [0.82 mm2] extension cord.
Over 100 feet (30.5 meters) long - use a 16 gauge (AWG)• [1.31 mm2] extension cord.

• 8 •

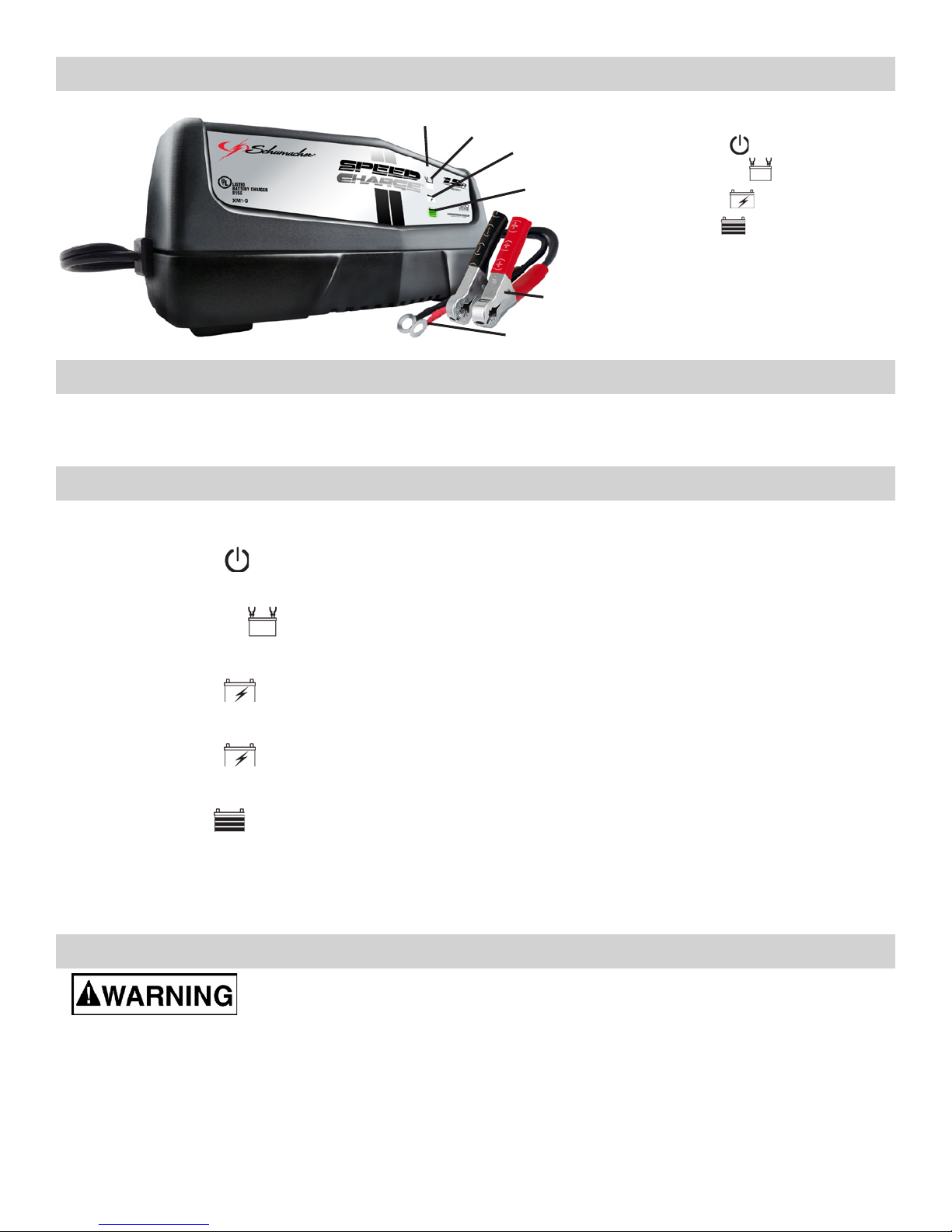

FEATURES9.
AC POWER1. (red) LED
CONNECTED2. (red) LED
CHARGING3. (yellow) LED
CHARGED4. (green) LED
Battery Clip Cable Assembly5.
Ring Terminal Cable Assembly6.
2
4
3
1
6
5
ASSEMBLY INSTRUCTIONS10.
Remove all cord wraps and uncoil the cables prior to using the battery
charger.
CONTROL PANEL11.
LED Indicators
AC POWER (red) LED lit: Indicates that there is AC power
supplied to the battery charger.
CONNECTED (red) LED lit: Indicates that the charger is properly
connected to the battery.
CHARGING (yellow) LED lit: Indicates the charger has detected
a battery and is charging it.
CHARGING (yellow) LED ashing: Indicates the charger is in
abort mode.
CHARGED (green) LED lit: Indicates the battery is fully charged
and the charger is in maintain mode.
NOTE: See the Operating Instructions section for a complete
description of the charger modes.
OPERATING INSTRUCTIONS12.
This battery charger must be properly assembled in
accordance with the assembly instructions before it is used.
Charging
Ensure that all of the charger components are in place and in1. good working condition, for example, the plastic boots on the
battery clips.

• 9 •
Connect the battery following the connection instructions2. described in Using the Quick-Disconnect Cable Connectors
section.
Connect the AC power following the precautions listed in Section 8.3.
If you’ve connected everything correctly, the AC POWER4. LED
will be lit indicating the charger has power, the CONNECTED
LED will be lit indicating the battery is properly connected and
the CHARGING LED will be lit indicating that the charger is
charging. If any of these LEDs are not lit, check the connections at
the battery and AC source or have the battery checked/replaced.
NOTE: This charger is equipped with an auto-start feature. It will not
supply current to the battery clips until a battery is properly connected
and the CONNECTED LED is lit. Unlike traditional chargers, the
clips will not spark if touched together.
Using The Quick-Connect Cable Connectors
Connect either of the two output cable assemblies to the charger.
Make sure to place the charger on a dry, non-ammable surface like
metal or concrete.
NOTE: Never connect the clamp and ring terminal connectors
together for use in other applications, such as external battery or
other power source charging, or to extend the output cable length, as
reverse polarity and/or overcharge conditions will occur.
Battery Clips
Connect the battery clip cable assembly to the charger. Follow the safety
instructions in sections 6 or 7 to connect the output clips to the battery.
Ring Terminals
The ring connectors permanently attach the battery providing easy
access to quickly charge your battery. To permanently attach it to
a battery, loosen and remove each nut from the bolts at the battery
terminals. Connect the red positive ring connector ring to the positive
(POS, P, +) battery terminal. Connect the black negative ring
connector ring to the negative (NEG, N, -) battery terminal. Replace
and tighten the nuts to secure it. Take care to keep both wires and
plug away from hot surfaces and sharp edges. Connect the ring
connector cable assembly to the charger. Periodically check the ring
connectors to ensure they are properly connected.

• 10 •
Aborted Charge
If charging can not be completed normally, charging will abort. When
charging aborts, the charger’s output is shut off, and the CHARGING
LED will ash. To reset after an aborted charge, either disconnect
the battery or unplug the charger.
Completion of Charge
Charge completion is indicated by the CHARGED LED. When lit,
the charger has stopped charging and switched to the Maintain Mode
of operation.
Maintain Mode (Float-Mode Monitoring)
When the CHARGED LED is lit, the charger has started Maintain
Mode. In this mode, the charger keeps the battery fully charged by
delivering a small current when necessary. If the charger has to provide
its maximum maintain current for a continuous 12 hour period, it will
go into Abort Mode (see Aborted Charge section). This is usually
caused by a drain on the battery or the battery could be bad. Make
sure there are no loads on the battery. If there are, remove them. If
there are none, have the battery checked or replaced.
Maintaining a Battery
The Schumacher XM1-5 is a battery maintainer, and maintains both
6 and 12 volt batteries, keeping them at full charge. It can charge
small batteries and maintain both small and large batteries. If you are
maintaining a fully charged large battery, you will properly utilize the
battery charger. However, if you use the battery charger to charge a
large battery, such as a marine deep cycle battery, that was not fully
charged, you may lose some of the battery’s capacity. This would
cause the large battery to be unable to hold a charge and become
useless. Therefore, we do not recommend charging a large battery
with this unit.
NOTE: The maintain mode technology utilized in Schumacher’s
maintainers allows you to safely charge and maintain a healthy battery
for extended periods of time. However, problems with your battery,
electrical problems in your vehicle, improper connections or other
unanticipated conditions could cause excessive current draws, as
such, occasionally monitoring your battery and the charging process is
recommended.

• 11 •
CALCULATING CHARGE TIME13.
Find your battery’s rating on the chart below, and note the charge time
given. The times given are for batteries with a 50% charge prior to
recharging. Add more time for severely discharged batteries.
NR means the charger setting is not recommended.
BATTERY SIZE/RATING CHARGING TIME
SMALL Motorcycle, garden
tractor, etc.
6 - 12 AH 2 ½ - 4 hrs
12 - 32 AH 5 - 13 ½ hrs
CARS/
TRUCKS
200 - 315
CCA 40 - 60 RC NR
315 - 550
CCA 60 - 85 RC NR
550 - 1000
CCA 80 - 190 RC NR
MARINE/DEEP CYCLE
80 RC NR
140 RC NR
160 RC NR
180 RC NR
MAINTENANCE INSTRUCTIONS14.
After use and before performing maintenance, unplug and14.1 disconnect the battery charger (see sections 6, 7 and 8).
Use a dry cloth to wipe all battery corrosion and other dirt or oil14.2 from the battery clips, cords, and the charger case.
Ensure that all of the charger components are in place and in good14.3 working condition, for example, the plastic boots on the battery clips.
Servicing does not require opening the unit, as there are no user-14.4 serviceable parts.
All other servicing should be performed by qualied service personnel.14.5

• 12 •
MOVING AND STORAGE INSTRUCTIONS15.
Store the charger unplugged, in an upright position. The cord will15.1 still conduct electricity until it is unplugged from the outlet.
Store inside, in a cool, dry place (unless you’re using an on-board15.2 Marine Charger).
Do not store the clips clipped together, on or around metal, or15.3 clipped to cables.
If the charger is moved around the shop or transported to another location,15.4 take care to avoid/prevent damage to the cords, clips and charger. Failure
to do so could result in personal injury or property damage.
TROUBLESHOOTING16.
PROBLEM POSSIBLE CAUSE REASON/SOLUTION
Charger will not turn
on when properly
connected.
AC outlet is dead.
AC POWER LED is
not lit.
Poor electrical
connection. AC
POWER LED is not lit.
Severely discharged,
but otherwise good,
battery.
Clips are not making
a good connection
to the battery.
CONNECTED LED is
not lit.
Check for an open
fuse or circuit breaker
supplying the AC outlet.
Check the power cord
and extension cord for
a loose tting plug.
The battery may not
want to accept a
charge due to a run-
down state. Allow the
charging to continue
until the battery has had
a chance to recover
sufciently enough to
take a charge. If more
than 20 minutes, stop
charging and have the
battery checked.
Check for poor
connection to battery
and frame. Make sure
connection points are
clean. Rock clips back
and forth for a better
connection.

• 13 •
PROBLEM POSSIBLE CAUSE REASON/SOLUTION
Charger will not
turn on when
properly connected.
(continued)
Battery is defective.
Reverse connections at
battery. CONNECTED
LED is not lit.
Have the battery
checked.
Unplug the charger
and correct the lead
connections.
CHARGING LED is
ashing.
Indicates the charger
is in abort mode. See “Aborted Charge” in the OPERATING
INSTRUCTIONS
Section.
Battery clips do not
spark when touched
together.
The charger is
equipped with an
auto-start feature. It will
not supply current to
the battery clips until
a battery is properly
connected. Unlike
traditional chargers,
the clips will not spark
if touched together.
No problem, this is a
normal condition.
BEFORE RETURNING FOR REPAIRS17.
When a charging problem arises, make certain that the battery17.1 is capable of accepting a normal charge. Double check all
connections, the AC outlet for a full 120-volts, the charger clips for
correct polarity and the quality of the connections from the cables
to the clips and from the clips to the battery system. The clips must
be clean.
When a battery is very cold, partially charged or sulfated, it will not17.2 draw the full rated amperes from the charger. It is both dangerous
and damaging to a battery to force higher amperage into it than it
can effectively use in recharging.
When an UNKNOWN OPERATING PROBLEM arises, please read17.3 the complete manual and call the customer service number for
information that will usually eliminate the need for return.

• 14 •
If the above solutions do not eliminate the problem or for information
about troubleshooting, call toll-free from anywhere in the U.S.A.
1-800-621-5485
7:00 am to 5:00 pm Central Time Monday through Friday
SPECIFICATIONS18.
Input Voltage ........................................................................... 120 VAC
Output Current Rating ..........................................................12V – 1.5A
6V – 1.5A
Maximum Charge Voltage ..................................................12V – 14.8V
6V – 7.4V
Maintain Voltage.................................................................12V – 13.3V
6V – 6.6V
Size ............... 3⅛" (79.3 mm) H x 7" (177.8 mm) W x 4" (101.6 mm) D
Weight ..........................................................................2½ lbs (1.08 kg)
REPLACEMENT PARTS19.
Battery Clip Cable Assembly ............................................. 3899001235
Ring Terminal Cable Assembly.......................................... 2299001950
LIMITED WARRANTY20.
WARRANTY NOT VALID IN MEXICO.
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS
CENTER DRIVE, MOUNT PROSPECT, IL 60056-2179, MAKES
THIS LIMITED WARRANTY TO THE ORIGINAL RETAIL
PURCHASER OF THIS PRODUCT. THIS LIMITED WARRANTY
IS NOT TRANSFERABLE OR ASSIGNABLE.
Schumacher Electric Corporation (the “Manufacturer”) warrants this
battery charger for 2 years from the date of purchase at retail against
defective material or workmanship that may occur under normal use
and care. If your unit is not free from defective material or workmanship,
Manufacturer’s obligation under this warranty is solely to repair or
replace your product with a new or reconditioned unit at the option of
the Manufacturer. It is the obligation of the purchaser to forward the unit,
along with mailing charges prepaid to the Manufacturer or its authorized
representatives in order for repair or replacement to occur.
Manufacturer does not provide any warranty for any accessories used
with this product that are not manufactured by Schumacher Electric
Corporation and approved for use with this product. This Limited
Warranty is void if the product is misused, subjected to careless

• 15 •
handling, repaired, or modied by anyone other than Manufacturer or
if this unit is resold through an unauthorized retailer.
Manufacturer makes no other warranties, including, but not limited to,
express, implied or statutory warranties, including without limitation,
any implied warranty of merchantability or implied warranty of tness
for a particular purpose. Further, Manufacturer shall not be liable for
any incidental, special or consequential damage claims incurred by
purchasers, users or others associated with this product, including, but not
limited to, lost prots, revenues, anticipated sales, business opportunities,
goodwill, business interruption and any other injury or damage. Any and
all such warranties, other than the limited warranty included herein, are
hereby expressly disclaimed and excluded. Some states do not allow the
exclusion or limitation of incidental or consequential damages or length
of implied warranty, so the above limitations or exclusions may not apply
to you. This warranty gives you specic legal rights and it is possible you
may have other rights which vary from this warranty.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED
WARRANTY AND THE MANUFACTURER NEITHER ASSUMES
OR AUTHORIZES ANYONE TO ASSUME OR MAKE ANY
OTHER OBLIGATION TOWARDS THE PRODUCT OTHER
THAN THIS WARRANTY.
Schumacher Electric Corporation Customer Service
1-800-621-5485
Monday – Friday 7:00 a.m. to 5:00 p.m. CST
Schumacher and the Schumacher Logo are registered trademarks of
Schumacher Electric Corporation
To activate the warranty, please ll in the warranty registration card on
page 16 and mail it in, OR go to www.batterychargers.com to register
your product online.
DO NOT RETURN THIS PRODUCT TO THE STORE!
Call Customer Service for Assistance: 800-621-5485

• 16 •
2 YEAR LIMITED
WARRANTY PROGRAM
REGISTRATION
MODEL:___________________ DESCRIPTION:___________________________
This is the only express limited warranty, and the manufacturer neither assumes nor authorizes
anyone to assume or make any other obligation. There is no other warranty, other than what is
described in the product owner’s manual.
The warranty card should be submitted within 30 days of purchase. The customer must
keep the ORIGINAL receipt because it will be required for any warranty claims.
This warranty is not transferable.
Mail To: Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 Name_______________________________________________________________ Street Address________________________________________________________ City_________________________________State__________Zip Code__________ Phone______________________Email____________________________________ Store Name Where Purchased____________________Date of Purchase__________ Store Location_____________________UPC Number_________________________ Serial Number________________________(SEE PRODUCT)

• 17 •
PROGRAMA DE REGISTRO
DE 2-AÑOS DE GARANTÍA
LIMITADA
MODELO:___________________ DESCRIPCIÓN:___________________________
Esta es la única garantía limitada expresa, y el productor no autoriza ni otorga a alguien a realizar
alguna otra obligación. No existe ninguna otra garantía más que la descrita en el manual del dueño.
La tarjeta de garantía debe enviarse durante los primeros 30 días después de la compra.
El cliente debe mantener el recibo de compra ORIGINAL como comprobante,
el cual le otorga todo derecho a cualquier reclamo de garantía.
Esta garantía no es tranferible.
Dirigase a: Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 Nombre______________________________________________________________ Dirección_____________________________________________________________ Ciudad_______________________________Estado_____________C.P.__________ Tel:_______________________Correo electrónico____________________________ Nombre de la Tienda donde se Compró_________________Fecha de compra _____ Localización de la Tienda___________________Numero de Serie _______________ Código de barras ________________________(CONSULTE EL PRODUCTO)

• 18 •
IMPORTANTE: LEA Y GUARDE ESTE MANUAL DE
INSTRUCCIONES Y SEGURIDAD.
GUARDE ESTAS INSTRUCCIONES: Este manual le mostrará
cómo utilizar su cargador en forma segura y efectiva. Por favor, lea,
comprenda y siga estas instrucciones y precauciones cuidadosamente,
ya que este manual contiene instrucciones operativas y de seguridad
de importancia. Los mensajes de seguridad representados en este
manual contienen palabras guía, un mensaje y una gura.
La palabra guía indica el nivel de peligro en determinada situación.
Indica una inminente situación de riesgo que, si no
se evita, resultaría mortal o de serios perjuicios al
operador o personas alrededor.
Indica una situación potencialmente riesgoso que, si
no se evita, podría resultar o de serios perjuicios al
operador o personas alrededor.
Indica una situación potencialmente peligrosa que, de
no evitarse, podría resultar en menores o serio daños
al usuario y terceras personas.
Indica una situación potencialmente peligrosa que, de
no evitarse, podría causar daño al equipo, al vehículo
y propiedades alrededor.
Conforme a la propuesta 65 de California, este
producto contiene químicos de los cuales en el Estado
de California se tiene conocimiento que provocan
cáncer y malformaciones congénitas u otras lesiones
reproductivas.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD –1. GUARDE ESTAS INSTRUCCIONES – Este manual contiene
instrucciones operativas y de seguridad de importancia
EL RIESGO DE DESCARGA ELÉCTRICA
O INCENDIO
Manténgase alejado de los niños.1.1
PELIGRO
ADVERTENCIA
ATENCIÓN
IMPORTANTE
ADVERTENCIA

• 19 •
No exponga el cargador a la lluvia o a la nieve.1.2
Utilice solamente accesorios recomendados. El uso de un1.3 accesorio no recomendado o suministrado por Schumacher®
Electric Corporation puede provocar riesgo de incendio, descarga
eléctrica o lesiones a personas o daño a la propiedad.
Para reducir el riesgo de daños al enchufe o cable eléctrico, jale1.4 del enchufe en lugar de jalar del cable al desconectar el cargador.
No se debe utilizar un alargador a menos que resulte1.5 absolutamente necesario. El uso de un alargador inadecuado
puede provocar riesgo de incendio o descarga eléctrica. En caso
de que deba utilizarse un alargador, asegúrese de que:
Los pasadores en el enchufe del alargador posean el mismo número,• tamaño y forma que aquellos presentes en el enchufe del cargador.
El alargador se encuentre correctamente conectado y en buenas• condiciones eléctricas.
El tamaño del cable sea lo sucientemente extenso para el •
amperaje en C.A. del cargador como se especica en la sección 8.
Para reducir el riesgo de descarga eléctrica, desenchufe el1.6 cargador del tomacorriente antes de intentar llevar a cabo
cualquier actividad de mantenimiento o limpieza. El simple
apagado de los controles no reducirá este riesgo.
No utilice el cargador si el mismo posee un enchufe o cable1.7 dañado; substituya el cable o el enchufe inmediatamente por una
persona calicada en el ramo. (Comuníquese con el servicio al
cliente al: 1-800-621-5485.)
No utilice el cargador si el mismo recibió un golpe fuerte, si se1.8 cayó o si sufrió daños de cualquier otra forma; hágalo revisar por
una persona capacitada que efectúe reparaciones. (Comuníquese
con el servicio al cliente al: 1-800-621-5485.)
No desarme el cargador; hágalo revisar por una persona1.9 capacitada que efectúe reparaciones cuando necesite servicio
de mantenimiento o una reparación. Volver a ensamblar el
cargador en forma incorrecta puede provocar riesgo de incendio
o descarga eléctrica. (Comuníquese con el servicio al cliente al:
1-800-621-5485.)
