SCHUNK VERO-S NSE-HT mini 88-20 User instructions

Translation of the original manual
VERO-S quick-change pallet system
NSE-HT mini 88-20, NSE-HT mini 88-20-V1
Assembly and Operating Manual
Superior Clamping and Gripping

Imprint
2 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
Imprint
Copyright:
This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights
reserved.
Technical changes:
We reserve the right to make technical improvements.
Document number: 1411420
Version: 05.00 |1/26/2021|en
Dear Customer
Dear Customer,
Thank you for putting your trust in our products and our family-owned company, the
leading technology supplier of robots and production machines.
Our team is always available to answer any questions on this product and other solutions.
We look forward to your challenging questions. We will find a solution!
Best regards,
Your SCHUNK team
H.-D. SCHUNK GmbH & Co.
Spanntechnik KG
Lothringer Str. 23
D-88512 Mengen
Tel. [phone]
Fax [phone]
[email protected]
schunk.com
Customer Management
Tel. [phone]
Fax [phone]
[email protected]
Please read the operating manual in full and keep it close to the product.

Table of contents
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
3
Table of contents
1
General .................................................................................................................... 5
1.1
About this manual .................................................................................................... 5
1.1.1
Illustration of safety notes ............................................................................ 5
1.1.2
Applicable documents................................................................................... 6
1.1.3
Sizes............................................................................................................... 6
1.2
Warranty................................................................................................................... 6
1.3
Scope of delivery ...................................................................................................... 7
1.4
Accessories ............................................................................................................... 7
2
Basic safety notes..................................................................................................... 8
2.1
Appropriate use........................................................................................................ 8
2.2
Inappropriate use ..................................................................................................... 8
2.3
Structural changes.................................................................................................... 9
2.4
Spare parts................................................................................................................ 9
2.5
Ambient conditions and operating conditions......................................................... 9
2.6
Personnel qualification........................................................................................... 10
2.7
Personal protective equipment.............................................................................. 11
2.8
Notes on safe operation......................................................................................... 11
2.9
Transport ................................................................................................................ 12
2.10
Malfunctions........................................................................................................... 12
2.11
Disposal................................................................................................................... 12
2.12
Fundamental dangers............................................................................................. 13
2.12.1
Protection during handling and assembly .................................................. 13
2.12.2
Protection during commissioning and operation ....................................... 14
2.12.3
Protection against dangerous movements................................................. 14
2.12.4
Notes on particular risks ............................................................................. 15
3
Technical data ......................................................................................................... 17
4
Assembly................................................................................................................. 18
4.1
Pre-assembly .......................................................................................................... 18
4.2
Installing and connecting ....................................................................................... 18
4.3
Mounting and connection...................................................................................... 19
4.3.1
NSE-HT mini 88-20 ...................................................................................... 21
4.3.2
NSE-HT mini 88-20-V1................................................................................. 22
4.4
SPA 20 mini, SPB 20 mini, SPC 20 mini clamping pins............................................ 24
4.5
Screw tightening torques ....................................................................................... 27
4.6
Pneumatic circuit diagram NSE-HT mini 88-20, NSE-HT mini 88-20-V1 ................ 27
5
Operation................................................................................................................ 29

Table of contents
4 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
6
Maintenance and care ............................................................................................. 31
6.1
Leak test.................................................................................................................. 32
7
Disassembly ............................................................................................................ 34
8
Troubleshooting ...................................................................................................... 35
8.1
The clamping area does not unlock ....................................................................... 35
8.2
If the clamping area does not unlock perfectly ..................................................... 35
8.3
The quick-change pallet system no longer opens quietly...................................... 35
9
Parts lists................................................................................................................. 36
9.1
NSE-HT mini 88-20 (ID 1419192)............................................................................ 36
9.2
NSE-HT mini 88-20-V1 (ID 1460874) ...................................................................... 36
10
Assembly drawings.................................................................................................. 38
10.1
NSE-HT mini 88-20.................................................................................................. 38
10.2
NSE-HT mini 88-20-V1 ............................................................................................ 39
11
Declaration of incorporation ................................................................................... 40
12
Appendix on Declaration of Incorporation, as per 2006/42/EC, Annex II, No. 1 B ..... 41

General
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
5
General
About this manual
This manual contains important information for the safe, correct
use of the product.
The manual is an integral part of the product and must be kept
accessible by personnel at all times.
Personnel must have read and understood this manual before
beginning any work. The observance of all safety notes in this
manual is the precondition for all safe working.
The illustrations in this manual are intended to provide a basic
understanding and may deviate from the actual version.
Besides this manual, other documents which apply are those listed
under (1.1.2, Page 6).
Illustration of safety notes
To make risks clear,the following signal words and symbols are
used for safety notes.
DANGER
Danger to individuals!
Ignoring a safety note such as this will certainly lead to
irreversible injury and even death.
WARNING
Danger to individuals!
Ignoring a safety note such as this can lead to irreversible injury
and even death.
CAUTION
Danger to individuals!
Non-observance can cause minor injuries.
NOTICE
Material damage!
Information about avoiding material damage.
1
1.1
1.1.1

General
6 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
Applicable documents
• General terms and conditions *
• Technical data sheet for optional attachments *
The documents indicated with an asterisk (*) can be downloaded
from schunk.com.
Sizes
This manual applies to the following variants:
Quick-Change Pallet System
• NSE-HT mini 88-20
• NSE-HT mini 88-20-V1
Warranty
The warranty is valid for 24 months from the delivery date to the
production facility or:
• 500,000 cycles* at operating temperatures ≤ +60°C without
contact with metal powders (AM powder)
• 250,000 cycles* at operating temperatures > +60°C without
contact with metal powders (AM powder)
• 150,000 cycles* at operating temperatures ≤ +60°C with
contact with metal powders (AM powder)
• 10,000 cycles* at operating temperatures > +60°C with contact
with metal powders (AM powder)
For appropriate use under the following conditions:
• Observance of the applicable documents(1.1.2, Page 6)
• Observance of the ambient conditions and operating conditions
(2.5, Page 9)
• Observance of the specified care and maintenance instructions
(6, Page 31)
Parts touching the workpiece and wearing parts are not part of the
warranty.
* One cycle comprises one complete clamping procedure ("1x
opening" and "1x closing").
1.1.2
1.1.3
1.2

General
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
7
Scope of delivery
The scope of delivery includes:
• Quick-change pallet system in the variant ordered
• Accessory kit NSE-HT mini 88-20:
2 O-rings Ø3 x 1.5
6 cover plugs
6 mounting screws M4 x 20
• Accessory kit NSE-HT mini 88-20-V1:
2 O-rings Ø3 x 1.5
6 cover plugs
4 mounting screws M4 x 20
1 mounting screw M4 x 16
1 fitting screw M4
Accessories
(see catalog or home page when ordering separately)
• Clamping pin
– SPA mini 20 (ID: 0435610)
– SPB mini 20 (ID: 0435620)
– SPC mini 20 (ID: 0435630)
• Protection cover
– SDE mini 20 (ID: 0435660)
• Indexing pin
– IXB V1 mini (ID: 0435930)
– IXB-HT V1 mini (ID: 1460953)
• Cover plugs for mounting screws
– ADK-HT M4-SW3 PTFE (ID: 1419146)
1.3
1.4

Basic safety notes
8 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
Basic safety notes
Appropriate use
This product is intended solely for the positioning and clamping of
clamping pallets, devices, substrate plates or workpieces on
machine tools, additive production machines that work according
to the SLM method, or other suitable technical devices.
• The product may only be used in combination with original
SCHUNK clamping pins.
• The product may only be used within the scope of its technical
data, (3, Page 17).
• The product is intended for industrial and industry-oriented
use.
• Appropriate use of the product includes compliance with all
instructions in this operating manual.
Inappropriate use
The product is not being used as intended if, for example:
• Use as a punching tool
• Use as a toolholder
• Use as a load handling device or lifting equipment
• Use outside the permissible technical data
• Non-compliance with the operating manual
• Use of damaged screws
• Operation of the quick-change pallet system with modifications
not approved by the manufacturer
• Use for turning applications above 100 RPM without consulting
SCHUNK
• Use of clamping pins from a manufacturer other than SCHUNK
2
2.1
2.2

Basic safety notes
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
9
Structural changes
Implementation of structural changes
Modifications, changes or reworking, e. g. additional threads,
holes, or safety devices, can damage the product or impair its
functionality or safety.
• Structural changes should only be made with the written
approval of SCHUNK.
Spare parts
Use of unauthorized spare parts
Using unauthorized spare parts can endanger personnel and
damage the product or cause it to malfunction.
• Use only original spare parts and spares authorized by SCHUNK.
Ambient conditions and operating conditions
Required ambient conditions and operating conditions
Incorrect ambient and operating conditions can make the product
unsafe, leading to the risk of serious injuries, considerable material
damage and/or a significant reduction to the product's life span.
• Make sure that the product is only used within its defined
application parameters, (3, Page 17).
• Make sure that the product is a sufficient size for the
workpiece.
• Make sure that the contact surfaces of the interface are always
clean.
• Make absolutely sure that no chips or larger quantities of metal
powder of any kind can enter the interface and that the
interface does not fill with cooling emulsion, which is
particularly possible with vertical alignment of the clamping pin
axis. The best way to ensure that neither of these incidents
occur is to use the protection covers SDE mini 20 (ID: 0435660).
For use at temperatures above +60°C, the O-ring on the SDE
mini must be removed. If the interface should fill with cooling
emulsion, initiate the unlocking process and dry out the
interface in actuated state.
• Only use high-quality cooling emulsions with anti-corrosive
additives during processing.
2.3
2.4
2.5

Basic safety notes
10 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
NOTICE
At high ambient temperatures, a tempering effect may occur,
resulting in a golden yellow surface. This is completely normal
and does not limit the function in any way.
Personnel qualification
Inadequate qualification of personnel
Work on the product by inadequately qualified personnel can lead
to serious injuries and considerable material damage.
• Order all work to be performed only by appropriately qualified
personnel.
• Personnel must have read and understood the complete
manual before beginning any work on the product.
• Observe national accident prevention regulations and the
general safety notes.
The following personnel qualifications are required for the various
types of work on the product:
Specialist personnel have the specialized training, knowledge, and
experience to perform the tasks entrusted to them, to recognize
and avoid potential dangers, and know the relevant standards and
regulations.
Instructed persons have been instructed by the user regarding the
tasks entrusted to them and the potential dangers of
inappropriate behavior.
The manufacturer's service personnel have the specialized
training, knowledge, and experience to perform the work
entrusted to them and to recognize and avoid potential dangers.
2.6
Specialist personnel
Instructed person
Manufacturer's
service personnel

Basic safety notes
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
11
Personal protective equipment
Use of personal protective equipment
Personal protective equipment serves to protect staff in the event
of a danger that may interfere with their health or safety at work.
• When working on and with the product, observe the
occupational health and safety regulations and wear the
required personal protective equipment.
• Observe the valid safety and accident prevention regulations.
• Wear protective gloves to guard against sharp edges and
corners or rough surfaces.
• Wear heat-resistant protective gloves when handling hot
surfaces.
• Wear protective gloves and safety goggles when handling
hazardous substances.
• Wear close-fitting protective clothing and also wear long hair in
a hairnet when dealing with moving components.
Notes on safe operation
Incorrect manner of working by personnel
An incorrect manner of working can make the product unsafe and
risk the danger of serious injuries and considerable material
damages.
• Avoid any manner of working that may interfere with the
function and operational safety of the product.
• Use the product as intended.
• Observe the safety notes and assembly instructions.
• Do not expose the product to any corrosive media. Products for
special ambient conditions are excluded.
• Rectify malfunctions as soon as they occur.
• Observe the care and maintenance instructions.
• Observe the current safety, accident prevention, and
environmental protection regulations for the application field
of the product.
2.7
2.8

Basic safety notes
12 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
Transport
Handling during transport
Incorrect handling during transport can make the product unsafe
and risk serious injuries and considerable material damage.
• When handling heavy weights, use lifting equipment to lift the
product and transport it by appropriate means.
• During transport and handling, secure the product to prevent it
from falling.
• Do not walk under suspended loads.
Malfunctions
Behavior in case of malfunctions
• Immediately remove the product from operation and report
the malfunction to the responsible departments/persons.
• Order appropriately trained personnel to rectify the
malfunction.
• Do not recommission the product until the malfunction has
been rectified.
• Test the product after a malfunction to establish whether it still
functions properly and no increased risks have arisen.
Disposal
Handling of disposal
Incorrect handling during disposal can make the product unsafe
and risks serious injuries and considerable material and
environmental harm.
• Follow local regulations on dispatching product components for
recycling or orderly disposal.
2.9
2.10
2.11

Basic safety notes
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
13
Fundamental dangers
General
• Observe safety distances.
• Never deactivate safety devices.
• Before commissioning the product, take appropriate protective
measures to secure the danger zone.
• Disconnect power sources before installation, modification,
maintenance, or calibration. Ensure that no residual energy
remains in the system.
• If the energy supply is connected, do not move any parts by
hand.
• Do not reach into the open mechanism or movement area of
the product during operation.
Protection during handling and assembly
Incorrect handling and assembly
Incorrect handling and assembly can make the product unsafe and
pose a risk of serious injuries and considerable material damage.
• Order all work to be performed only by appropriately qualified
personnel.
• For all work, secure the product against accidental operation.
• Observe the relevant accident prevention regulations.
• Use suitable assembly and transport equipment and take
precautions to prevent jamming and crushing.
Incorrect lifting of loads
Falling loads can cause serious injuries and even death.
• Stand clear of suspended loads and do not step within their
swiveling range.
• Never move loads without supervision.
• Do not leave suspended loads unattended.
2.12
2.12.1

Basic safety notes
14 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
Protection during commissioning and operation
Falling or violently ejected components
Falling and violently ejected components can cause serious injuries
and even death.
• Take suitable protective measures to secure the danger zone.
• Never step into the danger zone during operation.
• Before commissioning the machine or automated system,
check that the EMERGENCY STOP system is working.
Protection against dangerous movements
Unexpected movements
If the system still retains residual energy, serious injuries can be
caused while working on the product.
• Switch off the energy supply, ensure that no residual energy
remains and secure against inadvertent reactivation.
• Never rely solely on the response of the monitoring function to
avert danger. Until the installed monitors become effective, it
must be assumed that the drive movement is faulty, with its
action being dependent on the control unit and the current
operating condition of the drive. Perform maintenance work,
modifications, and attachments outside the danger zone
defined by the movement range.
• To avoid accidents and/or material damage, human access to
the movement range of the machine must be restricted. Apply
technical safety measures to limit/prevent accidental access for
people in this area. The protection cover and protective fence
must be rigid enough to withstand the maximum possible
movement energy. EMERGENCY STOP switches must be easily
and quickly accessible. Prevent operation of the machine if this
protective equipment does not function correctly.
2.12.2
2.12.3

Basic safety notes
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
15
Notes on particular risks
DANGER
When operated with inert gas, there is a danger of suffocation
due to escaping inert gas as a result of leakage.
• Provide a gas warning system according to DIN EN 45544-
4:2017-01.
• Observe maintenance and inspection intervals.
• In case of discomfort or dizziness, leave the premises
immediately, report any symptoms and go out into the fresh
air.
DANGER
Risk of injury if the clamping pin, the mounting screw of the
clamping pin, or the clamping module breaks when overloaded
and the object to be clamped is released uncontrollably.
The product must never be operated outside its appropriate use.
WARNING
The system clamps using spring force. Risk of injury due to parts
automatically moving to their end positions following actuation
of an "emergency stop" or after switching off the power supply.
• Wait for the system to shut down completely.
• Do not reach into the centering hole when the power supply is
connected.
• Use pressure maintenance valves.
2.12.4

Basic safety notes
16 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
CAUTION
Risk of crushing the limbs when reaching into the centering hole
during the actuation process, in the event of pressure failure, or
inadvertent actuation of the product.
• Wait for the system to shut down completely.
• Only reach into the centering hole when the power supply is
disconnected (e.g. for cleaning purposes).
• Prevent power supply from inadvertently being activated.
CAUTION
Avoid contact between lubricant and the skin or eyes.
• Wear personal protective equipment (protective gloves and
safety glasses).

Technical data
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
17
Technical data
Designation
type
ID
Holding force*
(M6 / M8)
Pull down force
without turbo
Pull down force
with turbo (6 bar)
NSE-HT mini 88-20
1419192
15 kN / 25 kN
0.5 kN
2.5 kN
NSE-HT mini 88-20-V1
1460874
* Holding force when fastening the clamping pin with cylindrical
screw – DIN EN ISO 4762/12.9
Actuating pressure
min. 5 bar, max. 6 bar
Repeat accuracy [mm]
< 0.005 mm **
Installation position
any
Permissible installation types
Partial installation, partially recessed, full
installation
Operating temperature
+15°C to +200°C
Actuation temperature
+15°C to +200°C
Required level of cleanliness
Cleanliness level 0 - SAS0 according to VDA 19.2
Noise emission [dB(A)]
≤ 70
Pressure medium
Compressed air, inert gas (e.g. argon),
pressurizing medium quality according to ISO
8573-1:2010: 7:4:2
The actuating pressure for the turbo function must not exceed 6
bar.
** Guaranteed for partial installations and partially recessed
installations.
The values for a full installation may differ slightly.
The reason for this is the flat surface of the clamping module,
which is offset from the pallet for optimum thermal transfer.
3

Assembly
18 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
Assembly
Pre-assembly
Request our installation drawing if installing the clamping
modules in the customer's clamping stations yourself.

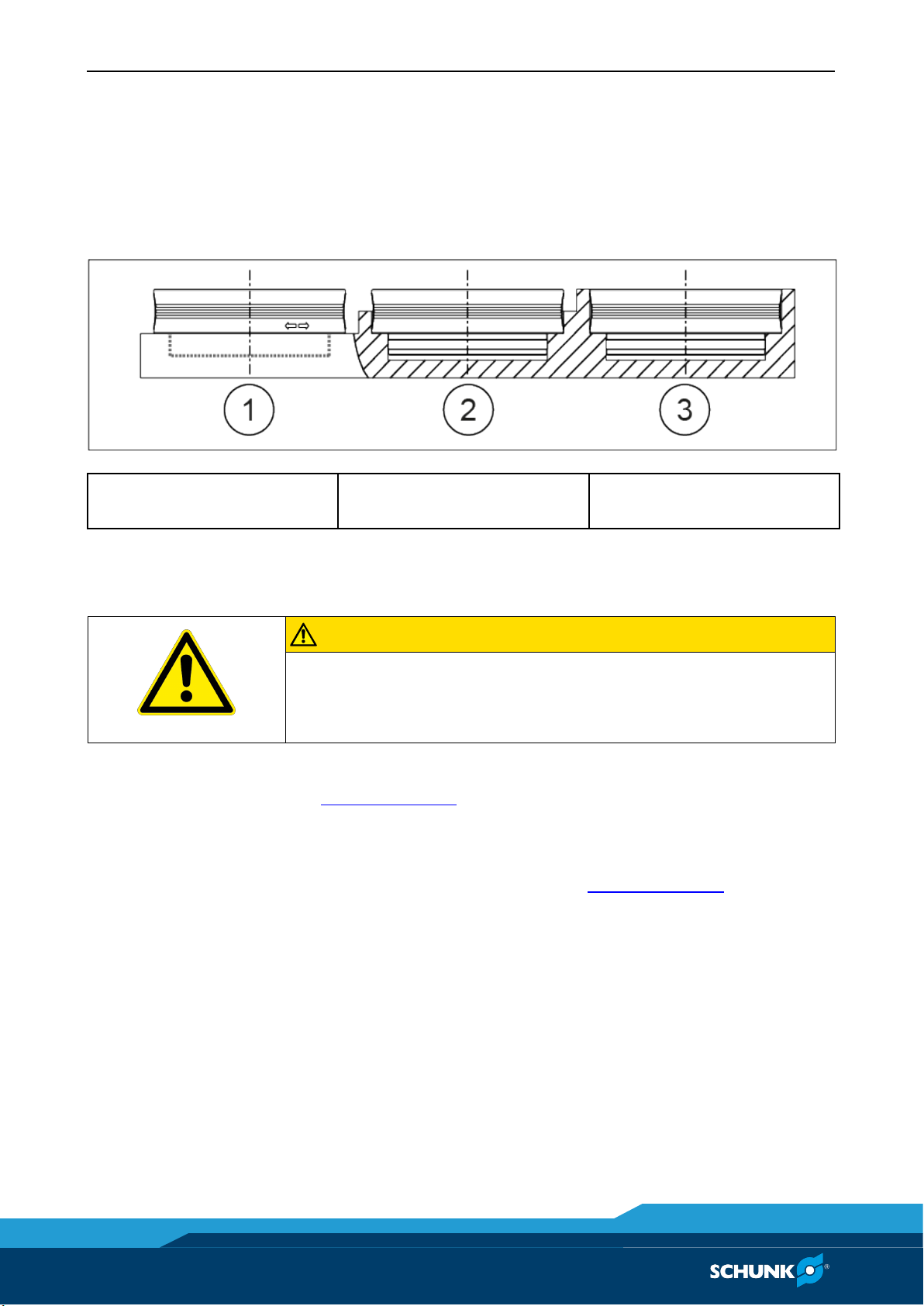

Installation types
① Partial installation
② Partially recessed
installation
③ Full installation
Installing and connecting
CAUTION
Risk of injury from the product falling onto limbs while handling.
• Wear personal protective equipment (safety shoes and
protective gloves).
1 Check the flatness of the mounting surface,
(4.3, Page 19)
2 Screw the clamping module to the clamping station,
Observe permissible tightening torques for the mounting
screws and the strength class, (4.5, Page 27).
3 Connect the clamping module
via the hose-free direct connection
4 Connect turbo connection if necessary.
4
4.1
4.2

Assembly
05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-
US
19
Mounting and connection
Flatness
If several linked clamping modules are mounted, make sure that
the flatness and height deviation of the locating surfaces from
clamping module to clamping module (based on a 100 mm gauge
for bore holes) is ≤ 0.02 mm. The gauge deviation may not exceed
± 0.015 mm.
Redundancy
Due to redundancy, the clamping pins with positioning accuracy in
one direction (SPB mini 20) should be used for clamping systems
that are more than 100 mm apart or that do not show a
positioning tolerance of ± 0.01 mm. For the clamping areas that
are not intended for alignment of the device or pallet, clamping
pins with centering clearance (SPC mini 20) can be used (also refer
to chapter "Clamping pins" (4.4, Page 24)).
Air bleeding for the piston chamber
When connecting the quick-change pallet systems, it is important
to note that it is only possible to completely bleed the air from the
piston chamber via the air connections during the locking process.
The relevant valves or shut-off valves should therefore be
equipped with load relief.
This also applies to the turbo connection. If the turbo connection
is not used, the relevant side of the piston must have a way of
being ventilated. This is done via the turbo connection itself.
Ventilation via turbo connection
Turbo connection
When using the turbo connection (if supply is connected), the
spring-actuated locking procedure is actively supported with air
pressure and in so doing strengthens the achievable pull down
force of the quick-change pallet system. One pressure pulse is
sufficient to increase the force. The pressure line can be decoupled
4.3

Assembly
20 05.00|1411420_NSE-HT mini 88-20, NSE-HT mini 88-20-V1 |en-US
afterwards without the pull down force being impaired. If the
turbo connection is not used, the relevant side of the piston must
be able to ventilate.
Connecting hose lines
If several quick-change pallet systems are activated via jointly
connected hose lines, feed lines with the following minimum
nominal widths for the hoses must be used.
Number of clamping modules
at least nominal hose width
1-4
4 mm
5-8
5 mm
> 8
8 mm
When disconnecting hose lines, the relevant openings of the air
supply connections must be protected with seal plugs or cover
plates to prevent the ingress of dirt or coolant.
