SCHUNK VERO-S User instructions

Translation of Original Operating Manual
VERO-S
Setup cart
Assembly and operating manual
Superior Clamping and Gripping

Imprint
2
01.01|Setup cart |en
Imprint
Copyright:
This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely
supplied to our customers and operators of our products and forms part of the product.
This documentation may not be duplicated or made accessible to third parties, in particu-
lar competitive companies,
without our prior permission.
Technical changes:
We reserve the right to make alterations for the purpose of technical improvement.
Document number: 0489059
Edition: 01.01 |18/02/2016|en
© SCHUNK GmbH & Co. KG
All rights reserved.
Dear customer,
congratulations on choosing a SCHUNK product. By choosing SCHUNK, you have opted for
the highest precision, top quality and best service.
You are going to increase the process reliability of your production and achieve best
machining results –to the customer's complete satisfaction.
SCHUNK products are inspiring.
Our detailed assembly and operation manual will support you.
Do you have further questions? You may contact us at any time –even after purchase.
Kindest Regards
Your H.-D. SCHUNK GmbH & Co.
Spanntechnik KG
Lothringer Str. 23
D-88512 Mengen
Tel. [phone]
Fax [phone]
[email protected]
www.schunk.com

Table of contents
01.01|Setup cart |en
3
Table of contents
1
General .................................................................................................................... 4
1.1
Warnings................................................................................................................... 4
1.2
Applicable documents .............................................................................................. 5
2
Basic safety notes..................................................................................................... 6
2.1
Intended use............................................................................................................. 6
2.2
Not intended use...................................................................................................... 6
2.3
Notes on particular risks........................................................................................... 6
2.4
Instructions for safe operation................................................................................. 8
2.4.1
Constructional changes, attachments, or modifications.............................. 9
2.5
Personnel qualification............................................................................................. 9
2.6
Organizational measures.......................................................................................... 9
2.7
Using personal protective equipment.................................................................... 10
3
Warranty................................................................................................................. 11
4
Scope of delivery ..................................................................................................... 11
4.1
Accessories ............................................................................................................. 11
5
Technical data ......................................................................................................... 12
6
Functional description and operation ...................................................................... 13
6.1
Sliding and setting down the setup cart................................................................. 13
6.2
Drawers................................................................................................................... 14
6.3
Transport ................................................................................................................ 16
7
Clamping pin holder ................................................................................................ 17
7.1
Assembly................................................................................................................. 17
7.2
Disassembly ............................................................................................................ 19
8
Maintenance and care............................................................................................. 20
8.1
Maintenance........................................................................................................... 20
8.2
Care......................................................................................................................... 21
9
Trouble shooting ..................................................................................................... 23
10
Disposal .................................................................................................................. 23
11
Spare parts.............................................................................................................. 24
12
Drawings ................................................................................................................. 25

General
4
01.01|Setup cart |en
General
This operating manual is an integral component of the product and
contains important information on safe and proper assembly,
commissioning, operation, care, maintenance and disposal. This
manual must be stored in the immediate vicinity of the product
where it is accessible to all users at all times.
Before using the product, read and comply with this manual,
especially the chapter “Basic safety notes”.(2, Page 6)
If the product is passed on to a third party, these instructions must
also be passed on.
Illustrations in this manual are provided for basic understanding of
the product and may differ from the actual product design.
We accept no liability for damage resulting from the failure to
observe and comply with this operating manual.
Warnings
To make risks clear, the following signal words and symbols are
used for safety notes.
DANGER
Danger for persons.
Non-compliance will inevitably cause irreversible injury or death.
WARNING
Dangers for persons.
Ignoring a safety note like this can lead to irreversible injury and
even death.
CAUTION
Dangers for persons.
Non-observance can cause minor injuries.
1
1.1

General
01.01|Setup cart |en
5
NOTICE
Material damage
Information about avoiding material damage.
Applicable documents
General terms of business
Catalog data sheet of the purchased product
The documents listed here, can be downloaded on our homepage
www.schunk.com
1.2

Basic safety notes
6
01.01|Setup cart |en
Basic safety notes
Risks to persons and property may arise from incorrect handling,
assembly and adjustment of this product if these instructions are
disregarded.
Report breakdowns and damages as soon as you detect it and
repair immediately, so as to keep the extent of damage as small
as possible and to avoid risking the safety of the product.
Only original SCHUNK spare parts may be used.
Intended use
This product is used to store devices and tools as well as other
suitable technical facilities.
The technical data specified by the manufacturer must never be
exceeded.
The product is intended for industrial use.
Intended use also means that the user has read and understood
this operating manual in its entirety, especially the chapter “Basic
safety notes”.
Not intended use
The product is not being used as intended if, for example:
•if it is used as a means of transport for the transportation of
people, devices and tools as well as other suitable technical
facilities.
•It is used in working environments that are not permissible.
•The technical data specified by the manufacturer are exceeded
during usage.
Notes on particular risks
This product may pose a danger to persons and property if, for
example:
•It is not used as intended;
•It is not installed or maintained properly;
•The safety and installation instructions, local applicable safety
and accident prevention regulations or the EC Machinery
Directive are not observed.
2
2.1
2.2
2.3

Basic safety notes
01.01|Setup cart |en
7
WARNING
Risk of injury due to falling parts when setting up, operating,
dismantling, and transporting the setup cart.
Parts that have not been properly secured or incorrectly
positioned parts can come loose and fall down.
•Use suitable lifting equipment and means of transport.
•Position the devices and tools safely.
•When transporting and using the setup cart, stay clear of the
danger zone.
•Wear personal protective equipment.
WARNING
Risk of injury as a result of the setup cart tilting if loading of the
storage rack or the drawers is uneven or top-heavy.
•Load the setup cart evenly.
•Observe the maximum load weight.
WARNING
Risk of injury due to crushing or hitting when moving the setup
cart.
There is a danger of crushing or hitting when sliding the setup
cart or if it starts moving of its own accord on uneven ground.
•Observe the stopping distance when sliding the setup cart.
•When setting down the setup cart, actuate at least one
holding brake.
WARNING
Risk of injury due to accessibility and body posture
During setup, operation, disassembly and transport, a required
body posture can cause physical and psychological stresses.
•Use suitable lifting equipment.
•Wear personal protective equipment.
•Creating suitable work environment conditions.

Basic safety notes
8
01.01|Setup cart |en
CAUTION
Risk of injury from parts which are under spring force (drawer
locking, drawer pull-out safety device)
•Wear protective gloves during assembly, operation and
disassembly.
CAUTION
There is a risk of crushing when loading and unloading the setup
cart.
•Use suitable lifting equipment.
•Wear personal protective equipment.
CAUTION
Risk of slipping or falling if the operational environment of the
setup cart is not clean (e.g. contaminated with cooling lubri-
cants or oil).
•Ensure that the working environment is clean before starting
assembly, disassembly and de-installation work.
•Wear suitable safety boots.
•Observe the safety and accident prevention regulations when
operating the setup cart.
CAUTION
Risk of injury due to sharp edges and rough or slippery surfaces.
There is a risk of suffering abrasions from raw components of the
setup cart and its accessories.
•Wear personal protective equipment, particularly protective
gloves.
Instructions for safe operation
•Make sure the load on the setup cart and on the drawers is
equal when loading and unloading. Raise/Lower loads slowly.
•During storage as well as during loading and unloading, activate
the holding brake at one guide roller at least.
•Only use on even ground. Take special care that the ground is
even when loading and unloading.
2.4

Basic safety notes
01.01|Setup cart |en
9
•Always fully close the drawer after loading or unloading -
drawer locking must be activated.
•Before opening a drawer, make sure the remaining drawers are
fully closed (locked).
•Never use force when opening a drawer. Fully press in the
push-button when deactivating the drawer lock.

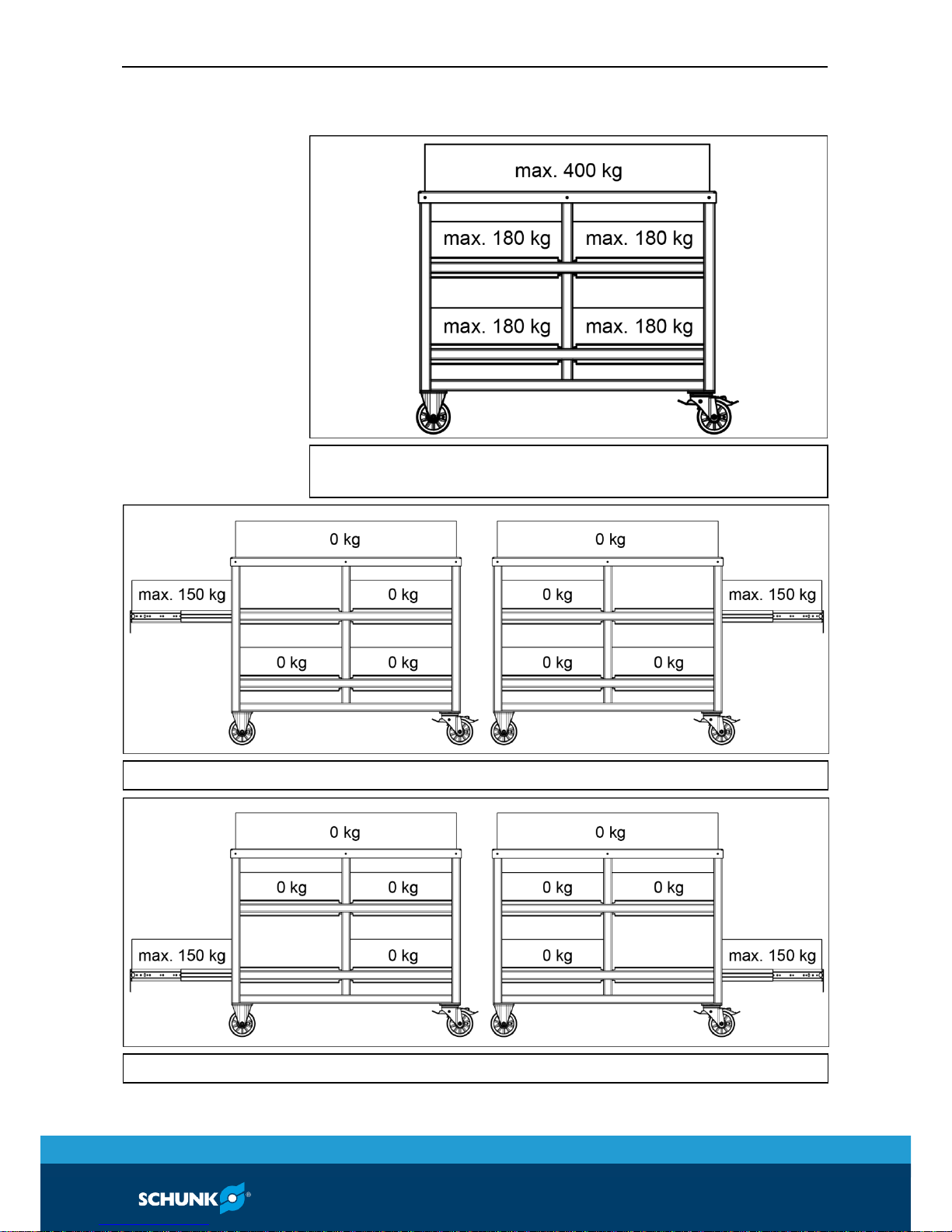

•Observe the permitted load rating of the individual drawers
and the storage rack.
•Make sure the drawers are fully closed (locked) before sliding
the setup cart.
•Use the handles to slide the setup cart.
•Never let the setup cart roll by itself.
•When on uneven or sloping surfaces, make sure that the setup
cart does not tilt or is set into motion of its own accord.
•Make sure the clamping pin holder is positioned correctly.
Constructional changes, attachments, or modifications
Additional threads, bore holes or attachments which are not
supplied as accessories by SCHUNK may affect safety.
They may only be applied after obtaining the prior consent of
SCHUNK.
Personnel qualification
Only qualified specialist personnel with the relevant safety training
may commission and operate the setup cart.
All persons charged with operating the setup cart must have
access to the operating manual, especially the chapter "Basic
safety notes".
Organizational measures
Obeying the rules
The operator must employ suitable organizational measures and
instructions in order to ensure that the relevant safety rules are
obeyed by the persons asked to operate, maintain and repair the
setup cart.
2.4.1
2.5
2.6

Basic safety notes
10
01.01|Setup cart |en
Monitoring the behavior of personnel
The operator must at least occasionally check that the personnel
are behaving in a safety-conscious manner and are aware of the
potential hazards.
Danger signs
The operator must ensure that the signs concerning safety and
hazards on the machine where the setup cart is used are clearly
legible and are observed.
Malfunctions
If safety-related malfunctions come about at the setup cart, then
it must be shut down immediately until such a time as the mal-
function has been found and remedied. Only allow specialists to
remedy malfunctions.
Spare parts
Only use original SCHUNK spare parts.
Environmental regulations
Comply with the applicable legal norms when disposing of waste.
Using personal protective equipment
When using this product, you must comply with the relevant
health and safety at work rules and you must use the required
personal safety equipment (minimum: category 2).
2.7

Warranty / Scope of delivery
01.01|Setup cart |en
11
Warranty
If the product is used as intended, the warranty is valid for
24 months from the date of delivery from the production facility
under the following conditions:
•Observe the applicable documents (1.2, Page 5)
•Observe the environmental and operating conditions.
•Observance of the permitted load rating of the individual
drawers and the storage rack. (6.2, Page 14)
•Observation of the maintenance and care instructions
(8, Page 20)
Not covered by the warranty are clamping pin holders, storage
racks and rack inserts, screw connections, springs, bearings,
screws and wearing parts.
Scope of delivery
1
VERO-S setup cart (RWA)
1
Assembly and operating manual
Accessories
(see catalog or data sheets when ordering separately)
Rack insert (RWB 5-5)
Rack insert (RWB 6-5)
Clamping pin holder (RWH mini 74-25)
Clamping pin holder (RWH mini 74-45)
Clamping pin holder (RWH plus 74-25)
Clamping pin holder (RWH plus 74-45)
3
4
4.1

Technical data
12
01.01|Setup cart |en
Technical data
Total height
904 mm
Overall width
1151.5 mm
Overall depth
765.6 mm
Total weight
181.4 kg
Max. load rating per drawer
180 kg
Max. load rating of the storage rack
400 kg
Full pull-out drawer
482.5 mm
Clear height in the drawer
213.5 mm
Storage height in the drawer
244 mm
Operating temperature
+ 15°C to + 60°C
The product is intended for industrial use when operated in closed
rooms. For this reason, it should be protected against excess
humidity, chemical vapors and contamination.
Warranty
Length of warranty
24 Months
5

Functional description and operation
01.01|Setup cart |en
13
Functional description and operation
The item numbers specified for the corresponding individual
components relate to chapter drawings.(12, Page 25)
Carefully lift the product (e.g. using suitable lifting gear) from the
packaging.
CAUTION
Danger of injury due to sharp edges and rough or slippery
surfaces
Use personal protective gear, especially safety gloves.
Check the delivery for completeness and for transport damage.
Sliding and setting down the setup cart
The setup cart has two fixed rollers for heavy loads (item 14) and
two guide rollers (items 12 and 13) with holding brake.
The two guide rollers are arranged in such a way that when sliding
the setup cart (forwards or backwards) the holding brake can
always be activated on one of the guide rollers. There are two
handles for the purpose of sliding the setup cart (item 10).
Setup cart with handles (item 10), guide rollers (items 12 and 13),
fixed rollers for heavy loads (item 14), storage rack (item 17) and
rack inserts (item 18)
The setup cart is for the quick access to devices and tools as well
as other suitable technical facilities directly on the machine.
It is not intended for the transport of objects over long distances.
6
6.1

Functional description and operation
14
01.01|Setup cart |en
For more information on transporting, please see chapter
"Transport" (6.3, Page 16).
When sliding the setup cart, the stopping distance needs to be
taken into consideration according to the load. The holding brakes
are not suitable for decelerating the setup cart. The holding brake
is used to prevent it from moving of its own accord after already
stopping.
Drawers
The drawers each have a drawer lock as well as a drawer pull-out
safety device.
•Drawer lock:
The drawer lock locks the drawer in place when in closed
position. Locking is triggered by pressing the push-button
(item 3) at the drawer handle. As soon as the drawer is opened
approx. 20 mm, it is no longer required to press the push-
button.
•Drawer pull-out safety device:
The drawer prevents the simultaneous opening of multiple
drawers. Before you can open another drawer, the opened
drawer must first be closed full and you need to hear the
drawer lock audibly snap into place.

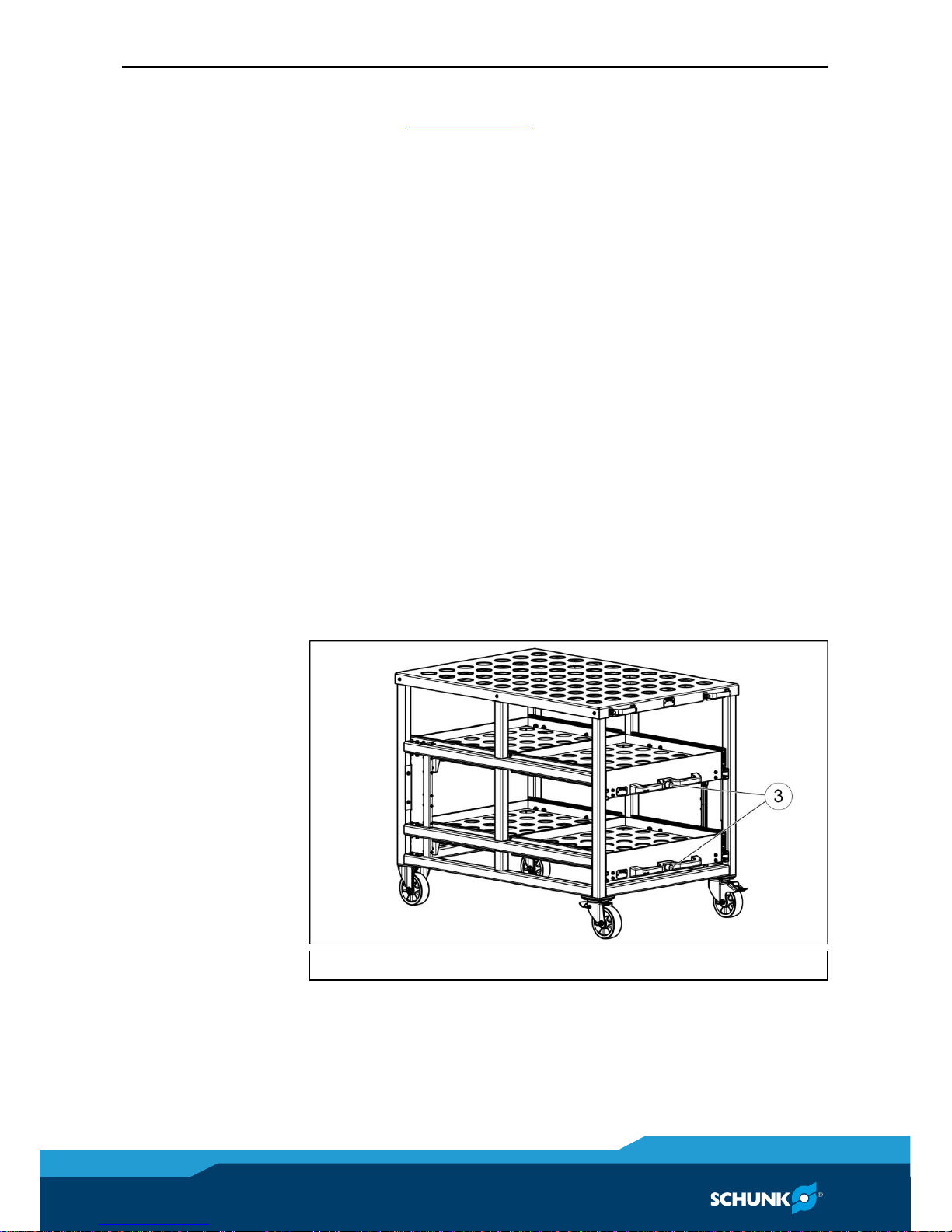

Drawer lock with push-button (item 3)
Maximum loading of the drawers and avoiding the risk of tilting
Every drawer has a max. load rating of 180 kg. If loading is uneven
or if the setup cart is unloaded, the max. loading of a drawer
reduces by 150 kg.
6.2

Functional description and operation
01.01|Setup cart |en
15
Here, take the center of gravity position of the drawer loading into
consideration.
Maximum load rating of the storage rack and the four drawers of
the setup cart
Maximum load of the upper drawers with otherwise unloaded setup cart
Maximum load of the lower drawers with otherwise unloaded setup cart

Functional description and operation
16
01.01|Setup cart |en
Transport
When sliding the setup cart over longer distances, the following
notes must be taken into account depending on the means of
transport:
•Sliding using manpower:
The setup cart does not have a brake which would make
deceleration possible when sliding. If the setup cart is moved
by hand, it will need to be brought to a standstill again
manually. Depending on the load, the required stopping
distance needs to be taken into consideration.
•Transport with forklift:
Select the position of the fork arms according to the load
(center of gravity) of the setup cart. Only load up from the
long side!
Position the fork arms up to the stop beneath the setup cart.
Use anti-slip mats and secure the setup cart with tension belts.
Only perform the transport at low speeds. Provide additional
fastening for top-heavy or heavy loads in the setup cart or
remove them from the setup cart before transport.
When transporting with a forklift, only load up from the long side.
•Transport on EPAL Euro pallets:
Before lowering the setup cart to the EPAL Euro pallet, place
anti-slip mats under the rollers.
Actuate the holding brake at the guide rollers. Secure the setup
cart to the pallet using tension belts or straps.
6.3

Clamping pin holder
01.01|Setup cart |en
17

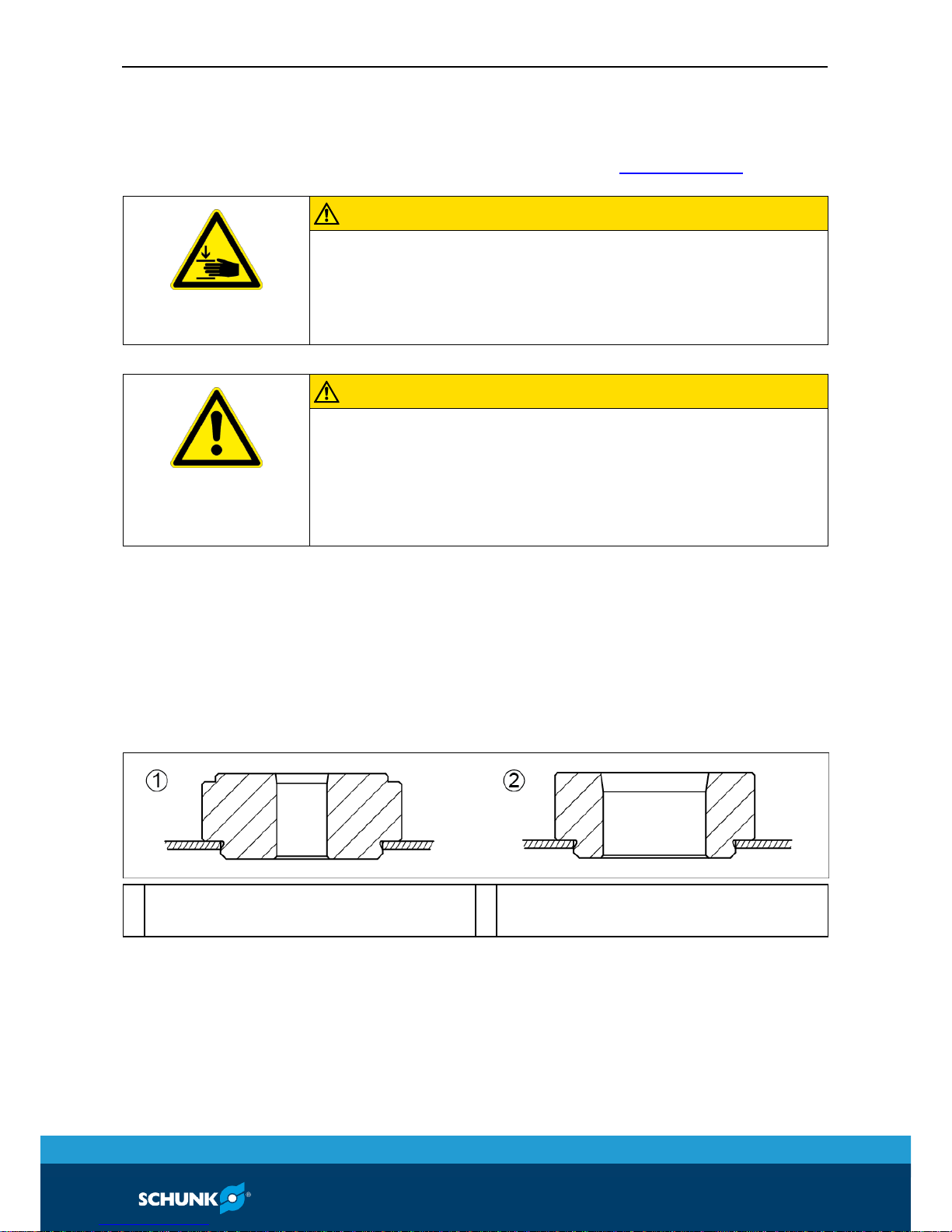

Clamping pin holder
The item numbers specified for the corresponding individual
components relate to chapter drawings.(12, Page 25)
CAUTION
There is a danger of crushing during assembly and disassembly
of the clamping pin holders.
•Use assembly aid.
•Wear personal protective equipment.
CAUTION
Danger from noise.
Noise stress from assembling and disassembling the clamping
pin holders.
•Wear hearing protection.
•Use soft-head hammer.
Assembly
The clamping pin holders for holding SPx 20 or SPx 40 clamping
pins can be positioned individually on the storage racks and rack
inserts (items 17 and 18).
There is an undercut in the clamping pin holder for the fixed
position in the locating hole.
1
Clamping pin holder for SPx 20-clamping
pin
2
Clamping pin holder for SPx 40-clamping
pin
7
7.1

Clamping pin holder
18
01.01|Setup cart |en
The storage rack and the rack inserts have a gauge for bore holes
of 100 mm in both directions.
Gauge for bore holes of 100 mm of the storage rack and the insert
racks
Assembly steps:
Positioning the clamping pin holders centrally above the bore hole
of the storage rack or rack insert.
Positioning of the clamping pin holder centrally above the bore hole
Move the clamping pin holder to its end position with soft hammer
blows.
Direction of the mating force
Check that the contact surface is resting flush on the rack.
1
End position of the clamping pin
holder
2
Contact surface of the clamping pin
holder flush on the rack

Clamping pin holder
01.01|Setup cart |en
19
Using a soft-blow hammer is recommended for the assembly.
A turned part with collar can be used to make assembly easier.
This can be inserted into the holding bore hole of the clamping pin
and thus provides a central introduction of mating force.
1
For example, a turned part with collar
as an assembly aid for the clamping
pin holder SPx 20
2
For example, a turned part with collar
as an assembly aid for the clamping
pin holder SPx 40
Disassembly
The clamping pin holders for holding SPx 20 or SPx 40 clamping
pins can be loosened again with light hammer blows along the
length.
Hammer blows along the length of the clamping pin holder for
disassembly
7.2

Maintenance and care
20
01.01|Setup cart |en
Maintenance and care
Maintenance
The improper use of the setup cart, in particular the drawer pull-
out safety device, can lead to restrictions in the functionality.
The bracket (item 9) below the drawer's underside can change
direction (parallel to the guide part) if the drawer is jerked open
or closed.
To realign the bracket, loosen the two screw connections
(item 26). Align the bracket (item 9) parallel to the guide part and
tighten the nuts of the screw connection with 8 Nm. It is important
that the pin (item 3) connected to the bracket has a distance of
0.5 mm to the flat surface of the guide part (item 10). The nut
(item 35) for fastening the pin (item 3) at the bracket (item 9)
needs to be tightened with 6 Nm.
Pin (item 3), bracket (item 9), guide part (item 10), screw connection (item 26),
nut (item 35)
Deactivation of the drawer pull-out safety device:
Loosen the two screws (item 25) of the cover plate (item 7).
Caution: The cover plate is under spring tension! Keep the cover
plate in position with one hand. The cover plate can be removed
once the screws have been fully unscrewed.
The drawer pull-out safety device is deactivated.
8
8.1
