Schwaiger HOME4YOU HA102 User manual

HA102
CONTROL CENTER
USER MANUAL
SCHWAIGER
HOME
GATEWAY
Blinds
Dimming
LightSmoke
MotionRadiator
Flood
Temperature

2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INFORMATION .............................................................................................................. 3
2. DEVICE DESCRIPTION ................................................................................................................................... 4
3. INSTALLATION OF THE SCHWAIGER GATEWAY .............................................................................................. 5
3.1 WIFI CONFIGURATION OF THE GATEWAY........................................................................................................ 6
4. RESET NETWORK CONFIGURATION ................................................................................................................ 7
5. RESET USER PREFERENCES ............................................................................................................................ 7
6. FACTORY RESET ............................................................................................................................................... 7
7. BUTTONS/FUNCTIONS.................................................................................................................................... 7
8. TECHNICAL DATA ........................................................................................................................................... 8
9. CONFIGURING THE Schwaiger Home4You SYSTEM ......................................................................................... 8
9.1 INSTALL SCHWAIGER CLIENT APPLICATION .................................................................................................... 9
9.2 CREATE USER ACCOUNT............................................................................................................................... 9
9.2.1 Create user account by using client application ..................................................................................... 9
9.2.2 Create user account by using web application ..................................................................................... 10
9.3 ADD THE GATEWAY TO THE USER ACCOUNT ................................................................................................. 11
9.3.1 Add the gateway by using client application........................................................................................ 11
9.3.2 Add the gateway by using web application.......................................................................................... 12
9.4 HOME SETUP ............................................................................................................................................ 12
10. DEVICE MANAGEMENT ............................................................................................................................... 13
10.1 MANAGE DEVICES BY USING CLIENT APPLICATION ...................................................................................... 13
10.1.1 Add a device to the gateway .......................................................................................................... 14
10.1.2 Update device name and location .................................................................................................... 15
10.2 MANAGE DEVICES BY USING GATEWAY’S MAIN BUTTON ............................................................................... 15
10.2.1 Add a device to the gateway ........................................................................................................... 15
10.2.2 Remove a Z-Wave device ............................................................................................................... 15
11. CONTROLLING AND MONITORING DEVICES ............................................................................................... 15
11.1 DEVICES BY LOCATION............................................................................................................................. 15
11.2 DEVICES BY TYPE .................................................................................................................................... 16
11.3 ADVANCED DEVICE CONFIGURATION ........................................................................................................ 16
12. SCENE MANAGEMENT .................................................................................................................................. 17
12.1 CREATE NEW SCENE ................................................................................................................................ 17
12.2 RUN THE SCENE ...................................................................................................................................... 20
12.3 EDIT THE SCENE ..................................................................................................................................... 20
12.4 DELETE THE SCENE.................................................................................................................................. 20
12.5 DISABLE THE SCENE ................................................................................................................................ 20
Manufacturer’s information ................................................................................................................................ 21
Disposal ............................................................................................................................................................. 21
Simplified declaration of conformity as per the RED Directive ............................................................................ 21
Warranty ............................................................................................................................................................ 21
Disclaimer .......................................................................................................................................................... 21
ATTENTION!
Note for adding a new gateway:
Please use the serial number/password and security ID from the sticker on the bottom
of the device to add the gateway to your user account.
Visit our Theme World
and find out more!

3
Congratulations and thank you for purchasing Schwaiger Home4You Gateway device.
Below you will find useful operating guidelines.
1. IMPORTANT SAFETY INFORMATION
Before using Schwaiger Home4You Gateway, please read the following information to
avoid any potential dangers:
1. Read the instructions carefully and follow the precautions in this manual. All mains connec- tions must be carried out by a
trained and qualified person
2. Only use the original mains adaptor supplied with the device
3. Disconnect the device from mains (mains chargers) before cleaning. Clean device with a damp cloth, do not use detergents
4. Do not use device in gas-filled environments
5. Do not place the device near heat sources
6. Do not expose the device to direct sunlight
7. Do not place cables and/or power supplies under heavy objects. Also, avoid routes near sharp or abrasive objects and
walkways
8. Keep out of reach of children
9. Do not carry out any maintenance on the device, instead contact your supplier
10. Make sure that ventilation slots and the cooling unit are not covered
11. As the device generates heat, this can lead to discoloration on the surface of furniture. Make sure there is at least 10cm of
clearance around the device
12. The device must not be located in the rooms with a high level of humidity e.g. kitchen, bath- rooms, etc.
13. Under no circumstances should you open the device or the mains adaptor. This must only be carried out by a qualified
engineer
14. Do not touch any contacts on the device with your fingers or metal objects. This could cause a short circuit
15. Do not handle the device when your hands are wet due to risk of electric shock

4
2. DEVICE DESCRIPTION
Schwaiger Home4You gateway takes central place in Home4You system. Combined with Schwaiger client (Android/iOS/HTML)
applications and Schwaiger cloud service it provides a turnkey platform that covers lighting, security, safety, energy manage-
ment and other aspects of the fast-growing home automation markets.
By supporting the most popular wireless communication protocols today (Zigbee, Z-Wave, IP), Schwaiger gateway communi-
cates with connected devices and enables users to monitor and control their home.
FRONT
LED indicator
Front button
LED indicator
INTERNET
POWER
BACK
Power supply
socket
Ethernet
Reset-button
Illustration 1: Schwaiger Gateway
The Schwaiger gateway consists of:
• FRONT (main) button, which is used to manage Home4You devices
•BACK button, which is used to reset user data, reset the gateway network, reboot the gateway and reset the gateway to
factory default settings
• LED indicator informs user about gateway status
• Power supply socket
•Ethernet
Use of these buttons is described in more detail in the corresponding section of this manual (Page 7).

5
INTERNET
POWER
3. INSTALLATION OF THE SCHWAIGER GATEWAY
In order to install your Schwaiger gateway, please follow next steps:
1. Plug in the Home Home4You Gateway to the AC power supply
2. Connect the Gateway to the home network router by using Ethernet (Illustration 2)
or WiFi Connection (Illustration 3)

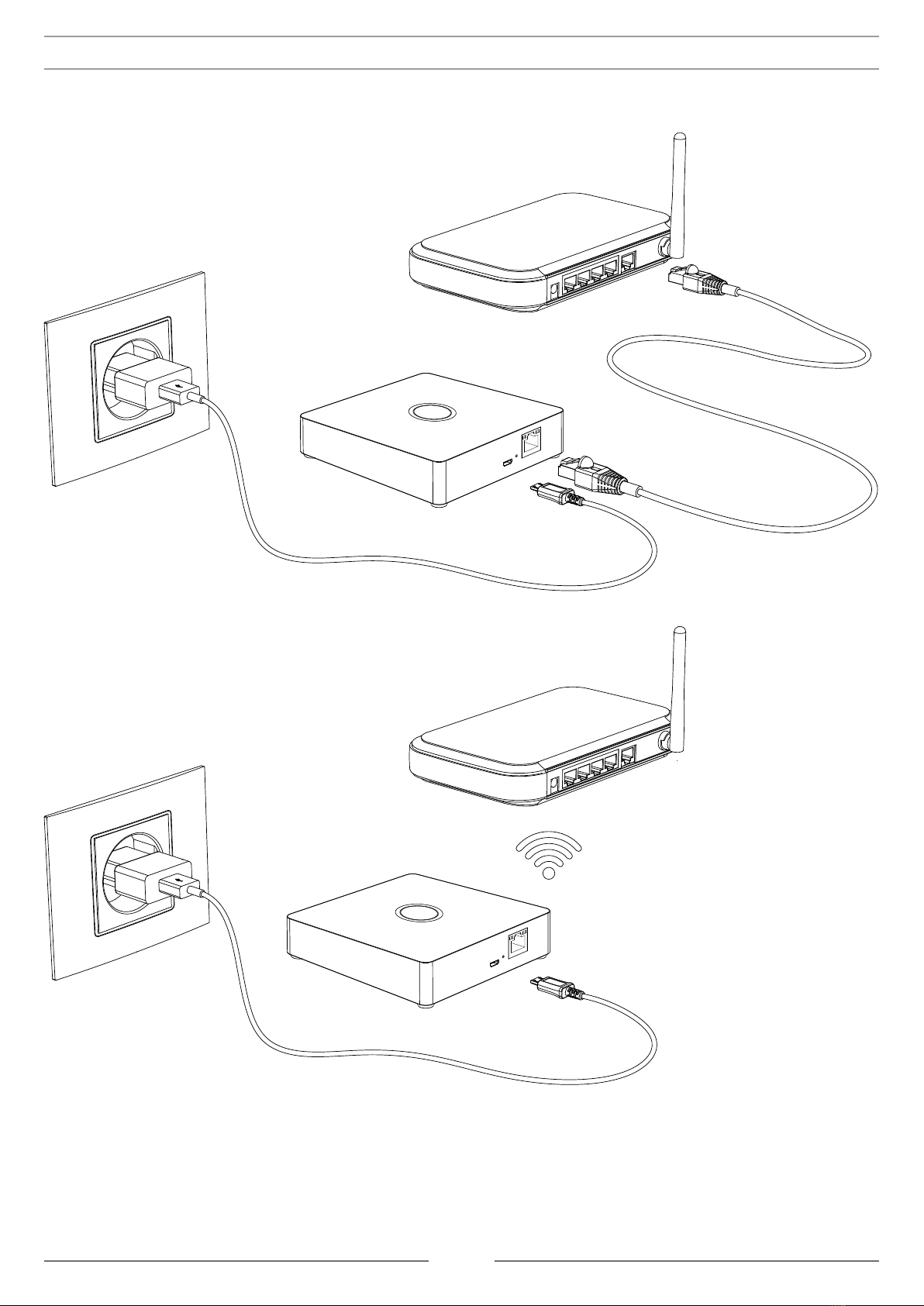

Illustration 2: Ethernet connection
INTERNET
POWER
Illustration 3: WiFi connection
In case you have connected your gateway device to the home network router by using Ethernet cable, the installation process
is done and you can proceed to the Section 4 (Configuring the Schwaiger Home4You system).

6
3.1 WIFI CONFIGURATION OF THE GATEWAY
In case you would like to connect the gateway device to the home network router by using WiFi connection,
please follow next steps:
1. After powering up, the gateway enters AP (Access Point) mode if Ethernet cable is not con- nected. In AP mode LED will
blink blue. In this mode gateway creates its own WiFi network that allows the end user to configure it for connection to
home network router over WiFi (gateway’s SSID or network name is printed on the label on the back side of the device)
2. Connect your client device (PC, tablet or smart phone) to the WiFi network created by gateway
3. In web browser of your client device launch default IP address printed on the label on the back side of the gateway (typi-
cally 192.168.1.1). Device information page should be displayed as shown in Illustration 4.
Illustration 4
4. In main menu select “WiFi configuration” page as shown in Illustration 5, after which gateway should list all available WiFi
networks in your home
Illustration 5
5. After selecting your home network router’s WiFi network, type in the password and press “Connect” button to finish
WiFi configuration of your gateway
6. Upon successful operation LED should go green indicating that your gateway is connected to your home network router’s
WiFi network. Otherwise, repeat the procedure starting from step 1.

7
4. RESET NETWORK CONFIGURATION
In order to reset the network connection settings to factory defaults, please follow next steps:
1. Press back button 3 times
2. During the operation, LED will blink red 5 times per second
Reset of network connection settings is followed by reset of the gateway device. If ethernet cable is connected to the gateway
during boot process, gateway will automatically connect to the home network router via ethernet cable. Otherwise, the gate-
way will start operating in AP mode as ex- plained in Section 3.1.
5. RESET USER PREFERENCES
This function allows user to reset all user settings ( device information, network configuration, scenes, etc.).
In order to reset user preferences, please follow next steps:
1. Press back button 6 times
2. During the operation, LED will blink red 2 times per second
6. FACTORY RESET
In order to restore your gateway to default factory setting, please follow next steps:
1. Press back button 9 times
2. During the operation, LED will blink red once per second.
7. BUTTONS/FUNCTIONS
Button Button Operation Action LED indication
FRONT 2 x short press Open network for device inclusion Blink blue 1x per second
2 x short press Close network Light green
4 x short press Device exclusion Blink blue 5x per second
BACK 3 x short press Network reset Blink red 5x per second
6 x short press Reset user preferences Blink red 2x per second
9 x short press Factory reset Blink red 1x per second
long press 5 seconds Reboot of the gateway Blink red for 5 seconds
Normal mode Light green
No network Blink blue 5x per second
System error Light purple
AP mode Blink blue 1x per second

8
8. TECHNICAL DATA
Communication Protocols ZigBee
Z-Wave plus
IP (WiFi and Ethernet)
Range Up to 15m (depending on your home's construction)
Operating Temperature 0 - 40 °C
Protection Degree IP20
Transmitting power < 1 mW
Power Supply ~110 - 230V AC, 50-60Hz / 5 V DC 2 A
Power Consumption < 10W
Dimensions W x H x D: 108 x 26 x 108 mm
9. CONFIGURING THE SCHWAIGER HOME4YOU SYSTEM
the Schwaiger HOME4YOU system consists of:
• Schwaiger client application
• Schwaiger Home4You gateway
• Schwaiger cloud
powered by
Illustration 6: HOME4YOU System

9
Schwaiger client application is intuitive and easy to use. Its comfortable graphical user interface will smoothly guide users
through the process of configuration of their space. The app can be used both in-home or remotely – it is smart enough to
connect to the gateway directly if possible, to ensure the best user experience.
Schwaiger home automation gateway takes central place in home automation system. Combined with Schwaiger client
(Android/iOS/HTML) applications and Schwaiger cloud service it provides a turnkey platform that covers lighting, security,
safety, energy management and other aspects of the fast-growing home automation markets.
Schwaiger cloud plays an important role in Schwaiger Home4You system, since it enables home control outside local network.
Built around modern web technologies, it ensures the highest security and robustness with the lowest latency in home auto-
mation communication chain. It also allows monitoring and controlling of the home from any browser-based device.
Please follow next steps for configuring Schwaiger Home4You system:
1. Install Schwaiger client application
2. Create user account
3. Add the gateway to the user account
4. Home setup
9.1 INSTALL SCHWAIGER CLIENT APPLICATION
In order to start configuring Schwaiger Home4You system, the user needs to install Schwaiger client application. By using
client application, users can control their household devices and manage their accounts as well as the list of their gateways
and configuration options.
Schwaiger client app is available for download at the Apple and Google application stores.
or
9.2 CREATE USER ACCOUNT
Account registration may be done in two ways:
1. By using client application
2. By using web application at https://home4you.schwaiger.de
9.2.1 Create user account by using client application
Please follow next steps in order to create new account:
1. To create a new user account by using client application make sure that your smart phone or tablet is connected to the
Internet and start the application.
2. Tap the “Create new account” button on the login dialog (see Illustration 7)
Illustration 7 Illustration 8

10
3. Enter a valid email address and the password on the login dialog (Illustration 8)
4. Agree with Terms of service and Privacy Policy and tap the button . The complete text of Terms of service and Privacy
Policy can be reviewed by tapping the “Terms of service” and “Privacy Policy” buttons
5. Enter the account details and tap the button . Entries indicated by an asterisk (*) are man- datory entries. All other
entries can also be filled in later (see Illustration 9)
6. Enter your personal information and tap the button to close the wizard (see Illustration 10)
Illustration 9 Illustration 10
7. Once the account has been successfully registered, a verification link will be sent to the email address specified in the
account name (make sure to check Spam folder). Otherwise, a failure notice will be displayed.
8. Confirm the activation link sent in the email message
9.2.2 Create user account by using web application
Please follow next steps in order to create new account:
1. Visit https://home4you.schwaiger.de
2. Tap the “Don’t have an account” button on the login dialog CREATE ACCOUNT (see Illustration 11).
3. Enter your personal and login information on the login dialog (see Illustration 12).
Illustration 11 Illustration 12
4. Agree with Terms of service and Privacy Policy and tap the button REGISTER. The complete text of Terms of service and
Privacy Policy can be reviewed by tapping the “Terms of service” and “Privacy Policy” buttons
5. Once the account has been successfully registered, a message with an activation link will be sent to the email address
specified in the account name (make sure to check Spam folder). Otherwise, a failure notice will be displayed.
6. Confirm the activation link sent in the email message.

11
9.3 ADD THE GATEWAY TO THE USER ACCOUNT
The gateway can be added to the user account in two ways:
1. By using client application
2. By using web application
NOTE: More than one gateway can be added to the user account.
9.3.1 Add the gateway by using client application
Please follow next steps in order to add the gateway to the user account:
1. Make sure that your smart phone/tablet and the gateway are active within the same network
2. Open the Schwaiger application and log into the user account
3. Select Home Setup option from the main menu (Illustration 13)
4. Tablet: On the Home Installation screen, press the “Add Gateway” button in the upper right corner (Illustration 14).
Smartphone: Tap on the “+” in the upper right corner.
Illustration 13 Illustration 14
5. Enter required gateway information:
a. Security ID – is a unique, secret identifier for a gateway. It consists of 16 characters (com- bination of letters and
numbers) and can be found on the back side of the Safety Infor- mation card that comes in a box together with your
gateway device.
b. Serial number – a unique identifier for every gateway device. It consist of 12 characters (e.g. CDD9078CC00) and can
be found on bottom of the device
c. Name – choose a name for your gateway
6. Tap the button to add the gateway and continue the home configuration process.
7. If the gateway has been added, a success message will be displayed.

12
9.3.2 Add the gateway by using web application
Please follow next steps in order to add the gateway to the user account:
1. Visit https://home4you.schwaiger.de and log into the user account
2. Select My equipment option from the main menu
3. On the My equipment screen tap the button in order to add the gateway to the user account (see Illustration 15)
Illustration 15
4. Enter required gateway information:
a. Security ID – is a unique, secret identifier for a gateway. It consists of 16 characters (com- bination of letters and num-
bers) and can be found on the back side of the Safety Infor- mation card that comes in a box together with your gateway
device.
b. Serial number – a unique identifier for every gateway device. It consist of 12 characters (e.g. 7CDD9078CC00) and can
be found on bottom of the device
c. Name – choose a name for your gateway
5. Tap the button SAVE , to add the gateway and continue the home configuration process. If the gateway has been
added, a success message will be displayed
9.4 HOME SETUP
The user can setup its smart home by using Schwaiger client application. To setup the home, please follow next steps:
1. Make sure that your smart phone/tablet and the gateway are active within the same network
2. Log in to the account to which the gateway was added
3. Select Home Setup option from the main menu to open a list of the gateway devices asso- ciated with the account
4. Find the gateway in the list and tap the gateway button to open the options menu
5. Select the Edit option
6. In the first step, the user is able to change the name of the gateway. Tap the button to continue managing the associated
floors and rooms
7. In the second step, the user can manage associated floors:
a. To add a new floor, tap the button “+” in the upper right corner and enter a floor name
b. To delete the floor, tap the floor button and hold it until the delete option appears.
NOTE: All of the rooms associated with the floor will be deleted once the floor is deleted.
Devices associated with those rooms will be unsorted.
c. To change the floor name, briefly tap on the existing floor name (Illustration 16)
8. To continue managing rooms, tap the button :
a. To add a new room, choose the floor at which you want to add the room and tap the button + in the upper right corner
to enter a room name
b. To delete the room, select the floor at which the room is located, tap and hold the room name until the delete option
appears
NOTE: Devices associated with the deleted room will be unsorted.
c. To change the room name, briefly tap on the existing room name (Illustration 17)

13
Illustration 16 Illustration 17
9. Once you are satisfied with the home configuration, tap the button to continue to Device Management section.
10. DEVICE MANAGEMENT
To manage devices, the user should choose one of the following ways:
1. By using client application (recommended way to manage devices)
2. By using gateway’s main button (see Illustration 1)
10.1 MANAGE DEVICES BY USING CLIENT APPLICATION
In order to open Device management section select Home setup option from the application’s main menu and by tapping
gateway’s button select option Add device.
In the Device Management section the user is able to:
1. Add a device to the gateway
2. Remove a device
3. Update device name and location

14
10.1.1 Add a device to the gateway
Please follow next steps in order to add a new device to the gateway:
1. Tap the “Help” button in the upper right corner
2. Select the device which you want to add to the gateway and read instructions for adding the device (Illustration 18)
3. After having read the instructions, tap the “Find devices” button in the upper left corner. This action will open a new window
for integrating the device. The remaining time for device inte- gration will be displayed (see Illustration 19)
4. Add the device based on manufacturer’s instructions, since the process may vary from device to device
5. Once the device is added to network, it will be displayed among the list of devices
NOTE: In order to add a new Z-Wave device to the network, make sure that the device is removed
from the previous network first (see manufacturer’s instructions).
Illustration 18 Illustration 19
10.1.2 Remove a device
Please follow next steps in order to remove a device:
1. Tap on the device name and hold it until the “Delete” option appears (see Illustration 20)
2. The type of device ( ZigBee or Z-Wave) will determine which of the following processes should be used:
a. In case of ZigBee device, you just need to confirm deletion
b. In case of Z-Wave device, the network will be opened for exclusion process. Once the network is opened, the device
needs to be excluded manually according to manufacturer’s instructions (see Illustration 21)
Illustration 20 Illustration 21

15
10.1.3 Update device name and location
To update device name and location, please follow next steps:
1. Tap on the device name and hold it until the “Edit” option appears
2. Tap on the “Edit” button
3. In the new dialog, change the device name and choose the device location from the drop down list
4. Tap the button “Done” in the upper right corner
10.2 MANAGE DEVICES BY USING GATEWAY’S MAIN BUTTON
By using gateway’s main button, the user is able to:
1. Add a device to the gateway
2. Remove a device (this applies only to Z-Wave devices)
10.2.1 Add a device to the gateway
Please follow next steps in order to add a new device to the gateway:
1. Short press gateway’s main button 2 times to open network for device inclusion. While net- work is open LED will blink blue
once per second
2. Start adding procedure on the device according to manufacturer’s instructions
3. Upon successful operation LED will blink light purple 4 times. There should also be visual indication on the added device
(see manufacturer’s instructions)
10.2.2 Remove a Z-Wave device
Please follow next steps in order to remove a Z-Wave device:
1. Short press gateway’s main button 4 times to start Z-Wave device exclusion procedure.
During the operation, LED will blink blue 5 times per second
2. Start exclusion on the Z-Wave device according to manufacturer’s instructions
3. Upon successful operation LED will blink light purple 4 times. There should also be visual indication on the excluded device
(see manufacturer’s instructions)
11. CONTROLLING AND MONITORING DEVICES
11.1 DEVICES BY LOCATION
Please follow next steps in order to control or monitor devices by location:
1. Select Device by location option in the application’s main menu
2. To filter devices by location, choose a desired location from the menu on the left side
3. In a quick control dialog on the right side (Illustration 22), the user is able to control actuators (e.g. light on/off) and
monitor sensors (e.g. read the temperature)
4. To release the filter, tap the home icon in the upper left corner

16
11.2 DEVICES BY TYPE
Please follow next steps in order to control or monitor devices by type:
1. Select Device by type option in the application’s main menu
2. To filter devices by type, choose a desired type from the menu on the left side
3. In a quick control dialog on the right side (Illustration 23), the user is able to control actuators (e.g. light on/off) and
monitor sensors (e.g. read the temperature)
4. To release the filter, tap the home icon in the upper left corner
Illustration 22 Illustration 23
11.3 ADVANCED DEVICE CONFIGURATION
Please follow next steps in order to configure the device:
1. Select Device by location or Device by type option in the application’s main menu
2. Find the device you want to configure
3. Tap the device button and hold it until Device details dialog is opened (Illustration 24)
4. Each change you enter will be immediately applied to the both, device and gateway
Illustration 24

17
12. SCENE MANAGEMENT
One of the main features of Schwaiger client application is scene. Scene is specific event or set of actions created by end user.
Scenes can be triggered by one or more events/devices, which are called triggers. The scene can also be set to send an email
notification to the user’s email address or push notification to the user’s smartphone.
By using Schwaiger mobile application the user is able to:
1. Create new scene
2. Run the scene
3. Edit the scene
4. Delete the scene
5. Disable the scene
12.1 CREATE NEW SCENE
Please follow next steps in order to create new scene:
1. Select Scenes option in the application’s main menu (Illustration 13)
2. Tap the “Add scene” button in the upper right corner (Illustration 25)
Illustration 25
3. Tablet: To add (a) new trigger(s) to the scenario, press the “Add” button in the top right corner and select the type of
trigger.
Smartphone: To add (a) new trigger(s) to the scenario, tap the “+” in the upper right corner and select the type of trigger.

18
4. In case you would like to create device trigger (or triggers), please follow next steps:
a. In the device trigger dialog, choose the device you want to add as a trigger b. In the drop down list, choose functionality
and its value
c. In case you would like to set device delay time, choose an option and tap the “OK” button to add the trigger (Illustration
26)
5. In case you would like to create time trigger (or triggers), please follow next steps:
a. In the time trigger dialog, choose the time when the scene should be active (Illustration 27)
b. Choose the schedule for the scene. In case of one-time event, set the desired date. In case the event should repeat,
choose the Weekly option button and the days when the scene should occur
c. Tap the “OK” button to add the trigger
Illustration 26 Illustration 27
6. Repeat steps 3 to 5 and use logical operators AND/OR (upper right corner) to combine multiple triggers (e.g. we would like
to define an action “when light intensity is less than 20 AND motion is detected”)
7. Once you have set all triggers, tap the button to go to the next step
8. In the new dialog you will be able to set the status (or statuses) at which the scene will be active. The status can be added
by pressing “Add” button in the upper right corner (Illustration 28). If you do not define any status, the scene will be active
at all statuses
Illustration 28
9. Once you have set all status(es), tap the button to go to the next step
10. In the new dialog you will be able to define an action (or action sets) for defined triggers. Upon creation of an action set,
you will be asked to define a name of the action set (Illustration 29)

19
11. For selected action set you will be able to add following actions by pressing “Add” button in the upper right corner
(Illustration 30):
a. Control device by location
b. Control device by type
c. Send email notification
d. Send push notification
e. Set the status
Illustration 29 Illustration 30
12. In addition to definition of an action set, you will be able to set delay time between actions sets execution. Delay time can
be added by pressing “Delay” button in the upper left corner (Illustration 31).
13. By default, delay of 1 second is added after last created action set. By selecting delay control, you can change delay time
(Illustration 32)
Illustration 31 Illustration 32
NOTE: In case you are using your smartphone for defining action sets and delay time, you need to
open slider control as described in Illustrations 33, 34 and 35.
Further examples and instructions for scene creation can be found on our YouTube-Channel

20
Illustration 33 Illustration 34 Illustration 35
14. Once you have set action sets/delay time you will be able to test defined scene:
a. In case you are using tablet, tap the button “Test” in the upper right corner to test the scene
b. In case you are using smartphone, tap the buttone to test the scene
Otherwise, tap the button to define a name for your scene.
12.2 RUN THE SCENE
Please follow next steps in order to run the scene:
1. Tap the Scenes option in the main menu to open the list of available scenes
2. Choose the scene you want to run and tap the button
3. From the drop down menu select option Run
12.3 EDIT THE SCENE
Please follow next steps in order to edit the scene:
1. Select Scenes option in the application’s main menu to open the list of available scenes
2. Choose the scene you want to edit and tap the button
3. From the drop down menu select option Edit
4. Follow steps 3 to 14 from the section 12.1 to edit the scene
12.4 DELETE THE SCENE
Please follow next steps in order to delete the scene:
1. Select Scenes option in the application’s main menu to open the list of available scenes
2. Choose the scene you want to delete and tap the button
3. From the drop down menu select option Delete
4. Confirm deletion
12.5 DISABLE THE SCENE
Please follow next steps in order to disable the scene:
1. Select Scenes option in the application’s main menu (Illustration 25)
2. Choose the scene you want to disable and tap the toggle switch button
in the upper left corner
