Schweigen CL8912 User manual

www.schweigen.com.au
RANGEHOOD & INSTALLATION GUIDE
CL8912 /CL8912B
CL8915 /CL8915B
CL7372 /CL7372B
CL7375 /CL7375B
Revision V3 09/08/23

Page 2
Index
1. Welcome 3
Your State Regulatory Authority 3
2. Important Safety Information 4
Before Installation 5
Product Use 6
Electrical Cord 6
3. Description 7
Rangehood 7
4. Operation 8
Touch Button Control Panel 8
Remote Control 8
Using the ON/OFF Button 8
Speed Control 8
5. Cleaning & Maintenance 9
Cleaning the Interior 9
Cleaning the Exterior 9
Baes 10
Replacing the Light 11
6. Installation 12
Rangehood Size vs Cooktop Size 12
BBQ Installation 12
Mounting Instructions – Outdoor/Alfresco 13
CL8912 and CL8915 Wall Mount Installation 14
CL7372 and CL7375 Wall Mount Installation 17
Ducting 20
Ducting Advice 21
Roof Cowls/Roof Seal Kit 22
7. Troubleshooting 23
Troubleshooting 23
Service 24
8. Specications 25
CL8912 and CL8915 Dimensions 25
CL7372 and CL7375 Dimensions 26
9. Disclaimer 27

Page 3
1. Welcome
Thank you for purchasing your new Schweigen rangehood.
To get the maximum output from this unit, please read through this guide before use.
The guide contains important information on the use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your rangehood.
We trust that you will enjoy your new Schweigen rangehood.
Please always retain your proof of purchase to aid in any warranty queries.
If you are unable to locate your warranty card, one is available to download from our website
www.schweigen.com.au.
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently
and dispose of the packaging in a responsible manner.
Your State Regulatory Authority
Dierent Australian states have varying legislative requirements for the installation of rangehood
ducting. Some will insist on ducting being vented externally (i.e. not in to the ceiling cavity); others
will not. It is imperative that you check with your state building authority and/or private certier
to conrm their position.

Page 4
2. Important Safety Information
WARNING
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer, will be
responsible for the costs associated with the repair, replacement, removal or
re-installation of the appliances.
1. To be installed in an undercover alfresco area only.
2. If the unit is not adequately covered or sheltered from the outside elements the warranty
will be null and void.
3. There shall be adequate ventilation in the room when the rangehood is used at the same time
as appliances burning gas or other fuels.
4. There is a re risk if cleaning is not carried out in accordance with the instructions.
5. Do not ambé under the rangehood. This will damage the rangehood and will not be covered by warranty.
6. Do not ignite burners that give o intense, uncontrolled ames beneath the rangehood.
7. Make sure that no ames emerge from the sides of pans.
8. Do not leave packaging materials (bags, corner brackets, etc.) within reach of children.
9. This appliance is not intended for use by person/s (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and/or knowledge. Unless the person has
been given supervision or instruction concerning the use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance,
it is not a toy.
10. Exhaust air must not be discharged into an existing ue that is used for exhausting fumes from
appliances burning gas or other fuels.
11. Air exhaust must be installed in accordance with local laws. Regulations concerning the discharge
of air have to be fullled.
12. Accessible parts may become hot when used with cooking appliances.
13. Before performing any cleaning or maintenance operation, disconnect the rangehood from
the mains using the respective mains or sector switch or by unplugging it.
14. Do not use the rangehood without the grease lters.
15. Keep the grease lters clean and respect the recommended cleaning frequencies.
16. Turn the rangehood motor on before starting to cook.
17. Turn the rangehood motor o about 10-15 minutes after you nish cooking.
18. It is forbidden to use the rangehood as an aspirator.
19. Never cook foodstu directly over the ame or have the gas burners on under the rangehood
without using cookware.

Page 5
2. Important Safety Information
Before Installation
1. We recommend this appliance be installed or repaired by an experienced Home Appliance technician.
2. Please see our website www.schweigen.com.au for experienced installers.
3. It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the
warranty.
4. The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
5. Ensure that the location in which this appliance is installed, has good and permanent ventilation.
6. Please consult local laws and regulations and install in accordance.
7. Use an electrical connector with earth that is correct for your location.
8. Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
9. This appliance must be connected to an electricity supply with a ground connection.
10. Check that the installation and electrical connections are made by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with
the applicable legislation.
11. The company will not be responsible for installations executed by non-qualied sta and
installations that fail to heed the applicable legislation on electrical safety (with regard to both
modes and materials).
12. The electrical technical data can be found inside the rangehood, after removing the grease lters.
13. The exible power cable supplied is already connected internally and emerges from the rangehood
near the air outlet tube.
14. Before installing the electrical connections, you should:
–Verify that the indicated electrical data coincide with the voltage values and frequency
of the electrical circuit in the house where the rangehood is to be installed;
–Check that the premises has electrical protection against short circuits and electrocution,
pursuant to the applicable legislation;
–Always switch o the current using the double-pole switch before maintenance and turn
the power on again for normal use only when the operation has been completed.

Page 6
2. Important Safety Information
Product Use
This product is designed for household use and should not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
When frying with a gas ame, take particular care not to allow the oil or grease in the pan to catch
re. (Flambé)
Rangehoods and other cooking fume extractors may adversely aect the safe operation of appliances
burning gas or other fuels (including those in other rooms) due to back ow of combustion gases. These
gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other
cooking fume extractor, the operation of ued gas appliances should be tested by a competent person to
ensure that back ow of combustion gases does not occur.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged,
it must be replaced by the manufacturer.

Page 7

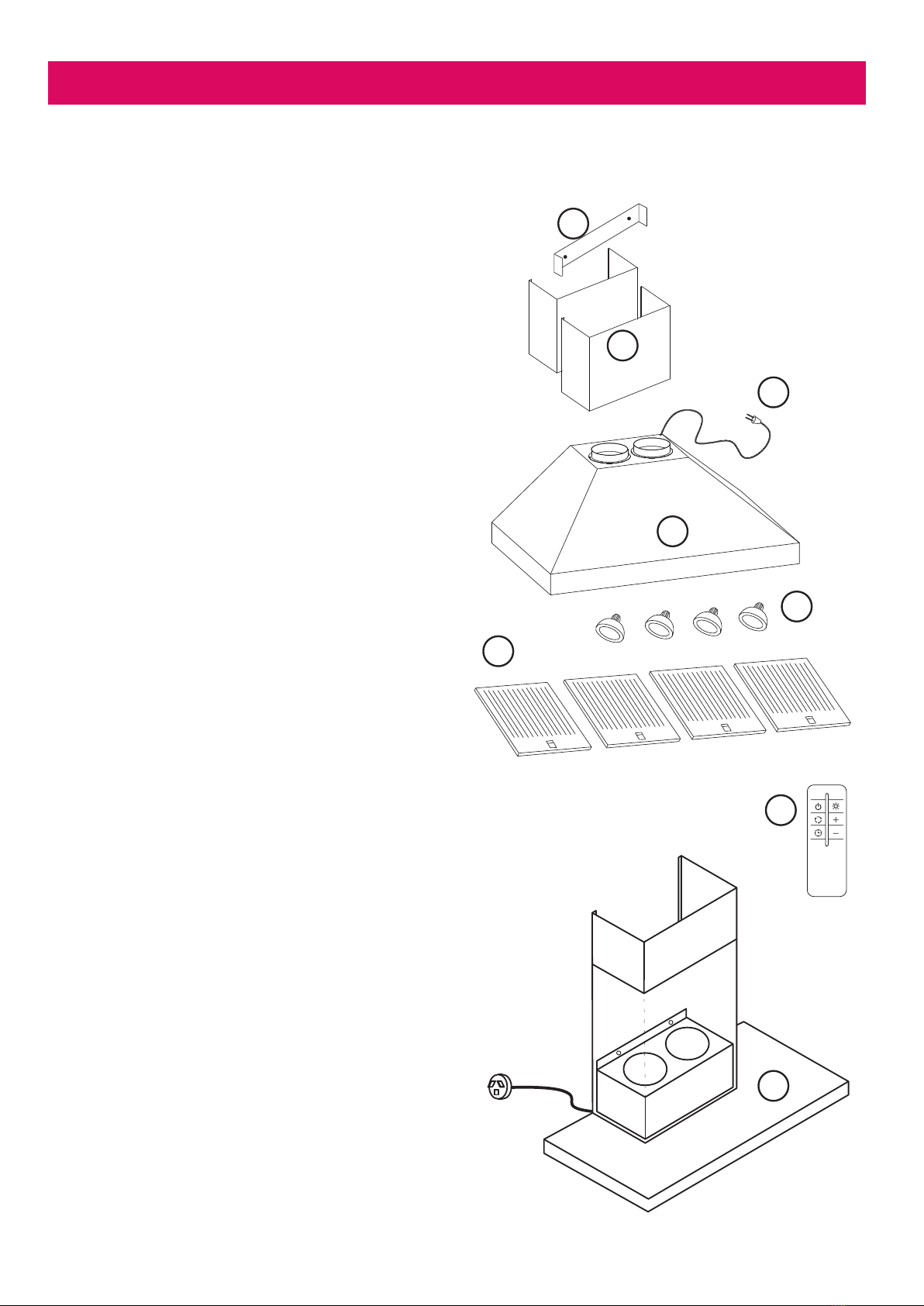

3. Description
Rangehood (dependent on ranghood chosen)
1. Mounting Bracket
2. Flue
3. Main Power Cord
4. CL8912 and CL8915 Rangehood Body
(all colour variants)
5. Baes
6. Lights
7. Remote Control
8. CL7372 or CL7375 Rangehood Body
(all colour variants)
NOTE:Dependenet on your rangehodd.
Filter and light quantity may vary from
model to model.
1
2
3
4
5
6
7
8

Page 8
4. Operation
TOUCH BUTTON CONTROL PANEL
Remote control sensor
Turn light on/off
Fan speed setting
Turn rangehood on/off
REMOTE CONTROL
As well as the touch buttons, this rangehood comes with a remote control
to operate the rangehood.
1. Use this button for turning on and off the rangehood.
2. Changes the speed of the motor (minimum level is 1, maximum is 5.)
3. Automatically changes the speed to maximum or minimum speed.
4. Turns the lights on or off.
5. 10 minute timer.
USING THE ON/OFF BUTTON
To turn on the rangehood press the on/off button. Press the on/off button a second time to activate
the 10 min auto-shut off timer. Press the on/off button a third time to turn the rangehood off.
SPEED CONTROL
This rangehood is equipped with a 5 speed touch control.
1
2
3
4
5

Page 9
5. Cleaning & Maintenance
Cleaning the Interior
Clean the interior of the rangehood with a damp cloth and a neutral detergent.
NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or
the motor with liquids or solvents
Cleaning the Exterior
We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
For better results, you can use high quality cleaning and protection products to clean your rangehood.
• The recommended detergent is a solution of water and a neutral
liquid soap.
• It is very important for the liquid soap to not contain granules
that could scratch the surface.
• First apply the solution to a soft cloth and then rub the cloth
over the rangehood. It is important to follow the direction of the
stained surface with the cloth (refer to gure on left).
• Do not pour any liquid directly on to the rangehood.
• The cloth must have no buttons, zips or fasteners that could
scratch the surface.
• It is strictly forbidden to use chemical solvents, aggressive,
grainy or abrasive products, naphtha, alcohol or similar products
that could damage the surface of the rangehood.
• The manufacturer will not be held responsible for functional or
aesthetic damage caused by cleaning with products which are
not suitable or using inadequate cleaning methods.
OK
Warning
Always switch o and disconnect power before cleaning.

Page 10
5. Cleaning & Maintenance
Endure the baes are cool before removing, to
ensure no oil is spilt.
To remove the lter lift up the lever and pull
towards you. Then lower the lter to remove
from the cavity. To replace, perform the same
operation but in reverse.
Baes
For this appliance to function eectively, regular maintenance is a must.
• The function of the bae is to collect the grease particles given o during cooking.
• Clogged heavy oil deposits restrict airow and may cause the motor to overheat
and become a re hazard.
• Baes should be cleaned every 3-6 weeks or after 40 hours of use.
• For induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The baes can be washed by hand or in the dishwasher.
–Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean,
rinse with plenty of hot water.
–Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and
it is not necessary to change the lters.
Please ensure the baes are completely dry before placing them back in position
and operating the rangehood.
Warning
• If the baes are very dirty, the motor will extract only a small quantity of air, which
reduces its eciency;
• The grease deposits that build up on the baes are highly ammable and COULD
EASILY CATCH FIRE.
• The manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the grease lters.

Page 11
5. Cleaning & Maintenance
Danger
Always switch o and disconnect the power cord before replacing any lights. Failure to
do so may cause serious injury. Please be aware that the light will retain heat for a short
period of time after being switched o.

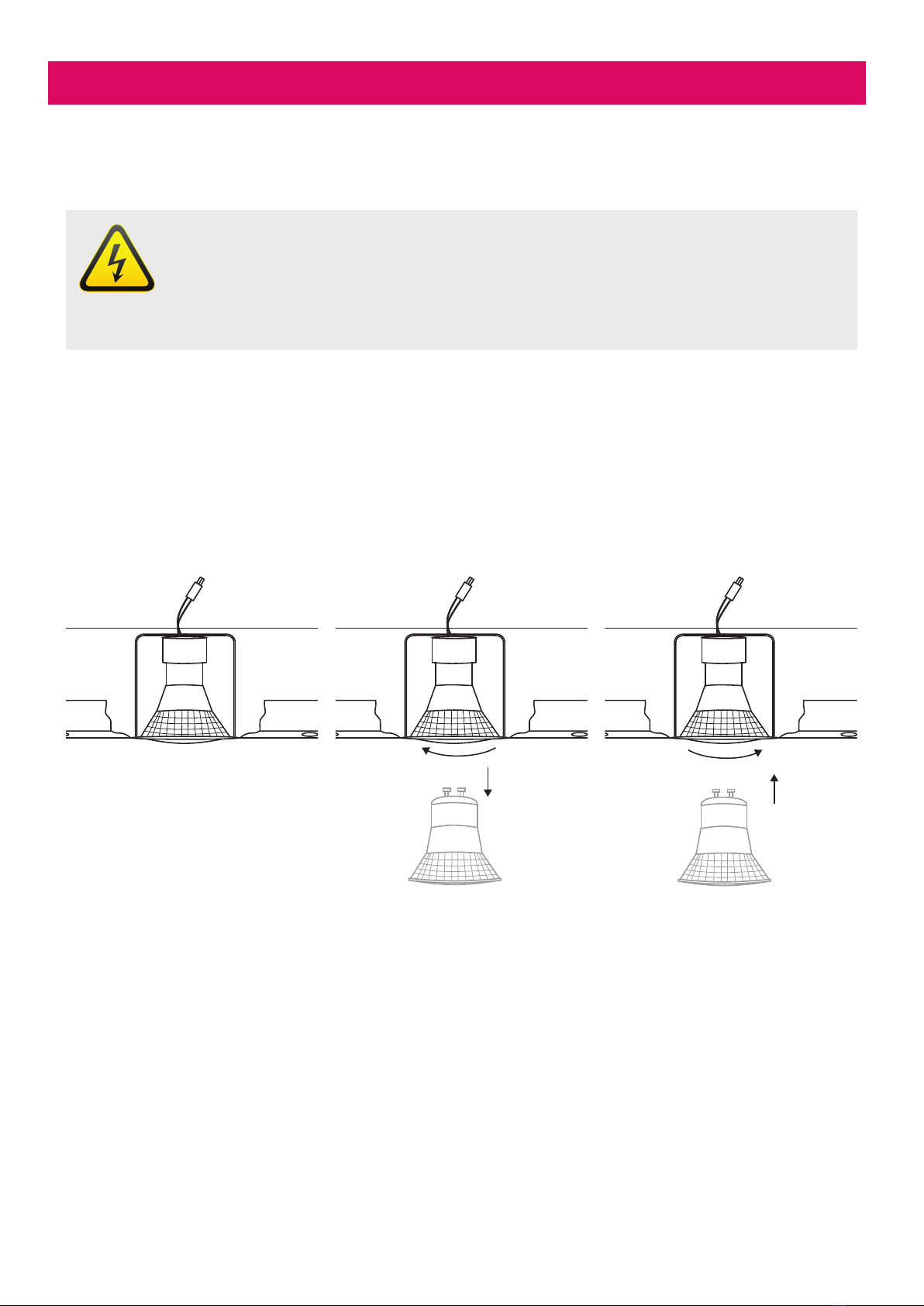

Replacing the Light
Step 2
Gently turn light anti-clockwise,
pull the light down and remove it
from the light holder.
Step 3
Insert a new light by lining up the
pins of the light with the larger
holes inside the light holder.
Once the pins are in place, turn
clockwise to secure the light.
Step 1
Remove the lters from
the rangehood.

Page 12
6. Installation
Rangehood Size vs Cooktop Size
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone
BBQ Installation
When installing the rangehood over a BBQ , please be aware that the lid will obstruct the rangehoods
eectiveness to extract smoke, steam and odours. Where possible, remove the lid of the BBQ unit when
in use, so as to allow for eective rangehood extraction. Alternatively, install the rangehood on an
extension, to move the rangehood further out.
Extension

_n_. _RH Section_
Page 13
6. Installation
Mounting Instructions – Outdoor/Alfresco
When installing in an outdoor kitchen or alfresco area,the rangehood MUST NOT be installed
where it is directly exposed to the elements .
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop.
This will greatly improve its performance.
Minimum legal height from the BBQ surface to the underside face of the rangehood:
• 1200mm
Any installation above 1200mm will compromise the extraction performance.
Measurements are from the top of the trivets to the lowest part of the rangehood,
including the button controls.
*IMPORTANT: If the user decides to install the rangehood at a distance of less than minimum height
above the cooking surface, Schweigen declines responsibility for damages suered by the rangehood
due to excess heat or damage to objects, people and others caused directly or indirectly by a
malfunction, breakage or re.
*Important: In addition to the information in this manual,
please check all relevant state requirememnts for minimum–
maximum heights, as well as regulations regarding the
expelling of air. Schweigen is not liable if your rangehood is
not installed in accordance with these legal requirements.

_n_. _LH Section_
Page 14
6. Installation
CL8912 and CL8915 Wall Mount Installation (all colour variants)
There are two primary mounting points and several secondary mounting points to rmly x the
rangehood in place.
Suitable xing screws must be used to mount the appliance on a secure surface.
Please ensure that the holes for the two primary mounting points are level before installation.
1. Primary Mounting Points
2. Secondary Mounting Points
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
WARNING
Please remove lters before installation. Failure to do so may damage the clips.
1
22 2
1
588
600/750
490
360 360

_n_. _RH Section_
Page 15

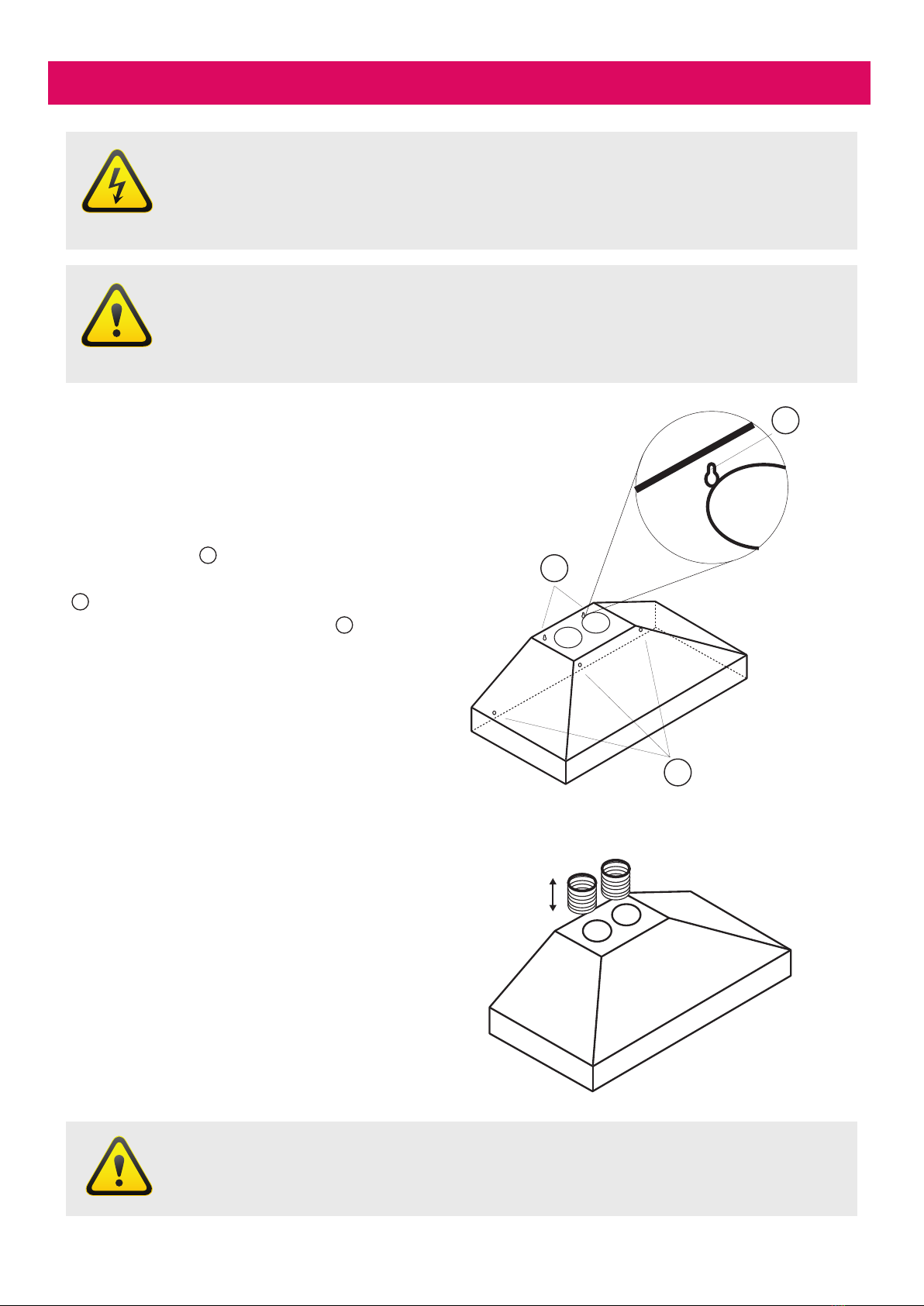

6. Installation
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
NOTE
Please make sure that lters are removed and put in a safe place while installing
rangehood to prevent damage.
Step 1
Secure rangehood to the wall using only primary
mounting points ( 1). Check the level of the
rangehood and adjust accordingly if necessary
(2). Once level, continue to secure the rangehood
via the secondary mounting points ( 3).
Step 2
Feed through and secure the ducting from the
rangehood outlet to the Roof Cowl.
1
2
3
1
2
3
IMPORTANT
Please ensure all plastic protection on the rangehood and lters is removed before use.

Page 16

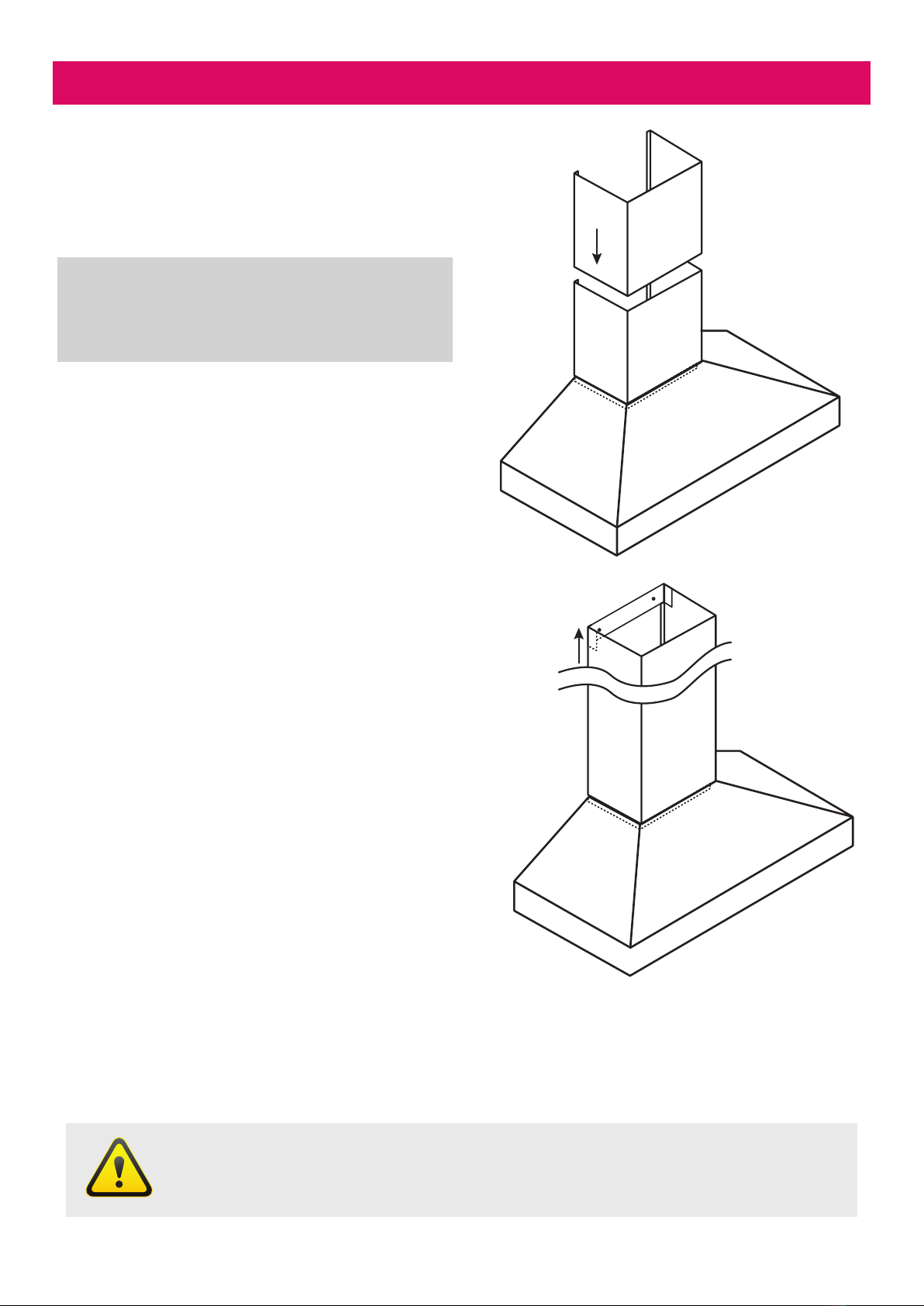

6. Installation
IMPORTANT
Please ensure all plastic protection on the rangehood and lters is removed before use.
Step 3
Place ue covers on the rangehood. (Be careful not
to scratch the top of the rangehood).
PLEASE NOTE: Only a standard length of
stainless steel ue is provided. Any additional
length will need to be sourced and manufactured
by a sheet metal fabricator.
Step 4
Attach the ue wall mounting bracket to the
wall. Slide the ue piece up to the wall mounting
bracket and secure.
1
2
3
1
2
3

Page 17
6. Installation
CL7372 and CL7375 Wall Mount Installation (all colour variants)
There are two primary mounting points and several secondary mounting points to rmly x the
rangehood in place.
Suitable xing screws must be used to mount the appliance on a secure surface.
Please ensure that the holes for the two primary mounting points are level before installation.
1. Primary Mounting Points
2. Secondary Mounting Points
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
WARNING
Please remove lters before installation. Failure to do so may damage the clips.
111
2 2 2
778
360 360
280
600/750 360 360

Page 18

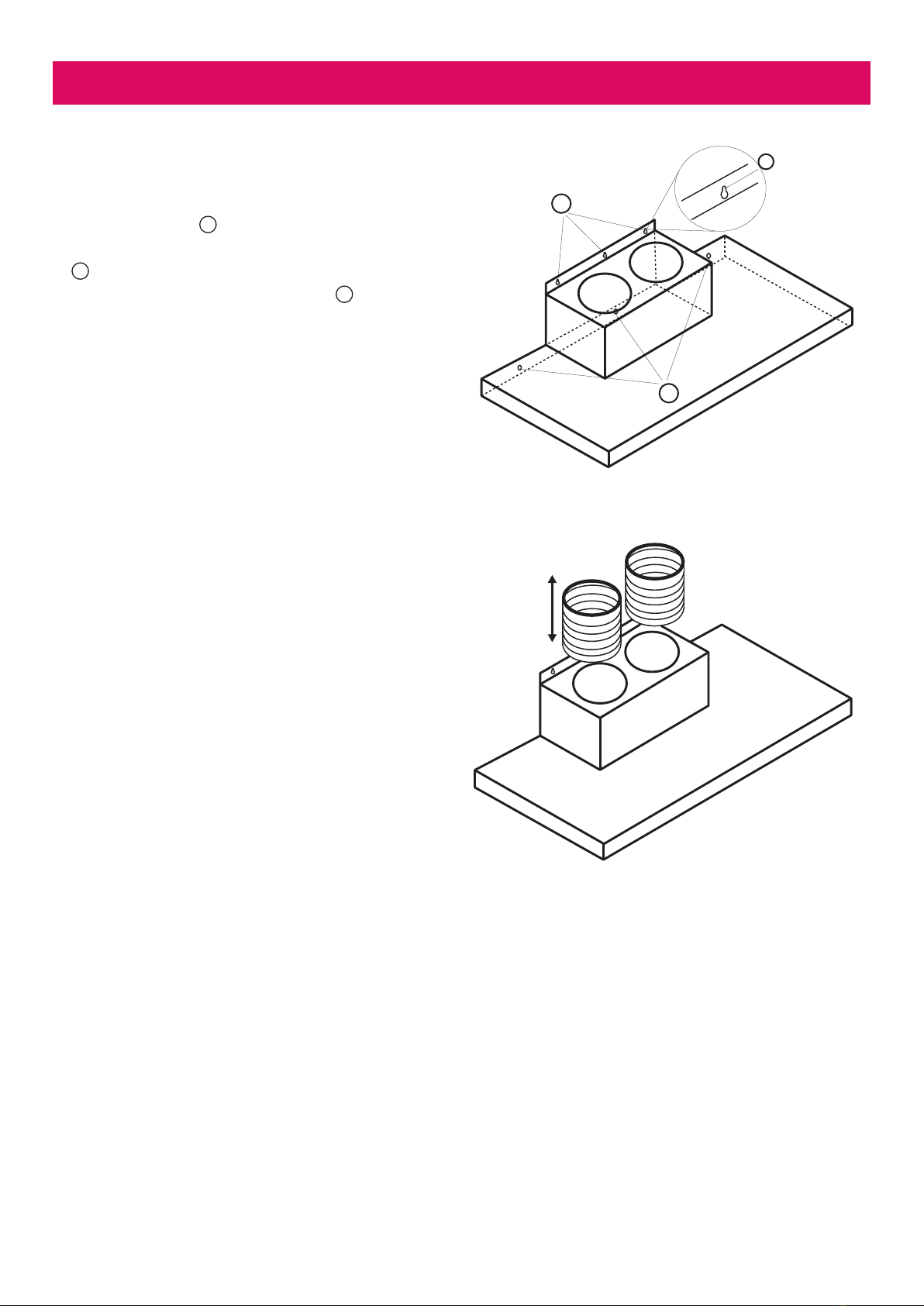

6. Installation
Step 1
Secure rangehood to the wall using only primary
mounting points ( 1). Check the level of the
rangehood and adjust accordingly if necessary
(2). Once level, continue to secure the rangehood
via the secondary mounting points ( 3).
Step 2
Feed through and secure the ducting from the
rangehood outlet to the Roof Cowl.
3
1
2
3
1
2

Page 19
6. Installation
IMPORTANT
Please ensure all plastic protection on the rangehood and lters is removed before use.
Step 3
Place ue covers on the rangehood. (Be careful not
to scratch the top of the rangehood).
PLEASE NOTE: Only a standard length of
stainless steel ue is provided. Any additional
length will need to be sourced and manufactured
by a sheet metal fabricator.
Step 4
Attach the exterior ue wall mounting bracket to
the wall. Slide the inside extension ue piece up
to the wall mounting bracket and secure.
1
2
3
1
2
3

Page 20

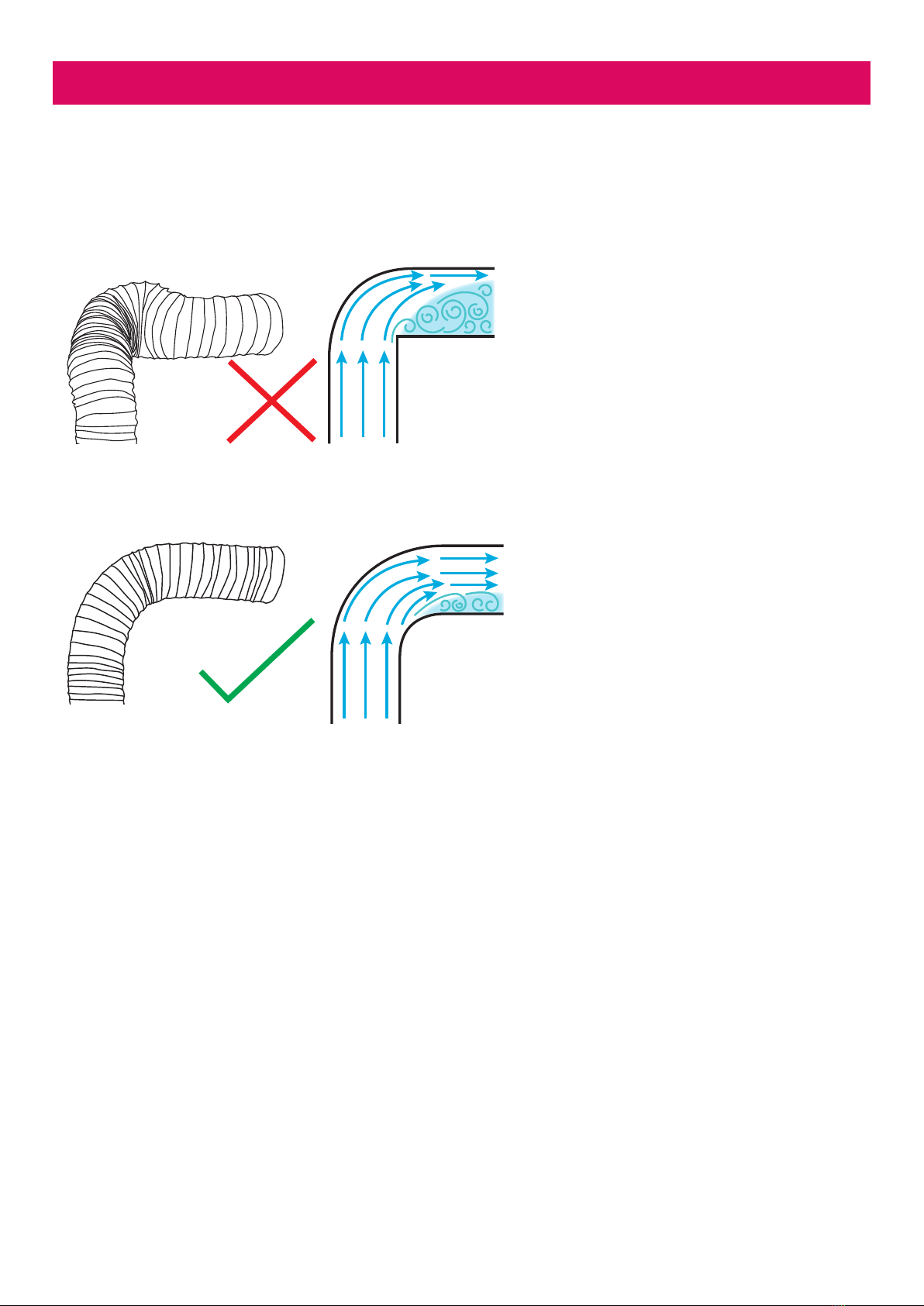

Ducting
Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates
sharp corners that creates turbulence.
This reduces the size and eciency
of the ducting, lowers extraction and
may cause excessive noise.
2. Sweeping curves and taut ducting
reduces resistance and turbulence.
The airow and extraction will be
more ecient and stronger.
6. Installation
