KOBE Brand Range Hood
Model No. CH0030SQB
CH0036SQB
CH0042SQB
CH0048SQB
CH-100 SERIES – 18” HEIGHT
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
Important Safety Instructions.................................................................................................1
Components Of Package...................................................................................................... 3
Installation............................................................................................................................. 4
Operating Instructions.........................................................................................................11
Maintenance ....................................................................................................................... 12
Specifications...................................................................................................................... 13
Measurements & Diagrams.................................................................................................14
Parts List............................................................................................................................. 16
Circuit Diagram...................................................................................................................21
Disclaimer...........................................................................................................................23
Warranty............................................................................................................................. 24
Product Registration............................................................................................................26
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING M UST BE DONE BY A PRO FESSIONAL AND IN
ACCORDANCE W ITH NATIONAL AND LOCAL ELECTRICAL CODES.

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with
all applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other
hidden utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT
SERVICE PANEL.
b) Clean fan, baffles/filters and grease laden surfaces frequently. To reduce the risk of fire and
to disperse air properly, make sure to vent air outside. DO NOT vent exhaust air into wall
spaces, attics, crawl spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s
receipt or if unit is damaged due to misuse, poor
installation, improper use, mistreatment, negligence or any
other circumstances beyond the control of KOBE RANGE
HOODS authorized agents. Any repair carried out without
the supervision of KOBE RANGE HOODS authorized agents
will automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any
damages to personal property or real estate or any bodily
injuries whether caused directly or indirectly by the range
hood.
WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A
RANGE TOP GREASE FIRE:
1) Keep fan, baffle/filter, if any, and grease-laden surfaces clean.
2) Always turn hood ON when cooking at high heat.
3) Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to
medium setting.
4) Do not leave cooking range unattended when cooking.
5) Always use cookware and utensils appropriate for the type and amount of food prepared.
6) Use this unit only in the manner intended by the manufacturer.
7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan and
baffles.

2
What to Do In The Event Of a Range Top Grease Fire
SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the
burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the
flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE
DEPARTMENT or 911.
NEVER PICK UP A BURNING PAN – You May Get Burned.
DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
Extinguish any open flame.
Do not try to turn on the lights or any type of appliance.
Open all doors and windows to disperse the gas. If you still smell gas, call the Gas
Company and Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
Activating any switch on may cause ignition or an explosion.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to Local,
State, and Federal Codes.

3

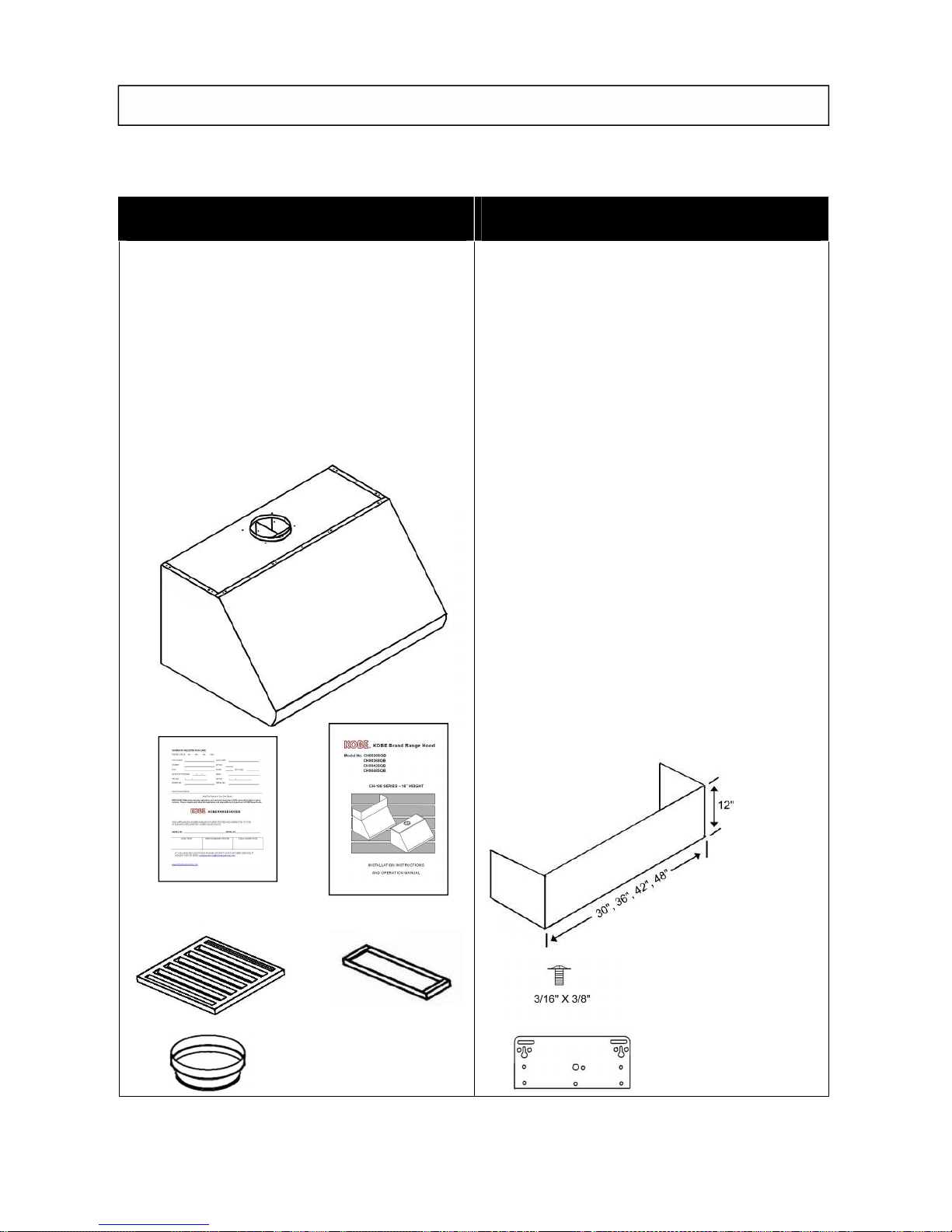

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
RANGE HOOD BOX
ORIGINAL KIT (Sold Separately)
KOBE Range Hood – 1
Warranty Registration Card – 1
Instructions Manual – 1
Baffle Filter - 2 (for 30”, 36”, 42” hood)
- 3 (for 48” hood)
Bottom Casing - 1 (for 30” hood)
- 3 (for 36” & 42” hood)
- 2 (for 48” hood)
7” Round Adapter - 1




Option of:
Model No. CH0030DC-12 for 30” hood
KOBE Duct Cover – 1
Screw Package – 1
Hood-Mounting Bracket – 2
Model No. CH0036DC-12 for 36” hood
KOBE Duct Cover – 1
Screw Package – 1
Hood-Mounting Bracket – 2
Model No. CH0042DC-12 for 42” hood
KOBE Duct Cover – 1
Screw Package – 1
Hood-Mounting Bracket – 2
Model No. CH0048DC-12 for 48” hood
KOBE Duct Cover – 1
Screw Package – 1
Hood-Mounting Bracket – 2



OPTIONAL RECIRCULATING KIT ALSO AVAILABLE.
FOR MORE INFORMATION, PLEASE CONTACT KOBE RANGE HOODS AT [phone].

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

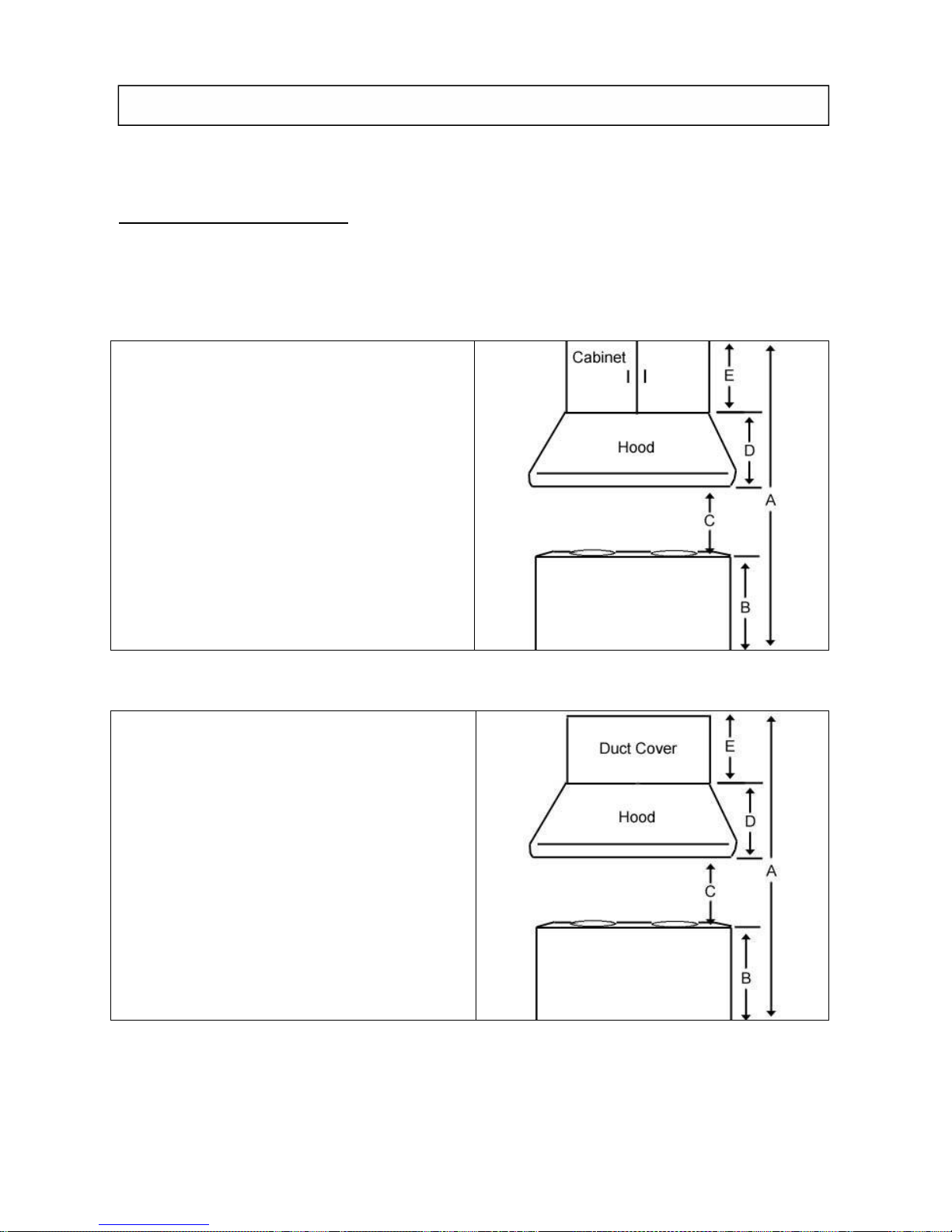

Calculation before Installation
Calculate the length of the installation, before installing the hood. (All calculation is measure in
inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of the Cabinet
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
[(A – B] – (D + E)]
D = Height of Hood
E = Height of Duct Cover

5
SAFETY W ARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS
NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCUR.
Installation Contents
Under the Cabinet.................................................................................................................6
Stand Alone ..........................................................................................................................8

6
UNDER THE CABINET INSTALLATION
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR
HOOD, PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.

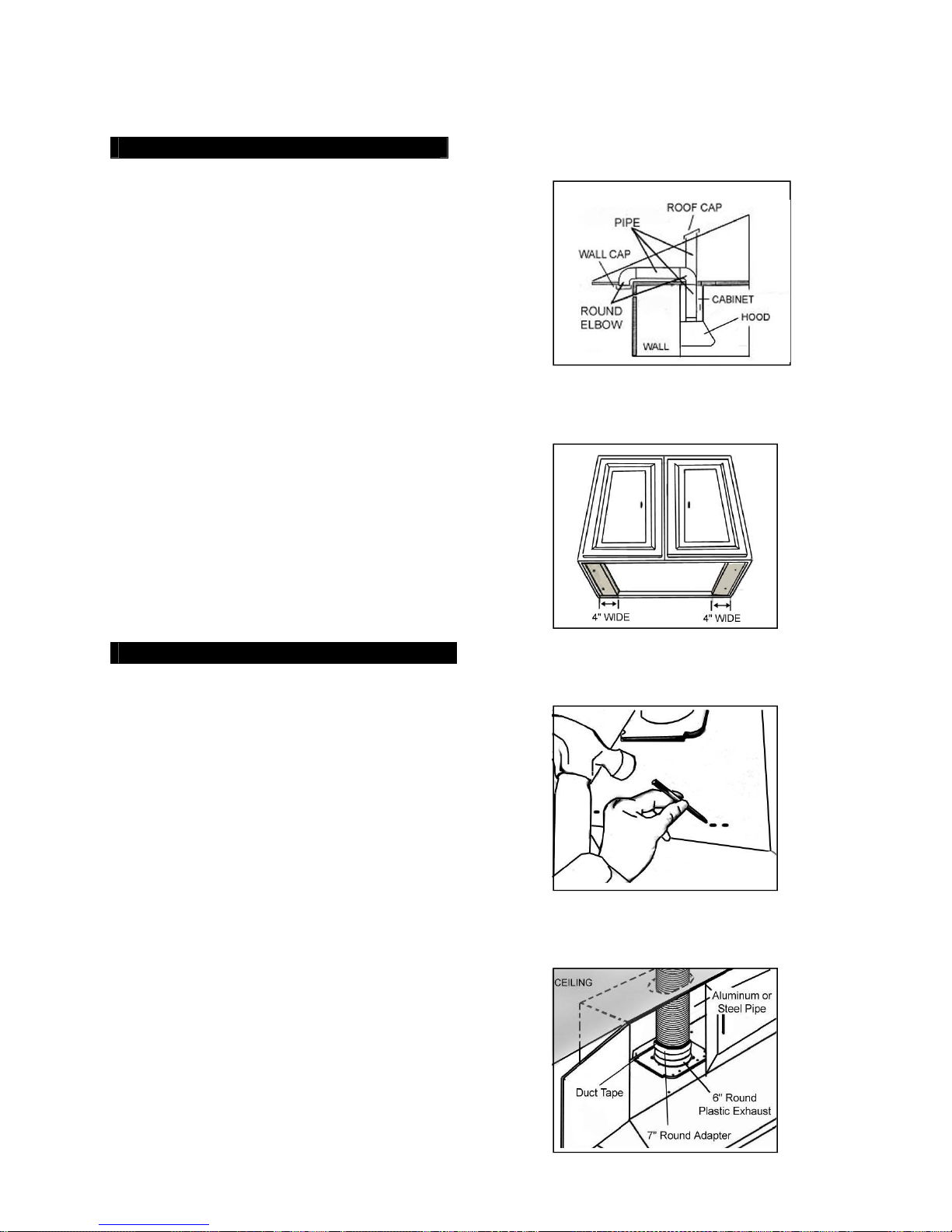

Decide the location of the venting pipe
from the hood to the outside. Refer to
Figure 1.
A straight, short venting run will allow
the hood to perform more efficiently.
Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.
Temporarily wire the hood to test for
proper operation before installing.
Important: Peel protective film off
the hood (if any).
For installing under the cabinet with
recessed bottom, attach 4-inch wide
wood filler strips (not included) on
each side. Refer to Figure 2.
Measure and create access opening
for electrical wires and plastic exhaust
under the cabinet.
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the
power on an electric range at the main
electrical box. SHUT OFF THE GAS
BEFORE MOVING A GAS RANGE.
1. Puncture the knockout holes on the
hood as shown in Figure 3.
2. Using references on Table 1 and
measurements on page 14-15 center
the hood in place beneath the cabinet
and flush with the front of the cabinet.
3. Draw electrical wires through cabinet
access opening.
4. From the bottom of the hood, place
screw (not provided) into the exact
center of each knockout hole. Make
sure all screws are in place before
tightening screws. CAUTION: MAKE
SURE THE HOOD IS SECURE
BEFORE RELEASING.
5. Make sure to leave this manual for the
homeowner.
Figure 1
Figure 2
Figure 3
Figure 4

7
Ductwork Installation
6. Use aluminum or steel pipe to connect
the plastic exhaust on the hood to the
ductwork above. Use duct tape to make
all joints secure and air tight as shown
on Figure 4.
7. To convert ductwork to 7” round,
attached 7” round adapter (provided) to
the 6” round plastic exhaust.

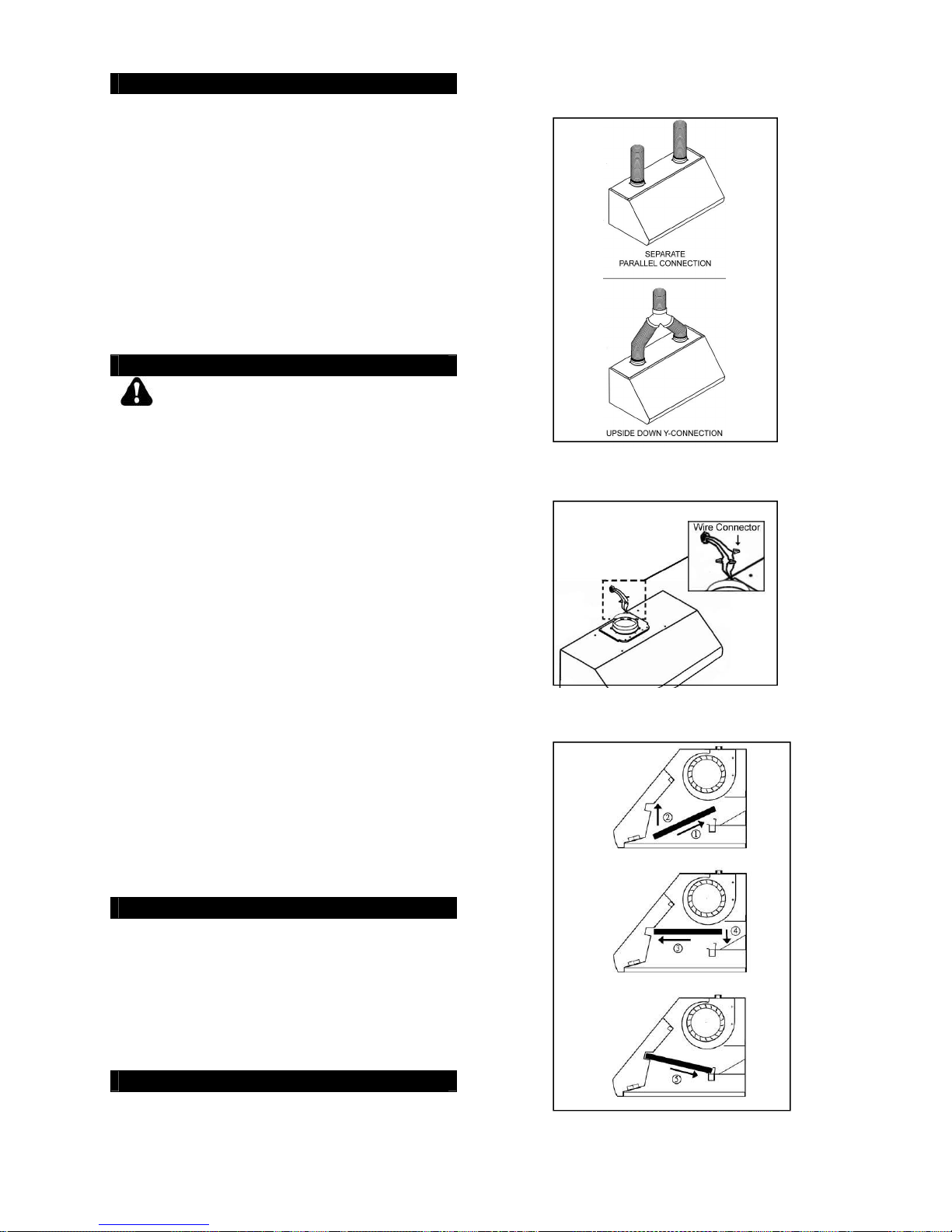

8. For 48” hood, prepare either separate
parallel connection or upside down Y-
connection for proper ductwork
installation. Refer to Figure 5.
Wiring to Power Supply
SAFETY W ARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
9. Connect the electrical wires.
- Connect three wires (black, white and
green) to house wires and cap with
wire connectors. Connect according
to color: black to black, white to white,
and green to green as shown on
Figure 6.
- If necessary to hide the electrical wire
connections, push wires back into the
wiring box. Access the wire
connections underneath the hood.
Make sure wires do not slip between
motor or any moving parts to prevent
any damage.
Install Accessories
10. Refer to Figure 7 Slide the baffle filter
into the hood. Push the baffle filter
upward. Slide forward. Pull
downward. Fit into place.
11. For bottom casing, repeat above steps.
Refer to page 15.
Final Assembly
12. Turn power ON in control panel. Check
all lights and fan operation.
Figure 5
Figure 6
Figure 7

8
STAND ALONE INSTALLATION
***This installation only applied with the
purchase of an optional duct cover:
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR
HOOD, PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.
Decide the location of the venting pipe
from the hood to the outside. Refer to
Figure 8.
A straight, short venting run will allow
the hood to perform more efficiently.
Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.
Use duct tape to seal the joints
between pipe sections.
If necessary, prepare back wall frame
with cross framing lumber for secure
installation.
Using references on Table 2 and
measurements on page 14-15, decide
the level of the lumber. Refer to
Figure 9.
Hood Preparation before Installation
Temporarily wire the hood to test for
proper operation before installing.
Important: Peel protective film off
the hood and the duct cover (if any).
Attach the two hood-mounting
brackets to the back of the hood with
(3/16” x 3/8”) screws (provided) as
shown In Figure 10.
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the
power on an electric range at the main
electrical box. SHUT OFF THE GAS
BEFORE MOVING A GAS RANGE.
1. Using references on Table 2 and
measurements on page 14-15, mark the
leveling point of the hood. Position two
mounting screws (not provided) on the
wall, leaving 1/8” away from the wall as
shown in Figure 11.
Figure 8
Figure 9
Figure 10
Figure 11

9
2. Align hood-mounting bracket to the two
screws on the wall and hook hood into
place. Tighten screws to secure hood to
the wall.
3. For safety purposes, extra knockout
holes on the back of the hood are
provided. Knockout the holes. Remove
the baffle filters and attach screws to the
wall by accessing underneath the hood.
CAUTION: MAKE SURE HOOD IS
SUCURE BEFORE RELEASING
Wiring to Power Supply
SAFETY W ARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
4. Connect the electrical wires.
- Connect three wires (black, white and
green) to house wires and cap with
wire connectors. Connect according
to color: black to black, white to white,
and green to green as shown on
Figure 12.
- If necessary to hide the electrical wire
connections, push wires back into the
wiring box. Access the wire
connections underneath the hood.
Make sure wires do not slip between
motor or any moving parts to prevent
any damage.
Duct Cover Installation
5. Use aluminum or steel pipe to connect
the plastic exhaust on the hood to the
ductwork above. Use duct tape to make
all joints secure and air tight as shown
on Figure 13.
6. To convert ductwork to 7” round,
attached 7” round adapter (provided) to
the 6” round plastic exhaust..
7. For 48” hood, prepare either separate
parallel connection or upside down Y-
Connection for proper ductwork
installation. Refer to Figure 14.
Figure 12
Figure 13
Figure 14

10
8. Slide the duct cover onto the hood.
Attach screws from underneath the hood
to the duct cover.
Install Accessories
9. Refer to Figure 15 Slide the baffle
filter into the hood. Push the baffle
filter upward. Slide forward. Pull
downward. Fit into place.
10. For bottom casing, repeat above steps.
Refer to page 15.
Final Assembly
11. Turn power ON in control panel. Check
all lights and fan operation.
12. Make sure to leave this manual for the
homeowner.
Figure 15

11
OPERATION INSTRUCTIONS
This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30-
second delay shutoff, powerful centrifugal squirrel cage with baffle filters, and bright 12-volt 20-watt
halogen lights.
The four electronic controls are Light Control, Speed Control A, Speed Control B and the Power
Control (On/Off). Refer to Figure 16.
Figure 16
TURN ON:
Press Power Control (On/Off) button once.
(Note: If any Control button is not pressed within 10 seconds, power will be automatically
turned off).
The KOBE hood will start on Low speed. Each press of the Speed Control button
will cycle through the various speeds.
Press Speed Control A button to cycle from Low, Medium, High, or QuietMode.
Press Speed Control B button to cycle from Low, QuietMode, High or Medium.
(Note: Speed Control A or B will operate both fans. These two speed buttons will allow
you to change the speed quicker.)
Press Light Control button to turn halogen light on.
Press the back Red button to turn on heating lamp.
(Note: Heating lamps are sold separately. Heating lamps required 120-volt,
250-watt ~ 500-watt.)
TURN OFF:
Press Power Control (On/Off) button once, panel lights will flash and power will be
completely shut off after 30 seconds.
OR
Press Power Control (On/Off) button twice, all power will be shut off immediately.
If only the lights are on, pressing Power Control (On/Off) button once will turn
power off after 30 seconds.
Speed Control A
Power Control
Speed Control B
Light Control

12
MAINTENANCE
For the optimal level of operation, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use an orange base cleaner to clean the
surface of the hood. Avoid cleaner to get on the control switches. Only spread a light
coating over the surface of the hood and leave on for a few minutes (do not leave on too
long or this may cause damage to hood finish). Use soft towel to wipe off the cleaning
solution, gently rubs any stubborn spots. Use a slightly damp towel to get rid of any cleaning
solution. Use dry soft towel to dry the hood.
3. To bring the glow back into a stainless steel finish, use a stainless steel cleaner.
4. DO NOT allow deposits to remain for long periods of time.
5. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the
surface causing rust.
6. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain
chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a
clean cloth.
To Clean Baffle Filters
CAUTION: DRAIN BAFFLE FILTERS BEFORE OIL WILL OVERFLOW.
1. Remove the baffle filters by sliding forward and pull downward.
2. Wash with warm soapy water. Dry completely before returning into place.
(Note: Baffle Filters are top rack dishwasher safe.)
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.

1. Make sure all controls are off, and range hood is unplugged.
2. Place the flat-headed screwdriver into the groove of the halogen light glass covering and the
housing.
3. Pop out the halogen light glass covering.
4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W
maximum.
5. Using a cloth, hold the new light bulb and push securely into light socket.
6. Return halogen light glass cover to the housing.
7. Turn range hood ON to test for operation.

13
SPECIFICATIONS
MODEL / SIZE CH0030SQB / 30”
CH0036SQB / 36"
CH0042SQB / 42”
CH0048SQB / 48”
COLOR # 304 Commercial Grade Stainless Steel
VOLTAGE 120V 60Hz
NUMBER OF MOTORS 1 – 30”, 36”, 42”
2 – 48”
DESIGN 18-Gauge Seamless / Satin Finish
FAN TYPE: CENTRIFUGAL Squirrel Cage
EXHAUST Top 6” Round x 1 – 30”, 36”, 42”
Top 6” Round x 2 – 48”
7” Round Adapter
CONTROLS Electronic Control (4 Buttons) –
10-Second Standby Startup
30-Second Delay Shutoff
HALOGEN LIGHTS 12V 20W x 2 – 30”, 36”
12V 20W x 3 – 42”, 48”
HOOD DIMENSION
(W x D x H) (CH0030SQB) 29-3/4” x 24” x 18” (CH0036SQB) 35-3/4” x 24” x 18”
(CH0042SQB) 41-3/4” x 24” x 18”
(CH0048SQB) 47-3/4” x 24” x 18”
OPTIONAL ACCESSORIES
(W x D x H) 1) Original Kit - Duct Cover: Model No. CH0030DC-12 30” x 12” x 12”
Model No. CH0036DC-12 36” x 12” x 12”
Model No. CH0042DC-12 42” x 12” x 12”
Model No. CH0048DC-12 48” x 12” x 12”
2) Recirculating Kit - Recirculating Duct Cover:
Model No. CH0030RD-12 30” x 12” x 12”
Model No. CH0036RD-12 36” x 12” x 12”
Model No. CH0042RD-12 42” x 12” x 12”
Model No. CH0048RD-12 48” x 12” x 12”
3) Model No. SSP30
30” Stainless Steel Back Panel 30” x 1/10” x 32”
4) Model No. SSP36
36” Stainless Steel Back Panel 36” x 1/10” x 32”
Net Gross
(CH0030SQB) 61.0 74.0
(CH0036SQB) 70.0 86.0
(CH0042SQB) 82.0 100.0
HOOD WEIGHT (lbs)
(CH0048SQB) 88.0 114.0
SPEED QuietModeLow Medium High
Air Capacity (cfm)*
(1 Motor/ 2 Motors) 280 / 400 420 / 600 580 / 800 760 / 1000
Sone (1 Motor / 2 Motors) 1.2* / 2.8 2.0 / 4.0 2.8 / 5.6 4.5 / 8.0
*In House Test Static Pressure “0”. One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

14
MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch
measurements are estimated.
- FOR UNDER THE CABINET -
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
MODEL NO.:
CH
00
30SQB
MODEL NO.:
CH0048SQB
CH0036SQB
CH0042SQB
MODEL NO.:
CH
00
30SQB
MODEL NO.:
CH0048SQB
CH0036SQB
CH0042SQB

15

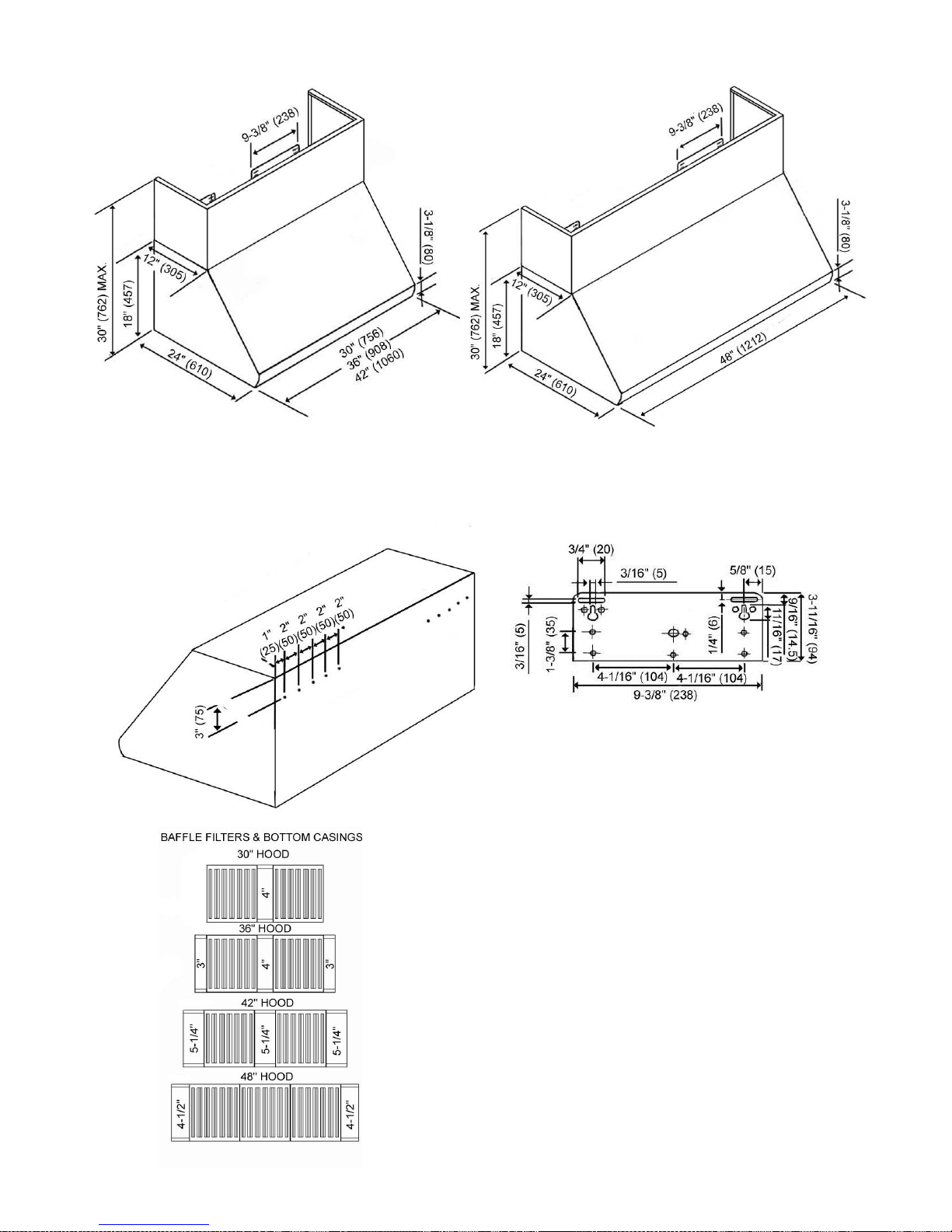

***Rear Knockout Holes ***Hood-Mounting Bracket

16
PARTS LIST
MODEL NO.:
CH00
30SQB
CH0036SQB
CH0042SQB
CH0048SQB
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1 7” Round Adapter C1-0505-0004
2 6” Round Plastic Exhaust C1-0505-0001
CH0030SQB 10-2130
CH0036SQB 10-2136
CH0042SQB 10-2142
3 Hood Casing
CH0048SQB 10-2148
4 Control Unit C1-0501-0101
5 Control Board C1-0404-0401-A
6 Halogen Light Unit (12V 20W Max.) C1-0403-0101
7 Motor C1-0302-0120-01
8 Lamp Socket Cover C1-0204-2130
9 Lamp Socket C1-0414-0120
10 Safety Screen C1-0602-0103
CH0030SQB C1-0201-2130
CH0036SQB C1-0201-2136
CH0042SQB C1-0201-2142
11 Capacitor Panel
CH0048SQB C1-0201-2148
CH0030SQB
CH0036SQB C1-0402-0120-40
CH0042SQB
12 Transformer (Light)
CH0048SQB
C1-0402-0120-60
13 Capacitor C1-0401-0120-03
14 Transformer (Motor) C1-0402-A-120-01
15 Processor Board Box C1-0501-0102
16 Processor Board C1-0404-0401-B
17 Screw (1/8” x 3/8”) C1-0708-0003
Bottom Casing CH0030SQB4” Wide CH0036SQB B101-2130-09
3” Wide CH0036SQB B101-2136-09
5-1/4” Wide CH0042SQB B101-2142-09
18
A
B
C
D 4-1/2” Wide CH0048SQB B101-2148-09
19 Baffle Filter B101-2130-15

17
(Optional Duct Cover)
ORIGINAL KIT
NO. DESCRIPTION MODEL /SIZE PART NO.
01 Hood-Mounting Bracket C1-0221-0330
02 Screw (3/16” x 3/8”) C1-0707-0001
CH0030DC-12 B102-6012-030
CH0036DC-12 B102-6012-036
CH0042DC-12 B102-6012-042
03 Duct Cover
CH0048DC-12 B102-6012-048
02 Screw (3/16” x 3/8”) C1-0707-0001
RECIRCULATING KIT
NO. DESCRIPTION MODEL /SIZE PART NO.
01 Hood-Mounting Bracket C1-0221-0330
02 Screw (3/16” x 3/8”) C1-0707-0001
T-Head Box CH0030RD-12 C1-0241-2130-FA
CH0036RD-12 C1-0241-2136-FA
CH0042RD-12 C1-0241-2142-FA
Box
CH0048RD-12 C1-0241-2148-FA
CH0030RD-12 C1-0241-2130-FB
CH0036RD-12 C1-0241-2136-FB
CH0042RD-12 C1-0241-2142-FB
Box Bracket
CH0042RD-12 C1-0241-2148-FB
Box Panel
Left C1-0209-2130-FA
03
A
B
C
Right C1-0209-2130-FB
04 Screw (3/16” x 3/8”) C1-0707-0001
05 Aluminum Pipe C1-0601-0004
06 6” Round Plastic Exhaust C1-0505-0001
CH0030RD-12 B102-6012-030-F
CH0036RD-12 B102-6012-036-F
CH0042RD-12 B102-6012-042-F
07 Recirculating Duct Cover
CH0048RD-12 B102-6012-048-F
08 Screw (3/16” x 3/8”) C1-0707-0001
09 Screw (3/16” x 3/8”) C1-0707-0001
10 Charcoal Filter C1-0603-0302

18
MODEL NO.:
CH00
30SQB
CH0036SQB
