Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Scope of application
These Short installation manual form part of the currently valid
‘Installation manual PV Roof Integration Solrif®’ of 6.5.2019.
They describe a partial roof solution and can also be applied
by analogy for whole-roof solutions.

Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 2/10
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners

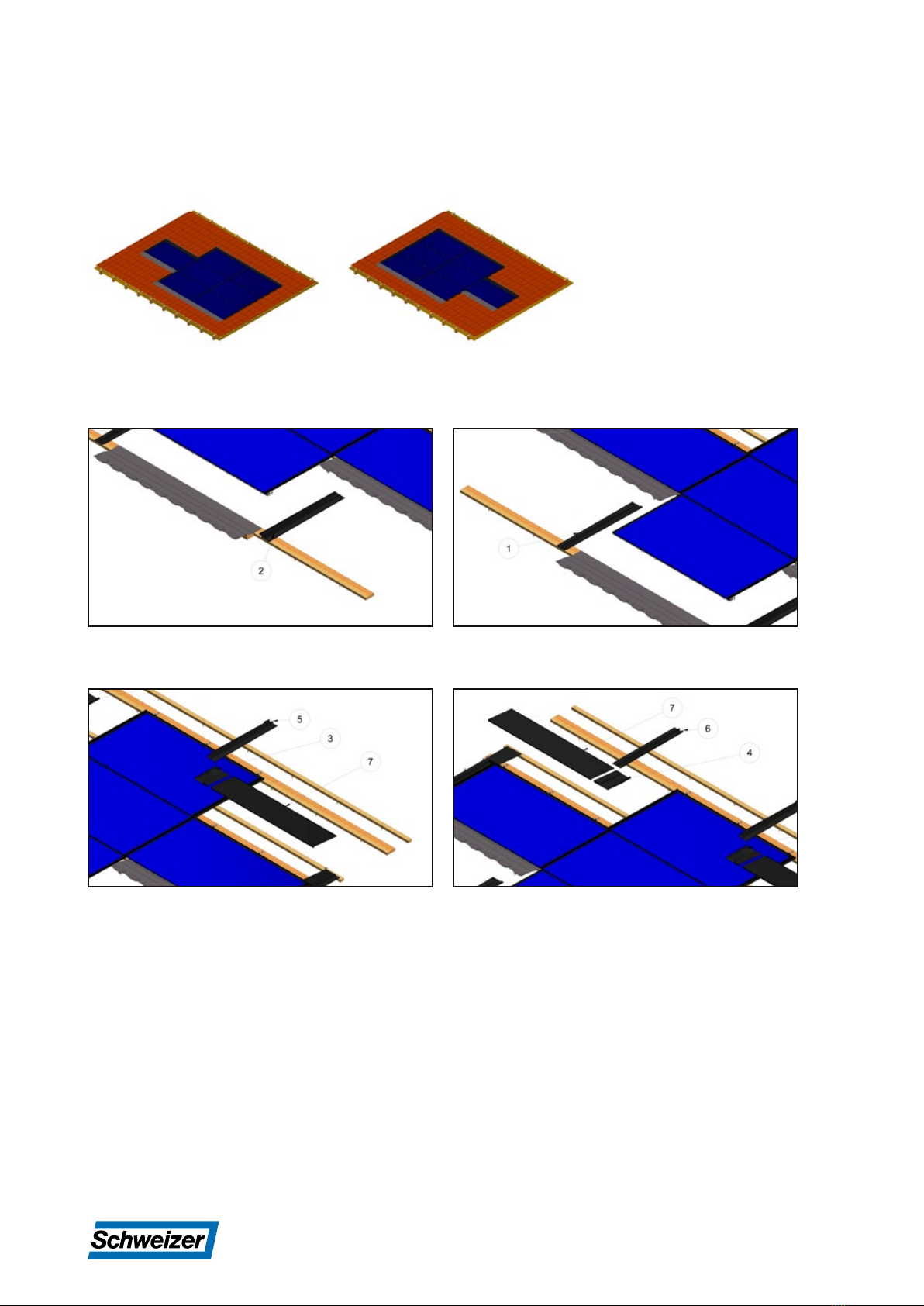

Mounting inner corners
Inner corner top left (page 9)Inner corner top right (page 7)
Inner corner bottom left (page 5)
Inner corner bottom right (page 3)
①Flashing side inner left
②Flashing side inner right
③ Inner corner ashing right
④ Inner corner ashing left
⑤ Short aluminium ashing side right
⑥ Aluminium ashing side left
⑦ Short aluminium ashing top

ANSICHT39 (1 : 30)
ANSICHT38 (1 : 30)
ANSICHT47 (1 : 30)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Place ashing side inner right in position Suspend module in ashing side
Position balancing plank for corner module Lay connecting sheet
and put it over ashing side
ANSICHT31 (1 : 20)
1
3
2
4
Corner bottom right
proMSP
SPT
proMSP
SPT
ANSICHT32 (1 : 2)
ANSICHT43 (1 : 10)
10~
P-P ( 1 : 5 )
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 3/10

ANSICHT57 (1 : 30)
ANSICHT87 (1 : 100)
ANSICHT81 (1 : 2)
ANSICHT58 (1 : 40)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners

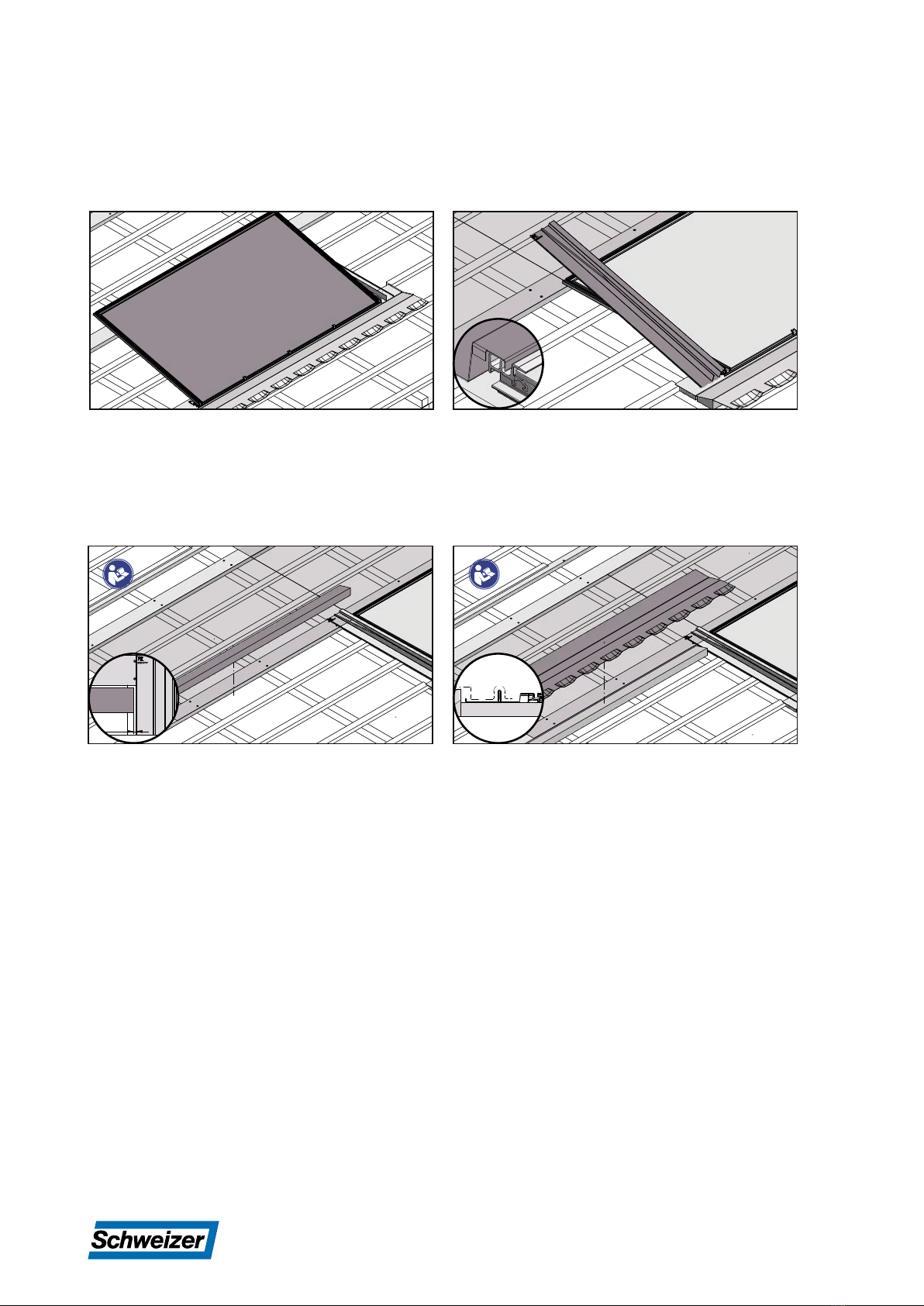

Fasten eaves prole Position mounting clamp
Mount ashing side and edge prole right Start module row
Apply xing for ashing Positions of xing for ashing
5
7
9
6
8
10
proMSP
SPT
proMSP
SPT
ANSICHT55 (1 : 30)
90~ 170~
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 4/10

ANSICHT45 (1 : 30)
ANSICHT93 (1 : 20)
ANSICHT46 (1 : 30)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Lay module Suspend ashing side inner left and
mounting clamp in the module
Position balancing plank for corner module Lay connecting sheet
Turn inwards over ashing side
ANSICHT39 (1 : 30)
11
13
12
14
proMSP
SPT
ANSICHT44 (1 : 10)
10~
Q-Q ( 1 : 5 )
Corner bottom left
proMSP
SPT
ANSICHT52 (1 : 2)
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 5/10

ANSICHT61 (1 : 30)
ANSICHT54 (1 : 50)
ANSICHT87 (1 : 100)
ANSICHT81 (1 : 2)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Fasten eaves prole Position mounting clamp
Lay modules and mount ashing side incl.
edge prole left
Apply xing for ashing
Positions of xing for ashing
ANSICHT49 (1 : 30)
15
17
19
16
18
proMSP
SPT
proMSP
SPT
ANSICHT56 (1 : 30)
90~170~
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 6/10

ANSICHT68 (1 : 30)
ANSICHT62 (1 : 30)
ANSICHT71 (1 : 10)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Place mounting bracket on the corner module Position remaining mounting brackets
Suspend aluminium ashing top for corner module Insert and x the corner ashing right
ANSICHT63 (1 : 30)
20
22
21
23
proMSP
SPT
Corner top right
proMSP
SPT
ANSICHT66 (1 : 30)
2
50 x x 90
ANSICHT69 (1 : 30)
77~
proMSP
SPT
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 7/10

ANSICHT75 (1 : 30)
ANSICHT74 (1 : 20)
ANSICHT87 (1 : 100)
ANSICHT81 (1 : 2)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Position of corner ashing right Mount short ashing side and edge prole
Suspend modules Apply xings for ashing
Positions of xings for ashing
ANSICHT85 (1 : 10)
17
24
26
28
25
27
ANSICHT94 (1 : 5)
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 8/10

ANSICHT67 (1 : 30)
ANSICHT62 (1 : 30)
ANSICHT72 (1 : 10)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Place mounting clamp on corner module Position remaining mounting clamps
Suspend aluminium ashing top for corner module Insert corner ashing right
ANSICHT64 (1 : 30)
29
31
30
32
Corner top left
ANSICHT65 (1 : 30)
250
x x
90
ANSICHT70 (1 : 30)
77~
proMSP
SPT
proMSP
SPT
proMSP
SPT
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 9/10

ANSICHT81 (1 : 2)
ANSICHT87 (1 : 100)
Solar systems by Schweizer:
Short installation manual – Solrif®
Additional information for the mounting of inner corners
Position of corner ashing left Mount short ashing side and edge prole
Apply xings for ashing Positions of xings for ashing
ANSICHT86 (1 : 10)
23
33
35
34
36
ANSICHT95 (1 : 5)
proMSP
SPT
Ernst Schweizer AG
Bahnhofplatz 11
8908 Hedingen, Switzerland
Telephone [phone]
[e-mail] www.
ernstschweizer.ch
Short installation manual – Solrif®
Additional information—mounting of inner corners
Technical data subject to change
August 2021
© Ernst Schweizer AG
Page 10/10
