Schwinn 120 User manual

ASSEMBLY MANUAL / OWNER’S MANUAL
Manual en Español Latino Americano:
http://www.schwinnfitness.com

2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 4
Specifications 5
Before Assembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Leveling the Bike 16
Moving the Bike 16
Important Safety Instructions - Owner’s 17
Features 18
Console Features 19
Contact Heart Rate (CHR) 21
Operations 23
Adjustments 23
Initial Setup 24
Quick Start / Manual Program 24
Workout Program Selection 24
User Setup Mode 25
Custom Workout 27
Profile Programs 27
Fitness Test 28
Results/Cool Down Mode 29
Pausing or Stopping 29
User Statistics 29
Console Setup 31
Maintenance 33
Troubleshooting 35
Nautilus, Inc., (800) NAUTILUS / [phone], www.NautilusInc.com - Customer Service: North America
[phone], [email protected] | outside U.S. +01-360-859-5180, [email protected] |
Printed in China | © 2011 Nautilus, Inc., All rights reserved. ™ and ® indicate a trademark or registered
trademark. Nautilus, Inc. (www.NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®
and UNIVERSAL® and respective logos. Other trademarks are the property of their respective owners.
TABLE Of CONTENTS
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty , go to: www.SchwinnFitness.com/register
Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).

3
IMpORTANT SAfETY INSTRUCTIONS
— ASSEMBLY
!This icon means a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
Obey the following warnings:
!Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.
• Donotconnectpowersupplytothemachineuntilinstructedtodoso.
• Donotassemblethismachineoutdoorsorinawetormoistlocation.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposure
to bystanders.
• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhen
doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or
awkward movements on your own.
• Setupthismachineonasolid,level,horizontalsurface.
• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethe
safety of this machine and will void the warranty.
• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacementpartsand
hardware. Failure to use genuine replacement parts can cause a risk to users, keep the
machine from operating correctly and void the warranty.
• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformance
in accordance with the Manual.
• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.Keep
the Manual for future reference.
• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrect
function.

4
SAfETY WARNINg LABELS ANd
SERIAL NUMBER
FCC Compliance
!Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.
The power supply complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This power supply has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe
•
•
•
•
•
•
300lbs. (136kg).
•
•
•
•
•
•

5
SpECIfICATIONS
53”
(135.0 cm)
31.6” (80.3 cm) 20” (51.0 cm)
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the
locationmustbeonahard,levelsurface.Allowaworkoutareaofaminimum75”x61”(1.9mx
1.5m).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
1. Read and understand the “Important Safety Instructions” before assembly.
2. Collect all the pieces necessary for each assembly step.
3. Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten,
and the left (counterclockwise) to loosen, unless instructed otherwise.
4. When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt
through the holes.
5.Theassemblyrequires2people.
Maximum User Weight: 300 lbs. (136 kg)
Power Requirements:
Operational Voltage: Operational Voltage 9VDC
Operating Current: 1500 mA
Regulatory Approvals:
AC Power Adapter: UL listed, CSA certified (or
equivalent),Rated120V60Hz
Input, 9VDC, 1500mA Output.
Class 2 or LPS.
determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

6

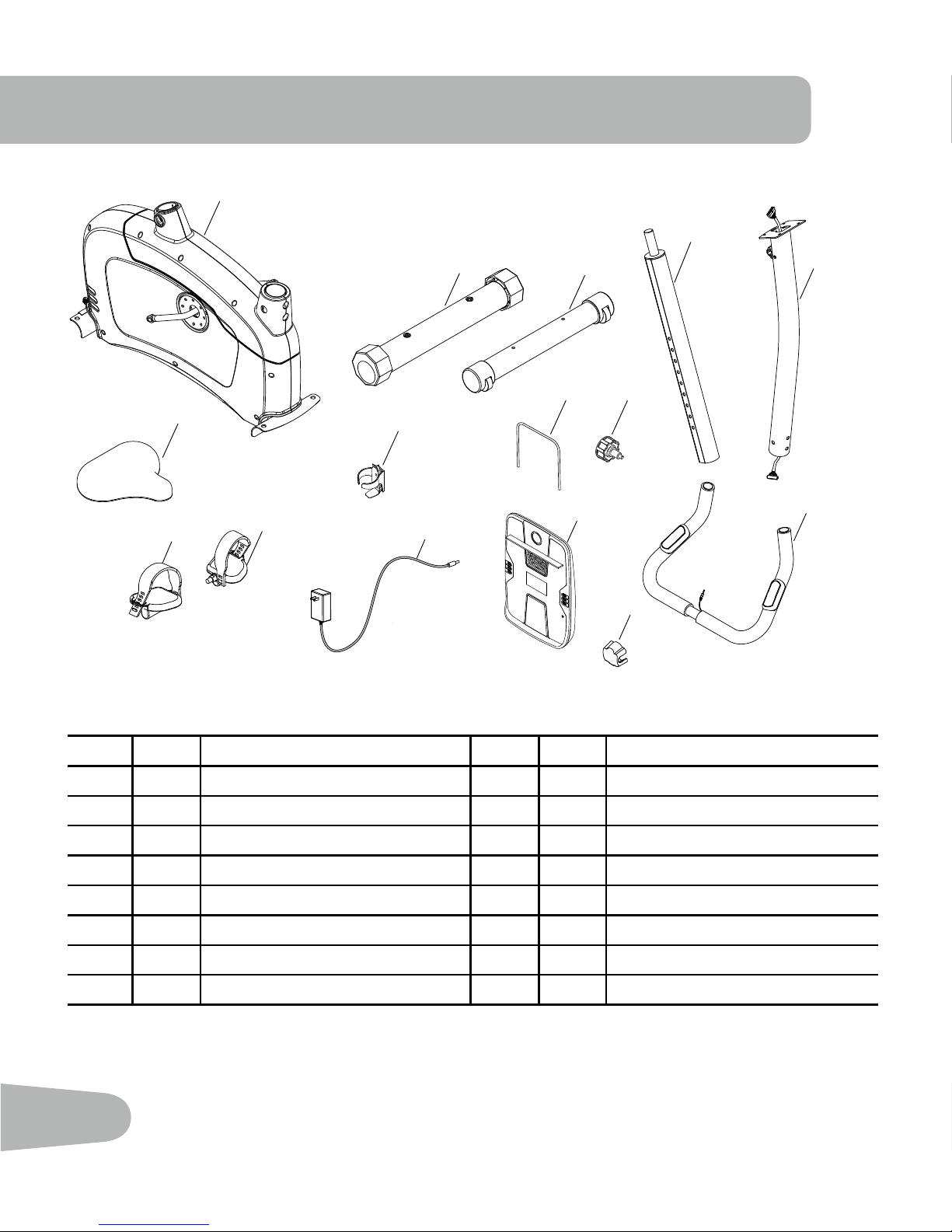

Item Qty Description Item Qty Description
1 1 Main Frame 9 1 AC Adapter
2 1 Rear Stabilizer 10 1 Left Pedal
3 1 Front Stabilizer 11 1 Right Pedal
4 1 Seat Post 12 1 Seat
5 1 Console Mast 13 1 Water Bottle Holder
6 1 Handlebar 14 1 Media Support
7 1 Handlebar Bracket Cover 15 1 AdjustmentKnob
8 1 Console
1
8
13
12
9
11 10
7
6
5
4
23
14 15
pARTS

7

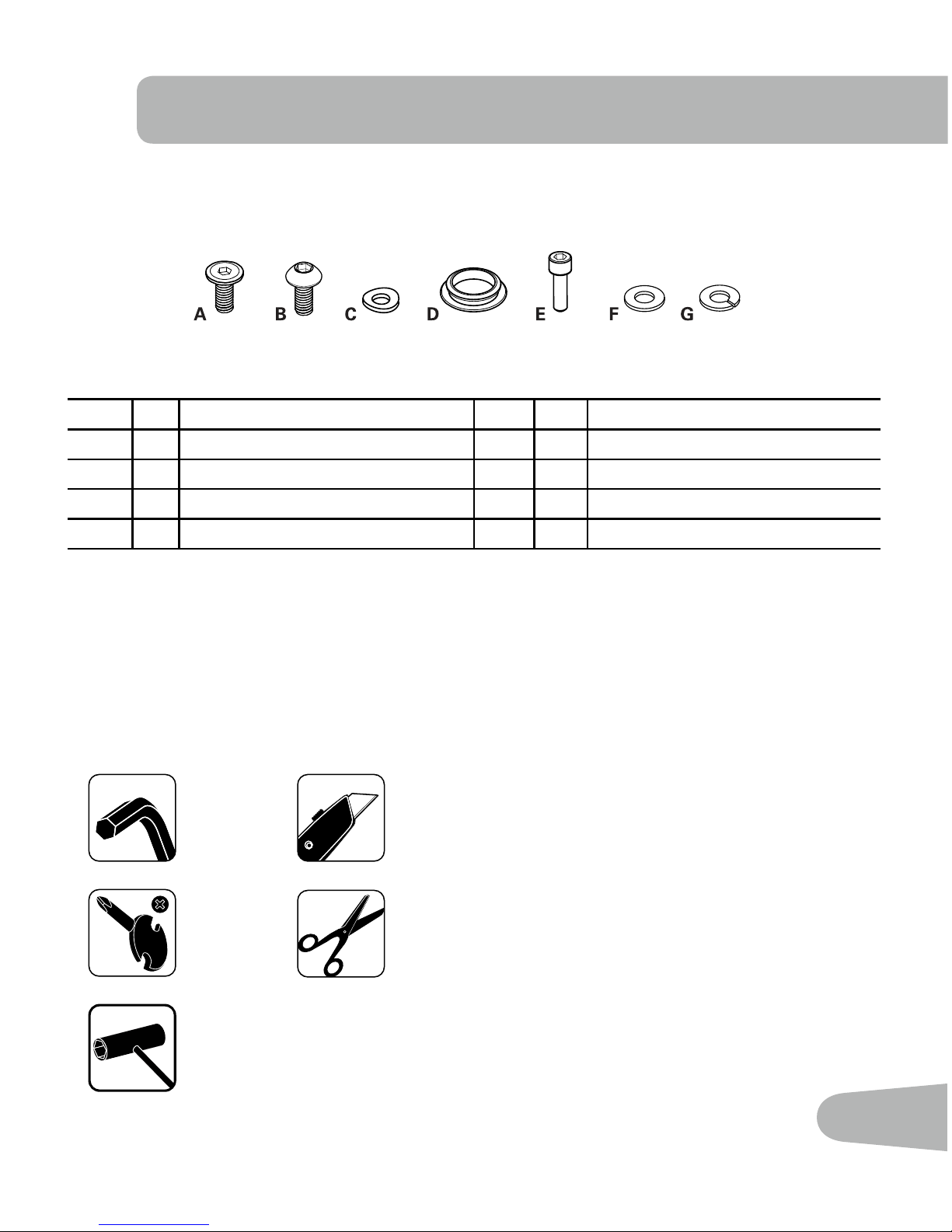

Tools
Included Not Included
6 mm
Item Qty Description Item Qty Description
A 4 FlatHeadHexScrewM8x16 E 1 HexBoltM7x30
B 4 ButtonHeadHexScrewM8x16 F 1 Flat Washer M7
C 4 Curved Washer G 1 Lock Washer M7
D 4 Cap
(recommended)
HARdWARE / TOOLS

8
1. Attach Stabilizers to Frame
Note: Make sure the Schwinn®decal on the Rear Stabilizer faces outward from the
machine.
2. Attach Pedals to Frame Assembly
ASSEMBLY
6 mm
1
A
13
12
10
11

9

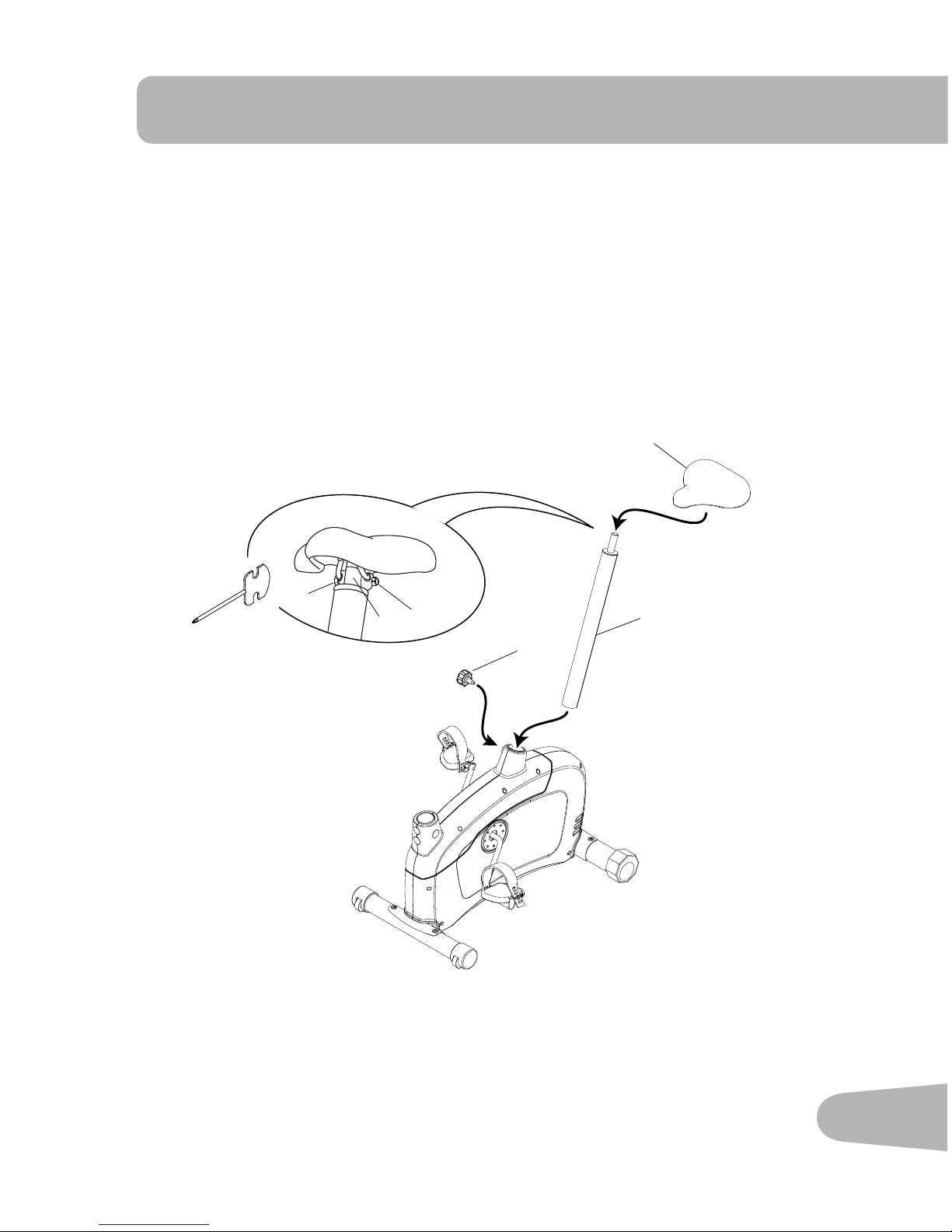

3. Attach Seat to Seat Post and Frame
NOTICE: Slide the Seat (12) onto the Seat Post (4) and install the Seat Post in the Frame. Make
sure the adjustment knob (15) engages the Seat Post.
Be sure the Seat is straight. Tighten the bolt (12b) and nut (12c) on the Seat bracket
(12a) to hold the Seat in position.
12a
12b
12c
15
4
12

10

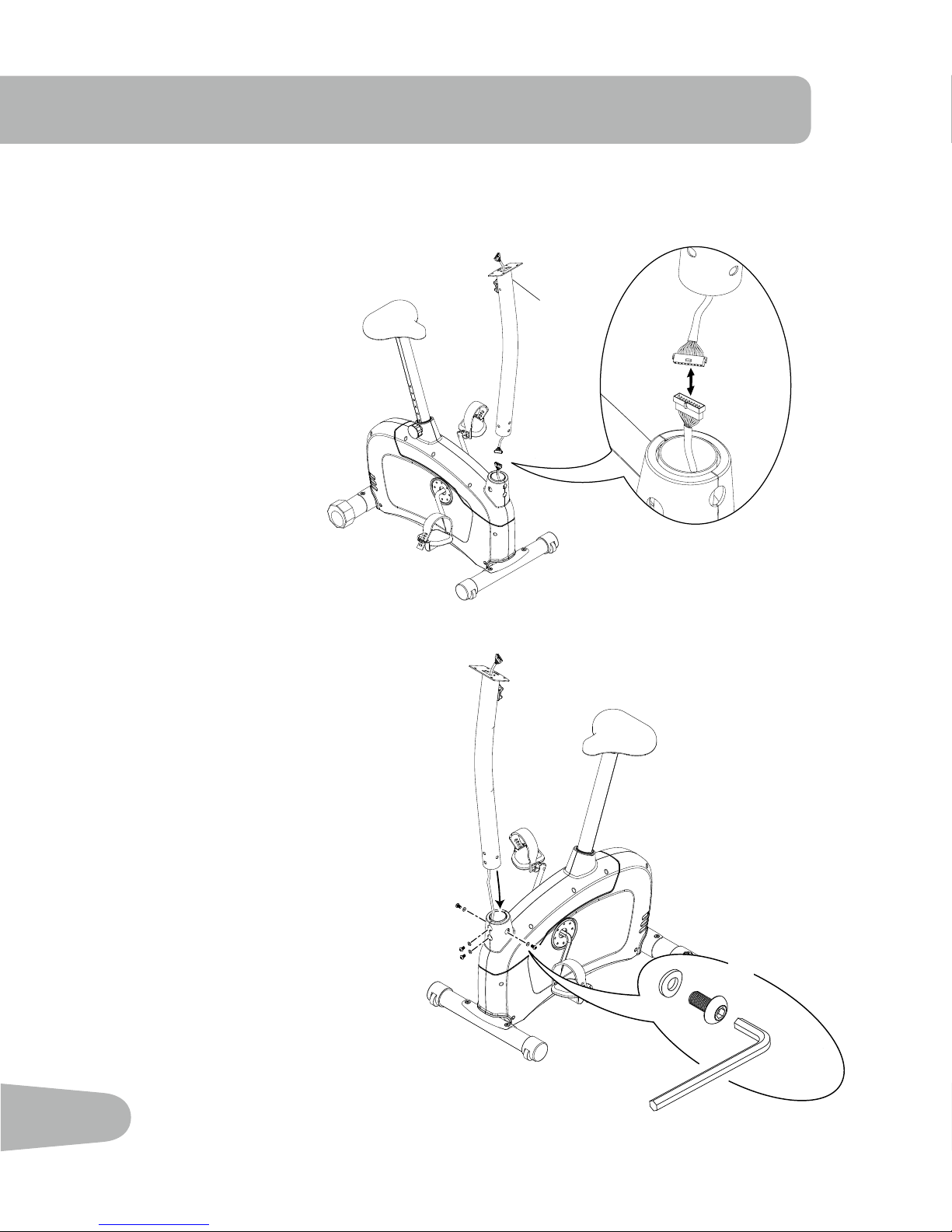

5. Attach Console Mast to Frame Assembly
NOTICE: Do not crimp Console Cable.
Note: Do not fully tighten the hardware.
C
B
X4
6mm
4. Connect Console Mast Cable to Frame Assembly Cable
NOTICE: Align the clips on the cable connectors and make sure the connectors lock. Do not
crimp Console Cable.
5

11

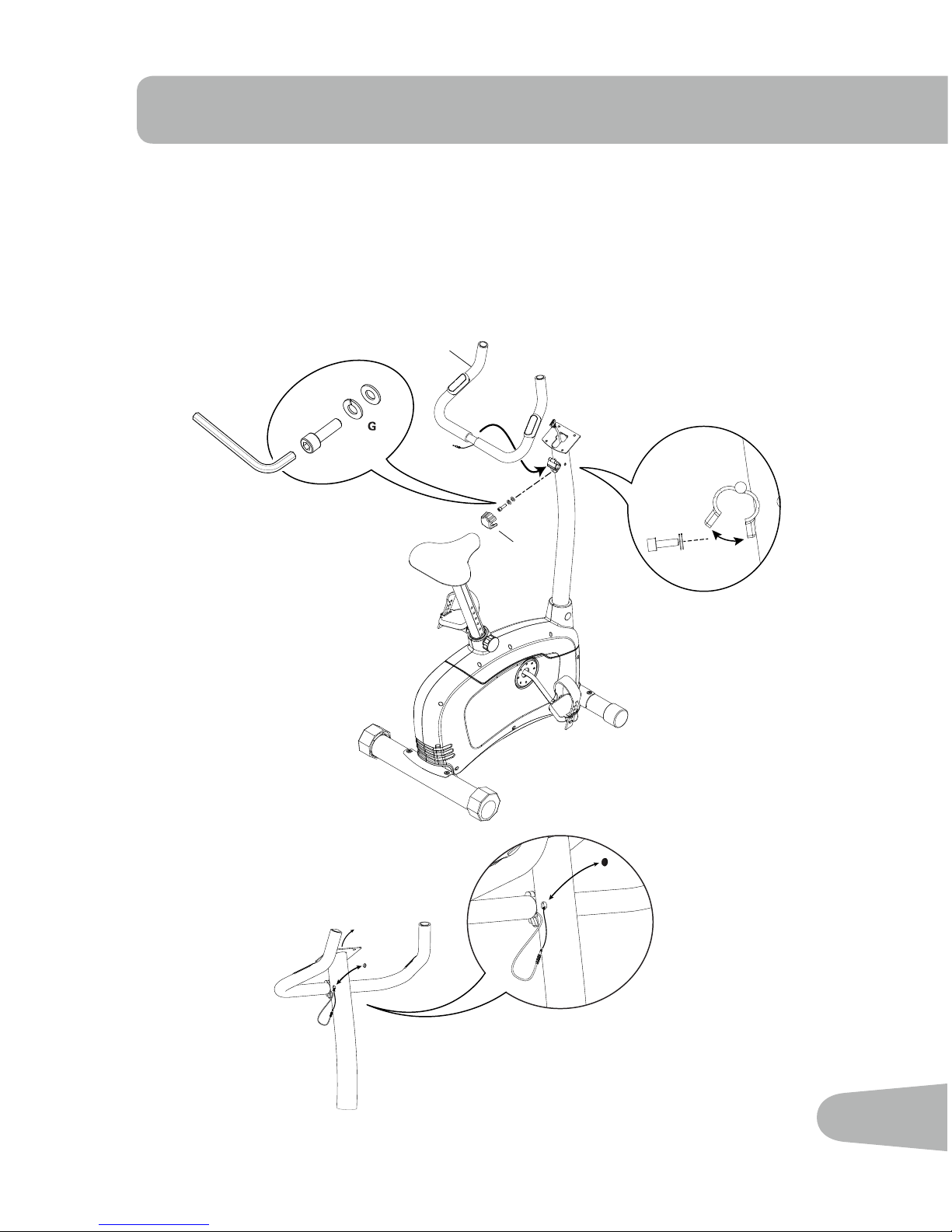

6. Attach Handlebars to Frame Assembly
NOTICE: Do not crimp the cables. Remove the pre-installed plug from the mast, route the HR
cable through the hole to the top of the mast, and reinstall the plug.
6
7
E
F
6 mm

12

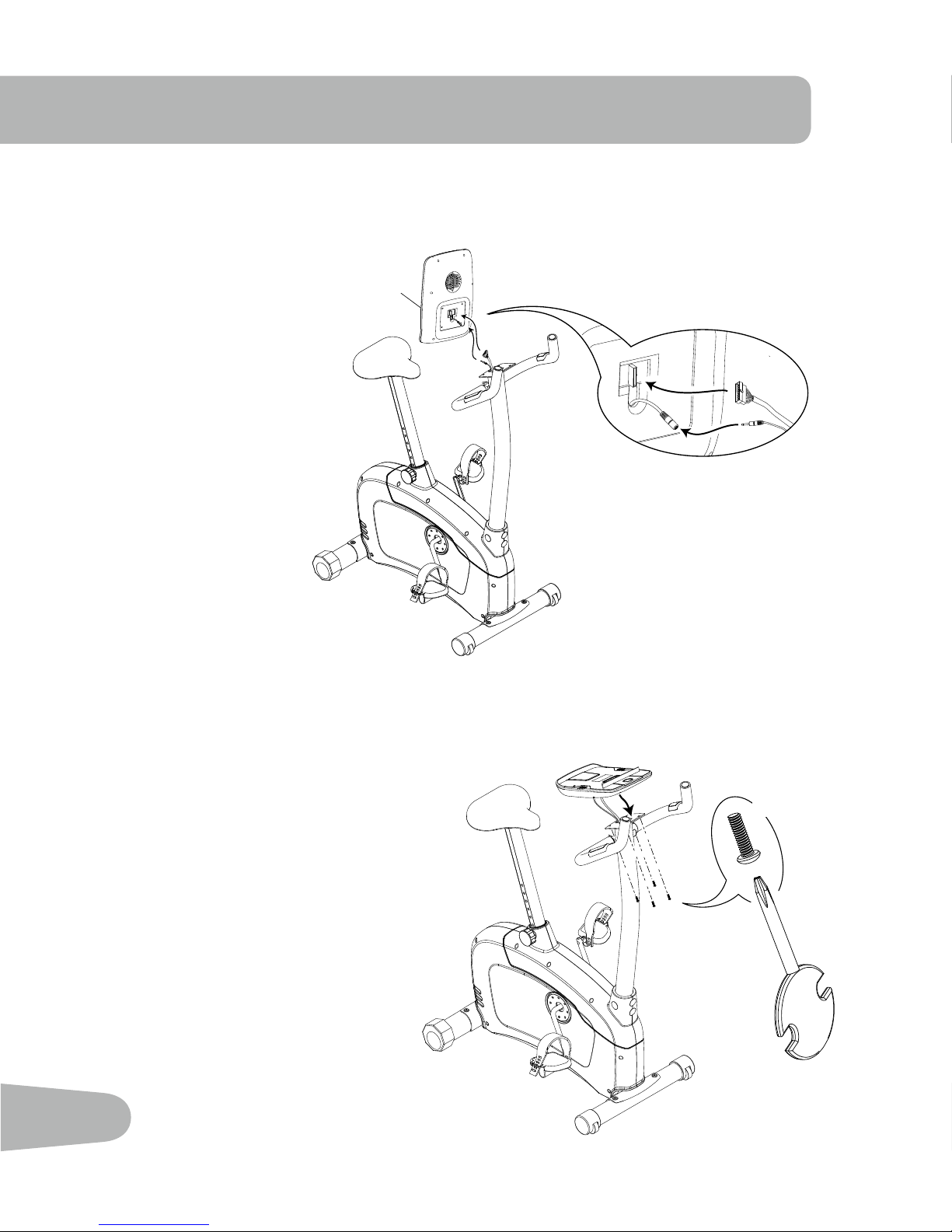

8. Attach Console to Console Mast
Note: Align the Console on the Console Mast mounting plate and attach with the screws from
S te p 7.
NOTICE: Do not crimp the cables.
7. Connect Console Mast Cable and Heart Rate Cable to Console
Note: Remove the pre-installed screws from the back of the console before you connect the
cables.
8
X4

13
9. Adjust the Console and Console Mast and Tighten Hardware
Note: To install the Media Support, slide it into the holes at the top of the console. .
D
6mm
X4
14
8

14

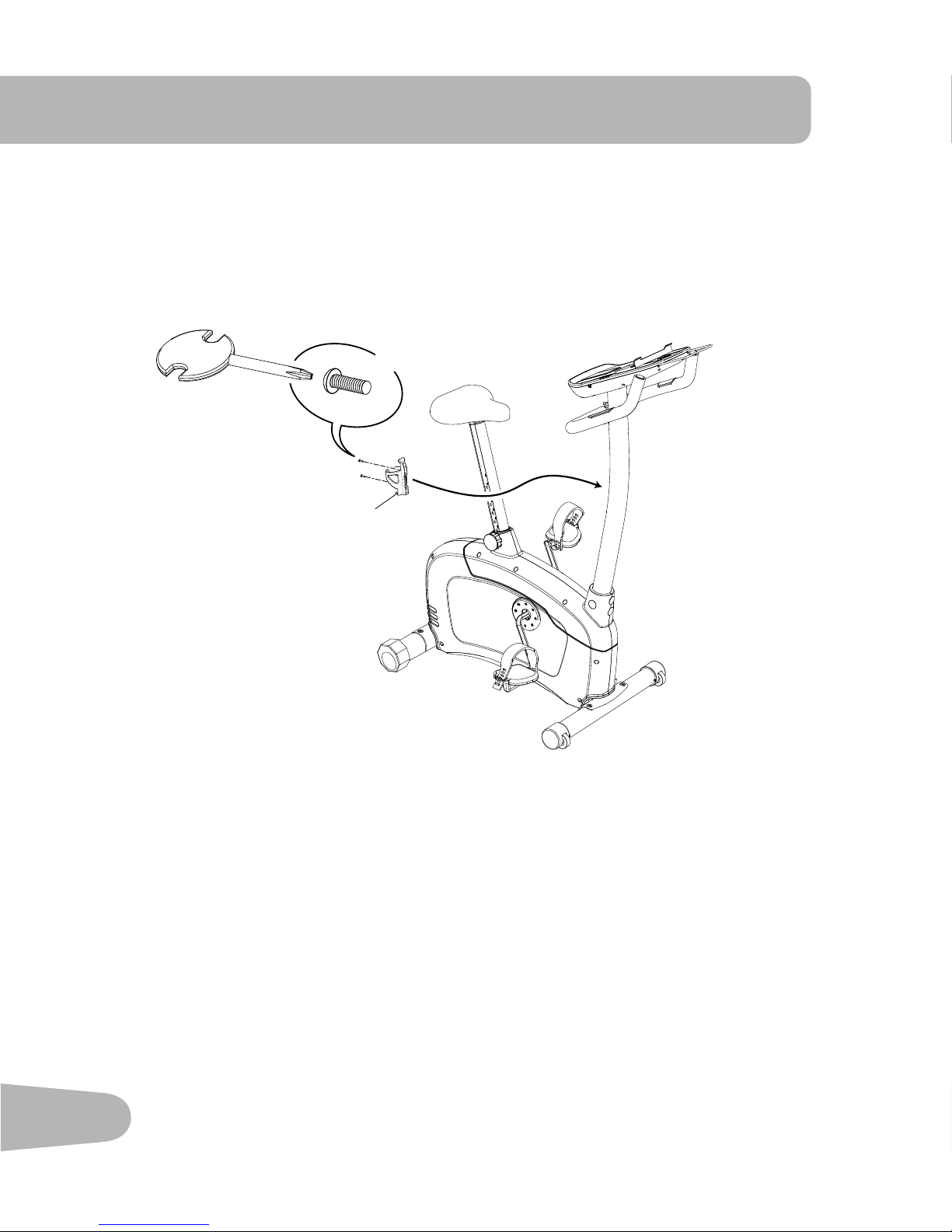

10. Install Water Bottle Holder on Console Mast
Note: The hardware is pre-installed on the console mast and not on the hardware card.
X2
13

15
11. Connect AC Adapter to Frame Assembly
12. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Be sure to record the serial number in the field provided at the front of this manual.
!Do not use or put the machine into service until the machine has been fully assembled and
inspected for correct performance in accordance with the Owner’s Manual.
9

16

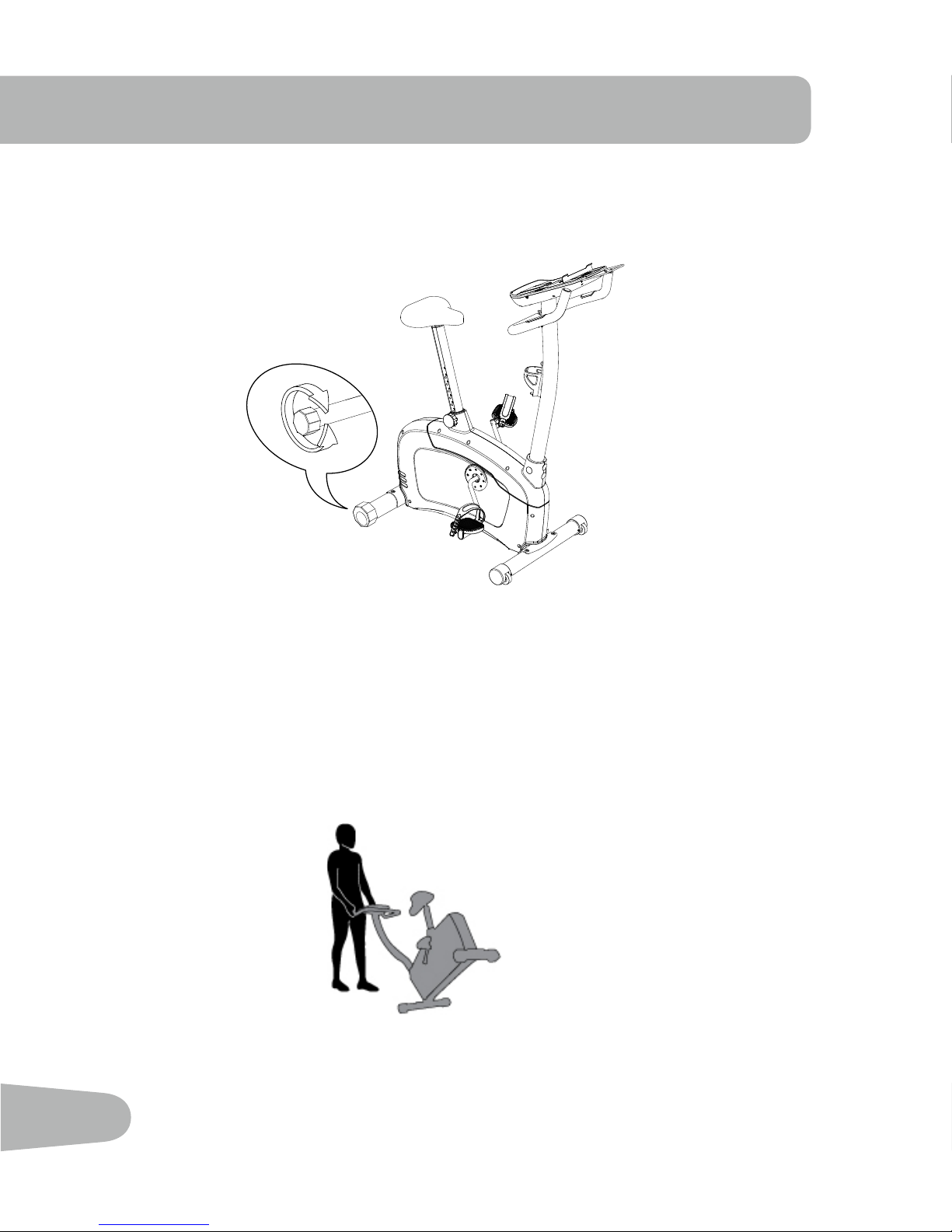

Leveling Your Bike
The levelers are the polygonal end caps on the Rear Stabilizer. Turn the end cap to adjust the level.
Makesurethebikeislevelandstablebeforeyouexercise.
Moving Your Bike
To move the upright bike, carefully tilt the Handlebars toward you while pushing the front of the bike
downward. Push the bike to the desired location.
NOTICE: Be careful when you move the bike. All abrupt motions can affect the computer operation.
BEfORE YOU START

17
!This icon means a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
Before using this equipment, obey the following warnings:
!ReadandunderstandthecompleteManual.KeeptheManualforfuturereference.
Read and understand all warnings on this machine. If at any time the Warning stickers
become loose, unreadable or dislodged, contact Nautilus®Customer Service for
replacement stickers.
• Childrenmustnotbeletonorneartothismachine.Movingpartsandotherfeaturesofthe
machine can be dangerous to children.
• Notintendedforusebyanyoneunder14yearsofage.
• Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpain
or tightness in your chest, become short of breath, or feel faint. Contact your doctor before
you use the machine again. Use the values calculated or measured by the machine’s
computer for reference purposes only.
• Beforeeachuse,examinethismachineforloosepartsorsignsofwear.Donotuseiffound
in this condition. Monitor the Seat, Pedals, and Crank Arms closely. Contact Nautilus®
Customer Service for repair information.
• Maximumuserweightlimit:300lbs.(136kg).Donotuseifyouareoverthisweight.
• Thismachineisforhomeuseonly.
• Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotput
ngersorotherobjectsintomovingpartsoftheexerciseequipment.
• Setupandoperatethismachineonasolid,level,horizontalsurface.
• MakethePedalsstablebeforeyousteponthem.Usecautionwhenyousteponandoffthe
machine.
• Disconnectallpowerbeforeservicingthismachine.
• Donotoperatethismachineoutdoorsorinmoistorwetlocations.Keepthefootpedals
clean and dry.
• Keepatleast19.7”(0.5m)oneachsideofthemachineclear.Thisistherecommended
safe distance for access and passage around and emergency dismounts from the machine.
Keepthirdpartiesoutofthisspacewhenmachineisinuse.
• Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedin
this manual.
• CorrectlyadjustandsafelyengageallPositionalAdjustmentDevices.Makesurethatthe
Adjustment Devices do not hit the user.
IMpORTANT SAfETY INSTRUCTIONS

18

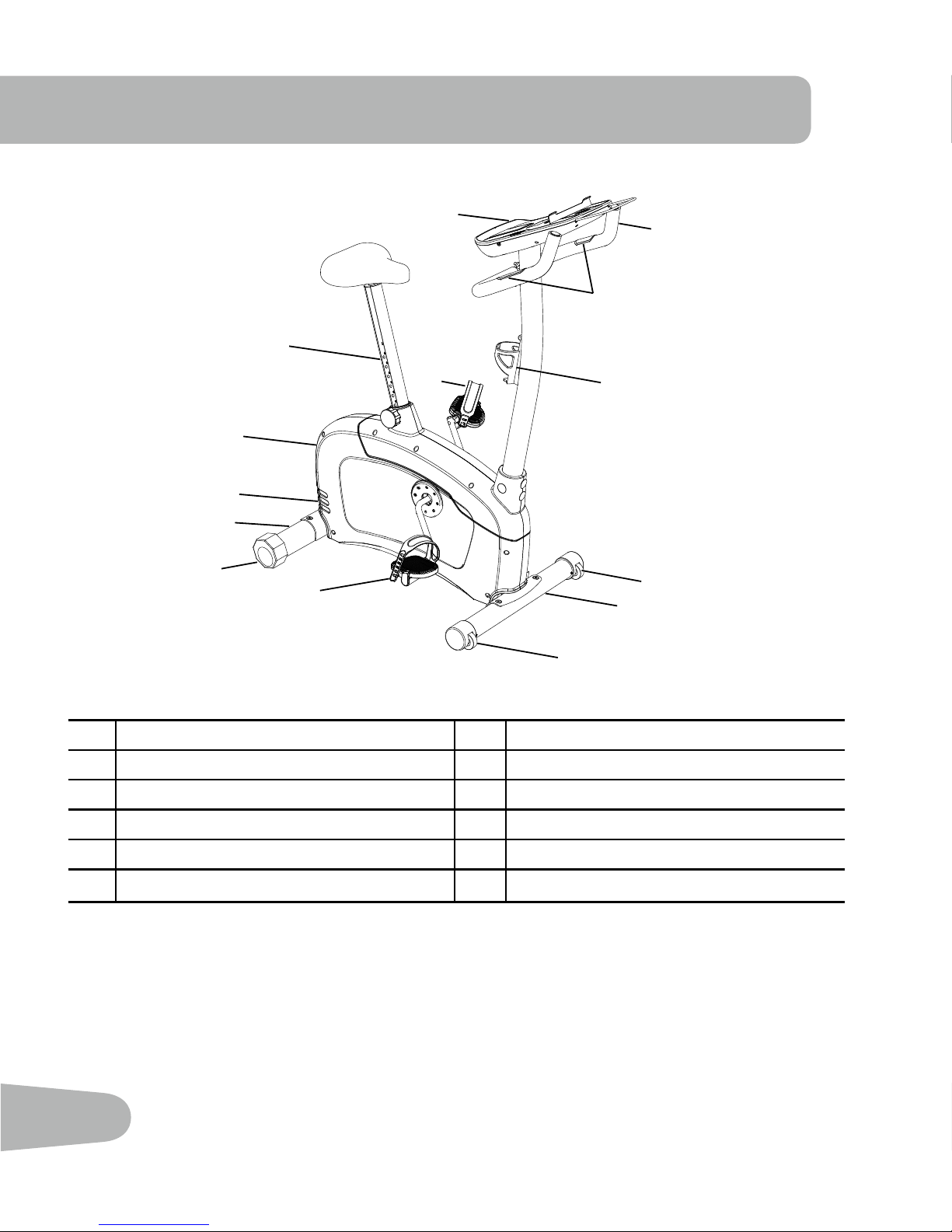

A Console G Pedals
B Handlebars, Upright H Leveler
C Shrouded Main Frame I Adjustable Seat
D Transport Wheel J Contact Heart Rate (CHR) Sensors
E Stabilizer KWater Bottle Holder
F AC Adapter Plug
fEATURES
A
B
J
K
D
D
G
G
E
H
F
C
I
E

19

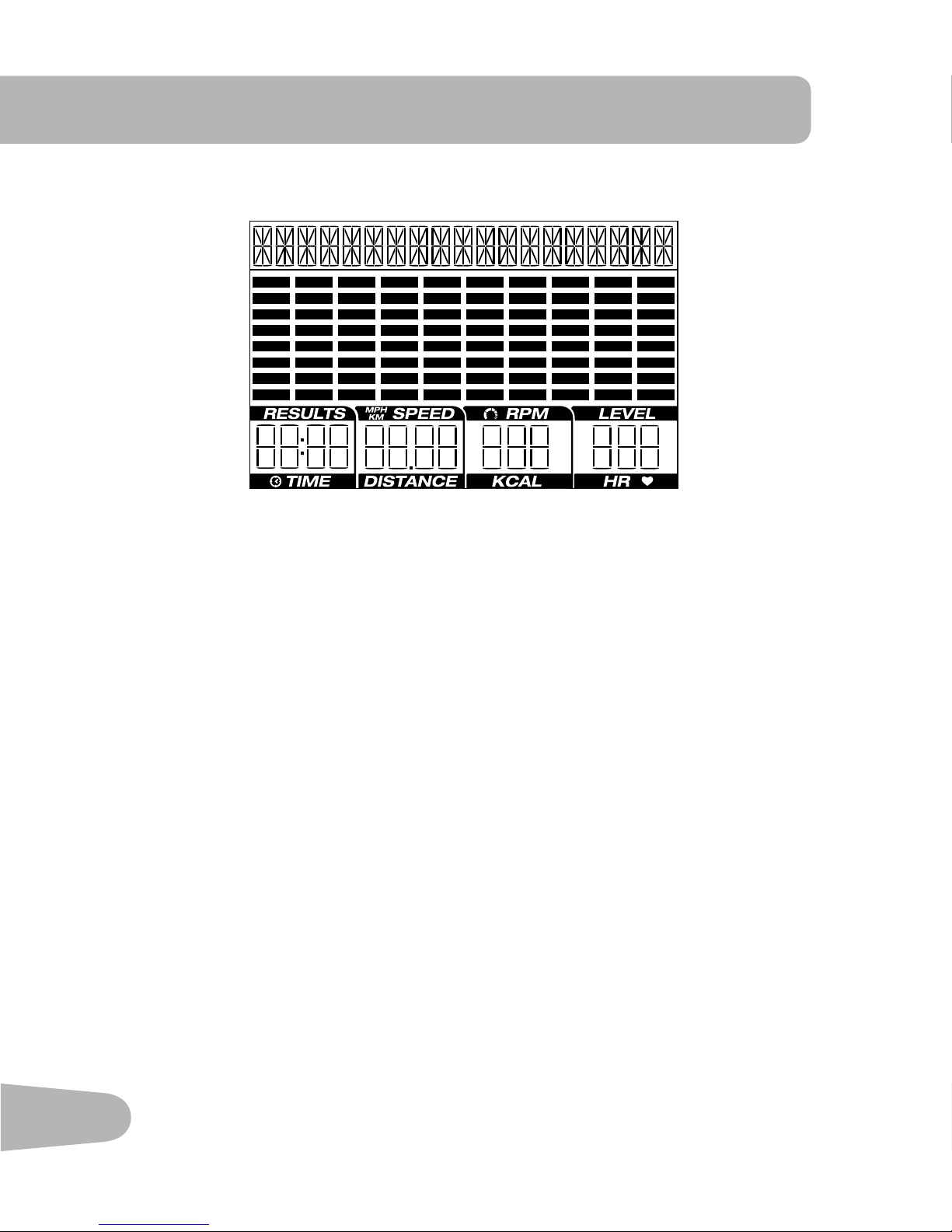

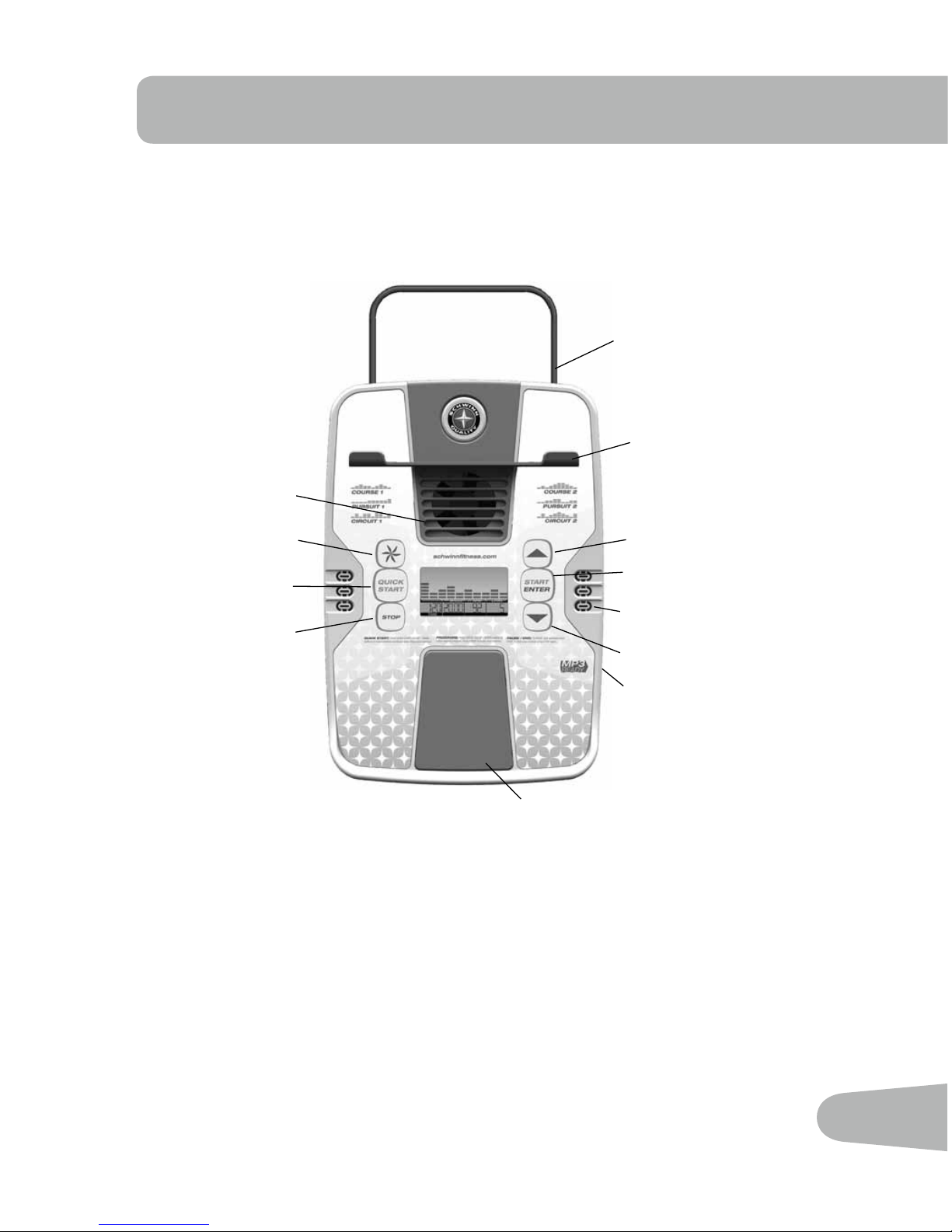

Console Features
The Console provides important information about your workout and lets you control the
resistancelevelswhileyouexercise.TheConsolehasagriddisplaywithtouchcontrolbuttonsto
navigateyouthroughtheexerciseprograms.
Keypad Functions
QUICKSTART BeginsaQuickStartworkout
STOP Pauses an active workout, and if pushed again, will end the workout
FAN button Controls 3-speed fan
Increase () Increases a value (age, time, distance, calories, or workout resistance level)
Decrease () Decreases a value (age, time, distance, calories, or workout resistance level)
START/ENTER Starts a Program workout, confirms information, or resumes a paused
workout
Media tray
Media support
Increase button
Start / Enter
Decrease button
MP3 input
Speakers
MP3 / Smart phone holder
Fan button
Fan
Quick Start
Stop

20
LCD Display Data
Program Display
The Program Display shows the name of the program selection and the grid area shows the
course profile for the program. Each column in the profile shows one interval (workout segment).
The higher the column, the higher the resistance level for that interval. The flashing column shows
your current interval.
Time
The TIME display field shows the time count in the workout. If no preset time is set up for the
current workout program, the display value starts at zero and counts forward until the end of the
workout.Maximumtimeis99:59.
If the workout has a preset time, the display starts at the preset value and counts down to zero.
The display shows the total time count for the workout.
Speed / Distance
The SPEED/DISTANCE display field shows the machine speed in kilometers per hour (km/h) or
miles per hour (mph) for 6 seconds, then the Distance for 6 seconds. The Distance display shows
the distance count (miles or km) in the workout.
Note: To change the measurement units to English Imperial or metric, refer to the “Console
Setup Mode” section in this manual.
RPM / KCAL (Calories)
TheRPM/KCALdisplayeldshowsthemachinerevolutionsperminute(RPM)for6seconds,then
theKCALdisplayshowstheestimatedcaloriesthatyouhaveburnedduringtheexercisefor6
seconds.
