EXERCISE BIKE
OWNER’S MANUAL
OWNER’S MANUAL
PN 001-7087 Rev A (04/11/2007)
SB13 Upright
SR23 Recumbent

CONGRATULATIONS!
Thank you for making the Schwinn®bike a part of your exercise and fitness
activities. For years to come, you’ll be able to rely on Schwinn®craftsmanship and
durability as you pursue your personal fitness goals.
This Schwinn®bike should enable you to shape and monitor your workouts to:
pIncrease your energy level
pIncrease cardiovascular and aerobic fitness
pIncrease lower body muscle strength
qDecrease your overall percentage of body fat
Whether you are just getting started in an exercise program or are already in
good shape, this Schwinn®bike is designed to be an efficient, easy and fun
way to achieve an enhanced level of fitness. You can pedal your way to a slim-
mer and healthier body. The on-board digital computer enables you to accu-
rately monitor your progress by tracking time, speed, distance and approximate
Calories burned. This Owner’s Manual contains all the information you need
to operate and enjoy your Schwinn®exercise bike. Also included are general
fitness guidelines. Please read this Owner’s Manual in its entirety before get-
ting onto the bike and working out. So let’s get started.
Take your time and have fun!
2

TABLE OF CONTENTS
Safety Precautions..................................................................................4
Important Safety Instructions ............................................4
Safety Warning Labels........................................................5
Features ............................................................................................8
Operation ........................................................................................... 10
How to use the Schwinn®exercise bike........................ 10
How to use the Schwinn®exercise bike computer ....... 12
Maintenance .........................................................................................30
Moving your Schwinn®exercise bike ..............................30
Leveling your Schwinn®exercise bike .............................30
Maintenance .....................................................................30
Fitness Guidelines ................................................................................31
Exercise and Health ..........................................................31
Your New Home Fitness Program ....................................31
Steps to Getting Started ..................................................32
Components of Fitness ....................................................33
Cardiovascular Fitness ......................................................33
Muscular Strength ............................................................33
Flexibility ...........................................................................34
Nutrition ............................................................................35
Understand Caloric Balance .............................................35
Eat a Variety of Foods .......................................................35
Drink Water .......................................................................35
Eat More Often / Portions ................................................35
Monitoring Your Intensity ..................................................36
Training Zones ..................................................................36
Beating the Dropout Odds ...............................................38
Suggested Readings ........................................................39
Workout Log .........................................................................................41
Limited Warranty ..................................................................................43
Contact Information .............................................................................43
3
CONTENTS

IMPORTANT SAFETY INSTRUCTIONS
The following definition applies to the word “Warning” found throughout this
manual:
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
PRIOR TO USING THIS EQUIPMENT, OBSERVE THE FOLLOWING
WARNINGS:
1. Read and understand the complete Owner's Manual.
2. Read and understand all Warnings on this machine.
3. Keep children away from this machine and / or supervise them closely if
they are near the machine or present during its operation. This machine
is not suitable as a children’s toy. There is a natural tendency for children
to want to play on exercise equipment, and parents and others in charge
of children should be aware of their respective responsibilities. Moving
parts that may appear to present obvious hazards to adults may not
appear to do so to children.
4. Consult a physician prior to commencing an exercise program. If, at any
time, you feel faint or dizzy, or experience pain, stop and consult your
physician.
5. Inspect this machine for loose parts or signs of wear. Pay special
attention to the seat, pedals, and crank arms. Do not use if found in this
condition. Contact Nautilus Customer Service.
6. This exercise machine is for consumer users only.
7. Set up and operate this exercise machine on a solid level surface.
8. This machine contains moving parts. Use Caution. Do not wear loose
clothing or jewelry.
9. Care should be taken when mounting and dismounting the exercise
bicycle.
10. This machine is designed for a user weight limit of 300 lb. (136 kg). Do not
use if you are over this weight.
11. Set up the machine so that there is a free area of 19.7 inches ( 0.5 m) on
all sides of the machine. Keep third parties out of this area when the
machine is in use.
12. Operate the machine in the manner described in this manual. It can be
hazardous to over exert yourself during exercise.
13. Make sure that all positional adjustment devices are securely engaged.
SAFEGUARDS
4

SAFETY WARNING LABELS
BEFORE USING YOUR PRODUCT: The following safety warnings are located
in site-specific areas on the Schwinn Exercise Bike Models SB13 and SR23.
Please read all safety precautions and warning information prior to using your
product. Be sure to replace any warning label if damaged, illegible or missing.
If you do not have, or cannot find, or need to replace a warning label, please
call 1-800-864-1270 to obtain a new label.
Label 1: "1. Keep children away.
2. Prior to use, read and understand the Owner's Manual.
3. Injury or death is possible if Caution is not used while using this
machine.
4. The maximum user weight for this machine is 300 lb. (136 kg).
5. Replace any "Caution", "Warning" or "Danger" label that is illeg-
ible, damaged or removed.
6. This machine is for home use only."
Location: Affixed to the console mast just below the computer.
Model SB13
Label 1
Serial #
5
SAFEGUARDS

Model SR23
Label 1
Serial #
SAFEGUARDS
6

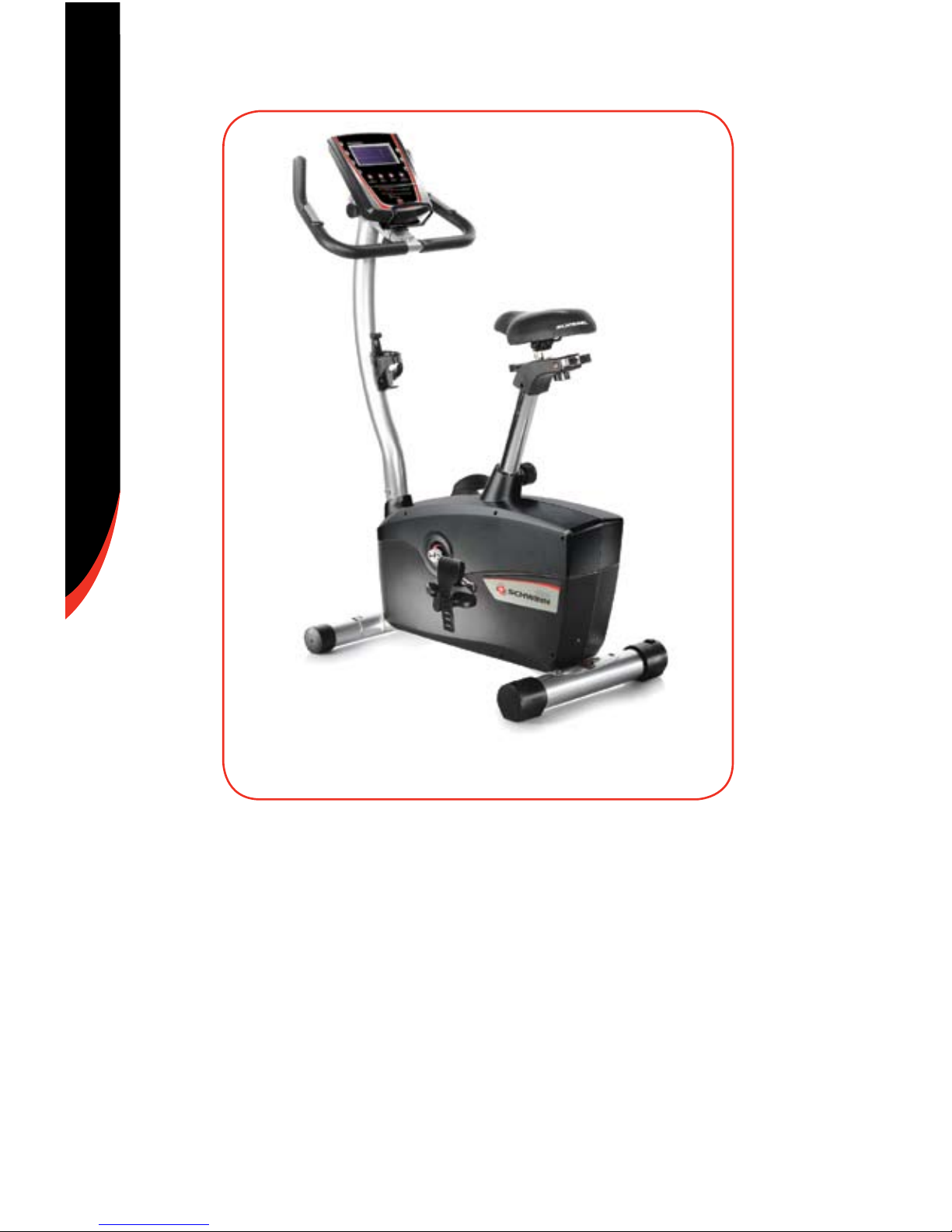

THE REVOLUTIONARY SCHwINN®BIOFIT™COMFORT
SYSTEM
The unique and revolutionary Schwinn®BioFit™Comfort System is
designed specifically to ensure that each point of contact and user-interface
with the bike provides the user with proper ergonomic and bio-mechanical
positioning, superior comfort, the ultimate in functionality, and is fully cus-
tomizable to fit each user’s unique and specific needs.
FEATURES
8

Other features:
nThe Schwinn®BioFit™console is tilt-adjustable for a
customizable viewing angle to accommodate various
workout environments, positions and intensities.
nSchwinn®BioFit™wide seats offer stability, comfort,
and support.
nSchwinn®BioFit™pedals provide proper alignment for
efficient pedaling.
nHandlebar slider mechanism contributes to an ideal
user interface position (Offered on upright models).
nSeat slider mechanism ensures optimum seat height
and fore/aft adjustment (Offered on upright models).
nLumbar support can be adjusted for improved lower
back support (Offered on recumbent models).
nBioConnect™feedback system includes multi-program and
feature-packed computer with 16 levels of resistance to
keep you motivated and help you achieve your fitness goals.
nThe Schwinn®BioFit™recumbent frame is a user-
friendly design that enables you to easily get on and
off the bike without having to step over a high seat rail.
nHigh-quality, chrome-plated seat tube looks good in any
room in the house.
nOversized rear stabilizer tube for rock-solid steadiness
nBioDyne™performance system includes a drive train featuring a
strong drive train features a strong and durable 3-piece crank, super
quiet 6-groove drive belt and oversize, perimeter weighted, 20 lb.
(9 kg) flywheel that provide the ultimate in true “road” feel.
nTransport wheels give you the versatility to move your
workouts to the family room while watching the kids or
the den while enjoying your favorite tv program.
nConvenient storage for your favorite workout reading
materials (Offered on recumbent models)
nGrip heart rate for monitoring your workouts
9
FEATURES

nSeat adjustment
Proper seat adjustment helps ensure maximum exercise efficiency and com-
fort, while reducing the risk of injury.
1. Place one pedal in the forward position and center the ball of your foot over
the center of the pedal. Your leg should be slightly bent at the knee.
2. If your leg is too straight or your foot cannot touch the pedal, you will need
to move the seat down on the upright bike or forward on the recumbent bike.
If your leg is bent too much, you will need to move the seat up on the upright
bike or backward on the recumbent bike.
3. Adjust the upright seat height by first dismounting the bike, then pulling out
the adjustment knob on the seat tube and releasing the locking pin. Lower or
raise the seat to the desired height. Release the seat knob, engaging the lock-
ing pin. Be sure that the pin is fully secured in a seat post hole. To adjust the
recumbent seat, pull the seat knob outward to release the seat. Slide the seat
forward or backward to the desired position. The knob will “pop” up into the
next hole; turn the knob to ensure a tight fit.
4. The upright bike also features a combination fore / aft and micro seat height
adjustment slider. To move the seat closer to, or away from the console, loos-
en the knob, slide the seat forward or rearward to the desired position and
re-tighten. Because of the unique angled design of the slider it also functions
as a micro seat height adjustment. Using this feature in combination with the
pop-pin adjustment on the seat tube enables you to fine tune the proper seat
height for optimum comfort and performance.
nFoot positioning/pedal strap adjustment
Place the ball of each foot on the pedals. Rotate the pedals until one foot
is within arm's reach. Then, reach down carefully and fasten the rubber strap
over your shoe and secure it to the pedal by slipping the nub at the end of
the pedal through one of the slots in the strap. Pull down on the strap until it
snaps into place. Repeat for the other foot. Point your toes and knees directly
forward to ensure maximum pedal efficiency. Pedal straps can be left in
place for subsequent workouts.
nHandlebar Adjustment
The upright bike offers an adjustable reach handlebar to ensure a variety of
comfortable workout positions. To adjust the reach of the handlebars, loosen
the knob, slide the handlebars in or out to the desired position and re-tighten.
HOw TO USE THE SCHwINN®EXERCISE BIKE
OPERATION
10

nConsole Adjustment
The upright and recumbent bikes both feature a tilt-adjustable console that enables
you to customize your own viewing angle. To adjust the console tilt position,
loosen the knob, move the console to one of the three available tilt positions
and re-tighten.
nResistance adjustment
Using the console, you have control over the levels of resistance integrat-
ed into your workout. Typically, lower resistance levels enable you to move at
a faster pace, placing increased demand on your cardiovascular system. Higher
resistance levels will typically deliver more of a muscle / endurance workout at
lower RPMs. But everyone is different! So experiment and find the beginning
of resistance that is comfortable for you.
nLower body workout
Once you are in position and sitting comfortably, slowly begin pedaling, with
your arms relaxed and with your hands resting on the hand grips. Pedal at an
easy pace, at a low resistance level until you feel comfortable and secure. As
you feel more comfortable, experiment with the range of resistance levels
available via the console.
11
OPERATION

HOw TO USE THE SCHwINN®EXERCISE BIKE COMPUTER
Using the Computer
Your Schwinn®bike is equipped with a versatile computer console which
includes:
• Quick Start
• 1 Manual program
• 10 Profile programs
• 3 Heart Rate Control programs
• 2 Custom user-defined programs
• Time Trial program
• Fitness Test
• Calorie Goal
• BMI (Body Mass Index)
• Recovery Mode
• Results Mode
This console provides
you with important
information about
your workout as well
as controlling the
resistance levels. The
following sections
will describe how to
utilize the many func-
tions provided by this
computer. Keep this
manual accessible for
future reference, as
you will want to exper-
iment with the various
functions while you
become familiar with
the bike.
Computer Console
Design
Before we discuss
using the specific func-
tions of the computer,
let’s get familiar with
the display, the differ-
ent features, and vari-
ous buttons located on
the console.
OPERATION
12

Computer Features
nLCD Display
The large LCD (Liquid Crystal Display) screen located in the center of the
console is your information center. This display is divided into sections that
provide information about your workout and any preset information you may
have input into the computer. The display provides a large main window that
indicates the PROGRAM selection and RESISTANCE LEVEL. The smaller
windows across the bottom show INTERVAL TIME and TIME, RPM and
WATTS, DISTANCE, and HEART (PULSE) RATE. The next larger window
on the right side of the display shows SPEED and CALORIES, ENGLISH or
METRIC operating mode, and the CYCLIST ICON with spinning wheels
relative to your SPEED. The icon also indicates that the program is running.
The large main area of the display shows the program profile you are using.
Within this profile are “bricks”, or rectangles, that are stacked vertically and
indicate the relative resistance level and course profile. The computer is
capable of offering 16 different levels of resistance. One “brick” represents
the lowest level and eight “bricks” represent the highest level. You can view
the level you are exercising in by referencing the Level numbers displayed
on the left and right side of the “brick” display. Levels 1, 3, 5, 7, 9, 11, 13,
and 15 display on the left side and Levels 2, 4, 6, 8, 10, 12, 14, and 16 dis-
play on the right. The highest value displayed is the resistance level you are
working out in.
In addition, you will notice that there are 12 columns of these “bricks” lined
up horizontally across the bottom of the center of the display. Each Profile
Program is 50 columns or “intervals” long so each of these columns or
“intervals” represents one fiftieth of your workout time. For example, if you
enter a workout time of 25 minutes, each column or “interval” time will last
a duration of 30 seconds. Since the display shows the first 12 columns of
your workout program, as you progress through the workout, the program
will scroll to the left. The flashing “bricks” on the leftmost column let you
know where you are in your workout and other columns to the right show
the upcoming course profile.
The Manual, Heart Rate Control, Custom and Time Trial programs will display
in the 12 interval columns as viewed on the LCD screen and do not scroll as
you advance through the workout.
nAlphanumeric Display
Within the LCD display the computer features a “message center” that
prompts you to input specific data and values to make the bike easy to
operate and gets you to your workout quickly.
13
OPERATION

USING THE SB13/SR23 COMPUTER
nLCD Display Descriptions
TIME Displays the workout TIME. The TIME will count down from the
TIME you entered when beginning the program and shows the TIME
remaining for your workout.
INTERVAL TIME Displays the INTERVAL TIME. The INTERVAL TIME will count down
showing the TIME remaining before the program moves to the
next column.
RPM Displays the current pedal RPM (revolutions per minute).
WATTS Displays the current power you are producing at a given resistance
level. A WATT is a measure of workload similar to horsepower (in
fact 1 horsepower is equal to 746 Watts).
DISTANCE Displays the estimated DISTANCE traveled (Miles or Kilometers).
PULSE Displays your current heart rate BPM (beats per minute). You must
grip each Heart Rate contact sensor pod to enable the computer to
detect your heart rate.
SPEED Displays the estimated SPEED (Miles or Kilometers / hour).
CALORIES Displays the estimated CALORIES you have burned during the exercise.
nConsole Buttons and Button Functions
START / PAUSE Used to start and pause the workout. When in a program pressing
this button will pause the workout. Press this button again to restart
the clock and the program where you left off.
UP / DOWN Used to change resistance level or to adjust values such as program
time etc.
ENTER Confirms or enters your selection.
SCAN These 3 buttons enable the user to alternately view Interval Time or
Time, RPM or Watts, and Speed or Calories.
RESET Pressing RESET in the program mode will bring you back to the
“ENTER PROGRAM” screen. Holding the RESET button down
for 2 seconds will reset the console and perform the “Power Up” step.
QUICK START When the screen displays “ENTER PROGRAM”, pressing this
will start the Manual Program. This is a “one-touch” way of starting
the Manual Program.
RESULTS Press this button to end the program and see the summary results of
your workout: Total Time, Total Distance, Average Speed, Average
Watts, Average Pulse and Total Calories. Once you press this button
your workout will end. You cannot go back and resume your workout
where you left off. See START / PAUSE above for information
regarding pausing then resuming your workout.
RECOVERY Press this button to measure and obtain your heart rate recovery
score. See section “Recovery Test”.
OPERATION
14

USING THE SB13/SR23 COMPUTER
nAuto Shut-Off (Sleep Mode)
The console will automatically shut off in approximately 2 minutes without
use or input. There is no on/off switch. (Press any button to power up the
console and “ENTER PROGRAM” appears in the alphanumeric display.)
nInformation Mode
The computer enables you to switch between English or Metric units
by pressing and holding the UP and DOWN buttons simultaneously
for 3 seconds. Use the UP or DOWN button to select “ENGLISH” or
“METRIC” and press ENTER to confirm. The computer will enter the
Information Mode. In the Information Mode, by following the displayed
menu and prompts, you will be able to:
Select ENGLISH measurement units which sets the computer for:
• Miles
• Miles/hour
• Pounds
• Inches
Or select METRIC measurement units which sets the computer for:
• Kilometers
• Kilometers/hour
• Kilograms
• Centimeters
See Total Distance
See Total Hours
Press ENTER and then the software version will display. Press ENTER
again to exit the Information Mode and the computer will bring you to the
“ENTER PROGRAM” mode.
nGrip Heart Rate
This Schwinn®bike is equipped with grip heart rate sensors located on
the handlebars. You must contact these sensors with both hands so the
computer can detect your pulse. The computer uses information detected
by the grip heart rate sensors for many of the software features. Make
sure you are griping the pods and look for the flashing “heart” icon and
pulse rate located on the lower right portion of the LCD display (to the left
of the CYCLIST icon) indicating that a pulse signal is being received. This is
extremely important for the Heart Rate Control and Fitness Test programs.
The computer must receive a steady, consistent signal for the duration of
these programs to operate correctly. If there is no display please see the
section titled “IMPORTANT Things You Should Know Before Exercising” for
more information.
15
OPERATION

SOFTwARE FEATURES
Quick Start:
This is a “one-touch” way of starting the Manual Program.
1 Manual Program:
You manually adjust the resistance level during your workout to make the pro-
gram easier or more challenging.
10 Profile programs:
The computer offers a variety of fun and exciting profile programs to keep you
motivated and on track to achieving your fitness goals:
Profile Program 1 Ride in the Park
Profile Program 2 Rolling Hills
Profile Program 3 Plateau
Profile Program 4 Speed Intervals
Profile Program 5 Strength Intervals
Profile Program 6 Pyramid Intervals
Profile Program 7 Ramp Interval 1
Profile Program 8 Ramp Interval 2
Profile Program 9 Pikes Peak
Profile Program 10 Cross-Training
3 Heart Rate Control (H.R.C) Programs
These programs enable you to choose to workout in 3 different heart rate zones;
60% to 70% of max. heart rate, 70% to 80% of max. heart rate, and 80% to
90% of max. heart rate. The zones are calculated based upon your age and the
percent of maximum heart rate you select to exercise in.
***Please note: You must grip the heart rate sensor pods located on the handle-
bars for the computer to read your pulse and for the Heart Rate Control programs
to work effectively.
60% - 70% of maximum heart rate – General Fitness Zone – Fat Burning
Exercise within this zone improves general fitness, begins to develop endurance,
and contributes greatly to weight control and management by utilizing mostly fat
Calories for energy.
70% - 80% of maximum heart rate – Aerobic Workout Zone – Endurance
Training Exercise within this zone increases overall fitness, improves cardio-
vascular efficiency and endurance.
80% - 90% of maximum heart rate – Anaerobic Workout Zone – Performance
Training Exercise within this zone maximizes fitness and athletic performance.
***We strongly recommend you consult with your physician before exercising in
this zone.***
OPERATION
16

2 Custom User-defined Programs
These programs enable you to set up, store into memory and then work out in 2
different course profiles that you customize.
Time Trial
This program enables you to work out against a “pacer” to determine how long
it takes you to cover a preset distance. You preset the speed of the “pacer” as
the baseline of your workout and race to the end of the preset distance. At the
end of the Time Trial, the computer displays the watts, distance, speed, etc.
that you have achieved.
Fitness Test
The Fitness Test is one of the best ways to measure improvements in your physi-
cal fitness level. The test measures your fitness by comparing your power output
(in Watts) to your Heart Rate. In general, as you become “more fit,” you will pro-
duce more power (Watts) at a given Heart Rate.
Here is how the test measures your power and heart rate. As the test starts,
the power (watts) slowly increases. This means that you will work harder, and
as a result, your heart rate increases. The watts continue to increase automati-
cally until your heart rate reaches the “Test Zone.” This zone is individually cal-
culated for each user to be near 75% of their estimated maximum heart rate.
(This "Maximum Heart Rate" is computed from the information you input into
the computer when you start the program. These number values are different
for everyone.) When you reach the Test Zone, the bike holds the watts steady
for 3 minutes to allow you to achieve a steady heart rate state. It is important
to concentrate on keeping a steady heart rate during these 3 minutes to ensure
consistent and more accurate readings.
At the end of the three minutes, the computer measures your Heart Rate, and
the power (Watts). These numbers (along with information about your age and
weight) are put into a formula, and produce a “Fitness Score.”
By logging and noticing the change in your own fitness scores, you can see your
progress to increased fitness. The higher your score, the higher your fitness
level. For example, let’s say you have an initial fitness score of 28. Four weeks
later you perform the test again and your score is 35. This means you have
increased your fitness. Your power output has increased and at the same time
your heart rate has decreased. You are producing more power with less effort.
Note: The Fitness Test is an excellent way to measure changes in your own fit-
ness level. It is not designed to compare one person’s score to another person’s
score, because the test's formula only “estimates” your Maximum Heart Rate.
Therefore the numbers are only relevant when compared with your own fitness
scores. (There are no corresponding "absolute" numbers in the owner’s manual
that you can reference to see what your fitness level is.)
17
OPERATION

Calorie Goal:
The Calorie Goal feature lets you select an amount of Calories you would like to
burn during your workout.
When selecting “CALORIE GOAL”, use the UP and DOWN buttons to select
the amount of Calories you wish to “burn” from 10 to 990. Each increment will
change the Calories by 10. Confirm your selected value by pressing the ENTER
button.
The console will prompt you to choose a profile program. Use the UP or DOWN
buttons to select a profile program and press the ENTER button to confirm your
selection. During the program the Calorie display will count down from the num-
ber of Calories you entered to 0.
BMI (Body Mass Index) Measurement
BMI is a useful tool that shows the relationship between weight and height that
is associated with body fat and health risk. The table below gives a general rating
and BMI score:
BMI
Underweight Below 18.5
Normal 18.5 – 24.9
Overweight 25.0 – 29.9
Obesity 30.0 and above
There are limitations however. It may overestimate body fat in athletes and oth-
ers who have a muscular build. It may also underestimate body fat in older per-
sons and others who have lost muscle mass.
When choosing the BMI program you will be prompted to enter your height and
weight and the computer will calculate and display your Body Mass Index. The
console will display “IDEAL BMI RANGE”. The ideal or normal range is 18.5
– 24.9. The console will also display your ideal weight range for your height.
SOURCE: Centers for Disease Control and Prevention (CDC), Atlanta, GA.
The CDC is an agency of the federal Department of Health and Human
Services.
CONSULT YOUR PHYSICIAN FOR MORE INFORMATION ABOUT BMI AND
THE WEIGHT THAT IS APPROPRIATE FOR YOU.
Recovery Test
Recovery Test shows how quickly your heart recovers from an exercise state to a
more restful state. Improved recovery is an indicator of increasing fitness.
For the console to perform the Recovery Test two things must happen. You must
press the RECOVERY button, AND, the console must be displaying your heart
OPERATION
18

rate. When both of these situations occur, then the console will perform the
Recovery Test.
The console will show “01:00 STOP” and the time will begin to count down.
Stop exercising but continue to grip the heart rate sensors. After 5 seconds, the
display will show “00:55 RELAX” and will continue to count down to 00:00. For
the entire minute the console will also show your heart rate. You must grip the
heart rate sensors for the duration of the test.
The display will continue to show “RELAX” and your heart rate until the clock
counts down to 00:00. The console will then calculate your recovery score.
Recovery Score = Your heart rate at 1:00 (the beginning of the test) minus your
heart rate at 00:00 (the end of the test)
The display will show “SCORE (Recovery Score)”. This will remain on the dis-
play for 5 seconds; then you can press RESULTS to view a summary of your
workout and end the program you are working out in, or press START to resume
working out where you left off.
The higher the Recovery Test score value, the quicker your heart rate is returning to
a more restful state and is an indication of improving fitness. By recording these
values over time you can see the trend toward better health!
When you press the RECOVERY button and there is no heart rate signal or
display, the console will show “NEED HR” and the HEART RATE ICON on the
display will blink. This message will show for 5 seconds, then the Program will
resume. You must see your heart rate on the display and then you must push
the RECOVERY button again to perform the test.
Helpful Tip: For a more relevant score, try to obtain a steady heart rate for 3 min-
utes before pressing the RECOVERY button. This will be easier to achieve, and
obtain the best result, in the Quick Start or Manual program so you can control
level of resistance.
***Please note: The RECOVERY button does not function when you are in the
BMI program.
Results Mode
When you complete a program, the Results Mode will automatically display and
show your basic workout statistics. Manually pressing this button during your work-
out will also end the program and then give you your basic workout statistics. You
cannot return to your workout after pressing this button.
To have the option of either ending your workout and seeing your workout
results, or pausing your workout so you can return to where you left off, perform
the following steps:
To STOP or PAUSE the program: Press the START / PAUSE button to pause
19
OPERATION

your workout. The display will show “PRESS RESULT OR PRESS START”.
Then if you press the RESULTS button the computer will show your workout
results and end the program, or if you press START / PAUSE the computer
will resume the program where you left off.
In Results Mode the console will display:
“GREAT JOB” This will hold for approximately 3 seconds.
“YOUR RESULTS” This will hold for approximately 3 seconds.
The display will show the following workout results:
SPEED: showing Average Speed
TIME: showing Total Time
DISTANCE: showing Total Distance
CALORIES: showing Total Calories
WATTS: showing Average Watts
HEART RATE: showing Average Heart Rate.
Pressing the RESET button will bring you back to the “ENTER PROGRAM”
mode. After 60 seconds the console will automatically return to the
“ENTER PROGRAM” mode.
IMPORTANT Things You Should Know Before Exercising
A. The values calculated or measured by the computer are for
exercise reference purposes only, NOT FOR MEDICAL PURPOSES.
Please consult your physician before starting any exercise
program. He or she can help establish the exercise frequency,
intensity, (including determining your maximum and minimum
heart rate and target heart rate zones) and the exercise time
appropriate for your particular age and condition. If you have
any pain or tightness in your chest, an irregular heart beat,
shortness of breath, feel faint or have any discomfort while you
exercise, STOP! Consult your physician before continuing.
B.
Pulse rate — The pulse rate will be displayed after the system has
detected 4 stable pulse signals. Pulse rate is then updated after
receiving every two signals.
***Please Note: If your heart rate goes above 199, the “1” will
flash. So a heart rate of 224 will be displayed as 124, and the 1
will be flashing***
C.
Pulse rate readout — While the grip heart rate feature is a quick
and convenient way to check your heart rate, it is generally not as
accurate as a wireless transmitter belt and is subject to occasional
OPERATION
20
