Schwinn IC Pro User manual

PN001-7187 Rev A (12/11/2007)
Nautilus®Bowflex®Schwinn®Fitness Pearl Izumi®StairMaster®Universal®Nautilus Institute®
Assembly Manual
IC Pro™, IC Elite™
Schwinn®IC Bikes

Table of Contents
Product Specifications
Product Specifications 2
Safety Warnings 3
Exploded Drawing 4
Parts List 5
Assembly Steps 6
Contact Numbers 11
Dimensions 50” L x 22.5” W x 39” H (127cm x 57cm x 99cm)
Assembled Unit Weight 119 lbs (54 kg)
Packaged Shipping weight 123 lbs (56 kg)
Workout Area 89” L x 61.5” W (227cm x 156cm)
Maximum User Weight 300 lbs (136 kg)
Assembly Manual
2

Safety Warnings
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Read and understand the complete Owner’s Manual.
Read and understand all Warnings on this machine.
Before using this equipment, obey the following warnings:
• Keep children away from this machine. Watch them closely when near the machine. Moving parts that appear dangerous to adults
may not appear so to children.
• Consult a physician before starting an exercise program. Stop exercising if you feel pain or tightness in your chest, become
short of breath, or feel faint. Contact your doctor before using the machine again.
• The flywheel momentum of the Schwinn®IC Bike will keep the pedals turning even after the rider stops pedaling or the rider’s
feet slip off. DO NOT ATTEMPT TO DISMOUNT THE BIKE OR REMOVE YOUR FEET FROM THE PEDALS UNTIL BOTH THE
PEDALS AND THE FLYWHEEL HAVE COMPLETELY STOPPED. Failure to follow these instructions may lead to loss of control
and serious personal injury.
• Examine this machine for loose parts or signs of wear. Contact Nautilus Customer Service for repair information. Use only
genuine Schwinn®IC replacement parts supplied by Nautilus.
• Do not wear loose clothing or jewelry. This machine contains moving parts.
• Do not place fingers or any other objects into moving parts of the exercise equipment.
• Maximum user weight limit: 300 lb. (136 kg). Do not use if you are over this weight.
• Stabilize the pedals before stepping on them and use caution when stepping off the machine.
• Keep at least 19.7 inches (0.5 m) on each side of the machine clear. This is the recommended safe distance for access and
passage around and emergency dismounts from the machine.
• Warn bystanders to keep a safe distance, at least 3 feet (1 m). Do not allow anyone to touch the operator while the machine is
in motion.
• Keep the foot pedals clean and dry.
• Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.
Assembly Manual
3

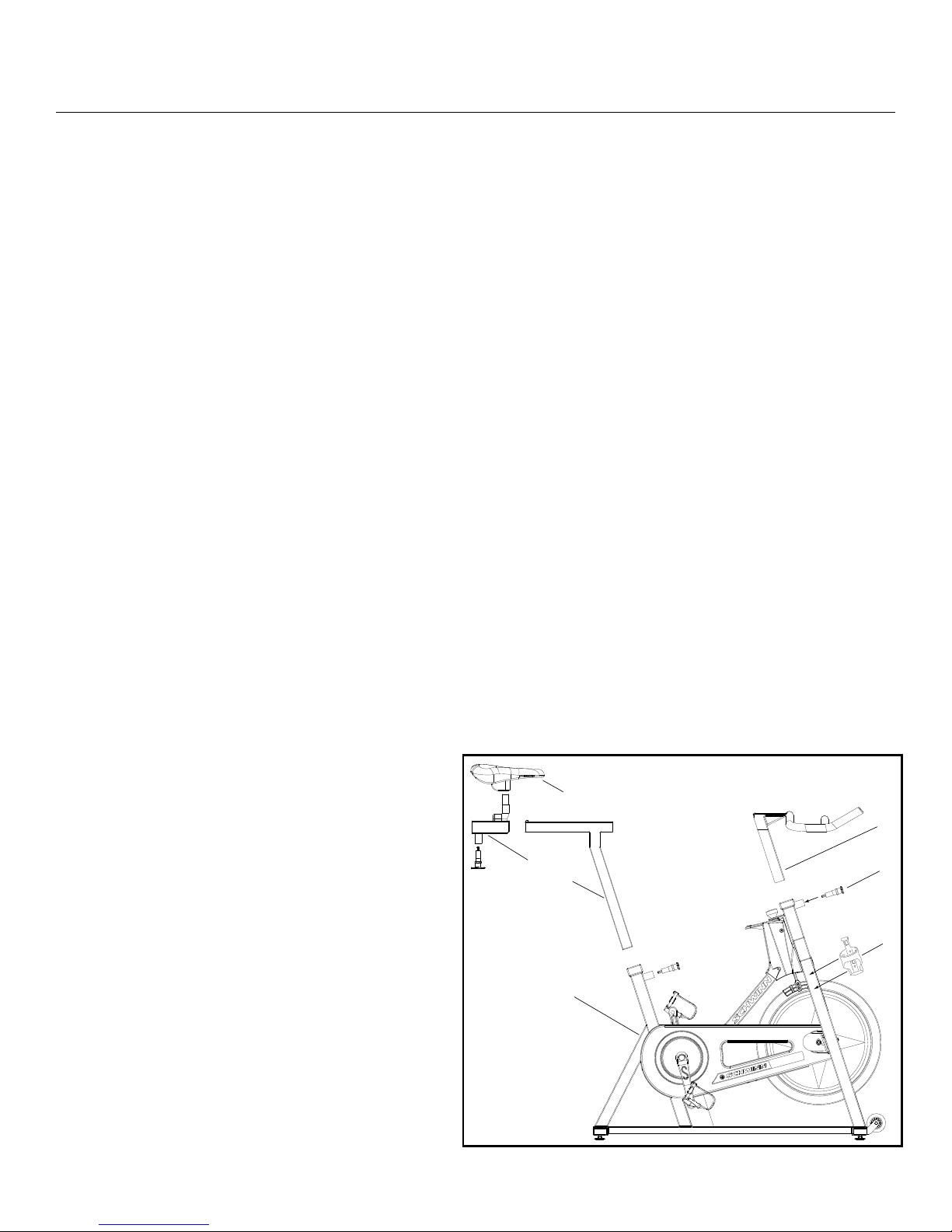

Exploded Drawing
3
42
43
43
46
44
B
A
46
44
44
45
45
44
1
29
51
Assembly Manual
4

Parts List
Ref. # Description Qty.
1 Frame 1
42 Handle Bar 1
3 Seat Slider Assembly with Saddle 1
A Front Stabilizer Bar with Wheels and Feet 1
B Rear Stabilizer Bar with Feet 1
51 Water Bottle Cage 2
Small Parts Box 1
Small Part Box Contents
43 Pedals with Toe Clips & Straps (Left & Right) 1 Pair
29 Pop Pin Assembly for Head Tube 1
46 13mm Hex Bolt 4
44 Flat Washer 8
45 13mm Lock Nut 4
Tools Supplied
Stamped Steel 13/14/15/17mm Combination Wrench 1
3mm Hex Wrench 1
Prior to assembly of the product, remove all components from the packaging and check them against the packaged components
list supplied above. Once you are certain that all the necessary parts have been supplied, begin with the first assembly step.
Tools Needed
3mm Hex Wrench
Stamped Steel Combination Wrench
Adjustable wrench (not included)
Grease (not included)
17/15 13/14
Assembly Manual
5
