Schwinn™ 810 / 510T machine
Service Manual 8023613.121519.B
Service Manual
™
Table of Contents
8023614.121519.B
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America [phone], [email protected] | outside U.S. www.nautilusinternational.com | Printed in
China | © 2019 Nautilus, Inc. | Schwinn and the Schwinn logo are trademarks owned or licensed by Nautilus, Inc., registered or otherwise protected by common law in the United States and other nations. | ORIGINAL DOCU-
MENT - ENGLISH VERSION ONLY
1 Important Safety Instructions 2
1 Safety Warning Labels and Serial Number 3
 1 Specications 4
1 Grounding Instructions 5
1 Emergency Stop Procedure 6

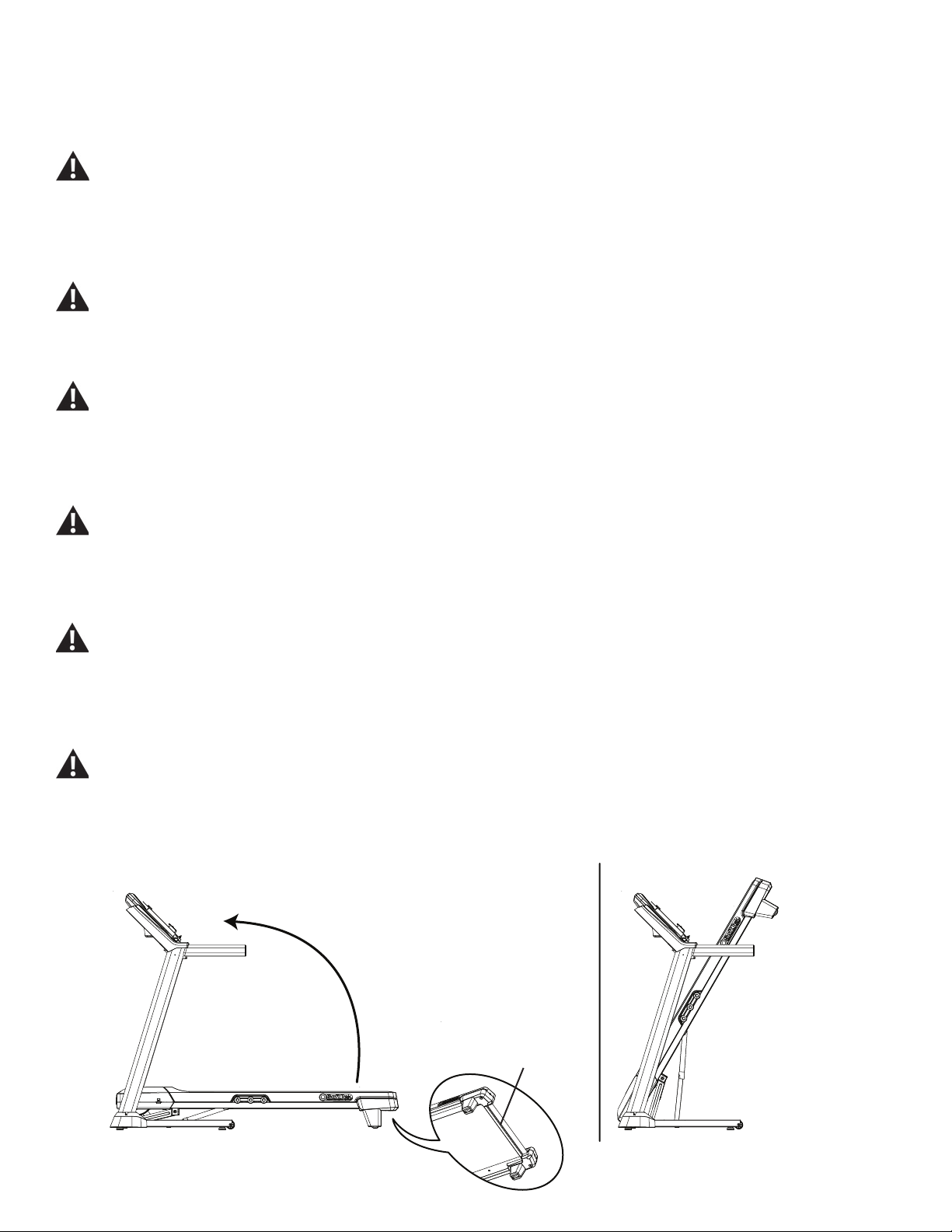

1 Moving and Storing the Machine 7
1 Unfolding the Machine 9
1 Leveling the Machine 10
1 Treadmill Belt (break in period) 10
1 Connectivity 11
1 Maintenance 12
1 Cleaning 12
1 Adjusting the Belt Tension 13
1 Aligning the Walking Belt 13
1 Lubricating the Walking Belt 13

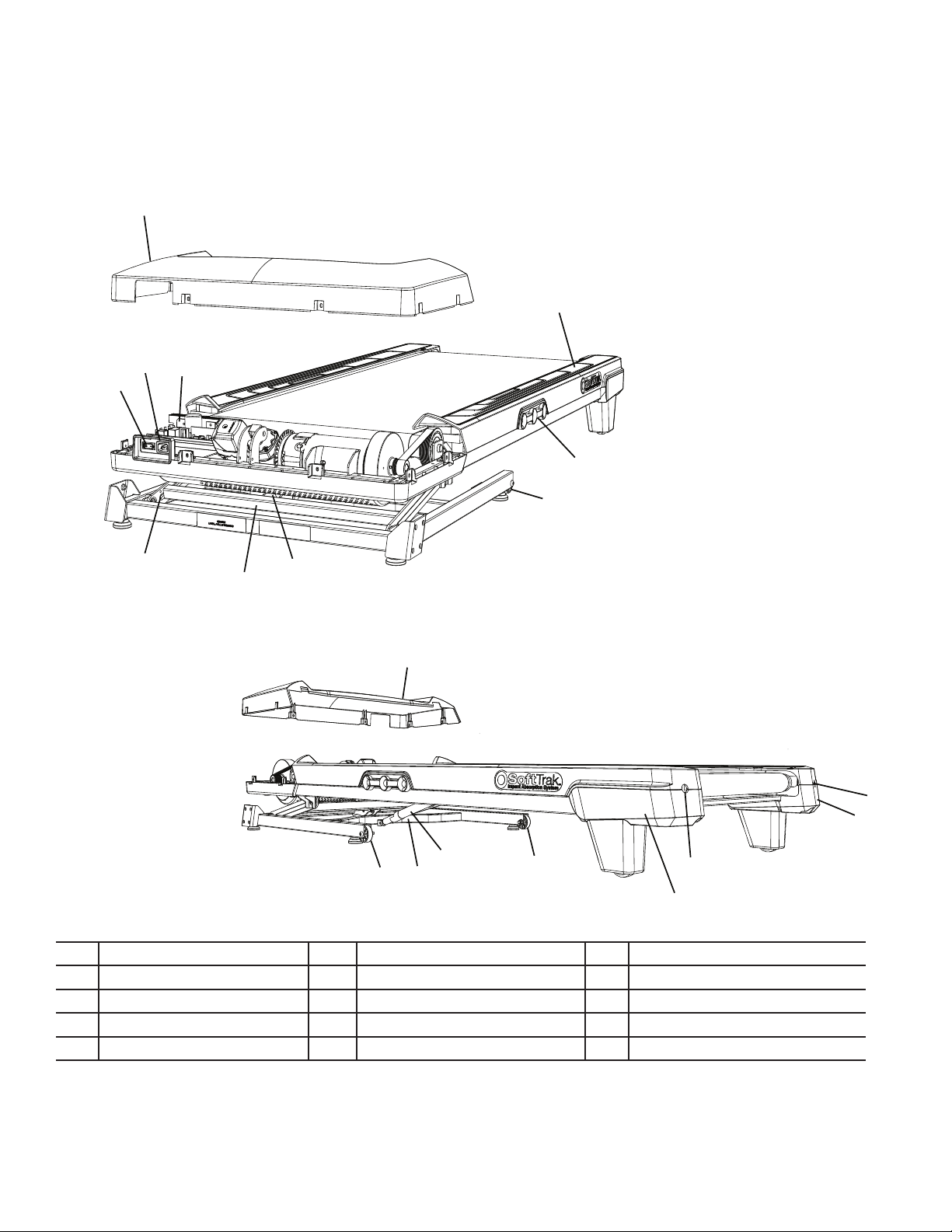

1 Maintenance Parts 15
1 Troubleshooting 17
1 Engineering Mode 28
1 Electrical Wiring Diagram 29
1 Replacement Procedure Skill Level 30
 Mechanical/ModicationProcedures
2 Adjust the Walking Belt 31
Part Replacement
3 Replace the Bottom Motor Cover 33
4 Replace the Console Assembly 38
5 Replace the Deck Suspension 41
6 Replace the Deck Wheel 44
7 Replace the Drive Belt 48
8 Replace the Front Roller 56
9 Replace the Incline Motor Assembly 64
10 Replace the I/O Cable 70
11 Replace the Lift Shock 76
12 Replace the Motor 80
13 Replace the Motor Control Board (MCB) 89
14 Replace the Motor Cover 94
15 Replace the Power Inlet 97
16 Replace the Rear Roller 102
17 Replace the Rear Roller Cover 106
18 Replace the Right Upright 109
19 Replace the Rocker Switch (On/Off) 115
20 Replace the Side Rail 120
21 Replace the Speed Sensor Assembly 124
22 Replace the Transport Wheel 129
23 Replace the Walking Belt 132
24 Replace the Walking Deck 141

2
8023615.091519.A
Service Procedures
Important Safety Instructions
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and
understand all Warnings on this machine.
Before servicing or using this equipment, obey the following warnings:
Read and understand the Service Manual before working on the machine. Failure to obey the instructions and safety warnings
could cause injury to the service technician or bystanders.
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the
wall outlet and/or the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power cord in a
secure location.
• Keep bystanders and children away from the product being serviced at all times.
• Makesurethattherepairisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when you do maintenance steps involving
these components. Do not try to do heavy or awkward steps on your own.
• Use only replacement parts and hardware that are supplied or approved by Nautilus. Failure to use Nautilus-approved replacement parts can
adversely affect the safety and functionality of the equipment creating a risk to users and will void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in good condition when doing maintenance or
replacing components. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada,
contact Customer Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely affect user safety and will void the warranty.
• Donotputthemachinebackinserviceuntilallshrouds,instructions,warninglabelsandcorrectfunctionalityhavebeenveriedandtestedfor
correct performance.
• SAVE THESE INSTRUCTIONS.
NOTICE: This document provides important safety instructions, adjustments, and general troubleshooting information for the maintenance of the Schwinn™ 810 / 510T
machine.
If you need assistance, please contact Customer Service (if purchased in US/Canada) or your local distributor (if purchased outside US/Canada). To nd your local
distributor, go to: www.nautilusinternational.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and understand
all Warnings on this machine.
Important Safety Instructions and General
Troubleshooting Information for the
Schwinn™ 810 / 510T machine
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America [phone], [email protected] | outside U.S. www.nautilusinternational.com | Printed in
China | © 2019 Nautilus, Inc. | Schwinn and the Schwinn logo are trademarks owned or licensed by Nautilus, Inc., registered or otherwise protected by common law in the United States and other nations. The Bluetooth®word
mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nautilus, Inc. is under license. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
™

3
SAFETY WARNING LABELS AND SERIAL NUMBER
Serial Number
Product Speci cation
CAUTION
Risk of Injury to Persons - To Avoid injury, use
extreme caution when stepping onto or o󰀨 of
a moving belt. Read instruction manual before
using.
WARNING!
• Injury or death is possible if caution is not
used while using this machine.
• Keep children and pets away.
• Read and follow all warnings on this
machine.
• Refer to the Owner’s Manual for additional
warnings and safety information.
• The heart rate displayed is an approximation
and should be used for reference only.
• Not intended for use by anyone under 14 years
of age.
• The maximum user weight for this machine is
275 lbs (125 kg).
• This machine is for home use only.
• Consult a physician prior to using any exercise
equipment.
• REMOVE SAFETY KEY WHEN NOT IN USE,
AND STORE OUT OF REACH OF CHILDREN.
(The label on the machine is available in English and
French Canadian only.)
WARNING!
- Moving parts can crush and cut.
- Keep guards in place.
- Lock out power before servicing.
WARNING!
HAZARDOUS VOLTAGE.
- Contact may cause electrical shock or burn.
- Turn o󰀨 and lock out power before servicing.
REVISIONS
ECO REVISION REV DESCRIPTION APPROVED DATE
TITLE.
PART NO.
REV.
SHEET 1 OF 1 SCALE: 1:1
DO NOT SCALE DRAWING
1. ALL ITEMS MUST BE RoHS COMPLIANT
2. ALL DIMENSIONS APPLY BEFORE PLATING OR COATING.
3. REMOVE ALL BURRS, BREAK SHARP EDGES 0.5 MM MAX.
4. ALL MACHINES SURFACES Ra 3.2 uM.
5. ALL APPLICABLE NAUTILUS STANDARDS AND
SPECIFICATIONS APPLY.
6. ALL DIMENSIONS ARE IN MILLIMETERS
7. ALL DUAL DIMENSIONS ARE IN INCH
UNLESS OTHERWISE SPECIFIED:
METRIC
THIRD ANGLE
PROJECTION
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
2.5
1.5
0.75
0.25
1°
X.
X.X
X.XX
X.XXX
ANGULAR
C
SIZE
This document is the property of Nautilus, Inc. It may not be reproduced in whole or part, provided to third parties, or used for any purposes other than the performance of work for Nautilus, Inc. without written authorization. All rights are reserved, including copyrights.
TOLERANCES.
DRAWN
DESIGNED
DATE
METRIC_C_REV G
NAUTILUS, INC.
16400 SE NAUTILUS DRIVE, VANCOUVER, WA 98683
LIFECYCLE
- -
APPROVALS
- -
- - - -
WARRANTY ITEM:
D.LOVELY
08 /13 / 2009
D.LOVELY
B
002-2353
TC PULL IN WARNING
MATERIAL.
COLOR.
DIE LINE
PMS 152
PMS 109
BLACK
WHITE
Labels must be created from an agency approved tamper proof labeling system
such as "UL Recognized component marking and labeling system (example: UL PGGU2) or equivalent.
Label and adhesive must be rated for surface it is applied to (painted metal or ABS plastic),
Label and adhesive must be rated for 60 degrees C minimum. Labels must meet UL 1647 Permanence of Marking Test.
A DRAWING RELEASE
B CHANGED SIZE 8/17/0912745
12247 DLOVELY
DLOVELY
120mm
30.5mm
-Moving parts can crush and
cut.
-Keep guards in place.
-Lock out power before
servicing.
REVISIONS
ECO REVISION REV DESCRIPTION APPROVED DATE
TITLE.
PART NO.
REV.
SHEET 1 OF 1 SCALE: 1:1
DO NOT SCALE DRAWING
1. ALL ITEMS MUST BE RoHS COMPLIANT
2. ALL DIMENSIONS APPLY BEFORE PLATING OR COATING.
3. REMOVE ALL BURRS, BREAK SHARP EDGES 0.5 MM MAX.
4. ALL MACHINES SURFACES Ra 3.2 uM.
5. ALL APPLICABLE NAUTILUS STANDARDS AND
SPECIFICATIONS APPLY.
6. ALL DIMENSIONS ARE IN MILLIMETERS
7. ALL DUAL DIMENSIONS ARE IN INCH
UNLESS OTHERWISE SPECIFIED:
METRIC
THIRD ANGLE
PROJECTION
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
2.5
1.5
0.75
0.25
1°
X.
X.X
X.XX
X.XXX
ANGULAR
C
SIZE
This document is the property of Nautilus, Inc. It may not be reproduced in whole or part, provided to third parties, or used for any purposes other than the performance of work for Nautilus, Inc. without written authorization. All rights are reserved, including copyrights.
TOLERANCES.
DRAWN
DESIGNED
DATE
METRIC_C_REV G
NAUTILUS, INC.
16400 SE NAUTILUS DRIVE, VANCOUVER, WA 98683
LIFECYCLE
- -
APPROVALS
- -
- - - -
WARRANTY ITEM:
D.LOVELY
08 /17 / 2009
D.LOVELY
B
002-2354
TC SHOCK WARNING
MATERIAL.
COLOR.
DIE LINE
PMS 152
PMS 109
BLACK
WHITE
Labels must be created from an agency approved tamper proof labeling system
such as "UL Recognized component marking and labeling system (example: UL PGGU2) or equivalent.
Label and adhesive must be rated for surface it is applied to (painted metal or ABS plastic),
Label and adhesive must be rated for 60 degrees C minimum. Labels must meet UL 1647 Permanence of Marking Test.
72mm
30.5mm
A DRAWING RELEASE
B CHANGED SIZE 8/17/0912745
12247 DLOVELY
DLOVELY
WARNING!
Keep young
children away
from this
machine at all
times. Contact
with the moving
surface may
result in severe
friction burns.
(This label is only
available on the
510T machine
in English and
Chinese.)
(These labels are in English and
French Canadian on the 810 machine,
and English, French Canadian and
Chinese on the 510T machine.)

4
SPECIFICATIONS
Power Requirements: 120V 220V
Operational Voltage: 120V AC, 60Hz 220V - 240V AC, 50/60Hz
Operating Current: 14 A 8 A
Maximum User Weight: 125 kg (275 lbs)
Total Surface Area (footprint) of equipment: 15,848 cm2
Maximum Inclined Deck Height: 40 cm (15.8 inches)
Machine Weight: 70.3 kg (155 lbs)
Sound Emission: Less than 70 db average without load. Noise emission
under load is higher than without load.
DO NOT dispose of this product as refuse. This product is to be
recycled. For proper disposal of this product, please follow the
prescribed methods at an approved waste center.
90.3 cm
(35.6”)
175.5 cm
(69.1”)
100.3 cm
(39.5”)
144 cm
(56.7”)
153 cm
(60.2”)
Select the area where you are going to set up
and operate your machine. For safe operation,
the location must be on a hard, level surface.
Allow a minimum workout area of 212.3 cm
x 376.2 cm (83.6” x 148.1”). Be sure that the
workout space you are utilizing has adequate
height clearance, taking into consideration the
height of the user and the maximum incline of
the machine.
Machine Mat
The Schwinn™ Machine Mat is an optional
accessory that helps keep your workout area
clear and adds a layer of protection to your
 oor. The rubber machine mat provides a
non-slip, rubber surface which limits static
discharge and reduces the possibility of display
errors. If possible, put your Schwinn™ Machine Mat in your selected workout area before you begin assembly.
To order the optional machine mat, contact Customer Service (if purchased in US/Canada) or your local distributor (if
purchased outside US/Canada).
3.76 m ( 148.1” )
2.12 m
( 83.6” )
2m
( 79” )
0.6m
( 24” )
0.6m
( 24” )

5
Grounding Instructions (for a 120V AC system )
This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product – if it will not t the outlet,
have a proper outlet installed by a qualied electrician.
If you connect the machine to an outlet with GFI (ground fault interrupt) or AFI (arc fault interrupt), machine operation can
cause the circuit to trip. This machine is for use on a nominal 120-V circuit, and has a grounding plug that looks like the
plug illustrated below. A temporary adapter that looks like the adapter illustrated may be used to connect this plug to a
2-pole receptacle as shown if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet can be installed by a qualied electrician.
The tab for the grounding screw must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by a metal screw.
Metal Screw
Tab for
Grounding
Screw
Adapter
Grounded
Outlet Box
Grounded
Outlet
Grounding Pin
Earthing Instructions (for a 220-240V AC system )
This product must be electrically earthed. If a malfunction occurs, correct earthing decreases the risk of electric shock.
The power cord is equipped with an equipment-earthing conductor, and must be connected to an outlet that is properly
installed and earthed.
The electrical wiring must comply with all applicable local and provincial standards and
requirements. Incorrect connection of the equipment-earthing conductor can result in a risk of
electric shock. Consult a licensed electrician if you are not sure that the machine is correctly
earthed. Do not change the plug on the machine – if it does not t the outlet, have a correct outlet
installed by a licensed electrician.
If you connect the machine to an outlet with RCBO (Residual-Current circuit Breaker with Overload protection), machine
operation can cause the circuit to trip. A Surge Protector Device is recommended to protect the machine.
!If a Surge Protector Device (SPD) is used with this machine, be sure that it matches the power rating of this
equipment (220-240V AC). Do not connect other appliances or devices to the surge protector in combination
with this machine.
Make sure that the product is connected to an outlet having the same conguration as the plug. Use the
appropriate adapter supplied with this product.

6
Emergency Stop Procedure
The Treadmill machine is equipped with a Safety Key that can prevent serious injury, as well as prevent children from
playing with and/or being injured on the machine. If the Safety Key is not correctly inserted into the Safety Key Port, the
belt will not operate.
!Always attach the Safety Key Clip to your clothing during your workout.
When you use the machine, only remove the Safety Key in an emergency. When the key is removed while
the machine is in operation, it will stop quickly, which could cause the loss of balance and possible injury.
For safe storage of the machine, and to prevent unsupervised operation of the machine, always remove
the Safety Key and disconnect the power cord from the wall outlet and the AC input. Place the power cord
in a secure location.
The Console will display “ + SAFETY KEY ”, or add Safety Key, for a Safety Key fault. The Treadmill machine will not start
a Workout, or will end and clear an active Workout, when the Safety Key is removed. Inspect the Safety Key and be sure
it is connected to the Console correctly.
FCC Compliance
!Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
The machine and power supply comply with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This machine and power supply have been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

7
Support Bar
Moving and Storing the Machine
The machine can be moved by one or more persons. Use caution when you move the machine. The
treadmill is heavy and can be awkward. Make sure that your own physical strength is capable of moving the
machine. Use a second person if necessary.
1. Before the machine can be moved, inspect the Walking Deck to be sure the Incline setting is at “1”. If necessary, adjust
the Incline setting to “1”.
Be sure the area below the machine is clear before adjusting the incline of the Deck. Fully lower the incline
of the Deck after each workout.
2. Remove the Safety Key and place it in a secure location.
When this machine is not in operation, remove the Safety Key and keep out of the reach of children.
3. Make sure that the power switch is turned O󰀨 , and the power cord is disconnected.
4. You must fold the treadmill before you move it. Never move the treadmill if it is not folded.
Never move the machine with the Walking Deck not folded. Rotating or moving parts can pinch, resulting in
personal injury.
5. Make sure that there is safe clearance around, on and above your treadmill. Be sure to remove all water bottles, media
devices, or loose items from the machine before moving it.
Be sure there is adequate height clearance for the raised deck.
6. Using the support bar found below the rear of the walking belt, lift the walking deck fully upward and engage the
hydraulic lift. Be sure that the hydraulic lift is correctly locked in place. You will hear an audible click when the hydraulic lift
shifts into the locked position.
Use proper safety precautions and lifting techniques. Bend your knees and elbows, keep your back straight
and pull up equally with both arms. Straighten your legs to lift. Make sure that your own physical strength is
capable of lifting the walking deck until it engages the locking mechanism. Use a second person if neces-
sary.
Do not use the walking belt or rear roller to lift the treadmill. These parts do not lock in place and can
abruptly move. Injury to you or damage to the machine can occur.
ADJUSTMENTS

8
7. Make sure that the locking mechanism is engaged. Carefully pull back on the Walking Deck and make sure that it does
not move. When you do this, keep clear of movement path in case the treadmill lock is not properly engaged.
Do not lean against the treadmill when it is folded. Do not put items on it that could cause it to become
unstable or fall.
Do not connect the power cord or try to operate the treadmill in the folded position.
8. Stand to one side of the treadmill. Place your front foot so it pins the Base
Assembly. Grasping the Side Handrail, carefully pivot the treadmill rearward
until it is balanced fully on the transport wheels. Be sure not to pivot the ma-
chine too far. Hold the treadmill in the balanced position.
This step may require two persons on each side of the treadmill.
The treadmill is heavy and can be awkward. Make sure that your
own physical strength is capable of pivoting the machine.
Always wear fully enclosed shoes when moving this machine. Do
not move the machine with bare feet or only wearing socks.
Do not use the Console or lifted Walking Deck to pivot or move the
treadmill. Injury to you or damage to the machine can occur.
Keep clear of the movement path of the lifted Walking Deck.
9. Grasping the Side Handrail and the front of the Upright, safely roll the
treadmill to the desired location.
The treadmill is heavy and can be awkward. Make sure that
your own physical strength is capable of moving the machine.
Place the machine on a clean, hard, level surface, free from
unwanted material or other objects that may hamper your
ability to move freely. A rubber mat should be used below the
machine to prevent the release of static electricity and protect
your ooring.
Do not put objects in the path of the walking deck when low-
ered.
NOTICE: Move the machine carefully so that it does not hit
other objects. This can damage the Console opera-
tion, the treadmill, or the area around the machine.
10. Safely lower the treadmill into the desired position. Be sure there is
adequate space for the machine before lowering it.
11. Prior to use, refer to the “Unfolding the Machine” procedure in this manual.

9
Unfolding the Machine
1. Make sure there is su󰀩cient space to lower the walking deck.
Keep a minimum clearance behind the machine of 79” (2 m) and 24” (0.6 m) on each side. This is the
recommended safe distance for access, movement and emergency dismounts from the machine.
Place the machine on a clean, hard, level surface, free from unwanted material or other objects that may
hamper your ability to move freely with a su󰀩cient clear workout area. A rubber mat below the machine is
recommended to prevent electrostatic discharge and protect your oor.
Be sure that the workout space you are utilizing has adequate height clearance, taking into consideration
the height of the user and the maximum incline of the deck.
2. Make sure there is no object on or around the treadmill to spill or cause blockage from the fully unfolded position.
3. Slightly push the walking deck forward toward the console. With your left foot lightly push the top part of the hydraulic
lift forward until the locking tube releases and you can pull the walking deck away from the console. Hold up the rear
of the walking deck, and move to the side of the machine.
Keep clear of the movement path of the walking deck.
4. The hydraulic lift is set up to drop lightly. Hold onto the walking deck until approximately 2/3 of the movement down.
Lower the weight with your legs. The walking deck can possibly drop quickly in the last part of the movement.

10

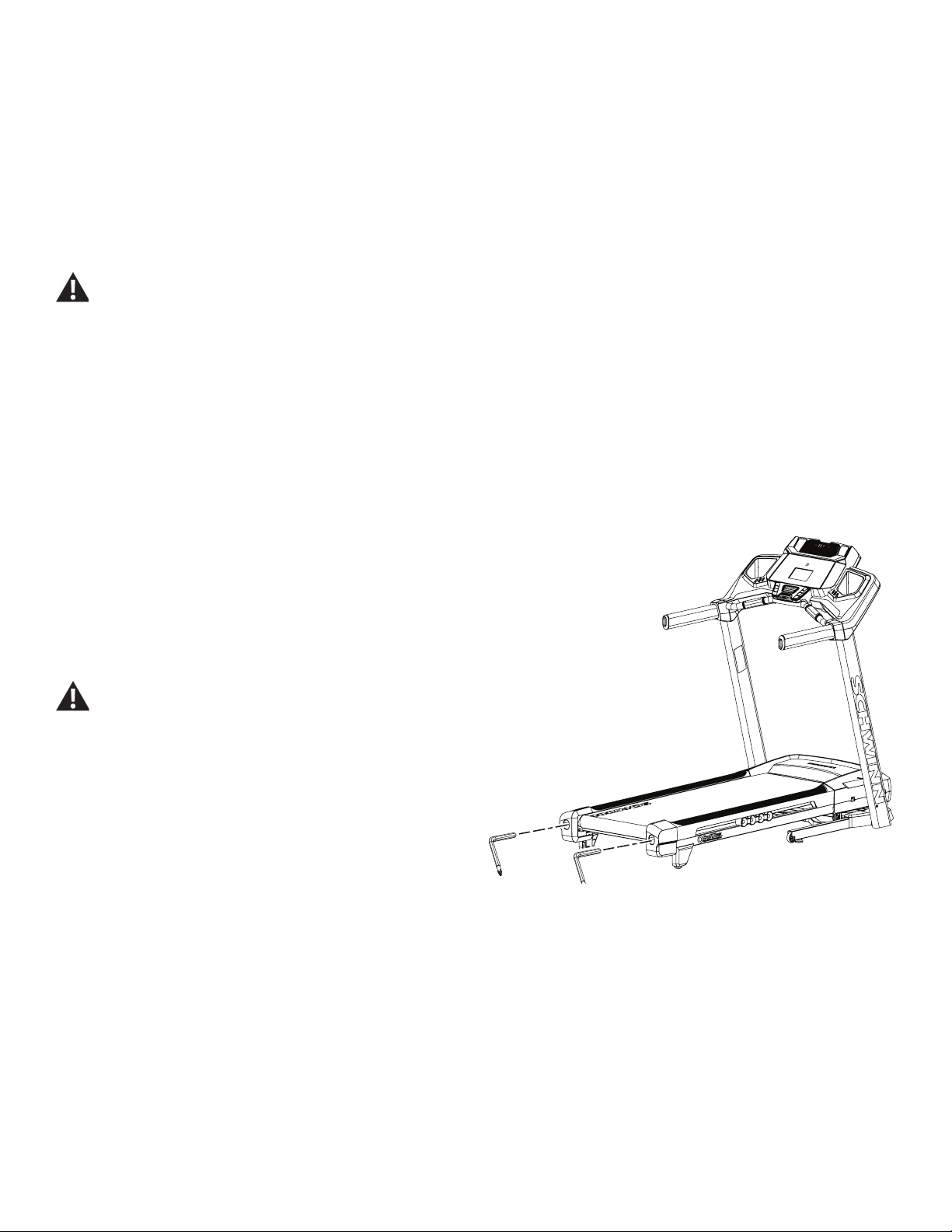

Leveling the Machine
The machine needs to be leveled if your workout area is uneven. To adjust:
1. Place the machine in your workout area.
2. Adjust the levelers until they all contact the  oor.
Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or
damage to the machine can occur.
3. Adjust until the machine is level.
Make sure the machine is level and stable before you exercise.
Treadmill Belt
Your treadmill comes equipped with a durable, high quality walking belt designed to provide many hours of reliable
service. The walking belt on a treadmill that has not been operated for a length of time, either in factory packaging or
after assembly, can exhibit a “thumping” noise when started. This is due to the belt taking on the curve of the front and
rear rollers. This is a common occurrence and does not indicate a problem with your machine. After the treadmill has
been used for a short period of time the thumping noise will discontinue. The amount of time will vary depending on the
temperature and humidity of the environment where the treadmill is placed.

11
CONNECTIVITY
Workout with Other Fitness Apps
This tness machine has integrated Bluetooth® connectivity which allows it to work with a number of digital partners. For
our latest list of supported partners, please visit: www.nautilus.com/partners
USB Charging
Your machine is equipped with a USB Port to allow it to charge some devices. Simply attach a USB Cable (not included)
to the USB Port, and attach your device to the other end of the USB Cable. The power supplied from the USB Port may
not be enough to operate the Device and charge it at the same time.
Note: The USB Port is only for charging and unable to play audio from the speakers on the Console.
Speakers and Audio Cable
To play audio through the speakers on your machine, attach the Audio Cable to your device and to the Audio Cable Port
on the Console. With the Console turned on, you can play audio from your device through the speakers. Volume is
controlled from your device.
Note: Though your machine is Bluetooth® enabled, it is unable to receive and play audio across a Bluetooth®
connection.

12
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do
the necessary tasks.
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that
regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased
in US/Canada, contact Customer Service for replacement labels. If purchased outside US/Canada, contact
your local distributor for them.
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the
power cord from the wall outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the
machine. Place the power cord in a secure location.
Daily: Before each use, examine the exercise machine for loose, broken, damaged, or worn parts. Do
not use if found in this condition. Repair or replace all parts at the rst sign of wear or damage,
except for the Walking Deck. The Walking Deck is designed for wear on both sides of it. If only
one side of the Walking Deck is worn, a replacement Deck is not required. It is recommended
that a qualied service technician is used to ip the Walking Deck. After each workout, use a
damp cloth to wipe your machine and Console free of moisture.
With the Walking Deck lowered, if an edge of the Walking Belt can be seen adjust it
until the edge is not viewable.
Note: Avoid excessive moisture on the Console.
Weekly: Check for smooth roller operation. Wipe the machine to remove dust, dirt, or grime.
Do not remove the Motor Cover, as dangerous voltages and moving parts are
present. The components are serviceable only by approved service personnel or by
following service procedures supplied by Nautilus, Inc.
Note: Do not use petroleum based products.
Monthly or after
20 hours:
Make sure all bolts and screws are tight. Tighten as necessary.
Quarterly: Or after 25 hours - Lubricate the walking belt with 100% silicone lubricant (not included with the
machine).
Silicone lubricant is not intended for human consumption. Keep out of reach of
children. Store in a safe place.
NOTICE: Do not clean with a petroleum based solvent or an automotive cleaner. Be sure to keep the Console free
of moisture.
Cleaning
To reduce the risk of electrical shock, always unplug the power cord and wait 5 minutes before
cleaning, maintaining or repairing this machine.
Wipe the treadmill down after each use to keep the treadmill clean and dry. It may be necessary to use a mild detergent at
times to remove all dirt and salt from the belt, painted parts and the display.
MAINTENANCE

13
NOTICE: To prevent damage to the nish of the machine or Console, do not clean with a petroleum based solvent.
Do not apply too much moisture to the Console.
Adjusting the Belt Tension
If the walking belt starts to slip during use, it is necessary to adjust the tension. Your treadmill has tension bolts at the rear
of the treadmill.
1. Before you adjust the belt tension, start the treadmill by pushing the START button.
Be sure not to touch the walking belt or step on the power cord. Keep bystanders and children away from
the product you are servicing at all times.
2. Use a 6 mm hex key to turn the right and left belt adjustment bolts clockwise a 1/2 turn, rst one bolt and then the
other bolt until the belt does not slip.
3. After you adjust each side the 1/2 turn, do a test to see if the belt stopped slipping. If the belt still slips, do steps 2 and
3 again.
If you turn one side more than the other, the belt will move away from that side of the treadmill and may need realignment.
NOTICE: Too much tension on the belt causes unnecessary friction and wears the belt, motor and electronics.
4. Push PAUSE/STOP twice to stop the walking belt and end the Quick Start workout.
Aligning the Walking Belt
The walking belt should be centered on your treadmill at all
times. Running style and a non-level surface can cause the
belt to move o󰀨 center. Minor adjustments to the 2 bolts at the
rear of the treadmill are necessary when the belt is o󰀨 center.
1. Push the START button to start the walking belt.
Be sure not to touch the walking belt or step on the
power cord. Keep bystanders and children away
from the product you are servicing at all times.
2. Stand at the rear of the treadmill to see which direction
the belt moves.
3. If the belt moves to the left, turn the left belt adjustment
bolt 1/4 turn clockwise and the right belt adjustment bolt
1/4 turn counterclockwise.
If the belt moves to the right, turn the left adjustment bolt
1/4 turn counterclockwise and the right adjustment bolt
1/4 turn clockwise.
4. Monitor the path of the belt for approximately 2 minutes. Continue to adjust the bolts until the walking belt is centered.
5. Push PAUSE/STOP twice to stop the walking belt and end the Quick Start workout.
Lubricating the Walking Belt
Your treadmill is equipped with a low maintenance deck and belt system. The Walking Belt is pre-lubricated. Belt friction
can a󰀨ect the function and life of the machine. Lubricate the belt every 3 months or every 25 hours of use, whichever
comes rst. Even if the treadmill is not in use, silicone will dissipate and the belt will dry out. For the best results, lubricate
the deck periodically with a silicone lubricant using the following instructions:
1. Turn o󰀨 the power to the machine with the power switch.
2. Unplug the treadmill fully from the wall outlet, and remove the power cord from the machine.
6mm
6mm

14
To reduce the risk of electrical shock, always unplug the power cord and wait 5 minutes before
cleaning, maintaining or repairing this machine. Place the power cord in a secure location.
3. Inspect the surface material below the Treadmill. If the surface material is di󰀩cult to clean or could be damaged by
silicone lubricant, place absorbent material (such as cardboard or newspaper) below the length of the Walking Deck.
4. Apply a few drops of the lubricant on the deck below the belt. Carefully lift the belt and apply a few drops of the lubri-
cant the entire width of the belt. A very thin layer of silicone lubricant on the entire deck below the belt is desired.
NOTICE: Always use a 100% pure silicone lubricant. Do not use a degreaser like WD-40® as this could seriously
impact performance. We can recommend that you use the following:
• 100% pure silicone, available at most hardware and auto parts stores.
• Lube-N-Walk® Treadmill Lubrication Kit, available from your local specialty tness dealer or Nautilus, Inc.
Silicone lubricant is not intended for human consumption. Keep out of reach of children. Store in a safe
place.
5. Manually rotate the belt 1/2 of the length of the belt and apply lubricant again.
If you used spray lubricant, wait 5 minutes before turning on power to the machine to allow the aerosol to
dissipate.
6. Connect the power cord back into the machine and then into the wall outlet.
7. Turn on the power to the machine with the power switch.
8. Stay to one side of your machine and start the belt at the slowest speed. Let the belt operate for approximately 15
seconds.
Be sure not to touch the walking belt or step on the power cord. Keep bystanders and children away from
the product you are servicing at all times.
9. Switch o󰀨 your machine.
10. Take care to clean up any excess lubricant from the deck.
To decrease the possibility of slipping, be sure the deck area is free from grease or oil. Clean o󰀨 any excess
oil from the machine surfaces.
As you use your tness machine, the Console will show “LUBRICATE BELT” followed by “REVIEW USER MANUAL” at
set times. This is only a reminder and should be added to your inspection schedule. Only apply lubricant as necessary.
Push any button to accept the reminder.

15
A Console Assembly H Upright, Right OHandlebar Shroud, Right Inner
B Tray, Left I Base Shroud, Right PHandlebar Shroud, Left Inner
C Safety Key Port JPower Cord Q Handlebar Shroud, Left Outer
DFan KSafety Key R Upright, Left
E Contact Heart Rate Sensor LBase Cable SBase Shroud, Left
FConsole Cable MBase Assembly
G Tray, Right NHandlebar Shroud, Right
Outer
RH
M
S
I
A
Q
O
N
P
G
B
J
K
CDF
E
L
Maintenance Parts

16
Maintenance Parts ( Frame )
Front
Back
U Motor Cover ZBase Support EE Incline Adjuster
VPower Switch AA Deck Cushioners FF Pivot Assembly
WPower Input BB Transport Wheel GG Belt Tensioner
XMotor Control Board CC Leveler HH Rear Roller Cover
Y Side Foot Support Rails DD Lifting Cylinder
GG
EE
GG
BB BB
Z
DD
HH
HH
X
U
U
AA
Z
Y
DD CC
CC BB
EE
FF
CC
V
W
Z

17
Service Mode Procedures
PROCEDURE 1: MCB COMMUNICATIONS TEST (I/O CABLE TEST):
1. Hold down the PAUSE/STOP button and Down() arrow button together for three seconds while at the Welcome screen to enter the Console
Setup Mode.
2. The Console displays the TOTAL HOURS screen.
3. Hold down the PAUSE/STOP button and Down() arrow button together for 3 seconds to go into the Engineering Mode.
4. Press the Down() arrow button 11 times and screen will display ENTR MCB TEST.
5. Press ENTER to begin the test.
6. The Console will display either MCB PASS or MCB FAIL.
7. If the test results in a fail, I/O communications are interrupted and both I/O cables must be replaced.
RETURN DEFECTIVE CABLES TO NAUTILUS ATTN: QUALITY
PROCEDURE 2: CHECK FIRMWARE VERSION AND ERROR LOG:
1. Hold down the PAUSE/STOP button and Down() arrow button together for 3 seconds while at the Welcome screen to enter the Console
Setup Mode.
2. The Console displays the TOTAL HOURS screen.
3. Push the Right() arrow button to show the Console Firmware Version.
4. Record the code.
5. Push the Right() arrow button four times.
6. The Console display shows “VIEW ERROR MSG NO” prompt.
7. Push the Up arrow button. The Console will display the “VIEW ERROR MSG YES” prompt.
8. The Console display shows “ERROR LOG VER2”. Push ENTER to access the log.
9. Push the Right() arrow button and record the code shown.
10. Push the Right() arrow button again and record the next code.
11. If you have recorded all the numbers, push the ENTER button and screen will display “ERROR LOG RESET YES”. Push Enter.
12. Press PAUSE/STOP to return to Welcome screen.
PROCEDURE 3: RESET MACHINE (workout data will be lost):
1. Hold down the PAUSE/STOP button and Down() arrow button together for 3 seconds while at the Welcome screen to enter the Console
Setup Mode.
2. The Console displays the TOTAL HOURS screen.
3. Push the Right() arrow button six times until the Console display shows the “RESET CONSOLE NO” prompt.
4. Press the Up() arrow button and the screen will display RESET CONSOLE YES.
5. Push the ENTER button.
6. Turn the machine off when the Console displays the “POWER CYCLE NOW.
PROCEDURE 4: CALIBRATE MCB:
1. Hold down the PAUSE/STOP button and Down() arrow button together for three seconds while at the Welcome screen to enter the Console
Setup Mode.
2. The Console displays the TOTAL HOURS screen.
3. Hold down the PAUSE/STOP button and Down() arrow button together for 3 seconds to go into the Engineering Mode.
4. Push the Down() arrow button 12 times until the Console displays “ENTR MCB CLB” . Be sure the area around the Treadmill is clear of all
bystanders, children and pets. Be sure there is nothing on or under the Walking Belt, or near the Treadmill.
5. The Console displays ENTR MCB CLB.
6. With the area clear, push the ENTER button. After a pause, the calibration procedure will begin by automatically moving the Walking Belt. Be
sure not to touch or allow anyone else to touch the machine while calibration is occurring.
7. When calibration is complete, the Console will display “DONE”. Push the PAUSE/STOP button twice.
8. Flip the power switch to OFF. Calibration is now complete for the machine.

18
Is the issue you
were experiencing
still present?
YES
Issue resolved
Replace I/O cables
NO
NO
Is the issue you
were experiencing
still present?
YES
Unit will not power on, or power is on but Console does not light up
Unplug the power cord
from both ends. Inspect
the entire cord for any
damage or crimps. Plug
the power cord back in
securely at both ends.
Replace power cord if any
damage is noted.
NO
BEGIN HERE
YES
YES
YES
Is the power cord
plugged directly into a
3-prong wall outlet?
Does light come
on?
Verify outlet is working by
connecting another
device, such as a lamp. If
not working, find a
working outlet.
NO
YES
Is the machine
Circuit Breaker
tripped?
Issue resolved
Unplug the power cord
from the wall outlet and
the machine. Wait 5
minutes before proceed-
ing. Remove the Motor
and MCB Covers.
Check/reseat the AC
power wiring using the
“Replace the Power Inlet”
procedure in the Service
Manual as a reference,
and ensure all wires are
correctly connected and
secure.
Check/reseat the AC
power wiring using the
“Replace the Power Inlet”
procedure in the Service
Manual as a reference,
and ensure all wires are
correctly connected and
secure.
Unplug the power cord
from the wall outlet and
the machine. Wait 5
minutes before proceed-
ing. Remove the Motor
and MCB Covers.
NO
Does the Circuit
Breaker keep
tripping?
Connect power cord
directly to a 3-prong
outlet.
NO
Contact Customer Care
(if inside US/Canada)
or your local distributor
(if outside US/Canada).
Reset breaker by switching
the main power switch to
off and back to on. The
breaker is part of the main
power switch on front of
machine.
Replace On/Off Rocker
Switch

19
MOTOR
COVER
Noise Issues
Shut machine off and
check Levelers to ensure
machine is not rocking.
Adjust Levelers so that
machine is secure.
Does the sound
happen only when
walking?
NO
Replace Drive Motor
BEGIN HERE
About Noises:
A “thumping” noise is
normal for a new machine
or new Walking Belt, and
will go away with with use.
This is caused by the Belt
conforming to the Rollers
and having a “flat spot” on
it.
If the noise only happens
when the user is walking
on the machine, have a
2nd user walk on the
machine while the user
locates the source of the
noise.
YES
YES
YES
NO
Check and tighten Deck
Bolts.
Replace Deck if it persists.
Start a manual
workout and advance
the speed to 2.0 mph. Is
the noise
present?
Is the noise a
thump/bump that
happens once per
revolution?
Replace Rear Roller
YES
UNDERNEATH
NO
Move around the machine
and listen for location of
noise.
Does noise come
from Rear Roller?
Is noise from Front
Roller or Drive
Motor?
Is noise coming
from under machine or
from inside Motor
Cover?
Shut off machine and wait
5 minutes. Remove Motor
Cover. Turn machine back
on and listen for noise.
DRIVE
MOTOR
FRONT
ROLLER
Shut off machine and
check underneath for
something making contact
with the Belt. Remove any
obstruction.
Obstruction removed
Replace Front Roller
NO

20
Machine Shuts Off or Belt Stops During Workout
NO Issue resolved
BEGIN HERE
Did Console stay
on or turn off?
Is the issue still
present?
If display reads
+SAFETY KEY,
remove and reinsert the
safety key
Display On Display Off
Follow troubleshooting
steps
BeltsWontStayMoving.pdf
Issue resolved
NO
YES
Did House or
Machine breaker
trip?
HOUSE
MACHINE
Try another outlet.
Machine will not work with
some older GFI/AFI, or in
houses with improperly
grounded circuits. Consult
an electrician if issue
persists.
Reset breaker by switching
the main power switch to
off and back to on. The
breaker is part of the main
power switch on front of
machine.
Does the Circuit
Breaker keep
tripping?
Replace On/Off Rocker
Switch
YES
