Schwinn 860 User manual

003–3269–012510D

ParaobtenerestemanualenEspañolLatinoAmericanovayaa:
http://www.schwinnfitness.com.
TableofContents
ImportantSafetyInstructions—Assembly3ImportantSafetyInstructions—Operation17
Specifications4Features20
BeforeAssembly5Operations28
Tools6Maintenance34
Hardware6Troubleshooting39
Parts7Contacts41
Assembly8GuidedeMontageetduPropriétaire43
LevelingtheMachine16
©2010Nautilus,Inc.,Allrightsreserved
™and®indicateatrademarkorregisteredtrademark.Nautilus,Inc.(www.nautilus.com)trademarksinclude
NAUTILUS®,BOWFLEX®,SCHWINN®andUNIVERSAL®andrespectivelogos.
Othertrademarksarethepropertyoftheirrespectiveowners.
PatentInformationThisproductmaybecoveredbyUSandForeignPatentsandPatentsPending.
2 2
2

ImportantSafetyInstructions
Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.
Obeythefollowingwarnings:
Readandunderstandallwarningsonthismachine.
CarefullyreadandunderstandtheAssemblyManual.
• •
•Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.
• •
•Donotconnectpowersupplytothemachineuntilinstructedtodoso.
• •
•Donotassemblethismachineoutdoorsorinawetormoistlocation.
• •
•Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafficandexposuretobystanders.
• •
•Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoingtheassemblystepsinvolving
theseparts.Donotdostepsthatinvolveheavyliftingorawkwardmovementsonyourown.
• •
•Setupthismachineonasolid,level,horizontalsurface.
• •
•Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethesafetyandcanvoidthewarranty.
• •
•IfreplacementpartsarenecessaryuseonlygenuineNautilus®replacementpartsandhardware.Failuretousegenuine
replacementpartscancausearisktousers,keepthemachinefromoperatingcorrectlyorvoidthewarranty.
• •
•Donotuseorputthemachineintoserviceuntilthemachinehasbeenfullyassembledandinspectedforcorrect
performanceinaccordancewiththeOwner’sManual.
• •
•ReadandunderstandthecompleteOwner’sManualsuppliedwiththismachinebeforefirstuse.KeeptheOwner’sand
AssemblyManualsforfuturereference.
3 3
3

Specifications
Schwinn®840Treadmill
DimensionsCapacities
Length74"/188cmMaximumUserWeight300lbs./136kg
Width32"/81cmWorkoutPrograms12
Height54"/137cmSpeedRange0.5–10mph/0.8–16.1
km/h
AssembledUnitWeight200.6lb/91kgElevationRange0–10%
Folded39"X32"X60"/99X81X
152cm
ShippingWeight229.3lb/104kgComponentSpecifications
Frame,FoldingSteel
RegulatoryApprovalsMotor2.5CHPDC
IntertekETLlisted.ConformstoANSI/UL1647.4thED.
CertifiedtoCAN/CSA-C22.2No.68-92.DeckSize20"x55"/51x140cm
RoHSBelt2ply
PowerRequirementsHeartRateMonitorContact,Telemetry
120VAC15A60HzNon-GFI
groundedoutlet(dedicated
circuit)
HeartRateChestStrapNo
DisplayBacklitLCD
Built-InFan3–speed
Schwinn®860Treadmill
DimensionsCapacities
Length78"/198cmMaximumUserWeight300lbs./136kg
Width34"/86cmWorkoutPrograms19
Height54"/137cmSpeedRange0.5–12mph/0.8–19.3
km/h
AssembledUnitWeight211.6lb/96kgElevationRange0–12%
Folded41"X34"X651/2"/104X
86X166cm
ShippingWeight244.7lb/111kgComponentSpecifications
Frame,FoldingSteel
RegulatoryApprovalsMotor3.0CHPDC
IntertekETLlisted.ConformstoANSI/UL1647.4thED.
CertifiedtoCAN/CSA-C22.2No.68-92.DeckSize20"x58"/51x147cm
RoHSBelt2ply
PowerRequirementsHeartRateMonitorContact,Telemetry
120VAC15A60HzNon-GFI
groundedoutlet(dedicated
circuit)
HeartRateChestStrapYes
4 4
4
DisplayBacklitLCD
Built-InFan3–speed

BeforeAssembly
Selecttheareawhereyouaregoingtosetupandoperateyourmachine.Forsafeoperation,thelocationmustbeonahard,level
surface.Allowaworkoutareaofminimum201”x71”(5.1mx1.8m).
Followthesebasicpointswhenyouassembleyourmachine:
1.Readandunderstandthe“ImportantSafetyInstructions”beforeassembly.
2.Collectallthepiecesnecessaryforeachassemblystep.
3.Usingtherecommendedwrenches,turntheboltsandnutstotheright(clockwise)totighten,andtheleft
(counterclockwise)toloosen,unlessinstructedotherwise.
4.Whenattaching2pieces,lightlyliftandlookthroughtheboltholestohelpinserttheboltthrough
theholes.
5.Theassemblyrequires2people.
Note:Thetreadmillisdesignedtoplugintoagrounded,non-GFIoutletonly.DonotconnectthetreadmilltoaGFI
outlet.TodetermineifyouroutletorcircuitbreakerisGFI,lookforatestandresetbuttononthem.Ifthey
havethetestandresetbutton,itisaGFIoutletorcircuitbreaker.
5 5
5

Tools
IncludedNotIncluded
6mm
5mm
Hardware
ItemQtyDescription
A2M10x60LButtonHeadHexScrews,pre-installed
B2M10NylockNuts,pre-installed
C2M8x70LFlatheadHexScrews
4M4x10LPhillipsHeadScrews,pre-installed(model840)
D
6M4x10LPhillipsHeadScrews,pre-installed(model860)
E2#8x1/2LPhillipsHeadBolts,pre-installed
F4M8x15LButtonHeadHexScrews,2pre-installed
G4M8washers,2pre-installed
6 6
6

Parts
ItemQtyDescription
11Frame
21Console
32ConsoleSidePanels
42SideCovers(model860only)
51PowerCord
61RearEndCap(model860only)
7 7
7

Assembly
1.UnfoldFrame
Note:HoldoneUpright(1A)andtheErgoBar(1B)whenyouliftthefoldeduprightsintoposition.Keepyour
handsclearoftheareabetweentheErgoBarandtheUpright.
Note:Schwinn®840modelisshown.TheSchwinn®860modelhastheconsolepre-assembled.
8 8
8

2.InstallScrewsandAdjustHandlebars
Note:Tightenpivotscrews(A1).
9 9
9

3.InstallScrewsinHandlebars
10 10
10

4.AdjustConsoleBracket/ErgoBarandTightenScrews
11 11
11

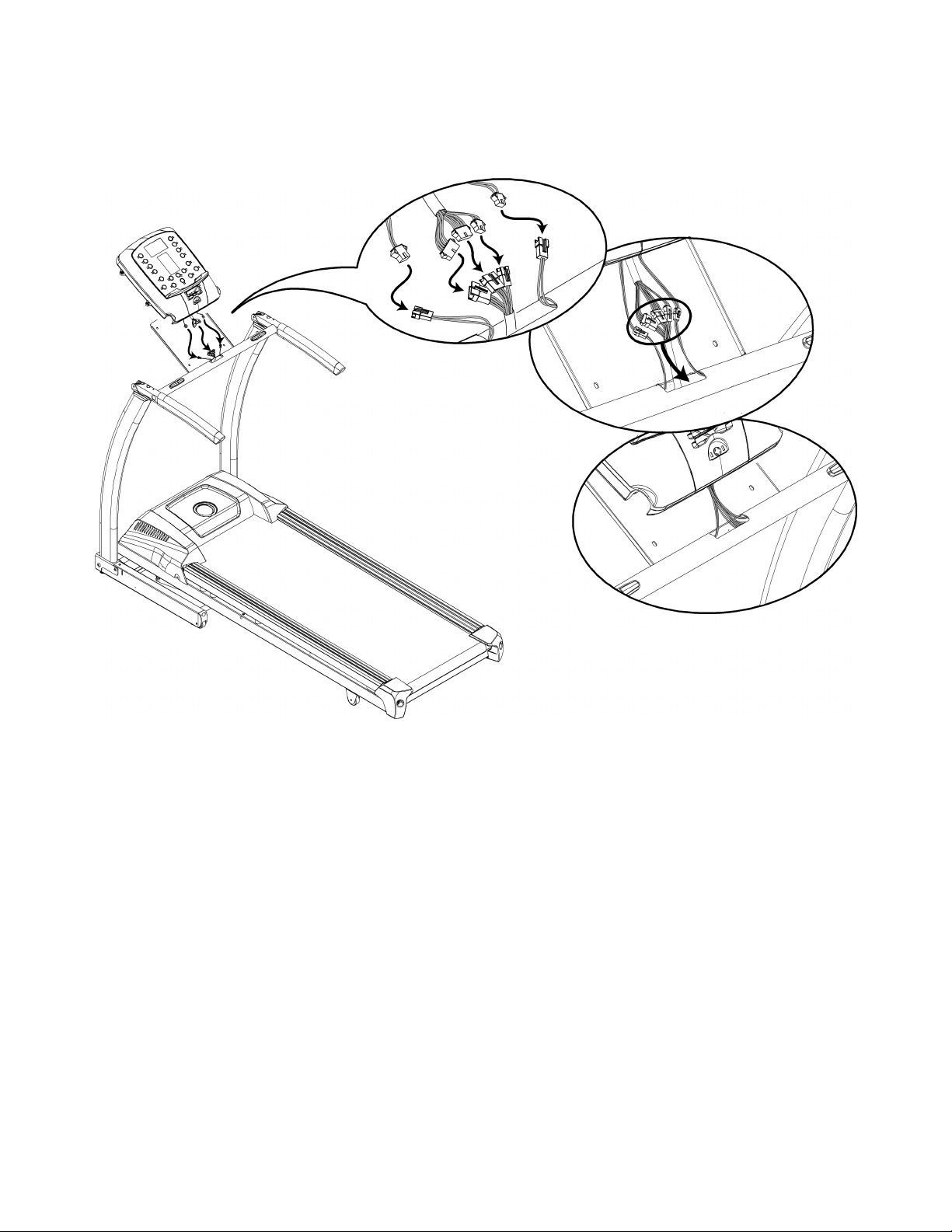

5.ConnectConsoleWires(model840only)
12 12
12

6.AttachConsole(model840only)
Note:Hardwareispre-installedonConsoleandnotonHardwareCard.
13 13
13

7 .InstallConsoleSidePanels
14 14
14

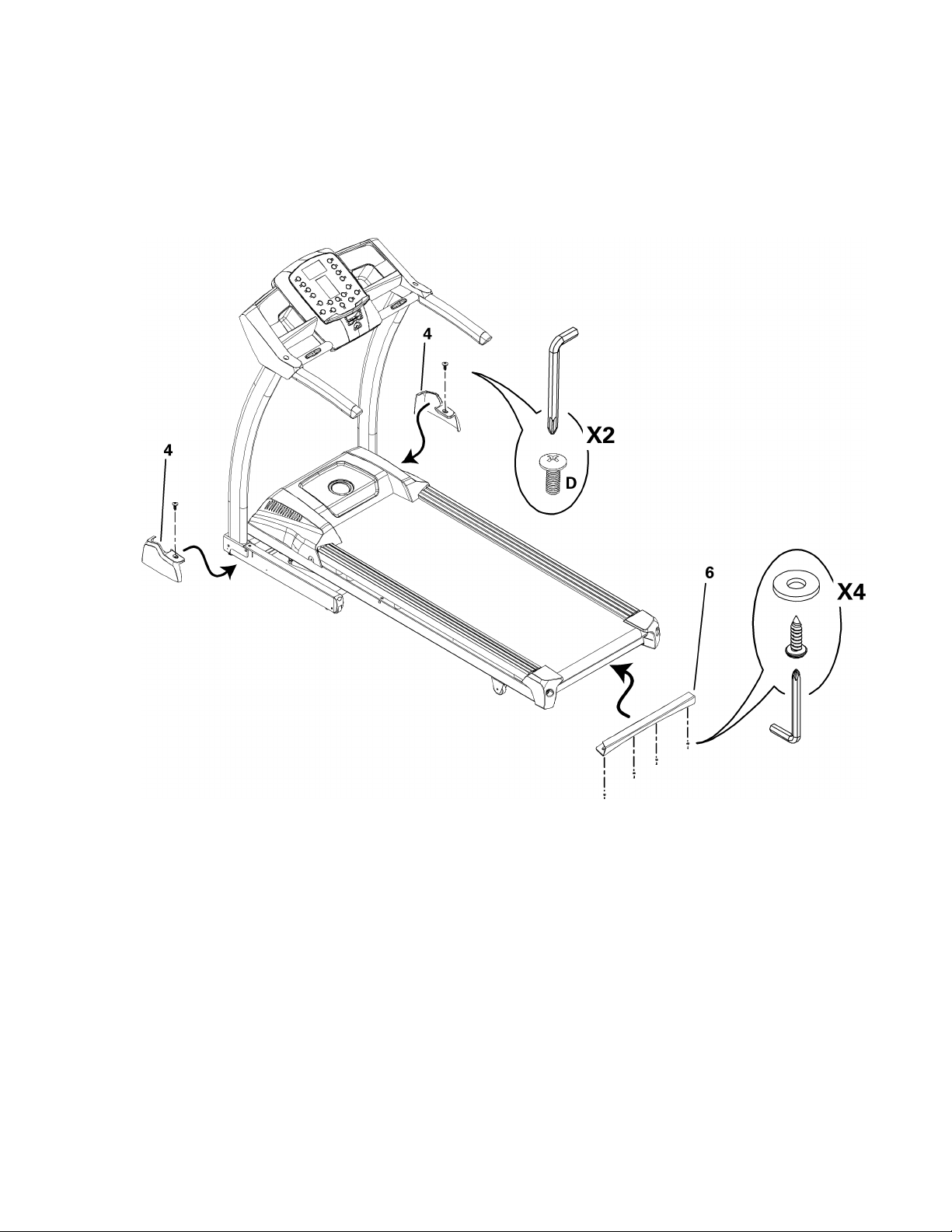

8.AttachSideCoversandRearEndCap(model860only)
Note:Hardwareispre-installedonrearsupportbarandnotonHardwareCard.
15 15
15

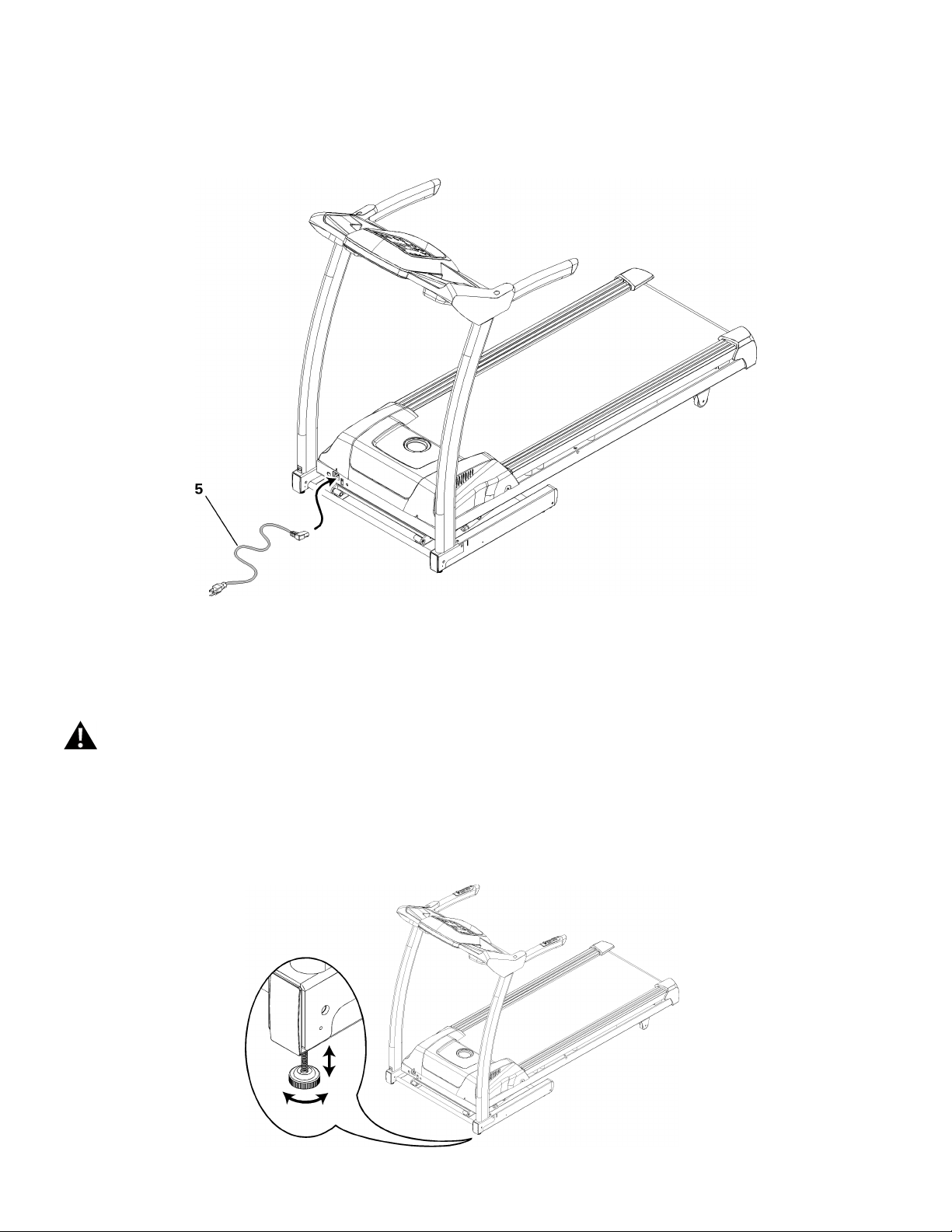

9.ConnectPowerCord
FinalInspection
Inspectyourmachinetoensurethatallfastenersaretightandcomponentsareproperlyassembled.
Donotuseorputthemachineintoserviceuntilthemachinehasbeenfullyassembledandinspectedforcorrect
performanceinaccordancewiththeOwner’sManual.
LevelingtheMachine
Tostabilizethetreadmill,adjustthe2feetbelowthefrontofthebaseframe.
• •
•Liftonesideofthemachineandturnthefoot—clockwisetoshortenorcounterclockwisetolengthen.
• •
•Adjustthefootontheothersideifnecessary.
16 16
16

ImportantSafetyInstructions
Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.
Beforeusingthisequipment,obeythefollowingwarnings:
Todecreasetheriskofburns,electricshock,orinjurytopersons,readandunderstandthecompleteOwner’sManual.
Failuretofollowtheseguidelinescancauseaseriousorpossiblyfatalelectricalshockorotherseriousinjury.Keep
Owner’sManualforfuturereference
Readandunderstandallwarningsonthismachine.IfatanytimetheWarningstickersbecomeloose,unreadableor
dislodged,contactNautilus®CustomerServiceforreplacementstickers.
• •
•
Toreducetheriskofelectricalshock,alwaysunplugthepowercordandwait5minutesbeforecleaning,
maintainingorrepairingthismachine.
• •
•Childrenmustnotbeletonorneartothismachine.Movingpartsandotherfeaturesofthemachinecanbedangerous
tochildren.
• •
•Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyourchest,become
shortofbreath,orfeelfaint.Contactyourdoctorbeforeyouusethemachineagain.Usethevaluescalculatedormeasured
bythemachine’scomputerforreferencepurposesonly.
• •
•Beforeeachuse,examinethismachinefordamagetopowercord,powerreceptacle,loosepartsorsignsofwear.Donot
useiffoundinthiscondition.ContactNautilus®CustomerServiceforrepairinformation.
• •
•Maximumuserweightlimit:300lbs.(136kg).Donotuseifyouareoverthisweight.
• •
•Thismachineisforhomeuseonly.
• •
•Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotputfingersorotherobjectsintomoving
partsoftheexerciseequipment.
• •
•Alwayswearrubbersoledathleticshoeswhenyouusethismachine.Donotusethemachinewithbarefeetoronly
wearingsocks.
• •
•Setupandoperatethismachineonasolid,level,horizontalsurface.
• •
•Usecautionwhenyousteponandoffthemachine.Usethesuppliedfootsupportplatformsforstabilitybeforewalking
onthemovingbelt.
• •
•Donotoperatethismachineoutdoorsorinmoistorwetlocations.
• •
•Keepatleast19.5"(0.5m)oneachsideofthemachineand79”(2m)behindthemachineclear.Thisistherecommended
safedistanceforaccess,movementandemergencydismountsfromthemachine.Keepthirdpartiesoutofthisspace
whenthemachineisinoperation.
• •
•Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedinthismanual.
• •
•Read,understand,andtesttheEmergencyStopProcedurebeforeuse.
• •
•Keepthewalkingbeltcleananddry.
• •
•Donotstandonmachinemotorcoverorfronttrimcover
• •
•Keeppowercordawayfromheatsourceandhotsurfaces.
• •
•Donotdroporputobjectsintoanyopeningofthemachine.
• •
•Connectthismachinetoacorrectlygroundedoutlet;consultalicensedelectricianforassistance.
• •
•Donotoperatewhereaerosolproductsarebeingused.
17 17
17

• •
•Donotletliquidstouchtheelectroniccontroller.Ifitdoes,thecontrollermustbeinspectedandtestedforsafetybyan
approvedtechnicianbeforeitcanbeusedagain.
• •
•Donotremovethemachinemotorcover,dangerousvoltagesarepresent.Thecomponentsareserviceableonlyby
approvedservicepersonnel.
• •
•Theelectricalwiringfortheresidenceinwhichthemachinewillbeusedmustobeytheapplicablelocalandprovincial
requirements.
SafetyWarningLabelsandSerialNumber
TypeDescription
WARNINGFailuretoobeythesesafeguardscancauseseriousinjuryorhealthproblems.
1.Keepchildrenandpetsawayfromthismachineatalltimes.
2.Whenthismachineisnotinoperation,removetheSafetyKeyandkeepoutofthereach
ofchildren.
3.UseCautionwhenyouoperatethisequipmentorseriousinjurycanoccur.
4.Priortouse,readandunderstandtheOwner’sManual,includingallWarnings.
5.Topreventinjury,standontheFootPlatformsbeforeyoustartthemachine.
6.ThismachineisforResidentialuseonly.
7.TheMaximumuserWeightforthismachineis300lbs/136kg
1
8.ReplaceanyWarninglabelthatbecomesdamaged,illegibleorisremoved.
18 18
18

AVERTISSEMENTLenon-respectdecesmesuresdeprotectionpourraitentraînerdesblessuresoudegraves
problèmesdesanté
1.Gardezlesenfantsetlesanimauxdecompagnieéloignésdecettemachineentouttemps.
2.Lorsquecettemachinen’estpasutilisée,retirezlecordondesécuritéetgardez-lehorsdela
portéedesentants.
3.Soyezprudentlorsquevousutilisezcetéquipementpournepasvousinfligerdegraves
blessures.
4.Lisezetfamiliarisez-vousavecleManueldupropriétaireetavectouslesavertissementsavant
d’utilisercettemachine.
5.Pouréviterlesblessures,mettez-vousdeboutsurlesrepose-piedsavantdemettrelamachine
enmarche.
6.Cettemachineestàusagedomestiqueuniquement.
7.Cettemachinesupporteunpoidsmaximalde(136kg).
8.Remplaceztouteétiquetted’avertissementendommagée,illisibleoumanquante.
WARNINGDonotliftormovefromthisend—rotatingpartscanpinchorcrush
2
AVERTISSEMENTNepassouleveroudéplacerdepuiscetteextrémité—lesélémentspivotantspeuventpincer
ouécraser
3SerialNumberRecordserialnumberonContactspageatendofthismanual.
GroundingInstructions
Thisproductmustbegrounded.Ifitshouldmalfunctionorbreakdown,groundinggivesapathofleastresistanceforelectrical
current,todecreasetheriskofelectricshock.ThepowercordisequippedwithanEquipment-groundingConductoranda
groundingplug.Theplugmustbeconnectedtoanoutletthatiscorrectlyinstalledandgrounded.Theelectricalwiringmustobey
theapplicablelocalandprovincialrequirements.
Incorrectconnectionoftheequipment-groundingconductorcanresultinariskofelectricshock.
Consultalicensedelectricianifyouarenotsureifthemachineiscorrectlygrounded.Donotchange
theplugonthemachine–ifitdoesnotfittheoutlet,haveacorrectoutletinstalledbyalicensed
electrician.
Itisrecommendedtouseadedicatedcircuitforthismachine.Thismeansthatnootherequipmentisconnectedtothesameoutlet.
DonotuseaGFIoutlet,surgeprotectororextensioncordforthismachine.
EmergencyStopProcedures
ThetreadmillisequippedwithaSafetyKeythatcanpreventseriousinjury,aswellas
preventchildrenfromplayingwithand/orbeinginjuredonthemachine.IftheSafety
KeyisnotfullyputintotheSafetyKeyPort,thebeltwillnotoperate.
TopreventunsupervisedoperationofthemachinealwaysremovetheSafetyKey
anddisconnectthepowercordfromthewalloutletormachineACinput.
AlwaysattachtheSafetyKeyCliptoyourclothingduringyourworkout.
Whenyouusethemachine,onlyremovetheSafetyKeyinanemergency.When
thekeyisremovedwhilethemachineisinoperation,itwillstopquickly,which
couldcausethelossofbalanceandpossibleinjury.
BesuretoremovetheSafetyKeyforsafestoragewhennotinoperation.
19 19
19

Features
AConsoleKWalkingBelt
BWaterBottleHolderLSideFootSupportRails
CMagazineRackMSupportBar
DSafetyKeyPortNHydraulicLift
EContactHeartRate(CHR)SensorsOTransportWheels
FHandlebarsPBase
GUprightsQAdjustableFeet
HMotorCoverRErgoBar
IPowerSwitchSFan
JPowerCordTHeartRate(HR)ChestStrap(model860only)
20 20
20
