SciCan StatClean User manual

1
StatClean - Ultrasonic Cleaner
USER MANUAL
FEATURES:
Large Tank Capacity Tank capacity 6.0 L / 1.6 gallon.
Tank size: 32.5 x 20.5 x 9.9 cm / 12.7” x 8.1” x 3.9”
Large Tank Capacity Patented design, basket can be raised and suspended to
drain water.
Control panel with capacitive
sensing technology
Solid panel top. Durable, reliable, resistant to water and
harsh chemicals.
Drainage valve Convenient to use.
Two industrial grade
ultrasonic transducers
Uniform distribution of ultrasonic waves, strong cleaning,
high durability.
Two ceramic heaters Mounted underneath the bottom of the tank for safe and
even heating; more durable construction.
3-color LED display 1 to 30-minute full range timer, 5 temperature settings, actual
temperature thermometer, degas and solution usage timer.
Independent control circuit
for each ultrasonic transducer
40% higher cleaning efficiency, not susceptible to
interference, more durable.
Multiple circuit protectors When overloaded or improperly used, the protectors shut
down the power to certain areas to protect the machine.
Moisture-proofed PCB with
industrial IC
Capable for different working environments with better anti-
interference performance.
Two cooling fans One for cooling of PCB boards, one for cooling of ultrasonic
transducers. Improve heat dissipation and beneficial for
continuous operations.
Multiple optional accessories Suspendible plastic basket, stainless steel rack and tray,
indirect cleaning tank, beaker and double beaker holder.
Solid and advanced structural
design
4.5 mm thick wall housing made from engineering grade
plastic with tongue-in-groove design for better waterproof
and drop-proof performance.
SD-485 US EN R1_StatClean user manual.indd 1 2016-06-09 12:58 PM

2
Use filtered water for best results.
PRINCIPLES OF ULTRASONIC CLEANING
Millions of tiny air bubbles are generated within liquid by high frequency vibration. The air bubbles
burst when in contact with object and dislodge the debris to achieve the cleaning effect.
Using tap water is sufficient; however, it is recommended to use filtered water for best results.
Main Features
• Tank opening 32.5 x 20.5 x 9.9 cm / 12.7”x 8.1”x3.9”.
• Longest item that can fit inside the tank is 34.0 cm / 13.4”. 6.0 L / 1.6 gallon tank capacity.
• Multiple options for accessories, suitable for various applications.
• 2 industrial grade ultrasonic transducers: 2 x (55~60)W=(110~120)W.
• 2 ceramic heaters: 2 x (78~87)W=(156~174)W.
• 3-color LED display, 7-key controls, 6 quick timer settings, adjustable to any minute between
1-30 minutes, 5 temperature settings in both F and C, simple and straightforward to operate.
• Control panel with capacitive sensing technology. Durable, reliable, resistant to water and harsh
chemicals.
* Advanced power-off memory that recalls last timer and temperature settings
• Electrical circuit features:
1. Two stack transducers, each has an independent PCB control. The output power is
increased by 40% compared to less expensive control method that uses one PCB to
control multiple transducers. Stack transducer is about twice more powerful and durable
than wafer transducers
2. Multiple circuit protectors:
a. Thermal switch to prevent running dry. If temperature is too high, the switch cuts off
power for approximately 6 minutes then reconnect the power.
b. Thermal protector to prevent PCB from overheating due to overload.
c. Timer to prevent heater from running continuously.
• Industrial grade IC. Moisture-proofed PCB. Cooling fan.
• Drainage valve.
Read the Manual First
The manual should be carefully reviewed before starting to use the device. Warnings should be
observed carefully. Please follow the manual for operations.
INTRODUCTION
SD-485 US EN R1_StatClean user manual.indd 2 2016-06-09 12:58 PM

3
TABLE OF CONTENTS
SAFETY PRECAUTIONS 4
PRODUCT STRUCTION AND ACCESSORIES 6
CONTROL PANEL AND OPERATIONS 7
OPERATION GUIDELINES 9
MEMORY OPERATIONS 11
COMMON CLEANING METHODS 12

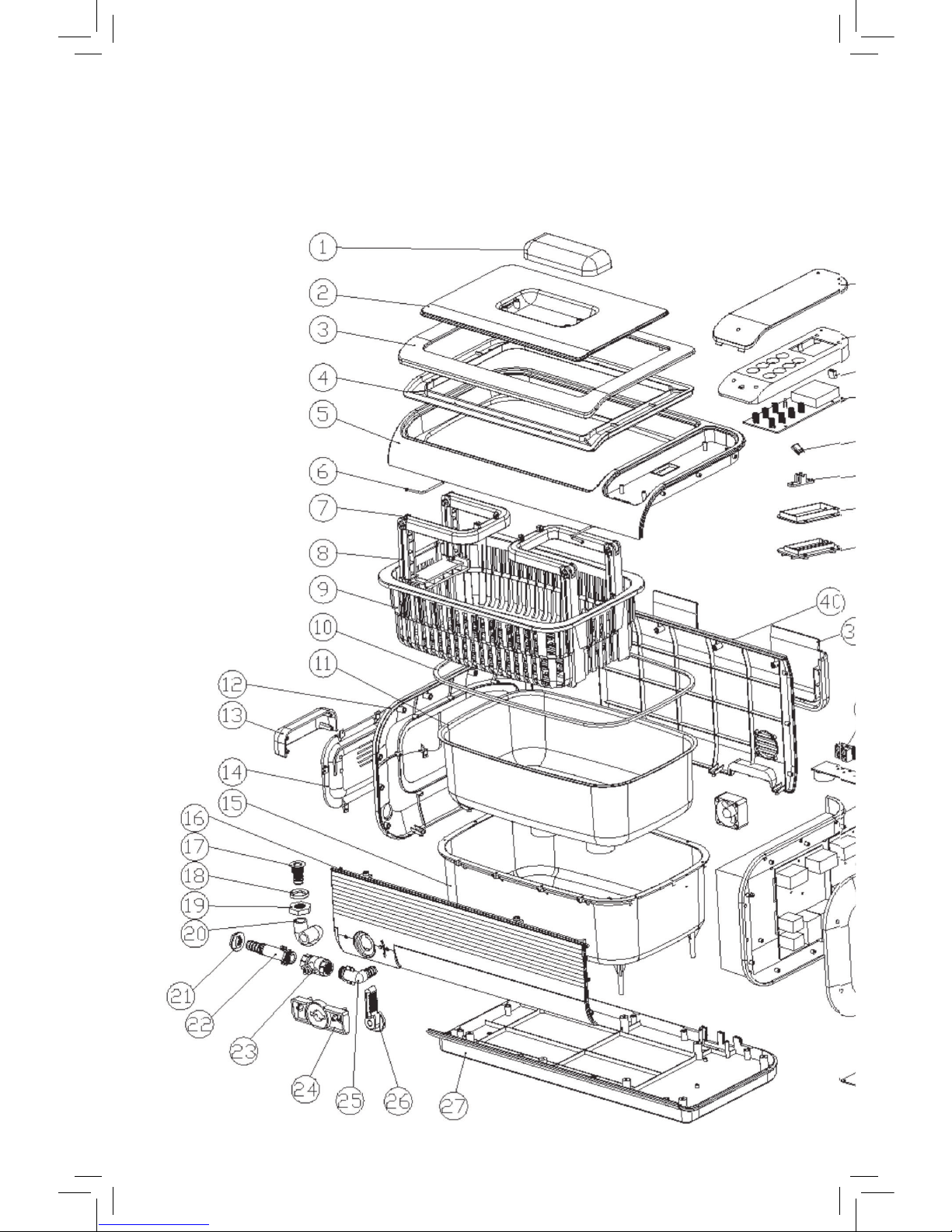

PRODUCT EXPLODED VIEW 14
CARE AND MAINTENANCE 16
OPTIONAL ACCESSORIES 17
SPECIFICATIONS 18
SD-485 US EN R1_StatClean user manual.indd 3 2016-06-09 12:58 PM

4
SAFETY PRECAUTIONS
Keep CLEANER away from children!
Please store the ultrasonic cleaner where it is not reachable by children.
Danger to children! Danger of death through suffocation! Keep the packaging material
from children.
This appliance shall not be used by children. Keep the appliance and its cord out of reach of
children.
To prevent life-threatening electrical shock, please observe the
following:
Danger of electrical shock! Do not use while bathing. Never immerse the device or the power cord
in water or other liquid.
• Danger of electrical shock! Never touch the power plug with wet hands, especially inserting or
removing the plug.
• Danger of electrical shock! If the unit has fallen into water during operation, do not touch the
unit. Remove the power plug from the socket first.
• Danger of electrical shock! Do not spray water or liquid over the device.
• Never operate the device unattended.
• Follow the manual to operate the device.
• Do not use components unapproved by the manufacturer.
• When removing the power cord from the socket, grab the power plug not the cord.
• To protect the power cord from damage, do not cause it to get caught by things such as a
cupboard door or a chair leg; do not drag across a hot surface.
• If there is damage to the power plug, cord, housing, or other parts of the device, do not use the
device.
• Do not disassemble the device, except by professionals.
• If the unit is damaged, non-operational or has fallen into water, take it to an authorized dealer for
service.
• Remove the power plug from the socket:
- if malfunction occurs before cleaning the device
- if the device is not going to be used for prolonged period after each use (recommended)
• The installation of an earth leakage circuit breaker with a rated tripping current of no more than
30 mA provides further protection against an electrical shock. The installation should only be
carried out by a trained electrician.
To prevent fire hazards, please observe the following:
• Never block the vents on the device. Keep the vents free from lint, hair and other materials.
• Do not place the device on a soft surface, such as a bed or a couch, where the vents could be
blocked.
• Observe the other warnings in the previous section.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
SD-485 US EN R1_StatClean user manual.indd 4 2016-06-09 12:58 PM

5
Use filtered water for best results.
Other observations:
• Do not operate the product without filling the tank with water. Running dry will damage the unit.
• Do not plug in the power cord before adding water to the tank. Do not fill the tank above the
Max line to avoid overspill.
• Do not use solution containing abrasive substances or strong corrosive chemical solution not
recommended by the manufacturer or the supplier.
• Place the device on a dry and flat surface for operation.
• When the device is subjected to severe electromagnetic interference, it may malfunction, stop
operating or lose control functions. If this happens, unplug the power cord then reinsert it to
restart the device.
IMPORTANT SAFETY INSTRUCTIONS:
When using electric appliances, basic precautions should always be
followed, including the following:
• Read all the instructions before using the appliance.
• To reduce the risk of injury, close supervision is necessary when an appliance is used near
children.
• Only use attachments recommended or sold by the manufacturer.
• Do not use outdoors.
• To disconnect, turn all controls to the off (O) position, then remove plug from outlet. Do not
unplug by pulling on cord. To unplug, grasp the plug, not the cord. Unplug from outlet when not
in use and before servicing or cleaning.
• To reduce the risk of electrical shock, do not put the appliance in water or other liquid. Do not
place or store appliance where it can fall or be pulled into a tub or sink.
• All servicing of this product, including transducer replacement, is to be conducted by an
authorized dealer.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions
or is dropped or damaged in any manner. Return appliance to the nearest authorized service
facility for examination, repair, or electrical or mechanical adjustment.
SAFETY PRECAUTIONS
SD-485 US EN R1_StatClean user manual.indd 5 2016-06-09 12:58 PM

88:88
888
o
C
o
F
8:88
6
PRODUCT STRUCTURE & ACCESSORIES
A. Top Cover
B. Stainless steel tank
C. Housing
D. Drainage pipe fitting
E. Drainage valve handle
F. Control panel
G. Handlesa
H. Power switch
I. Power socket
J. Cover holder
1. Working Time Display
2. Multistage Thermeter
3. Set Termperature Display
4. ºC or ºF Indicator
5. Solution Usage
Remaining Time
6. Solution Warning Light
7. Degas Status
8. Normal Cleaning Status
9. Heater Status
10. Working Status
11. Heater Key
12. Funtion Key
13. On/Off Key
14. Decreasing Key
15. Solution Usage Timer
Set Key
16. Temperature Set Key
17. Timer Quick Set Key
Plastic basket
Power cord Hose
Double beaker holder
OPTIONAL ACCESSORIES:
STANDARD ACCESSORIES:
A.
B.
C.
D.
E.
F.
G.
H. I. J.
12
34
56
7
8
9
10
11
12
13
14
15
16
17
SD-485 US EN R1_StatClean user manual.indd 6 2016-06-09 12:58 PM

7
CONTROL PANEL & OPERATIONS
1. 10:00 – Working Time Display. It counts down after work is started.
2. – Multistage Thermometer. Solid green light indicated that the water temperature
is 0-30% of the set temperature. Solid orange light indicated that the water temperature is 30-
60% of the set temperature. Solid red light indicated that the water temperature is 60-90% of
the set temperature. Flashing red light indicates that the water temperature is close to the set
temperature. All lights indicate that the water temperature is at the set temperature (90-100%).
3. 060 – Set Temperature Display. Press Temp button to select one of the 5 set temperatures
in Celcius or Fahrenheit.
4. ºCºF– ºC or ºF Indicator. ºC - set temperature to Celsius. ºF - set temperature to Fahrenheit.
5. Solution Usage Remaining Time. It counts down to show the remaining usage time
(hour:minute) of the solution.
6. Solution Warning Light. Once the Solution Usage Timer is set, the light will come up.
Flashing, indicates that the solution usage timer is down to zero and the solution needs to be
changed.
7. Degas Status. Illuminated, the degas function is selected. Flashing degassing is underway.
Degas: When cleaning heavily soiled or greasy items or silver, copper or brass items, chemical
solutions need to be added into the water. The solution may form many small droplets and take
a long time to dissolve in the water. Newly added water may generate many air bubbles on the
tank walls. These will reduce the cleaning effect in the beginning phase of ultrasonic cleaning.
Turning on the degas function will dissipate the droplets and the air bubbles, usually in 90
seconds, and improve cleaning efficiency.
8. – Normal Cleaning Status. Illuminated, normal cleaning is underway.
9. – Heater Status. Press Heater button twice, flashes, indicating the heater is turned on.
Press Heater button twice again, dims, indicating the heater is turned off.
10. Working Status. Green - Ready (G): Normal working status, ready to use. Red - Overheat (R):
Under overheat protection. 20 minutes or more of waiting time is needed for the light to change
from red to green. Work can resume afterwards. If the red light stays on, it indicates possible
malfunction of the transducer. Further checking should be performed.
11. Heater Key. Press Heater key twice. flashes, indicating the heater is turned on. To cancel
heating, press Heater key twice again, dims, indicating the heater is turned off.
To prevent accidentally turning on or off the heater, the Heater key needs to be touched twice
within 6 seconds to turn it on or off.
When the water reaches the set temperature, the heater will turn off automatically.
12. Function Key. Press Function key, illuminates, indicating Degas function is selected. Press
On/Off button to start degassing. [ ] will flash for 90 seconds, then the unit will return to the
normal cleaning function. Pressing Function key before it ends will stop degassing. If additional
degassing is needed after it ends, press Function key again.
SD-485 US EN R1_StatClean user manual.indd 7 2016-06-09 12:58 PM

8
CONTROL PANEL & OPERATIONS
13. On/Off Key. After powering on, the LED display shows 10:00, which is the initial
default time (as shown), and the unit is ready with the normal working status. Press
On/Off key twice and the cleaning starts. The cleaning stops when the timer counts
down to 00:00. If the unit needs to be stopped before the timer runs out, press
On/Off key twice.
To prevent accidentally turning on or off the unit, the On/Off key needs to be touched within
6 seconds to turn it on or off. flashes, indicating the unit is running under Normal Cleaning
mode.
14. Decreasing Key.
a. When Time is used, pressing the button each time reduces the timer buy 1 minute.
b. When Temp is used, pressing the button each time reduces the set temp. down to the
next level.
c. When h/min is used, pressing the button each time reduces the solution set time by 20
minutes.
15. [ ] h/min – Solution Usage Timer Set Key. Each time that [ ] key is pressed, the timer is
increased by 20 minutes. For example, 01:20 indicate that the solution is set to be used for 1
hour and 20 minutes. The maximum time that can be set is 10 hours.
16. Temperature Set Key. 5 set temperatures (ºC/ºF) can be selected. Press Temp button to
select the temperature in the following sequence:
17. Timer Quick Set Key. Press Time key, LED display shows 10:00. Each press increases the
time by 5 minutes.
SD-485 US EN R1_StatClean user manual.indd 8 2016-06-09 12:58 PM

9
OPERATION GUIDELINES
Remove the cover and put it on the cover holder
vertically. Put items in the basket then put them in
the cleaning tank. Add general purpose
OPTIM 28 (see OPTIM 28 label for specific
dispensing instructions) to a level between MIN
and MAX and above the area to be cleaned.
Connect the power cord to an outlet
and turn the switch on. LED display
shows 10:00. This is the most
common timer setting.
If the timer needs to be adjusted,
press TIME key for quick timer
settings and/or Reducing key for fine adjustment
between 1 to 30 minutes.
Select desired time setting by pressing the
TIME key:
Press On/Off button twice to start cleaning.
During cleaning, buzzing sound can be heard
from the cleaning tank, indicating that the
cleaning is underway. Closing the lid will reduce
the noise level.
The digital timer will count down to show the
remaining cleaning time. When it displays
00:00, the cleaning cycle stops.
To stop cleaning at any time, press On/Off button
twice.
The unit is equipped with overheat protector.
If the unit has been running for too long,
the green indicator light will change to red,
indicating the unit is under overheat protection.
The unit can not be operated until idling for about
15 to 20 minutes. The red light will change
back to green and the operation can be resumed.
1
2
3
If the unit is turned on without water,
ultrasonic energy will not be absorbed.
This model also has high power. Once
on for over 15 seconds, it may damage the unit
or severely reduce the life of the unit.
Prolonged cleaning time may result in:
a. Loosening of the screws if used.
b. If items are plated and have existing cracks,
the cracks may become more pronounced.
c. Coating with preexisting damages may
experience more peeling.
SD-485 US EN R1_StatClean user manual.indd 9 2016-06-09 12:58 PM

10
Select one of the four cleaning methods
recommended later.
1. When the heater is needed, press
TEMP button to select one of the 5 preset
temperatures. Press Heater key twice,
flashes, indicating the heater is turned on.
When the water reaches the set temperature,
dims, indicating the heater is turned off.
To ensure safety, the unit is designed with
dual protections. The heater will be turned
off automatically if it has been running for
50 minutes.
OPERATION GUIDELINES
When cleaning is completed, switch off the power,
open the lid and retrieve the basket and the items.
Alternatively, raise and suspend the basket above
water as illustrated in the Optional Accessories
section to drain water.
Connect the hose to the drainage pipe as shown.
Open the drainage valve to drain the dirty water.
Clean and wipe the tank dry.
Close the drainage valve.
2. When debris “cloud” is no longer visible,
cleaning is done. If additional cleaning is
needed, reset the timer and repeat the steps
above.
4
5
SD-485 US EN R1_StatClean user manual.indd 10 2016-06-09 12:58 PM

11
OPERATION GUIDELINES
MEMORY OPERATIONS
This unit is equipped with advanced power off memory capability. It memorizes the last timer setting
once the cleaning cycle is started, and the last temperature setting once the heater is started.
1. Last timer setting recall.
a. 5 seconds after the timer counts down to 00:00, the last timer setting will
reappear. Press the On/Off key twice, it will repeat the last cycle with the same timer
setting.
b. Once the timer counts down to 00:00, touch the On/Off key within 5 seconds will
recall the last timer setting. Touch it again will repeat the last cycle with the same
timer setting.
c. If power is turned off during the cleaning cycle, once it is powered on again, the last
timer setting will reappear.
d. If the timer setting is changed during the cleaning cycle and the timer counts down
to 00:00, the new timer setting will reappear as in 1A, 1B or 1C.
e. If the timer setting is changed but the cleaning cycle is not started, it will stay until the
cleaning cycle is started. It will not stay if the power is turned off.
f. If the On/Off key is touched twice during the cleaning cycle, the cycle will stop and
the timer setting will stop running. It’ll resume the original cycle once the On/Off key
is touched twice again.
2. Last temperature setting recall.
a. The last temperature setting will remain once the heater is started.
b. If the temperature setting is changed but the heater is not started, the previous
temperature setting will remain after the unit is powered off and powered on again.
NOTE: To prevent accidental lockups of the touch-sensing control panel, please observe the
following:
1. Do no touch two or more keys at the same time.
2. Do not leave water or solution on the control panel.
3. Do not push the control panel with too much force. Only light touch is needed.
If the control panel is locked up, do the following to reset it. If the first step does not work, move on
to the next step.
1. Turn off the power switch.
2. Turn off the power switch multiple times.
3. Unplug the power cord and wait for 5-10 minutes.
4. Leave the unit unplugged for several hours.
SD-485 US EN R1_StatClean user manual.indd 11 2016-06-09 12:58 PM

Cleaning Method:
1. Put the item inside a container. Add proper fluid to submerge the area to be cleaned.
2. Place the container in the tank directly. Add water to a level between MIN and MAX at least
half inch or 13 mm above the bottom of the container but, not over the container.
3. Turn the power switch on. Press Time key to set the timer to 10 minutes. Press On/Off key
to start cleaning. Ultrasonic waves will penetrate the container and clean the items.
12
COMMON CLEANING METHODS
A. Regular cleaning
Use filtered water for best results.
Suitable Locations:
Dental and medical offices and labs.
Cleaning Method:
1. Put the items to be cleaned inside the basket
and put the basket inside the tank.
2. Add clean chemicals to the cleaning tank to a
level between “MIN” and “MAX” lines and above
the area to be cleaned.
3. Turn the power switch on. Press Time button to
set the timer to 10 minutes. Press On/Off button
to start cleaning.
Notes on using the basket:
1. Stainless steel rack and tray absorbs approximately 8% of ultrasonic energy, plastic
basket absorbs about 35% of ultrasonic energy. This significantly reduces the cleaning
effectiveness. Basket can reduce the friction between the items and the tank.
2. During cleaning, dirt will come off like a cloud and the water will become murky over time.
When the “cloud” stops coming, the cleaning is basically done.
B. Indirect Cleaning
Put the items in a separate container.
Use ultrasonic waves to penetrate the container
to do the cleaning.
Suitable Locations: Medical instrument sterilization rooms.
Different applications use different fluids to be used inside the
container.
1. Small instruments such as burs and files. Keep them
separate from main instrument cleaning.
2. Instruments that use a different solution such as
cement remover.
3. Instruments that use corrosive solution such as a
disinfectant that’s corrosive. Avoid contacting the plastic
housing with corrosive solutions.
4. Multiple patients’ dentures. Disinfect the container
after each patient.
Selection of the container:
1. Plastic containers – Plastics are soft and will absorb about 30-40% of ultrasound energy
and reduce the cleaning effect.
2. Aluminum containers – Absorbs about 20% of ultrasonic energy.
3. Glass containers – Absorbs about 5% of ultrasonic energy
4. Stainless steel containers – Absorbs about 8% of ultrasonic energy.
Optional stainless steel indirect cleaning tank is available with this model.
SD-485 US EN R1_StatClean user manual.indd 12 2016-06-09 12:58 PM

13
COMMON CLEANING METHODS
C.Enhanced cleaning.
Debris accumulated over a long period of time, heavily soiled.
Cleaning Method:
1. Large items can be put in the tank directly. Small items
can be put in the basket then put in the tank. Do not put
the items on top of each other to avoid rubbing during
cleaning.
2. Add chemicals to a level between MIN and MAX and
above the area to be cleaned.
3. Turn the power switch on. Press Temp key to set the
water temperature to 55ºC (131ºF). Press Heater key
to turn on the heater, flashes. Close the lid. LED
lights up. When water reaches the set
temperature, dims, indicating the heater is turned off.
4. Press Time key twice to set the timer to 15 minutes. Press
On/Off key to start cleaning.
5. When it stops, open the drainage valve to release the dirty
water. Close the valve afterwards.
6. Clean the tank and add fresh water. Wash the items for
another 3 minutes to remove the residual debris and the
detergent.
The heater has dual protection. It will be turned off automatically after 50 minutes.
D. Special cleaning
Silver, copper or brass items with oxidation which
has darkened the items will need special cleaning.
Cleaning Method:
1. Put the items in the basket and then in the tank, add water
to a level between MIN and MAX and above the area to be
cleaned.
2. Add special solution that can remove silver or copper
oxidation according to the ratio recommended.
3. Turn the power switch on. Press Temp key to set the water
temperature to 50ºC (122ºF). Press Heater key to turn on
the heater, flashes. Close the lid. LED lights
up indicating the percentage range of the set temperature
being reached. When water reaches the set temperature,
dims, indicating the heater is turned off.
4. Press Time key to set the timer to 15 minutes.
5. When it is done, remove the basket and the items. Rinse
the items with tap water or follow step 6 in the Enhanced
Cleaning section.
During cleaning, debris will come off the items like a cloud. Water will become murky. This method
will remove silver or copper oxidation and debris in the decorating patterns and crevices and
make the items like new again.
SD-485 US EN R1_StatClean user manual.indd 13 2016-06-09 12:58 PM

14
PRODUCT EXPLODED VIEW
SD-485 US EN R1_StatClean user manual.indd 14 2016-06-09 12:58 PM

15
No. Item Material
1 Top handle ABS
2 Lid-window AS
3 Lid-top ABS
4 Lid-bottom ABS
5 Top ring ABS
6 Stainless steel handle SUS 304
7 Basket foldable handle 1 ABS
8 Basket foldable handle 2 ABS
9 Plastic basket ABS
10 Silicon seal Silicone rubber
11 Stainless steel tank SUS 304
12 Left cover ABS
13 Left handle ABS
14 Left panel ABS
15 Inner tank ABS
16 Front cover ABS
17 Drain SUS 304
18 Washer AL
19 Nut AL
20 Hose Silicone rubber
21 Nut ABS
22 Spout ABS
23 Ball valve Standard part
24 Bracket ABS
25 Elbow ABS
26 Valve handle ABS
27 Bottom cover ABS
28 Power PCB 1 94V0
29 Power PCB 2 94V0
30 Cooling fan Standard part
31 Right handle ABS
32 Right panel ABS
33 Right cover ABS
34 Transducer PCB 94V0
35 Right panel ABS
36 Powerswitch PCB 94V0
37 Powerswitch Standard part
38 Powersocket Standard part
39 Cover holder ABS
40 Back cover ABS
41 Heater cover PA 6 6
42 Heaterpocket PA 6 6
43 Thermocouple holder ABS
44 Thermal cutoff A 0 - 3 A- F
45 Keypad 94V0
46 Light socket ABS
47 Control panel box ABS
48 Touch control panel AS
SD-485 US EN R1_StatClean user manual.indd 15 2016-06-09 12:58 PM

16
Do not turn on the unit without water in the tank.
Even though the unit is designed with multiple protections, if
it is turned on for over 15 seconds without water in the tank, it
may damage the unit or severely reduce the life of the unit.
A thermal switch is attached to the bottom of the cleaning
tank. If the unit is turned on accidentally without water in
the tank, the ultrasonic energy will not be transferred out
through the liquid and instead will be concentrated on the tank,
the temperature of the tank will continue to rise. If the heater is
turned on at the same time, the temperature of the tank will rise
rapidly. This will trigger the thermal switch to cut off power to stop
the ultrasonic transducer and the heater from running, hence to
prevent damages to the unit and fire hazard. The switch cuts off
power for approximately 6-10 minutes then reconnect the power
automatically.
Do not run the unit for extended time or continuously.
The unit is designed with overheat protection. If the unit has
been running for 45 minutes, it is recommended to stop the
unit for about 20 minutes to prolong the life of the unit.
Do not keep chemicals in the cleaning tank past the
lifecycle (expiration date) of the chemistry or when it looks
dirty.
After cleaning is completed, open the drainage valve to drain
the dirty water. Clean and wipe the tank dry.
Do not spray water over the housing.
Use a towel to wipe the tank and the housing dry.
Do not expose the unit under direct sunshine for a long
time.
Keep the unit in a dry, cool and ventilated area.
CARE AND MAINTENANCE
1
2
3
4
5
SD-485 US EN R1_StatClean user manual.indd 16 2016-06-09 12:58 PM

Suspendible plastic basket
Beaker and beaker holder
17
OPTIONAL ACCESSORIES
The basket has foldable handles.
It can be raised and suspended above water to drain water.
Place the beaker holder with beaker(s) across the top of the main cleaning tank
as shown. Add water to the main tank so the water level reaches the beaker(s).
Add solution inside the beaker(s). It can be used to clean small items such as
dental burs and files, nozzles, etc.
SD-485 US EN R1_StatClean user manual.indd 17 2016-06-09 12:58 PM

18
SPECIFICATIONS
SciCan Inc.
701 Technology Drive
Canonsburg, PA 15317
800-572-1211 • www.scican.com
Manufactured for:
SciCan Ltd.
1440 Don Mills Rd.
Toronto, Ontario M3B 3P9 Canada
1-800-667-7733 • www.scican.com
Warranty
This unit carries a one-year warranty for parts and labor for quality defects. Damages caused by
misuse or careless uses of the unit are not covered. Repaired unit is to be shipped to continental US
and Canada addresses only. Contact us first, then send the unit with a copy of the original invoice
or receipt back to:
Description StatClean Ultrasonic Cleaner
Model SC-P4862
Tank Capacity 6.0 L /
1.6 gallon (US)
Max. 5.0 L / 1.3 gallon
(US)
Min. 3.35 L / 0.9 gallon
(US)
Tank Size 32.3 x 20.5 x 9.9 cm / 12.7” x 8.1” x 3.9”
Longest Item Fits inside Tank 34.0 cm / 13.4”
Power Supply
260 W ( AC 100~120 V 50/60 Hz )
300 W (AC 220~240 V 50/60 Hz)
250 W (AC 100 V 50/60 Hz)
Digital Timer Settings 1 to 30 - minute full range timer
Drainage Drainage valve
Ultrasonic Frequency 35,000 Hz
Tank Material Stainless Steel SUS304
Housing Material ABS
Net Weight 7.5 kg / 16.5 lb
Gross Weight 8.6 kg / 19.0 lb
Unit Size 51.5 x 30.5 x 24.0 cm / 20.3” x 12.0” x 9.4”
Inner Carton Size 57.5 x 37.0 x 32.5 cm / 22.6” x 14.6” x 12.8”
Qty per Master Carton 1 pc /ctn
Master Carton Size 60.0 x 38.5 x 34.5 cm / 23.6” x 15.2” x 13.6”
SD-485 US EN R1
SD-485 US EN R1_StatClean user manual.indd 18 2016-06-09 12:58 PM
