scigiene SP-850062 User manual

Test Tube pH Pen
SP-850062, SP-850063,
SP-850065, SP- 850066 ,
SP-850067

CONTENTS
INTRODUCTION 2
FEATURES 3
MATERIALS SUPPLIED 3
FRONT PANEL DESCRIPTION 4
LCD DISPLAY 4
STANDARD CALIBRATION 5
CUSTOM CALIBRATION 6
MEASUREMENT PROCEDURES 8
TROUBLESHOOTING 13
ERROR CODES 14
BATTERY INSTALLATION& REPLACEMENT 14
CARE AND MAINTENANCE 17
SPECIFICATIONS 18
WARRANTY 19
INTRODUCTION
These Sper Scientific Test Tube pH Pens (Models
SP-850062/ 63 / 65 / 66 / 67) are designed for easy
calibration and simple, accurate measurement.
The 12 cm long probe is capable of testing
samples even in narrow-mouthed containers.
The waterproof meter provides one-button,
automatic three-point calibration. Calibration is
also possible within± 0.5 pH units of 4, 7, and
10. Other features include a data-hold function,
automatic shutoff andlow-battery indicator.
Models SP-850063 / 65 / 66 / 67 also measure
temperature and provide automatic temperature
compensation.
2

FEATURES
•Waterproof IP65 housing
•Hold function
•One-button, automatic three-point
calibration
•Automatic buffer recognition for calibration
accuracy
•Customizable calibration values within ± 0.5
units of 4, 7, and 10
•Measuring stability indicator
•Protective storage bottle with KCI storage
solution for sensor
•Low-battery indicator
•Automatic shutoff
•DualpH and temperature display
(Models SP-850063 / 65 / 66 / 67)
•Monitors temperature in °F or °C
(Models SP-850063 / 65 / 66 / 67)
MATERIALS SUPPLIED
•Meter with protective storage bottle for
sensor
•Two CR2032 button batteries
•Instruction Manual
3

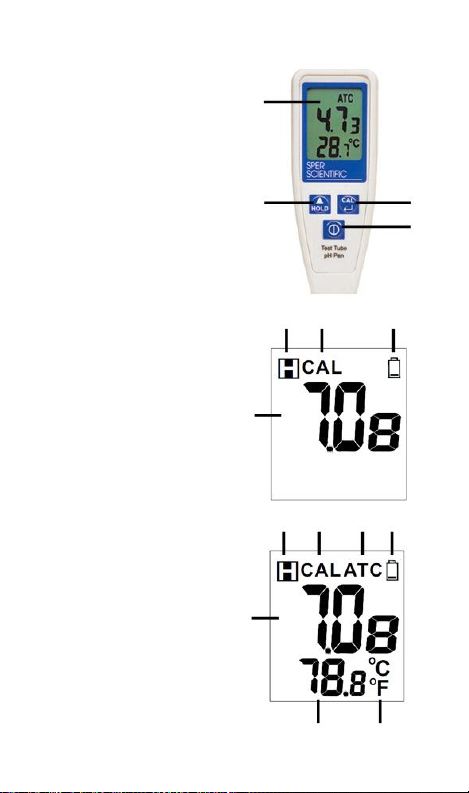

FRONT PANEL DESCRIPTION
1 LCD 1
2 HOLD
3. CAL(calibration)
4. Power 2
LCD DISPLAY
SP-850062
1.pHreading
2.Data-holdindicator1
3.Calibration
4.Low-battery icon

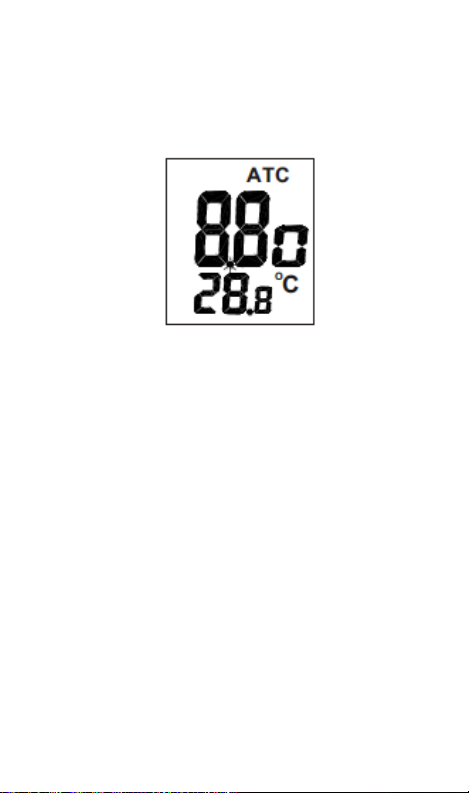

SP-850063 / 65 / 66 / 67
1.pHreading
2.Data-holdindicator
3.Calibration 1
4. Automatic Temperature
Compensation (ATC)
5.Low-battery icon
6.Temperature reading
7.Temperature units 4
3
4
2 3 4
2 3 4 5
6 7

STANDARD CALIBRATION
The meter should be calibrated regularly with
standard USA, NIST or DIN buffers to ensure
accuracy. If the meter is used frequently, daily
calibrationisrecommended.

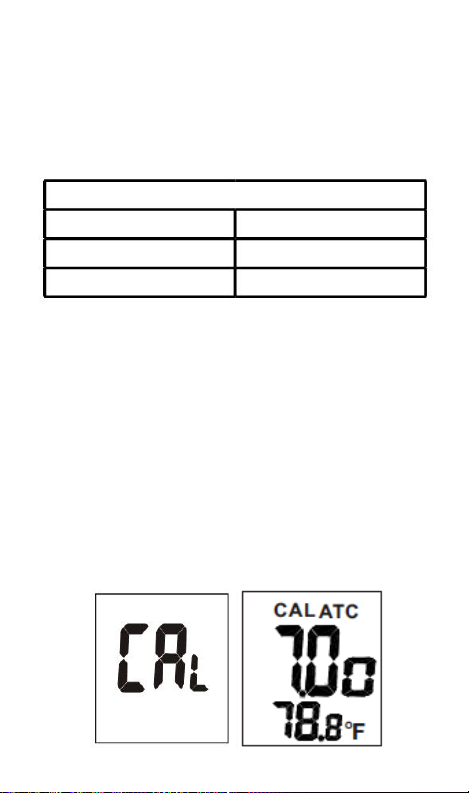

Voltage Range for Each Calibration Point
pH 4 00 97 mV to 250 mV
pH 7 00 -60 mV to 60 mV
pH 10 00 -250 mV to -97 mV
Calibration Procedure
1 PressPOWER buttontoturnthemeter on
2. Pour the pH buffer into a clean container
and place the electrode into the buffer. We
recommendstartingwithamiddlerange
buffer such as pH 7. Make sure the electrode is
completelyimmersedinthebuffer.
3 PressCAL toenterCalibrationMode.
“CAL”displays for one second, followed by the
pH value. Models SP-850063 / 65 / 66 / 67 also
displaythetemperature.
CALATC
F
5

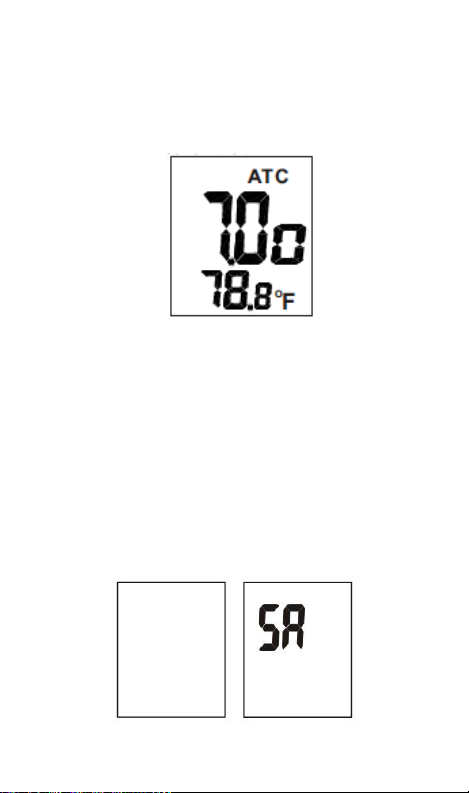

4. The meter will automatically recognize the
buffer value,whichwillshowonthescreen.
5.Waitup to10secondsand"SA"willshow
onthe screenindicatingthe calibration at
thatpoint iscomplete.
6. The meter will briefly display End and return
tonormalmode.
7. Repeat steps 2-5 for the pH 4 and 10
buffers.
CUSTOM CALIBRATION
During calibration mode, you can adjust the
buffer values to non-standard values. For
example,
4.00pHmaybeadjusted from
3.50 to 4.50.
7.00pHmaybeadjusted from
6.50 to 7.50.
10.00 pHmay beadjusted from
9.50 to 10.50.
1.Place the electrode inthe non-standard
buffer and press the CAL button. The meter
will display 4, 7, or 10 depending on which
is closest.
2.Pressandhold the Hold button.The
number on the screen will begin to change in a
positivedirection. 6

3. Continuetopresstheholdbuttonuntilyour
desiredpHsolution isdisplayed.Notethat
youmay havetogobeyond +0.5units to
get to a lower value.

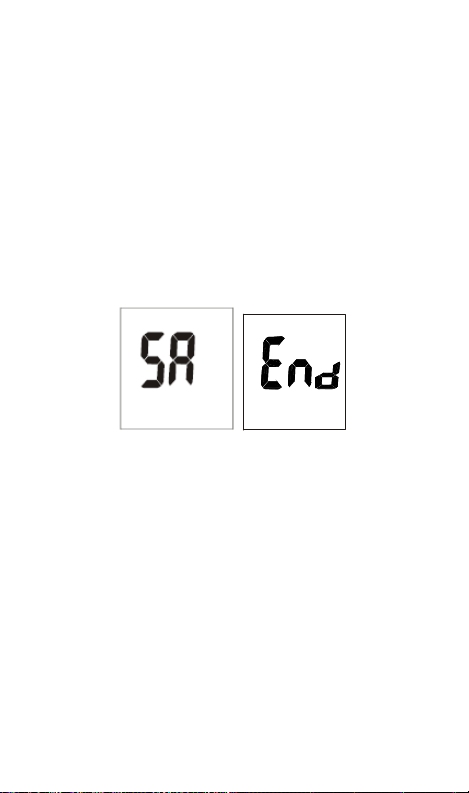

4. Onceyou have selectedthe desired buffer
value, releasethe holdbutton and wait
upto10seconds."SA"willdisplayonthe
screen
5. "End" displays and the meter returns to
NormalMode.
6. Rinse the probe with deionized water, a
rinse solution,ortap water.
7. Repeat steps 2-7 to calibrate the meter with
remainingbuffersolutions.
Note…
Ifthere isanerror due toa damagedor
incorrectlyinserted probe,orif thebuffer
voltageis outofrange,themeterwill
automaticallyexitcalibrationmodein10
seconds.“End”displaysfor one secondand
the meterreturns toNormalMode.
7

MEASUREMENT PROCEDURES
Note…
The electrode should besoakedfor atleast
10 -30minutes inKCLsolutionbefore
firstuse,orany timeit hasdriedout.Avoid
allowingtheprobeto dryout. Itis normalfor
whitecrystals tobepresent onthe capor
electrodeassembly.
1. Unscrew the storage bottle and remove it
fromtheprobe,exposingtheelectrode.
2. Place the electrode into the test solution.
3PressPOWER buttontoturnthemeteron
4.Stirtheprobegentlytocreatea
homogeneous sample and shorten the
stabilizingtime.
8

5. The pH decimal point will flash to indicate
thatthemeterisinMeasurementMode.
6.The pHvaluedisplaysontheLCD. Models
SP-850063/65 / 66/ 67also display the
temperature.
7 PressPOWER buttontoturnthe meter off
8. Rinse the electrode with deionized water, a
rinsesolution,ortapwater.
9. Store the probe in KCI solution when not
inuse.
9

Data Hold Function
1.Duringmeasurement,press HOLD to
freeze the readingonthedisplay.“H”
appears at the top of the LCD and the pH
decimalpointstopsflashing.
2 PressHOLD toreturntoNormal Mode.
10

Automatic Shutoff
Themeterautomaticallyturnsoff after 20
minutesofinactivity.Todisablethisfunction:
1. If the meter is on, press POWER button to
turnthemeter off
2. Press both POWER button and HOLD for
twoseconds.

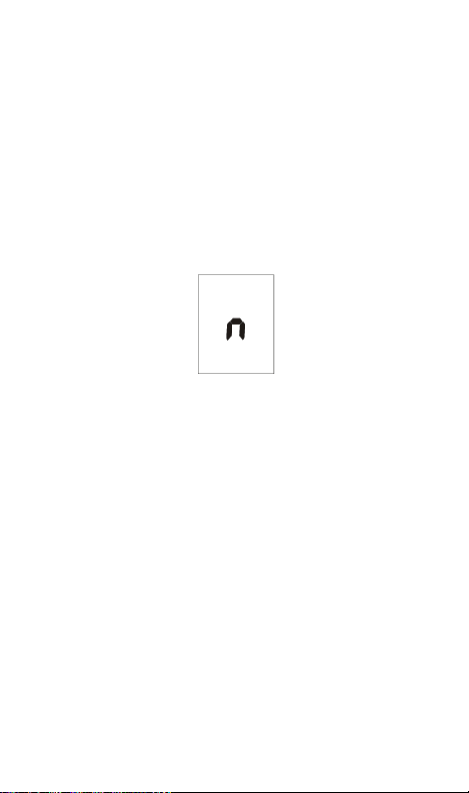

3.Themeterwillturnon and“n”willdisplay.
4. The meter returns to Normal Mode.
Automatic shutoff is nowdisabled.
Note…
The meter will default to automatic shutoff each
timeitis turnedoff.
11

Automatic Temperature Compensation
(Models SP-850063 / 65 / 66 / 67)
“ATC”displays at the top of the LCD. The
temperatureisdisplayed ineither°Cor°F.
To selectthetemperatureunit:
1. If the meter is on, press POWER to turn the
meteroff
2. Press and hold both POWER and CAL until
the temperatureunit appearsontheLCD.
3 Press HOLD to toggle between °C and °F. 4
Press CAL to save theselection.
5. “SA”displays for one second and the meter
returnstoNormalMode.
°C
12

TROUBLESHOOTING
Problem
The meter
will not turn
on / the
LCD display
is blank.
Response
time is slow
Rapidly
Actuating
pH value
Action
Press POWER button for more
than0.1seconds.
Check whether the batteries are
correctly inserted.
Remove the batteries for one
minuteand thenreinstallthem.
Replace the old batteries with
newones.
Cleantheprobebyimmersing
theelectrodeintapwaterfor10-
15minutes.Rinsethoroughlywith
distilledwateroruseageneral-
purposeelectrodecleaner.
Thisisnormalwhentheelectrode
isexposedtoair.Thevaluewill
stabilizewhenthe electrodeis
immersedinasolution.
13

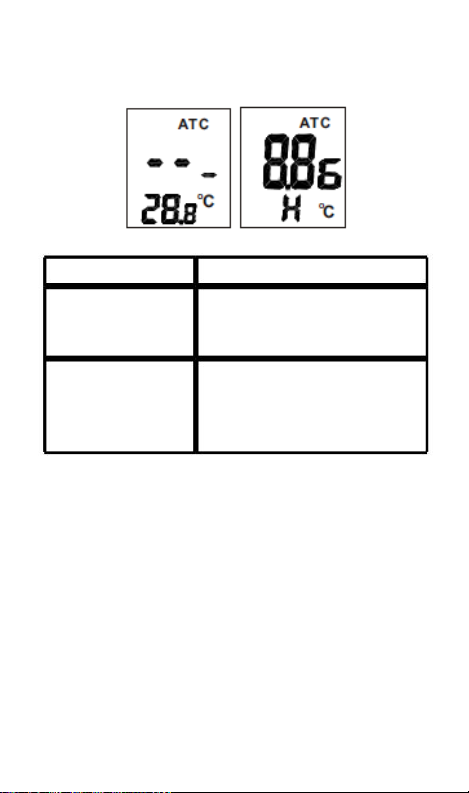

ERROR CODES
Error Code Description
The pH reading ThepHvalueis outofrange:
displays “- - -”the solution is tooacidicor
tooalkaline
The temperature Thetemperaturevalueisout
reading displays of range:the temperature is
“H”or “L”toohighor toolow
(Model SP-850063)
BATTERY INSTALLATION AND
REPLACEMENT
Note…
Remove the batteries when the meter will not be
usedfor onemonth orlonger.
Thismeter uses two CR2032 button
batteries, which should provideover100
hours ofcontinuoususe. When the low
battery indicator appears on the LCD, battery
replacementisneeded.
14

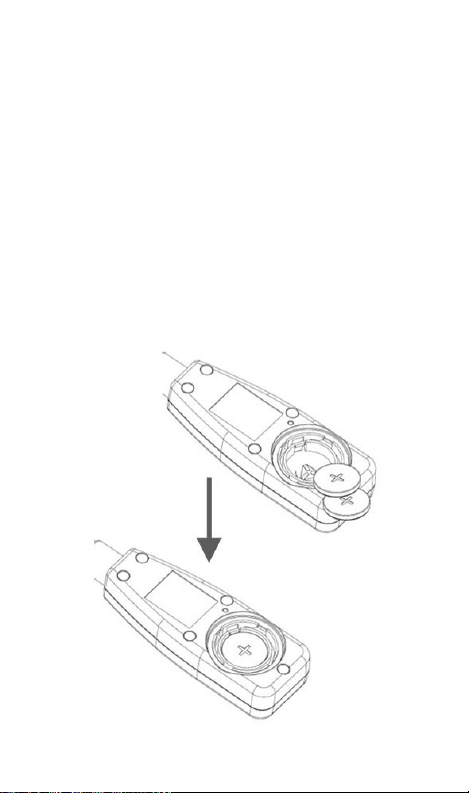

1. If the meter is on, press POWER button to
turnthemeter off
2.Removethebatterycover ontheback
ofthemeter byusing theslot toturnit
clockwise.Thecoverwillnowcomeoff
easilywhenyouturnthetimer over.
(Take carenottodiscardthewasherin
the battery compartment.)
3.Removetheoldbatteriesand replace
with 2newCR2032 buttoncellbatteries,
ensuringcorrect polarity.
15

4. Replace thebattery cover,positioning
thetabssothatthecoverisflushwith
themeter.
5. Secure the cover by turning it
counter-clockwise.
Note…
Recalibrate the meter after replacing the
batteries.
16

CARE AND MAINTENANCE
The electrode should besoakedfor atleast
30 minutes beforefirst use,or anytime ithas
dried out. Itisnormalfor whitecrystalstobe
presentonthe cap orelectrode assembly.
Always handle andstore theelectrode
with care.
•Do NOT touch, wipe or rub the tip of the
electrode.
•The pH tip must always be kept moist. Place
it in the protective storage bottle containing
KCIstoragesolutionwhenever itis notinuse.
•Rinsetheelectrodeindeionizedwater,a
rinse solution, ortap waterbeforeeach use.
•Rinse the electrode in deionized water
betweenmeasurements.
If the electrode has been exposed to a solvent
immisciblewithwater:
•Clean it with a solvent miscible with water, such
as ethanol oracetone.
•Rinsetheelectrodecarefully with water.
17

SPECIFICATIONS
SP-850062
SP-850063
SP-850065/66/67
ATC
N/A
0 - 50°C /
32 - 122°F
0 - 50°C /
32 - 122°F
Range Res Accuracy
±0 2
0 - 14.00 0 01 ±0 1
2 -12.00 0 01 ±0 1
Temperature
Operating
Temperature
Operating
RH%
Storage
Temperature
Storage RH%
LCD Display
Dimensions
Weight
0 - 50°C / 32 - 122°F 0.1°C/°F ±1°C / 2°F
0 - 50°C / 32 - 122°F
< 80%
-10 - 50°C / 14 - 122°F
< 90%
29 x 22.5 mm
235 x 35 x 25 mm (9¼" x 1¼”x 1") Pen -
115 x 35x25mm(4½" x1¼"x1") Probe -
120 x 12 mm (4¾" x ½")
71 g (2.5 oz)
18

WARRANTY
This warranty does not cover damage resulting
from accident, misuse, or abuse of the product.
To obtain warranty service, contact your Distributor:
SCIGIENE CORPORATION
Tel:[phone]
Email: [e-mail]
Be sure to include a description of the problem
and your return address.
19

Rev. 03/01/2019
