Scott S1 CARBON User manual

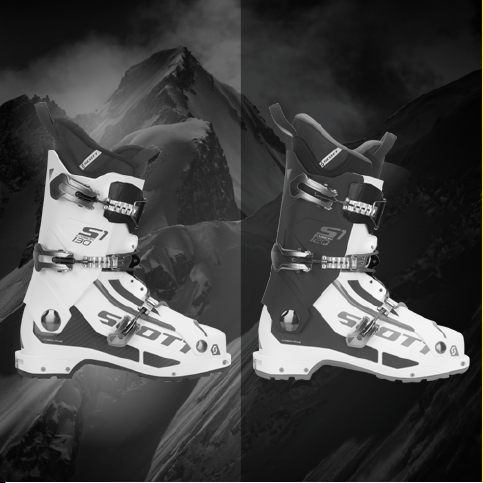

S1 CARBON &
S1 CARBON LONGFIBER

ENGLISH
FOR ANY QUESTIONS REGARDING PROPER FITTING OR USE OF
SCOTT BOOTS, WE RECOMMEND CONSULTING
YOUR AUTHORIZED SCOTT RETAILER.
ENTRY/EXIT
According to the shape of your foot, you will probably have a prefer-
ence between one of two ways to enter/exit the boots:
› FOR BOOT ENTRY OR EXIT WITH THE S1 LINER IN THE SHELL,
it’s easy with the cu in walk mode. The Buckle Cable System auto-
matically hinge out of the way so that you can open the Ergonom-
ic Tongue for the easiest entry. Before you step into the boot, be
sure that the liner’s laces are loose, particularly the bottom laces.
With the liner in the shell, and the cu in open “walk” position (open
buckles), hinge the tongue forward and step into the boot.
›FOR BOOT ENTRY WITH THE LINER ON YOUR FOOT, first put
on the liner and snug down the laces comfortably. Open all the
buckles and the Ergal mirco-adjustable buckles automatically
hinge out of the way. Hinge the Ergonomic Tongue forward and,
toe first, step into the shell.

BUCKLE ADJUSTMENT
All S1 BOOT BUCKLES have a threaded micro adjustment as well as
the larger adjustment aorded by its toothed buckle catch.
ADJUSTING THE BUCKLES FOR DOWNHILL SKIING
›FOOT ADJUSTMENT: Be sure that the foot is all of the way back
in the boot, the heel securely in the heel pocket. Using the lower
shell buckles, choose a tooth that snugs the boot comfortably
around the foot. Turn the buckle’s metal rectangle clockwise
(tighten) or counter-clockwise (loosen) for fine adjustment.
›CUFF ADJUSTMENT: Choose a tooth that snugs the cu com-
fortably around the leg and buckle the cu buckle(s). Turn the
buckle’s metal rectangle clockwise (tighten) or counter-clockwise
(loosen) for fine adjustment. Then tighten the Buckle Strap Sys-
tem. Flex your leg back and forth a few times to see if the buckles
or Buckle Strap System need further adjustment.
›NOTE: Some skiers prefer to first snug down the Buckle Strap
System, then adjust the buckles. By tightening the Buckle Strap
first, it makes it easier to close the buckles.
ADJUSTING THE BUCKLES FOR WALKING
›Open the cu buckle(s). You can leave the buckle bail in its place
so that it is quick to switch back to ski mode. BE SURE TO ALSO
LOOSEN THE Buckle Strap System and hook it on the Lock Catch
on the inside of the cu.

THE WALK MECHANISM’S WALKING/SKIING MODE
S1 Boots have a locked forward lean position for downhill skiing, or
hinge freely for walking and climbing.
›FOR WALKING, OPEN THE CUFF BUCKLES as described above.
›FOR DOWNHILL SKIING, close all the buckles and you will be in
ski mode.
ADJUSTING S1 CUFF DIAMETER
›The Buckle Strap System is attached with threaded, hexkeyed
T-NUTS that can be moved 65 mm (outside) and 20 mm (inside)
forward or back to accommodate a variety of lower leg diameters.
To adjust the Buckle Strap System for larger or more slender lower
legs, remove the T-nut with the included 3 mm hex key, move the
T-nut toward the inside of the boot for a smaller diameter, the
outside of the boot for a larger diameter and thread the 3 mm bolt
in the T-Nut and snug it down securely.
CHANGING SOLE
›To change your sole you only need a #3 Posi-Drive Screwdriver.
First remove the sole’s fixing bolts. Set the bolts aside where you
won’t lose them. Remove the sole by lifting the toe first. Once
your soles are o of the shells, put the shell aside with its appro-
priate right or left sole. Choose one of the shells and push the new
Sole Set straight in. Replace the fixing bolt and snug it down.
