Patio Weed Sweeper
INSTRUCTION MANUAL
Please retain for reference

2
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Table of contents
I. Technical Data...................................................................................... 3
II. Intended Use....................................................................................... 4
III. Explanation of Symbols on your product........................................... 4
IV. Safety Instructions............................................................................. 4-10
V. Part Identification.............................................................................. 11-12
VI. Assembly........................................................................................... 13-14
VII. Operation......................................................................................... 15-16
X. Maintenance and Servicing................................................................ 16

3
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
I. Technical Data
Mains Voltage
230-240V ~ 50 Hz
Power Input
140W
Idling Speed
1200min-1
Maximum Brush Diameter
100mm
Protection Class
II/回
Weight
2.37KG

4
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
II. Intended Use
This Patio Weed Sweeper is intended for the removal of weeds in between paving stones and patio
slabs in private domestic gardens and allotments. If used for purposes other than those intended,
this will invalidate your guarantee.
III. Explanation of Symbols on your product

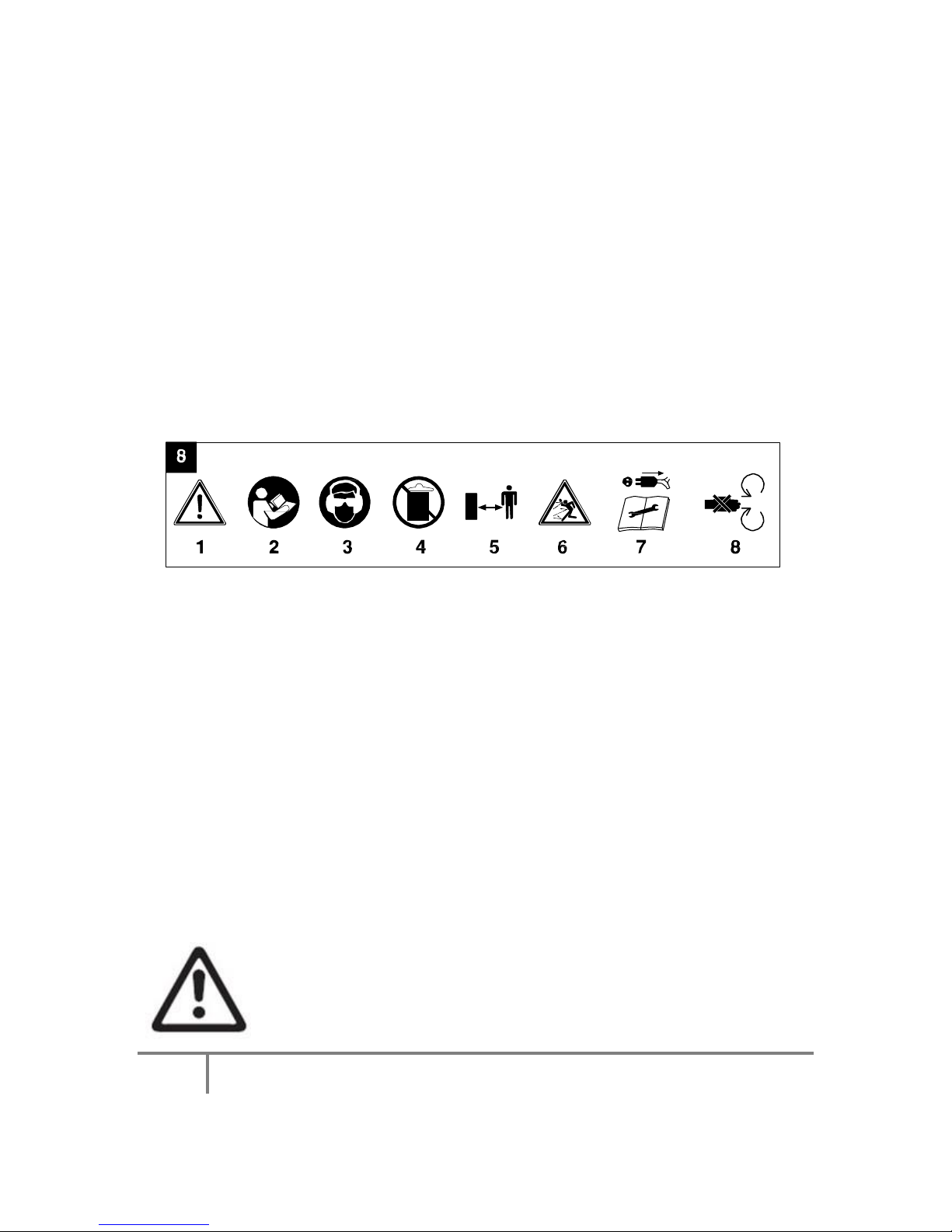

(See Fig. 8 above)
1. Important.
2. Read the directions for use before operating the tool.
3. Wear goggles and ear protectors.
4. Do not use the tool in rain or snow. Do not expose the tool to wet conditions.
5. Keep all other persons away from the working area.
6. Beware of objects ricocheting out of the guard.
7. Switch off the tool and pull out the power plug before carrying out any cleaning or
maintenance work.
8. Rotating parts. Keep your hands and feet away from the brush.
IV. Safety Information
If this product is not used properly it can be dangerous. The warnings and
safety instructions must be followed to ensure reasonable safety and
efficiency in using this product. The operator is responsible for following
the warnings and instructions in this manual and on the product. Never

5
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
use the product unless the guards provided by the manufacturer are in the
correct position.
For safety reasons, children under the age of 16 and people not familiar with
these operating instructions must not use this Patio Weed Sweeper.
Persons with reduced physical or mental abilities may use the Patio Weed
Sweeper only if they are supervised or instructed by a responsible person.
General Power Tool Safety Warnings
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and /or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery
operated (cordless) power tool.
Work area safety
a) Keep work area clean and well lit- Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust- Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool- Distractions may cause an
accident.
Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adaptor plugs with earthed (grounded) power tools- Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators- There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions- Water entering a power tool will increase
the risk electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts- Damaged or entangled cords increase
the risk of electric shock.

6
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use- Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply- Use of an RCD reduces the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication- A
moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection- Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool- Carrying power tools with your
finger on the switch or energising power tools that have the switch on can cause an accident.
d) Remove any adjusting key or wrench before turning the power tool on- A spanner or an allen
key left attached to a rotating part of the power tools may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times- This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts- Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used- Use of dust collection can reduce dust-related hazards.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application- The correct power
tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off- Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools- Such preventive safety
measures reduce the risk of starting the power tool accidentally.

7
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool- Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use- Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean- Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed- Use of the power tool for
operations different from those intended could result in a hazardous situation.
Service
Have your power tool serviced by a qualified repair person using only identical replacement
parts- This will ensure that the safety of the power tool is maintained.
Patio Weed Sweeper safety warnings
• Keep all parts of the body away from the weed sweeper brush. Do not remove cut material or
hold material to be cut when the brush is spinning. Make sure the machine is unplugged from the
power supply when clearing jammed material- A moment of inattention while operating the Patio
Weed Sweeper may result in serious personal injury.
• Carry the Patio Weed Sweeper by the handle with the weed sweeper brush stopped. When
transporting or storing the Patio Weed Sweeper always fit the cutting device cover- Proper
handling of the patio weed sweeper will reduce possible personal injury from the cutter blades.
• Keep cable away from the sweeping area- During operation the cable may be hidden in between
slabs and can be accidentally cut or damaged by the weed sweeper brush.
Additional Safety Recommendations
Work area safety

8
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Only use the product in the manner and for the functions described in these instructions. The
operator or user is responsible for accidents or hazards occurring to other people or their property.
Electrical safety
The British Standards Institute recommends the use of a Residual Current Device (R.C.D.) with a
tripping current of not more than 30mA. Check your R.C.D. every time you use it. Before use,
examine the mains power cable for damage –if it is damaged do not use it.
Do not use the product if the electric cables are damaged or worn.
Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is
damaged. Do not touch the electric cable until the electrical supply has been disconnected.
Your electric cable must be untangled. Tangled cables can overheat and reduce the efficiency of
your product.
Always switch off at the mains before disconnecting any plug, cable connector or extension cable.
Switch off, remove plug from mains and examine electric supply cable for damage or ageing before
winding cable for storage. Do not repair a damaged cable. Replace it with a new one.
Always wind cable carefully, avoiding kinking.
Use only on AC mains supply voltage shown on the product rating label.
Under no circumstances should an earth be connected to any part of the product. This product is
double insulated and does not require an earth.
Cables
Use only permitted extension cables as per HD 516. →Ask your electrical specialist.
Personal safety
Always wear suitable clothing, gloves, and shoes.
Thoroughly inspect the area where the product is to be used and remove all wires and other
foreign objects.

9
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Before using the product and after any impact, check for signs of wear or damage and repair as
necessary.
Never attempt to use an incomplete product or one with an unauthorised modification.
Incomplete or modified products are potentially dangerous and will invalidate your guarantee.
Power tool use and care
Know how to stop the product quickly in an emergency.
Never hold the product by the guard.
Do not use the product if the protection equipment (hand protection, 2-hand safety switch,
protection cover, quick blade-stop) are damaged.
Do not use ladders whilst operating the product.
Remove the plug from the mains:
Before leaving the product unattended for any period.
Before clearing a blockage.
Before checking, cleaning or working on the appliance.
If you hit an object. Do not use your product until you are sure that the entire product is in a safe
operating condition.
If the product starts to vibrate abnormally, check immediately. Excessive vibration can cause
injury.
Before passing to another person.
Maintenance and storage
RISK OF INJURY!

10
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Do not touch weed sweeper brush.
When finishing or interrupting work fit protective cover.
Keep all nuts, bolts and screws secure to be sure the Patio Weed Sweeper is in a safe working
condition.
Store disconnected, in a safe dry environment out of the reach of children.

11
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107

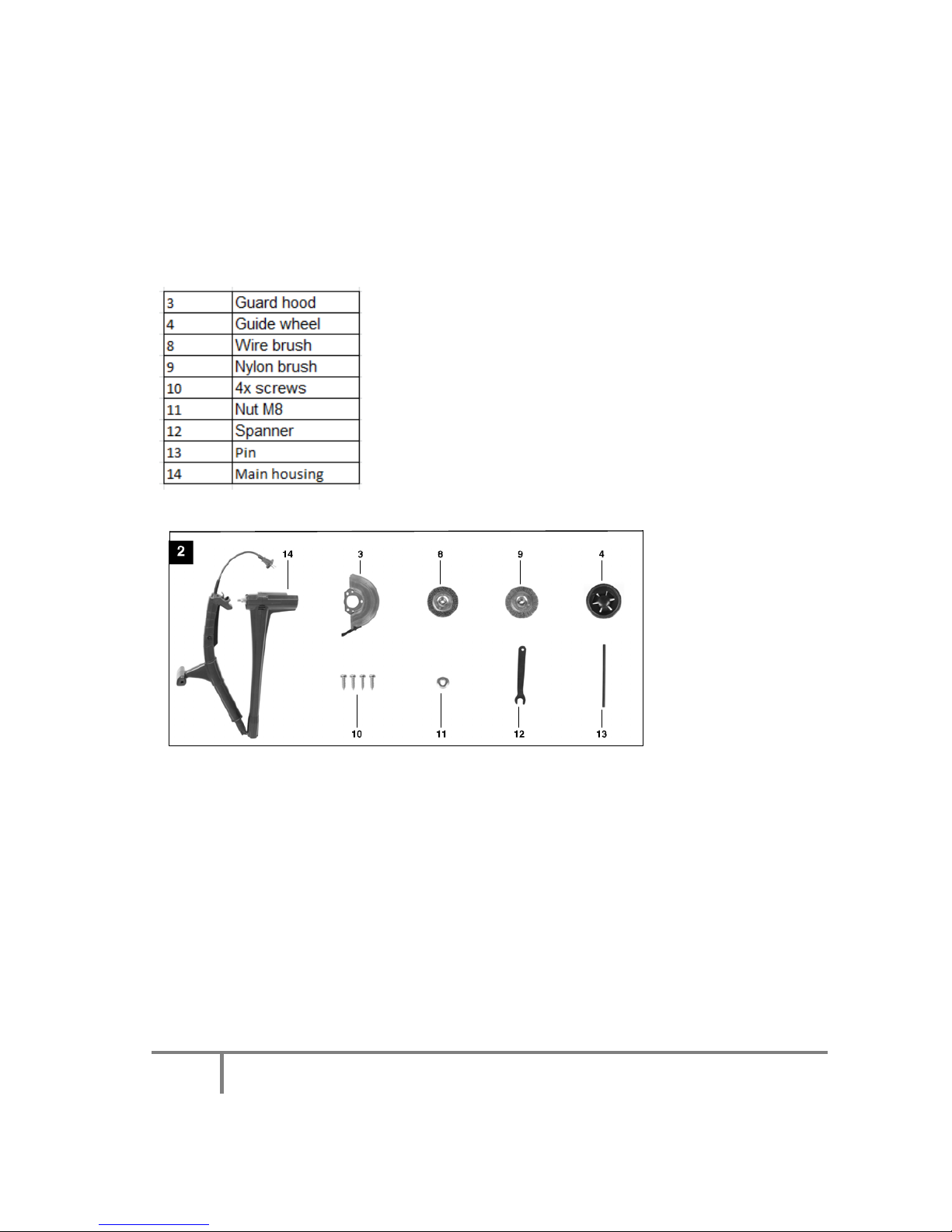

V. Part Identification

12
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Open the packaging and take out the equipment with care. Remove the packaging
material and any packaging and/or transportation braces (if available). Check to see if all
items are supplied. Inspect the equipment and accessories for transport damage. If
possible, please keep the packaging until the end of the guarantee period.
IMPORTANT
The equipment and packaging material are not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of swallowing or suffocating!

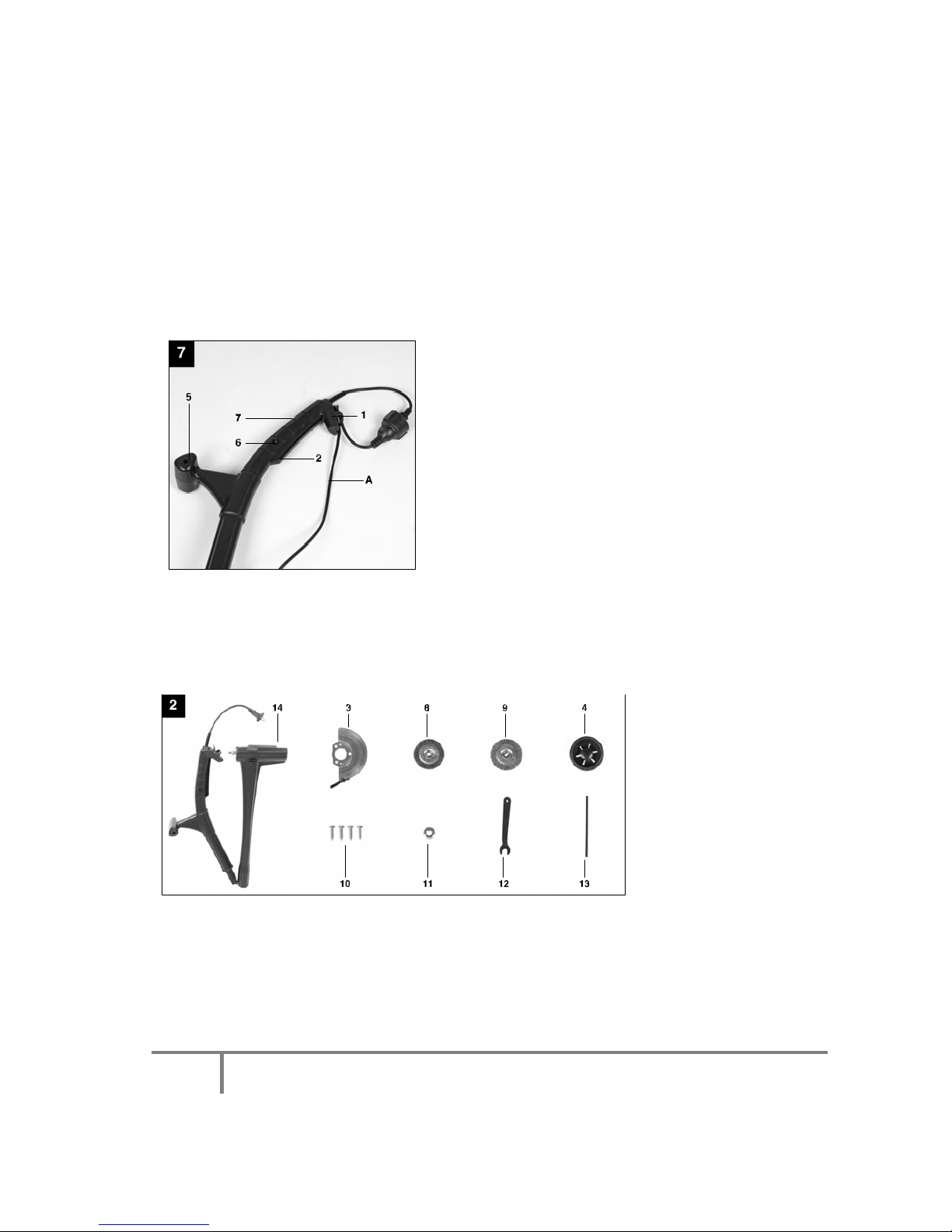

(See Fig. 2 below)

13
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
VI. Assembly
This product requires assembly.
Carefully remove the product from the box.
Inspect the product carefully to make sure no breakage or damage has occurred during
shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
BEFORE ASSEMBLY Firstly unpack and check all parts have been supplied. If you think any
parts are missing, first check the packaging again before calling the Scotts and co helpline on
0344 482 1107.
WARNING:
If any parts are damaged or missing, do not operate this product until the parts
are replaced. Failure to follow this warning could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create accessories not recommended for
use with this product. Any such alteration or modification is misuse and could
result in a hazardous condition leading to possible serious personal injury.
WARNING:
Do not connect to power supply until assembly is complete. Failure to comply
could result in accidental starting and possible serious personal injury.
Before you connect the equipment to the power supply make sure that the data on the rating
plate is identical to the supply voltage. Always pull out the power plug before making
adjustments to the equipment.

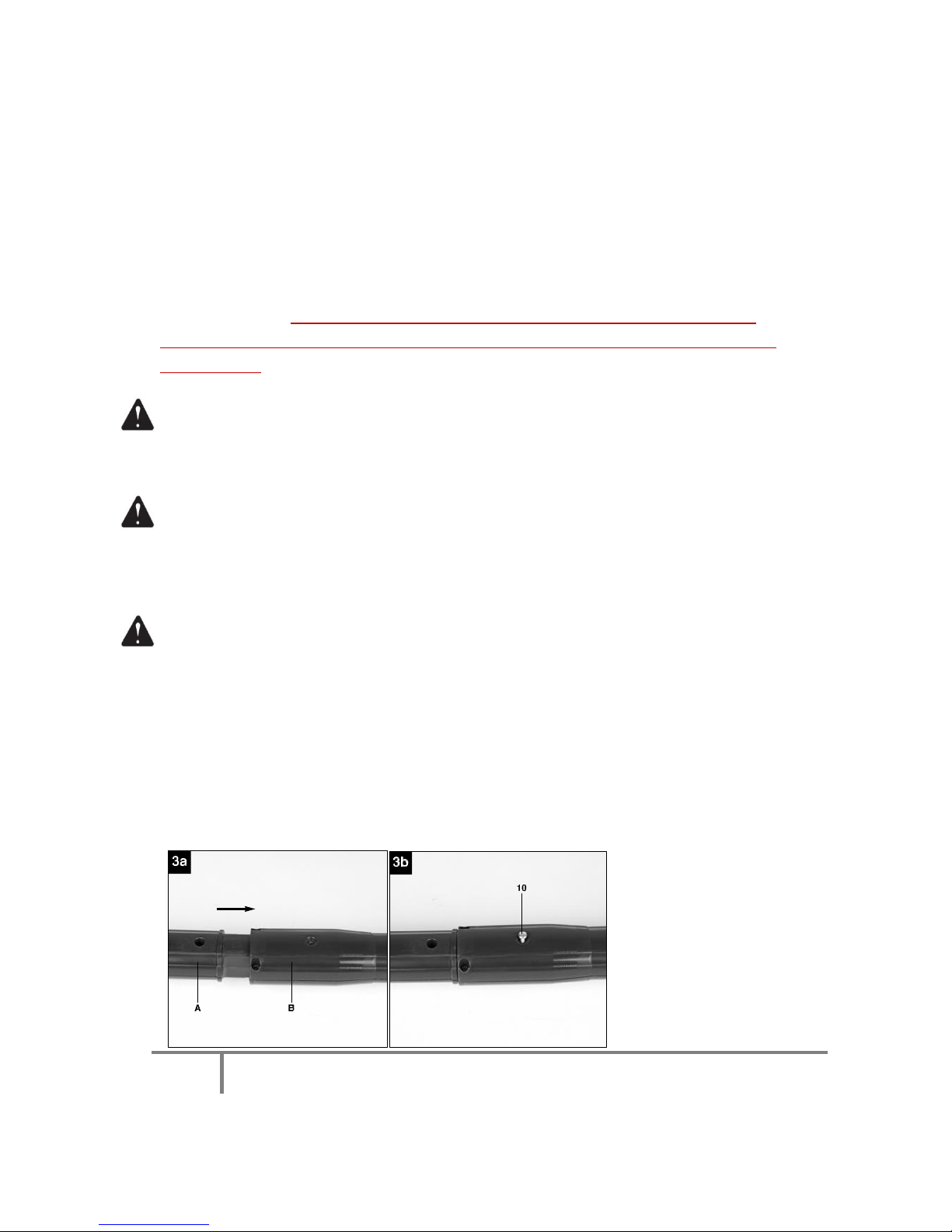

Plug the top part of the housing (Fig. 3a/Item A) and the bottom part of the housing (Fig.
3a/Item B) together and secure with one screw on each side (Fig. 3b/Item 10).

14
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Insert the guide wheel (Fig. 4/Item 4) into the aperture in the main housing (Fig. 4/Item
A). Make sure that there is an audible click when it engages.
Clip on the guard hood (Fig. 5/Item 3) as shown in Figure 5 and secure with 2 screws (Fig.
5/Item 10). Fit the brush (Fig. 6a/Item A) onto the drive axle (Fig. 6a/Item B). Make sure that
the brush fits accurately into the mount (Fig. 6a/Item C). The shaft must be fixed in order to
fasten the brush. To do so, insert the pin (Fig. 2/Item 13) into the recess on the shaft (Fig.
6b) and hold with one hand. Use the open-ended wrench (Fig. 2/Item 12) to secure the nut
(Fig. 6b/Item11).
Important: Be sure to remove the pin again from the shaft.
To dismantle the equipment for changing the brush, proceed in reverse order.

15
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
VII. Operation
The tool can be plugged into any socket-outlet (with 230 V AC) that is equipped with a 10A
fuse or higher. The socket-outlet has to be safeguarded by an earth leakage circuit breaker
(ELCB). The operating current must not exceed 30 mA. Insert the tool plug into the power
cord coupling (extension). Secure the power cable (Fig. 7/Item A) with the strain-relief clip
(Fig. 7/Item 1) found on the equipment as shown. To switch on the equipment hold the safety
lockoff (Fig. 7/Item 6) and press and hold the ON/OFF switch (Fig. 7/Item 2). To switch off,
release the ON/OFF switch (Fig. 7/Item 2).
One steel brush (Fig. 2/Item 8) and two nylon brush (Fig. 2/Item 9) are supplied with the
equipment. The wire brush is suited for use on robust surfaces and obstinate weeds. We
recommend using the nylon brush for light vegetation and surfaces too sensitive for the
steel brush.
Important: Always carry out a short trial run to check out possible effects on the surfaces of
the paving stones or slabs before starting with your work. Never use the equipment on very
sensitive surfaces, for example tiles.
Important: Only use brushes which are in good condition. Replace excessively worn or
damaged brushes immediately.

16
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
Always use both hands to operate the equipment.
Guide the equipment along the joints at a walking pace.
For uniform results, carry out your work at a constant speed.
If necessary, guide the equipment along the same joint several times.
X. Maintenance and Servicing
Always pull out the power plug before starting any cleaning work.
Cleaning
Keep all safety devices, air vents and the motor housing free of dirt and dust as far as
possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low
pressure. We recommend that you clean the equipment immediately after you use it. Clean
the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents
or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no
water can get into the interior of the equipment. Clean the guard hood with a brush upon
evidence of dirt and grime.
Carbon brushes
In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.
Important: The carbon brushes should not be replaced by anyone but a qualified electrician.
Servicing
There are no parts inside the equipment which require additional maintenance.
Storage
Store the equipment and accessories out of children’s reach in a dark and dry place at
above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store
the electric tool in its original packaging.

17
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
Enquiries: 0344 482 1107
*DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
The crossed out Wheelie Bin logo is used to highlight electrical products that should not
be disposed of with normal household waste. Scotts Ltd. has contributed to the funding
of an alternative network of UK recycling facilities. Please visit www.recycle-more.co.uk
to find where your nearest recycling point is and recycle this product at the end of its
life.
回
Made in China
for
Scotts Ltd.
