screwfix E15LF1U User manual

GB
IE
Radiant panel heater
Version : 06
Model EAN
E15LF1U 1500W 3663602910947
This product is only suitable for well insulated
spaces or occasional use.

2
Getting started...
Safety 3-5
Before you start 6
Quick start 7-10
In more detail…
Trouble shooting 11
Maintenance and cleaning 12
Environmental protection 13
Technical specications 13-14
Installation 15
This instruction manual is important to your safety.
Read the entire manual carefully before using the appliance and
keep it for future reference.
Let’s
get started...

3
PLEASE READ THE SAFETY ADVICE CAREFULLY
BEFORE USING THE APPLIANCE
Warning : risk of re, electric shock, physical injuries and
material damage.
Before using this appliance, always follow the safety
advice during assembly, use and maintenance.
SAFETY ADVICE
- This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
- Children of less than 3 years should be kept away
unless continuously supervised.
- Children aged from 3 years and less than 8 years shall
only switch on/o󰀨 the appliance provided that it has
been placed or installed in its intended normal operating
position and they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform
user maintenance.
- CAUTION : Some parts of this product can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are
present.
Safety
...

4
PLEASE READ THE SAFETY ADVICE CAREFULLY
BEFORE USING THE APPLIANCE
- WARNING : In order to avoid overheating, do not
cover the heater.
- If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
- The appliance must not be used outdoors.
- The appliance is intended for domestic use only. Do not
use this appliance for anything other than its intended
purpose.
- Do not operate the appliance in a room where ammable
liquids, solvents or varnishes are stored and/or where
ammable vapours may exist.
- The appliance must be placed at a minimum distance of
one metre from ammable materials and objects (curtains,
bedding, textiles, paper, etc.)
- Do not attempt to disassemble this appliance, repair it or
perform any modications yourself. This appliance does
not contain any parts that can be used separately.
- Keep plastic packaging out of the reach of children.
- Air inlet and outlet vents must not be covered or obstructed
under any circumstances. Do not insert any objects into
these vents.
- Do not exert pressure on or hit the walls of the appliance.
- The appliance must be set upright on its feet.
- The appliance must be set on a horizontal, at, stable and
heat-resistant surface. Any other position is potentially
dangerous.
Safety

5
PLEASE READ THE SAFETY ADVICE CAREFULLY
BEFORE USING THE APPLIANCE
- Do not use this heater in the immediate surroundings of
a bath, a shower or a swimming pool. Keep the appliance
dry.
-The appliance must be unplugged after use and before
moving or cleaning it. Do not unplug it by pulling on the
power cord.
- The heater must not be located immediately below a
socket-outlet.
- CAUTION : In order to avoid a hazard due to inadvertent
resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on
and o󰀨 by the utility.
- Information on appliance installation is provided in the
Installation section on page 15.
- Always make sure the feet are installed on your appliance
when using it.
- CAUTION : do a professional install according to installation
standard in each country.
- Before connecting the appliance, be sure that the
mains voltage available matches that specied on the
rating plate.
IMPORTANT : KEEP THIS INFORMATION FOR
FUTURE REFERENCE. READ CAREFULLY.
Safety

6

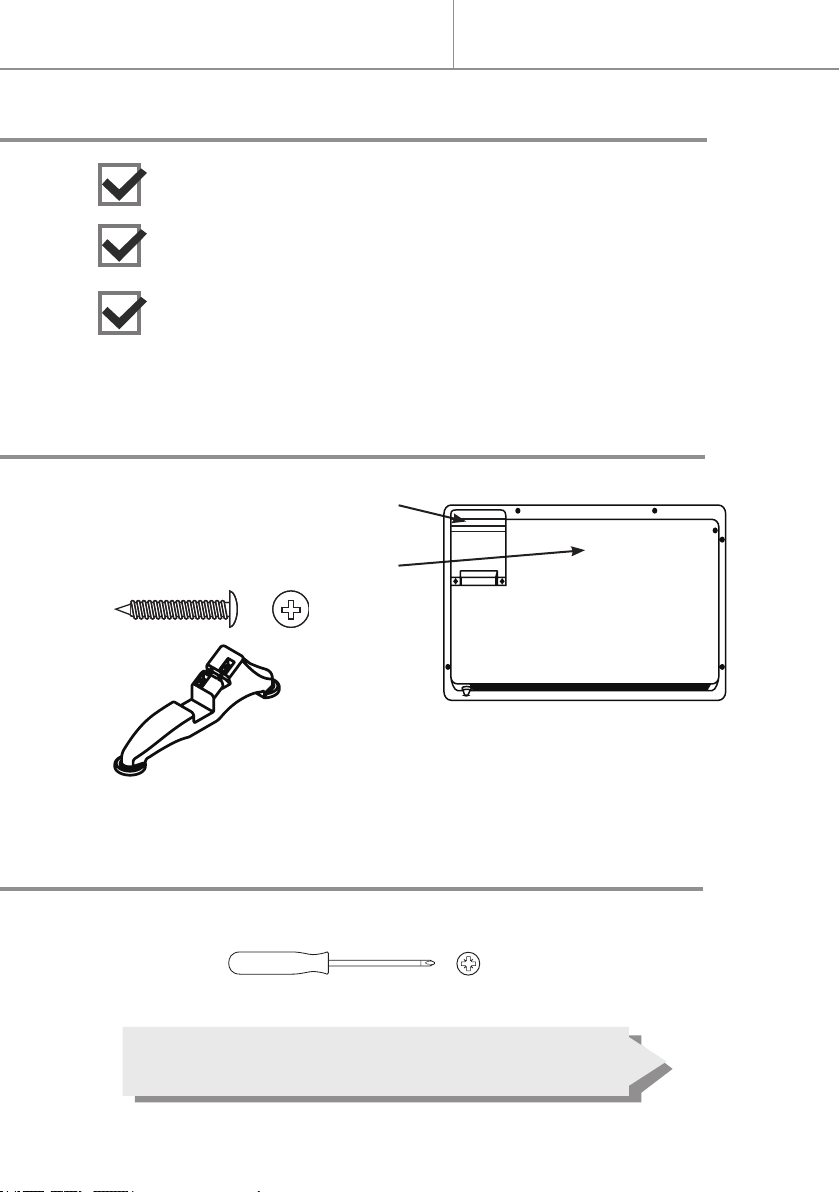

Your product
Points to check before beginning
Before you start
For domestic use only.
Children or any other persons incapable of using the appliance
safely must not use this appliance.
Please discard of plastic packaging appropriately and keep it out
of reach of children.

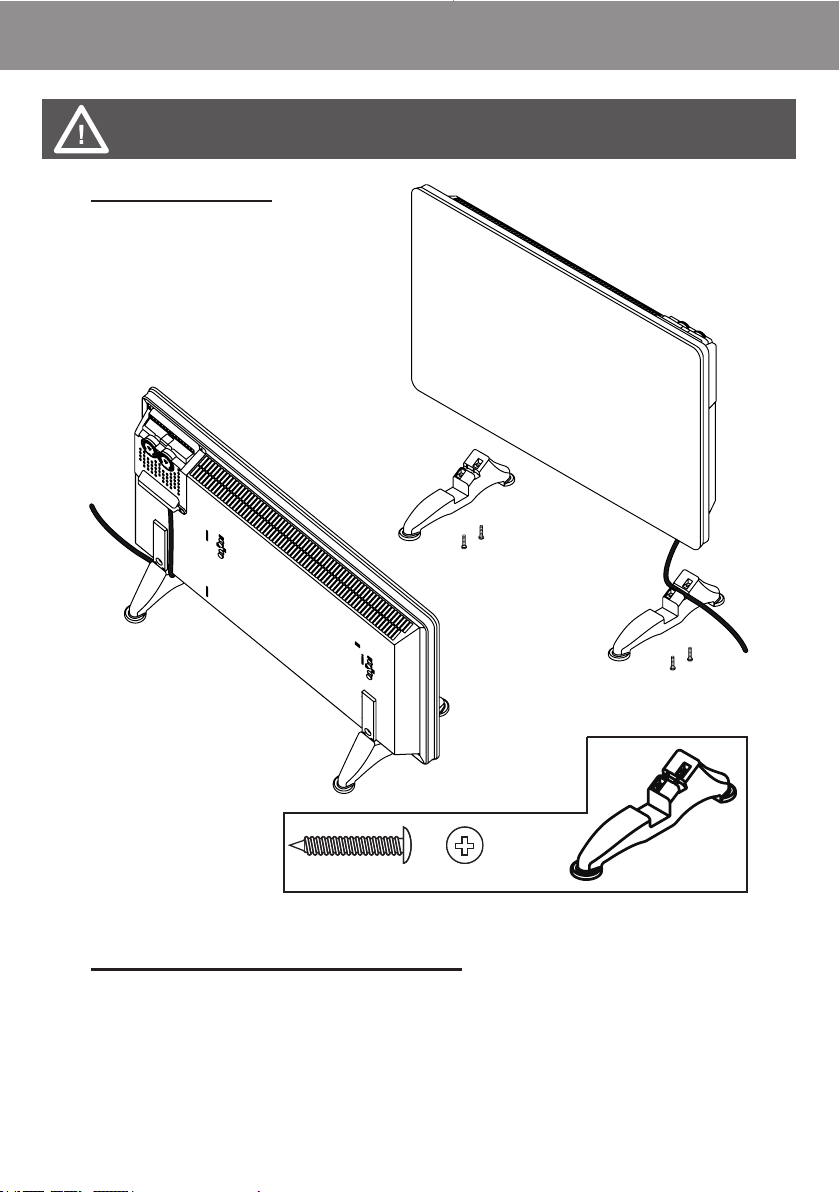

To install your product, please read the installation
guidelines at the end of the instruction manual.
You need (no included)
1 : Control panel
2 : Main part
x4
x2
1
2
1 screwdriver

7
The controls
Mode Temperature
selection setting
Heating LED
STOP HEATING (the appliance is in standby mode)
- In position, the appliance stops heating ; the red light
remains o󰀨.
This position can be used to stop heating momentarily (to
air the room).
The heating LED comes on when the appliance is in heating mode. It
switches on and o cyclically.
SELECTING COMFORT MODE
.
- The appliance is continually in Comfort mode (no eco pro-
gramme).
.
Quick start

8

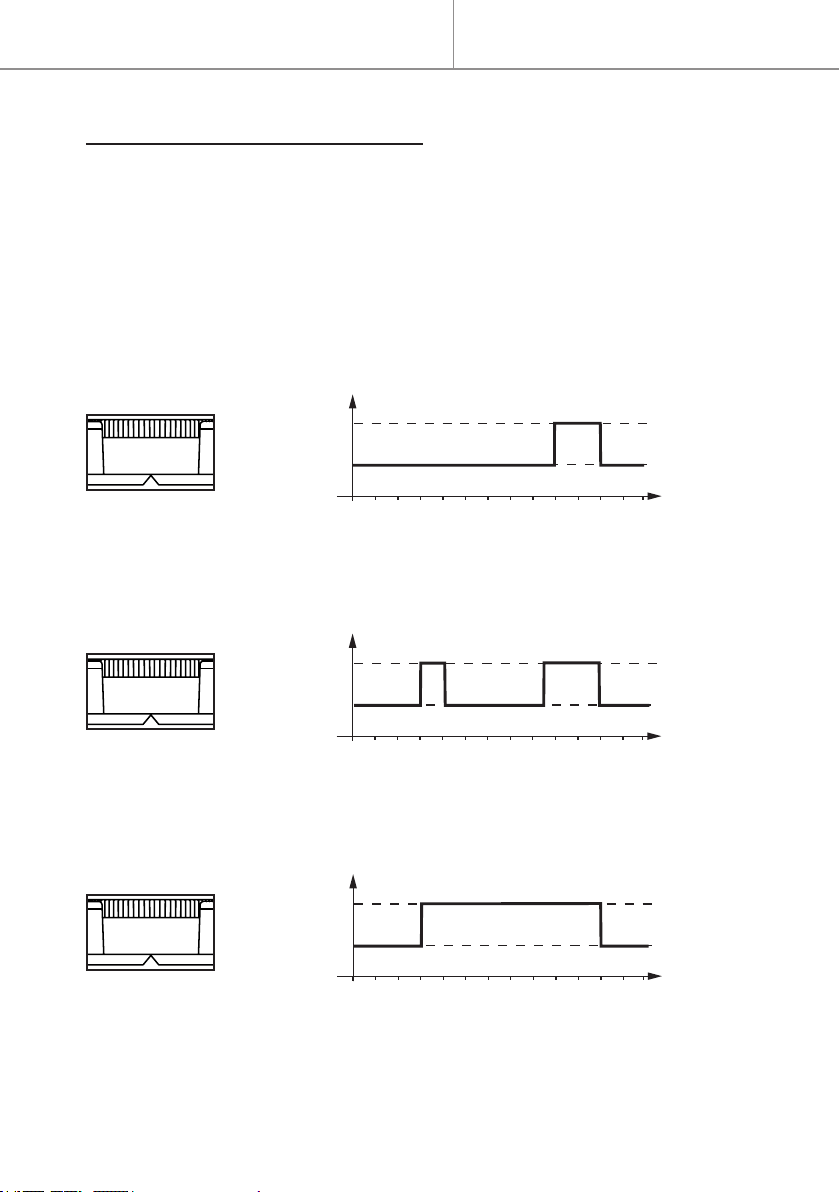

SELECTING AN ECO PROGRAMME
You have the choice of 3 programmes that are adapted to dierent room
occupancy schedules. This enables real energy savings without you having
to intervene and without the need for an external programmer.
The programmes are only activated after setting the time. (see § Setting the
time).
IMPORTANT : when the time is not set, programmes remain in Eco
mode.
____________________________________________________________
P1
.
°C
Programme 1 (evening)
0h 2 4 6 8 10 12 14 16 18 20 22 24 2h
Comfort
Eco
- The Comfort mode temperature is programmed automatically in the
evening from 18:00 to 22:00. Outside of this time period, the temperature
automatically switches to economy mode.
____________________________________________________________
P2
.
Comfort
Eco
°C Programme 2 (morning and evening)
0h 2 4 6 8 10 12 14 16 18 20 22 24 2h
- The Comfort mode temperature is programmed automatically in the morn-
ing from 6:00 to 8:00 and in the evening from 17:00 to 22:00. Outside of
this time period, the temperature automatically switches to economy mode.
____________________________________________________________
P3
.
Comfort
Eco
°C Programme 3 (morning to evening)
0h 2 4 6 8 10 12 14 16 18 20 22 24 2h
- The Comfort mode temperature is programmed automatically from morn-
ing to evening from 6:00 to 22:00. Outside of this time period, the temper-
ature automatically switches to economy mode.
____________________________________________________________
Quick start

9
SETTING THE COMFORT MODE TEMPERATURE
- The button runs between 2 and 8, setting the Comfort mode temperature
from 15°C to approximately 30°C.
What you need to do :
- Set the button to position 4: the red light comes on when
the set temperature is higher than the room temperature.
- If the room temperature exceeds the desired tempera-
ture, reduce the temperature setting until the red light
goes out.
- Wait at least one hour for the room temperature to stabi-
lise before adjusting the temperature setting again.
- If the room temperature does not reach the desired tem-
perature, increase the temperature setting.
- Wait at least one hour for the room temperature to stabi-
lise before adjusting the temperature setting again.
- When the temperature is right for you, set the tempera-
ture position once and for all.
Note : the room temperature depends on the temperature setting as well
as on the size and insulation of the room.
SELECTING FROST PROTECTION MODE
.
Frost protection mode is located on the temperature set-
ting button.
- Select a constant frost protection temperature of around
7°C.
Quick start

10
SETTING THE TIME
A ash every 2 seconds indicates a time disruption following a power cut.
This ash is reversed (light goes out briey every 2 seconds) when the LED
is on during the heating cycle.
The time can only be set to certain hours: 12:00, 17:00 or 20:00.
1- Select frost protection mode.
2- Select programme P1 if it is 12:00, or programme P2 if it is 17:00, or Pro-
gramme P3 if it is 20:00.
3- Briey disconnect the appliance from the mains supply.
4- Select the desired program and set the setpoint temperature.
Tip : the oset of the time setting osets all of the programme times (for
example, setting the time to 13:00 instead of 12:00 delays the programme
times by 1 hour).

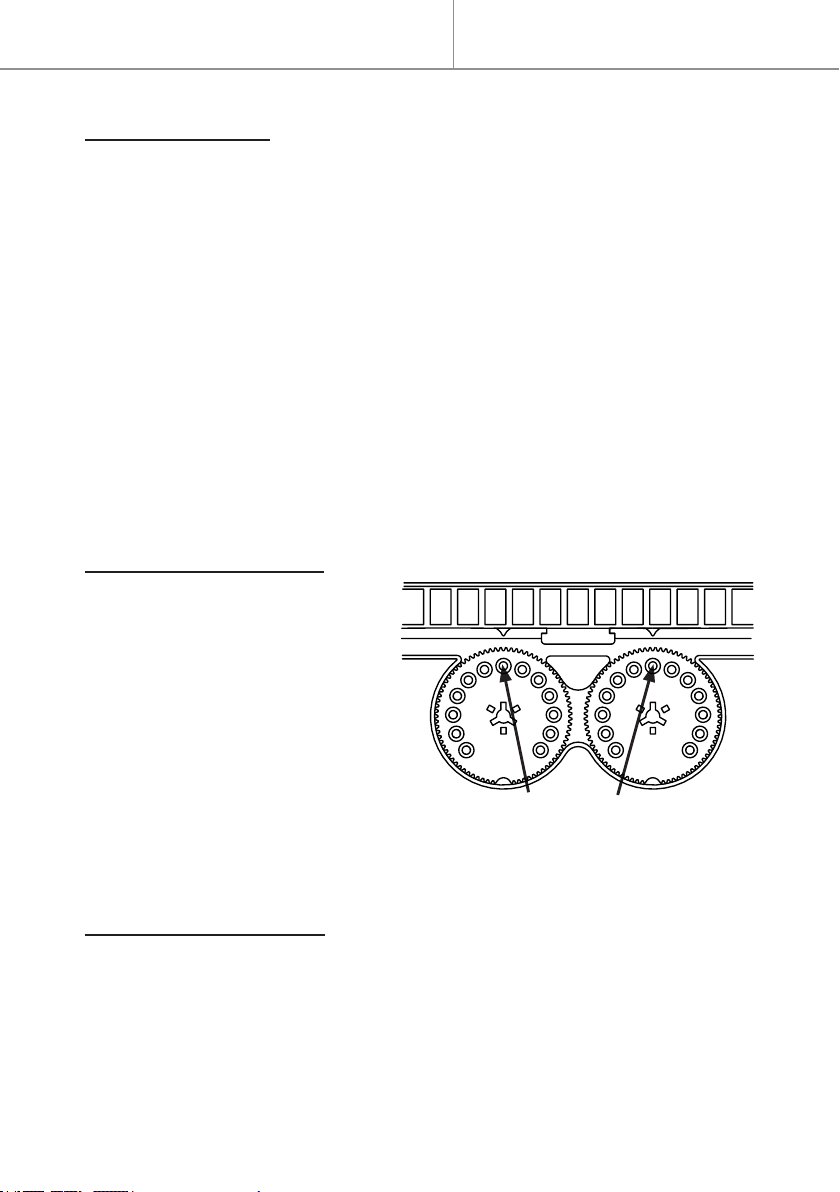

LOCKING THE BUTTONS
- The position of the button
can be locked by screwing a
small screw (12 mm long) into
the hole opposite the position
marker.
- The rotation of the button can
be limited by screwing one or
two small screws (12 mm long)
into one or two di󰀨erent holes
(apart from the hole opposite
the position marker that locks the button).
PRECAUTIONS FOR USE
- There is no point setting the temperature to the maximum as the room tem-
perature will not reach that level.
- Wait several hours for the room temperature to stabilise before adjusting
the temperature setting.
- Switch the appliance o󰀨 when you air the room.
Hole for locking the button
Quick start

11
Trouble shooting
Trouble shooting
Problem Solutions
- The device does not heat. - Check that the electrical system’s circuit break-
ers are at I or ON.
- Select COMFORT mode.
- Increase the temperature setting.
- Switch o󰀨 the appliance for a few minutes to re-
set the thermal circuit breaker.
- The appliance stays in
heat mode.
- Reduce the temperature setting.
- Check that there are no air currents nearby.
- The light switches o󰀨 and
on again every minute
and a half.
- It is the normal operation of the thermostat that
allows an accurate room temperature setting.
- The light ashes rapidly
and continuously.
- Faulty temperature sensor (this fault prevents
the appliance from switching on).
- The light ashes every
2 seconds (or goes out
briey every 2 seconds).
The time is out of alignment.
- Set the time.
- Programmes P1, P2 and
P3 do not work.
Outside of the programmed time ranges, the ap-
pliance does not switch o but goes into Eco
mode.
- Reduce the temperature setting.
- Set the time.
- The appliance gives o󰀨 a
smell.
This can happen the rst time the appliance is
used or if it has remained unused for a pro-
longed period of time. The smell should disap-
pear quickly.
- Clean the vents underneath the appliance.
IMPORTANT : If the problem persists, disconnect the power supply for 15
seconds then check its operation.

12
Maintenance and cleaning
- Warning : Never use detergent, chemical agents or solvents as they
could damage plastic parts.
- WARNING : Let the appliance cool down completely before handling or
cleaning.
- To prevent risk of re or electrocution, do not pour water or any other liquid
inside the appliance.
- Clean the outside wall of the appliance by rubbing it gently with a soft,
damp cloth, either with or without soap.
- Regularly clean the vents underneath the appliance.
IMPORTANT : Always disconnect from the power
supply before cleaning or maintenance.
PLUG REPLACEMENT
This appliance is supplied with a BS1363 3 pin plug tted with a 10 Amp
fuse. Should the fuse require replacement, it must be replaced with a fuse
rated at 10 Amp and approved to BS1362. In the event the mains plug has to
be removed/replaced for any reason, please note :
IMPORTANT : The wires in the mains lead are coloured in accordance with
the following code : Blue – Neutral
Brown – Live
As the colours of the wires in the mains lead
of this appliance may not correspond with
the coloured markings identifying the termi-
nals in your plug, proceed as follows.
The blue wire must be connected to the ter-
minal marked with an N or coloured black.
The brown wire must be connected to the
terminal marked with an L or coloured red.
NOTE : If a moulded plug is tted and has to be removed take great care
in disposing of the plug and severed cable, it must be destroyed to prevent
engaging into a socket.
N
L
E
BROWN
Live
FUSE
13 Amp
Cord
Clamp
BLUE
Neutral
Maintenance and cleaning
10 Amp

13
- Reference : E15LF1U
- Power : 1500W
- Dimensions (WxHxD) : 75x49x29 cm
- Weight : 6 kg
- Supply : 220-240V ~ 50Hz
- Class II
- IP21: Protected against vertically falling drops of water (condensa-
tion).
- Electronic thermostat with Eco-Programmes
- Stops heating by going into standby
- Ambient temperature sensor
- Fail-safe thermal circuit breaker
: Complies with all relevant European Directives.
Technical specications
Environmental protection
This symbol is known as the ‘Crossed-out Wheelie Bin
Symbol’. When this symbol is marked on a product or
battery, it means that it should not be disposed of with your
general household waste. Some chemicals contained within
electrical/electronic products or batteries can be harmful
to health and the environment. Only dispose of electrical/
electronic/battery items in separate collection schemes,
which cater for the recovery and recycling of materials
contained within. Your co-operation is vital to ensure the
success of these schemes and for the protection of the
environment.
yyWxx : Manufacturing date code ; year of manufacturing (20yy)
and week of manufacturing (Wxx).
Environmental protection
Technical specications

14
Information requirements for electric local space heaters
Model identier(s): E15LF1U
Item Sym-
bol Value Unit
Heat output
Nominal heat output Pnom 1,2 kW
Minimum heat output
(indicative) Pmin 0 kW
Maximum continuous
heat output Pmax,c 1,2 kW
Auxiliary electricity consumption
At nominal heat
output elmax N.A. kW
At minimum heat
output elmin N.A. kW
In standby mode elSB 0 kW
Contact details
Kingsher International Products BV
Rapenburgerstraat 175E 1011 VM
Amsterdam
The Netherlands
Item Unit
Type of heat input, for electric storage local space
heaters only (select one)
manual heat charge control, with integrated
thermostat N.A.
manual heat charge control with room and/or
outdoor temperature feedback N.A.
electronic heat charge control with room and/or
outdoor temperature feedback N.A.
fan assisted heat output N.A.
Type of heat output/room temperature control
(select one)
single stage heat output and no room
temperature control no
Two or more manual stages, no room
temperature control no
with mechanic thermostat room temperature
control no
with electronic room temperature control yes
electronic room temperature control plus day
timer no
electronic room temperature control plus week
timer no
Other control options (multiple selections
possible)
room temperature control, with presence
detection no
room temperature control, with open window
detection no
with distance control option no
with adaptive start control no
with working time limitation no
with black bulb sensor no
Technical specications

15
FITTING THE FEET
1- Run the power cord through
the raceway of the right foot.
2- Screw in the 2 feet underneath
the appliance (2 screws per foot).
ELECTRICAL CONNECTION
- Before connecting the appliance, be sure that the
mains voltage available matches that specied on the
rating plate.
x4 x2
IMPORTANT : Please follow the safety advice set out on pages 3 to 5.
Installation
Technical specications

16
Manufacturer, Fabricant, Producent,
Hersteller, Producător, Fabricante:
UK manufacturer:
Kingsher International Products Limited
3 Sheldon Square
London
W2 6PX
United Kingdom
EU manufacturer:
Kingsher International Products B.V.
Rapenburgerstraat 175E
1011VM Amsterdam
The Netherlands
www.kingsher.com/products
Distributor: B&Q Limited,
Chandlers Ford, Hants,
SO53 3LE United Kingdom
www.diy.com
SFD Limited
Trade House, Mead Avenue
Yeovil
BA22 8RT
United Kingdom
www.screwx.com
GB-IE

Radiateur panneau
rayonnant mobile
FR
Version : 06
Modèle EAN
E15LF1U 1500W 3663602911425
Ce produit ne peut être utilisé que dans des locaux
bien isolés ou de manière occasionnelle.

2
Pour commencer...
Sécurité 3-5
Avant de commencer 6
Utilisation 7-10
Plus en détail...
Problèmes & solutions 11
Maintenance et nettoyage 12
Protection de l’environnement 12
Spécications techniques 13-14
Garantie 13
Installation 15
Ce mode d’emploi est important pour votre sécurité.
Lisez-le attentivement dans son intégralité avant d’utiliser l’appareil,
et conservez-le pour pouvoir vous y référer ultérieurement.
C’est
parti...

3
Sécurité
MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE
SÉCURITÉ AVANT D’UTILISER L’APPAREIL
Avertissement : risque d’incendie, de chocs électriques,
de blessures physiques et de dommages matériels.
Avant d’utiliser cet appareil, toujours suivre les consignes
de sécurité lors du montage, de l’utilisation et de la
maintenance.
CONSIGNES DE SÉCURITÉ
- Cet appareil peut être utilisé par des enfants âgés d’au
moins 8 ans et par des personnes ayant des capacités
physiques, sensorielles ou mentales réduites ou dénuées
d’expérience ou de connaissance, s’ils (si elles) sont
correctement surveillé(e)s ou si des instructions relatives
à l’utilisation de l’appareil en toute sécurité leur ont été
données et si les risques encourus ont été appréhendés.
Les enfants ne doivent pas jouer avec l’appareil. Le
nettoyage et l’entretien par l’usager ne doivent pas être
e󰀨ectués par des enfants sans surveillance.
- Il convient de maintenir à distance les enfants de moins
de 3 ans, à moins qu’ils ne soient sous une surveillance
continue.
- Les enfants âgés entre 3 ans et 8 ans doivent uniquement
mettre l’appareil en marche ou à l’arrêt, à condition que ce
dernier ait été placé ou installé dans une position normale
prévue et que ces enfants disposent d’une surveillance
ou aient reçu des instructions quant à l’utilisation de
l’appareil en toute sécurité et en comprennent bien les
dangers potentiels.
Les enfants âgés entre 3 ans et 8 ans ne doivent ni
brancher, ni régler ni nettoyer l’appareil, et ni réaliser
l’entretien de l’utilisateur.
- ATTENTION : Certaines parties de ce produit peuvent
devenir très chaudes et provoquer des brûlures. Il faut
prêter une attention particulière en présence d’enfants et
de personnes vulnérables.

4
Sécurité
MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE
SÉCURITÉ AVANT D’UTILISER L’APPAREIL
- MISE EN GARDE : Pour éviter une surchau󰀨e, ne
pas couvrir l’appareil de chau󰀨age.
- Si le câble d’alimentation est endommagé, il doit être
remplacé par le fabricant, son service après vente ou des
personnes de qualication similaire an d’éviter un danger.
- L’appareil ne doit pas être utilisé à l’extérieur
- L’appareil est uniquement destiné à un usage domestique.
N’utilisez pas cet appareil à une nalité autre que celle
pour laquelle il a été conçu.
- Ne faites pas fonctionner l’appareil dans une pièce où sont
entreposés des liquides inammables, solvants, vernis, et
où peuvent exister des vapeurs inammables.
- L’appareil doit être à une distance minimale d’un mètre
d’objets et matériaux inammables (rideau, literie, textile,
papier, etc...)
- N’essayez pas de démonter cet appareil, de le réparer ou
d’e󰀨ectuer vous-même des modications. Cet appareil ne
contient aucune pièce utilisable séparément.
- Veuillez garder les emballages plastiques hors de portée
des enfants.
- Les orices d’entrée et de sortie d’air ne doivent en aucun
cas être recouverts ou obstrués. N’insérez aucun objet
dans ces orices.
- N’exercez pas de pression ni de choc sur les parois de
l’appareil.
- L’appareil doit être posé verticalement sur ses pieds.
- L’appareil doit être placé sur une surface horizontale,
plane, stable et thermo-résistante. Toute autre position de
l’appareil est potentiellement dangereuse.
