Sculpt AXIS H1200/DS Operation manual

1
1. SPECIFICATIONS
2. PRELIMINARY INSTALL GUIDE
3. OUTDOOR AIR KIT
4. COMPONENTS LIST
5. INBUILT INSTALLATION
6. INBUILT INTO ISLAND WALL
NO COMBUSTIBLE SURROUNDINGS
7. APPLIANCE DETAILS
8. OPERATION & MAINTENANCE
9. TEST RESULTS
10. WARRANTY
H1200/DS | H1400 | H1600/DS | H1600XXL/DS
H1200VLG/D | H12003V | EPI950
INSTALLATION & USER GUIDE
AXIS
NOTICE TO INSTALLER:
These instructions must be left with the owner, who should retain for future use.
5.1 MASONRY BRICK INSTALLATION
5.2 HEBEL INSTALLATION
Edition: 26/10/2022*Download the latest manual version on our website*

2
COMPLIANCE PLATE AND SERIAL NUMBER.
The instructions in this manual are recommendations only, the distributor and manufacturer bears no liability to the interpretation of these instructions.
Please ensure to download the latest version of this manual from our website: www.sculptreplaces.com.au/installation-manuals/
All rights retained © Copyright 2022 Sculpt Fireplaces Collection

3
Thank you for choosing Sculpt Fireplaces as your heater of choice.
Your replace is the result of careful design, artisan engineering and safety tests.
If it is properly installed, used and maintained, you may be sure that you will have an outstanding
heating feature in your home for years to come.
We advise you to read through this guide in order to become acquainted with the installation
methods specic to your replace.
It is recommended that this replace be installed by a qualied and licensed trades professional.
You will nd in this guide the answers to most of your questions, should you require further
assistance we recommend you contact your retailer.
Before igniting your replace for the rst time, please carefully read this manual.
Follow @sculptreplacecollection on Instagram, SculptFireplaceCollection on Facebook and be
sure to post your latest masterpiece installed with the hashtag #sculptres.
We hope we’ve helped make you the envy of your friends this winter and for years to come.
From all of us,
Sculpt Fireplace Collection
CONGRATULATIONS!

4
IMPORTANT
Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
All dimensions shown are approximate. Check all dimensions accurately prior to installation. In line with
our policy of continuous improvement, we reserve the right to alter specications without notice.
All units comply and MUST be installed to Australian & New Zealand Standard AS/NZS 2918:2018.
When in use some parts may become hot. A suitable re guard is recommended where very young,
elderly or inrm are concerned.
ALL FIREPLACES IN THIS MANUAL CONFORM TO AUSTRALIAN AND NEW ZEALAND STANDARDS
AS/NZS 2918:2018 DOMESTIC SOLID FUEL BURNING APPLIANCES & AS/NZS 4012/40132014.
The instructions in this manual are recommendations only, the distributor and manufacturer bears no liability to the interpretation of these instructions.
© Copyright 2022 Sculpt Fireplace Collection (ACN: 169053883)
This installation manual at times is updated, to view the latest manual please refer to the
support section of the Sculpt Fireplace Collection website.

5
1. SPECIFICATIONS
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 200m2*
Clean frame-less design(trim options available)
Secure swing & lift door
5.4m
250mm, 300mm, 350mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
380kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 100mm thick
AXIS H1200
923MM
500MM
535MM
1502MM
1351MM
900MM
180MM***
171MM
535MM 618MM
* Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
** See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
1205MM
691MM
254MM

6
1. SPECIFICATIONS
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 200m2*
Clean frame-less design(trim options available)
Secure swing & lift door
5.4m
250mm, 300mm, 350mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
380kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 75mm thick
AXIS H1200DS
923MM
1205MM
500MM
535MM
1474MM
1323MM
900MM
180MM***
171MM
535MM 591MM
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
683MM
1204MM
642MM
571MM
502MM

7
1. SPECIFICATIONS
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 280-320m2*
Clean frame-less design(trim options available)
Secure swing & lift door
5.4m
300mm, 350mm, 400mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
400kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 100mm thick
AXIS H1400
1353MM
1597MM
1108MM
1035MM
624MM
485MM
582MM
690MM
180MM***
170MM
582MM 665MM
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
1402MM
275MM

8
555MM
491MM
658MM
1330MM
1300MM
491MM
450MM
180MM***
1396MM
170MM
1. SPECIFICATIONS
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 300-350m2*
Clean frame-less design (trim options available)
Secure swing & lift door
5.4m
300mm, 350mm, 400mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
460kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 100mm thick
AXIS H1600
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
1586MM
303MM

9
1. SPECIFICATIONS
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 250m2*
Clean frame-less design (trim options available)
Secure swing & lift door
5.4m
300mm, 350mm, 400mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
460kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 75mm thick
AXIS H1600DS
1300MM
1330MM
491MM
110MM
180MM***
170MM***
555MM491MM
620MM
548MM
481MM
450MM
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
1586MM 661MM

10
1. SPECIFICATIONS
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 350-400m2*
Clean frame-less design (trim options available)
Secure swing & lift door
5.4m
300mm, 350mm, 400mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
530kg
Adjustable 165mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 100mm thick
AXIS H1600XXL
1700MM
450MM
504MM 504MM
579MM
1720MM
1319MM
1428MM
1448MM
165MM***
200MM
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
1986MM
670MM
303MM

11
1. SPECIFICATIONS
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 300m2*
Clean frame-less design (trim options available)
Secure swing & swing door
5.4m
300mm, 350mm, 400mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
530kg
Adjustable 165mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 75mm thick
AXIS H1600XXL DS
1700MM
450MM
504MM
504MM 579MM
1712MM
1319MM
1428MM
1448MM
165MM***
200MM
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
1986MM 685MM

12
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACADE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 200m2*
Clean frame-less design (trim options available)
Secure swing & lift door
5.4m
250mm, 300mm, 350mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
380kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 75mm thick
AXIS H1200 VLG/D
1082MM
918MM
475MM
548MM473MM
517MM
1448MM
642MM
180MM**
167MM
128MM
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
263MM
128MM

13
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 200m2*
Clean frame-less design (trim options available)
Secure swing & lift door
5.4m
250mm, 300mm, 350mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
380kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 75mm thick
AXIS H1200 3V
615MM
479MM
1019MM
1481MM
632MM499MM
173MM
180MM**
685MM
543MM
940MM
940MM
855MM
640MM
1. SPECIFICATIONS
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
326MM

14
MATERIAL
KW OUTPUT
HEATING CAPACITY*
FACACE
GLASS DOOR
MINIMUM FLUE HEIGHT
FLUE SIZES
HOT AIR TRANSFER KIT
OUTSIDE AIR KIT
WARRANTY
WEIGHT
LEGS**
HEARTH DIMENSIONS***
Solid steel rebox with 60mm thick re bricks
25kW+
Up to 150-200m2*
Clean frame-less design (trim options available)
Secure swing & lift door
5.4m
280mm, 330mm, 380mm
Optional extra - includes Two ducts and two registers
Recommended for well insulated homes
10 year re brick & 5 year rebox warranty**
330kg
Adjustable 180mm-600mm
Min 1000mm in front of any part of replace, 250mm on
either side & 75mm thick
AXIS EPI 950
800MM
800MM
563MM
670MM
638MM
563MM
1010MM
530MM
565MM
170MM
180MM**
592MM 843MM
1010MM
1. SPECIFICATIONS
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
**See warranty pg. 53 of the manual
*** To reduce hearth dimensions, view tables on page 15 of this manual
546MM

15
1. SPECIFICATIONS
HEARTH REQUIREMENTS SUMMARY
COMBUSTIBLE CLEARANCES SUMMARY
Hearth Requirements (Unit Base Height Less Than 300mm)
MODEL WIDTH (mm) DEPTH (mm) THICKNESS (mm)
EPI950 2670 2010 75
H1200 1505 1000 75
H1200 3V 3020 1685 75
H1200 DS 1505 1000 75
H1200 VLD/G 2085 1645 75
H1400 1700 1000 75
H1600 1835 1000 75
H1600 DS 1835 1000 75
H1600XXL 2300 1000 75
H1600XXL DS 2300 1000 75
The above table (Combistible Clearance Summary) refers to entire H Series & EPI units; including EPI95, H1200, H1200DS,
H1200VLG, H1200 VLD, H1200 VLG, H1200 3V, H1400, H1600, H1600 DS, H1600XXL & H1600XXL DS.
Clearances To Non-Combustible Materials
REAR & SIDES (mm) BASE (mm) FLUE (mm) GRILLS* (mm)
50
(Air Gap)
150 25
(Around Triple Skin)
600 (Front)
500 (Above)
*A minimum of 4x Grills (100mm x 300mm) are required to ventilate replace enclosure
Hearth Requirements (Unit Base Height Greater Than 300mm)
MODEL WIDTH (mm) DEPTH* (mm) THICKNESS (mm)
EPI950 2670 2010 30
H1200 1505 1000 30
H1200 3V 3020 1685 30
H1200 DS 1505 1000 30
H1200 VLD/G 2085 1645 30
H1400 1700 1000 30
H1600 1835 1000 30
H1600 DS 1835 1000 30
H1600XXL 2300 1000 30
*Hearth depth can be reduced by elevating the replace, see below table for allowances
ELEVATED HEIGHT (mm) ORIGINAL DEPTH (mm) REDUCED DEPTH (mm)
400 1000 965
500 1000 920
600 1000 860
700 1000 780
800 1000 675
900 1000 535
1000 1000 305
Note: The above information is subject to change without notice, refer to Sculpt website for most current document version.

16
2. PRELIMINARY INSTALL GUIDE
IMPORTANT
Prior to unpacking and installation check that the appliance has not been damaged during transport.
Ensure you check the glass, the door(s), the damper operation and the door locking mechanism
Before any work is carried out, as per local and national regulations and laws, this appliance MUST be
installed by a licensed professional as per Australian and New Zealand Standards 2918:2018.
All images and diagrams in this manual are for installation reference purposes only and are not to
scale. The distributor and manufacturer bears no accuracy of these images and accepts no liability. The
purpose of these images and diagrams is to act as a guide in conjunction with the written components
and are NOT to instruct independently. The order of these steps are a recommendation only.
It is strongly recommended that the licensed trade professional who is performing the installation of
this appliance, completely read and understand all instructions in this manual prior to proceeding.
Sculpt Fireplaces Pty Ltd & Axis (Seguin Groupe) reserves the right to change these specications
without prior notice.
For reasons of quality control, some of our appliances are delivered assembled. Parts including legs and
bae plate may need to be installed on site.
EXPOSURE TO ELEMENTS
Axis replaces are exclusively designed as indoor heating appliances, should the replace (or part there of) be in
contact with the outside elements including rain, snow, direct sunlight, excessive winds, etc; the damage sustained
thereon will not be covered under the manufacturer or distributor warranty. Please consider prior to installing your
replace exposed to outside elements.
ACCEPTABLE VARIANCE ALLOWANCE
Due to the production of these hand assembled and manufactured replaces, there is an acceptable allowance
of 3-5mm variance of the unit, including the door frame. This variance in production is non-claimable under any
warranties.
HEAT RESISTANT MATERIALS
Heat resistant materials must meet AS/NZS 2918:2018 clause 1.4.27 a material with an allowable service
temperature of 600° Celsius or greater. Gyprock Fyrecheck is NOT a recommended heat resistant material.
PLEASE READ PRIOR TO INSTALL
For the installation and use of this appliance, the tter and the user should strictly adhere to local and
national regulations as well as AS/NZS 2918:2018. They should also comply with the instructions and
recommendations detailed in this manual. Safety and operation of the replace is directly dependent
thereon. The liability of the manufacturer can neither be retained nor assured following failure of
installation or incorrect use which does not comply with AS/NZS 2918:2018.
As each installation is a particular case, a qualied and licensed trades professional should take all
required preliminary precautions depending on the technical elements inherent to each job.
In-observance of the assembly instructions in conjunction with AS/NZS 2918:2018 entails the liability
of the person who carries it out.
As a result of faulty assembly, irrational use of parts or additional components that were not supplied
by the manufacturer/distributor, and/or modifying of the appliance or components will result in inferior
or unsafe operation. Should this occur the manufacturer/distributor bears no liability, and will result in a
null and void product warranty.
PRELIMINARY INSTALL INFORMATION
It is the users duty to make themselves aware of and apply all national or more restrictive local
standards and regulations (AS/NZS 2918:2018).

17
2. PRELIMINARY INSTALL GUIDE
FRESH AIR INLET, RECOMMENDED FOR ALL INSTALLATIONS
The air inlet is recommended for installation and is essential for the proper function of the appliance. The fresh
combustion air inlet must be a minimum 300cm2and ideally positioned (see point A & B on diagram).
PLEASE READ PRIOR TO INSTALL
Clearance Gap 50m
Firebox
Non combustible w
Hot air grid
Airvents
False Ceiling
A
B
B
IMPORTANT WARNING
It is strictly forbidden to use any combustible materials (ie: wooden framing, plaster, etc) near or around
this appliance. Any exception from this rule is a health and safety hazard which will result in a non-
compliant installation and a void of warranties.
Electrical cables and components must not be placed in the vicinity of the appliance, as it is a re
hazard.

18
LEG ASSEMBLY
Before commencing any work you must ensure the structure and stability of the oor where the appliance is to be
installed. Installing the legs will allow you to raise the appliance by a total of 600mm.
To streamline the installation we advise you to assemble the feet sets prior to beginning the leg assembly. Each set
includes a at angle bracket and a standard angle bracket, please check these components before proceeding with
assembly.
PLEASE READ PRIOR TO INSTALL
2. PRELIMINARY INSTALL GUIDE
A B
DIAGRAM A
We advise you to cross the nuts and bolts
in order to ensure a better bearing (refer to
diagram A)
DIAGRAM B
The standard bracket has a space without
hole which has to be turned towards the top
(refer to diagram B)

19

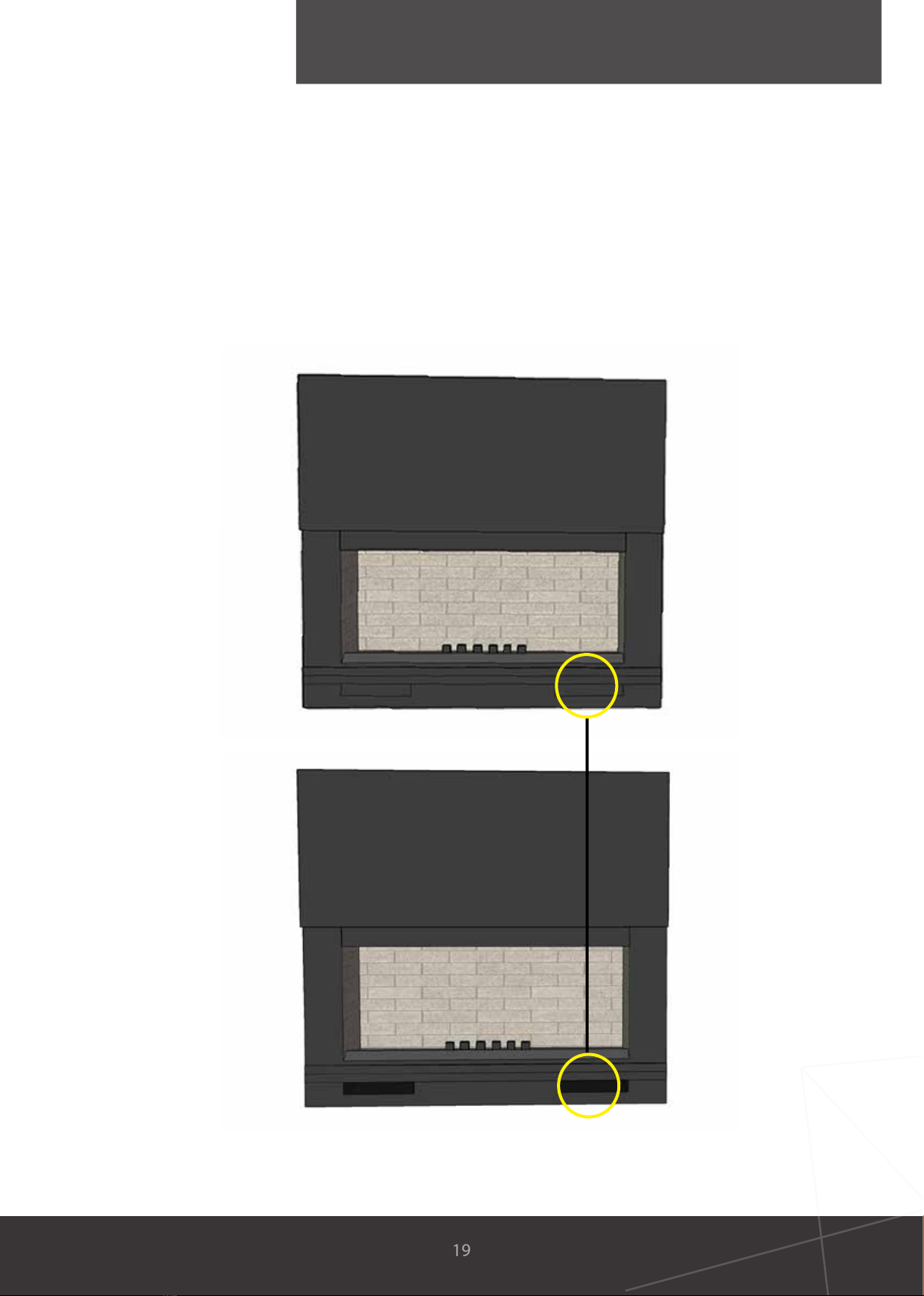

OPENING LOWER VENTS - REQUIRED IF APPLIANCE IS TO INSTALLED WITHOUT LEGS
If you plan on installing the unit excluding the legs you MUST open ALL vents located at the bottom of the appliance
prior to installation, this will ensure sucient air ow around the unit, failure to complete this step will impact
negatively on the functionality of the appliance.
To open the air vents simply apply a medium amount of pressure to the steel cover, the hatch should come free.
Once completed these pieces can be discarded.
AIR VENTS OPEN
AIR VENTS CLOSED
PLEASE READ PRIOR TO INSTALL
2. PRELIMINARY INSTALL GUIDE

20
FLEXI FLUE FOR OPTIONAL OUTDOOR AIR KIT
H1200, H1200DS, H1200VLD/G, H1400, H1600, H1600 DS, H1600XXL, H1600XXLDS
The diagram pictures below details the air kit connection options for Axis appliances(H1200, H1200DS,
H1200VLD/G, H1400, H1600, H1600DS, H1600XXL, H1600XXLDS), depending on your particular installation
and model, your options may be limited. Carefully evaluate which options are appropriate for your installation and
structure accordingly.
DOUBLE SIDE MODELS ARE ONLY MANUFACTURED WITH OPTION A FOR OUTDOOR AIR KIT CONNECTION.
PLEASE READ PRIOR TO INSTALL
A
B
BASE OF APPLIANCE
COVER PLATE:
Please remove if applicable.
EXTERIOR
CONNECTION PORTS
ALTERNATIVE EXTERIOR
CONNECTION PORTS
INTERIOR
CONNECTION PORT
OPTION A
Interior to exterior connection for outdoor air
kit duct. Please note diagram A is the only
installation option for double sided appliance
installation. Remove the exterior cover plate by
applying medium pressure, once removed you
can dispose of this cover.
OPTION B
Interior to exterior connection for outdoor air kit
duct. Please note this connection option is only
available on single sided appliances, double sid-
ed appliances do not have this connection port.
Remove the exterior cover plate by applying
medium pressure, once removed you can dispose
of this cover.
OPTION C
Alternative air kit connection ports, depending on
your installation circumstance, you can alternate
which connection ports you utilise. Remove the
exterior cover plate by applying medium pressure,
once removed you can dispose of this cover.
C
C
3. OUTDOOR AIR KIT
