Sea & Sea YS-D2 User manual

Cap Bolt (×3) Ball Mount Strobe Adaptor
Red Filter (×2) M4 Hexagon Wrench
Diffuser-100
Silicone Grease
Diffuser-120

Target light
(P.E-13)
Fiber-optic
cable socket
(for additional
strobe)(P.E-22)
Fiber-optic cable socket
(Slave sensor)(P.E-21)
Battery cap
(P.E-17)
Mode switch
(P.E-13)
Target light
switch
(P.E-13)
Connector cap(P.E-20)
Fiber-optic
cable hook
(P.E-21)
READY / TTL lamp
(P.E-14)
Light level control
(P.E-13)
Sensor cover(P.E-21)
Strap eyelet
(P.E-26)
Fiber-optic
cable hook
(P.E-21)
Identifical of Parts

Ball Mount Strobe Adaptor / YS Mount Strobe Adaptor
A Ball Mount Strobe Adaptor is included with this product as standard
equipment.
By replacing it with the optional YS Mount Adaptor, you can select a
mothod for attachment to a housing that matches the shooting conditions.

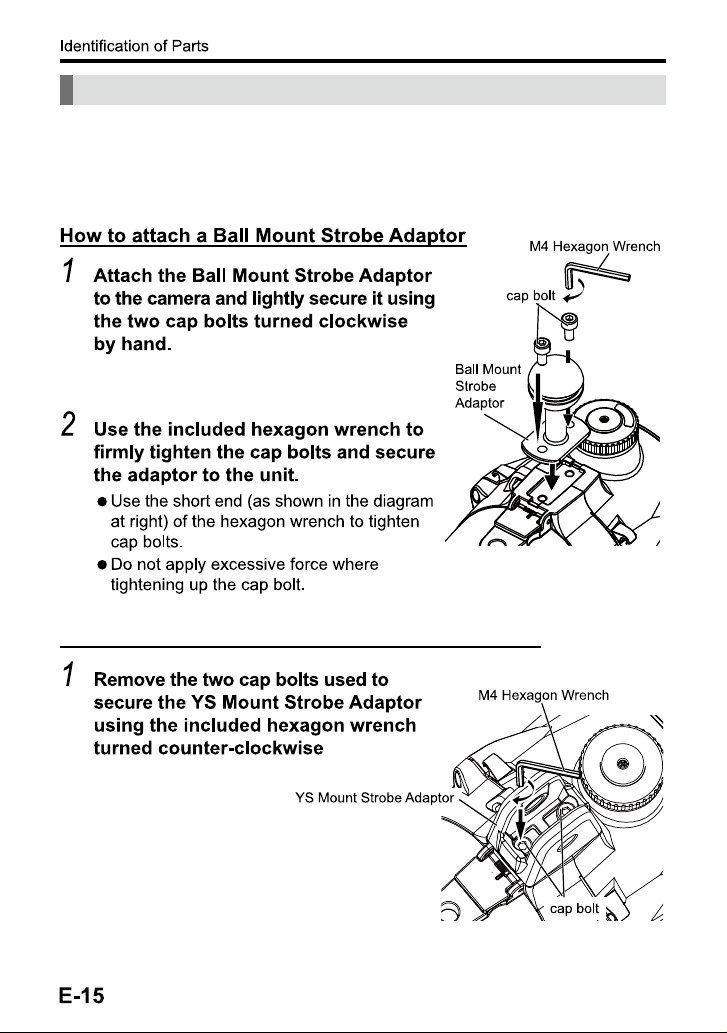

How to attach optional YS Mount Strobe Adaptor

Attach optional YS Mount Adaptor in either direction
The optional YS Mount Adaptor can be
fixed to the Strobe in either direction. The
fixing bolt wing nut will be on the opposite
side to the metal nut inserted in YS Mount
Adaptor.
