Sealey SG125EU User manual

PLEASE NOTE: THESE INSTRUCTIONS RELATE TO UK LEGISLATION - IT IS THE USER’S RESPONSIBILITY THAT COUNTRY AND
LOCAL EQUIVALENT LEGISLATION IS ADHERED TO WHEN USING THIS ANGLE GRINDER.
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any
other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety
devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a
Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply
which is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by
contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and
the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1 and 1.1.2 and
use a Portable Appliance Tester.
1.1.4 Ensure that cables are always protected against short circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that none is loose.
1.1.6 Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that the plug is fitted with the
correct fuse. The fuse rating for this product is 13amp.
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT pull the plug from the socket by the cable.
1.1.9 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified
electrician. When a plug is damaged, cut the cable just above the plug and dispose of the plug safely. Fit a new plug according to the
following instructions applicable in the EU country the equipment is being used in.
a)Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b)Connect the BROWN live wire to the live terminal ‘L’.
c)Connect the BLUE neutral wire to the neutral terminal ‘N’.
d)After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer insulation extends
beyond the cable restraint and that the restraint is tight. Double insulated products, which are always marked with this symbol , are
fitted with live (brown) and neutral (blue) wires only. To rewire, connect the wires as indicated above (b,c) - DO NOT connect either wire
to the earth terminal.
1.1.10 If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm², but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use of
2.5mm² section cable.
1.2. GENERAL SAFETY
Disconnect the grinder from the mains power before changing accessories, servicing or performing any maintenance.
Maintain grinder and discs in good condition. Check moving parts and alignment. If necessary use an authorised service agent.
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
Keep the grinder clean for best and safest performance.
WARNING! Always work with the grinder safety guard in place.
Wear approved safety goggles, ear defenders, safety gloves, appropriate mask if grinder generates dust/fumes.
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
Use the grinder in a suitable work area. Keep the area clean, tidy and free from unrelated materials and ensure that there is adequate
lighting.
Maintain correct balance and footing. DO NOT over-reach and ensure that the floor is not slippery. Wear non-slip shoes.
Use only approved grinding discs and only use the normal grinding surface. Never use the side or upper surface of the disc for cutting.
The grinding disc must only be changed by a person holding a grinding wheel certificate.
Check grinding disc to ensure it is not split, cracked or damaged in anyway (See Section 4). If in doubt DO NOT use the disc.
Grinding discs must be securely attached before use, but not overtightened.
Secure unstable workpiece with a clamp, vice or other adequate holding device and ensure that the grinder is gripped with both hands.
Keep children and unauthorised persons away from the work area.
DO NOT operate the grinder if any parts are missing or damaged.
INSTRUCTIONS FOR:
1000W ANGLE GRINDER
MODEL NO: SG125EU
Read the instructions Wear ear protection Wear eye protection Wear protective gloves Wear a mask (dust)
1. SAFETY
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
SG125EU Issue: 2 (L) - 28/08/15
Original Language Version
© Jack Sealey Limited
Wear respiratory
protection (fumes)

DANGER OF FIRE/EXPLOSION HAZARD
WARNING! The grinding process can produce streams of sparks (especially when grinding steel) which are a potential source of ignition.
DO NOT use the grinder where there are flammable liquids, solids or gases.
DO NOT allow grinder sparks to make contact with the operator’s clothing or any other fabric such as cleaning rags. Fabrics contaminated
with inflammable materials such as petrol, oil, grease, paint and solvents are a particular fire hazard.
To reduce the risk of clothing catching fire the operator should wear wool or cotton outer garments treated with a fire retardant in
preference to man-made fibres.
DO NOT use the grinder for a task it is not designed to perform.
DO NOT operate the grinder where there are flammable liquids or gases.
WARNING! DO NOT grind or sand materials containing asbestos.
DO NOT get the grinder wet or use in damp or wet locations.
DO NOT switch the grinder on whilst the disc is in contact with the workpiece.
DO NOT cover the grinder air vents. To do so will overheat the machine.
DO NOT touch the workpiece immediately after grinding as it will be very hot.
DO NOT use the grinder as a fixed tool, and DO NOT try to cool the grinding discs with water or other lubricants.
DO NOT hold unsecured work in your hand and DO NOT touch the grinding disc whilst operating, or whilst plugged into the mains power.
DO NOT leave the grinder running unattended and DO NOT lay the grinder down whilst it is running.
DO NOT operate the grinder when you are tired or under the influence of alcohol, drugs or intoxicating medication.
When not in use, switch off the grinder, remove the plug from the power supply and store in a safe, dry, childproof area.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that
may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
Item Description QTY
1 Main unit 1 module
2 Safety guard c/w Fixings 1-set
3 Handle 1
4 Pin wrench 1
5 Clamping flange 1
6 Flange nut 1
SG125EU
fig.1
SPECIFICATION - SG125EU
Power input ............ . . . . . . .1000 watt
No-load speed ................ 11,000rpm
Spindle size . . . . . . . . . . . . . . . . . . . . . . . M14
Grinding/Cutting disc max. diam . . . . . 125mm
Sound pressure level . . . . . . . . . . . . 89.4dB(A)
Sound power level . . . . . . . . . . . . . 102.4dB(A)
Weight ...........................2.4kg
2. INTRODUCTION
MODEL No SG125EU Suitable for a variety of trade applications. Features heavy-duty alloy bevel gear head with composite body casing and
spindle lock for fast loading/unloading of discs. 1000W Heavy-duty motor develops powerful 11000rpm (no load speed). Supplied with side handle,
guard and spanner. Fitted 3mtr power cable with Schuko plug. Grinding disc not included, order Model No. PTC/125G.
3. SPECIFICATIONS
4. CONTENTS
SG125EU Issue: 2 (L) - 28/08/15
Original Language Version
© Jack Sealey Limited

WARNING! Ensure that the grinder is unplugged from the power supply before assembly.

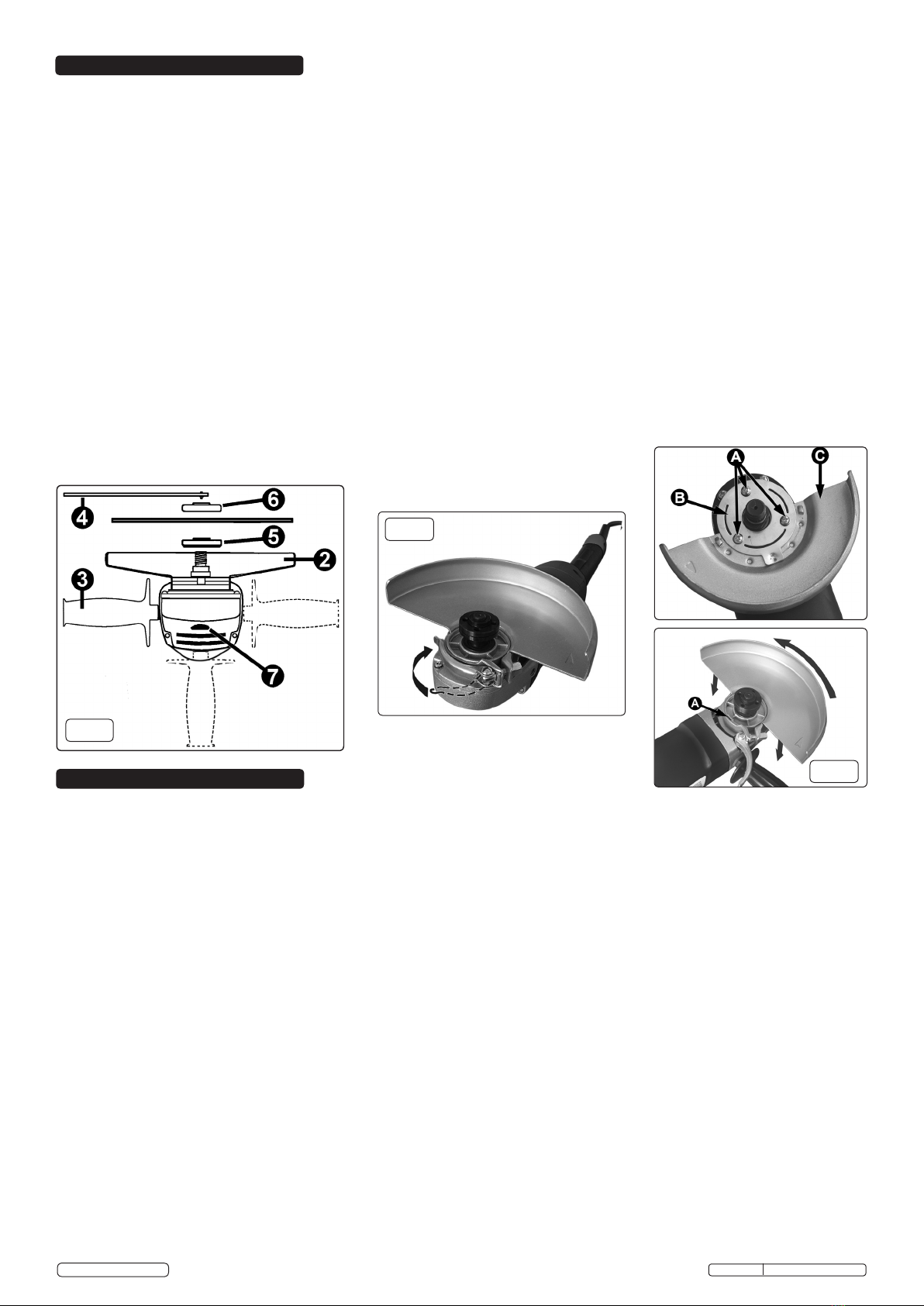

5.1. Fitting the Guard Assembly. (SG125EU)
5.1.1 The guard may be orientated at any angle to suit the grinding task required and should be positioned to allow maximum working
performance whilst providing maximum personal protection for the operator.
5.1.2 Take the guard and place it around the spindle as in fig.4, place the securing plate (fig.4B) around the spindle and line up the holes in the
plate with the holes in the main unit as in fig.4 and secure with screws (fig.4A).
5.2. Attaching a Grinding/Cutting Disc.
(Discs should only be fitted by a person holding a grinding wheel certificate).
5.2.1 Lay the grinder on it’s back and place the clamping flange onto the centre spindle with the raised ring facing upwards (see fig.2 item 5).
Rotate the clamping flange on the spindle unil the flats on its back face drop into alignment with the flats on the spindle. When the
clamping flange is in the correct position it can no longer be rotated on the spindle.
5.2.2 Place the grinding (or cutting) disc over the spindle and onto the clamping flange. Figures A, B & C (fig.8) section 7. CONSUMABLES
shows the correct orientation of the retaining flange nut for the different types of disc.
5.2.3 When using a grinding disc with a depressed centre portion as in Fig.A, Screw the disc retaining flange nut onto the spindle with the
raised ring facing downwards.
5.2.4 When using flat cutting discs as in Fig.C and cutting discs with a depressed centre portion as in Fig.B, screw the disc retaining flange nut
onto the spindle with the raised ring facing upwards.
5.2.5 Stop the spindle from turning by pushing in and holding the disc stop button (see fig.2.7).
5.2.6 Lock the grinding disc into place by tightening the disc retaining flange nut with the pin wrench (fig.2 item 4).
5.2.7 When complete, release the locking button and check that it has sprung back to its initial position.
fig.3
fig.2
fig.4
fig.5
WARNING! Ensure grinder is unplugged from the mains power supply before changing accessories.
6.1 PREPARATION
6.1.1 Attach grinding/cutting disc according to section 5.2. and position the handle grip conveniently for the task.
6.1.2 Ensure the disc safety guard is correctly positioned.
6.1.3 Plug grinder into the mains power supply.
WARNING! When the grinder first starts it will kick to the right. You must ensure, therefore, that the tool is securely gripped in both hands.
Especially important is the position you choose for the side handle in order to maintain stability.
WARNING! Before use, ensure that you are wearing approved safety goggles, ear defenders, appropriate dust mask if dust will
be generated and safety gloves, and that all other safety instructions in Section 1 are followed carefully.
6.2. ON/OFF Switch (SG125EU)
6.2.1 Once plugged into the mains power supply the grinder is started by a two stage switching operation. Place your fingers over the switch
and using your index finger unlock the trigger by pushing the lock lever forwards and then squeeze the trigger into the ‘ON’ position.
(See fig.7)
6.2.2 To stop the grinder release the trigger.
6.2.3 When the trigger is released and returns to the ‘OFF’ position it is automatically locked to prevent inadvertent starting.
6.2.4 The trigger can be locked in the ‘ON’ position for continuous running. To do this release the lock and squeeze the trigger as previously
described. With the trigger fully depressed push the lock lever one stage further forward. Whilst maintaining pressure on the lock lever
release the trigger which will now stay in the ‘ON’ position.
6.2.5 To stop the grinder squeeze the trigger to unlock it and release the trigger.
6.2.6 If the power is cut to the grinder whilst the switch is locked ‘ON’ always release the trigger and unplug the grinder. DO NOT reconnect the
grinder until you are sure that the power has been restored.
5. ASSEMBLY
5.3. Fitting the Hand Grip.
Always use the hand grip for better control and improved safety. Fit the hand grip (g.1.3) by screwing it into the appropriate left, right or
top position on the grinder head as indicated in g.2.
6. OPERATION
SG125EU Issue: 2 (L) - 28/08/15
Original Language Version
© Jack Sealey Limited
6.4 GRINDING
6.4.1 The key to effective operating is controlling the pressure and surface contact between the disc and the workpiece.
WARNING! DO NOT switch the grinder on whilst the disc is in contact with the work piece. Bring the rotating disc to the workpiece.
6.4.2 Allow the disc to reach full speed before starting to grind.
6.4.3 Grind flat surfaces at an angle of between 10° to 20° to the work piece. Too great an angle will cause a concentration of pressure in one
small area resulting in gouging or burning of the surface.
6.4.4 When grinding is complete allow the workpiece to cool. DO NOT touch the hot surface.
6.4.5 Unplug the grinder from the mains power supply, clean and store in a safe, dry, childproof area.

WARNING! DO NOT USE DISCS THAT ARE DAMAGED, OR SUSPECTED TO BE DAMAGED.
7.1. Before using a grinding/cutting disc ensure that there are no fissures or cracks. Once mounted on the grinder, test the disc before use by
facing the grinder in a safe direction (point away from yourself, others and vulnerable items) and run for a short time.
▲DANGER! Use of damaged discs is dangerous and may cause personal injury.
7.2. Grinding and cutting discs used in association with this machine shall be of an adequate speed rating and be suitable for the job in hand.
The discs shall be made in accordance with British Standard 4481:Part 1 1989. Only persons holding a grinding wheel certificate are
authorised to change grinding discs. Ensure that the speed rating on the disc is equal to, or higher than, that of the grinder.
WARNING! Ensure that the grinder is disconnected from the mains power supply before attempting any maintenance.
8.1. Cleaning
8.1.1 Keep the grinder ventilation slots clean and free from obstructions. If available, blow compressed air into the vents to clear any internal
dust (safety goggles must be worn when undertaking this process). Keep the outer case of the grinder clean and free from grease.
DO NOT wash with water or use solvents or abrasives.
8.3. Changing the motor brushes (SG125EU)
8.3.1 Remove the screw from the side panel half way up the grinder, then remove panel
8.3.2 Release the tension spring from the carbon brush and slide it out of the brush holder. (fig.10)
8.3.3 Replace the motor brush.
8.3.4 Refitting is a reversal of the above procedure.
8.3.5 Repeat for the second brush on the other side of the grinder.
fig.6 fig.7
Fig.A Fig.B
Fig.C
fig.8
8. MAINTENANCE
7. CONSUMABLES
SG125EU Issue: 2 (L) - 28/08/15
Original Language Version
© Jack Sealey Limited
fig.9 fig.10

WARNING! – Risk of Hand Arm Vibration Injury.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
Measured vibration emission value (a): ..........2.63 m/s² Model No SG125EU
Uncertainty value (k):...........................0.7 m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a
specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration
Syndrome.
Health surveillance.
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can be modified
accordingly.
Personal protective equipment.
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and dry and
maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and
Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on the HSC website
www.hse.gov.uk - Hand-Arm Vibration at Work.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on
Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed
of in an environmentally protective way. Contact your local solid waste authority for recycling information.
SG125EU Issue: 2 (L) - 28/08/15
Original Language Version
© Jack Sealey Limited
