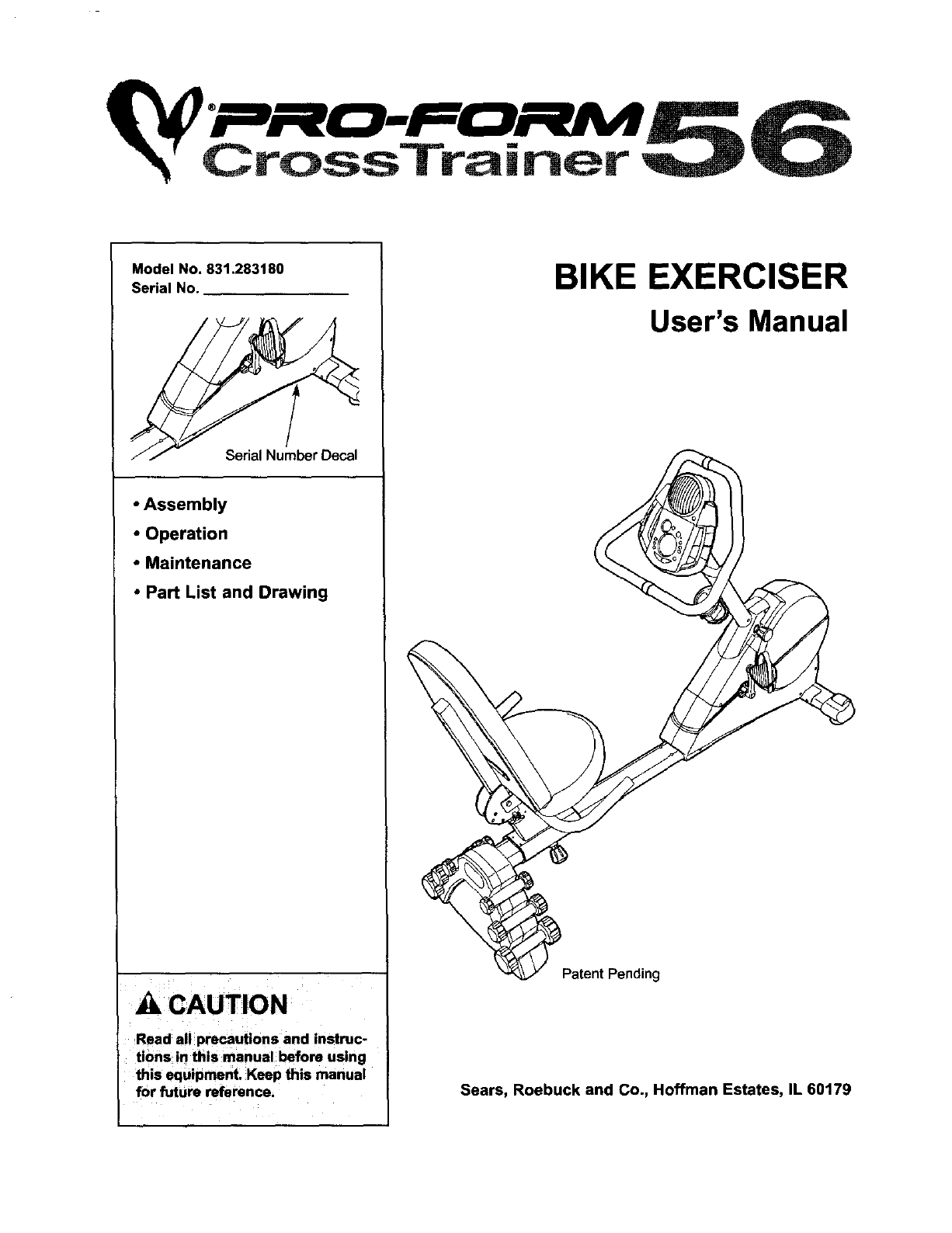

Sears PRO-FORM CrossTrainer 56 User manual

rossTral her
Model No. 831.283180
Serial No.
Serial Number Decal
• Assembly
•Operation
•Maintenance
• Part List and Drawing
_i_CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
BIKE EXERCISER
User's Manual
Patent Pending
Sears, Roebuck and Co., Hoffman Estates, IL 60179

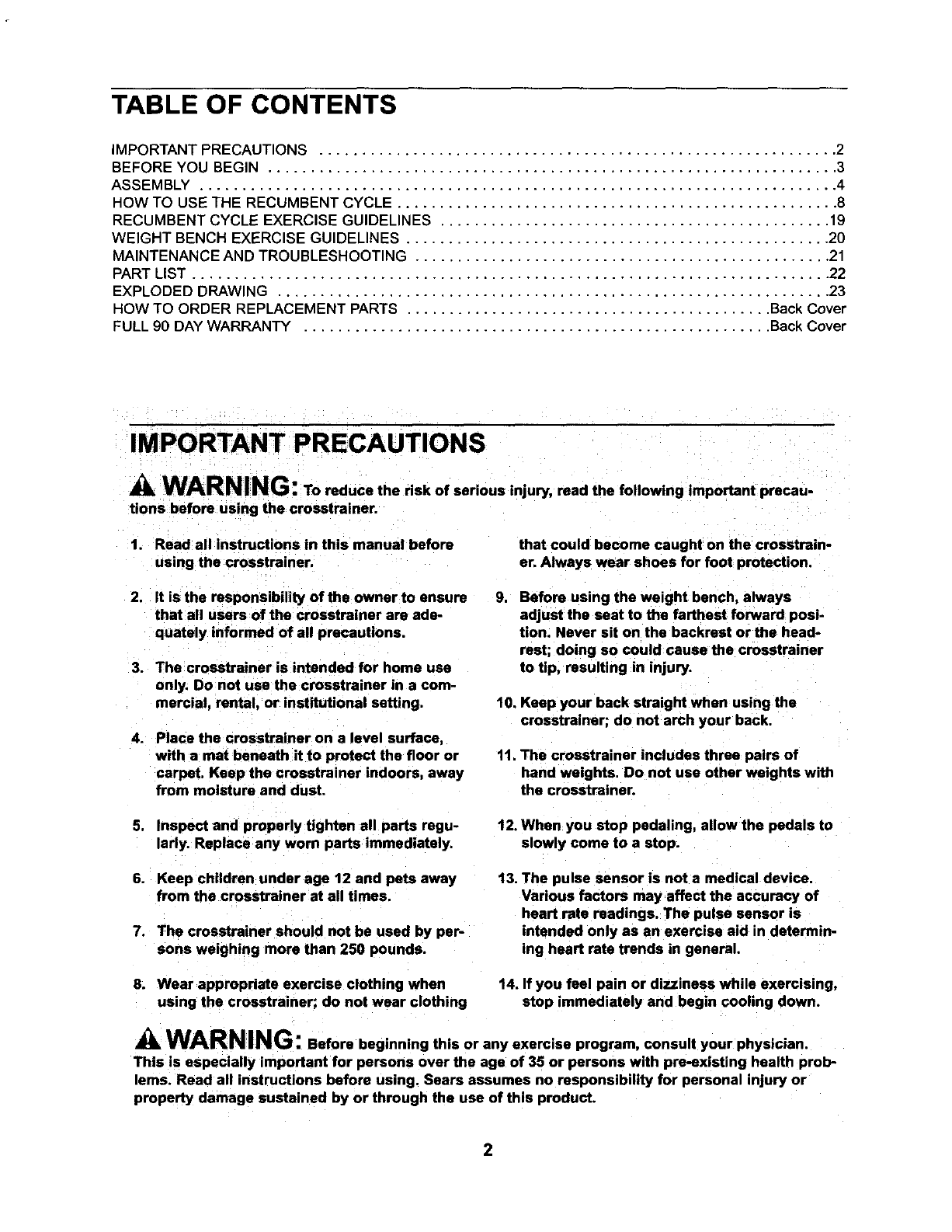

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ............................................................. 2
BEFORE YOU BEGIN ................................................................... 3
ASSEMBLY ........................................................................... 4
HOW TO USE THE RECUMBENT CYCLE .................................................... 8

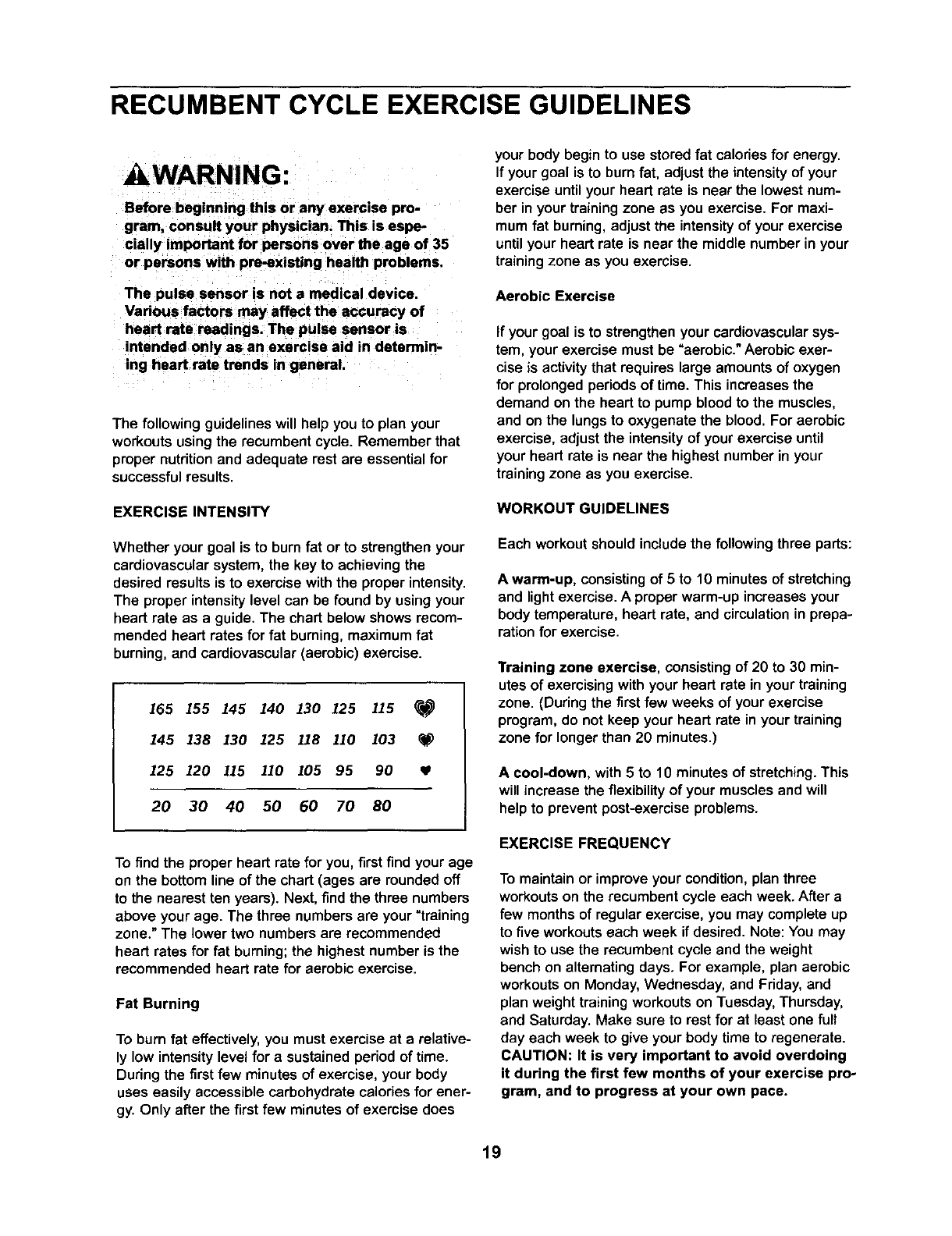

RECUMBENT CYCLE EXERCISE GUIDELINES .............................................. 19

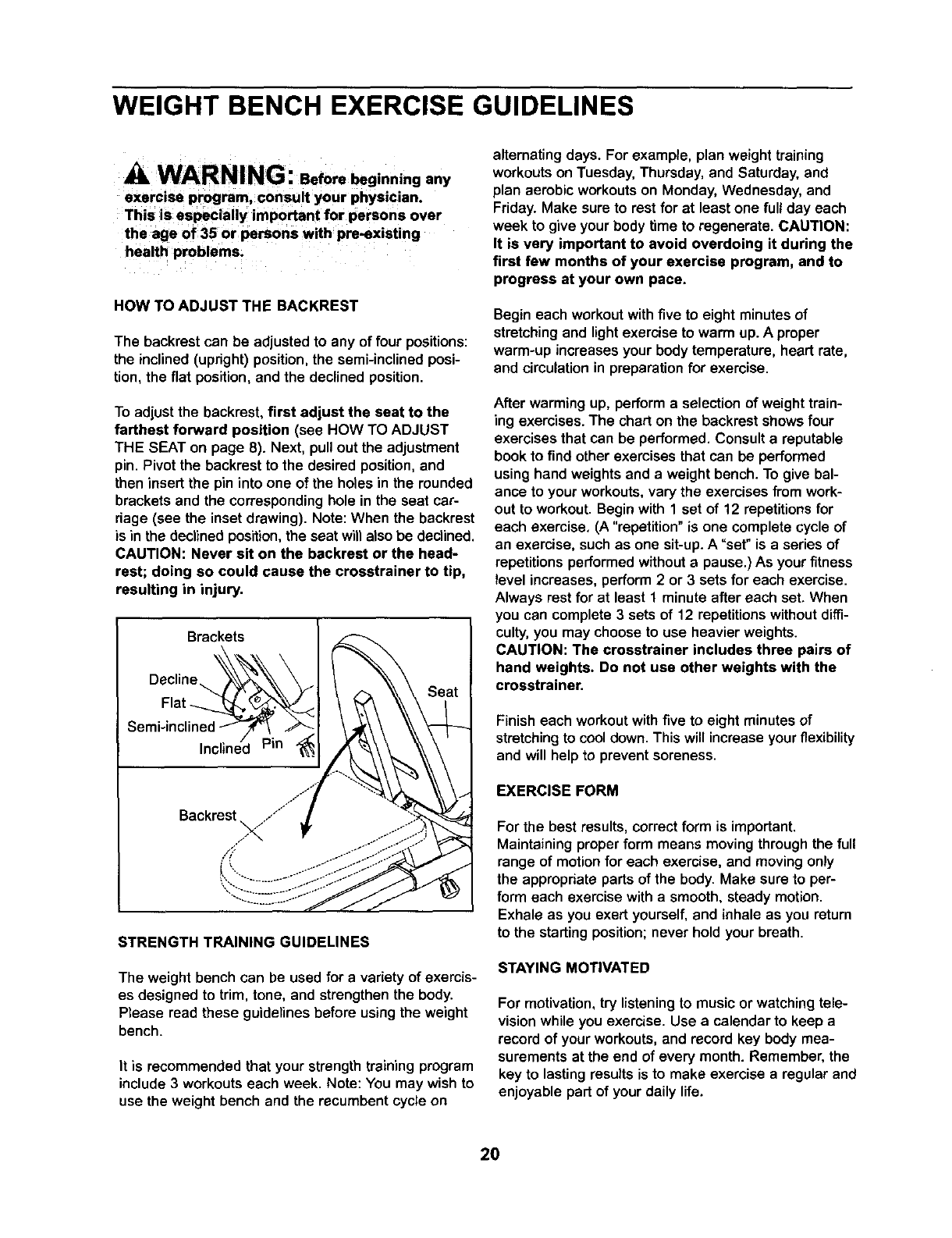

WEIGHT BENCH EXERCISE GUIDELINES .................................................. 20
MAINTENANCE AND TROUBLESHOOTING ................................................. 21
PART LIST ........................................................................... 22
EXPLODED DRAWING ................................................................. 23
HOW TO ORDER REPLACEMENT PARTS ........................................... Back Cover
FULL 90 DAY WARRANTY ....................................................... Back Cover
IMPORTANT PRECAUTIONS
BL WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the crosstrainer.
1. Read all instructions in this manual before
using the crosstrainer. that could become caught on the crosstrein-
er. Always wear shoes for foot protection.
2. It is the responsibility of the owner to ensure
that all users of the crosstrainer are ade-
quately informed of all precautions.
3. The crosetrainer is intended for home use
only. Do not use the crosstrainer in a com-
mercial, rental, or institutional setting.
4. Place the crosetrainer on a level surface,
with a m_ beneath it to protect the floor or
carpet. Keep the crosstreiner indoors, away
from moisture and dust.
9. Before using the weight bench, always
adjust the seat to the farthest forward posi-
tion. Never sit on the backrest or the head-
rest; doing so could cause the crosetrainer
to tip, resulting in injury.
10. Keep your back straight when using the
crosstralner; do not arch your back.
11. The crosetrainer includes three pairs of
hand weights. Do not use other weights with
the crosetreiner.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately. t2. When you stop pedaling, allow the pedals to slowly come to a stop.
6,
7,
Keep children under age 12 and pets away
from the crosetrainer at all times.
The crosstrainer should not be used by per-
sons weighing more than 250 pounds.
13.The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
8. Wear appropriste exercise clothing when
using the crosstrainer; do not wear clothing 14. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down,
A_ WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with preexisting health prob-
lems. Read all instructions before using. Bears assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

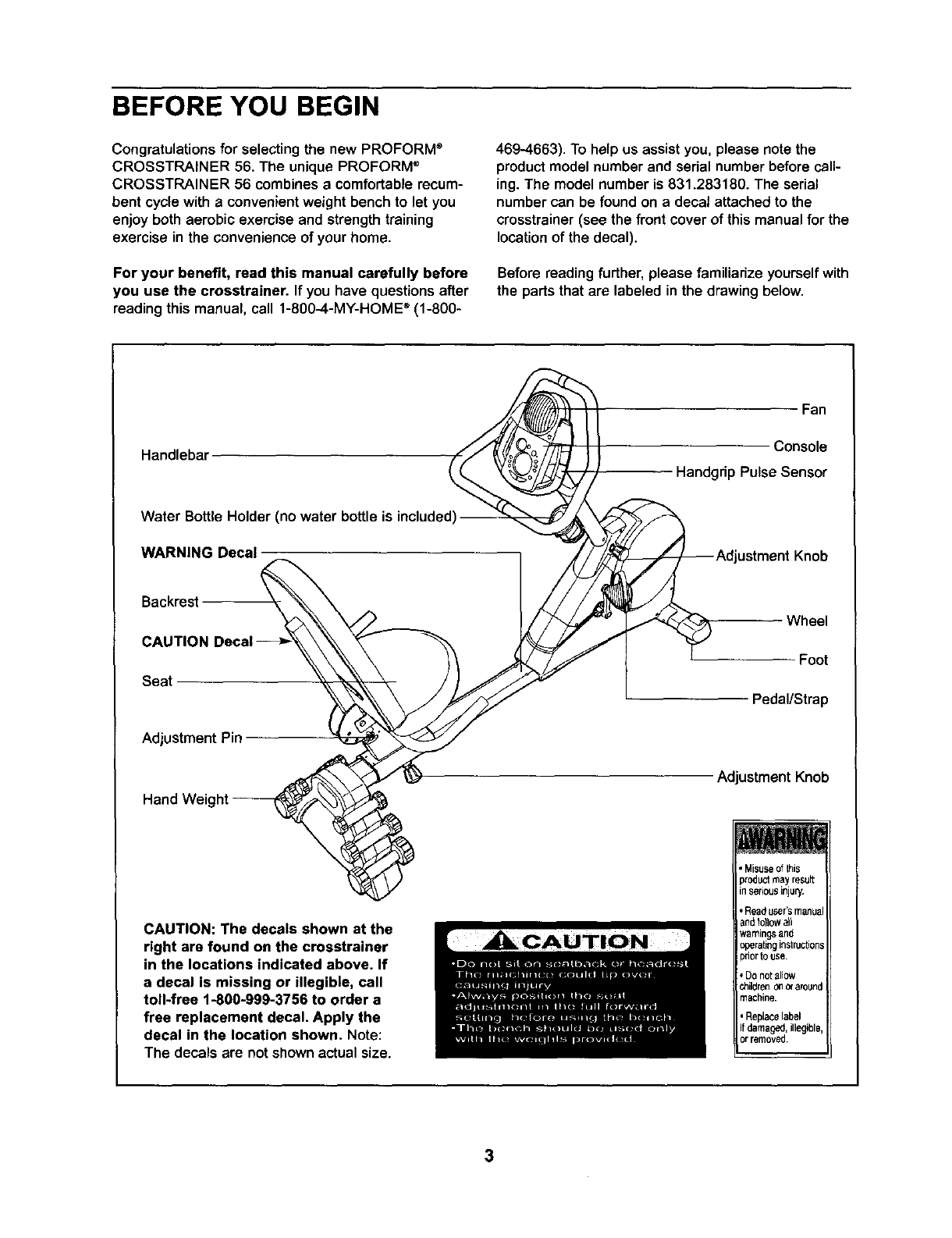

BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM ®
CROSSTRAINER 56. The unique PROFORM®
CROSSTRAINER 56 combines a comfortable recum-
bent cycle with a convenient weight bench to let you
enjoy both aerobic exercise and strength training
exercise in the convenience of your home.
For your benefit, read this manual carefully before
you use the crosstrainer, Ifyou have questionsafter
readingthis manual, call 1-800-4-MY-HOME®(1-800-
469-4663). To help us assist you, please note the
product model number and serial number before call-
ing. The model number is 831.283180. The serial
number can be found on a decal attached to the
crosstreiner (see the front cover of this manual for the
location of the decal).
Beforereading further, please familiadze yourself with
the parts that are labeled in the drawing below.
Handlebar
Fan
Console
Handgdp Pulse Sensor
Water Bottle Holder (no water bottle isincluded',
WARNING Decal
Backrest Wheel
Seat
Adjustment Pin
Foot
Pedal/Strap
Adjustment Knob
CAUTION: The decals shown at the
right are found on the crosstrainer
in the locations indicated above. If
a decal is missing or illegible, call
toll-free 1-800-999-3756 to order a
free replacement decal. Apply the
decal in the location shown. Note:
The decals are not shown actual size.
"Jlildren onoraround
"nachine.
,Replacelabel
f damaged,illegible,
3rremoved.
3

ASSEMBLY
Assembly requires two persons. Place all parts ofthe crosstrainerin a cleared area and remove the packing
materials. Do notdispose ofthe packingmaterialsuntilassembly is completed.In addition to the included
allen wrenches, assembly requires aphillips screwdriver
C----_ •_, an adjustable wrench _
and arubber mallet
As you assemble the crosstrainer, use the drawingsbelow to identifythe small parts used in assembly.The
number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page
22. The second number refers to the quantity used in assembly. Note; Some small parts may have been pre-
assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
Note: If a part is not in the parts bag, firstcheck to see if it has been pre-assembled. If a part is missing,
call toll-free 1-800-999-3756.
0
M6 Flat M8 Nylon M10 Zinc Split M10 Black Nylon M10 Zinc Nylon
Washer (71)-1 Locknut (61)-4 Washer (85)-2 Locknut (63)-2 Locknut (66)-2
1/2"Nylon
Locknut(52)-1 M4 x 16mm M4 x22mm Screw (73)-6 Screw (91)-2 M6 x16mm Screw (64)-5 M6 x 25.4mmButton
Screw (79)-1
M6 x 50mm Screw (69)-1 M8 x 14mm Button
Screw (88)-1 M8 x 39mm Button
Bolt(76)-2
M8 x 12ramButton
Screw (94)-4 M10 x52mm Zinc Button
Bolt(68)-2 M10 x 45mm Button
Screw (74)-2
M1Ox 112mm Carriage Bolt(65)-2
"x 70mm Button Bolt (51)-1
4

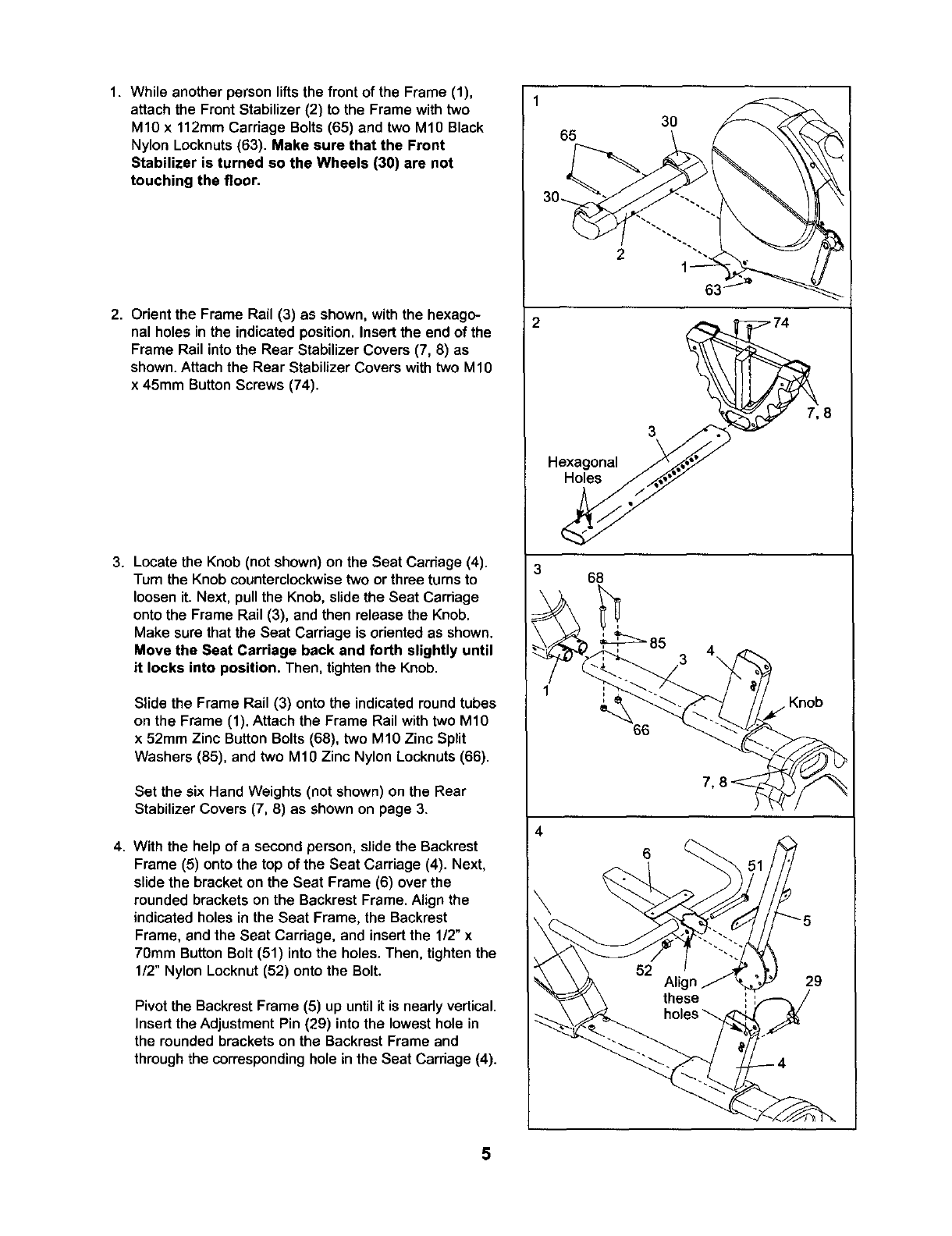

1. While another person lifts the front of the Frame (1),
attach the Front Stabilizer (2) to the Frame with two
M1Ox 112mm Carriage Bolts (65) and two M10 Black
Nylon Locknuts (63). Make sure that the Front
Stabilizer is turned so the Wheels (30) are not
touching the floor,
2. Orientthe Frame Rail (3) as shown, with the hexago-
nal holes in the indicated position. Insert the end of the
Frame Rail into the Rear Stabilizer Covers (7, 8) as
shown. Attach the Rear Stabilizer Covers with two M10
x 45mm Button Screws (74).
3. Locate the Knob (not shown) on the Seat Cardage (4).
Turn the Knob counterclockwise two or three turns to
loosen it. Next, pull the Knob, slide the Seat Carriage
onto the Frame Rail (3), and then release the Knob.
Make sure that the Seat Cardage is odented as shown.
Move the Seat Carriage back and forth slightly until
it locks into position. Then, tighten the Knob,
Slide the Frame Rail (3) onto the indicated round tubes
on the Frame (1). Attach the Frame Rail with two M10
x 52mm Zinc Button Bolts (68), two M10 Zinc Split
Washers (85), and two M10 Zinc Nylon Locknuts (66).
Set the six Hand Weights (not shown) on the Rear
Stabilizer Covers (7, 8) as shown on page 3.
4. With the help of a second person, slide the Backrest
Frame (5) onto the top of the Seat Carriage (4). Next,
slide the bracket on the Seat Frame (6) over the
rounded brackets on the Backrest Frame. Align the
indicated holes in the Seat Frame, the Backrest
Frame, end the Seat Carriage, and insert the 1/2" x
70mm Button Bolt (51) into the holes. Then, tighten the
1/2" Nylon Locknut (52) onto the Bolt.
Pivot the BackrestFrame (5) up untilitis nearly vertical.
Insertthe Adjustment Pin (29) intothe lowest hole in
the rounded bracketson the Backrest Frame and
throughthe correspondingholein the Seat Carriage(4).
30
65
2
65
2
3• •
Hexagonal
Ho,eaJ./..f
368
Knob
29
5

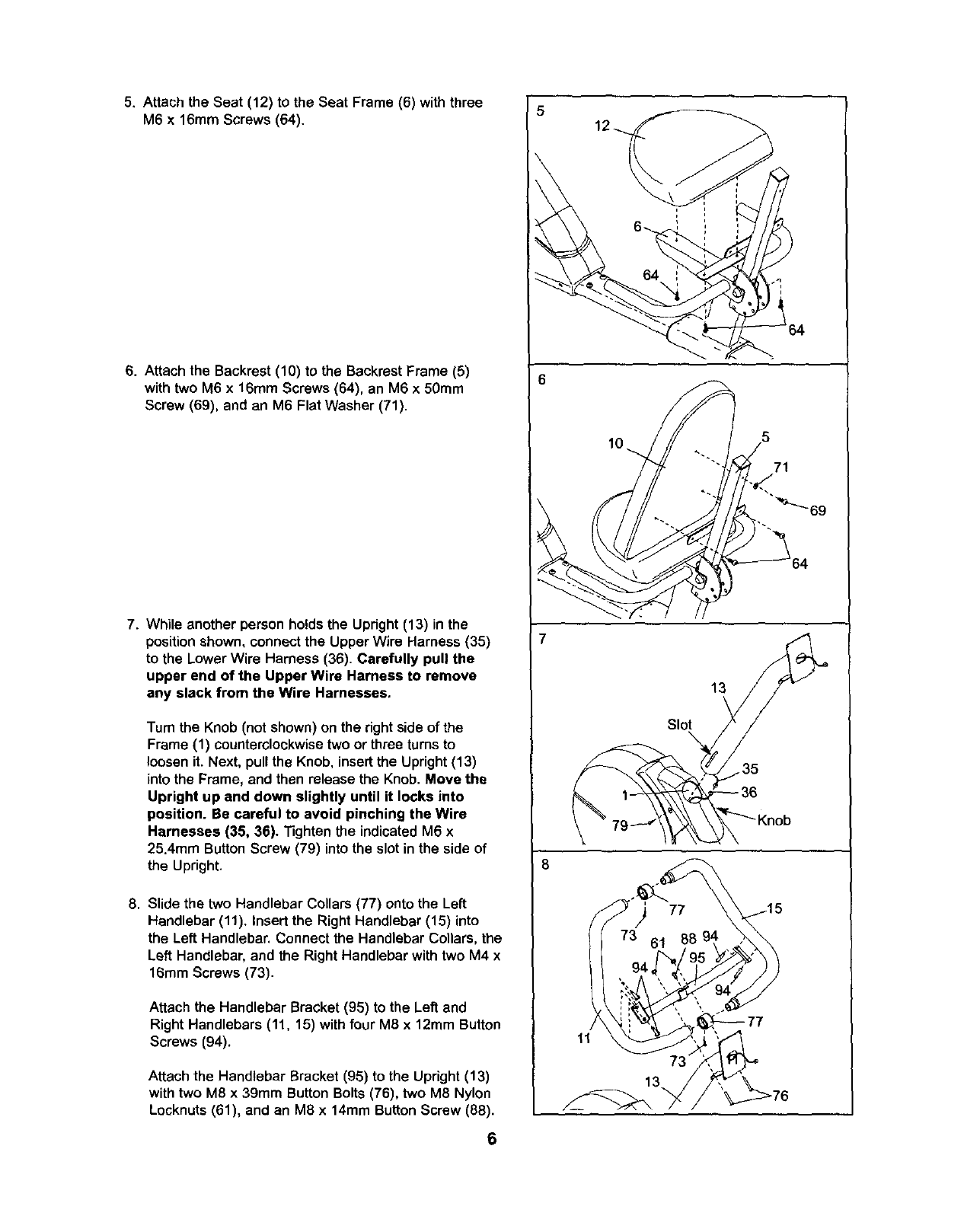

5. Attach the Seat (12) to the Seat Frame (6) with three 5
M6 x 16mm Screws (64).
6. Attach the Backrest (10) to the Backrest Frame (5)
with two M6 x 16mm Screws (64), an M6 x 50mm
Screw (69), and an M6 Flat Washer (71).
7. While another person holds the Updght (13) in the
position shown, connect the Upper Wire Harness (35)
to the Lower Wire Harness (36). Carefully pull the
upper end of the Upper Wire Harness to remove
any slack from the Wire Harnesses.
Turn the Knob (not shown) on the dght side of the
Frame (1) counterclockwise two or three turnsto
loosen it. Next, pull the Knob, insert the Upright (13)
into the Frame, and then release the Knob. Move the
Upright up and down slightly until it locks into
position. Be careful to avoid pinching the Wire
Harnesses (35, 36). Tightenthe indicated M6 x
25.4mm ButtonScrew (79) intothe slot in the side of
the Upright.
8. Slide the two Handlebar Collars (77) ontothe Left
Handlebar (11). Insert the Right Handlebar (15) into
the Left Handlebar. Connect the Handlebar Collars, the
Left Handlebar, and the Right Handlebar with two M4 x
16mm Screws (73).
Attach the Handlebar Bracket (95) to the Left and
Right Handlebars (11, 15) with four M8 x 12ram Button
Screws (94).
Attach the Handlebar Bracket (95) to the Upright (13)
with two M8 x 39mm Button Bolts (76), two M8 Nylon
Locknuts (61), and an M8 x 14mm Button Screw (88).
6
6
8
10
13
Slot
11
73

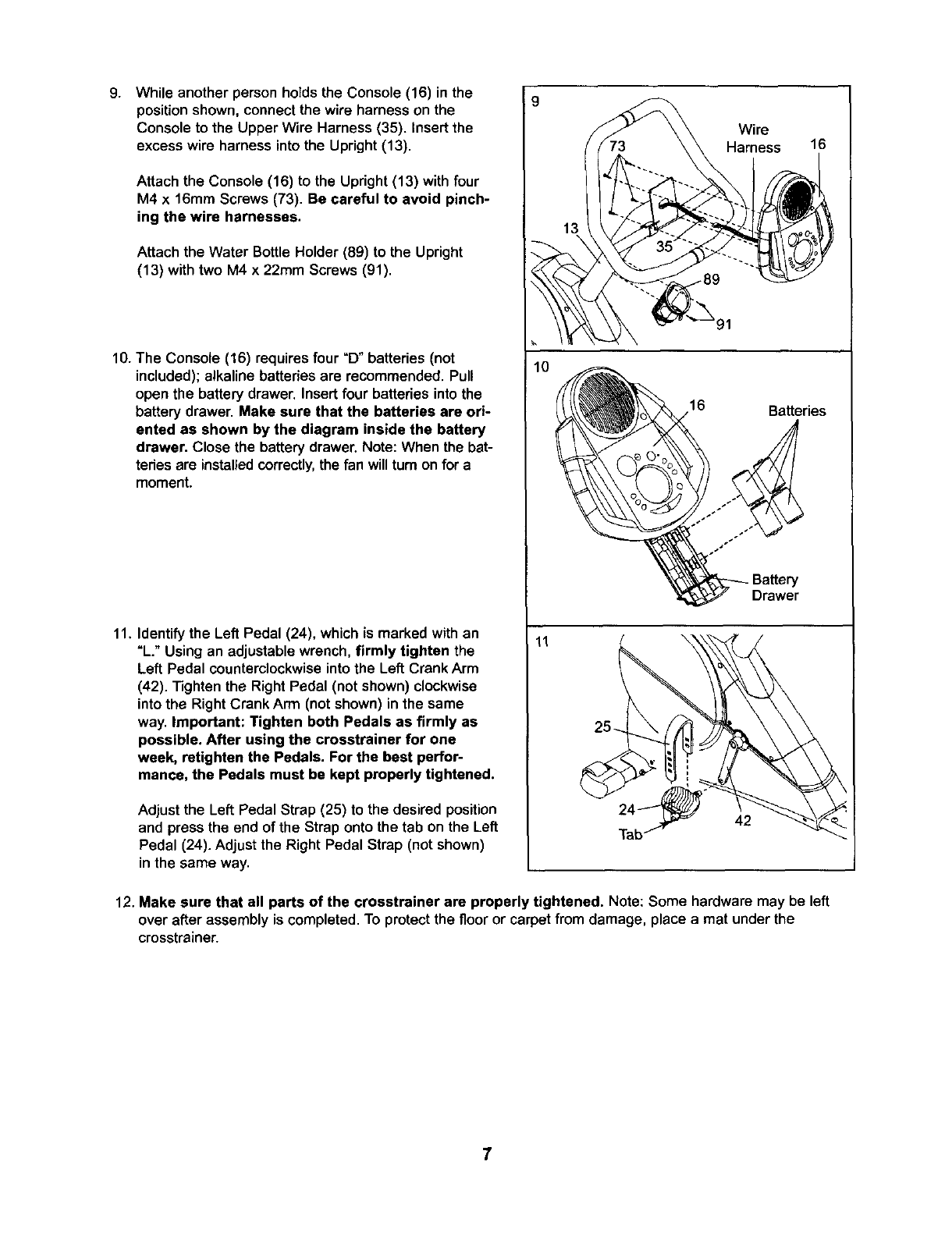

WhileanotherpersonholdstheConsole(16)inthe
positionshown,connectthewireharnessonthe
ConsoletotheUpperWireHarness(35).Insertthe
excesswireharnessintotheUpright(13).
AttachtheConsole(16)totheUpright(13)withfour
M4x 16mm Screws (73). Be careful to avoid pinch-
ing the wire harnesses.
Attach the Water Bottle Holder (89) to the Upright
(13) with two M4 x 22mm Screws (91).
10. The Console (16) requires four "D" batteries (not
included); alkaline battedes are recommended. Pull
open the battery drawer. Insert four batteries into the
battery drawer. Make sure that the batteries are ori-
ented as shown by the diagram inside the battery
drawer. Close the battery drawer. Note: When the bat-
tedesare installedcorrectly,the fan willturnon for a
moment.
11. Identify the Left Pedal (24), whichis marked with an
"L." Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(42). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm (not shown) in the same
way. Important: Tighten both Pedals as firmly as
possible. After using the crosstrainer for one
week, retightan the Pedals. For the best perfor-
mance, the Pedals must be kept properly tightened.
Adjust the Left Pedal Strap (25) to the desired position
and press the end of the Strap onto the tab on the Left
Pedal (24). Adjust the Right Pedal Strap (not shown)
in the same way.
10
11
13
16
Tab
Wire
Harness 16
Batteries
Drawer
42
12. Make sure that all parts of the crosstrainer are properly tightened. Note: Some hardware may be left
over after assembly iscompleted.To protectthe flooror carpetfrom damage, place a mat under the
crosstrainer.
7

HOW TO USE THE RECUMBENT CYCLE
The crosstrainer features arecumbent cycle for aerobic exercise, and a convenientweight bench for strength
training exercise. To use the recumbent cycle, see pages 8 to 19. To use the weight bench, see page 20.
HOW TO ADJUST THE BACKREST HOW TO ADJUST THE UPRIGHT
When the recum-
bent cycle is used,
the backrest should
be in the upright
position.Toadjust
the backrest,first
pullout the adjust-
ment pin. Raise the
backrest untilitis
nearly vertical,and
then insert the
adjustment pin into
the indicated hole
in the rounded
brackets and the
corresponding hole
in the seat carriage.
Breckets ,,
'Pir
__J' Seat
"_ _ Ca_rriage
HOW TO ADJUST THE SEAT
The uprightcan be
adjustedto the
height that is the
most comfortablefor
you. To adjust the
upright, first turn the
indicated adjust-
ment knob counter-
clockwise two or
three turns to
loosen it (if the knob
is not loosened enough, it may scratch the upright).
Next, pull the knob, slide the upright to the desired
height, and then release the knob. Move the upright
up and down slightly until it locks into position.
Then, turnthe knobclockwiseuntilit istight.IMPOR-
TANT: After you adjust the upright, make sure that
your knees will not touch the handgrip pulse sen-
sor when you pedal,
For effective exer-
cise, the seat
should be in the
proper position. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the farthest
position. To adjust
the seat, first turn
the indicated
adjustment knob
counterclockwise
two or three turns
_ Carriage
to loosen it (if the knob is not loosened enough, it may
scratch the rail). Next, pull the knob, slide the seat car-
riage to the desired position, and then release the
knob, Move the seat carriage back and forth slightly
until it locks into position, Then, turn the knob clock-
wise until it is tight,
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps,first pull the
ends of the straps
off the tabs on the
pedals. Adjust the
straps to the
desired positions,
and then press the
ends of the straps
back onto the tabs.
HOW TO USE THE HAND WEIGHTS
The included hand weights can be used for a variety
of strength training exercises with the weight bench
(see page 20). In addition, the hand weights can be
used with the recumbent cycle. As you pedal, press
the hand weights over your head, raise the hand
weights out to your sides until your hands are level
with your shoulders, or do arm curls with the hand
weights.
8

lFan Button
DisplayButtons
Button
Buttons
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you pedal, the console
will provide continuous exercise feedback. You can
even measure your heart rate using the built-in hand-
grip pulse sensor.
The console also offers four Smart programs. Each pro-
gram automatically changes the resistance of the ped-
als and prompts you to increase or decrease your pace
as it guides you through an effective workout.
In addition, the console features two Heart Rate pro-
grams that change the resistance of the pedals and
prompt you to vary your pace to keep your heart rate
near a target heart rate as you exercise.
The console also features iFIT.com interactivetechnol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Usinga stereo audio cable
(available at electronics stores), you can connect the
crosstrainer to your home stereo, portable stereo, com-
puter, or VCR and play special iFIT.com CD and video
programs (iFIT.com CDs and videocassettes are avail-
able separately), iFIT.com CD and video programs
automatically control the resistance of the pedals and
prompt you to vary your pace as a personal trainer
coaches you through every step of your workout. High-
energy music provides added motivation. To purchase
iFIT.com CDe and videocassettes, call toll-free
1-800-735-0768.
With the crosstrainer connected to your computer, you
can also go to our Web site at www.iFIT.com and
access programs directly from the intemet. Explore
www.iFIT.com for more information.
To use the manual mode of the console, see page
10. To use a Smart program, see page 12. To use a
Heart Rate program, see page 13. To use an
iFIT.oom CD or videocassette, sea page 17. To use
a program directly from our Web site, see page 18.
9

HOW TO USE THE MANUAL MODE
B Turn on the console.
Note: The console requires four 1.5V "D" batteries
(see assembly step 10 on page 7).
To turnon the console, press the On/Reset button
or beginpedaling. (See the drawingon page 9 to
identify the On/Reset button.)
BSelect the manual mode.
Each time the console is
turned on,the manual
mode will be selected. If a
program has been select-
ed, select the manual
mode by pressing the
Program button repeated-
ly until the letters RPM
appear in the small display.
B Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the ped-
als by pressing the + and - buttons below the
large display, There are ten resistance levels--
level 10 is the most challenging. Note: After the
buttons are pressed, it will take a few seconds for
the resistance to reach the selected setting.
B Follow your progress with small display and
the large display.
The small display will
show your pedaling pace,
in revolutionsper minute
(RPM). The indicatorbar
in the small displaywill
increaseor decrease in
length as you increase or
decrease your pedaling
pace.
Indicator Bar
The upper sec-
tion of the
large display
will show the
distance you
have pedaled
and the numbers of calories and fat calories you
have burned (see FAT BURNING on page 19 for
an explanation of fat calories). The display will
change from one number to the next every few
seconds. If you use the handgrip pulsesensor,
the display will also show your heart rate (see
step 5 on page 11).
To view onlythe distance
you have pedaled or the
number of calories or fat
calories you have burned,
press the upper button on
the left side of the large
display until only the word
DISTANCE, CALORIES, or
Upper Button
FAT CALORIES appearsin the upper sectionof
the large display. Make sure that the word SCAN
does not appear. To again view the distance you
have pedaled and the numbers of calories and
fat calories you have burned, press the upper
button until the word SCAN reappears.
The center of
the large display
willshow the
elapsed time and
yourcurrent pace
(pace is shownin
minutes per mite). The display will change from
one number to the other every few seconds.
Note: When a program is selected (except for the
SelfSelect program), the display will show the
time remaining in the program instead of the
elapsed time.
To view only the elapsed time or your pace, press
the center button on the left side of the large dis-
play until only the word TIME or PACE appears.
Make sure that the word SCAN does not appear.
To view both the elapsed time and your pace,
press the center button until the word SCAN
reappears.
The lower sec-
tion of the large
display willshow
your pedaling
speed and the
resistance level.
The display will change from one number to the
other every few seconds.
To view onlyyour pedaling speed or the resis-
tance level, press the lower button on the left
side of the large display until only the word
SPEED or RESISTANCE appears. Make sure
that the word SCAN does not appear. To view
both your pedaling speed and the resistance
level, press the lower button until the word SCAN
reappears.
10

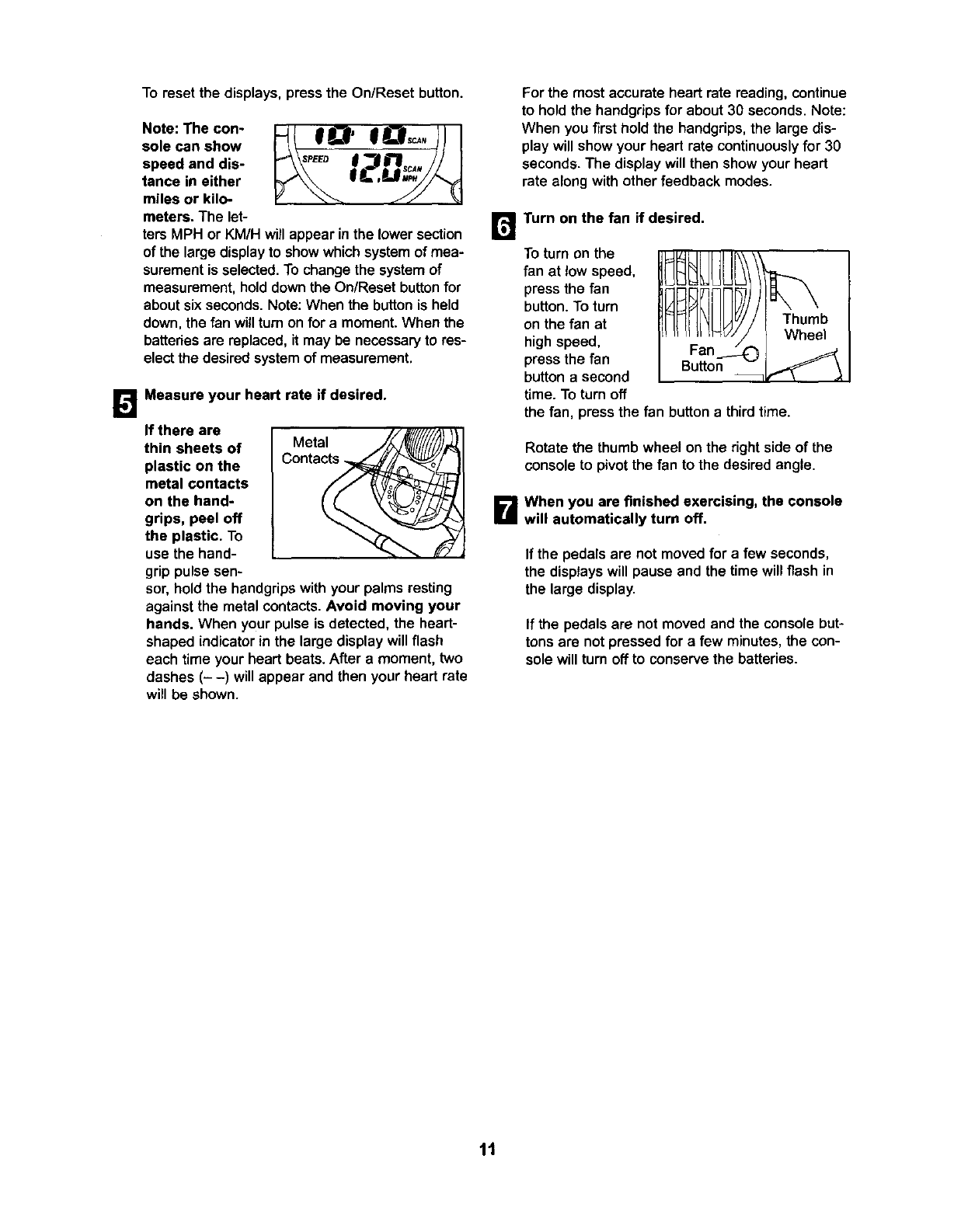

To reset the displays, press the On/Reset button.
Note: The con-
sole can show
speed and dis-
tance in either
miles or kilo-
meters, The let-
ters MPH or KM/H will appear in the lower section
of the large display to showwhich system of mea-
surement is selected. To change the system of
measurement, hold down the On/Reset button for
about six seconds. Note: When the button is held
down, the fan will turn on for a moment. When the
batteries are replaced, it may be necessary to res-
elect the desired system of measurement.
mMeasure your heart rate if desired.
If there are
thin sheets of
plastic on the
metal contacts
on the hand-
grips, peel off
the plastic. To
use the hand-
grip pulsesen-
sor, hold the handgripswith your palms resting
against the metal contacts. Avoid moving your
hands. When your pulse is detected, the heart-
shaped indicator in the large display will flash
each time your heart beats. After a moment, two
dashes (- -) will appear and then your heart rate
will be shown.
Forthe most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds. Note:
When you first hold the handgrips, the large dis-
play will show your heart rate continuously for 30
seconds. The display will then show your heart
rate along with other feedback modes.
r_Turn on the fan if desired.
To turn on the
fan at low speed,
pressthe fan
button. To turn
on the fan at
highspeed, Fan
pressthe fan Button
buttona second
time. To turnoff
the fan, pressthe fan buttona thirdtime.
Rotate the thumb wheel on the right side of the
console to pivot the fan to the desiredangle.
B When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds,
the displays will pause and the time will flash in
the large display.
If the pedals are not moved and the console but*
tonsare not pressed for a few minutes, the con-
sole will turn off to conserve the batteries.
1t

HOW TO USE A SMART PROGRAM
Each Smart program willautomatically change the
resistance of the pedals and prompt you to increase or
decrease your pace as it guides you through an effec-
tive workout. Programs 3 and 4 are weight loss pro-
grams, program 5 is an aerobic program, and program
6 is a high-performance interval-training program.
Follow the steps below to usea Smart program.
_11 Turn on the console.
See step t on page 10.
BSelect one of the Smart programs.
Each time the console is
turned on, the manual
mode willbe selected. To
select aSmart program,
press the Program button
repeatedly until the num-
ber 3, 4, 5, or 6 appears in
the small display.
laBegin pedaling to start the program.
To start the program, simply begin pedaling. Each
Smart program consists of 20 or 30 one-minute
periods. One resistance level and one target pace
are programmed for each period. (The same
resistance level and/or target pace may be pro-
grammed for two or more consecutive periods.)
At the end ofeach period of the program, the
resistanceof the pedals willautomatically change
if a differentresistancelevel is programmedfor
the next period. Note: Ifthe resistancelevel is too
highor too low,you can change it by pressingthe
+ and - buttonsbelowthe largedisplay.However,
when the current periodis completed,the resis-
tance ofthe pedalswillautomaticallychangeifa
different resistance level is programmed for the
next period.
The target pace
for the current
period will be
shown by the
arrows in the
small display. To
pedal at the target
pace, simply
increase or decrease your pace until there is one
arrow pointing to each segment of the indicator
bar (see the drawing above). At the end of each
period, the number of arrows will change if a dif-
ferent target pace is programmed for the next
period. When the number of arrows changes,
change your pace until there is one arrow point-
ing to each segment of the indicator bar.
Important: The target pace is intended only to
provide a goal. Your actual pace may be slow-
er than the target pace, especially during the
first few months of your exercise program.
Make sure to pedal at a pace that is comfort-
able for you.
Duringthe program, the center ofthe large dis-
play willshow the time remainingin the program.
Ifyou stop pedalingfor a few seconds, the dis-
plays willpause and the time willflash. If you
continue pedaling afterthe programis completed,
the displayswill continueto show exercisefeed-
back.
B Follow your progress with the large display.
See step 4 on page 10.
I1_ Measure your heart rate if desired.
See step 5 on page 11.
r_ "turnon the fan if desired.
See step 6 on page 11.
B When you are finished exercising, the console
will automatically turn off.
See step 7 on page 11.
t2

HOWTO USE A HEART RATE PROGRAM
Heart Rate program 1 is designed to keep your heart
rate between 65% and 85% of your maximum heart
rate during your workout. (Your maximum heart rate is
estimated by subtracting your age from 220. For
example, if you are 25 years old, your maximum heart
rate is 195 beats per minute.) Heart Rate program 2 is
designed to keep your heart rate near a target heart
rate that you select.
Follow the steps below to use a Heart Rate program.
n Turn on the console.
See step 1on page 10.
BSelect one of the Heart Rate programs.
Each time the console is
turned on, the manual
mode will be selected. To
select a Heart Rate pro-
gram, press the Program
button repeatedly until the
number 1 or 2 appears in
the small display.
Enter your age or a target heart rate.
If program 1 is selected, the word AGE will
appear in the large display and the current age
settingwill flash. Ifyou have already entered your
age, press the Enter button.If you have not
entered yourage, press the small + and - buttons
to enter your age. Then, press the Enter button.
Once you have entered yourage, itwill be saved
in memory until the batteries are replaced.
If program 2 is selected, the letters PLS (pulse)
willappear in the large display and the current
target heart rate willflash. Ifyou do notwish to
changethe target heart rate, press the Enter but-
ton. Ifyou wishto change the target heart rate,
pressthe small + and -buttons. Then, pressthe
Enter button. The target heart rate can be from 70
to 170 beats per minute.
Lq
Hold the handgrip pulse sensor.
It is not necessary to hold the handgdps continu-
ously during a Heart Rate program; however, you
must hold the handgrips frequently for the program
m
to operatepropedy. Each time you hold the
handgrips, keep your hands on the metal con-
tacts for at least 30 seconds. Note: When you
are notholdingthe handgdps,the lettersPLS will
appear in the largedisplayinsteadof yourheart
rate.
Begin pedaling to start the program.
To startthe program, simply begin pedaling.
Program 1 consists of20 one-minuteperiods.
One resistancelevel and one target heart rateare
programmedfor each period.(The same resis-
tance level and/ortarget heart rate may be pro-
grammedfor two or more consecutiveperiods.)
Program 2 is sixtyminuteslong (you may choose
to use onlypart ofthe program).The same resis-
tance level and target heart rate are programmed
for the entire program.
If program 1 is selected, the resistanceofthe
pedals willperiodicallychange. (Note: Ifthe resis-
tance level istoo high or too low,you can change
it by pressingthe + and - buttonsbelow the large
display. However,when the current period is com-
pleted, the resistance of the pedals may automati-
cally change.) If program 2 is selected, the
resistance of the pedals will not change. Note:
You can change the resistance level for the entire
program by pressing the + and - buttons below
the large display if desired.
During programs
1 and 2, the
arrows in the
small display will
helpyou to keep
your heart rate
near the current
target heart rate.
Indicator //,,alP" \\ ,
Bar_ _)_:_
Arrows_ p,_=j/
When you hold the handgrippulse sensor,the
console willcompare yourheart rate to the cur-
rent target heart rate. If your heart rate istoo far
above or below the target heart rate, the number
of arrows in the small display will change to
prompt you to increase or decrease your pace.
When the number of arrows changes, change
your pace until there is one arrow pointing to
each segment of the indicatorbar. Important:
The target pace is intended only to provide a
goal. Your actual pace may be slower than the
target pace, especially during the first few
months of your exercise program. Make sure
to pedal at a pace that is comfortable for you.
13

Note: If you stop pedaling for a few seconds, the
program will end. To use the program again, rese-
lect it and start it at the beginning.
r_ Follow your progress with the large display.
See step 4 on page 10,
B Turn on the fan if desired.
See step 6 on page 11.
_! When you are finished exercising, the console
will automatically turn off.
See step 7 on page 11,
HOWTO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the crosstrainermust be connect-
ed to your portable CO player, portablestereo,home
stereo,or computerwith CD player.See pages 14to 16
for connecting instructions.To use iFIT.com videocas-
settes, the crosstrainermustbeconnectedtoyourVCR.
See page 16 forconnectinginstructions.To use
iFIT.com programs directly from our Web site, the
crosstrainermustbe connectedto yourcomputer. See
page 16 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) intothejack
beneath the console.Plug the otherend ofthe
cable intothe LINE OUT jack on yourCD player.
Plugyourheadphones intothe PHONES jack.
.....EIj '
B. Plug one end of a 1/8" to 1/8"stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
,, \\
._ ("_ Audio Y-adapter I_
Cab,e
14

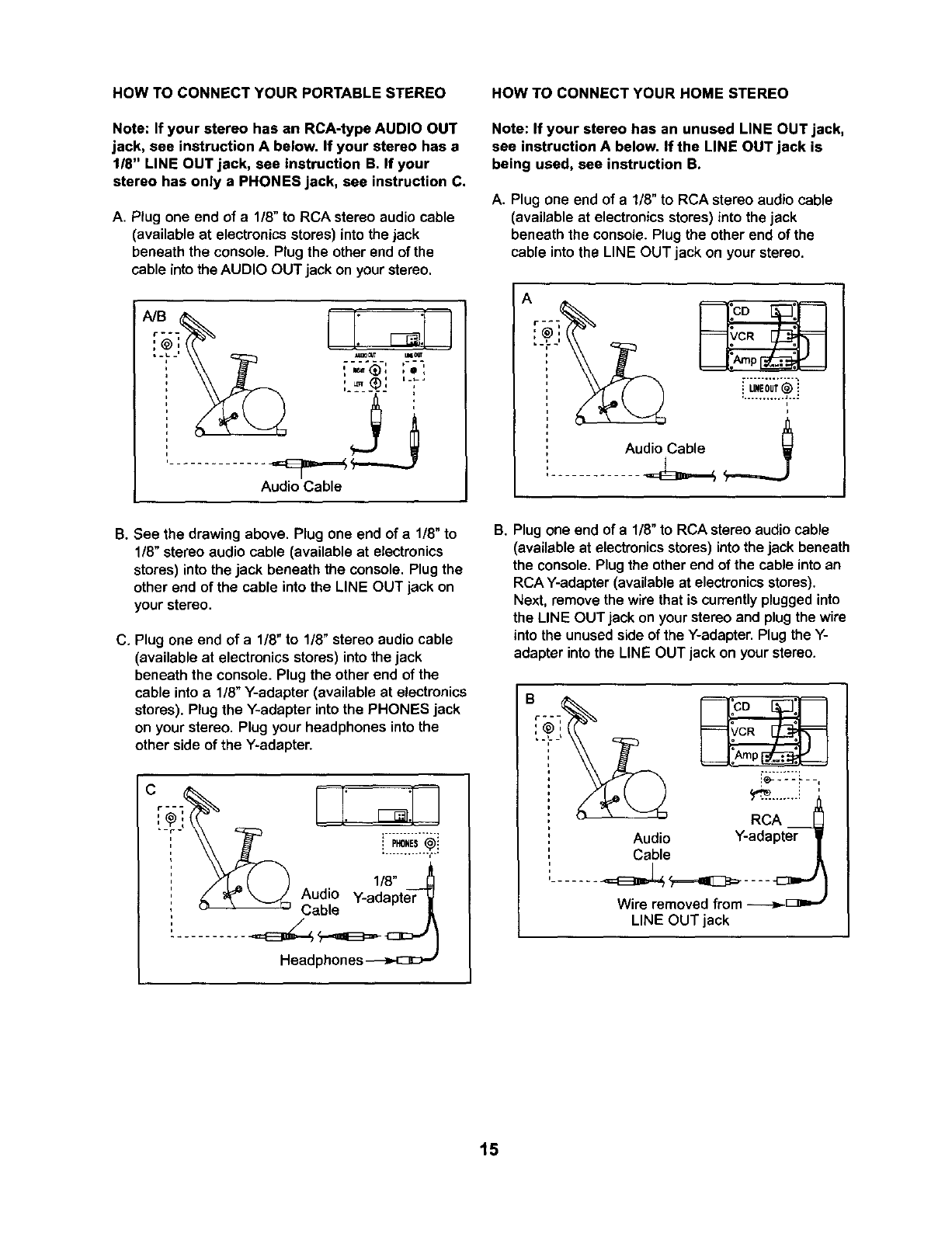

HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
118"LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end ofa 1/8" to RCA stereo audio cable
(available at electronics stores) into thejack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your stereo.
Audio Cable
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below, If the LINE OUT jack is
being used, see instruction B.
A. Plug one end ofa1/8"to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
A o
iLINEOUT_ i
,........... J.._
B. See the drawing above. Plug one end of a 1/8" to
1/8" stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8" to 118"stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
C r ' °
\\ iii! iii ',
AudioY-adapter T
Cable IL
B. Plug one end of a 118"to RCA stereo audio cable
(available at electronics stores)into the jack beneath
the console. Plug the other end of the cable into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Y-
adapter into the LINE OUT jack on your stereo.
Audio
Cable
RCA
Y-adapter
Wire removed from _[3_-,
LINE OUT jack
t5

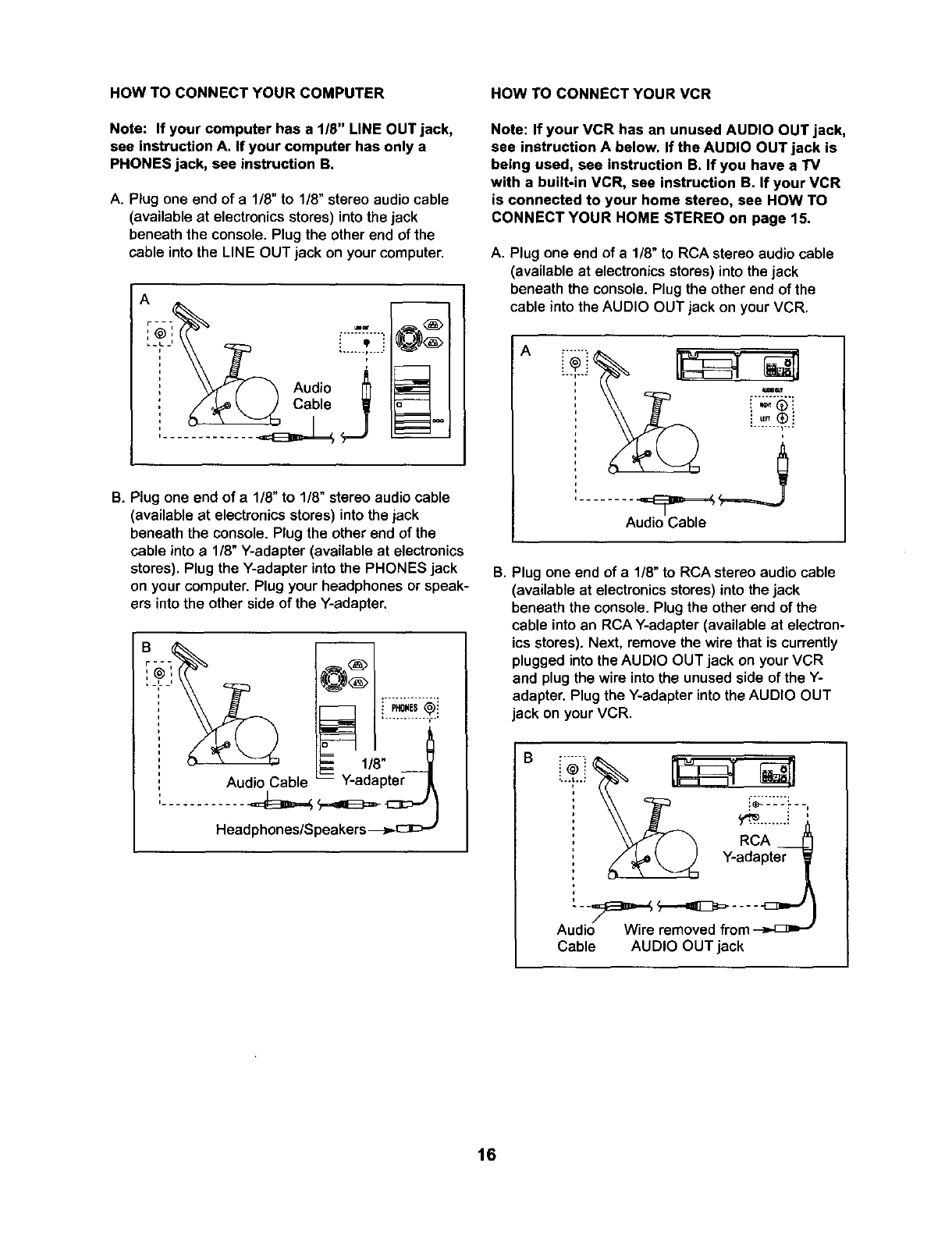

HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 118" LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
'-!- ,_,, O®
" Audio [_
B. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
! -- _= 1/8"
lAudioCable - Y-adapter
Headphones/Speakers _,,_
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
A
Audio Cable
B, Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electron-
ics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Y-
adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR,
B
adap,er
Cable AUDIO OUT jack
16

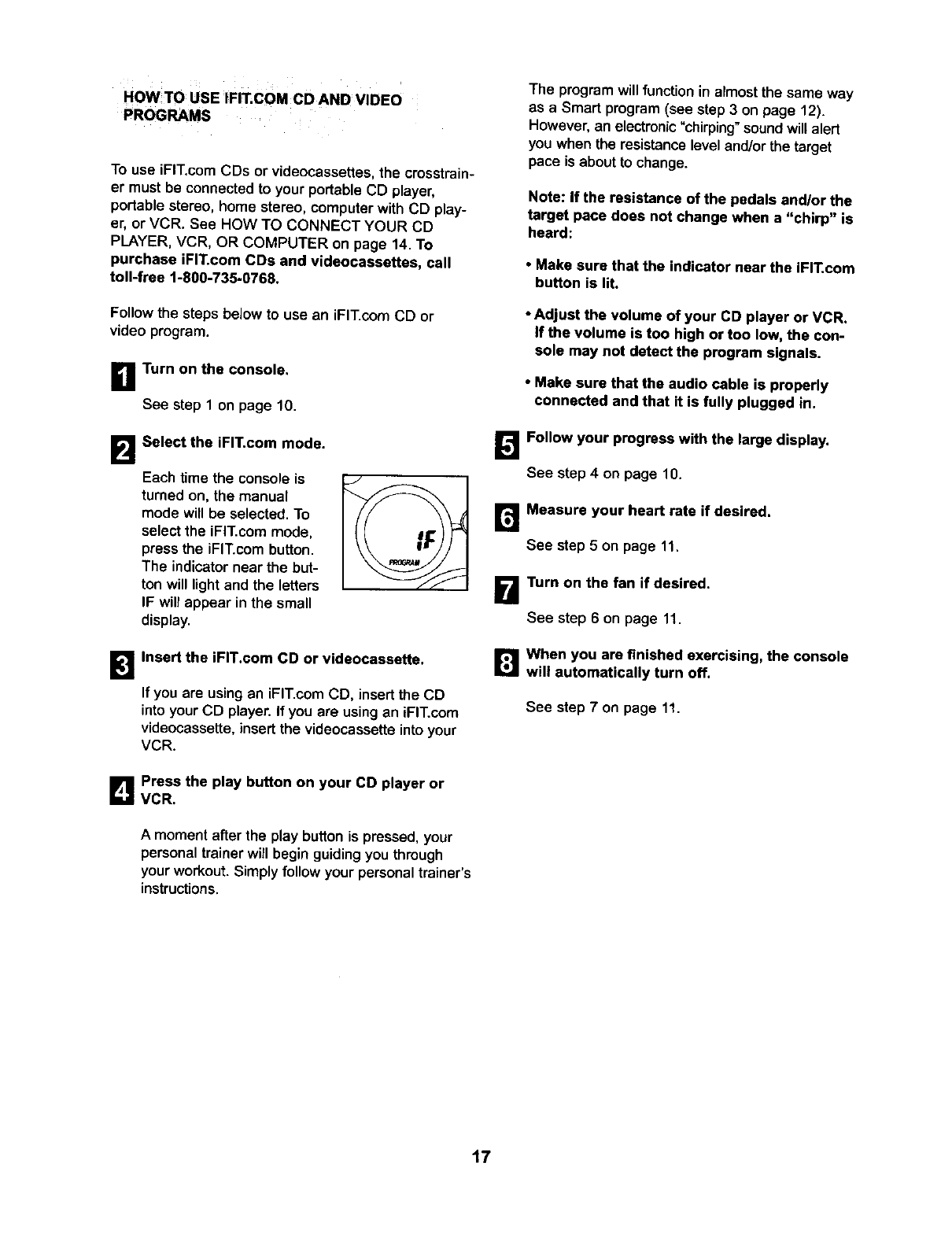

HOW:TO USE iF T.COM CO AND VIDEO
PROGRAMS
To use iFIT.com CDs or videocassettes,the crosstrain-
er mustbe connectedto yourportableCD player,
portablestereo, home stereo, computerwith CD play-
er, or VCR. See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on page 14. To
purchase iFIT.com CDs and videocassettes, call
toll-free 1-800-735-0768.
Followthe steps below to use an iFIT.com CD or
video program.
BTurn on the console.
See step1 on page 10.
BSelect the iFIT.com mode.
Each time the console is
turned on,the manual
mode will be selected. To
select the iFIT.com mode,
press the iFIT.com button.
The indicator near the but-
ton wit1light and the letters
IF will appear in the small
display.
laInsert the iFIT.com CD or videocassette.
Ifyou are using an iFIT.com CD, insertthe CD
into your CD player. If you are usingan iFIT.cc,m
videocassette, insert the videocassette into your
VCR.
[]! Press the play button on your CD player or
I VCR,
Amomentafter the play button ispressed, your
personaltrainer willbegin guidingyou through
your workout. Simply follow your personal trainer's
instructions.
The program willfunctionin almostthe same way
as a Smart program (see step 3 on page 12).
However,an electronic"chirping" soundwillalert
youwhen the resistanceleveland/orthetarget
pace isabouttochange.
Note: If the resistance of the pedals andlor the
target pace does not change when a "chirp" is
heard:
• Make sure that the indicator near the iFlT.com
button is lit.
• Adjust the volume of your CD player or VCR.
if the volume is too high or too low, the con-
sole may not detect the program signals.
•Make sure that the audio cable is properly
connected and that it is fully plugged in.
_'=.'_Follow your progress with the large display.
See step 4 on page 10.
r_ Measure your heart rate if desired.
See step 5 on page 11.
B Turn on the fan if desired.
See step 6 on page 11.
_When you are finished exercising, the console
will automatically turn off.
See step 7on page 11.
17

HOWTO ;USEPROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allowsyou to play
iFIT.com programs directly from the intemet. To use
programs from our Web site, the crosstrainer must be
connected to your computer. See HOW TO CON-
NECT YOUR COMPUTER on page 16. In addition,
you must have an internet connection and an internet
service provider. A list of specific system requirements
will be found on our Web site.
Follow the steps below to use a program from our
Web site.
_I Turn on the console.
See step 1 on page 10.
LR Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
select a program.
r_ Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
B Return to the crosstrainer and begin pedaling.
When the on-screen countdown ends, the pro-
gram will begin. The program will function in
almost the same way as a Smart program (see
step 3 on page 12). However, an electronic "chirp-
ing" sound will alert you when the resistance level
and/or the target pace is about to change.
BSelect the iFIT.com mode.
Each time the console is
turned on, the manual
mode will be selected. To
select the iFIT.com mode,
press the iFIT.com button.
The indicator near the but-
ton will light and the letters
IF will appear in the small
display.
Follow your progress with the large display.
See step 4on page 10.
Measure your heart rate if desired.
See step 5 on page 11.
_lWhen you are finished exercising, the console
will automatically turn off.
l_lGo to your computer and start an internet
connection. See step 7 on page 11.
18

RECUMBENT CYCLE EXERCISE GUIDELINES
,WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not amedical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
The following guidelines will help you to plan your
workouts using the recumbent cycle. Remember that
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthenyour
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
165 155 145 140 130 125 115
145 138 130 125 118 110 103
125 120 115 110 105 95 90
20 30 40 50 60 70 80
To find the proper heart rate for you, first find yourage
on the bottom line of the chart (ages are rounded off
to the nearest ten years). Next, find the three numbers
above your age. The three numbers are your "training
zone." The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber in your training zone as you exercise. For maxi-
mum fat burning, adjust the intensity of your exercise
until your heart rate is near the middle number in your
training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout shouldincludethe following three parts:
A warm-up, consisting of 5to 10 minutes ofstretching
and lightexercise.Aproperwarm-up increasesyour
bodytemperature, heart rate, and circulation in preps-
rationfor exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone, (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes,)
A cool-down, with 5 to 10 minutes of stretching.This
willincrease the flexibilityofyour musclesand will
helpto preventpost-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition,plan three
workoutson the recumbent cycle each week.After a
few months of regular exercise, you may complete up
to five workouts each week if desired. Note: You may
wish to use the recumbent cycle and the weight
bench on alternating days. For example, plan aerobic
workouts on Monday, Wednesday, and Friday, and
plan weight training workouts on Tuesday, Thursday,
and Saturday. Make sure to rest for at least one full
day each week to give your body time to regenerate.
CAUTION: It is very important to avoid overdoing
it during the first few months of your exercise pro-
gram, and to progress at your own pace.
19

WEIGHT BENCH EXERCISE GUIDELINES
WARNING: eeforsbeginning any
exercise program, consult your physician.
This is especially important for persons over
the age of 35 or persons with pre-existing
health problems.
HOW TO ADJUST THE BACKREST
The backrest can be adjusted to any offour positions:
the inclined (updght) position, the semi-inclined posi-
tion, the fiat position, and the declined position.
To adjust the backrest, first adjust the seat to the
farthest forward position (see HOW TO ADJUST
THE SEAT on page 8). Next, pull outthe adjustment
pin. Pivot the backrest to the desired position,and
then insertthe pininto one of the holesin the rounded
bracketsand the correspondinghole inthe seat car-
riage(see the inset drawing). Note: When the backrest
is in the declinedposition, the seat willalso be declined.
CAUTION: Never sit on the backrest or the head-
rest; doing so could cause the crosstrainer to tip,
resulting in injury.
Brackets
Decline_
/
Inclined Pin
Backrest ""
STRENGTH TRAINING GUIDELINES
The weightbench can be used for a variety of exercis-
es designed to trim, tone, and strengthen the body.
Please read these guidelines before using the weight
bench.
It is recommended that your strength training program
include 3 workouts each week. Note: You may wish to
use the weight bench and the recumbent cycle on
alternatingdays. For example, plan weighttraining
workoutson Tuesday, Thursday,and Saturday,and
planaerobic workoutson Monday,Wednesday, and
Friday.Make sure to rest for at leastone full day each
week to give your body time to regenerate. CAUTION:
It is very important to avoid overdoing it during the
first few months of your exercise program, and to
progress at your own pace.
Begin each workout withfive to eight minutes of
stretchingand lightexercise to warm up.A proper
warm-up increasesyourbodytemperature, heart rate,
and circulationin preparationfor exercise.
After warming up, perform a selection of weighttrain-
ing exercises. The chart on the backrest shows four
exercises that can be performed. Consult a reputable
book to find other exercises that can be performed
using hand weights and a weight bench. To give bal-
ance to your workouts, vary the exercises from work-
out to workout. Begin with 1 set of 12 repetitions for
each exercise, (A "repetition" is one complete cycle of
an exercise, such as one sit-up. A "set" is a series of
repetitions performed without a pause.) As your fitness
level increases, perform 2 or 3 sets for each exercise.
Always rest for at least 1 minute after each set. When
you can complete 3 sets of 12 repetitions without diffi-
culty, you may choose to use heavier weights.
CAUTION: The crosstrainer includes three pairs of
hand weights. Do not use other weights with the
crosstrainer.
Finish each workout with five to eight minutes of
stretching to cool down. This will increase your flexibility
and will help to prevent soreness.
EXERClSE FORM
For the best results, correctform is important.
Maintaining proper form means moving through the full
range of motion for each exercise, and moving only
the appropriate parts of the body. Make sure to per-
form each exercise with a smooth, steady motion.
Exhale as you exert yourself, and inhale as you return
to the starting position; never hold your breath.
STAYING MOTIVATED
For motivation,try listening to music or watchingtele-
vision while you exercise. Use a calendar to keep a
record of your workouts, and record key body mea-
surements at the end of every month. Remember, the
key to lasting results is to make exercise a regular and
enjoyable part of your daily life.
2O
