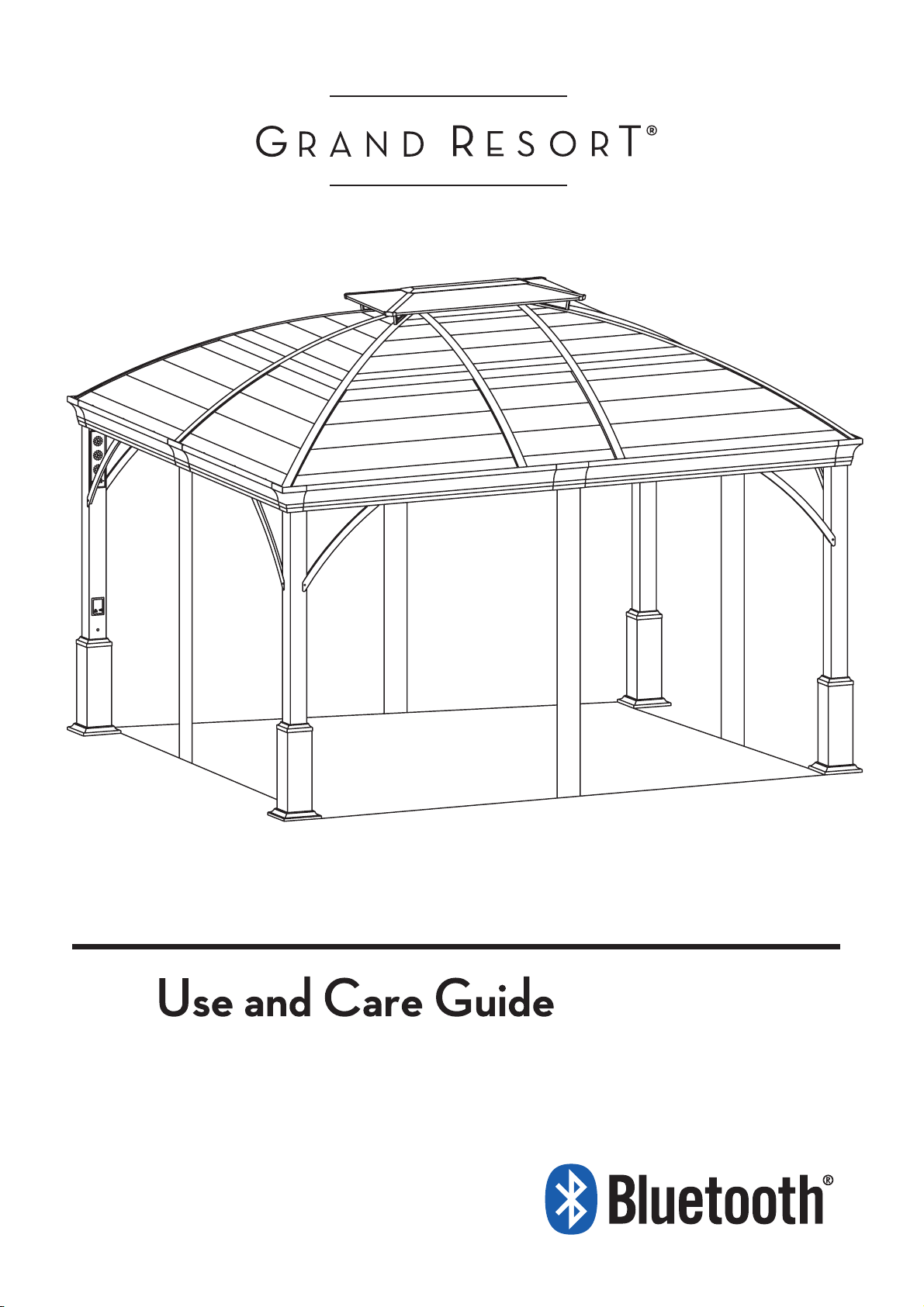

Sears Grand Resort D71 M20509 User manual

Product Code: D71 M20509
KSN: 0-08769292-7
1
Date of purchase: _____/ _____/ _____
UPC Code: 749241315930
10 x 12 Hardtop with High Quality Audio and Galvalume

Thank you for your purchase
Thank you for your purchase!
We are pleased that you have chosen Sears for your outdoor furniture purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
set. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio furniture needs, so from our team to yours, thank you for letting
us be a part of your outdoors.
Table of contents
Table of Contents ....................................................................................2
Safety Information ..................................................................................3
Set Up your Shelter Properly ................................................................3
Examine your Shelter ............................................................................3
Warranty ..................................................................................................3
Excluded ................................................................................................3
Service Center .......................................................................................3
Care and Maintenance ............................................................................4
Pre-Assembly ...........................................................................................5
Hardware Included ................................................................................5
Package Contents ..................................................................................6
Assembly Instructions .............................................................................11
Customer Service ....................................................................................39
2

Safety Information
SET UP YOUR SHELTER PROPERLY
Please read and understand this entire manual before attempt to assemble, operate, or
install the product.
If any part is missing or damaged. Do not attempt to assemble the product.
Two to four people are needed for assembly.
In order to avoid damage to the gazebo and its components please use appropriate tools.
Do not use the structure as support.
Check all bolts on a regular basis to maintain the solidity of the structure.
Keep instructions for future use.
Approximate time: 2 – 4 hours
.
EXAMINE YOUR SHELTER
Examine occasionally to ensure there are no loose parts. If loose parts are found, they
should be retightened immediately.
3
Warranty
1 YEAR WARRANTY FOR FRAME AND FABRIC
Limited warranty is applicable on parts only. Warranty extends solely to the original
purchaser who must offer original sales receipt for record.
WHAT IS COVERED
Limited warranty is applicable on parts only. We warranty to the original purchase for
one year limited from the date of purchase that the frame, fabric, speaker,audio controller
and AC adapter will be free from manufacturing defects.
SERVICE CENTER
The purchaser must contact our customer service center directly if this product is
found to be defect in material or workmanship. The manufacturer, as its option, will
repair or replace the defectives parts.
Please contact us via 1-800-961-9838, 9AM-5PM, Pacific Time Zone, Monday-Friday,
or [email protected]
.
WHAT IS NOT COVERED
Product used for commercial, contract, or other non-residential purposes, or damage
due to acts of nature, vandalism, misuse, or improper assembly is not covered.
Corrosion or rusting of hardware is not covered. Warranty is to the original purchaser
and is non-transferable. Any replacement of warranted items will be in the original style
and color, or a similar style and color if the original is unavailable or has been
discontinued.

Care and Maintenance
4
For cleaning, use a mild detergent solution and rinse with water. Do not use acetone
abrasive or others special detergents to clean and air dry only.
Due to the nature of steel, surface oxidation (rusting) will occur if this protective coating
is scratched. This is a natural process. To minimize this condition, it is recommended
that care be taken when assembling and handling the product in order to prevent the
paint from being scratched.
Warning
WARING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS
TENT FABRIC.
The tent meets the flammability requirements of CPAI-84. The fabric may burn if left in
continuous contact with any flame source. The application of any foreign substance to the
tent fabric may render the flame-resistant properties ineffective.
SPECIAL CARE SHEET:
Do NOT use the AC adapter during precipitation or inclement weather.
Do NOT leave the AC adapter outside, place and store in dry place.
Keep the AC adapter away from babies and children.
Please always keep the speaker cover on the right position, the speaker
is waterproof.
When NOT using period of time, please turn off the power switch and
unplug the AC adapter.
Please connect all cables securely before plugging in power cable into
power outlet.
All the parts are special design for this product only, changes or
modifications not approved by the party responsible for compliance could
void the user’s authority to operate the equipment. The manufacture will
not be held liable for any direct, indirect, incidental or consequential
damages.

5
Pre-Assembly
PLANNING ASSEMBLY
To prevent damage, place all parts on a soft surface during assembly.
Tools required for assembly (not included): Allen wrench (included), a screwdriver,
stepladder (min. 5ft.) and other safety items such as gloves, safety eyewear, and hardhat.
To avoid injury from exposed sharp edges, it may be necessary to use the above safety
equipment.
Do not leave it unattended if not fully assembled even if bolted to the ground.

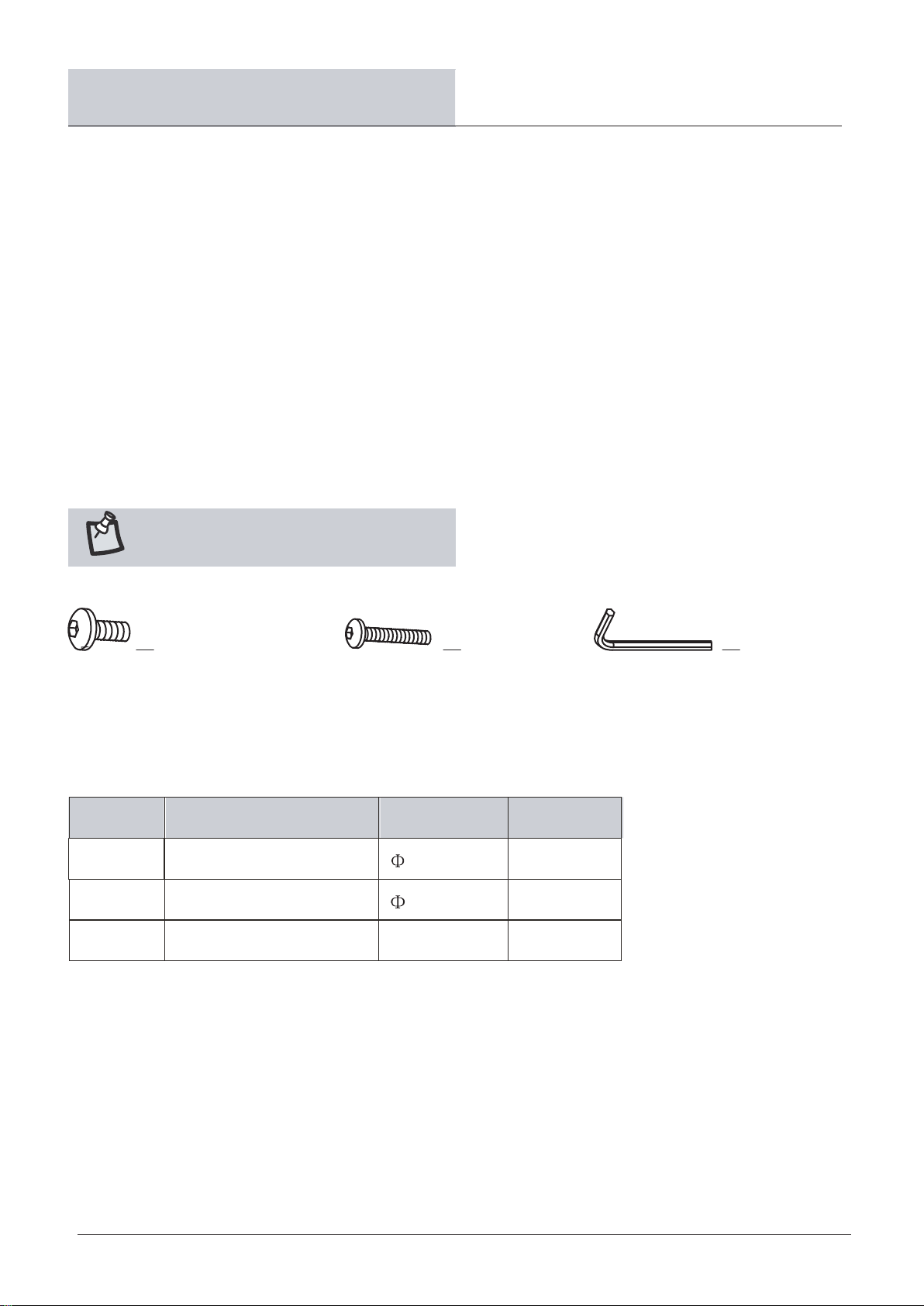

HARDWARE INCLUDED
NOTED: Hardware not shown
to actual size.
Part Description Size QTY.
AA
BB
CC
BOLT
BOLT
ALLEN WRENCH
( )
6 x 15mm
( )
6 x 40mm
206
28
1
BB
AA CC

6
Pre-Assembly (continued)

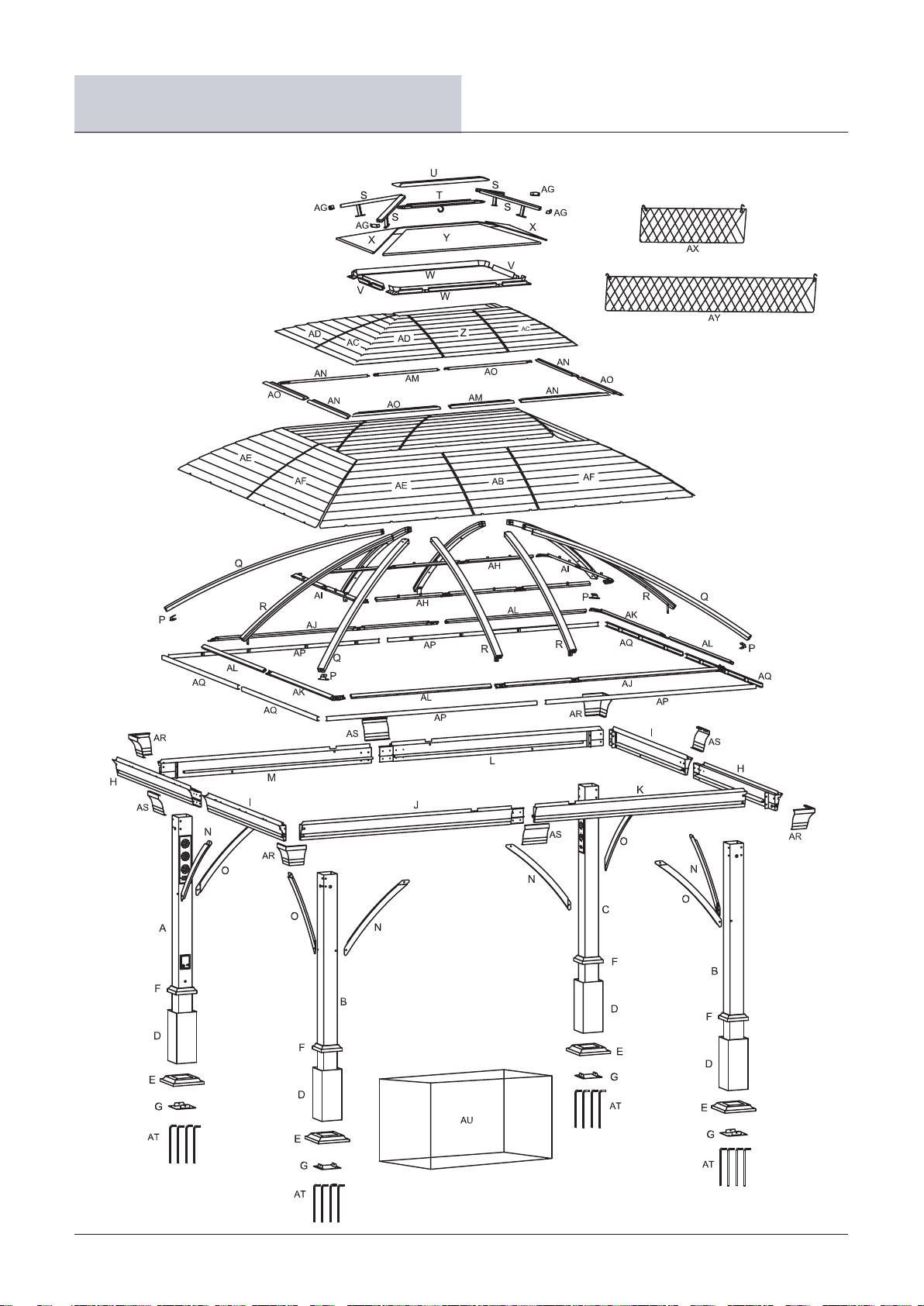

Package Contents

7
Pre-Assembly (continued)
Package Contents
PART DESCRIPTION QTY. ILLUSTRATION
Post A (with switch and
speaker preassembled)
Post B
(speaker preassembled)
Bottom Post
Base Cap
Upper Cap
Base Flange
Short Crossbar (with wires)
Short Crossbar (with wires)
Long Crossbar
Long Crossbar
Long Crossbar (with wires)
Long Crossbar (with wires)
Support
Tube 1
Post C
(speaker preassembled)

8
Pre-Assembly (continued)
Package Contents
PART DESCRIPTION QTY
. ILLUSTRATION
Support Tube 2
Center Connector
Corner Roof Tube
Roof Tube
Air Vent Tube
Roof Connector
Roof Cap
Air Vent Support Bar
Air Vent Support Bar
Air Vent Panel
Air Vent Panel 2
Upper roof Panel
Lower Roof Panel
Upper Roof Panel

9
Pre-Assembly (continued)
Package Contents
PART DESCRIPTION QTY. ILLUSTRATION
Upper Roof Panel
Lower Roof Panel
Lower Roof Panel
Air Vent Corner Connector
Upper Support Tube
Upper Support Tube
Bottom Support Tube
Bottom Support Tube
Bottom Support Tube
Center Support Tube
Center Support Tube
Center Support Tube
Inner Tube 1
Inner Tube 2

10
Pre-Assembly (continued)
Package Contents
PART DESCRIPTION QTY. ILLUSTRATION
Eave Corner Connector
Eave Center Connector
Stake
Netting
AC Adapter
Connection Wire
Air Net
Air Net
AX
AY 2
2

11
Assembly Instructions

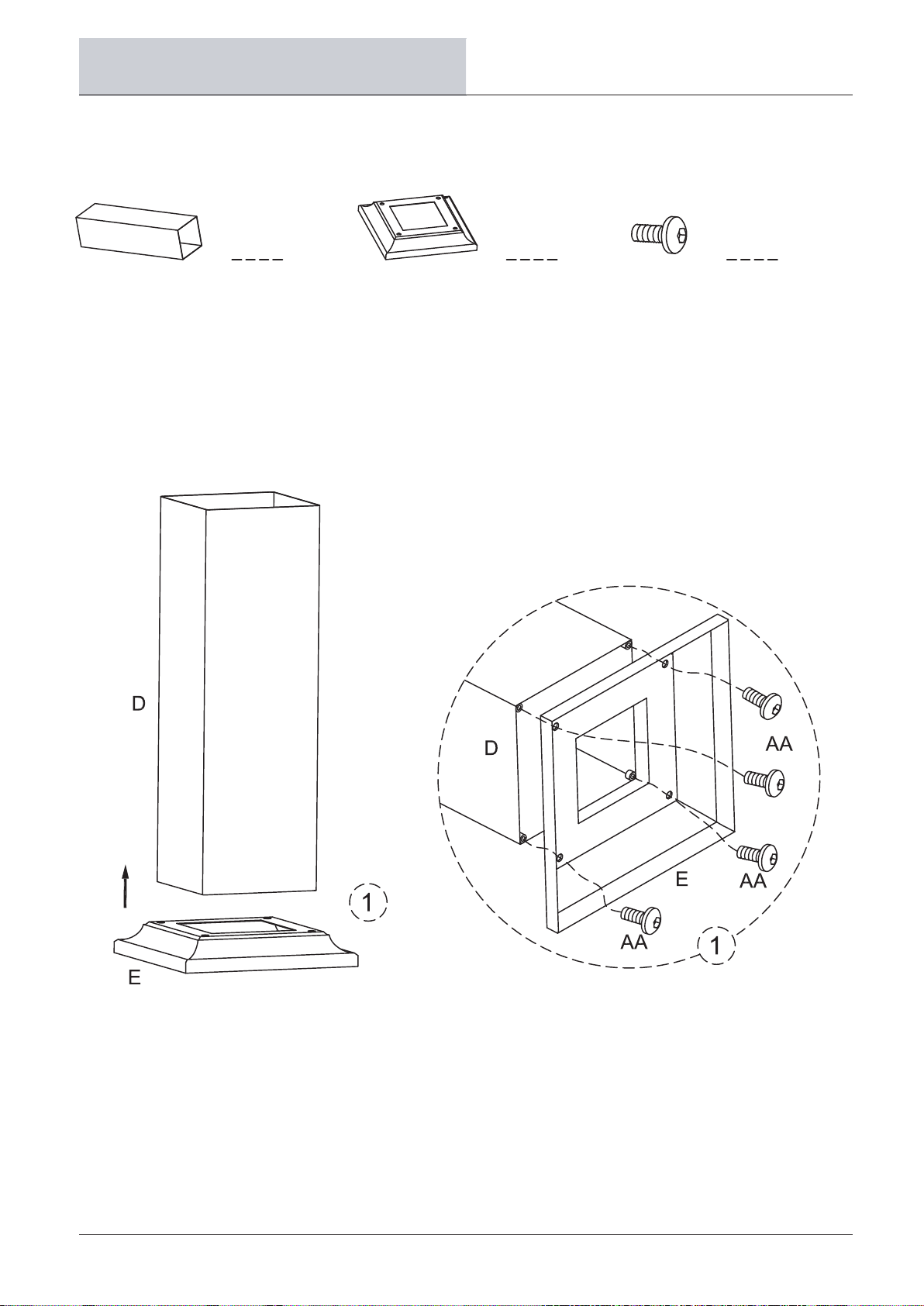

1. Secure Base Cap (E) with Bottom Post (D) by Bolt (AA).
Fully tighten once all bolts in position.
AA x 16
D x 4 E x 4

12
Assembly Instructions
2. Insert Upper Cap (F) and Bottom Post (D) into Post (A) / (B) / (C), then using Bolt (AA)
secure Base Flange (G) on the bottom of Post (A) / (B) / (C).
Fully tighten once all bolts on position.
AA x 8
A x 1 F x 4
B x 2
C x 1
G x 4

13
Assembly Instructions
3. Connect wires in same color, then insert Short Crossbar (I) into Short Crossbar (H)
secure by Bolts (AA).
Fully tighten once all bolts in position.
AA x 8
H x 2
I x 2
Warning: Please connect wires softly and slowly.

14
Assembly Instructions

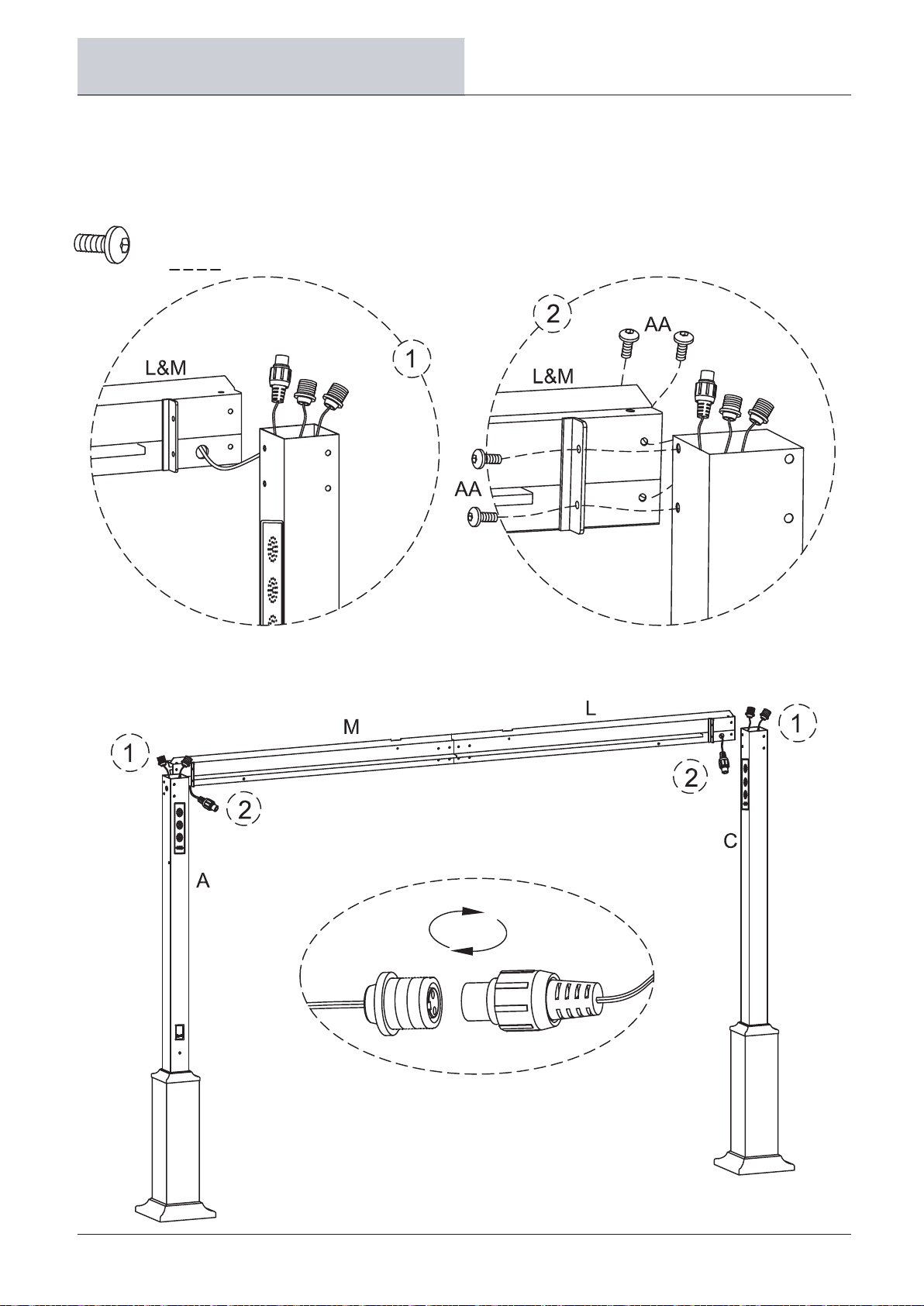

4. Connect wires in same color, then insert Long Crossbar (L) into Long Crossbar (M)
secure by Bolts (AA). Fully tighten once all bolts on position.
AA x 4
L x 1
M x 1
Warning: Please connect wires softly and slowly.
M L
M L

15
Assembly Instructions

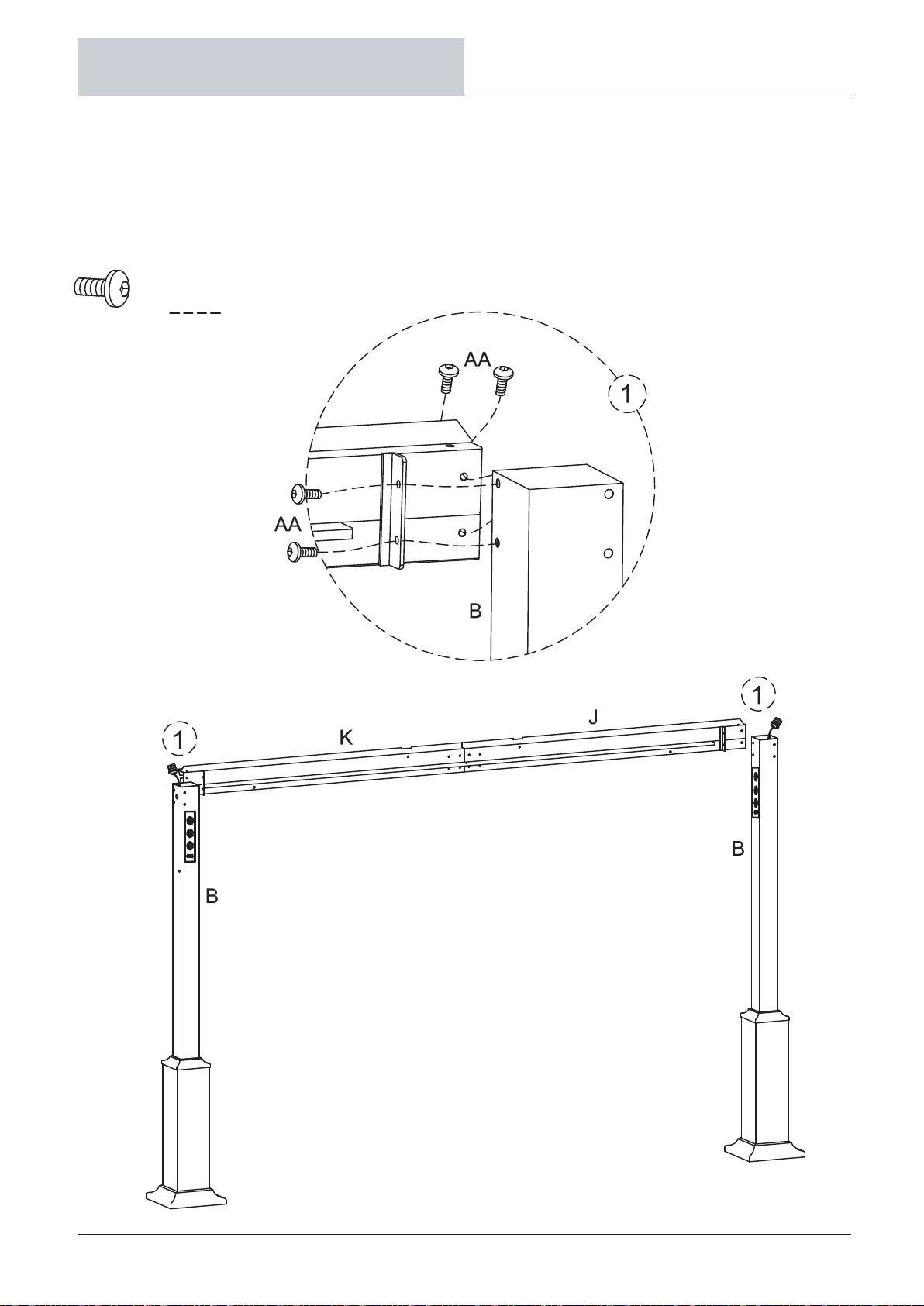

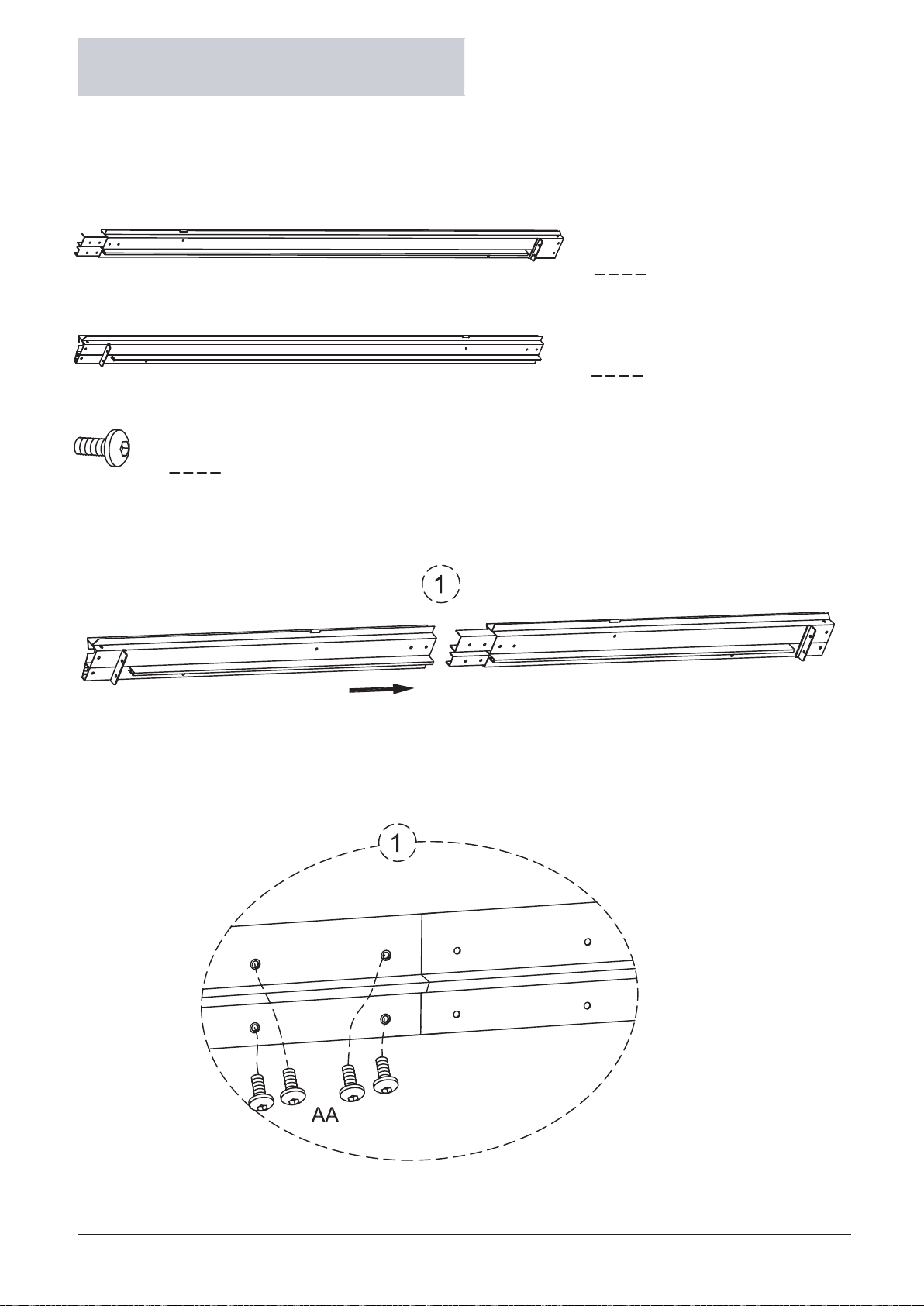

5. Insert Long Crossbar (J) into Long Crossbar (K) secure by Bolt (AA).Tighten all up
when all the bolts in position.
Fully tighten once all bolts in position
AA x 4
J x 1
K x 1
KJ
K
J

16
Assembly Instructions
6. Connect all wires in same color and secure Long Crossbar (J) / (K) on Post (A) / (C) by
Bolts (AA).
Warning: Please connect wires softly and slowly.
Fully tighten once all bolts in position.
AA x 8

17
Assembly Instructions

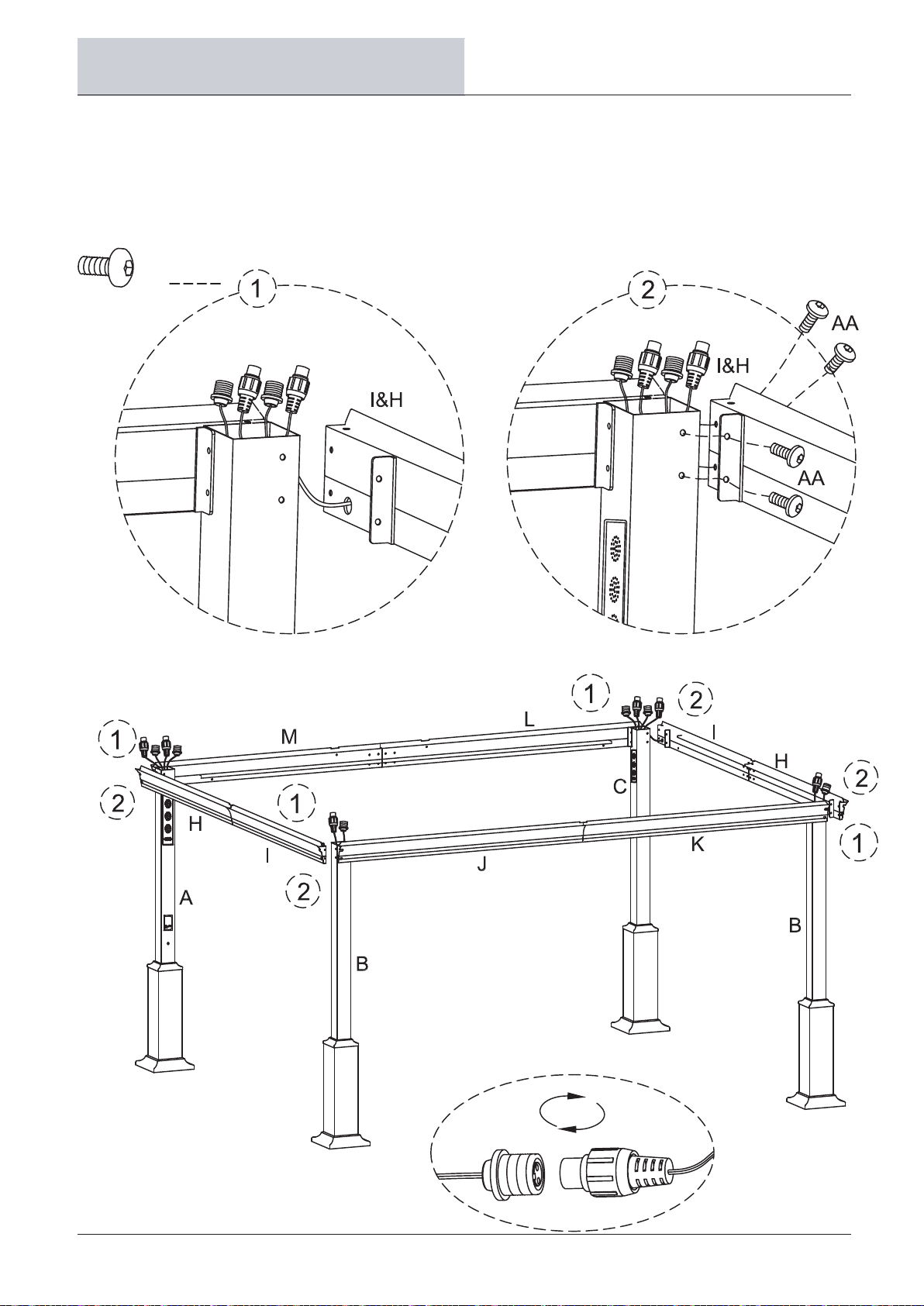

7. Connect all wires in same color (see figure 1) and secure Long Crossbar (L) / (M) on
Post (B) by Bolts (AA) (see figure 2).
Please connect wires softly and slowly. Fully tighten once all bolts in position.
AA x 8

18
Assembly Instructions
8. Insert wires on Short Crossbar (H) / (I) into post (A) / (B) / (C) (see figure 1) and use
Bolts (AA) secure Short Crossbar (H, I) on Post (A) / (B) / (C) (see figure 2).
Warning: Please connect wires softly and slowly.
Fully tighten once all bolts in position.
AA x 16

19
Assembly Instructions
9. Connect AC Adapter (AV) to Post (A) and turn on the switch for testing (If it does not
work please check all the wires again.) Then disconnect AC Adapter (AV) for next step.
AV x 1
ELECTRIC OUTLET

20
Assembly Instructions

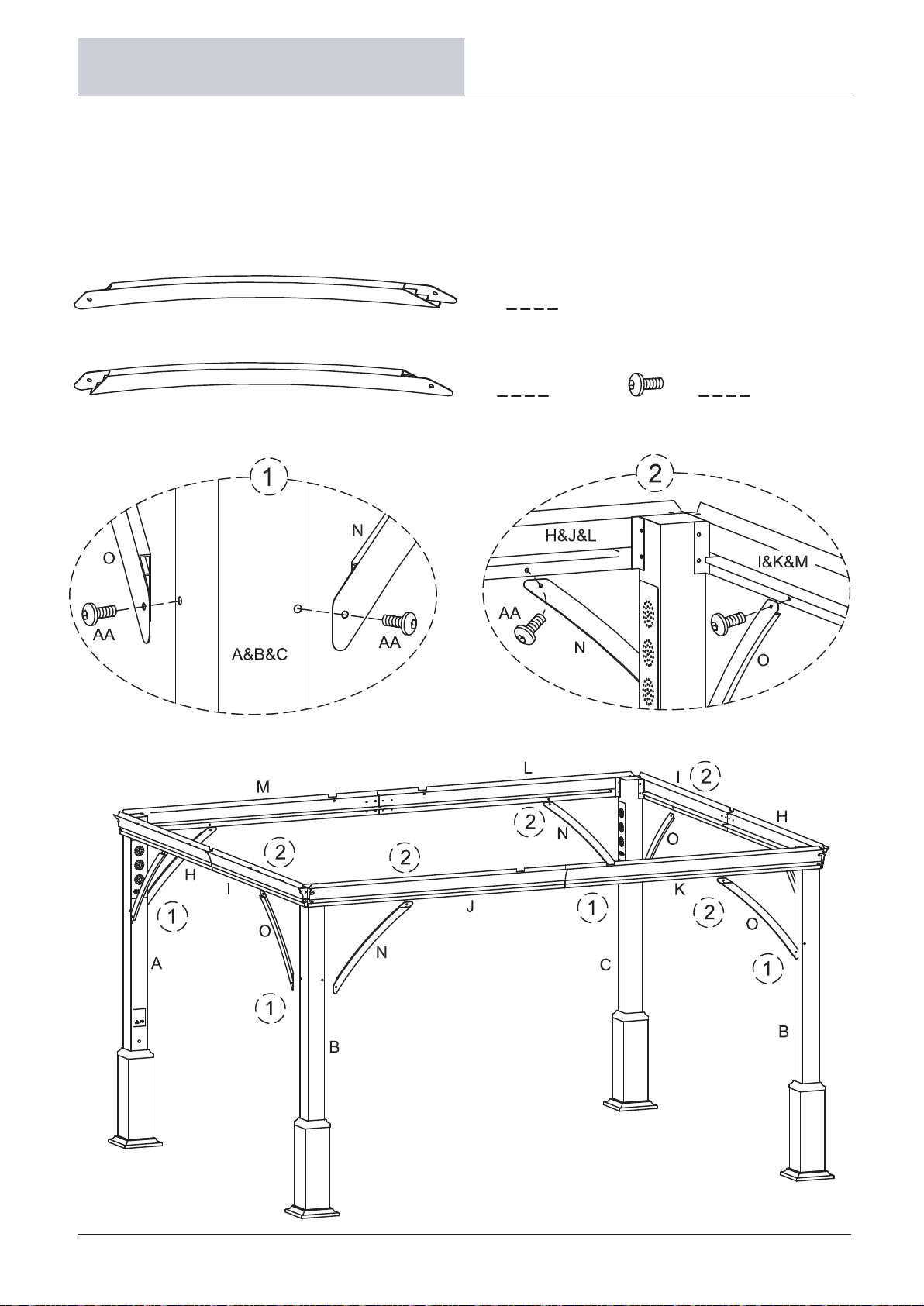

10. Use Bolt (AA) secure Support Tube (N) / (O) in between Post (A) / (B) / (C) and
Crossbar (H) / (I) / (J) / (K) / (L) / (M).
Fully tighten once all bolts in position.
N x 4
O x 4 AA x 16
