Sears CRAFTSMAN 149.28518 User manual

qa
§EAIR§
owner IS
manual
MODELNO
149.285180
STOCKNO
®28518
SERIAL
OR CODE
NUMBER
Model and code number may be
found on the back of the base. SEAIRS/ CRnF7SMnN®
You should record both model and
code number and retain in a safe
placefor future use. 5-INCH
CAUTION: JOINTER–PLANER
Read All Instructions
Carefully Before Start-
ing The Installation. •
•
•
assembly
Save This Manual For
Future Reference. operating
repair parts
J
J
J
SEARS CANADAINC., TORONTO, ONTARIO,CANADA M5B 2B8
q
PartNo.4552-252-00 10/91

FULL ONE-YEARWARRANTY ON CRAFTSMANJOINTER ,PLANER
If within one year from the date of purchase, this Craftsman Jointer–Planer fails due to a
defect in material or workmanship, Sears will repair it, free of charge.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS STORE OR
SERVICE CENTREIN CANADA.
Thiswarranty gives you specific legal rights and you mayalso have other rights that vary from
province to province.
SEARS CANADA INC., TORONTO, ONTARIO, CANADA M5B 2B8
A GENERAL SAFETY RULES FOR POWER TOOLS A
1. KNOWYOURPOWER TOOL
For your ownsafety, read the owner’s manual carefully. Learn
its applicationand limitations aswell asthe specific hazards
peculiar to this tool
ExtensionCards suitablefor use with your Jointer-Planer are
availablethrough your nearest Sears Catalogue Order or
Retail Store
\
Repair or rep\ace damagedor worn cord immediately.
2. GROUNDINGINSTRUCTIONS
A. All grounded, cord-connected tools: B. Grounded, cord-connected tools intendedfor use on a sup-
ply circuit having a nominal rating less than 150volts:
In the event of a malfunction or breakdown, grounding pro-
vides apathof least resistance for electric current to reduce the
risk of electric shock. This tool is equipped with an electric
cord having an equipment-groundingconductor and a
grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance
with all localcodes and ordinances
Do not modify the plug provided–if it will not fit the outlet,
havethe proper outlet installed by a qualified electrician
Improper connection of the equipment-grounding conductor
can result in arisk of electric shock. The conductor with insula-
tion having an outersurface that is green with or without yellow
stripes is the equipment-grounding conductor. If repair or re-
placementof the electric cord or plug is necessary, do not
connect the equipment-grounding conductor toalive terminal,
COVE'R OF
GROUNDED
OUTLET BOX
Check with a qualified electrician or servicemanif the ground-
ing instructionsarenot completelyunderstood, or if in doubt
as to whether the tool is properly grounded.
Figure 1 – Wiring Methods
This tool is intended for use on acircuit that has an outlet that
looks like the one illustrated in Figure 1 . The tool has aground-
ing plug that looks like the plug illustrated in Figure 1
The use of any Extension Cordwill cause some loss of power.
To keep this to a minimumand to prevent overheating and
motor burn-out, use the table below to determine the MIN-
IMUM wire size (A.W.G.) ExtensionCord.
3. KEEP GUARDS IN PLACE
in working order and in proper adjustmentand alignment
Use only3-wire extensioncords that have 3-prong grounding
plugs, and 3-pole receptacles that accept the tool’s plug.
4. REMOVE ADJUSTING KEYS AND WRENCHES
Form habit of checking to see that keys and adjusting
wrenchesare removed from tool before turning on tool
ExtensionCord Length Wire Size, A.W.G 5. KEEPWORK AREA CLEAN
Cluttered areas and benches invite accidents
25 Feet
50 Feet
100Feet
16
16
14
6. DON’T USEIN DANGEROUSENVIRONMENT
Don’t use power tools in damp or wet locations, or expose them
to rain. Keep work area well illuminated.
2

UNPACKING AND CHECKING CONTENTS
Model 149.285180 Jointer-Planer is shipped complete in one
carton.
Separateall parts from packing materials and check each one
with the illustration and the list of looseparts to make certain all
itemsareaccounted for, before discarding any packing materIal.
If any parts are missing, do not attempt to assemble the jointer-
planer, plug in the power cord or turn the switch on until the
missing parts are obtained and are installed correctly.
Wipeall parts thoroughly with a clean, dry cloth.
Apply a coat Of clearautomobile paste wax tO the tables
WARNING:FOR YOUR OWN SAFETY.NEVERCON-
NECT TO POWER SOURCE UNTIL ALL ASSEMBLY
STEPS ARE COMPLETE,AND YOU HAVE READAND
TIONS.
UNDERSTANDTHE SAFETY AND OPERATIONAL INSTRUC-
A
BOLT FINDER 3/8- 5/16“ 1/4' #10 #8
Use to identify fastener
size. Hold head of screw
against folded edge. In-
sidediameter of sized cir-
cIe is for nut, outside di-
ameter is for screw.
Mn
:1
TOOLS REQUIRED
14mm or 9/16" Wrench
10mm Wrench
8mm or 5/16" Wrench
E'
Q:
28
L•
a:
aD.
UJ•
abe
D ©
0:
1+e
U•
Z'
J:
L ) •
He
F=e
b•
O•
0'
(D.
2P+
9:
<'
Q:
OgP
©© QQ
Medium Slotted Screwdriver
#2 Phillips Screwdriver
TABLE OF LOOSE PARTS
QTYITEM DESCRIPTION
NO.
Jointer-Planer . . . . . . . . . . . . . . . . . . . .
Fence . . . . . . . . . . . . . . . . . . . . . . . . . . .
FenceBracket . . . . . . . . . . . . . . . . . . . .
FenceSegment . . . . . . . . . . . . . . . . . . .
FenceFace . . . . . . . . . . . . . . . . . . . . . .
Tilt Indicator Assembly . . . . . . . . . . . . . .
Chip Deflector . . . . . . . . . . . . . . . . . . . .
HandKnob . . . . . . . . . . . . . . . . . . . . . . .
3/8" Lockwasher . . . . . . . . . . . . . . . . . .
1/4”-20 x 3/4’'Hex CapScrew . . . . . . . .
1/4" Split Lockwasher . . . . . . . . . . . . . . .
1/4" FlatWasher . . . . . . . . . . . . . . . . . . .
FenceLock Knobs . . . . . . . . . . . . . . . . .
9/32” ID x 17/32'’ OD * 1/8” Thick Washer
#10-24 x 1/2 Machine Screw . . . . . . . . . .
#10 Flat Washer . . . . . . . . . . . . . . . . . . .
#8-32 x 1/2" Flat Head Machine Screws .
#8-32Hex Nut . . . . . . . . . . . . . . . . . . . .
++ 11:81111F1111aIIt 1W 1111a11SIIIF11e1re + + BeBe + + 888 + + B + e + e +
PushBlock . . . . . . . . . . . . . . . . . . . . . . .
2-1/2'’ to 1-1/4“ Vac. Hose Adapter . . . . .
5/32"Hex Key (Allen Wrench) . . . . . . . .
Cutter GuardAssembly . . . . . . . . . . . . .
Stand Assembly . . . . . . . . . . . . . . . . . . .
#8 x 3/8 Type B Self Tapping Screw . . .
A
B
C
D
E
F
G
H
J
K
L
M
N
0
P
Q
R
S
T
U
V
W
X
Y
Z
. . . . . 1
Combination Square
1
1
2
2
1
2
1
1
4
4
4
2
2
2
2
10
10
10
2
1
1
1
1
1
a

7. KEEP CHILDRENAWAY
All visitors should be kept a safe distance from work area.
8. MAKE WORKSHOPKID PROOF
with padlocks, master switches, or by removing starter keys,
9. DON’T FORCE TOOL
It will do the job better and be safer at the rate for which it was
designed.
10. USERIGHTTOOL
Don’t force tool or attachment to do ajob for which it wagnot
designed.
11. WEARPROPER APPAREL
No loose clothing, gloves, neckties,rings, bracelets,or jewelry
to get caught in moving parts. Nonslip footwear is recQm-
mended. Wear protective hair covering to contain long hair.
12. ALWAYS USE SAFETY GLASSES
Everydayeyeglasses only haveimpact resistant lenses, They
areNOT safety glasses. Also use face or dust mask if cutting
operation is dusty.
13. SECURE WORK
Use clamps oravise to hold work when practical, It’s safer than
using your hand and frees both hands to operate tool.
14. DON’T OVERREACH
Keep your proper footing and balance at all times.
15. MAINTAINTOOLS IN TOP CONDITION
Keep tools sharpand cleanfor best and safest performance,
Follow instructions for lubricating and changing accessories,
16. DISCONNECT TOOLS FROM POWER SOURCE
before servicing and when changing accessories such as
blades, bits, cutters,or when mounting and re-mounting
motor.
17. AVOID ACCIDENTAL STARTING
Make sureswitch is in OFF position before plugging in cord
TABLE OF CONTENTS
GENERAL RULES FOR POWER TOOLS . . .
UNPACKINGAND CHECKING CONTENTS
SAFETY RULES FOR JOINTER-PLANER . .
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . .
Depth of Cut HandKnob . . . . . . . . . . . . .
Chip Deflector . . . . . . . . . . . . . . . . . . . . .
CutterGuardAssembly . . . . . . . . . . . . . .
Fence . . . . . . . . . . . . . . . . . . . . . . . . . . .
IF 1en1(1111RII111e1: 11)( t 13n 11SIII1 1one ee BeBeeBe + + + 8 ee Be +
Checking CutterBlades . . . . . . . . . . . . . .
INSTALLING THEJOINTER-PLANER . . . .
CONTROLSAND ADJUSTMENTS . . . . . . .
Depth of Cut Hand Knob . . . . . . . . . . . . .
To Check Depth of Cut . . . . . . . . . . . . . .
FenceAdjustment . . . . . . . . . . . . . . . . . .
CutterGuard . . . . . . . . . . . . . . . . . . . . . .
GuardStop . .
ON-OFFSwitch
2
4
5
5
5
5
5
6
6
7
8
8
8
9
9
9
9
9
18. USERECOMMENDED ACCESSORIES
Consult the owner’smanualfor recommended accessories
Use of improper accessories may be hazardous.
19. NEVER STAND ON TOOL
Serious injury could occur if the tool is tipped or if the cutting
tool is unintentionallycontacted
CHECK DAMAGED PARTS
Before further use of the tool, a guard or other part that is
damaged should be carefully checked to ensure that it will
operate properly and perform its intendedfunction-check for
alignment of movingparts, binding of movingparts, breakage
of parts, mounting, andany other conditions that may affect its
operation. A guard or other part that is damagedshould be
properly repaired or replaced.
20
21, DIRECTIONOF FEED
Feedwork into a blade or cutter against the direction of rota-
tion of the blade or cutter only.
22. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
POWER OFF. Don’t leave tool until it comes to a complete stop
23. WEAR EAR PROTECTION
Whenoperating for prolongedperiodof time,use of ear pro-
tectionis recommended .
WEAR YOUR
WAI
#
FORESIGtlr IS BETTER
THAN NO SIGHT
The operation of any power tool can result in foreign objects
being thrown into the eyes,which can result in severeeye
damage. Always wear safety goggles complying with CSA
294.3 before commencing power tool operation. Safety Gog-
glesareavailablethrough Sears retail or catalogue stores,
BASICJOINTER-PLANEROPERATION
Setting the Guard Stop . . . . . . . . . .
Feeding the Workpiece . . . . . . . . . .
Using Hold Down/Push Blocks . . . .
Beveling, Chamfering

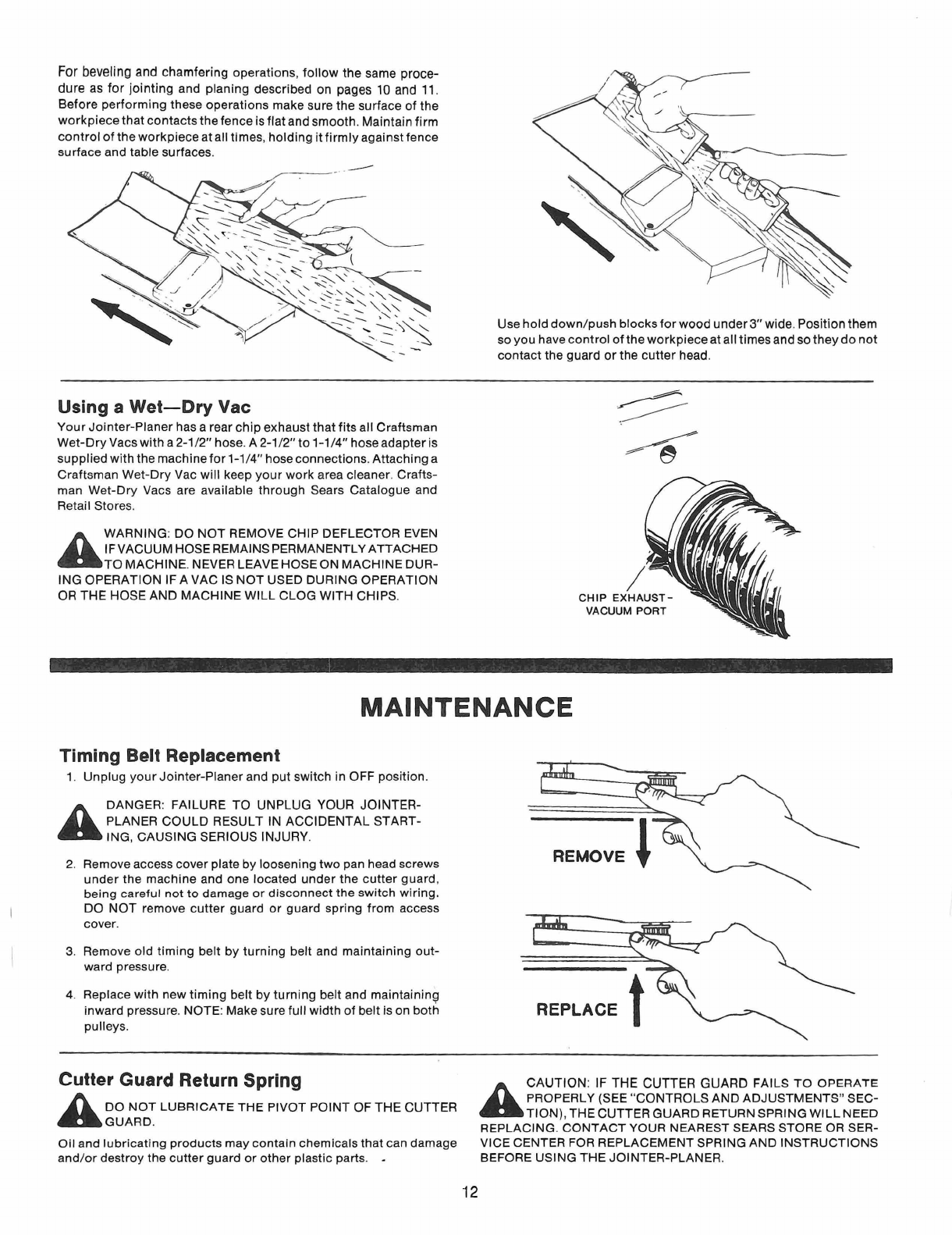

Using a Wet/Dry Vac
10
10
10
11
11
12
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timing Belt Replacement . . . . . . . . . . . . . . . . . . . . . . . .
Cutter Guard ReturnSpring . . . . . . . . . . . , , , , , , , , , , ,
Blade Replacementand Adjustment . . . . . . . . . . . . . . . .
GeneralMaintenance . . . . . . . . . . . , . . . . , . , . . . . . . . .
12
12
12
13
13
REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15
TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
How to Order ReplacementParts . . . . . . . . . . . . . . . . . . . 16
3

SEAIR§ / CRaFTSMnN®
DEBALLAGE ET VERIFI-
CATION DU CONTENU
Verifier toutes les pieces avec la liste des pieces et les illustrations
sur cette feuille de montage.Si des pi6cessont manquantesou
endommag6es,ne pas essayerd’assemblerou d’utiliser ce
support avant que toutes les pidces manquantes ou endom-
mag6es soient obtenues et instal16escorrectoment.
OUTILS NECESSAIRES
C16ouverte de 12 mm ou c16 a douille
NO.
REF.
1
2
3
4
5
6
7
8
9
10
11
12
ASSEMBLAGE
Support
1
2
SUPPORT DE LA
DEGAUCHISSEUSE-RABOTEUSE
TABLEAU DES PIECES
DETACHEES
NO. DE
PIECE DESCRIPTION aTE.
4
2
2
2
2
40
40
40
4
8
4
4
0213-010-00
C213-13240 Pied Cornibre Avant et Arribre
du Haut
Corni bre Avant et Arridre
du Bas
Corniere de Bout du Haut
Corni6re de Bout de Bas
BoulonTete Plomb6e
5/16-18 X 1/2
Rondelle Plate 5/16
Ecrou T6te 6 Pans
Vis T6te Ronde
1/4-20 X 1-3/4
Rondelle Plate 1/4
Rondelle Grower 1/4
Ecrou Tete 6 Pans
0213-13340
C213.131 -00
C213-130-00
STD5331 07
STD551 031
STD541031
STD52251 7
STD551025
STD551125
STD541025 Montage de la
D6gauchis$eu$e-Raboteuse
sur Ie Support
Pour monterla d69auchisseuse-raboteusesur Iesupport:
Assembler lessections avant et arridreen ins6rant les boulons
A travers les pieds (REF 1 ) puis & travers les cornidres avant et
arridre du haut (REF2) et du bas (REF3). Lescornidres doivent
6tre b l’int6rieur des pieds avec Ies brides faisant face vers le
haut. Installer la nndelle plate (REF 7) et 1'6crou t6te 6 pans
(REF6) avec le doigt et visser.
Assembler les cornigres de bout du haut (REF 4) et du bas
(REF5) aux sections avant et arridre du support. Les cornieres
doivent6tre a I'int6rieur des pieds, Installer la rondelle plateet
1’6crout6te6 panssurchaque boulon & tete plomb6e etvisser
avec les doigts.
Placer la rondelle plate (REF10)sur la vis tete ronde (REF9) et
ins6rer dedans par le trou de montage de la base de la
d6gauchisseuse-raboteuse.Gtisser l’extr6mit6du boulon par
le trou de montage du support. Installer une rondelle plate
(REF10), une rondelle Grower (REF1 1 ) et un 6crou t6te6 pans
(REF 12) sur la vis t6te ronde et visser par dessous
Quand l’outil est morIb aux qu9tro coing eur Ie support,
deplacerles pieds et les cornidres pour l’ajustor aux irr6g-
ularit6s du sol. Serrer toutes les attaches aprdsl’ajustement
final. Si possible, monter Iesupport de fagon permanente au
sol en utili sant les trous dans la base des pied s du support,
1.
2.

SEAIRS/ CRnFTSMnN®
JOINTER–PLANER STAND
UNPACKING AND
CHECKING CONTENTS
Check all partsagainst parts list and illustrationson this assembly
sheet. If parts are missing or damaged,do not attempt to assem-
ble or use stand until all missing/damaged parts areobtained and
areinstalled correctly.
TOOLS REQUIRED
10 mm open end or box wrench
11 mm or 7/16" open end or box
12 mm open end or box wrench Nrench
9
// \\\
10
ASSEMBLY
Stand
Assemblefront and rear stand sections by inserting bolts
throughLegs (REF 1) and then throughTop (REF 2) and
Lower (REF3) Front and RearAngle pieces. The angle pieces
must be inside legswith flanges facing up. Install Flat Washer
(REF 7) and Hex Nut (REF 8) on eachCarriageBolt (REF6)
and finger tighten.
AssembleTop (REF 4) and Lower (REF 5) End angles to the
front and rear stand sections.Angles mUStbe inside legs.
Install flat washer and hex nut on each carriage bolt and finger
tighten.
1.
2
TABLE OF LOOSE PARTS
REF.
NO. QTY. DESCRIPTIONPARTNO.
4
2
2
2
2
40
40
40
4
8
4
4
Leg
Top Front and Rear Angle
Lower Front and Rear Angle
Top End Angle
Lower End Angle-
5/16-18 x 1/2 CarriageBolt
5/16 Flat Washer
5/16-18Hex Nut
1/4-20 x 1-3/4Cap Screw
1/4 Flat Washer
1/4 Lockwasher
1/4-20Hex Nut
C213-010-00
C213-132-00
C213-133-00
C213-131 -00
C213-130-00
STD5331 07
STD551 031
STD541031
STD52251 7
STD551025
STD551 125
STD541025
1
2
3
4
5
6
7
8
9
10
11
Jointer–Planer to Stand
To mountJointer-Planer to stand
Place Flat Washer (REF 10)on CapScrew(REF 9) and insert
down through mounting hole in Jointer-Planer base.Slip end
of bolt through mounting hole in stand. Install Flat Washer
(REF 10), Lockwasher (REF 11), and Hex Nut (REF 12)onto
CapScrewand tighten from underside
After tool is mounted to stand at all four corners, shift legsand
angles as needed to adjust for floor irregularities. Tighten all
fasteners after final adjustments. When possible,mountstand
permanently to floor using mounting holesin base of stand
legs
1
2

A SAFETY RULES FOR JOINTER–PLANER A
Safety is a combination of operatorcommonsenseand alertnessat all times when the Jointer–Planer is being
used. Study these rules and general safety rules beforeoperating and retain them for future use
1. WEAR EYE PROTECTION 9. ALWAYS- Use hold down/push blocksfor jointing material
narrowerthan 3”, or planing materialthinner than 3”
2. NEVER MAKE JOINTING OR PLANING CUTDEEPERTHAN
1/8"–PERPASS. 10. ALWAYS - Keep cutter sharp
3. FEEDWORKPIECE AGAINST ROTATION OF CUTTER. 11. NEVER- Use in an explosiveatmosphere. Normal sparking of
motor may ignitefumes
4. KEEP FINGERSAWAY FROMREVOLVING CUTTER–use
fixtures when necessary. 12, OUTDOOREXTENSION CORD USE- When tool is usedout-
doors, use only extensioncords suitable for use outdoors
Outdoor approvedcords are marked with the suffix W-A, for
example, SJTW-A or SJOW-A.
5. NEVER PERFORMJOINTING OR PLANINGOPERATION
WITH CUTTERHEADGUARD REMOVED.
6. NEVER FORCE CUTTING ACTION. Stalling or partial stalling of
motor can cause majordamage.Allow motor to reachfull
speed before cutting.
13. ALWAYSuse identical replacement parts when servicing.
14. This tool is intendedfor RESIDENTIALUSEONLY.
7. NEVER - Attemptto performan abnormalor little used opera-
tion without study and the use of adequate holddown/push
blocks,jigs, fixtures, stops, etc.
WARNING: DO NOT ALLOW FAMILIARITY (GAINED FROM
FREQUENTUSEOF YOURJOINTER–PLANER)TO BECOME
COMMONPLACE. ALWAYS REMEMBER THAT A CARELESS
FRACTION OF A SECOND IS SUFFICIENTTO INFLICT SEVERE
INJURY8. NEVER - Attemptto cut small pieces.
Depth of Cut Hand Knob ASSEMBLY
1. Find one3/8" lockwasherand the depth of cuthand knob from the parts
bag 3/8 HEX NUT
2. Turnthe nut on the height adjustment screw until fivefull threads extend
beyond the nut,
3. Placelockwasher on height adjustmentscrewand threadhand knob
ontoscrew. 1/ re
rEPTH OF
HAND KN
4. Back nut up against hub of hand knob. Tighten with 14mmar 9/16"
wrench while holding hand knob.
Chip Deflector
1. Loosen the screwin the center of vacuum port of chip discharge. RETIGHTEN
THISSCREW
LOOSENAND
2. Install Slot of chip deflector between the chip discharge and the flat
washerand retighten
CAUTION: THE CHIP DEFLECTOR MUST BEIN PLACE FORSAFE
OPERATION.FAILURE TO INSTALLTHE CHIPDEFLECTOR MAY
RESULT IN PERSONALINJURY.ATCHIP
DEFLECTOR
VacuumHose Adapter
1. Turnjointer upside downon clean work surface and push vacuum hose
adapter into opening in rear cover,
2. Align the screw holes on the rear cover and vacuum hose adapter. Install
#8 x 3/8 type B selftappingscrew and tighten
CAUTION: THE VACUUM HOSE ADAPTER MUST BE IN PLACE
FOR SAFE OPERATION. FAILURE TO INSTALL THE ADAPTER
MAYRESULTIN PERSONALINJURY
A
Cutter Guard Assembly
1. Placethe slot on the cutter guard assembly overthe tab on the front
cover as shownand align the shoulder bolt with the threaded hole.
SHOULDERBOLT
_B<\ccw
SLOTS
TAB CUTTERGUARD
a
2. Rotate the cutter guard counterclockwise until the tab is under the cutter
guard and tighten the shoulder bolt.Be surethe cutter guard rotates
freely after tighteningthe shoulderbolt,
CAUTION:THE CUTTERGUARD MUST BE IN PLACE FOR SAFE
OPERATION.FAILURE TO INSTALL THE CUTTER GUARD CAN
RESULTIN SERIOUS INJURYA5

Fence LOCKKNOB
1. From among the looseparts find the following:
(1) Fence
(1) FenceFace
(2) FenceBrackets
la\ Erin nA ann nunn+n
(2) Tilt Indicators
(2) Lock Knobs
(4) 1/4"-20 x 3/4" Hex Cap Screws
(4) 1/4 Lockwashers
(4) 9/32" ID x 9/16" OD x 1/16"Thick Washers
(2) 9/32" ID x 17/32" OD x 1/8" Thick Washers
(10) #8-32 x 1/2" Flat Head Machine Screws
(10) #8 Flat Washers
(10) #8-32 Hex Nuts
(2) #10-24x 1/2" Pan Head Machine Screws
(2) #10 Flat Washers
NOTE: USE OF WASHERS
LESSTHAN 1/8 THICK
MAYRESULT IN FENCE
TIGHTENINGPROBLEMS
FENCESeGMENT
9/32 IDX 17/32 OD
X 1/8 THKWASHER
FENCE \ fRO\-=
+8-32 X 1/2 FLAT
HEAD MACHINE SCREW
FENCE_BRACKET 1/4-20 Xg/4 HEX
CAPSCREW TILT INDICATOR
9/16 OD
9/ 3 : 1P/f6 THK
FLAT WASHER + IO FLAT WAS
2. Attach fence brackets to base using 1/4"-20 x 3/4" hex cap screws, 9/32"
ID x 1/16"thick washers and 1/4" lockwashers,snug but do not tighten
+lO-24X 1/2 PAN HEAD
MACHINE SCREW
3. Attachfence segmentsto fence with six #8-32 flat head screws, #8 flat
washers. and#8-32 hex nuts.
4. Attach fenceface to fence with four #8-32 flat head screws, #8 flat
washers, and#8-32 hex nuts.
5, Place assembled fence on machine with fence brackets inside the fence
segments,
6. Position lock knobswith 9/32" ID x 17/32" OD x 1/8" thick washers
through slots in fence segmentsandthread into fence brackets
7. Place square against fence face andtable surface. Bring fence square to
table and tighten lock knobs,
8THERE MUSTBE 1/32"TO 1/16" gap between the loweredge of the
fence andjointer tables (with table set for 0" cut). To adjust, movefence
assembly by looseningthe 1/4"-20 x 3/4" hex cap screws attaching the
Tence brackets to the base. Retighten hex cap screwsafter adjustment
has been made
\R\\
9. Recheck squarenessof fence. \\\ TILT INDICATOR SHOULD
THE FENCE SEGMENT AT BE LINED UP WITH THE a' MARK
DO NOT OVER TIGHTEN
10. install tilt indicators with #10-24x 1/2" pan head machine screw and #10
flat washers. Set 0'’ of indicatorsto 0'’ of segmentsandtighten the screw
11. The fence should now be adjusted and will accurately measure angles to
45'’ inboard and 45'’ outboard (seeadjustments section)
Fence Extension
To aidin edge jointing of workpieces4” and wider, you may extendthe fence
height. The extensioncan be constructedof 1 " (3/4" thick) stock pine or
hardwood
The wooden fence face must be removed sothe extension can be mounted
using the fence face mounting holes. +8 FLATHEAD
OLNrFns
Use #8 flat head wood screws of sufficient length to securely attach the
extension to the fence, Make sure that the headof the screwsare below the
surface of the fence soas not to interfere with the workpiece.
6

A =11/16"Thick x 2"Widex 10"Long
The 1 1/16" thicknesscan be obtained by planing the board on
the jointer.-planer.
B ; 1/2" to 3/4" Thickx 3-1/2"Widex 10"Long
This piecemay alsobe made out of PlywQod.
C =3/4" Thick x 2-1/2"Widex 19-1/2" Long
The 2-1/2" width may be increasedif desired,
OPTIONAL–For Extra Stability
D =11/16"Thick x 2" Widex 2" Long,2 Pieces
E ; 1/2" tO 3/4" Thick x 2" + Long, 2 PCS
NOTE:Cut both D piecesfrom the same stock or thicknessas
board A and cut both E pieces from the samestock or thicknessas
board B.
E 0PT10N AL
FOR EXTRA STABILITY
\-q=-•q•Hn
--+X
\-h,
//n++-n- n / / dl
.?h--hr '/
//
,/ . /I ///
//
[a7
J- -f HI T::
tXTel
W (9
D OPTIONAL
FOR EXTRA STABiLITY
8 3/4
CheckIng Cutter Blades
CAUTION: MAKE SURE THE SWITCHIS IN THE OFF POSITION
AND CORD IS UNPLUGGED BEFORE PROCEEDING WITH
CHECKING CUTTER BLADES,AWOOD
BLOC
BLADE
BLADE
CLA
C
The blades in your Jolnter-Planer have been adjusted at the factory to assure
proper operation. Shipping and handling, however, may cause misalign-
ment. For accuratecutting, the blades mustbe .003"higherthanthe outfeed
table (thickness of a piece of paper)when positioned at the highest point
1 . Block the cutter guard open with a scrap pieceof woodabout 5-1/2" long
between the fence and cutter guard
2. Locate the slot in the cutter head shaft through the small hole in the
backsideof the machine directly above the vacuum port. Rotate the
cutter head with a screwdriveruntil one of the blades is at its highest
positIon.
CHIP DISCHARGE/VACUUM
BACK SIDEOF
MACHINE
3Place astraightedge overthe outfeed table and the blade, The straight-
edge must touch evenly on the outfeed table at both ends of the
blade. Rotate the cutter head slowly, and makingsurethe blade lightly
touches the straightedge. If the straightedge rises or blades do not
touch, follow the “REPLACING CUTTERBLADES" procedurein the
“MAINTENANCE" section
STRAIGHT
EDGE
iT
/.UTFEED TABLE
7

INSTALLING THE JOINTER–PLANER
The jointer-planer is supplied with its own stand. Refer to the
separateinstallation sheet for stand assembly and mounting in-
structions. The jointer-planercan alsobe fastenedsecurely to a
firm supporting surfacesuch as a workbench.Holes should be
drilled through supporting surface of the workbench as illustrated
Eachfoot of the Jointer-Planer should be boltedsecurelyusing
5/16" diameter machinebolts,5/16" hex nuts,and lockwashers
Boltsshould be of sufficient length to accommodatefoot of
Jointer-Planer, washer, hex nuts, and thicknessof supporting sur-
face.Tighten all four bolts securely. If the Jointer-Planer is to be
used in a portable application, it is recommended that it be fastened
to a mounting board. The board should be of sufficient size to avoid
tipping of Jointer-Planer while in use. Any good grade of plywood
or chipboard with a 3/4" minimum thickness is recommended
MountJointer-Planer to board usinghole pattern as shown. Clamp
board securely to workbench or supporting surface
j/iToPEt
Supportingsurface where Jointer-Planer is mo0nted should be
examined carefully after mounting to insure that no movement
during use can result. If any “tipping" or “walking” is noted,secure
workbench or supporting surface before operating.
CONTROLS AND ADJUSTMENTS
ACAUTION: MAKE SURE THE SWITCH IS OFFAND THE CORD IS UNPLUGGED BEFOREPER-
FORMING ANY CHECKS ORADJUSTMENTS.
2 FENCE
3 CUTTERGUARD
4 GUARDSTOP DEPTHOF CUT
HAND KNOBS
5 ON-OFF SWITCH
1. Depth of Cut Hand Knob r=\R
Turning the hand knobclockwise raises the infeed tableand
decreasesthe depth of cut. Turning it counterclockwise
lowersthe infeed table and increases the depth of cutto the
maximum 1/8’'depth per pass.
XINFEED TABLE
\
~\ DEPTH OF
CUT HAND
NOTE: When the table is lowered for the maximum 1/8"
depthcut, the hand knobwill be relieved of tension and will
be loose. If this is disturbing,simply turn the hand knob
clockwise until it is again under tension. Turn the knob no
morethan1/2 turn after it is again under tension. This will
not change thedepth of cut setting unless 1/2turn is
exceeded
KNOB
8

To Check Depth of Cut
a. Place a straightedge on the outfeed tableextending overthe infeed table.
OUTFEED
TABLE
MAX. DEPTH
OF CUT1/8
b. Measure from the surface ofthe infeed tableto the bottom of the straight-
edge. This wiI S be the depth of cut,
NOTE: This Jointer-Planer will make a maximum 1/8" deep cut. To reduce
THE DANGER of kickback and possible in]ury, the depth of cut stlou\d not
exceed1/16" when cutting wood wider than 1-1/2".
CAUTION: MAKE SURETHE SWITCH IS OFF AND THE CORD IS
UNPLUGGED BEFORE PERFORMING THIS CHECKA
2. Fence Adjustment
The fence can be adjusted to cut angles from 0'’ to45'’ , Stop pinsallow
automatic setting to 0'’, 22-1/2'’, 30'’ , or 45'’ in either the inboard or
outboard direction
TO ADJUST: Loosen fence lock knobs and lift the stop pins out and
turn to lock out. Move the fence to the desired angle. If it is one of the
commonly used angles listed above, releasethe stop pins andthey will
pop into placewhen the correct angle is reached, Tighten the fence
lock knobs to lock the fence in place. For a less common angle or to
fine tuneto an angle less than the 5'’ divisions on the fence segment.
Pull and lock out the stop pins and use the 0'’ to 5'’ scale on the tilt
indicator to setthe exact angle desired.
a. FOR OUTBOARD TILT add the readingon the tilt indicator to the
readingon the fence segment.
b. FOR INBOARDTILT subtract the tilt indicator reading from the
reading on the fence segment. Always tighten the lock knobs to
maintain the desired setting.
STOP P&
FENCESE
3. Cutter Guard
The cutter guard provides protection over the cutter head. It must
always be in placeand functioningproperly. CAUTION:IF THE CUTTERGUARD FAILSTO
OPERATE PROPERLY, THE CUTTER GUARD
RETURN SPRING WILL NEED REPLACING
CONTACT YOUR NEARESTSEARS STOREOR SERVICE
TIONS BEFORE USING THE JOINTER-PLANER
A
CENTER FOR REPLACEMENT SPRINGAND INSTRUC-
Check the guard to make sure it is functioning properly,
a. Pass a 1/4" thick piece of wood overthe cutter head between the
guard and fence. The guard mustreturn automatically.
b. Openthe cutter guard all the way until it stops and release it several
times. It shouldalways return to its original posItion
4. Guard Stop
The Craftsman Jointer-Planercomes equipped with a cutter guard
stop assembly to improve safety and reduce risk of injury. Be sureto
read and understand all instructIons in the ASSEMBLYand BASIC
JOINTER-PLANER OPERATIONsections before operating this tool
5. ON-OFF SwItch
The operating positions ofthe ON-OFF switch are located on the front
of your Jointer-Planer. Push the switch up to turn yourJointer-Planer
ON anddown to turn your Jointer-Planer OFF. The switch has a switch
keywhich. when removed, allows the switch to be locked in the OFF
position. To activatethe locking feature pushswitch to OFF position
and pull switch key.
Toturn Jointer-Planer ON after it has beenlocked in the OFF position,
the switch key mustbe replacedin the switch
WARNING:BE SURE SWITCHIS IN THE OFF POSITION
BEFORE PLUGGING JOINTER-PLANER INTO POWER
SOURCE. FAILURE TO DO SOCOULD RESULT IN ACCI-A
DENTALSTARTING CAUSINGSERIOUS INJURY
;WITCH
SWITCH KEY
9

BASIC JOINTER–PLANER OPERATION
For your safety do not exceed a 1/16" deep cut on a planing operation
for workpieces widerthan 1-1/2". For workpieces less than 1-1/2", a
1/8" cut can be taken at a slow feed rate,
This Jointer-Planer is designedwith a specialcutter head and internal
baffle that blows the sawdust and chips from the rear of the machine.
To keepthis system operatingproperly,the motor speed shouldbe
maintained.A feed rate that is too fast will slow the motor down
resulting in a poor chip discharge. The type of wood , woodgrain, and
moisture content of the wood all affect an acceptable feed rate.
CAUTION:MAKE SURETHAT ALL SIX BLADE LOCKING
SCREWS ARETIGHTENED SECURELY BEFOREATTEMPT-
ING TO TURN THE MACHINE ON OR ATTEMPTING ANYA
OPERATION
SettIng the Guard Stop
CAUTION: MAKE SURE THE SWITCHIS IN THE OFF POSI-
TION AND THE CORD UNPLUGGED BEFORE SETTING
THE GUARD STOP.A
The guard stop assembly allowsyou to limit the cutter guard opening
during operation and can be adjusted to prevent the cutter guard from
opening when the Jointer-Planer is not in use.
As a Safety Cover
When the Jointer-Planer is not in use, rotate the guard stop and knob
clockwise until it contacts the cutter guard andlock the knob.
DurIngOperatIon
1. With the Jointer-Planer switch in the OFF position and the cord
unplugged place a workpiece of the size to be used on the infeed
table
2. Loosen the guard stop knob and passthe workpiece between the
fence and the cutter guard and through the cutter area until the
cutter guard is rotatedasfar as this workpiecewill require
Feeding the Workpiece
Hold the board firmly DOWN on bothtables and AGAINST the fence,
Keep fingers close together.
Feed the board ata continuous even rate of speed until the cut is made
along the entire length ofthe board. Any hesitationor stopping could
causea “step” to be cut on theedge of the board. This could causethe
board to ride up on the outfeed table, resulting in a “crooked” edge on
the board AlhBT T
PIECE : FEED
Start with the left hand in the forward position.As the RIGHT hand
passes over the cutter head, remove the LEFT hand,,.CONTINUE
feeding while placingthe LEFT hand behind the RIGHT.Continue
feeding in this manner “hand overhand,” until the entire length of the
board is cut. Pressure should be applied over the cutter head and
outfeedtable.
DO NOT FEED TOO FAST. A slow steady rate of feed produces a
smooth accurate cut. Feeding too fast causes a“rippled" cut, makesit
difficult to guide the workpiece accurately and could be hazardous
For your own safety, ALWAYS use holddown/pushblocks when
JOINTING wood that is NARF30WEF3 than 3" or when PLANING
WOODTHAT IS THINNERthan 3"
Do not plane, joint or bevel woodshorterthan12". Material this short is
moredifficult to control while being cut. Smallpiecesof wood can tiP
over on the tables or into the cutter head and can be kicked back
towardyou
For best results, take light cuts. For average planing, jointing, or
beveling, a cut between 1/32" and 1/16"deep will produce the best
results
3. Rotatethe guard stop and knob clockwise until it contacts the
cutter guard and lock the knob. To prevent binding or pinchingl
some clearance will be required between the guard stoP and the
cutter guard.
4. The guard stop is nowset to cutworkpiece of the samewidth as the
sampleusedin the setup
5. Be sure to use this procedure whenever using the Jointer-Planer
andlock the cutter guard in thefutly closedposition whennot in use
to prevent injury to anyone unfamiliarwith this toOI. Failure to do so
may result in seriousinjury
Always feedWITH THE GRAIN wheneverpossible.If the nature of the
workpiece is such that it must be fed AGAINST THE GRAIN, take very
light cuts and feedslowly
H AFnaVtR-HAND
jb\: \-\b_
qb
10

WARNING: NEVER PLACE THE HEEL OF YOUR HAND AT
ATHE END OF THE WORKPIECEWHEN FINISHING A CUT.
THIS COULDRESULTIN YOURHANDCOMINGIN CON-
TACT WITH THE CUI-FER,CAUSINGSERIOUS INJURY
At the end of the cut, position your hand on TOPNEARTHE END of
the workpiece and continue feeding with workpiece until the cutter
guard has returned to Its closed position
\
WRONG RIGHT
UsIng Hold Down/PushBlocks
ALWAYS use the hold down/push blocks when JOINTING wood that
is NARROWER than 3" or PLANING wood that is THINNER than 3"
Grasp the hold down/push blocks firmly with the fingers close togeth-
er and wrappedaround the handle. Position them flaton top of work-
piece, and push the workpiece down against the table to provide a
quality cut and minimizethe chance of a kickback
Hold down pressure must be sufficient to prevent hold down/push
block from sliding or slipping on the surface ofthe workpiece when
advancing workpieceover cutter head
Use a hand-over-hand motion of the hold down/push blocks being
careful to maintain control of the workpiece at all times
This means that oncethe workpiece has passed the cutter head onto
outfeed table, one hold down/push block mustalways maintain con-
tact with the workpiecewith the outfeedtable
When planing wood 3/4" thick and NARROWERthan the hold down/
pushblock, tilt the hold down/push block so that it clears the top ofthe
cutter guard while feeding
Never plane woodthat is thinner than 1/2" because it is apt to split or
shatter and thus has a greater tendency to kickback
CAUTION: IF THE HOLD DOWN/PUSHBLOCKSTEND TO
SLIPWHILE FEEDING, CLEAN RUBBERSURFACEIMME-
DTATELYWITH SANDPAPERA
Beveling and Chamferlng
The fence on your jointer-planer is adjustable from 45'’ inboard to45'’
outboard. Adjust the fence to desired angle and tighten lock knobs.
STRAIGHT OUT
POSITION OUTBOARD TILT
BEVELING is the cutting of an angle on the entireedge of a board.
Beveling may requireseveralpasses due to the depth of cutneeded to
bevelthe entire edge of board. INBOARD
T1 LT
BEVEL
EDGE
CHAMFER
EDGE CHAMFERING is removing only the cornerof the edge Of a board
N'rmally a charnfer is made with one Cut;therefore.aCUt deeper than
1/16” may be made.
11

For bevettngand chamfering operations, follow the same proc.e-
dure as for jointing and planing described on pages 10 and 11
Before performing these operations make surethe surface of the
workpiece that contacts the fence is flatand smooth. Maintain firm
control of the workpiece atall times, holding it firmly againstfence
surface and tablesurfaces
\\ i X-\ n}\
Ice:?)
=\ Use hold down/push blocks for woodunder 3" wide. PosItion them
so you have control of the workpiece atall times and sothey do not
contact the guard or the cutter head
Using a Wet–Dry Vac
Your Jointer-Planerhas a rear chip exhaust that fits all Craftsman
Wet-Dry Vacs with a 2-1/2" hose. A 2-1/2" to 1-1/4" hoseadapter is
supplied with the machine for 1-1/4"hose connections.Attaching a
Craftsman Wet-Dry Vac will keepyour work area cleaner. Crafts-
man Wet-Dry Vacs are availablethrough Sears Catalogue and
Retail Stores.
WARNING: DO NOT REMOVE CHIPDEFLECTOREVEN
IF VACUUM HOSEREMAINS PERMANENTLYATTACHED
TO MACHINE,NEVERLEAVE HOSEON MACHINE DUR-
ING OPERATION IF A VAC ISNOT USEDDURINGOPERATION
OR THE HOSE AND MACHINE WILL CLOG WITH CHIPS.
ACHIP
VACUUM PORT
MAINTENANCE
Timing Belt Replacement
1. Unplug your Jointer-Planer and put switch in OFF position
DANGER, FAILURE TO UNPLUG YOUR JOINTER-
PLANER COULD RESULT IN ACCIDENTAL START-
NG, CAUSINGSERIOUS iNJURY
A
2Remove access cover plate by loosening two pan head screws
under the machine and one located under the cutter guard,
being careful not to damage or disconnect the switch wiring.
DO NOT removecutter guard or guard spring from access
cover
REMOVE
3. Remove old timing belt by turning belt and maintainingout-
ward pressure.
4. Replace with newtiming belt by turning belt and maintaining
inward pressure. NOTE: Makesurefull width of belt is on both
pulleys, REPLACE
Cutter Guard Return Spring
DO NOT LUBRICATE THE PIVOTPOINT OF THE CUTTER
GUARD
ACAUTION: IF THE CUTTERGUARD FAILSTO OPERATE
PROPERLY (SEE “CONTROLS AND ADJUSTMENTS’' SEC-
TION), THE CUTTER GUARD RETURN SPRING WILL NEED
VICE CENTER FOR REPLACEMENT SPRING AND INSTRUCTIONS
BEFORE USING THE JOINTER-PLANER
A
REPLACING. CONTACT YOUR NEAREST SEARS STORE OR SER-
Oil and lubricating products may contain chemicals that can damage
and/or destroy the cutter guard or other plastic parts.
12

Blade Replacementand Adjustment
NOTE: To rotate the cutter head or to hold it steady,use a screw-
driver in the slot in the cutter shaft through the small hole in the rear
of the machine just above the vacuum port. BLADE
CLAMP\-
1. Unplugyour Jointer-Planer and put switch in OFF position.
DANGER:Failure to unplugyourJointer-Planer could result in
accidental starting causing seriousInjury.
CUTTER
HEAD
WOOD
BLOCK
CLAMP
SB_BEW
2. Block the cutter guard open.
3. Using the 5/32" hex key (Allen wrench), remove the three (3)
blade lock screwssecuring blade andblade clamp. CUTTER
GUARD
4. Lift blade and blade clamp from cutter head
5. Cleanany sawdust from cutter head and any parts you have
removed CLrrrER
6. Place blade clamp against the replacement blade and replace
in cutter head with the (3) blade lock screws. NOTE: Retighten
blade lock screwsso thatthe blade is held by friction but still
allows for blade movement. .ADE CLAMP
7. Placea straightedge across the outfeed table and across the
cutter head opening.
BLADE
LOCKSCR
8. Rotatethe cutter head until the bladecontacts the straightedge
(rotate backward to preventdamage to the cutting edge), A
properly adjusted blade will lightly tick (touch) the straight-
edge NOTE:Check blade height at bothends of blade, After the first one is adjusted, repeat for secondblade
9. BLADE TOOHIGH: if the straight edge is lifted by the blade, it
mustbe lowered. Tap the blade lightly with a scrap piece of
woodto lower it. CHIP DISCHARGE/VACUUM
10. BLADE TOO LOW: if the blade does not touch the straightedge
it should be raised. Pry 'the lower edge of the blade with a
screwdriveragainstthe edge of the outfeed table. Always pro-
tect the edge of the table with a scrap of wood or piece of
cardboard
BACK SIDEOF
MACHINE
STRAIGHT
EDGE
11. Tightenblade lock screws,
12- Recheck blade adjustment. making sure blade is still level with
outfeed table
13. Recheck screwsto be surethey are secure
bUTFEEDTABLE
DANGER: FAILURE TO TIGHTEN BLADE LOCKSCREWS
COULD RESULTIN SERIOUSINJURY
A
General Maintenance
Keep your Jointer-Planerclean and adjusted properly for maxi-
mum performanceand longevity ofthe machine. Do not allowpitch
to accumulateon the tables, fence, cutter guard, or blades,Clean
them frequently.
DO NOT allowanything to obstruct the chip discharge outlet or
disturb the airflow produced by the cutter head
If the chip discharge of your Jointer-Planer clogs with chips, turn
the switch OFF and UNPLUG the unit to avoid accidental starting
Dislodge the chips and debris with a pencil or small wood daweI
Whenresuming operation with the same workpiece,feedat aslow-
er rate to avoid reclogging, Use of a Wet-Dry Vac will virtually
eliminate the chances of clogging
WARNING:DO NOT AT ANYTIME LETBRAKE FLUIDS.
GASOLINE, PENETRATING OILS. ETC., COMEIN CON-
TACTWITH PLASTICPARTS. THEYCONTAIN CHEMI-
A
CALS THATDAMAGEAND/ORDESTROYPLASTICS
13

REPAIR PARTS a)
$(3 a)
a~
Cr)
00
a
00
r
in
eD
Cy
aS
V
rd
Z
J
IU
a
0
E
ac
IU
Z
<
J
nb
I
ac
IU
b
Z
==
0
A
=
C)
2
•Hll••l
I
la
Z
<
E
Ul
b
IL
<
ac
Q
\\
)
CN
b10
a
a)\ VIbeb
–-–\ LI
ali\8
//
II
E
Dbi
\
a)
a)
/
1[][p1:::k\ N
+ +
/b
q/%
(\I
14

CRAFTSMAN 5-INCH JOINTER-PLANER MODEL No. 149.285180
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
4550-001 -70
4550-011 -70
2292-075-90
1791-001-00
1727-001 -00
STD541 025
4550-050-70
STD551 237
STD541 237
4550-051-70
2292-059-00
2292-046-00
4550-090-90
2292-027-00
4550-093-70
4550-092-70
4550-091-70
STD502505
4550-044-90
STD55121 O
STD51 1003
STD5031 05
1714-002-00
STD610805
STD510805
STD551208
4550-220-90
4550-046-70
4550-221-00
STD501002
2292-021-00
STD522505
2292-064-00
2292-069-00
2292-032-00
2292-029-00
4550-094-70
4550-041-70
2292-067-00
2292-068-00
STD51 1007
STD55101 O
4550-120-70
CFI
PARTNO. 1 DESCRIPTION
Base
Infeed Table
RockerLink Hinge
11/32 ID x 9/32 OD x 1/32 Washer
*1/4-20 x 1-1/4 Socket Set Screw
1/4-20 Hex Nut
Hand Knob
3/8 External Tooth Lockwasher
3/8 Hex JamNut
Table Screw
Table Spring
8 mm Shaft“E” Clip
Cutter Head Assembly, Includes Ref 14-18
1/4-20 x 1/2 Socket Button Head Screw
Blade Clamp
Blade
Cutter Head
1/4-20 x 1/2 SocketSetScrew
Chip Chute/Baffle Assembly
#10 External Tooth Lockwasher
#10-24 x 3/8 Pan Head Machine Screw
5/16-18 x 1/2 Socket Set Screw
1/4-20 x 3/4 10mm Hex Head Screw
#8 x 3/8 Type B Pan Head Screws
#8-32x 1/2 Pan Head Machine Screw
#8 External Tooth Lockwasher
Motor Assembly, Includes Ref Nos 28-31
MotorHousing
Motor (Northland #73523)
#10-24 x 5/16 Socket Set Screw
MotorPulley
1/4-20 x 1/2 Hex Flange Screw
Motor Bracket
3/16 Cable Clamp, Heyco #3303
XL120 x 3/8 Wide x 12 Timing Belt
Machine Pulley
Cutter Head Shaft
FrontCover
DPST Switch (Includes Ref No 40)
Switch Key {Order for Key Only)
#10-24 x 3/4 Pan Head Machine Screw
#10 Flat Washer
Guard Return Spring
PARTS LIST
REF.
NO.
QTY.
1
1
4
4
2
2
1
1
1
1
1
4
1
6
2
2
1
2
1
7
7
4
4
2
4
4
1
1
1
2
1
3
1
2
1
1
1
1
1
1
6
5
1
PART NO. 1DESCRIPTION
2292-036-00
4550-039-70
4552-254-00
2292-051 -00
2292-05 b00
4550-012-70
2292-016-00
STD31 5205
2292-048-00
STD551 025
STD551 125
STD522507
STD581 018
4550- 121-70
4550- 162-70
4550-161-70
4550-020-70
1699-010-00
4550-163-70
1791-002-00
2292-019-00
STD551 008
STD541 008
4550-040-70
2292-013-00
2288-000-00
2292-044-00
2292-047-00
2292-066-00
2292-010-00
STD51 1005
1699-013-00
4550-036-70
4550-037-70
STD551 031
4550-038-70
STD532507
4800-025-00
4552-047-70
C213-999-70
4552-250-00
4552-252-00
2292-057-00
21 05-039-00
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
Guard Spacer
Cutter Guard
DangerPlate (Order for Label Only)
.260 ID x .440 OD Wave Washer
1/4-20 x 1/2 ShoulderBelt Slotted
Outfeed Table
Fence Bracket
lamm x 30mm Ball Bearing, Double Seals
IC)mmShaft Retaining Ring
1/4 Flat Washer
1/4 Split Lockwasher
1/4-20 x 3/4Hex Head Cap Screw
3/16 Shaft“E” Clip
DetentSpring
Stop Pin
Tilt Indicator
Fence
*#8-32 x 1/2 Flat Head Machine Screw
Fence Segment
9/32 IDx 17/32 ODx 1/8 Washer
1/4-20 x 1 LockKnob
#8 Flat Washer
#8-32Hex Nut
Rear Cover
Chip Deflector
5/32 Hex Key (Allen Wrench)
2-1/2 Male, 1-1/4 Female Vacuurn Adapter
Push Blocks (Order No.W72344)
6’10"Long18/3SJT Cord
Strain ReliefBushing(Heyco#121 4)
#10-24 x 1/2 Pan Head Machine Screw
#8 x 1/4 Thread Forming Screw
Knob, Guard Stop
Guard Stop
5/1 6 Flat Washer
Guard Stop Bracket
1/4-20 x 3/4 Carriage Bolt
Fence Face
BottomCover
Stand Assembly
Sears Craftsman Label(Not lltustrated)
Owner’s Manual (Not Illustrated)
PartsBag (Not Illustrated)
Plastic Cable Tie (Not Illustrated)
QTY.
1
1
1
1
1
1
2
2
1
4
4
4
2
2
2
2
1
10
2
2
2
10
10
1
1
1
1
2
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
'Standard Hardware Item - May Be Purchased Locally

TROUBLE SHOOTING CHART
TROUBLE
Wood strikes outfeed
table after passing over
cutter head
PROBABLE CAUSE
1. Blades improperly adjusted below
surfaceof outfeed table.
REMEDY
1. Re-adjustblades.
2. Infeed table out of adjustment. 2. Contact your nearest Sears store
or service centre.
Rippleson planedsurface. 1. One blade set higher than other.
2. Dull blades.
3. Board not held firmly against fence or
outfeed table
1. Infeed table loose or out of adjustment.
1. Re-adjustblades
2. Re-sharpen or replace.
3, Hold board firmly against fence and
outfeed table
1. Adjust infeed table, see “Maintenance”
section.
2. Re-adjustblades
1. Resetblades
1. Re-adjust fence, see “Assembly”
section
1. Replace spring immediately. Contact
your nearest Sears store or service
centre
Planedsurface not straight.
2. Blades set too low.
1. Blades set too high above outfeed table.
1. Fence and tilt indicators not adjusted
properly.
1. Return springbFoken, or spring
has been weakened.
Excessive gouging at end of cut.
90' and 45' cuts inaccurate
Cutter guard does not
functionproperly.
Chip discharge clogs 1, Obstruction reducingairflow,
2. Cutter head speed too slow.
3. Wood has high moisture content.
1. Work feed speed too fast.
1. Remove obstruction.
2. Decrease feed speed.
3. Decrease feed speed.
1. Decrease feed speed
Cutter slows down
during operation 2. Attempting to remove toomuch material 2. Decrease depth of cut,make
two or more cuts
SEAIR6 s£A/RS/CRnFTSMnN,
owner IS
manual
Service 5-INCH JOINTER-PLANER
Now that you havepurchased your Jointer-Planer, should a need everexist for
repair parts or service, simply contact any Sears Service Centreand mostGears
Canada Inc. stores.Be sureto provide all pertinent facts when you call or visit.
WHEN ORDERING REPAIR PARTS. ALWAYS GIVE THE FOLLOWING INFORMATION
MODELNO
149.285180
STOCKNO
®28518
• PART NUMBER • PART DESCRIPTION
• MODEL NUMBER: • NAMEOF ITEM: 5-INCH
149.285180 JOINTER-PLANER
All parts listedmay be orderedfrom any SearsService Centre andmost Searsstores.
If the parts you need are not stocked locally, your order will be electronically
transmitted to aSears Repair Parts Distribution Centrefor handling
How To Order
Repair Parts
SEARS CANADA INC., TORONTO,ONTARIO, CANADA M5B 2B8
