BATTERY OPERATED
BACKUP SUMP PUMP
•Safety Instructions
• Operation
•Installation
• Troubleshooting
• Repair Parts
'Sears, Roebuck and Co., Hoffman Estates, Ik 60179 U.S.A.
PRINTED IN U.S.A. Form No. F642-9510 (Rev. 5/6198)

CONTENTS
Introduction/Warranty ........................................................ 2
Safety ........................................................ _.......................... 2
Performance ........................................................................ 3
Charger Operation ............................................................... 3
Battery Requirements .......................................................... 4
Installation/Operation ...................................................... 4-5
Electrical ........................................................................... 5_
Service/Troubleshooting ..._.............................................. 6-7
Repair Parts.......................................................................... 7
INTRODUCTION
.-Ple'4_ take a few minutes to read our instructions before in-
stalling your Backup Sump Pump. It will help to assure per-
fect installation and help you avoid needless service
expenses.
IMPORTANT SAFETY INSTRUC-
TIONS for BATTERY CHARGER
I_,WARNING[ Risk of electrical shock, fire, or explo-
sion. Read all instructions in owner's manual and on
charger, pump, and battery before using battery charger.
1. Unplug battery charger before attempting any cleaning.
Turning off controls does not reduce the risk of electrical
shock.
2. Charge only rechargeable 12-volt lead-acid batteries.
Other types may burst when charged with this charger.
3. Do not let charger get wet.
4. Use only attachments recommended or sold by battery
charger manufacturer.
5. When unplugging charger, grasp plug (not cord) to avoid
risk of damage to cord or plug.
6. Locate cord so that it cannot be stepped on, tripped over,
damaged, stretched, or flooded.
7. Do not modify cord or plug.
8. Do not attempt to service charger; it has no user-ser-
viceable parts. If charger is dropped, struck, or otherwise
damaged, take it to a qualified service technician.
SAVE THESE INSTRUCTIONS
RULES FOR SAFE INSTALLATION AND OPERATION
Carefully read and follow all safety instructions in this
manual or on pump.
A This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of the
following signal words and be alert to the potential for per-
sonal injury!
DANGER warns about hazards that will cause
serious personal injury, death or major property damage if
ignored.
[AW_NING]w ING warns about hazards that can
cause serious personal injury, death or major property dam-
age if ignored.
[A CAUTION [CAUTION warns about hazards that will or
can cause minor personal injury or property damage if ig-
nored.
The word NOTICE indicates special instructions which are
important but not related to hazards.
1.To avoid risk of serious bodily injury and property dam-
age, read safety instructions carefully before installing
pump.
2.Follow local and/or national plumbing and electrical
codes when installing pump. Aground fault circuit inter-
rupter (GFCO is recommended for use on any electrical
appliance submerged in water.
2

3.Use this pump only for backup sump pump duty in ares-
idential appfication. It is not designed as aprimary sump
pump.
4la -- lHa o. Vo ¢.Canca € or
I h
fatal electrical shock. Do not plug in or unplug battery
charger while standing on awet floor or in water. Be sure
one hand isfree when pluggingin orunplugging charger.
If basement floor is wet, disconnect power to basement
before walking on floor.
5. Do not lift pump by electrical cord,
6. Pump water only with this pump.
7. Do not run pump dry.To do so will damage seals and can
cause lealdng and property damage.
8. Pump is permanently lubricated at the factory. Do not try
to lubricate it!
9.Keep battery charger and battery box in a dry, cool, well
---ventilated area.
lO.To avoid danger of fire or explosion, keep sparks and
" flame away from battery.
11. [,AWARNING IBattery acid is corrosive. Do not spill on
skin, clothing, or battery charger. Wear eye protection
when working on battery.
12. Maximum vertical pumping distance is 15 feet.
13. Make sure sump is clear of debris.
BASIC TOOLS AND MATERIALS NEEDED
Pipe Wrenches Screwdriver
Hacksaw 1-1/4" Check Valve
Adjustable-Wrench Teflon Tape
Knife 12-volt Battery
GENERAL INFORMATION
The Battery-Powered Back-up Sump Pump is not a substitute
for your primary sump pump. It is designed as a backup
pump to pinch-hit for your primary sump pump during a
power outage or other problem which prevents normal op-
eration. Do not use it to pump flammable fiquids or chemi-
cals.
Keep battery charger dry and protected from damage.
In an emergency (such as an extended power outage)
which depletes the system battery, your automobile battery
-may be temporarily substituted. Be sure to replace the sys-
tem battery as soon as possible.
CHARGER OPERATION
Backup pump will start automatically when sump water
level rises far enough to trip float switch. After a delay, of
about 4 seconds, alai'm will sound. Silence alarm by pushing
ALARM TEST/RESET button. In normal (switch actuated) op-
eration, alarm is locked out until about 4 seconds after float
switch has dropped to OFF position; cycle can then begin
again.
Test alarm by pushing ALARM TEST/RESET button when
alarm is not sounding. Alarm will then sound as long as but-
ton is held down. Pushing ALARM TEST/RESET button to
test alarm overrides lockout, so alarm can be tested at any
time.
If alarm sounds, check operation of primary pump, which
may need service. If battery backup operation is due to a
power outage, alarm will sound, but no service is likely to
be req_,ed to primary pump.
Battery charger has capacity to run pump and charge battery
at the same time as long as power to the charger is not in-
terrupted. If power to charger circuit is interrupted, the
length of time that the backup pump will run depends on
the Ampere-hour capacity of the battery used.
Extended periods of operation (for example, during an ex-
tended power outage) may exhaust the battery. However,
once the load is removed, usually it will self-regenerate far
enough to allow the charger to start. The battery charger will
begin charging the battery as long as the battery has acharge
of at least 1/2 volt, and power is available to the charger.
After power is restored, charger will automatically re-charge
battery fully in about six hours.
NOTICE: Some trouble conditions will cause the alarm to
sound. See chart below for causes and action:
PROBLEM ACTION
Back-up pump has run Push 'Reset'. Check main pump.
Power out more than Disconnect charger from battery.
24 hours Call power company.
Continuous charging Disconnect charger from battery.
more than 24 hours Check for defective battery.
Loose connection or Disconnect charger from battery.
no power to charger Check plug, receptacle, and
power at main breaker.
After restoring power or replacing battery, alarm can be
reset.
• Purchaselocal.

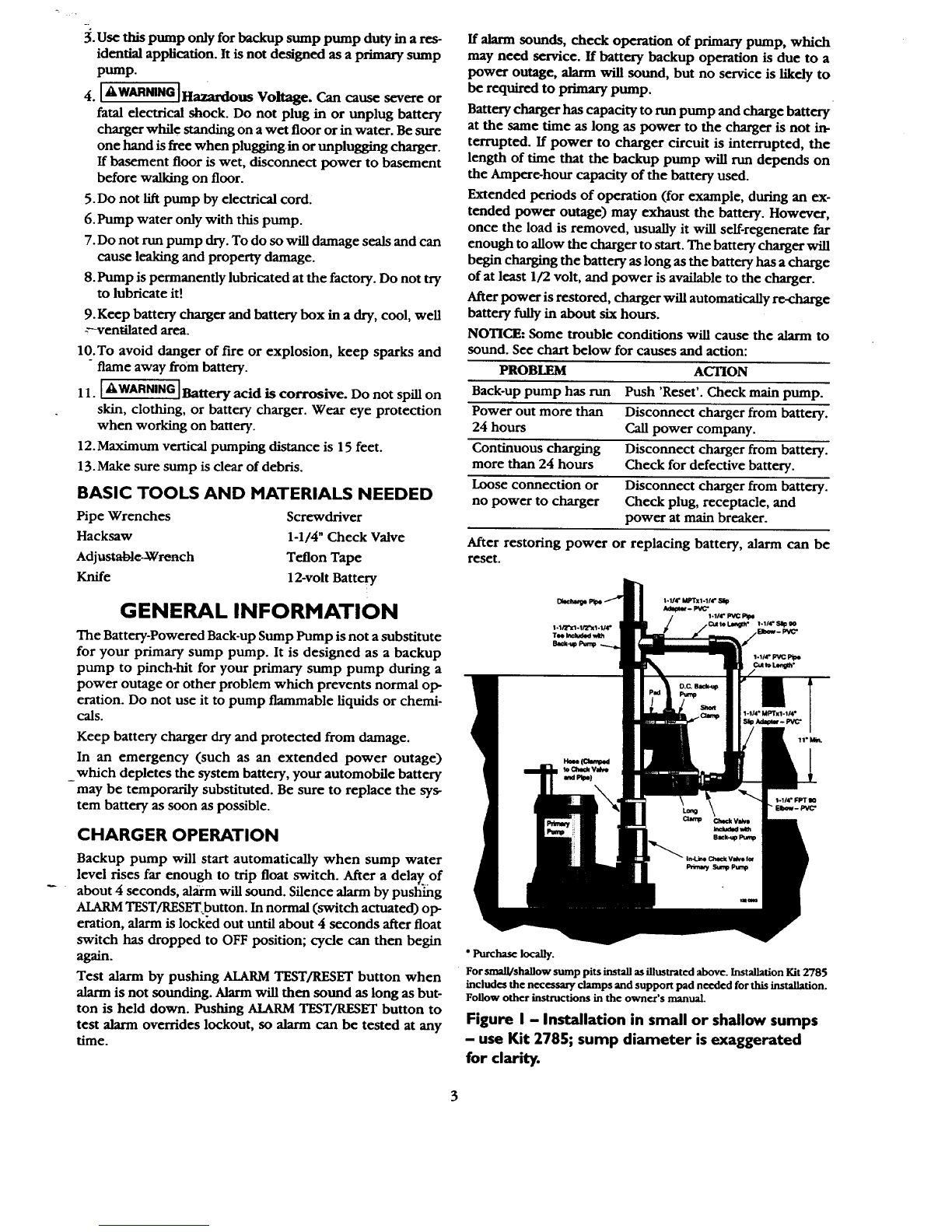

For small/shallow sump pits install as illustrated above. Installation Kit 2785
includes thenecessaryclamps andsupportpad needed forthisinstallation.
Follow other instructions in the owner's manual
Figure I - Installation in small or shallow sumps
- use Kit 2785; sump diameter is exaggerated
for clarity.

TABLE I Performance Chart/Sears Diehard Size 24M or 27M
VERTICAL PUMPING DISTANCE
8 FEET 10 FEET 12 FEET
Battery Size -- 27M 24M 27M 24M 27M 24M
Gallons Per Minute 18.0 18.0 14.5 14.5 11.5 11.5
Hours Available 9.6 8.3 9.9 8.3 6.8 5.7
Total Gallons Pumped 7,212 6,055 5,557 4,939 3,727 3,189
How through this check valve must be away from the
main sump pump; don't install it backwards! This
check valve will prevent recirculation into the sump
during battery-powered pump operation.
5. Cut rigid discharge pipe from primary sump pump to
length. Use PVC piping. Tee supplied is 1-1/2" slip fit; if
necessary use 1-1/4" bushings supplied.
NOTICE: Use any tee that fits sump pump discharge line;
the adapter that is supplied (Key No. 10, Page 7) will fit
any galvanized or plastic 1-1/4" tee. Do not glue the tee
until all parts have been trial fitted.
6.Thread adapter into tee (Figure 2B). When installed,
molded-in 'up' should be on top.
7.Install backup pump check valve in adapter. Tab on
backup pump check valve fits into notchat top of
adapter.
8. For trial assembly, slip pump into backup pump check
valve to check pump mounting height and to make sure
that there is no interference with float switch operation
on either pump; be sure floats will not rub on side of
sump, catch between pump and sump wall, interfere
with each other, etc.
9. Remove pump from adapter; remove tee.
lO.Using PVC glue, permanently reinstall tee in primary
sump pump discharge pipe.
BATTERY REQUIREMENTS
IAkWARNING IHazardous electrical current. Can cause se-
vere burns and start a fire if battery terminals are short cir-
cuited. Install battery in box. To prevent accidental shorting
across battery terminals, strap cover securely on battery box.
Do not leave battery uncovered. Do not allow children to
;-play around sump pump installation.
Your Backup Sump Pump depends on the battery used with
it for power. The better the battery, the better the perfor-
mance of the pump. We recommend use of a SEARS DieHard
Size 27M or 24M Deep-Cycle Marine battery. This battery
will perform well for many hours and stands up well to long
periods of little or no use.
In an emergency a SEARS DieHard Size 27M or 24M standard
automobile battery may be used. However, an automotive
battery may require charging after only 1 to 2 hours of con-
tinuous use, and the repeated charging cycles may cause
early plate failure in the battery.
Use ordy a new, fully charged battery that will fit in the bat-
tery-box.(maximum size 12-5/8" long, 7" wide and 9-3/8"
high including terminals).
PU M P INSTALLATION
and OPERATION
NOTICE: We recommend a trial fitting of all components
before gluing anything. This will allow you to check pump
mounting height, float switch clearance, etc., while adjust-
ments can still be easily made.
1.Mark side of sump six inches down from top.
2. Fill sump until primary sump pump starts; normal high
water level should not be above mark made in step 1. If
it is higher, backup float switch may not swing far enough
for proper operation. To lower high water level, adjust
switch on primary sump pump. See primary pump
owner's manual.
3. Drain sump. Measure down 11 inches from top of sump;
mark this point on side of sump. Install tee with center of
threaded inlet at least this far below top of sump to allow
sufficient room for float switch to swing (see Figure 2A).
4. Make sure that installation will not interfere with primary
sump pump operation as follows:
A. Backup pump installation must not interfere with pri-
mary sump pump float switch swing.
B. Normal high water level must never be high enough
to start backup sump pump.
C. Install a check valve (SEARS Stock No. 2789) in the
main sump pump discharge pipe between the pump
and the backup mounting tee (see Figures 2A and 2B).
6" Min. t
(152mm)
Figure ZA - Standard Installation
Grounded
Electrical
Outlet
11" Min.
(279mm)
13801194

[AWARNING[Hazardous fumes. Follow cement manu-
facturer's instructions. Use PVC cement only in a well
ventilated place away from fire or flame.
11.Put clamp on adapter;, leave loose. Mount check valve in
adapter; thread ag_nbly into tee.
12.Slip pump into check valve. Tighten clamp.
1-1/2x1-1/2x1-1/4
L__JZ5 /Tee" PVC /
/Pipe Check
_/ ,r ValveC: ]
[_-l,q_-- ReducerBushing(2 Supplied)
r---ll
.@_-_- Main PumpDischargePipe
_---,_
i *':_ l'€-- CheckValveto Prevent
j, I RecirculationintoSump
I u I
L.... J
Figure 2B - Installation Diagram
13. Make sure battery is fully charged; then check operation
by disconnecting power to primary sump pump and fill-
ing sump until Backup Sump Pump starts. Run Backup
Pump through one complete cycle.
ELECTRICAL CONNECTIONS
IAWARNINGIE[aZardous voltage. Can cause serious or
fatal electrical shock. Review safety instructions, Page 2, be-
fore operating charger.
If your outlet is not grounded, install a copper wire (at least
14 gauge) from the outlet box to a cold water pipe. Use
ground clamp on pipe. BE SURE that the cold water pipe
used has metal continuity to electrical ground. Battery
charger is double insulated. DO NOT modify cord or plug.
CHARGER/BATTERY INSTALLATION
NOTICE: Alarm will sound when charger is first connected
to battery. Press ALARM TEST/RESET button on charger. If
alarm continues to sound, disconnect one charger lead from
-the battery and reconnect it. Press ALARM TEST/RESET
again; alarm will stop sounding.
1. Connect charger as shown in Figure 3.
A. Connect Positive (+) lead from charger to positive battery
post.
B. Connect Negative (-) lead from charger to negative bat-
tery post. ".....
C. Third lead from c lMa'ger is factory connected to lead from
pump motor/float switch.
NOTICE: If charger is connected backwards, pump will
not operate properly, battery will not charge.
2. Plug in power cord to a 115-125 Volt AC outlet delivering
at least 2 amps. Do not use a switch controlled outlet.
Mark circuit in main power panel =Backup sump pump
power supply; do not turn off'.
3. With charger properly connected and plugged in, the
panel on the front of the charger will appear as in one of
the following:
A. If battery is dead, charger will supply about 10 amps
"power (see Figure 4A).
B. If battery is near full charge, charger will deliver about
5 amps power (see Figure 4B).
Black
Brown
Black
Batten#Clamp
Positive
(Black Iv/
Red Tracer)
1411 1104
Figure 3 - Wiring Connections
A.
BD
CI
1413 1194
Figure 4 - Battery Backup Control Panel
/L Battery depleted -chargingcurrent 10 amps.
B. Battery nearly charged - current about 5 amps.
C. Charge complete - current 0 amps, LED lightsup.

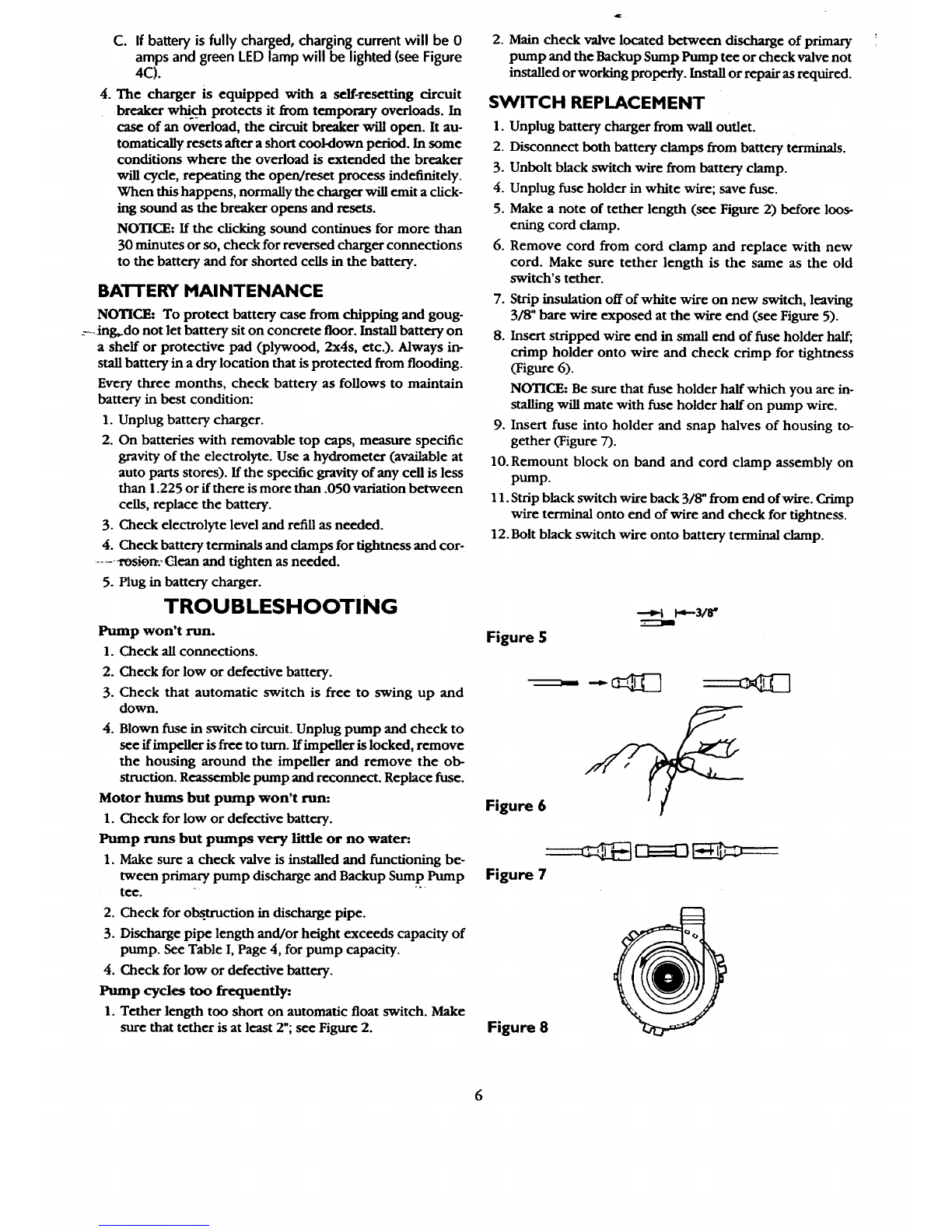

C. If battery is fully charged, charging current will be 0
amps and green LED lamp will be lighted (see Figure
4C).
4. The charger is equipped with a self-resetting circuit
breaker whi_ch protects it from temporary overloads. In
case of an overload, the circuit breaker will open. It au-
tomatically resets after a short cool-down period. In some
conditions where the overload is extended the breaker
will cycle, repeating the open/reset process indefinitely.
When this happens, normally the charger will emit a click-
ing sound as the breaker opens and resets.
NOTICE: If the clicking sound continues for more than
30 minutes or so, check for reversed charger connections
to the battery and for shorted cells in the battery.
BATTERY MAINTENANCE
NOTICE: To protect battery case from chipping and goug-
:--ing,.do not let battery sit on concrete floor. Install battery on
a shell or protective pad (plywood, 2x4s, etc.). Always irv
stall battery in a dry location that is protected from flooding.
Every three months, check battery as follows to maintain
battery in best condition:
1. Unplug battery charger.
2. On batteries with removable top caps, measure specific
gravity of the electrolyte. Use a hydrometer (available at
auto parts stores). If the specific gravity of any cell is less
than 1.225 or if there is more than .050 variation between
cells, replace the battery.
3. Check electrolyte level and refill as needed.
4. Check battery terminals and clamps for tightness and cor-
.... _rosion_: Clean and tighten as needed.
5. Plug in battery charger.
TROUBLESHOOTING
Pump won't run.
1. Check all connections.
2. Check for low or defective battery.
3. Check that automatic switch is free to swing up and
down.
4. Blown fuse in switch circuit. Unplug pump and check to
see if impeller is free to turn. If impeller is locked, remove
the housing around the impeller and remove the ob-
struction. Reassemble pump and reconnect. Replace fuse.
Motor hums but pump won't run:
1. Check for low or defective battery.
Pump runs but pumps very little or no water:
1. Make sure a check valve is installed and functioning be-
tween primary pump discharge and Backup Sump Pump
tee. ".....
2. Check for obstruction in discharge pipe.
3. Discharge pipe length and/or height exceeds capacity of
pump. See Table I, Page 4, for pump capacity.
4. Check for low or defective battery.
Pump cycles too frequently:
1. Tether length too short on automatic float switch. Make
sure that tether is at least 2n; see Figure 2.
2. Main check valve located between discharge of primary
pump and the Backup Sump Pump tee or check valve not
installed or working properly. Install or repair as required.
SWITCH REPLACEMENT
1. Unplug battery charger from wall outlet.
2. Disconnect both battery clamps from battery terminals.
3. Unbolt black switch wire from battery clamp.
4. Unplug fuse holder in white wire; save fuse.
5. Make a note of tether length (see Figure 2) before loos-
ening cord clamp.
6. Remove cord from cord clamp and replace with new
cord. Make sure tether length is the same as the old
switch's tether.
7. Strip insulation off of white wire on new switch, leaving
3/8" bare wire exposed at the wire end (see Figure 5).
8. Insert stripped wire end in small end of fuse holder half;
crimp holder onto wire and check crimp for tightness
(Figure 6).
NOTICE: Be sure that fuse holder half which you are in-
stalling will mate with fuse holder half on pump wire.
9. Insert fuse into holder and snap halves of housing to-
gether (Figure 7).
10. Remount block on band and cord clamp assembly on
pump.
11. Strip black switch wire back 3/8" from end of wire. Crimp
wire terminal onto end of wire and check for tightness.
12. Bolt black switch wire onto battery terminal clamp.
Figure 5
--'_t t-_--3/8"
Figure 6
Figure 7
Figure 8
6

13. Reinstall battery clamps:
A. Black switch wire damps to positive battery terminal.
B. Black pump wire clamps to negative battery terminal.
NOTICE: DO NOT reverse terminal connections.
14.Turn pump upside down; unclip and remove screen. Do
not remove screw-mounted bottom plate. Lift switch to
momentarily "bump _pump. Check for correct operation
and rotation (pump must rotate counter-clockwise
when looking at end of shaft - Figure 8). If not, reverse
wires to battery and recheck.
15. Replace screen.
16.Plug in charger to wall outlet.
17.Fill sump with water and check switch action. Adjust
tether if necessary.
IA CAUTION IDONOTtest run pump for more than
5 seconds without water in it. Running pump dry for
extended periods could damage pump and voids war-
ranty.
Craftsman Battery Backup Sump Pump
Model 390.306062
6A 6B
12
/
Brown
Negative
BatteryClamp
y Clamp
1412 1194
Key No.
1
2
3
4
5
6A
6B
7
8
9
10
11
12
REPAIR PARTS LIST
Part No. Part Description
PS217-5E
PS17-41
CC0030-13
U17-1148
U17-1149
PS17-100
PS117-77A
PS22-1
PS78-3P
U78-846P
U78-876P
SwitchAssembly#
PumpComplete***
CordClamp
FuseHolder
15-AmpTime-DelayFuse(2 suppliedt)
WireTerminal(4 Req.)
BatteryTerminalClamps(2 Req.)
BatteryCase(includesstrapandstrapbrackets)
.Charger***
CheckValve
HoseClamp1"min.- 2"max.S.S.
PipeAdapter
Tee 1-1/2x 1-1/2x 1-1/4PVC
ReducerBushing(2 Red.)
# Whenordering,alsoorderKeyNos.4 (FuseHolder)and5 (Fuse)requiredfor installation.
* Notillustrated.
** StandardHardwareItem;purchaselocally.
*** Nocomponentpartsavailablefor pumporbatterycharger.
1Secondfuse issuppliedas spare.

SEAI?S
OWNER'S
MANUAL
Model No.
390.306062
The model number of
your Backup Sump Pump
will be located on the
pump, not the battery
charger.
When requesting service
or ordering parts, always
give the following
information:
•ProductType
•Model Number
• PartNumber
•PartDescription
CRAFTSMRN°
BATTERY OPERATED
BACKUP SUMP PUMP
Fortherepairorreplacementpartsyouneed
Call 7am - 7 pm,7 daysaweek
1-800-366-PART
(1-800-366-7278)
Forin-homemajorbrandrepairservice
Call24 hoursa day,7 daysaweek
1-800-4-REPAIR
(1-800-473-7247)
Forthe location of a
SearsRepairServiceCenterin yourarea
Call24 hoursa day,7 daysa week
1-800-488-1222 I|BB||
Forinformationonpurchasinga Sears
MaintenanceAgreementor toInquire
aboutanexistingAgreement
callg am- 5 pro,Monday-Saturday
....1-800-827-6655
SF.4RS
+t4r_.,rl;l,'y=flql+,i
_ _- Sears, Roebuck and Co., Hoffman EstatesTIL 60179 U.S.A.
